3-52 — BRAKE PIPING; OIL,FRONT (#47332) — 182 parça

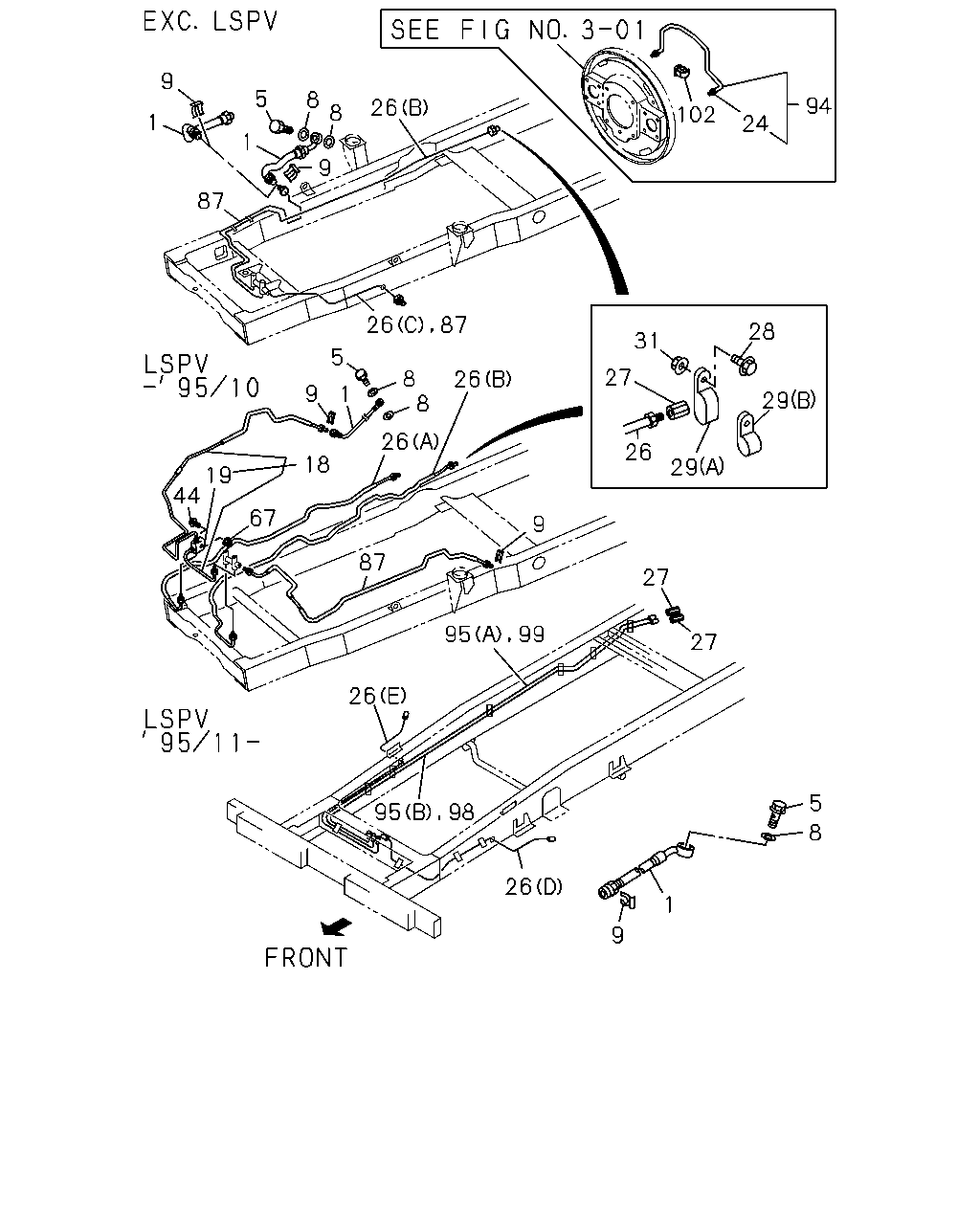

çizim 16274
9 5 8 94 26 8 102 1 24 1 9 87 26 87 28 31 5 27 8 8 26 9 1 29 26 26 18 29 19 44 67 9 87 27 95 99 27 26 95 5 98 8 26 1 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.680 HOSE; FLEX,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97035-063-0 02 1 9403-9409 ● ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97035-063-0 02 1 9410-9508 ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97035-063-0 02 1 9410-9508 ●
1 04.680 HOSE; FLEX,FRT BRK
4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) 		8-97035-063-0 02 1 9410-9508 ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97035-063-0 02 1 9509- ● ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) 		8-97035-064-0 02 1 9312-9510 ● ●
1 04.680 HOSE; FLEX,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) 		8-97035-064-0 02 1 9511- ●
1 04.680 HOSE; FLEX,FRT BRK
4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) 		8-97039-543-0 02 1 9410-9508 ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) 04.665 M10X22 		5-09675-017-0 02 1 9312-9510 ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) 04.665 M10X22 		5-09675-017-0 02 1 9511- ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 9312-9510 ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 9511- ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 9312- ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.681 		8-94137-662-0 02 1 9312- ● ● ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97092-864-0 01 1 9312-9510 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 		8-97106-496-2 01 1 9507-9510 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97103-603-0 01 1 9312-9312 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4BE1 ENG(RLH) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97103-603-1 01 1 9401-9510 ● ● ●
19 04.686 UNION; OIL PIPE
BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) M10 3WAY 		9-09227-305-0 01 1 9312-9312 ● ●
19 04.686 UNION; OIL PIPE
4BE1 ENG(RLH) BRK WHL LK CONT LSPV<6PH> M10 3WAY 		9-09227-305-0 01 1 9401-9406 ● ● ●
19 04.686 UNION; OIL PIPE
BRK WHL LK CONT LSPV<6PH> M10 3WAY 		9-09227-305-0 01 1 9407-9506 ● ● ●
19 04.686 UNION; OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) M10 3WAY 		9-09227-305-0 01 1 9407-9506 ●
19 04.686 UNION; OIL PIPE
4BE1 ENG(RLH) BRK WHL LK CONT LSPV<6PH> M10 3WAY 		9-09227-305-0 01 1 9507-9510 ● ● ●
19 04.686 UNION; OIL PIPE
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) M10 3WAY 		9-09227-305-0 01 1 9507-9510 ●
24 04.686 NUT; UNION,OIL PIPE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.963 		9-09217-625-0 04 1 9312-9409 ● ● ● ● ● ●
24 04.686 NUT; UNION,OIL PIPE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.963 		9-09217-625-0 04 1 9410- ● ● ● ● ●
24 04.686 NUT; UNION,OIL PIPE
EXC. INDONESIA EQUIPMENT(S4S) 08.963 		9-09217-625-0 04 1 9410- ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 04.685 (A) 		8-97092-865-0 01 1 9312-9510 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 04.685 (B) 		8-97093-657-0 01 1 9312-9510 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97090-716-2 01 1 9507-9510 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97113-750-2 01 1 9507-9510 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 04.685 (D) 		8-97070-291-5 01 1 9511-9707 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97185-254-0 01 1 9708- ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 04.685 (E) 		8-97123-265-3 01 1 9511- ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
4BE1 ENG(RLH) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.685 (E) 		8-97122-133-0 01 1 9511- ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
4JG2 ENG(RJC),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.685 (E) 		8-97122-132-0 01 1 9511- ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97103-602-1 01 1 9312-9510 ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97103-604-0 01 1 9312-9510 ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
4BE1 ENG(RLH) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97103-604-0 01 1 9511- ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
FRT INDEPENDENT SUSPENSION(6PP) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97035-663-3 01 1 9312-9510 ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97092-863-2 01 1 9312-9312 ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
(B) 		8-97092-863-2 01 1 9312-9312 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. AUSTRALIA EQUIPMENT(RR3),FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97092-863-4 01 1 9401- ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
(B) 		8-97092-863-4 01 1 9401- ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97139-862-0 01 1 9712- ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. REAR WIDE TREAD(V4T) (B) 		8-97100-787-0 01 1 9312-9510 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
FRAME-KICK UP<7EW> (B) 		8-97100-787-0 01 1 9511- ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
4BE1 ENG(RLH) BRK WHL LK CONT LSPV<6PH> (B) 		8-97105-404-2 01 1 9312- ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
4BE1 ENG(RLH) BRK WHL LK CONT LSPV<6PH> (A) 		8-97105-405-2 01 1 9312-9510 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
4BE1 ENG(RLH) REAR WIDE TREAD(V4T) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97106-672-0 01 1 9312- ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
4BE1 ENG(RLH) (B) 		8-97106-672-0 01 1 9312- ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
4JG2 ENG(RJC) REAR WIDE TREAD(V4T) EURO2 SPECIFICATION<7AF> EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> (B) 		8-97161-330-0 01 1 9607- ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
4JB1 ENG(RLF),4HF1 ENG(RLS) (B) 		8-97101-347-1 01 1 9312-9510 ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> (B) 		8-97101-347-1 01 1 9511-9606 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
4JB1 ENG(RLF),4HF1 ENG(RLS) (B) 		8-97101-347-1 01 1 9511-9606 ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. BRK WHL LK CONT LSPV<6PH>,EURO2 SPECIFICATION<7AF>,FRAME-KICK UP<7EW> (B) 		8-97101-347-1 01 1 9607-9702 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) 		8-97101-347-1 01 1 9607-9702 ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. BRK WHL LK CONT LSPV<6PH>,EURO2 SPECIFICATION<7AF>,FRAME-KICK UP<7EW> (B) 		8-97173-706-0 01 1 9703-9711 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) 		8-97173-706-0 01 1 9703-9711 ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. BRK WHL LK CONT LSPV<6PH>,EURO2 SPECIFICATION<7AF>,FRAME-KICK UP<7EW> (B) 		8-97173-706-0 01 1 9712- ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) 		8-97173-706-0 01 1 9712- ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
4JG2 ENG(RJC) (B) 		8-97173-706-0 01 1 9712- ●
27 04.686 UNION; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH> 08.963 M10 STRAIGHT 		9-09227-005-0 01 1 9312- ● ● ● ● ● ●
27 04.686 UNION; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 08.963 M10 STRAIGHT 		9-09227-005-0 02 1 9312- ● ● ●
28 04.686 BOLT; UNION CLIP
M6X25 FLANGE 		0-28080-625-0 01 1 9312-9506 ● ● ● ● ● ●
28 04.686 BOLT; UNION CLIP
M6X25 FLANGE 		0-28080-625-0 01 1 9507-9606 ● ● ● ● ● ●
28 04.686 BOLT; UNION CLIP
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) M6X25 FLANGE 		0-28080-625-0 01 1 9507-9606 ●
28 04.686 BOLT; UNION CLIP
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9607- ● ● ● ● ● ●
29 04.686 CLIP; UNION
BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=16X2 L=20 		9-09535-533-0 01 1 9604-9606 ●
29 04.686 CLIP; UNION
BRK WHL LK CONT LSPV<6PH> (A) ID=16X2 L=20 		9-09535-533-0 01 1 9604-9606 ● ●
29 04.686 CLIP; UNION
BRK WHL LK CONT LSPV<6PH> (A) ID=16X2 L=20 		9-09535-533-0 01 1 9607- ● ● ●
29 04.686 CLIP; UNION
EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 9312-9506 ● ● ● ● ● ●
29 04.686 CLIP; UNION
EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 9507-9603 ● ● ●
29 04.686 CLIP; UNION
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 9507-9603 ●
29 04.686 CLIP; UNION
03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 9507-9603 ● ● ●
29 04.686 CLIP; UNION
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 03.162 (B) ID=16 L=20 		9-09525-532-0 02 1 9604-9606 ●
29 04.686 CLIP; UNION
EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 9604- ● ● ● ● ● ●
29 04.686 CLIP; UNION
BRK WHL LK CONT LSPV<6PH> (A) ID=16X2 L=20 		9-09535-533-0 01 1 9312-9510 ● ● ●
31 04.686 NUT; UNION CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 9312-9506 ● ● ● ● ● ●
31 04.686 NUT; UNION CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 9507-9606 ● ● ● ● ● ●
31 04.686 NUT; UNION CLIP
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 04.594 M6 FLANGE 		0-91150-106-0 01 1 9507-9606 ●
31 04.686 NUT; UNION CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 9607- ● ● ● ● ● ●
44 04.686 BOLT; JOINT
BRK WHL LK CONT LSPV<6PH> 01.531 M8X25 FLANGE 		0-28080-825-0 01 1 9312-9408 ● ●
44 04.686 BOLT; JOINT
M8X30 FLANGE 		0-28680-830-0 01 1 9409-9409 ● ● ● ● ● ●
44 04.686 BOLT; JOINT
BRK WHL LK CONT LSPV<6PH> M8X30 FLANGE 		0-28680-830-0 01 1 9410-9510 ● ● ●
67 04.686 NUT; UNION
BRK WHL LK CONT LSPV<6PH> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9312-9408 ● ●
67 04.686 NUT; UNION
07.633 M8 FLANGE 		0-91150-108-0 01 1 9409-9409 ● ● ● ● ● ●
67 04.686 NUT; UNION
BRK WHL LK CONT LSPV<6PH> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9410-9510 ● ● ●
87 04.685 PIPE; BRK,5 WAY TO UNION
4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENS ION(6PP) 		8-97100-833-3 01 1 9312-9506 ● ● ● ● ●
87 04.685 PIPE; BRK,5 WAY TO UNION
4JB1 ENG(RLF),4BE1 ENG(RLH) REAR WIDE TREAD(V4T) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97100-833-3 01 1 9312-9506 ●
87 04.685 PIPE; BRK,5 WAY TO UNION
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENS ION(6PP) 		8-97100-833-3 01 1 9507-9510 ● ● ● ● ●
87 04.685 PIPE; BRK,5 WAY TO UNION
4JB1 ENG(RLF),4BE1 ENG(RLH) REAR WIDE TREAD(V4T) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97100-833-3 01 1 9507-9510 ●
87 04.685 PIPE; BRK,5 WAY TO UNION
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENS ION(6PP) 		8-97100-833-3 01 1 9511-9606 ●
87 04.685 PIPE; BRK,5 WAY TO UNION 8-97100-833-3 01 1 9511-9606 ●
87 04.685 PIPE; BRK,5 WAY TO UNION
4JB1 ENG(RLF),4BE1 ENG(RLH) REAR WIDE TREAD(V4T) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97100-833-3 01 1 9511-9606 ●
87 04.685 PIPE; BRK,5 WAY TO UNION
4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97100-833-3 01 1 9511-9606 ● ●
87 04.685 PIPE; BRK,5 WAY TO UNION
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97100-833-3 01 1 9511-9606 ●
87 04.685 PIPE; BRK,5 WAY TO UNION
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENS ION(6PP) 		8-97100-833-3 01 1 9607- ● ● ● ● ●
87 04.685 PIPE; BRK,5 WAY TO UNION
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) REAR WIDE TREAD(V4T) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97100-833-3 01 1 9607- ●
87 04.685 PIPE; BRK,5 WAY TO UNION
4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) L=918 		8-94249-679-4 01 1 9312-9506 ● ● ● ● ●
87 04.685 PIPE; BRK,5 WAY TO UNION
4JB1 ENG(RLF),4BE1 ENG(RLH) REAR WIDE TREAD(V4T) L=918 		8-94249-679-4 01 1 9312-9506 ●
87 04.685 PIPE; BRK,5 WAY TO UNION
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) L=918 		8-94249-679-4 01 1 9507-9510 ● ● ● ● ●
87 04.685 PIPE; BRK,5 WAY TO UNION
4JB1 ENG(RLF),4BE1 ENG(RLH) REAR WIDE TREAD(V4T) L=918 		8-94249-679-4 01 1 9507-9510 ●
87 04.685 PIPE; BRK,5 WAY TO UNION
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) L=918 		8-94249-679-4 01 1 9511-9606 ● ● ● ● ●
87 04.685 PIPE; BRK,5 WAY TO UNION
4JB1 ENG(RLF),4BE1 ENG(RLH) REAR WIDE TREAD(V4T) L=918 		8-94249-679-4 01 1 9511-9606 ●
87 04.685 PIPE; BRK,5 WAY TO UNION
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) L=918 		8-94249-679-4 01 1 9607- ● ● ● ● ●
87 04.685 PIPE; BRK,5 WAY TO UNION
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) REAR WIDE TREAD(V4T) L=918 		8-94249-679-4 01 1 9607- ●
87 04.685 PIPE; BRK,5 WAY TO UNION
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97070-291-5 01 1 9312-9506 ● ●
87 04.685 PIPE; BRK,5 WAY TO UNION
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97070-291-5 01 1 9507-9510 ● ●
87 04.685 PIPE; BRK,5 WAY TO UNION
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 		8-97070-291-5 01 1 9507-9510 ●
87 04.685 PIPE; BRK,5 WAY TO UNION
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. BRK WHL LK CONT LSPV<6PH> L=1278 		8-94336-272-2 01 1 9312-9510 ● ●
87 04.685 PIPE; BRK,5 WAY TO UNION
EXC. REAR WIDE TREAD(V4T) 		8-97035-359-3 01 1 9312-9510 ●
87 04.685 PIPE; BRK,5 WAY TO UNION
FRAME-KICK UP<7EW> 		8-97035-359-3 01 1 9511-9601 ●
87 04.685 PIPE; BRK,5 WAY TO UNION
FRAME-KICK UP<7EW> 		8-97108-750-1 01 1 9602- ●
87 04.685 PIPE; BRK,5 WAY TO UNION
EXC. REAR WIDE TREAD(V4T),BRK WHL LK CONT LSPV<6PH> 		8-97100-788-1 01 1 9312-9510 ●
87 04.685 PIPE; BRK,5 WAY TO UNION
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> 		8-97100-788-1 01 1 9511-9601 ●
87 04.685 PIPE; BRK,5 WAY TO UNION
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> 		8-97146-126-0 01 1 9602- ●
87 04.685 PIPE; BRK,5 WAY TO UNION
4HF1 ENG(RLS) 		8-97087-439-4 01 1 9312-9510 ●
87 04.685 PIPE; BRK,5 WAY TO UNION
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 		8-97087-439-4 01 1 9511- ● ●
87 04.685 PIPE; BRK,5 WAY TO UNION
4HF1 ENG(RLS) 		8-97091-448-3 01 1 9312- ●
94 04.685 PIPE; BRK,W/C TO W/C
4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97019-223-0 01 1 9312-9401 ● ● ● ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97019-223-0 01 1 9402-9502 ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. DISC BRAKE FRT<J52>,INDONESIA EQUIPMENT(S4S) 		8-97019-223-0 01 1 9402-9502 ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97019-223-0 01 1 9503- ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. DISC BRAKE FRT<J52>,INDONESIA EQUIPMENT(S4S) 		8-97019-223-0 01 1 9503- ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97019-222-0 01 1 9312-9401 ● ● ● ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97019-222-0 01 1 9402-9502 ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. DISC BRAKE FRT<J52>,INDONESIA EQUIPMENT(S4S) 		8-97019-222-0 01 1 9402-9502 ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97019-222-0 01 1 9503- ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. DISC BRAKE FRT<J52>,INDONESIA EQUIPMENT(S4S) 		8-97019-222-0 01 1 9503- ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
4HF1 ENG(RLS) G.V.W. 6.5-7.0TON(RPW) 		8-94154-916-0 02 1 9312-9403 ●
94 04.685 PIPE; BRK,W/C TO W/C
4HF1 ENG(RLS) G.V.W. 6.5-7.0TON(RPW) 		8-94154-916-0 02 1 9403-9409 ●
94 04.685 PIPE; BRK,W/C TO W/C
4HF1 ENG(RLS) G.V.W. 6.5-7.0TON(RPW) EXC. INDONESIA EQUIPMENT(S4S) 		8-94154-916-0 02 1 9410- ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97123-267-0 01 1 9511-9606 ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97148-764-0 01 1 9607- ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97123-269-0 01 1 9511-9606 ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97148-765-1 01 1 9607- ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97133-301-0 01 1 9511- ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4JB1 ENG(RLF),4BE1 ENG(RLH) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97122-633-0 01 1 9511- ● ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97133-327-0 01 1 9511-9711 ● ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97133-327-0 01 1 9712- ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4BE1 ENG(RLH) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) 		8-97122-634-0 01 1 9511- ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) 		8-97122-131-0 01 1 9511- ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (A) 		8-97122-134-0 01 1 9511- ●
98 04.686 PIPE ASM; 4/6 WAY
4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97182-266-0 01 1 9712- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1 ENG(RLS) AUSTRALIA EQUIPMENT(RR3) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-973-1 01 1 9712- ● ●
102 04.686 CLIP; PIPE
4HF1 ENG(RLS) G.V.W. 6.5-7.0TON(RPW) EXC. INDONESIA EQUIPMENT(S4S) 04.685 		8-94128-306-0 01 1 9607- ●
çizim 16276
13 48 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
13 04.685 PIPE; OIL,UNION TO UNION
REAR AXLE STANDARD 244MM(R39) EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH> 		8-97041-000-3 01 1 9312- ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
REAR AXLE HEAVY DUTY 292MM(G73) EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH> 		8-97078-164-2 01 1 9312- ● ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. REAR WIDE TREAD(V4T),BRK WHL LK CONT LSPV<6PH> 		8-97035-362-1 01 1 9312-9402 ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> 		8-97035-362-1 01 1 9403-9705 ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> 		8-97181-784-0 01 1 9706-9803 ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> 		8-97202-128-0 01 1 9804- ●
13 04.685 PIPE; OIL,UNION TO UNION
4BE1 ENG(RLH) REAR WIDE TREAD(V4T) EXC. BRK WHL LK CONT LSPV<6PH> L=1819 		8-94170-093-2 01 1 9312-9402 ●
13 04.685 PIPE; OIL,UNION TO UNION
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97068-791-2 01 1 9312-9402 ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> 		8-97068-791-2 01 1 9403-9605 ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> 		8-97147-940-0 01 1 9606-9608 ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> 		8-97166-500-0 01 1 9609- ●
13 04.685 PIPE; OIL,UNION TO UNION 8-97091-590-3 01 1 9312-9704 ● ●
13 04.685 PIPE; OIL,UNION TO UNION 8-97178-897-0 01 1 9705- ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 		8-97113-752-0 01 1 9507-9606 ●
46 04.685 PIPE; BRK,JOINT TO VLV
BRK WHL LK CONT LSPV<6PH> 		8-97093-658-3 01 1 9312-9506 ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97093-658-3 01 1 9507-9510 ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97093-658-3 01 1 9511-9606 ●
46 04.685 PIPE; BRK,JOINT TO VLV
BRK WHL LK CONT LSPV<6PH> 		8-97093-658-3 01 1 9511-9606 ●
46 04.685 PIPE; BRK,JOINT TO VLV
BRK WHL LK CONT LSPV<6PH> 		8-97093-658-3 01 1 9607-9711 ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) BRK WHL LK CONT LSPV<6PH> 		8-97093-658-3 01 1 9712- ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 		8-97106-528-1 01 1 9712- ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4BE1 ENG(RLH) BRK WHL LK CONT LSPV<6PH> 		8-97105-406-1 01 1 9312-9510 ●
46 04.685 PIPE; BRK,JOINT TO VLV
4BE1 ENG(RLH) REAR WIDE TREAD(V4T) BRK WHL LK CONT LSPV<6PH> 		8-97105-406-1 01 1 9511- ●
46 04.685 PIPE; BRK,JOINT TO VLV
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) BRK WHL LK CONT LSPV<6PH> 		8-97130-054-1 01 1 9511- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 		8-97113-753-0 01 1 9507-9606 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
BRK WHL LK CONT LSPV<6PH> 		8-97093-659-3 01 1 9312-9506 ● ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97093-659-3 01 1 9507-9510 ● ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97093-659-3 01 1 9511-9606 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
BRK WHL LK CONT LSPV<6PH> 		8-97093-659-3 01 1 9511-9606 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
BRK WHL LK CONT LSPV<6PH> 		8-97093-659-3 01 1 9607-9711 ● ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) BRK WHL LK CONT LSPV<6PH> 		8-97093-659-3 01 1 9712- ● ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 		8-97106-529-1 01 1 9712- ● ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4BE1 ENG(RLH) BRK WHL LK CONT LSPV<6PH> 		8-97105-407-1 01 1 9312-9510 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4BE1 ENG(RLH) REAR WIDE TREAD(V4T) BRK WHL LK CONT LSPV<6PH> 		8-97105-407-1 01 1 9511- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) BRK WHL LK CONT LSPV<6PH> 		8-97130-055-1 01 1 9511- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
