3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#47331) — 30 parça

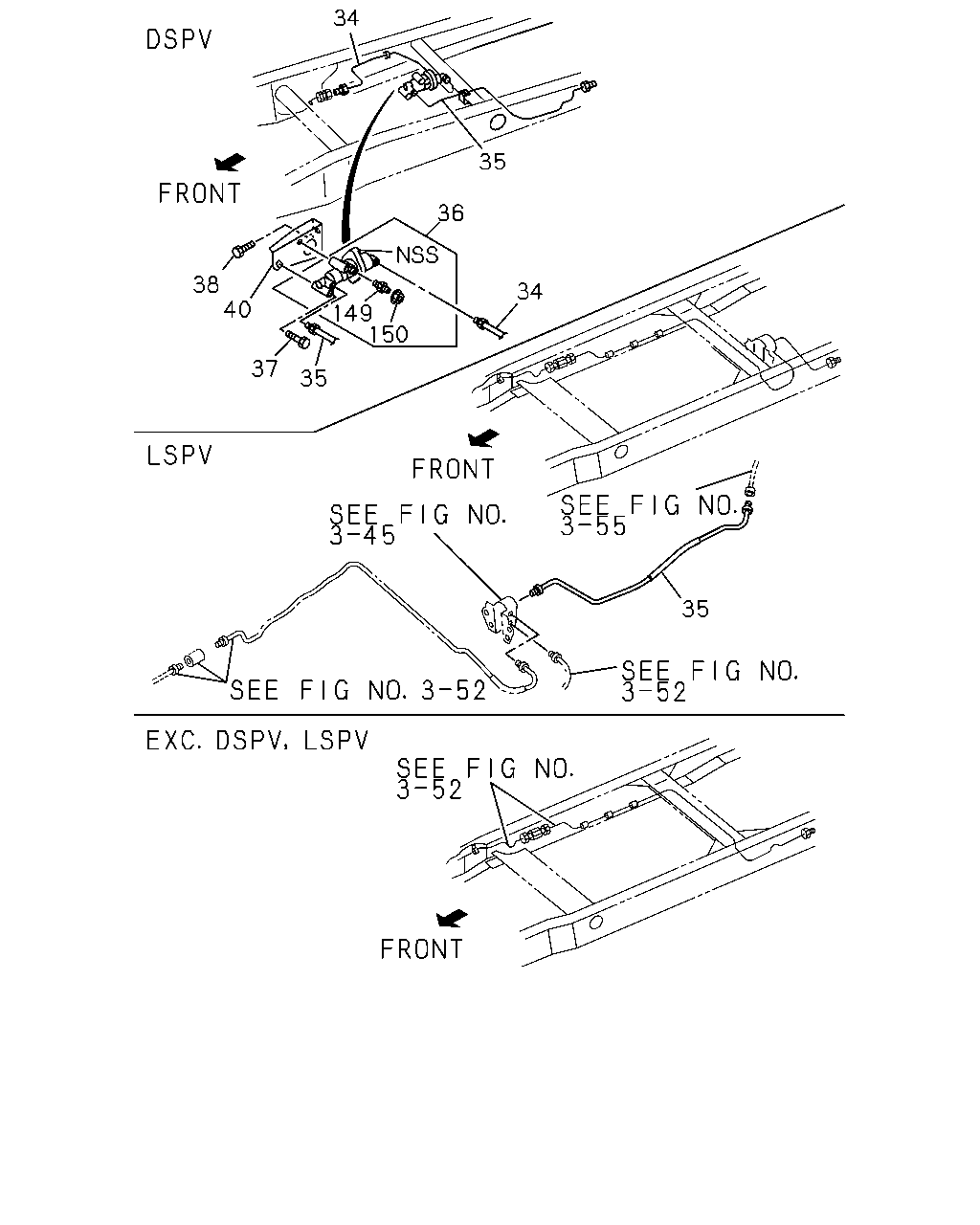

çizim 67650
34 35 36 38 40 34 149 150 37 35 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
34 04.685 PIPE; BRK,UNION TO DSPV
BRK WHL LK CONT DSPV<JL8> 		5-47411-773-0 01 1 9401- ● ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) BRK WHL LK CONT DSPV<JL8> 		8-97035-632-3 01 1 9312- ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> 		8-97100-892-0 01 1 9507-9510 ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 		8-97100-892-0 01 1 9511- ● ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
REAR AXLE STANDARD 244MM(R39) BRK WHL LK CONT DSPV<JL8> 		8-97091-258-1 01 1 9312- ● ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
BRK WHL LK CONT LSPV<6PH> 		8-97100-892-0 01 1 9312-9312 ● ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
4BE1 ENG(RLH) BRK WHL LK CONT LSPV<6PH> 		8-97106-502-1 01 1 9401-9711 ● ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
4BE1 ENG(RLH),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 		8-97106-502-1 01 1 9712- ● ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
BRK WHL LK CONT LSPV<6PH> 		8-97070-371-0 01 1 9312- ●
36 04.690 VALVE ASM; DSPV
BRK WHL LK CONT DSPV<JL8> 		8-97082-058-0 01 1 9312- ● ●
37 04.690 BOLT; BRKT TO DSPV
BRK WHL LK CONT DSPV<JL8> 01.840 M8X70 W/LK WASHER 		0-50040-870-0 02 1 9312- ● ●
38 04.690 BOLT; BRKT TO FRAME
BRK WHL LK CONT DSPV<JL8> 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9312- ● ●
40 04.690 BRACKET
BRK WHL LK CONT DSPV<JL8> 		8-94156-783-4 01 1 9312- ● ●
149 04.685 PLUG; BLEEDER,DSV
BRK WHL LK CONT DSPV<JL8> 		8-97093-663-0 01 1 9312- ● ●
150 04.685 CAP; BLEEDER PLUG,DSV
BRK WHL LK CONT DSPV<JL8> 		8-97093-662-0 01 1 9312- ● ●

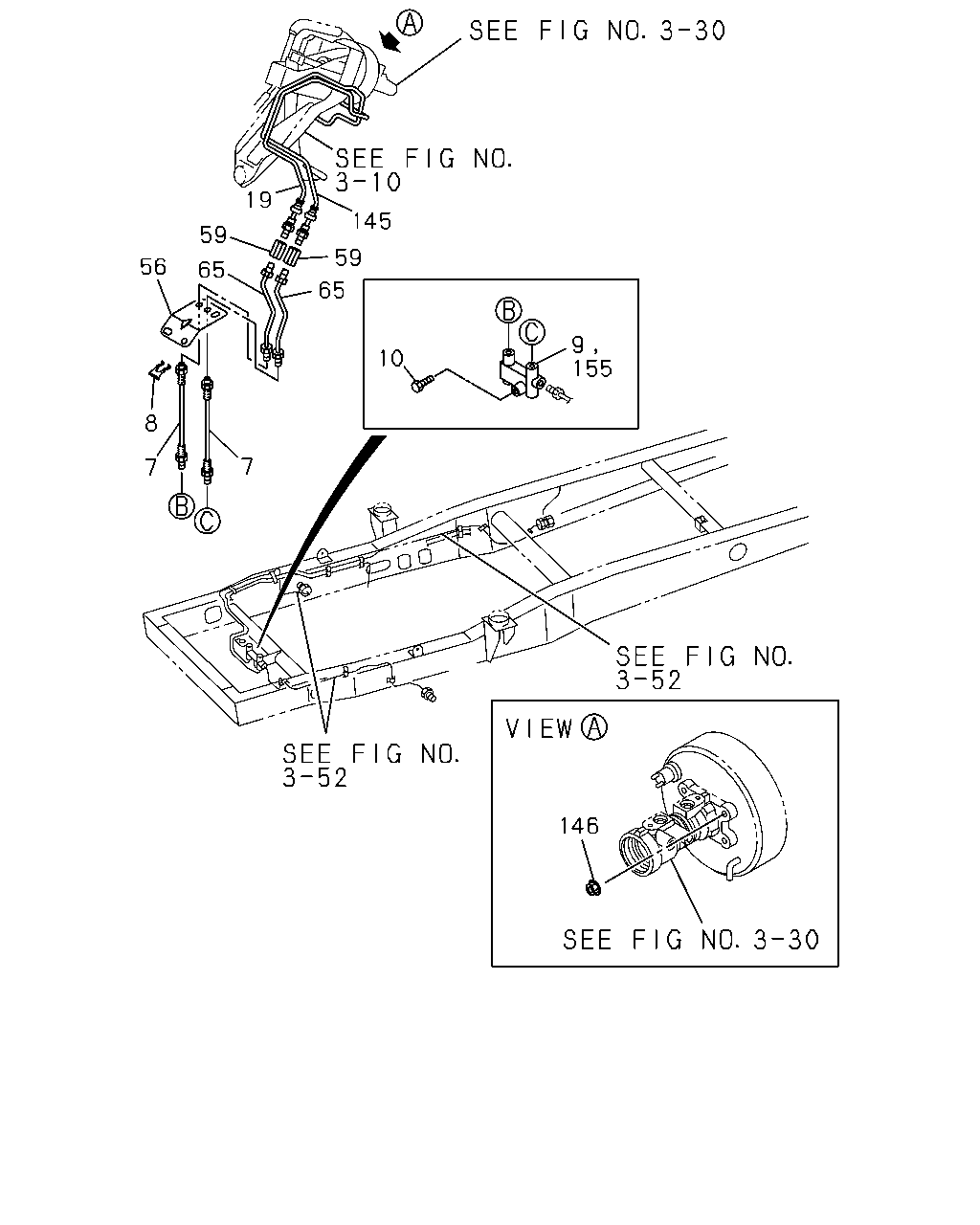

çizim 68230
19 145 59 59 56 65 65 9 155 10 8 7 7 146
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-97035-573-0 02 1 9312-9711 ● ● ● ● ● ●
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-97171-031-0 02 1 9712- ● ● ● ● ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
00.785 		8-94167-006-0 02 1 9312- ● ● ● ● ● ●
9 04.686 JOINT; BRK & CLU PIPE,CAB SIDE 5-47456-009-0 01 1 9312-9510 ● ● ● ● ● ●
9 04.686 JOINT; BRK & CLU PIPE,CAB SIDE
EXC. BRK WHL LK CONT LSPV<6PH> 		5-47456-009-0 01 1 9511- ● ● ● ● ● ●
10 04.686 BOLT; JOINT
M6X40 W/LK&PL WASHER 		0-51240-640-0 01 1 9312-9703 ● ● ● ● ● ●
10 04.686 BOLT; JOINT
03.163 M6X40 FLANGE 		0-28680-640-0 01 1 9704- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION 8-97035-989-1 01 1 9312- ● ● ● ● ● ●
56 04.686 BRACKET; UNION,BRK 8-97078-564-1 01 1 9312- ● ● ● ● ● ●
59 04.686 UNION; BRK PIPE
08.963 M10 STRAIGHT 		9-09227-005-0 02 1 9312- ● ● ● ● ● ●
65 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 8-97035-978-0 02 1 9312- ● ● ● ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION 8-97035-988-1 01 1 9312-9603 ● ● ● ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION 8-97145-913-0 01 1 9604- ● ● ● ● ● ●
146 04.685 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 02 1 9312- ● ● ● ● ● ●
155 04.686 JOINT; 6WAY
BRK WHL LK CONT LSPV<6PH> 		8-97120-033-1 01 1 9511- ● ● ●
