1-30B — AIR CLEANER (#4733) — 67 parça

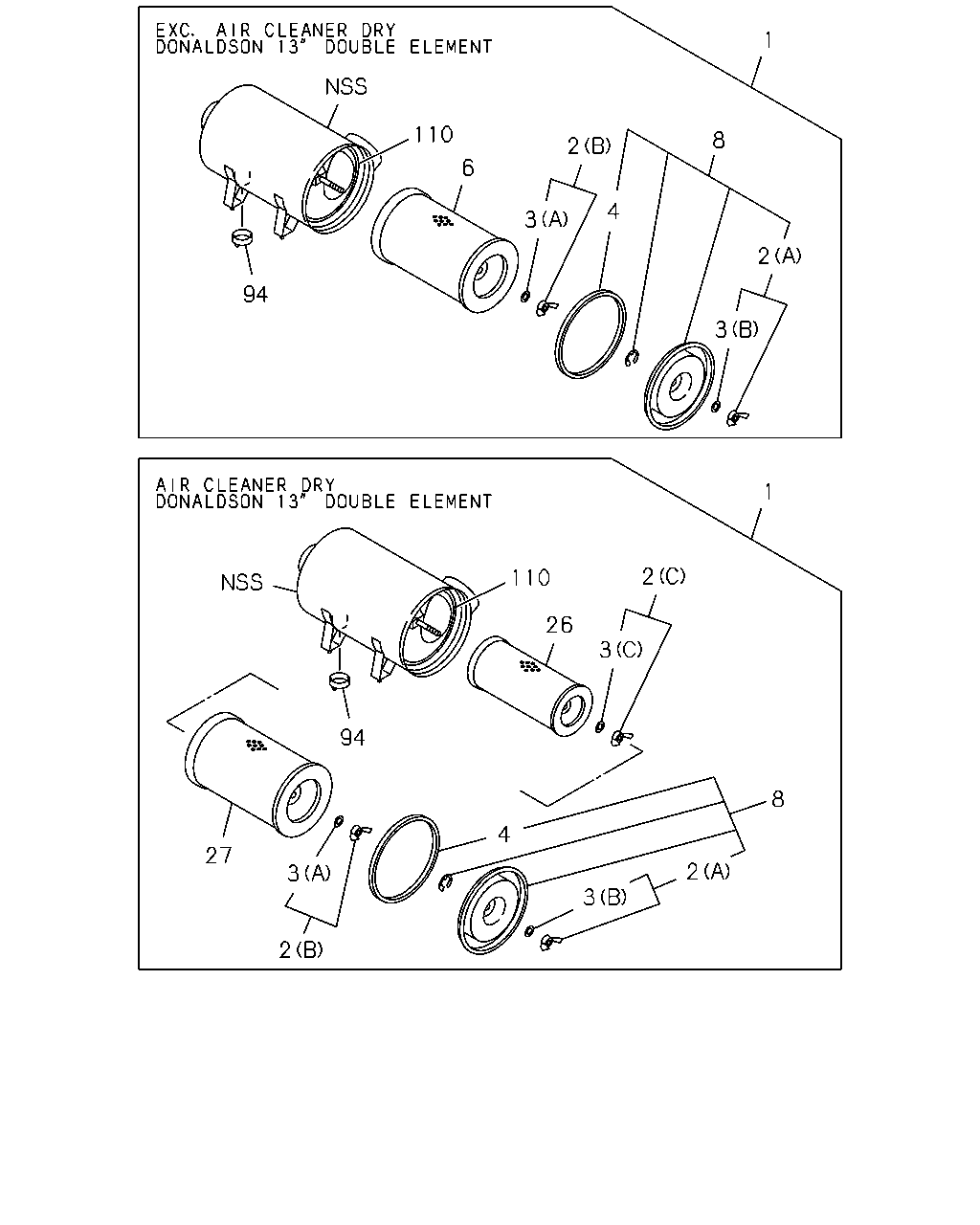

çizim 41520
1 110 8 2 6 4 3 2 94 3 1 2 110 26 3 94 8 4 27 2 3 3 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> 		1-14210-767-1 01 1 9603-9904 ●
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> 		1-14210-767-2 01 1 9905- ● ● ●
1 CLEANER ASM; AIR
EXC. AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT <Q2Y> 		1-14210-783-1 01 1 9603-9904 ●
1 CLEANER ASM; AIR
EXC. AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT <Q2Y> 		1-14210-783-2 01 1 9905- ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 9603-9904 ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 9905- ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9603-9904 ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9905- ● ● ●
2 NUT; WING,ELEMENT
AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> (C) 		1-14217-003-0 01 1 9603-9904 ●
2 NUT; WING,ELEMENT
AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> (C) 		1-14217-003-0 01 1 9905- ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 9603-9904 ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 9905- ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9603-9904 ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9905- ● ● ●
3 WASHER; SEAL,WING NUT
AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> (C) 		1-14219-032-0 01 1 9603-9904 ●
3 WASHER; SEAL,WING NUT
AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> (C) 		1-14219-032-0 01 1 9905- ● ● ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 9603-9904 ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 9905- ● ● ●
6 FILTER; ACL
EXC. AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT <Q2Y> 		1-14215-184-1 01 1 9603-9904 ●
6 FILTER; ACL
EXC. AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT <Q2Y> 		1-14215-184-1 01 1 9905- ● ● ●
8 COVER ASM; ACL 1-14212-064-0 01 1 9603-9904 ●
8 COVER ASM; ACL 1-14212-064-0 01 1 9905- ● ● ●
26 FILTER; ACL,INNER
AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> 		1-14215-089-1 01 1 9603-9904 ●
26 FILTER; ACL,INNER
AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> 		1-14215-089-1 01 1 9905- ● ● ●
27 FILTER; ACL,OUTER
AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> 		1-14215-184-1 01 1 9603-9904 ●
27 FILTER; ACL,OUTER
AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> 		1-14215-184-1 01 1 9905- ● ● ●
94 VALVE; VACUATOR 1-14219-129-0 01 1 9603-9904 ●
94 VALVE; VACUATOR 1-14219-129-0 01 1 9905- ● ● ●
110 ADAPTER; ACL 1-14219-175-0 01 1 9603-9904 ●
110 ADAPTER; ACL 1-14219-175-0 01 1 9905- ● ● ●

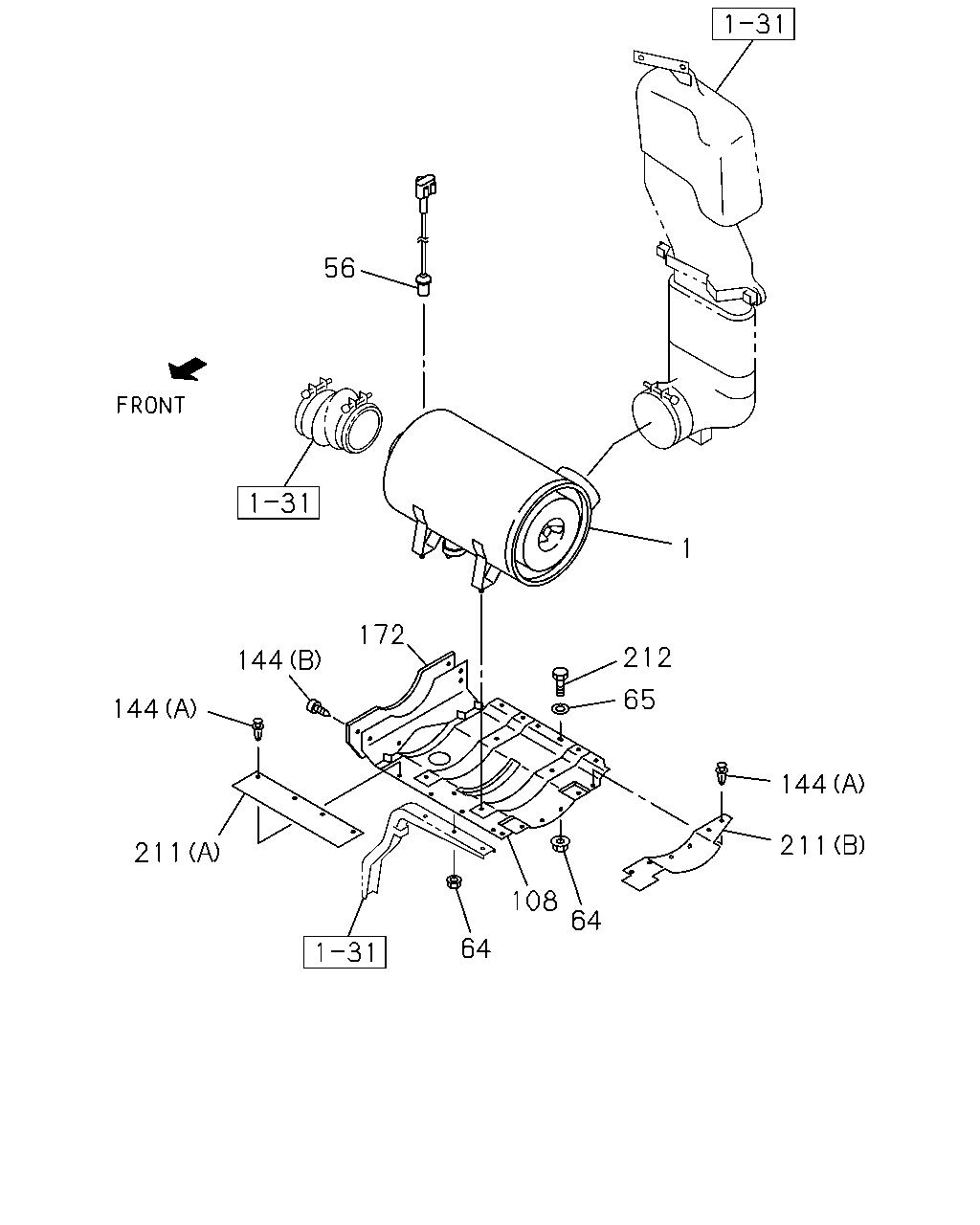

çizim 42470
56 1 172 212 144 65 144 144 211 211 108 64 64
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> 		1-14210-767-1 01 1 9603-9904 ●
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> 		1-14210-767-2 01 1 9905- ● ● ●
1 CLEANER ASM; AIR
EXC. AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT <Q2Y> 		1-14210-783-1 01 1 9603-9904 ●
1 CLEANER ASM; AIR
EXC. AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT <Q2Y> 		1-14210-783-2 01 1 9905- ● ● ●
56 SWITCH; ACL 1-81530-016-0 01 1 9603-9706 ●
56 SWITCH; ACL 1-81530-016-0 01 1 9905- ● ● ●
56 SWITCH; ACL 1-81530-016-0 01 1 9707-9804 ●
56 SWITCH; ACL 1-81530-016-0 01 1 9805-9904 ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91150-110-0 07 1 9603-9606 ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91150-210-0 04 1 9607-9904 ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91150-210-0 04 1 9905- ● ● ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91150-210-0 04 1 9707-9804 ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91150-210-0 04 1 9805-9904 ●
65 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 03 1 9603-9706 ●
65 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 03 1 9905- ● ● ●
65 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 03 1 9707-9804 ●
65 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 03 1 9805-9904 ●
108 COVER; ACL 1-53419-300-0 01 1 9603-9904 ●
108 COVER; ACL 1-53419-300-0 01 1 9905- ● ● ●
144 CLIP; ACL
(A) 		5-09987-033-0 09 1 9603-9904 ●
144 CLIP; ACL
(A) 		5-09987-033-0 09 1 9905- ● ● ●
144 CLIP; ACL
(B) 		8-94279-048-0 07 1 9603-9904 ●
144 CLIP; ACL
(B) 		8-94279-048-0 07 1 9905- ● ● ●
172 INSULATOR; NOISE 1-53446-781-1 01 1 9603-9904 ●
172 INSULATOR; NOISE 1-53446-781-2 01 1 9905- ● ● ●
211 RUBBER; SEAL
(A) 		1-79931-007-0 01 1 9603-9706 ●
211 RUBBER; SEAL
(A) 		1-79931-007-0 01 1 9707-9804 ●
211 RUBBER; SEAL
(A) 		1-79931-007-0 01 1 9805-9904 ●
211 RUBBER; SEAL
(A) 		1-79931-007-0 01 1 9905- ● ● ●
211 RUBBER; SEAL
(B) 		1-79931-008-1 01 1 9603-9706 ●
211 RUBBER; SEAL
(B) 		1-79931-008-2 01 1 9707-9804 ●
211 RUBBER; SEAL
(B) 		1-79931-008-2 01 1 9805-9904 ●
211 RUBBER; SEAL
(B) 		1-79931-008-2 01 1 9905- ● ● ●
212 BOLT; MUD COVER
M10X20 FLANGE 		0-28081-020-0 07 1 9603-9706 ●
212 BOLT; MUD COVER
M10X25 FLANGE 		0-28681-025-0 04 1 9905- ● ● ●
212 BOLT; MUD COVER
M10X25 FLANGE 		0-28681-025-0 04 1 9707-9804 ●
212 BOLT; MUD COVER
M10X25 FLANGE 		0-28681-025-0 04 1 9805-9904 ●
