3-11 — PARKING BRAKE CONTROL (#47326) — 192 parça

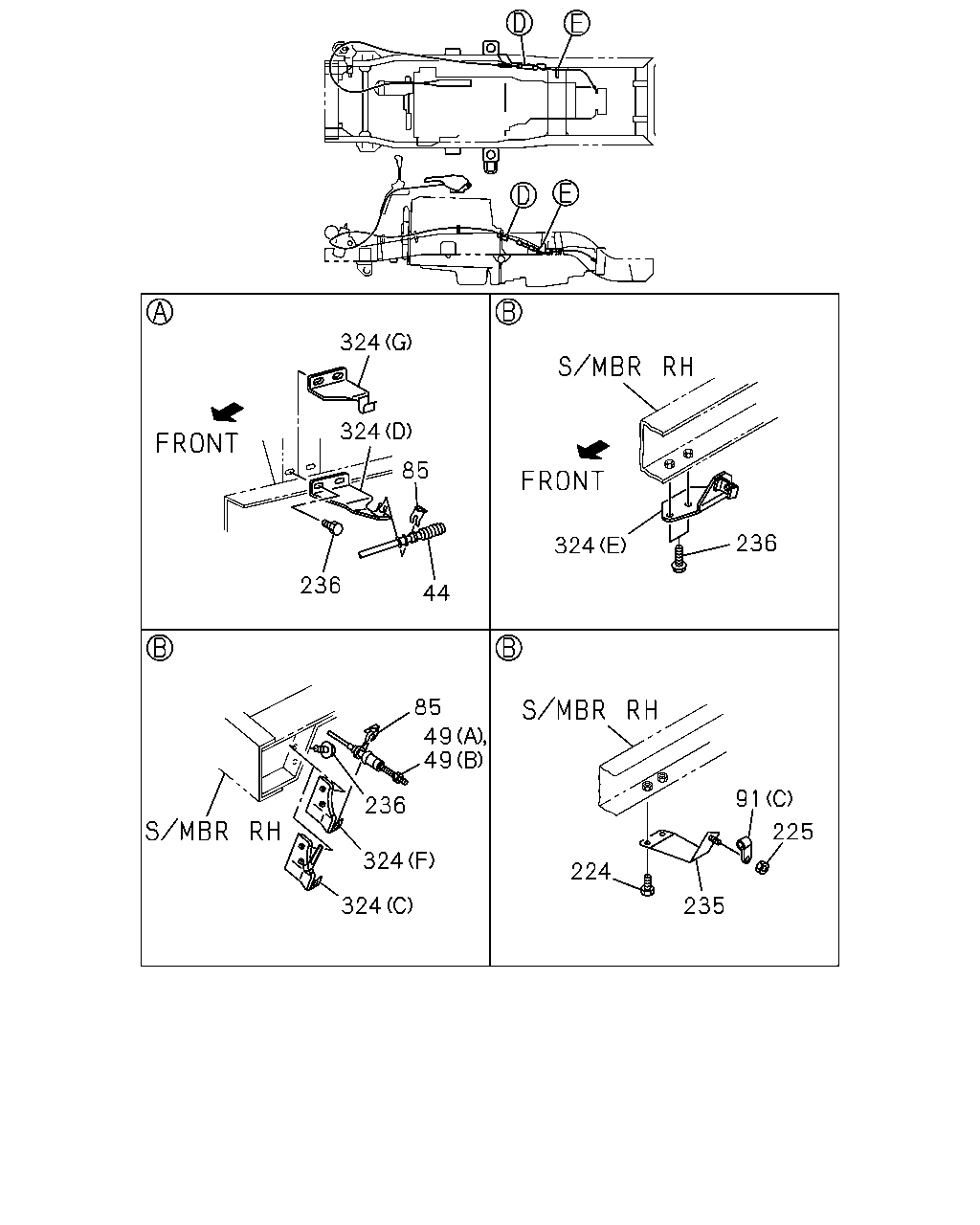

çizim 66177
324 324 85 236 324 236 44 85 49 49 91 236 225 324 224 324 235
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
44 04.779 CABLE; PARKING BRK,FRT
4JB1 ENG(RLF) 		8-97063-121-8 01 1 9312-9504 ● ● ●
44 04.779 CABLE; PARKING BRK,FRT
4JB1 ENG(RLF) 		8-97118-186-0 01 1 9505-9506 ● ● ●
44 04.779 CABLE; PARKING BRK,FRT
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97118-186-0 01 1 9507-9607 ● ● ●
44 04.779 CABLE; PARKING BRK,FRT
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97176-235-0 01 1 9608-9711 ● ● ●
44 04.779 CABLE; PARKING BRK,FRT
4BE1 ENG(RLH) 		8-97063-123-8 01 1 9312-9504 ● ● ● ● ●
44 04.779 CABLE; PARKING BRK,FRT
4BE1 ENG(RLH) 		8-97118-370-0 01 1 9505-9607 ● ● ● ● ●
44 04.779 CABLE; PARKING BRK,FRT
4BE1 ENG(RLH) 		8-97176-238-0 01 1 9608-9711 ● ● ● ● ●
44 04.779 CABLE; PARKING BRK,FRT
4BE1 ENG(RLH) 		8-97172-891-0 01 1 9712-9801 ● ● ● ●
44 04.779 CABLE; PARKING BRK,FRT
4BE1 ENG(RLH) 		8-97204-344-0 01 1 9802- ● ● ● ●
44 04.779 CABLE; PARKING BRK,FRT
4HF1 ENG(RLS) 		8-97161-435-0 01 1 9712- ● ● ● ●
44 04.779 CABLE; PARKING BRK,FRT
4HF1 ENG(RLS) 		8-97063-124-8 01 1 9312-9504 ●
44 04.779 CABLE; PARKING BRK,FRT
4HF1 ENG(RLS) 		8-97118-187-0 01 1 9505-9510 ●
44 04.779 CABLE; PARKING BRK,FRT
4HF1 ENG(RLS) 		8-97118-187-0 01 1 9511-9607 ● ●
44 04.779 CABLE; PARKING BRK,FRT
4HF1 ENG(RLS) 		8-97176-237-0 01 1 9608-9711 ● ●
49 04.779 CABLE; PARKING BRK
4JB1 ENG(RLF) (A) 		8-97063-103-5 01 1 9312-9506 ● ● ●
49 04.779 CABLE; PARKING BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97063-103-5 01 1 9507-9706 ● ● ●
49 04.779 CABLE; PARKING BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97184-193-0 01 1 9707-9709 ● ● ●
49 04.779 CABLE; PARKING BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97184-268-0 01 1 9710-9711 ● ● ●
49 04.779 CABLE; PARKING BRK
4BE1 ENG(RLH) (A) 		8-97063-106-5 01 1 9312-9711 ● ● ● ●
49 04.779 CABLE; PARKING BRK
4BE1 ENG(RLH) REAR WIDE TREAD(V4T) (A) 		8-97063-106-5 01 1 9312-9711 ●
49 04.779 CABLE; PARKING BRK
4BE1 ENG(RLH) (A) 		8-97169-963-0 01 1 9712- ● ● ● ●
49 04.779 CABLE; PARKING BRK
4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T) (A) 		8-97063-112-5 01 1 9312-9711 ●
49 04.779 CABLE; PARKING BRK
4JB1 ENG(RLF) (A) 		8-97102-246-4 01 1 9312-9508 ● ● ●
49 04.779 CABLE; PARKING BRK
4JB1 ENG(RLF) (A) 		8-97129-870-0 01 1 9509-9606 ● ● ●
49 04.779 CABLE; PARKING BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97129-870-0 01 1 9607-9709 ● ● ●
49 04.779 CABLE; PARKING BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97184-270-0 01 1 9710-9711 ● ● ●
49 04.779 CABLE; PARKING BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97184-270-0 01 1 9712- ● ● ● ● ● ●
49 04.779 CABLE; PARKING BRK
4HF1 ENG(RLS) (A) 		8-97063-113-6 01 1 9312-9510 ●
49 04.779 CABLE; PARKING BRK
4HF1 ENG(RLS) (A) 		8-97063-113-6 01 1 9511-9711 ● ●
49 04.779 CABLE; PARKING BRK
4HF1 ENG(RLS) (A) 		8-97161-428-0 01 1 9712- ● ● ● ●
85 04.785 CLIP; BRKT 8-97084-216-0 02 1 9312-9711 ● ● ●
85 04.785 CLIP; BRKT
4BE1 ENG(RLH),4HF1 ENG(RLS) 		8-97084-216-0 02 1 9312-9711 ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JB1 ENG(RLF) 02.343 (A) ID=16 L=50 H=25 		1-09700-838-0 01 1 9312-9606 ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.343 (A) ID=16 L=50 H=25 		1-09700-838-0 01 1 9607-9711 ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4BE1 ENG(RLH),4HF1 ENG(RLS) 00.799 (C) ID=13 L=20 		1-09701-138-1 01 1 9712- ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JB1 ENG(RLF) (B) 		9-09917-514-0 01 1 9312-9508 ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JB1 ENG(RLF) (B) ID=13 L=50 		9-09525-286-0 01 1 9509-9606 ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) ID=13 L=50 		9-09525-286-0 01 1 9607-9711 ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) ID=13 L=50 		9-09525-286-0 01 1 9712- ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 9712- ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4JB1 ENG(RLF) 07.010 M8X20 FLANGE 		0-28080-820-0 02 1 9312-9503 ● ● ●
224 04.785 BOLT; CABLE CLIP
4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9504-9606 ● ● ●
224 04.785 BOLT; CABLE CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9607-9711 ● ● ●
224 04.785 BOLT; CABLE CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712- ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4BE1 ENG(RLH),4HF1 ENG(RLS) M10 FLANGE 		0-91150-110-0 01 1 9712- ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4JB1 ENG(RLF) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9312-9606 ● ● ●
225 04.785 NUT; CABLE CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9607-9711 ● ● ●
225 04.785 NUT; CABLE CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9712- ● ● ● ● ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
FRAME-KICK UP<7EW> 		8-97176-465-1 01 1 9712- ●
236 04.785 BOLT; BRKT TO FRAME
07.010 M8X20 FLANGE 		0-28080-820-0 02 1 9312-9503 ● ● ●
236 04.785 BOLT; BRKT TO FRAME
4BE1 ENG(RLH),4HF1 ENG(RLS) 07.010 M8X20 FLANGE 		0-28080-820-0 02 1 9312-9503 ● ● ●
236 04.785 BOLT; BRKT TO FRAME
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9504-9711 ● ● ●
236 04.785 BOLT; BRKT TO FRAME
4BE1 ENG(RLH),4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9504-9711 ● ● ●
236 04.785 BOLT; BRKT TO FRAME
4BE1 ENG(RLH),4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9712- ● ● ● ● ●
236 04.785 BOLT; BRKT TO FRAME
FRAME-KICK UP<7EW> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9712- ●
236 04.785 BOLT; BRKT TO FRAME
09.008 M10X20 FLANGE 		0-28081-020-0 02 1 9312-9510 ● ● ●
236 04.785 BOLT; BRKT TO FRAME
4BE1 ENG(RLH) REAR WIDE TREAD(V4T) 09.008 M10X20 FLANGE 		0-28081-020-0 02 1 9312-9510 ●
236 04.785 BOLT; BRKT TO FRAME
4BE1 ENG(RLH),4HF1 ENG(RLS) 09.008 M10X20 FLANGE 		0-28081-020-0 02 1 9312-9510 ● ●
236 04.785 BOLT; BRKT TO FRAME
09.008 M10X20 FLANGE 		0-28081-020-0 02 1 9511-9711 ● ● ●
236 04.785 BOLT; BRKT TO FRAME
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 09.008 M10X20 FLANGE 		0-28081-020-0 02 1 9511-9711 ● ● ●
236 04.785 BOLT; BRKT TO FRAME
4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T) 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 9312-9507 ●
236 04.785 BOLT; BRKT TO FRAME
4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T) 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9508-9509 ●
236 04.785 BOLT; BRKT TO FRAME
4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T) 02.183 M8X35 FLANGE 		0-28680-835-0 02 1 9510-9510 ●
236 04.785 BOLT; BRKT TO FRAME
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 02.183 M8X35 FLANGE 		0-28680-835-0 02 1 9511-9711 ●
324 04.785 BRACKET
4JB1 ENG(RLF) (A) 		8-97063-090-1 01 1 9312-9506 ● ● ●
324 04.785 BRACKET
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97063-090-1 01 1 9507-9711 ● ● ●
324 04.785 BRACKET
4JB1 ENG(RLF) (B) 		8-97105-721-0 01 1 9312-9506 ● ● ●
324 04.785 BRACKET
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97105-721-0 01 1 9507-9711 ● ● ●
324 04.785 BRACKET
4BE1 ENG(RLH) (C) 		8-97105-724-1 01 1 9312-9510 ● ● ● ●
324 04.785 BRACKET
4BE1 ENG(RLH) REAR WIDE TREAD(V4T) (C) 		8-97105-724-1 01 1 9312-9510 ●
324 04.785 BRACKET
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (C) 		8-97105-724-1 01 1 9511-9711 ● ● ● ● ●
324 04.785 BRACKET
4BE1 ENG(RLH),4HF1 ENG(RLS) (D) 		8-97063-092-1 01 1 9312-9411 ● ● ● ●
324 04.785 BRACKET
4BE1 ENG(RLH) REAR WIDE TREAD(V4T) (D) 		8-97063-092-1 01 1 9312-9411 ●
324 04.785 BRACKET
4BE1 ENG(RLH),4HF1 ENG(RLS) (D) 		8-97112-916-0 01 1 9412-9510 ● ● ● ●
324 04.785 BRACKET
4BE1 ENG(RLH) REAR WIDE TREAD(V4T) (D) 		8-97112-916-0 01 1 9412-9510 ●
324 04.785 BRACKET
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (D) 		8-97112-916-0 01 1 9511-9711 ● ● ● ● ●
324 04.785 BRACKET
4BE1 ENG(RLH),4HF1 ENG(RLS) (G) 		8-97140-998-2 01 1 9712- ● ● ● ● ●
324 04.785 BRACKET
4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T) (D) 		8-97063-094-2 01 1 9312-9510 ●
324 04.785 BRACKET
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (D) 		8-97063-094-2 01 1 9511-9711 ●
324 04.785 BRACKET
4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T) (E) 		8-97063-095-4 01 1 9312-9510 ●
324 04.785 BRACKET
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (E) 		8-97063-095-4 01 1 9511-9711 ●
324 04.785 BRACKET
4HF1 ENG(RLS) (F) 		8-97105-722-0 01 1 9312-9510 ●
324 04.785 BRACKET
4HF1 ENG(RLS) (F) 		8-97105-722-0 01 1 9511-9711 ● ●

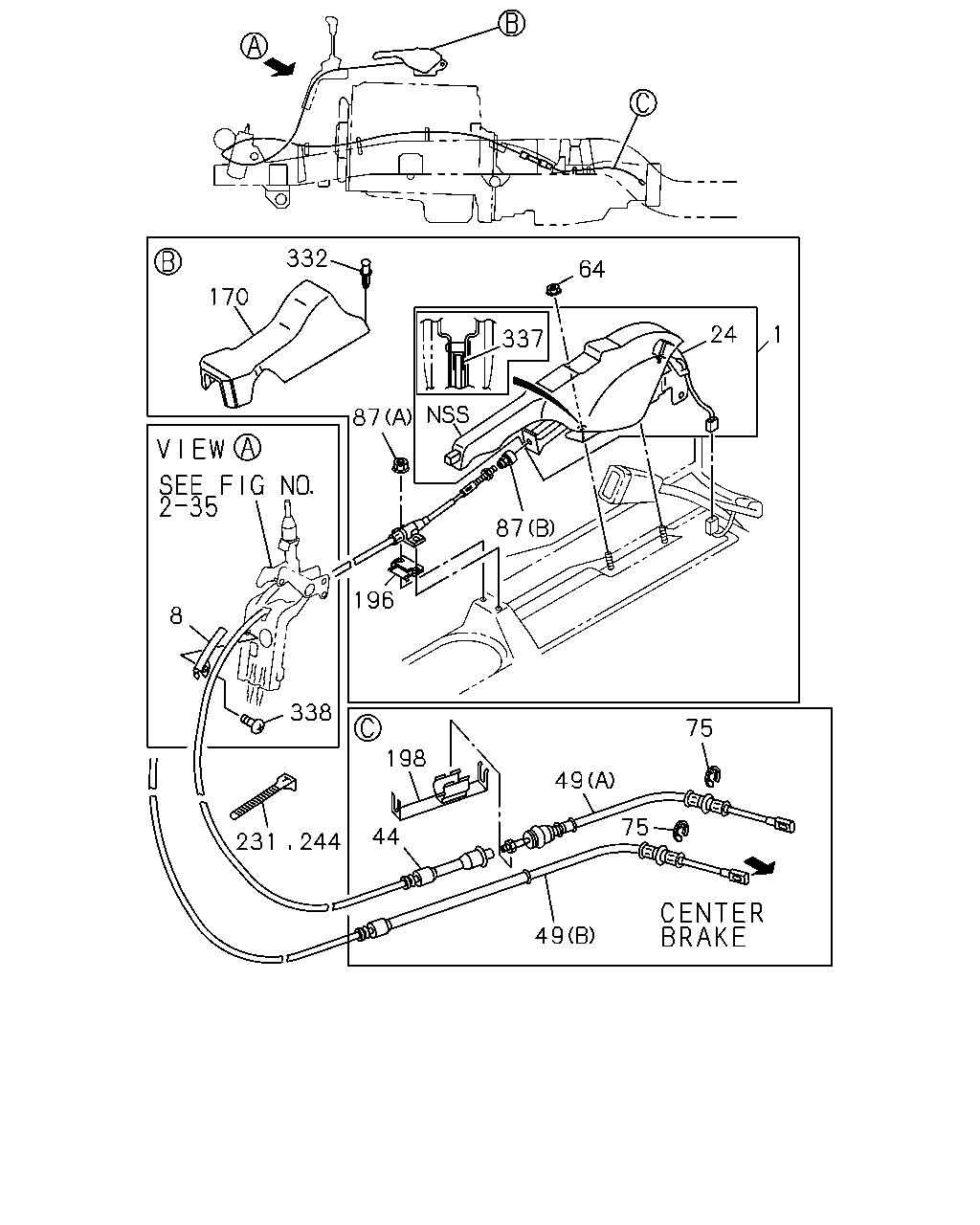

çizim 68196
332 64 170 24 1 337 87 87 196 8 338 75 198 49 75 44 231 244 49
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.592 STEM ASM; PARKING BRK
DARK BEIGE 		8-97856-804-5 01 1 9312-9710 ● ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
DARK BEIGE 		8-97890-436-0 01 1 9711-9711 ● ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97890-438-1 01 1 9712- ● ● ● ● ● ●
8 04.592 GUIDE; PARKING BRK 8-97071-939-0 01 1 9312- ● ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97857-198-1 01 1 9312-9710 ● ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97890-859-0 01 1 9711- ● ● ● ● ● ●
44 04.779 CABLE; PARKING BRK,FRT
4JB1 ENG(RLF) 		8-97063-121-8 01 1 9312-9504 ● ● ●
44 04.779 CABLE; PARKING BRK,FRT
4JB1 ENG(RLF) 		8-97118-186-0 01 1 9505-9506 ● ● ●
44 04.779 CABLE; PARKING BRK,FRT
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97118-186-0 01 1 9507-9607 ● ● ●
44 04.779 CABLE; PARKING BRK,FRT
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97176-235-0 01 1 9608-9711 ● ● ●
44 04.779 CABLE; PARKING BRK,FRT
4BE1 ENG(RLH) 		8-97063-123-8 01 1 9312-9504 ● ● ● ● ●
44 04.779 CABLE; PARKING BRK,FRT
4BE1 ENG(RLH) 		8-97118-370-0 01 1 9505-9607 ● ● ● ● ●
44 04.779 CABLE; PARKING BRK,FRT
4BE1 ENG(RLH) 		8-97176-238-0 01 1 9608-9711 ● ● ● ● ●
44 04.779 CABLE; PARKING BRK,FRT
4BE1 ENG(RLH) 		8-97172-891-0 01 1 9712-9801 ● ● ● ●
44 04.779 CABLE; PARKING BRK,FRT
4BE1 ENG(RLH) 		8-97204-344-0 01 1 9802- ● ● ● ●
44 04.779 CABLE; PARKING BRK,FRT
4HF1 ENG(RLS) 		8-97161-435-0 01 1 9712- ● ● ● ●
44 04.779 CABLE; PARKING BRK,FRT
4HF1 ENG(RLS) 		8-97063-124-8 01 1 9312-9504 ●
44 04.779 CABLE; PARKING BRK,FRT
4HF1 ENG(RLS) 		8-97118-187-0 01 1 9505-9510 ●
44 04.779 CABLE; PARKING BRK,FRT
4HF1 ENG(RLS) 		8-97118-187-0 01 1 9511-9607 ● ●
44 04.779 CABLE; PARKING BRK,FRT
4HF1 ENG(RLS) 		8-97176-237-0 01 1 9608-9711 ● ●
49 04.779 CABLE; PARKING BRK
4JB1 ENG(RLF) (A) 		8-97063-103-5 01 1 9312-9506 ● ● ●
49 04.779 CABLE; PARKING BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97063-103-5 01 1 9507-9706 ● ● ●
49 04.779 CABLE; PARKING BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97184-193-0 01 1 9707-9709 ● ● ●
49 04.779 CABLE; PARKING BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97184-268-0 01 1 9710-9711 ● ● ●
49 04.779 CABLE; PARKING BRK
4BE1 ENG(RLH) (A) 		8-97063-106-5 01 1 9312-9711 ● ● ● ●
49 04.779 CABLE; PARKING BRK
4BE1 ENG(RLH) REAR WIDE TREAD(V4T) (A) 		8-97063-106-5 01 1 9312-9711 ●
49 04.779 CABLE; PARKING BRK
4BE1 ENG(RLH) (A) 		8-97169-963-0 01 1 9712- ● ● ● ●
49 04.779 CABLE; PARKING BRK
4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T) (A) 		8-97063-112-5 01 1 9312-9711 ●
49 04.779 CABLE; PARKING BRK
4JB1 ENG(RLF) (A) 		8-97102-246-4 01 1 9312-9508 ● ● ●
49 04.779 CABLE; PARKING BRK
4JB1 ENG(RLF) (A) 		8-97129-870-0 01 1 9509-9606 ● ● ●
49 04.779 CABLE; PARKING BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97129-870-0 01 1 9607-9709 ● ● ●
49 04.779 CABLE; PARKING BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97184-270-0 01 1 9710-9711 ● ● ●
49 04.779 CABLE; PARKING BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97184-270-0 01 1 9712- ● ● ● ● ● ●
49 04.779 CABLE; PARKING BRK
4HF1 ENG(RLS) (A) 		8-97063-113-6 01 1 9312-9510 ●
49 04.779 CABLE; PARKING BRK
4HF1 ENG(RLS) (A) 		8-97063-113-6 01 1 9511-9711 ● ●
49 04.779 CABLE; PARKING BRK
4HF1 ENG(RLS) (A) 		8-97161-428-0 01 1 9712- ● ● ● ●
64 04.595 NUT; PARKING BRK
08.857 M8 FLANGE 		8-94279-060-0 02 1 9312-9507 ● ● ● ● ● ●
64 04.595 NUT; PARKING BRK
03.417 M8 FLANGE 		8-94279-517-0 02 1 9511-9605 ● ● ● ● ● ●
64 04.595 NUT; PARKING BRK
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 9606- ● ● ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
04.681 ID=12 		9-09185-412-0 01 1 9312- ● ● ● ● ● ●
87 04.785 NUT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 9312- ● ● ● ● ● ●
87 04.785 NUT
(B) M6 		8-97088-730-1 01 1 9312- ● ● ● ● ● ●
170 04.595 COVER; PARKING BRK LEVER
DARK BEIGE 		8-97097-008-0 01 1 9312-9711 ● ● ● ● ● ●
170 04.595 COVER; PARKING BRK LEVER
DARK GRAY 		8-97155-172-0 01 1 9712- ● ● ● ● ● ●
196 04.784 SPACER; CABLE TO LEVER 8-97066-277-2 01 1 9312- ● ● ● ● ● ●
198 04.785 BRACKET; CABLE
4BE1 ENG(RLH),4HF1 ENG(RLS) 		8-97161-538-1 01 1 9712- ● ● ● ● ●
231 04.785 CLIP; BAND,BRK CABLE
4BE1 ENG(RLH) 02.559 L=250 		5-09707-030-1 01 1 9802- ● ● ● ●
244 04.785 CLIP; BAND
03.162 L=140 		5-09707-031-0 01 1 9312-9405 ● ●
332 04.785 CLIP; COVER
03.602 D6X12.5 		8-94146-425-0 01 1 9312- ● ● ● ● ● ●
337 04.592 SILENCER; PARKING BRK 8-97857-230-0 01 1 9312-9510 ● ● ● ● ● ●
338 04.785 SCREW; GUIDE
16.270 M6X10 		9-03497-610-0 01 1 9312- ● ● ● ● ● ●

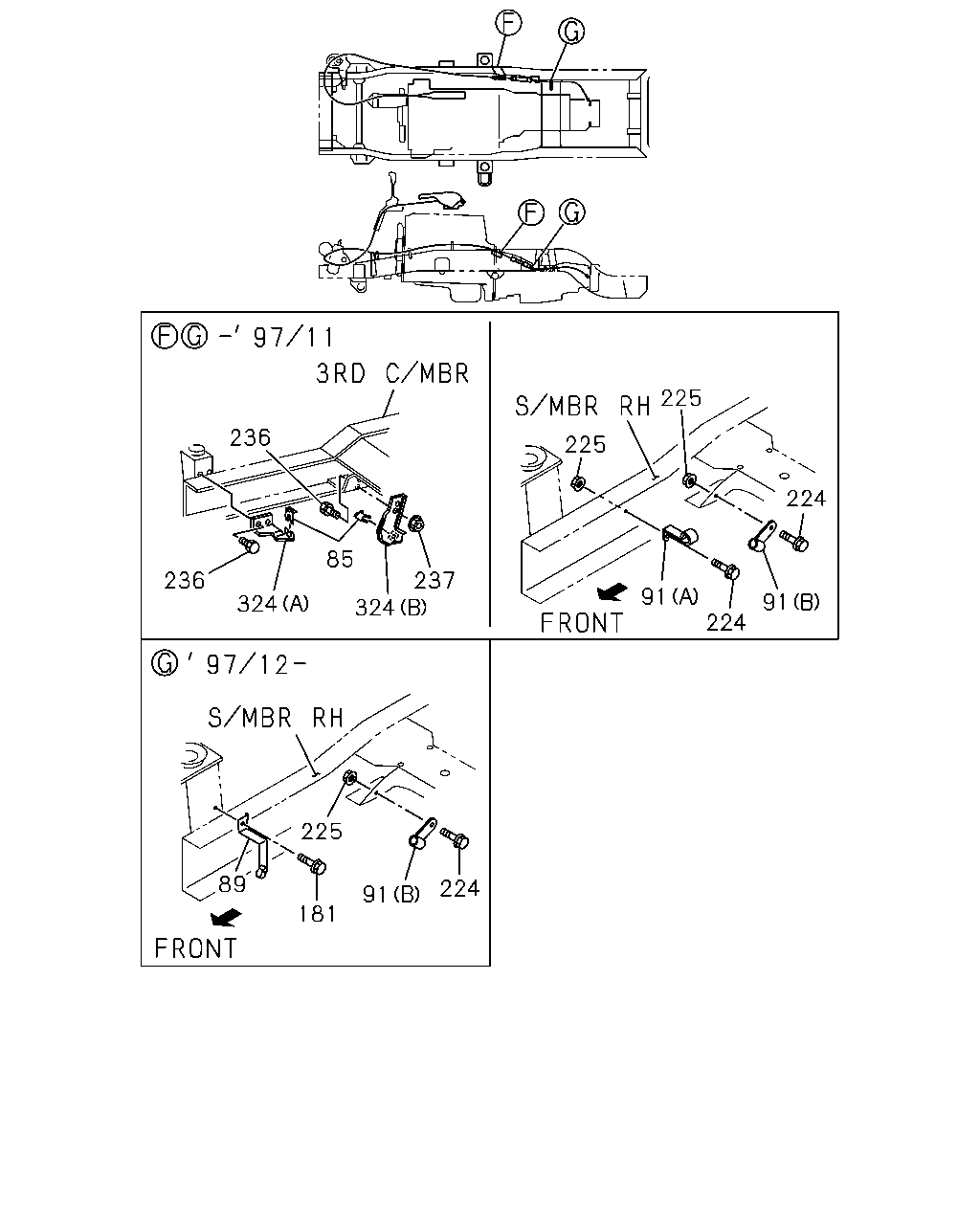

çizim 69377
225 236 225 224 85 236 237 324 91 224 91 324 225 89 224 91 181
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
85 04.785 CLIP; BRKT 8-97084-216-0 02 1 9312-9711 ● ● ●
85 04.785 CLIP; BRKT
4BE1 ENG(RLH),4HF1 ENG(RLS) 		8-97084-216-0 02 1 9312-9711 ● ● ●
89 04.785 BRACKET; CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97113-984-1 01 1 9712- ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JB1 ENG(RLF) 02.343 (A) ID=16 L=50 H=25 		1-09700-838-0 01 1 9312-9606 ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.343 (A) ID=16 L=50 H=25 		1-09700-838-0 01 1 9607-9711 ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4BE1 ENG(RLH),4HF1 ENG(RLS) 00.799 (C) ID=13 L=20 		1-09701-138-1 01 1 9712- ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JB1 ENG(RLF) (B) 		9-09917-514-0 01 1 9312-9508 ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JB1 ENG(RLF) (B) ID=13 L=50 		9-09525-286-0 01 1 9509-9606 ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) ID=13 L=50 		9-09525-286-0 01 1 9607-9711 ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) ID=13 L=50 		9-09525-286-0 01 1 9712- ● ● ● ● ● ●
181 04.785 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712- ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 9712- ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4JB1 ENG(RLF) 07.010 M8X20 FLANGE 		0-28080-820-0 02 1 9312-9503 ● ● ●
224 04.785 BOLT; CABLE CLIP
4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9504-9606 ● ● ●
224 04.785 BOLT; CABLE CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9607-9711 ● ● ●
224 04.785 BOLT; CABLE CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712- ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4BE1 ENG(RLH),4HF1 ENG(RLS) M10 FLANGE 		0-91150-110-0 01 1 9712- ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4JB1 ENG(RLF) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9312-9606 ● ● ●
225 04.785 NUT; CABLE CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9607-9711 ● ● ●
225 04.785 NUT; CABLE CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9712- ● ● ● ● ● ●
236 04.785 BOLT; BRKT TO FRAME
07.010 M8X20 FLANGE 		0-28080-820-0 02 1 9312-9503 ● ● ●
236 04.785 BOLT; BRKT TO FRAME
4BE1 ENG(RLH),4HF1 ENG(RLS) 07.010 M8X20 FLANGE 		0-28080-820-0 02 1 9312-9503 ● ● ●
236 04.785 BOLT; BRKT TO FRAME
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9504-9711 ● ● ●
236 04.785 BOLT; BRKT TO FRAME
4BE1 ENG(RLH),4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9504-9711 ● ● ●
236 04.785 BOLT; BRKT TO FRAME
4BE1 ENG(RLH),4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9712- ● ● ● ● ●
236 04.785 BOLT; BRKT TO FRAME
FRAME-KICK UP<7EW> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9712- ●
236 04.785 BOLT; BRKT TO FRAME
09.008 M10X20 FLANGE 		0-28081-020-0 02 1 9312-9510 ● ● ●
236 04.785 BOLT; BRKT TO FRAME
4BE1 ENG(RLH) REAR WIDE TREAD(V4T) 09.008 M10X20 FLANGE 		0-28081-020-0 02 1 9312-9510 ●
236 04.785 BOLT; BRKT TO FRAME
4BE1 ENG(RLH),4HF1 ENG(RLS) 09.008 M10X20 FLANGE 		0-28081-020-0 02 1 9312-9510 ● ●
236 04.785 BOLT; BRKT TO FRAME
09.008 M10X20 FLANGE 		0-28081-020-0 02 1 9511-9711 ● ● ●
236 04.785 BOLT; BRKT TO FRAME
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 09.008 M10X20 FLANGE 		0-28081-020-0 02 1 9511-9711 ● ● ●
236 04.785 BOLT; BRKT TO FRAME
4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T) 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 9312-9507 ●
236 04.785 BOLT; BRKT TO FRAME
4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T) 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9508-9509 ●
236 04.785 BOLT; BRKT TO FRAME
4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T) 02.183 M8X35 FLANGE 		0-28680-835-0 02 1 9510-9510 ●
236 04.785 BOLT; BRKT TO FRAME
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 02.183 M8X35 FLANGE 		0-28680-835-0 02 1 9511-9711 ●
237 04.785 NUT; BRKT TO FRAME
4JB1 ENG(RLF) M10 FLANGE 		0-91150-110-0 02 1 9312-9506 ● ● ●
237 04.785 NUT; BRKT TO FRAME
4JG2 ENG(RJC),4JB1 ENG(RLF) M10 FLANGE 		0-91150-110-0 02 1 9507-9711 ● ● ●
237 04.785 NUT; BRKT TO FRAME
4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9312-9506 ● ● ●
237 04.785 NUT; BRKT TO FRAME
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9507-9711 ● ● ●
324 04.785 BRACKET
4JB1 ENG(RLF) (A) 		8-97063-090-1 01 1 9312-9506 ● ● ●
324 04.785 BRACKET
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97063-090-1 01 1 9507-9711 ● ● ●
324 04.785 BRACKET
4JB1 ENG(RLF) (B) 		8-97105-721-0 01 1 9312-9506 ● ● ●
324 04.785 BRACKET
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97105-721-0 01 1 9507-9711 ● ● ●
324 04.785 BRACKET
4BE1 ENG(RLH) (C) 		8-97105-724-1 01 1 9312-9510 ● ● ● ●
324 04.785 BRACKET
4BE1 ENG(RLH) REAR WIDE TREAD(V4T) (C) 		8-97105-724-1 01 1 9312-9510 ●
324 04.785 BRACKET
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (C) 		8-97105-724-1 01 1 9511-9711 ● ● ● ● ●
324 04.785 BRACKET
4BE1 ENG(RLH),4HF1 ENG(RLS) (D) 		8-97063-092-1 01 1 9312-9411 ● ● ● ●
324 04.785 BRACKET
4BE1 ENG(RLH) REAR WIDE TREAD(V4T) (D) 		8-97063-092-1 01 1 9312-9411 ●
324 04.785 BRACKET
4BE1 ENG(RLH),4HF1 ENG(RLS) (D) 		8-97112-916-0 01 1 9412-9510 ● ● ● ●
324 04.785 BRACKET
4BE1 ENG(RLH) REAR WIDE TREAD(V4T) (D) 		8-97112-916-0 01 1 9412-9510 ●
324 04.785 BRACKET
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (D) 		8-97112-916-0 01 1 9511-9711 ● ● ● ● ●
324 04.785 BRACKET
4BE1 ENG(RLH),4HF1 ENG(RLS) (G) 		8-97140-998-2 01 1 9712- ● ● ● ● ●
324 04.785 BRACKET
4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T) (D) 		8-97063-094-2 01 1 9312-9510 ●
324 04.785 BRACKET
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (D) 		8-97063-094-2 01 1 9511-9711 ●
324 04.785 BRACKET
4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T) (E) 		8-97063-095-4 01 1 9312-9510 ●
324 04.785 BRACKET
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (E) 		8-97063-095-4 01 1 9511-9711 ●
324 04.785 BRACKET
4HF1 ENG(RLS) (F) 		8-97105-722-0 01 1 9312-9510 ●
324 04.785 BRACKET
4HF1 ENG(RLS) (F) 		8-97105-722-0 01 1 9511-9711 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
