3-02 — FRONT DISC BRAKE CALIPER (#47322) — 28 parça

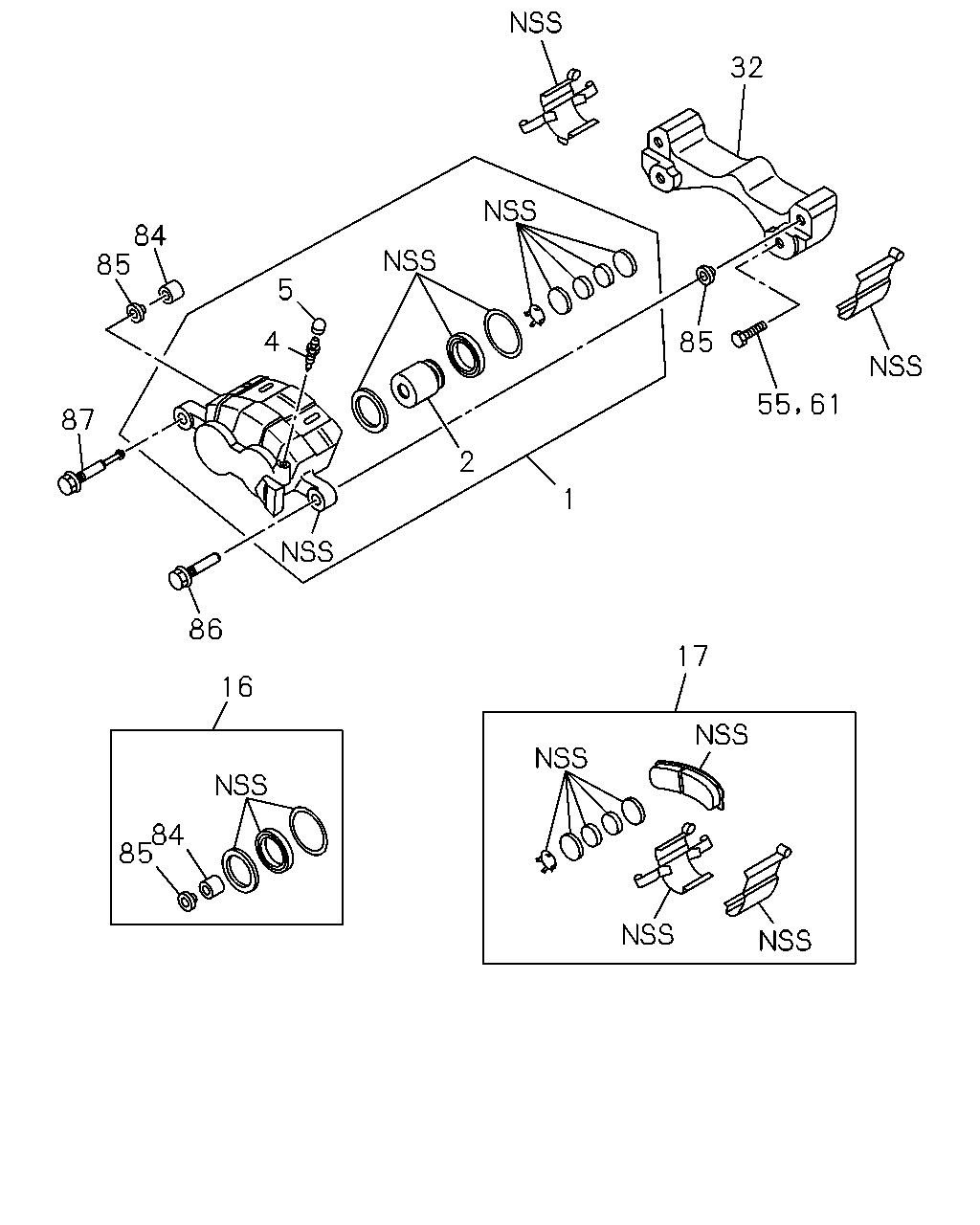

çizim 70389
32 84 85 5 4 85 55 61 87 2 1 86 17 16 84 85
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(6PP) 		8-97078-399-0 01 1 9312-9510 ● ●
1 04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(6PP) 		8-97078-399-0 01 1 9511- ●
1 04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(6PP) 		8-97078-398-0 01 1 9312-9510 ● ●
1 04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(6PP) 		8-97078-398-0 01 1 9511- ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97078-402-0 04 1 9312-9510 ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97078-402-0 04 1 9511- ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		9-47615-027-0 02 1 9312-9510 ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		9-47615-027-0 02 1 9511- ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		1-47619-009-0 02 1 9312-9510 ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		1-47619-009-0 02 1 9511- ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97078-410-2 01 1 9312-9510 ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97078-410-2 01 1 9511- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97078-409-4 01 1 9312-9510 ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97078-409-4 01 1 9511- ●
32 04.665 SUPPORT; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(6PP) 		8-97078-404-0 02 1 9312-9510 ● ●
32 04.665 SUPPORT; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(6PP) 		8-97078-404-0 02 1 9511- ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
FRT INDEPENDENT SUSPENSION(6PP) 		8-97042-716-1 02 1 9312-9510 ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
FRT INDEPENDENT SUSPENSION(6PP) 		8-97042-716-1 02 1 9511- ●
61 04.665 BOLT; SUPPORT BRKT TO KNUCKLE
FRT INDEPENDENT SUSPENSION(6PP) 04.681 		8-97042-716-1 02 1 9312-9510 ● ●
61 04.665 BOLT; SUPPORT BRKT TO KNUCKLE
FRT INDEPENDENT SUSPENSION(6PP) 04.681 		8-97042-716-1 02 1 9511- ●
84 04.665 BUSHING; LOCK PIN
FRT INDEPENDENT SUSPENSION(6PP) 		8-97029-978-0 02 1 9312-9510 ● ●
84 04.665 BUSHING; LOCK PIN
FRT INDEPENDENT SUSPENSION(6PP) 		8-97029-978-0 02 1 9511-9809 ●
85 04.665 BOOT; PIN
FRT INDEPENDENT SUSPENSION(6PP) 		8-97029-977-0 04 1 9312-9510 ● ●
85 04.665 BOOT; PIN
FRT INDEPENDENT SUSPENSION(6PP) 		8-97029-977-0 04 1 9511- ●
86 04.665 PIN; GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97029-999-0 02 1 9312-9510 ● ●
86 04.665 PIN; GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97029-999-0 02 1 9511- ●
87 04.665 PIN; LOCK
FRT INDEPENDENT SUSPENSION(6PP) 		8-97029-998-0 02 1 9312-9510 ● ●
87 04.665 PIN; LOCK
FRT INDEPENDENT SUSPENSION(6PP) 		8-97029-998-0 02 1 9511- ●
