Sayfa 2-85 - Isuzu EPC

2-85 — POWER TAKE OFF CONTROL (#47320) — 340 parça

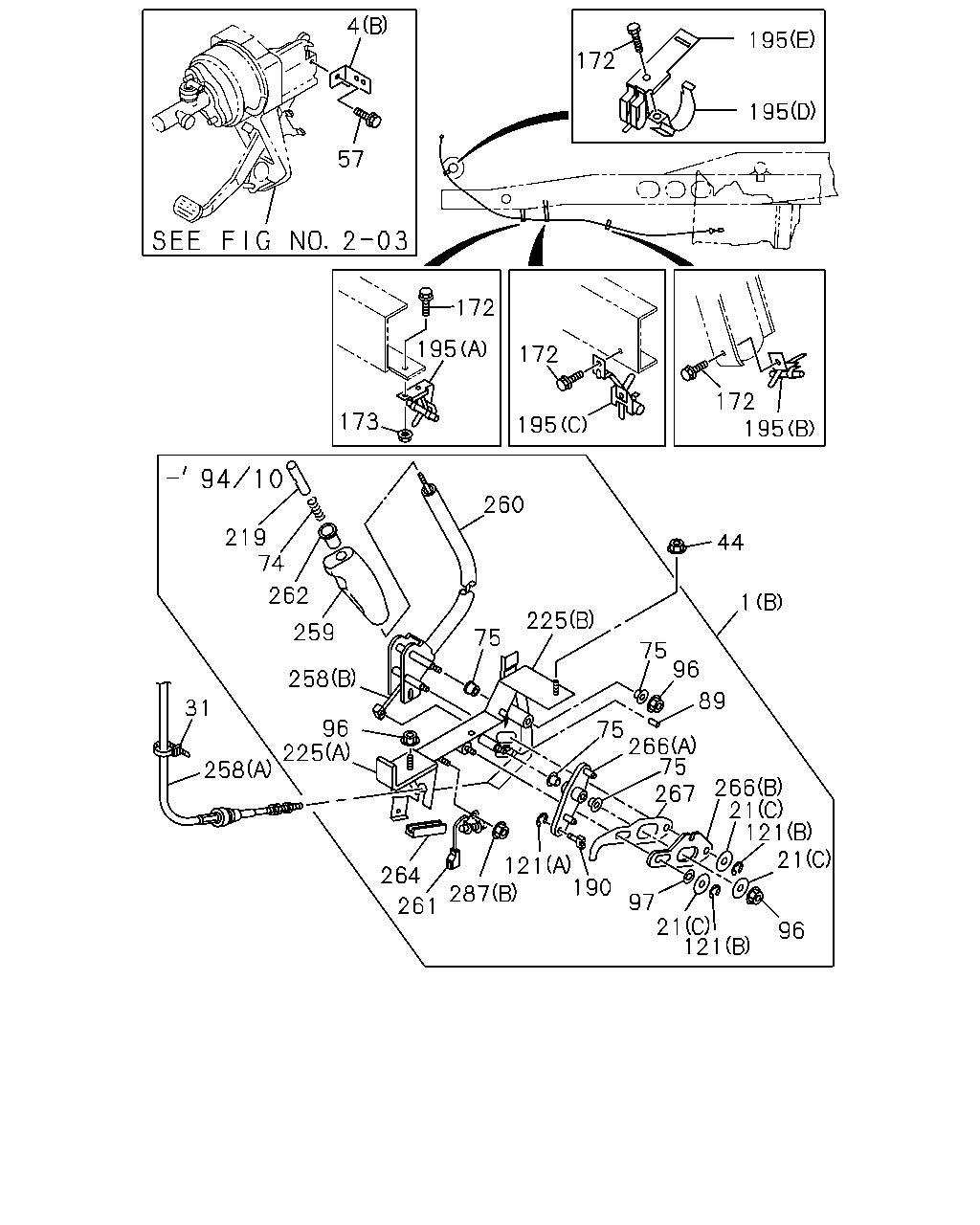

4 195 172 195 57 172 195 172 172 195 173 195 260 219 74 44 262 1 225 259 75 75 96 258 89 75 266 75 267 31 96 225 258 266 21 121 21 121 287 264 190 97 21 121 261 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) (A)	8-97017-114-1	01	1	9312-	●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) (D)	8-94169-638-3	01	1	9312-		●	●
1	04.439 LEVER ASM; PTO & DUMP CONT DUMP BODY 2.8M SHINMEIWA(RS7) (B)	8-97087-019-5	01	1	9312-9410				●
1	04.439 LEVER ASM; PTO & DUMP CONT DUMP BODY 2.8M SHINMEIWA(RS7) (C)	8-97122-742-1	01	1	9411-9610				●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO W/OIL PUMP(7RT) (C)	8-97122-742-1	01	1	9611-9711				●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO W/OIL PUMP(7RT) (C)	8-97141-646-0	01	1	9712-9802				●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO W/OIL PUMP(7RT) (C)	8-97177-807-0	01	1	9803-9807				●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO W/OIL PUMP(7RT) (C)	8-97210-807-0	01	1	9808-				●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) (A)	8-94419-944-3	01	1	9312-				●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) (A)	8-97019-744-0	01	1	9312-	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) (C)	8-94169-639-0	01	1	9312-		●	●
4	04.439 BRACKET; PTO CONT DUMP BODY 2.8M SHINMEIWA(RS7) (B)	8-97078-944-2	01	1	9312-9610				●
4	04.439 BRACKET; PTO CONT PTO W/OIL PUMP(7RT) (B)	8-97078-944-2	01	1	9611-				●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) (A)	8-94419-943-0	01	1	9312-				●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 07.633 (A) ID=8.4 OD=22	9-09164-708-0	01	1	9408-9510	●
21	04.439 WASHER; PL,CONT LEVER 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) 07.633 (A) ID=8.4 OD=22	9-09164-708-0	01	1	9511-	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 16.674 (A) ID=8.4	9-09160-508-0	01	1	9312-9407	●	●	●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 16.674 (A) ID=8.4	9-09160-508-0	01	1	9408-9510		●	●	●
21	04.439 WASHER; PL,CONT LEVER 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) PTO TRANSMISSION SIDE(V66) 16.674 (A) ID=8.4	9-09160-508-0	01	1	9511-		●	●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 06.760 (B) ID=8.4 OD=22	9-09160-708-0	01	1	9312-	●	●	●	●
21	04.439 WASHER; PL,CONT LEVER DUMP BODY 2.8M SHINMEIWA(RS7) 06.760 (C) ID=8.4 OD=22	9-09160-708-0	04	1	9312-9410				●
21	04.439 WASHER; PL,CONT LEVER DUMP BODY 2.8M SHINMEIWA(RS7) 00.206 (D) ID=6.4	9-09160-506-0	01	1	9411-9502				●
31	04.439 CLIP; BAND,CABLE PTO TRANSMISSION SIDE(V66) 03.162 L=140	5-09707-031-0	01	1	9312-9610	●	●	●	●
31	04.439 CLIP; BAND,CABLE DUMP BODY 2.8M SHINMEIWA(RS7) 03.162 L=140	5-09707-031-0	01	1	9312-9610				●
31	04.439 CLIP; BAND,CABLE PTO W/OIL PUMP(7RT) 02.559 L=300	1-09707-001-0	01	1	9611-				●
31	04.439 CLIP; BAND,CABLE DUMP BODY 2.8M SHINMEIWA(RS7) 02.559 L=600	1-09707-107-0	02	1	9312-9610				●
44	04.439 NUT; BRKT PTO TRANSMISSION SIDE(V66) 02.559 M8	9-09110-408-0	01	1	9312-9606		●	●
44	04.439 NUT; BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) 02.559 M8	9-09110-408-0	01	1	9607-9704		●	●
44	04.439 NUT; BRKT DUMP BODY 2.8M SHINMEIWA(RS7) 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-9610				●
44	04.439 NUT; BRKT PTO W/OIL PUMP(7RT) 07.633 M8 FLANGE	0-91150-108-0	01	1	9611-				●
57	04.439 BOLT; BRKT DUMP BODY 2.8M SHINMEIWA(RS7) 01.540 M8X18 W/LK&PL WASHER	0-50140-818-0	03	1	9312-9511				●
57	04.439 BOLT; BRKT DUMP BODY 2.8M SHINMEIWA(RS7) 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9512-9605				●
57	04.439 BOLT; BRKT DUMP BODY 2.8M SHINMEIWA(RS7) 02.664 M8X20 FLANGE	0-28680-820-0	03	1	9606-9610				●
57	04.439 BOLT; BRKT PTO W/OIL PUMP(7RT) 02.664 M8X20 FLANGE	0-28680-820-0	03	1	9611-				●
74	04.439 SPRING; RETURN,CONT LEVER DUMP BODY 2.8M SHINMEIWA(RS7)	8-97066-369-1	01	1	9312-9410				●
75	04.439 BUSHING; CONT LEVER DUMP BODY 2.8M SHINMEIWA(RS7) 04.008 ID=14 OD=16	8-94252-671-0	04	1	9312-9410				●
89	04.439 PIN; JOINT ROD DUMP BODY 2.8M SHINMEIWA(RS7) 04.435	8-94244-536-0	01	1	9312-9610				●
89	04.439 PIN; JOINT ROD PTO W/OIL PUMP(7RT) 04.435	8-94244-536-0	01	1	9611-				●
96	04.439 NUT DUMP BODY 2.8M SHINMEIWA(RS7) 00.777 M8 W/LK WASHER	8-94279-050-0	03	1	9312-9410				●
96	04.439 NUT DUMP BODY 2.8M SHINMEIWA(RS7) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	01	1	9411-9610				●
96	04.439 NUT PTO W/OIL PUMP(7RT) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	01	1	9611-				●
96	04.439 NUT PTO W/OIL PUMP(7RT) 00.413 (B) M6	9-09110-506-0	01	1	9803-				●
97	04.439 WASHER; LK PTO TRANSMISSION SIDE(V66) 00.832 ID=15 OD=25	8-11053-111-0	01	1	9408-	●	●	●	●
97	04.439 WASHER; LK DUMP BODY 2.8M SHINMEIWA(RS7) 04.037 ID=8.5 T=0.3	5-09509-001-0	01	1	9312-9410				●
121	04.439 RING; SNAP DUMP BODY 2.8M SHINMEIWA(RS7) 04.040 (A) ID=4	9-09185-404-0	01	1	9312-9610				●
121	04.439 RING; SNAP PTO W/OIL PUMP(7RT) 04.040 (A) ID=4	9-09185-404-0	01	1	9611-				●
121	04.439 RING; SNAP DUMP BODY 2.8M SHINMEIWA(RS7) 04.040 (B) ID=6	9-09185-406-0	02	1	9312-9610				●
121	04.439 RING; SNAP PTO W/OIL PUMP(7RT) 04.040 (B) ID=6	9-09185-406-0	02	1	9611-				●
121	04.439 RING; SNAP DUMP BODY 2.8M SHINMEIWA(RS7) 08.934 (C) ID=10	9-09185-410-0	02	1	9411-9610				●
121	04.439 RING; SNAP PTO W/OIL PUMP(7RT) 08.934 (C) ID=10	9-09185-410-0	02	1	9611-				●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9312-9610	●	●	●	●
172	04.439 BOLT; BRKT DUMP BODY 2.8M SHINMEIWA(RS7) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9312-9610				●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9611-	●	●	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9312-9403	●	●	●	●
172	04.439 BOLT; BRKT DUMP BODY 2.8M SHINMEIWA(RS7) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9312-9403				●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 01.531 M8X25 FLANGE	0-28080-825-0	02	1	9404-9504	●	●	●	●
172	04.439 BOLT; BRKT DUMP BODY 2.8M SHINMEIWA(RS7) 01.531 M8X25 FLANGE	0-28080-825-0	02	1	9404-9504				●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9505-9610	●	●	●	●
172	04.439 BOLT; BRKT DUMP BODY 2.8M SHINMEIWA(RS7) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9505-9610				●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9611-	●	●	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9312-	●	●	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 16.270 M6X12 W/LK&PL WASHER	9-03920-612-0	01	1	9312-	●	●	●	●
173	04.439 NUT; BRKT SGL TIRE&SGL CAB(NKB5SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC5SF) PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-	●	●	●	●
173	04.439 NUT; BRKT REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-			●	●
190	04.439 BOSS; LEVER,PTO PTO TRANSMISSION SIDE(V66) 04.307	8-94366-842-1	01	1	9312-9510	●
190	04.439 BOSS; LEVER,PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) 04.307	8-94366-842-1	01	1	9511-	●
190	04.439 BOSS; LEVER,PTO DUMP BODY 2.8M SHINMEIWA(RS7)	8-97087-014-0	01	1	9407-9610				●
190	04.439 BOSS; LEVER,PTO PTO W/OIL PUMP(7RT)	8-97087-014-0	01	1	9611-9802				●
190	04.439 BOSS; LEVER,PTO PTO W/OIL PUMP(7RT)	8-97178-885-0	01	1	9803-				●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (B)	8-97085-695-3	01	1	9312-9610	●	●	●	●
195	04.439 BRACKET; CONT CABLE DUMP BODY 2.8M SHINMEIWA(RS7) (B)	8-97085-695-3	01	1	9312-9610				●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) (B)	8-97085-695-3	01	1	9611-	●	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (D)	8-97079-557-3	01	1	9404-9610	●	●	●	●
195	04.439 BRACKET; CONT CABLE DUMP BODY 2.8M SHINMEIWA(RS7) (D)	8-97079-557-3	01	1	9404-9610				●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) (D)	8-97079-557-3	01	1	9611-	●	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (E)	8-97079-558-3	01	1	9404-9610	●	●	●	●
195	04.439 BRACKET; CONT CABLE DUMP BODY 2.8M SHINMEIWA(RS7) (E)	8-97079-558-3	01	1	9404-9610				●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) (E)	8-97079-558-3	01	1	9611-	●	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) 04.027 (F)	8-97088-407-1	01	1	9408-	●	●	●	●
195	04.439 BRACKET; CONT CABLE SGL TIRE&SGL CAB(NKB5SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC5SF) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	9312-	●	●	●	●
195	04.439 BRACKET; CONT CABLE REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	9312-			●	●
195	04.439 BRACKET; CONT CABLE DUAL RR TIRE&SHORT(NKC**C) PTO TRANSMISSION SIDE(V66) EXC. REAR WIDE TREAD(V4T) (C)	8-97076-428-5	01	1	9312-9610			●	●
195	04.439 BRACKET; CONT CABLE DUMP BODY 2.8M SHINMEIWA(RS7) EXC. REAR WIDE TREAD(V4T),PTO TRANSMISSION SIDE(V66) (C)	8-97076-428-5	01	1	9312-9610				●
195	04.439 BRACKET; CONT CABLE DUAL RR TIRE&SHORT(NKC**C) PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) EXC. REAR WIDE TREAD(V4T) (C)	8-97076-428-6	01	1	9611-	●	●	●	●
219	04.439 KNOB; LEVER DUMP BODY 2.8M SHINMEIWA(RS7)	8-97077-869-0	01	1	9312-9410				●
219	04.439 KNOB; LEVER DUMP BODY 2.8M SHINMEIWA(RS7)	8-97122-736-0	01	1	9411-9610				●
219	04.439 KNOB; LEVER PTO W/OIL PUMP(7RT)	8-97122-736-0	01	1	9611-				●
225	04.439 BRACKET; CONT LEVER DUMP BODY 2.8M SHINMEIWA(RS7) (A)	8-97066-493-1	01	1	9312-9610				●
225	04.439 BRACKET; CONT LEVER PTO W/OIL PUMP(7RT) (A)	8-97066-493-1	01	1	9611-				●
225	04.439 BRACKET; CONT LEVER DUMP BODY 2.8M SHINMEIWA(RS7) (B)	8-97087-023-4	01	1	9312-9410				●
225	04.439 BRACKET; CONT LEVER DUMP BODY 2.8M SHINMEIWA(RS7) (B)	8-97118-981-1	01	1	9411-9610				●
225	04.439 BRACKET; CONT LEVER PTO W/OIL PUMP(7RT) (B)	8-97118-981-1	01	1	9611-9802				●
225	04.439 BRACKET; CONT LEVER PTO W/OIL PUMP(7RT) (B)	8-97177-813-0	01	1	9803-				●
258	04.439 CABLE; DUMP CONT DUMP BODY 2.8M SHINMEIWA(RS7) (A) L=3113	8-97085-723-3	01	1	9312-9411				●
258	04.439 CABLE; DUMP CONT DUMP BODY 2.8M SHINMEIWA(RS7) (A) L=3113	8-97121-906-0	01	1	9412-9602				●
258	04.439 CABLE; DUMP CONT DUMP BODY 2.8M SHINMEIWA(RS7) (B) L=530	8-97087-015-1	01	1	9312-9410				●
258	04.439 CABLE; DUMP CONT DUMP BODY 2.8M SHINMEIWA(RS7) (B) L=484	8-97122-738-1	01	1	9411-9610				●
258	04.439 CABLE; DUMP CONT PTO W/OIL PUMP(7RT) (B) L=484	8-97122-738-1	01	1	9611-				●
258	04.439 CABLE; DUMP CONT DUMP BODY 2.8M SHINMEIWA(RS7) (A) L=3113	8-97121-906-0	01	1	9603-9608				●
258	04.439 CABLE; DUMP CONT DUMP BODY 2.8M SHINMEIWA(RS7) (A) L=3113	8-97146-193-0	01	1	9609-9610				●
258	04.439 CABLE; DUMP CONT PTO W/OIL PUMP(7RT) (A) L=3113	8-97146-193-0	01	1	9611-9802				●
258	04.439 CABLE; DUMP CONT PTO W/OIL PUMP(7RT) (A) L=3113	8-97187-097-0	01	1	9803-				●
259	04.439 GRIP; CONT LEVER DUMP BODY 2.8M SHINMEIWA(RS7)	8-97035-902-0	01	1	9312-9410				●
259	04.439 GRIP; CONT LEVER DUMP BODY 2.8M SHINMEIWA(RS7)	8-97122-737-0	01	1	9411-9610				●
259	04.439 GRIP; CONT LEVER PTO W/OIL PUMP(7RT)	8-97122-737-0	01	1	9611-9711				●
259	04.439 GRIP; CONT LEVER PTO W/OIL PUMP(7RT)	8-97141-653-0	01	1	9712-				●
260	04.439 LEVER; DUMP CONT DUMP BODY 2.8M SHINMEIWA(RS7)	8-97087-022-1	01	1	9312-9410				●
260	04.439 LEVER; DUMP CONT DUMP BODY 2.8M SHINMEIWA(RS7)	8-97122-739-0	01	1	9411-9610				●
260	04.439 LEVER; DUMP CONT PTO W/OIL PUMP(7RT)	8-97122-739-0	01	1	9611-				●
261	04.439 SWITCH; DUMP CONT DUMP BODY 2.8M SHINMEIWA(RS7)	8-97038-838-0	01	1	9312-9610				●
261	04.439 SWITCH; DUMP CONT PTO W/OIL PUMP(7RT)	8-97038-838-0	01	1	9611-				●
262	04.439 RETAINER; SPRING DUMP BODY 2.8M SHINMEIWA(RS7)	8-97066-295-0	01	1	9312-9502				●
262	04.439 RETAINER; SPRING DUMP BODY 2.8M SHINMEIWA(RS7)	8-97129-397-0	01	1	9503-9610				●
262	04.439 RETAINER; SPRING PTO W/OIL PUMP(7RT)	8-97129-397-0	01	1	9611-				●
264	04.439 PROTECTOR; EDGE DUMP BODY 2.8M SHINMEIWA(RS7) 02.530 L=80	5-76670-006-0	01	1	9312-9410				●
266	04.439 LINK; CONT DUMP BODY 2.8M SHINMEIWA(RS7) (A)	8-97087-025-1	01	1	9312-9410				●
266	04.439 LINK; CONT DUMP BODY 2.8M SHINMEIWA(RS7) (A)	8-97118-980-0	01	1	9411-9610				●
266	04.439 LINK; CONT PTO W/OIL PUMP(7RT) (A)	8-97118-980-0	01	1	9611-9807				●
266	04.439 LINK; CONT PTO W/OIL PUMP(7RT) (A)	8-97210-814-0	01	1	9808-				●
266	04.439 LINK; CONT DUMP BODY 2.8M SHINMEIWA(RS7) (B)	8-97087-026-0	01	1	9312-9410				●
266	04.439 LINK; CONT DUMP BODY 2.8M SHINMEIWA(RS7) (C)	8-97118-982-0	01	1	9411-9610				●
266	04.439 LINK; CONT PTO W/OIL PUMP(7RT) (C)	8-97118-982-0	01	1	9611-				●
267	04.439 LINK; SW DUMP BODY 2.8M SHINMEIWA(RS7)	8-97087-027-1	01	1	9312-9410				●
287	04.439 NUT; SWITCH,CONT LEVER PTO TRANSMISSION SIDE(V66) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	01	1	9312-	●	●	●	●
287	04.439 NUT; SWITCH,CONT LEVER DUMP BODY 2.8M SHINMEIWA(RS7) 16.176 (B) M6	9-09110-406-0	01	1	9312-9610				●
287	04.439 NUT; SWITCH,CONT LEVER PTO W/OIL PUMP(7RT) 16.176 (B) M6	9-09110-406-0	01	1	9611-				●

15 44 222 36 46 71 19 245 256 79 18 83 97 46 79 195 21 287 16 46 24 213 257 31 172 155 38 64 21 27 155 22 191 190 191 193

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

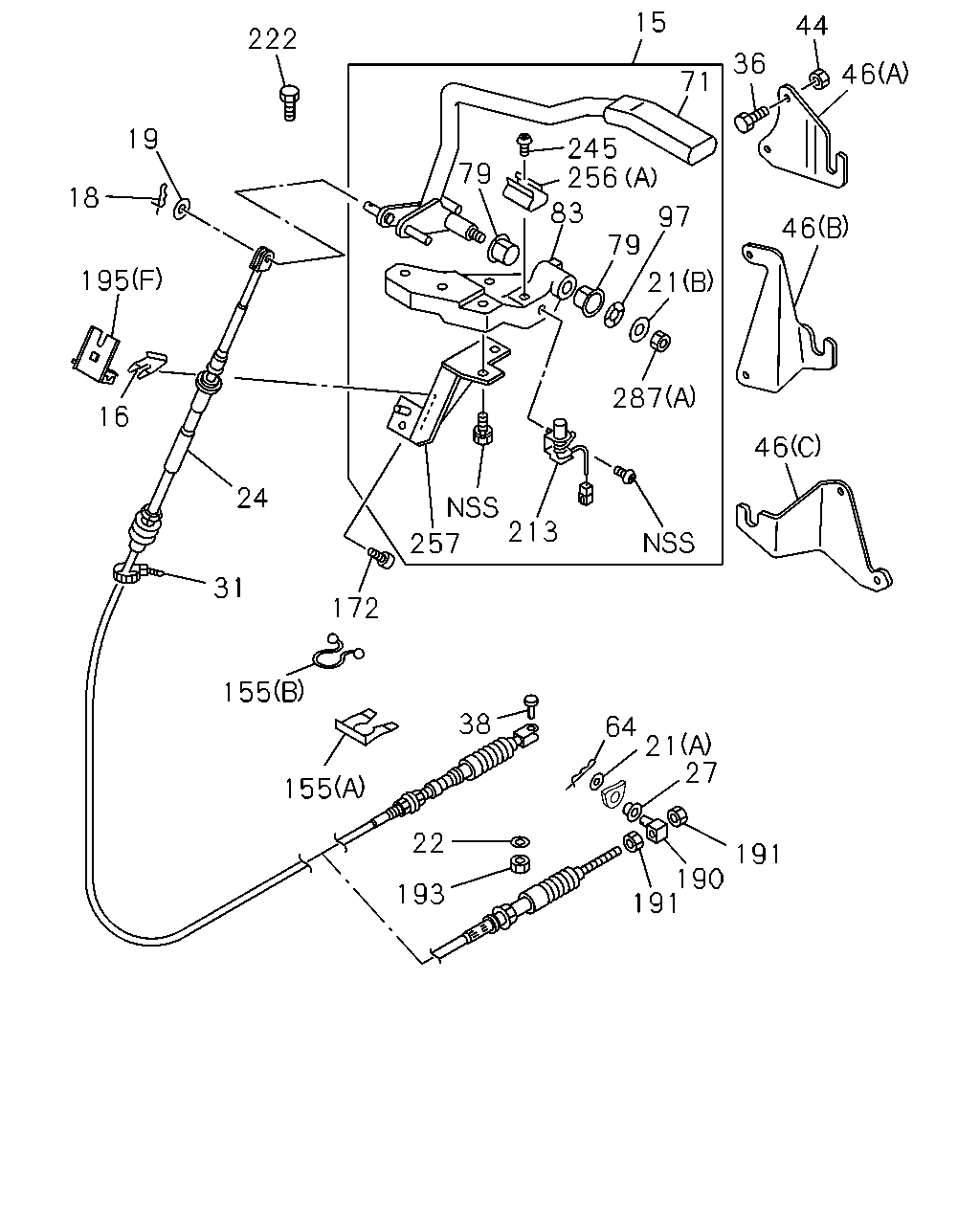

15	04.439 LEVER ASM; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97105-244-1	01	1	9312-9711	●	●	●	●
15	04.439 LEVER ASM; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97177-805-1	01	1	9712-	●	●	●	●
16	04.439 CLIP; CABLE,PTO PTO TRANSMISSION SIDE(V66) 04.027	8-94152-900-0	01	1	9312-	●	●	●	●
18	04.439 PIN; SNAP,PTO CABLE PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	9312-	●	●	●	●
19	04.439 WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE(V66) 16.674 ID=8.4	9-09160-508-0	01	1	9312-	●	●	●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 07.633 (A) ID=8.4 OD=22	9-09164-708-0	01	1	9408-9510	●
21	04.439 WASHER; PL,CONT LEVER 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) 07.633 (A) ID=8.4 OD=22	9-09164-708-0	01	1	9511-	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 16.674 (A) ID=8.4	9-09160-508-0	01	1	9312-9407	●	●	●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 16.674 (A) ID=8.4	9-09160-508-0	01	1	9408-9510		●	●	●
21	04.439 WASHER; PL,CONT LEVER 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) PTO TRANSMISSION SIDE(V66) 16.674 (A) ID=8.4	9-09160-508-0	01	1	9511-		●	●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 06.760 (B) ID=8.4 OD=22	9-09160-708-0	01	1	9312-	●	●	●	●
21	04.439 WASHER; PL,CONT LEVER DUMP BODY 2.8M SHINMEIWA(RS7) 06.760 (C) ID=8.4 OD=22	9-09160-708-0	04	1	9312-9410				●
21	04.439 WASHER; PL,CONT LEVER DUMP BODY 2.8M SHINMEIWA(RS7) 00.206 (D) ID=6.4	9-09160-506-0	01	1	9411-9502				●
22	04.439 WASHER; LK,LEVER PTO TRANSMISSION SIDE(V66) 04.037 ID=8.5 T=0.3	5-09509-001-0	01	1	9408-9510	●
22	04.439 WASHER; LK,LEVER 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) 04.037 ID=8.5 T=0.3	5-09509-001-0	01	1	9511-	●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) L=2810	8-97105-130-1	01	1	9312-9510	●
24	04.439 CABLE; PTO CONT 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) L=2810	8-97105-130-1	01	1	9511-9602	●
24	04.439 CABLE; PTO CONT 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) L=2810	8-97142-479-0	01	1	9603-9710	●
24	04.439 CABLE; PTO CONT 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) L=2810	8-97185-425-0	01	1	9711-	●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97105-137-2	01	1	9312-9602		●	●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) L=2690	8-97142-482-0	01	1	9603-		●	●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) L=2770	8-97105-131-1	01	1	9312-9602				●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97142-480-0	01	1	9603-				●
27	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66) 04.042	8-94367-367-0	01	1	9312-	●
31	04.439 CLIP; BAND,CABLE PTO TRANSMISSION SIDE(V66) 03.162 L=140	5-09707-031-0	01	1	9312-9610	●	●	●	●
31	04.439 CLIP; BAND,CABLE DUMP BODY 2.8M SHINMEIWA(RS7) 03.162 L=140	5-09707-031-0	01	1	9312-9610				●
31	04.439 CLIP; BAND,CABLE PTO W/OIL PUMP(7RT) 02.559 L=300	1-09707-001-0	01	1	9611-				●
31	04.439 CLIP; BAND,CABLE DUMP BODY 2.8M SHINMEIWA(RS7) 02.559 L=600	1-09707-107-0	02	1	9312-9610				●
36	04.439 BOLT; PTO BRKT PTO TRANSMISSION SIDE(V66) 01.540 M8X35 W/LK WASHER	0-50040-835-0	01	1	9312-9606		●	●
36	04.439 BOLT; PTO BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) 01.540 M8X35 W/LK WASHER	0-50040-835-0	01	1	9607-9704		●	●
38	04.439 PIN; JOINT,CABLE TO LEVER PTO TRANSMISSION SIDE(V66) 04.047	8-94153-035-0	01	1	9312-9606		●	●	●
38	04.439 PIN; JOINT,CABLE TO LEVER 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) PTO TRANSMISSION SIDE(V66) 04.047	8-94153-035-0	01	1	9607-		●	●	●
44	04.439 NUT; BRKT PTO TRANSMISSION SIDE(V66) 02.559 M8	9-09110-408-0	01	1	9312-9606		●	●
44	04.439 NUT; BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) 02.559 M8	9-09110-408-0	01	1	9607-9704		●	●
44	04.439 NUT; BRKT DUMP BODY 2.8M SHINMEIWA(RS7) 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-9610				●
44	04.439 NUT; BRKT PTO W/OIL PUMP(7RT) 07.633 M8 FLANGE	0-91150-108-0	01	1	9611-				●
46	04.439 BRACKET; PTO,TRANS SIDE PTO TRANSMISSION SIDE(V66) (C)	8-97022-848-1	01	1	9312-	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO TRANSMISSION SIDE(V66) (A)	8-94157-541-0	01	1	9312-		●	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO TRANSMISSION SIDE(V66) (B)	8-94404-754-1	01	1	9312-				●
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	9312-	●	●	●	●
71	04.439 LEVER; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97105-245-0	01	1	9312-9711	●	●	●	●
71	04.439 LEVER; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97177-806-1	01	1	9712-	●	●	●	●
79	04.439 BUSHING; CONT LEVER PTO TRANSMISSION SIDE(V66) 04.008 ID=14 OD=16	8-94252-671-0	02	1	9312-	●	●	●	●
83	04.439 BRACKET; CONT LEVER PTO TRANSMISSION SIDE(V66)	8-97088-403-3	01	1	9312-9407	●	●	●	●
83	04.439 BRACKET; CONT LEVER PTO TRANSMISSION SIDE(V66)	8-97117-352-0	01	1	9408-	●	●	●	●
97	04.439 WASHER; LK PTO TRANSMISSION SIDE(V66) 00.832 ID=15 OD=25	8-11053-111-0	01	1	9408-	●	●	●	●
97	04.439 WASHER; LK DUMP BODY 2.8M SHINMEIWA(RS7) 04.037 ID=8.5 T=0.3	5-09509-001-0	01	1	9312-9410				●
155	04.439 CLIP; CABLE PTO TRANSMISSION SIDE(V66) 09.663 (B) ID=15	1-09709-003-0	01	1	9407-	●	●	●	●
155	04.439 CLIP; CABLE DUMP BODY 2.8M SHINMEIWA(RS7) 04.027 (A)	8-94152-900-0	01	1	9312-9610				●
155	04.439 CLIP; CABLE PTO W/OIL PUMP(7RT) 04.027 (A)	8-94152-900-0	01	1	9611-				●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9312-9610	●	●	●	●
172	04.439 BOLT; BRKT DUMP BODY 2.8M SHINMEIWA(RS7) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9312-9610				●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9611-	●	●	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9312-9403	●	●	●	●
172	04.439 BOLT; BRKT DUMP BODY 2.8M SHINMEIWA(RS7) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9312-9403				●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 01.531 M8X25 FLANGE	0-28080-825-0	02	1	9404-9504	●	●	●	●
172	04.439 BOLT; BRKT DUMP BODY 2.8M SHINMEIWA(RS7) 01.531 M8X25 FLANGE	0-28080-825-0	02	1	9404-9504				●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9505-9610	●	●	●	●
172	04.439 BOLT; BRKT DUMP BODY 2.8M SHINMEIWA(RS7) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9505-9610				●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9611-	●	●	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9312-	●	●	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 16.270 M6X12 W/LK&PL WASHER	9-03920-612-0	01	1	9312-	●	●	●	●
190	04.439 BOSS; LEVER,PTO PTO TRANSMISSION SIDE(V66) 04.307	8-94366-842-1	01	1	9312-9510	●
190	04.439 BOSS; LEVER,PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) 04.307	8-94366-842-1	01	1	9511-	●
190	04.439 BOSS; LEVER,PTO DUMP BODY 2.8M SHINMEIWA(RS7)	8-97087-014-0	01	1	9407-9610				●
190	04.439 BOSS; LEVER,PTO PTO W/OIL PUMP(7RT)	8-97087-014-0	01	1	9611-9802				●
190	04.439 BOSS; LEVER,PTO PTO W/OIL PUMP(7RT)	8-97178-885-0	01	1	9803-				●
191	04.439 NUT; BOSS PTO TRANSMISSION SIDE(V66) 00.413 M6	9-09110-506-0	02	1	9312-	●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) 07.347 M12	9-99111-412-0	01	1	9312-	●	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (B)	8-97085-695-3	01	1	9312-9610	●	●	●	●
195	04.439 BRACKET; CONT CABLE DUMP BODY 2.8M SHINMEIWA(RS7) (B)	8-97085-695-3	01	1	9312-9610				●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) (B)	8-97085-695-3	01	1	9611-	●	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (D)	8-97079-557-3	01	1	9404-9610	●	●	●	●
195	04.439 BRACKET; CONT CABLE DUMP BODY 2.8M SHINMEIWA(RS7) (D)	8-97079-557-3	01	1	9404-9610				●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) (D)	8-97079-557-3	01	1	9611-	●	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (E)	8-97079-558-3	01	1	9404-9610	●	●	●	●
195	04.439 BRACKET; CONT CABLE DUMP BODY 2.8M SHINMEIWA(RS7) (E)	8-97079-558-3	01	1	9404-9610				●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) (E)	8-97079-558-3	01	1	9611-	●	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) 04.027 (F)	8-97088-407-1	01	1	9408-	●	●	●	●
195	04.439 BRACKET; CONT CABLE SGL TIRE&SGL CAB(NKB5SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC5SF) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	9312-	●	●	●	●
195	04.439 BRACKET; CONT CABLE REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	9312-			●	●
195	04.439 BRACKET; CONT CABLE DUAL RR TIRE&SHORT(NKC**C) PTO TRANSMISSION SIDE(V66) EXC. REAR WIDE TREAD(V4T) (C)	8-97076-428-5	01	1	9312-9610			●	●
195	04.439 BRACKET; CONT CABLE DUMP BODY 2.8M SHINMEIWA(RS7) EXC. REAR WIDE TREAD(V4T),PTO TRANSMISSION SIDE(V66) (C)	8-97076-428-5	01	1	9312-9610				●
195	04.439 BRACKET; CONT CABLE DUAL RR TIRE&SHORT(NKC**C) PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) EXC. REAR WIDE TREAD(V4T) (C)	8-97076-428-6	01	1	9611-	●	●	●	●
213	04.439 SWITCH; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97041-412-1	01	1	9312-	●	●	●	●
222	04.439 BOLT; LEVER PTO TRANSMISSION SIDE(V66) 01.540 M8X18 W/LK&PL WASHER	0-50140-818-0	01	1	9312-9406	●	●	●	●
222	04.439 BOLT; LEVER PTO TRANSMISSION SIDE(V66) 01.062 M8X16 FLANGE	0-28080-816-0	04	1	9407-9506	●	●	●	●
222	04.439 BOLT; LEVER PTO TRANSMISSION SIDE(V66) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	9507-9608	●	●	●	●
222	04.439 BOLT; LEVER PTO TRANSMISSION SIDE(V66) 00.662 M8X14 FLANGE	0-28080-814-0	01	1	9507-9608	●	●	●	●
222	04.439 BOLT; LEVER PTO TRANSMISSION SIDE(V66) 00.662 M8X14 FLANGE	0-28080-814-0	04	1	9609-	●	●	●	●
245	04.439 SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE(V66) 03.320 M4X10 W/LK&PL WASHER	9-03920-410-0	01	1	9408-	●	●	●	●
256	04.439 PLATE; LOCK PTO TRANSMISSION SIDE(V66) (A)	8-97104-865-0	01	1	9312-9407	●	●	●	●
256	04.439 PLATE; LOCK PTO TRANSMISSION SIDE(V66) (A)	8-97117-351-0	01	1	9408-	●	●	●	●
256	04.439 PLATE; LOCK DUMP BODY 2.8M SHINMEIWA(RS7) (B)	8-97114-287-0	01	1	9411-9502				●
257	04.439 REINFORCEMENT; PTO PTO TRANSMISSION SIDE(V66)	8-97088-406-3	01	1	9312-	●	●	●	●
287	04.439 NUT; SWITCH,CONT LEVER PTO TRANSMISSION SIDE(V66) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	01	1	9312-	●	●	●	●
287	04.439 NUT; SWITCH,CONT LEVER DUMP BODY 2.8M SHINMEIWA(RS7) 16.176 (B) M6	9-09110-406-0	01	1	9312-9610				●
287	04.439 NUT; SWITCH,CONT LEVER PTO W/OIL PUMP(7RT) 16.176 (B) M6	9-09110-406-0	01	1	9611-				●

10 14 13 11 12 8 7 6 4 5 7 9 10 14 13 11 12 1 7 8 6 4 5 7 9 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) (A)	8-97017-114-1	01	1	9312-	●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) (D)	8-94169-638-3	01	1	9312-		●	●
1	04.439 LEVER ASM; PTO & DUMP CONT DUMP BODY 2.8M SHINMEIWA(RS7) (B)	8-97087-019-5	01	1	9312-9410				●
1	04.439 LEVER ASM; PTO & DUMP CONT DUMP BODY 2.8M SHINMEIWA(RS7) (C)	8-97122-742-1	01	1	9411-9610				●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO W/OIL PUMP(7RT) (C)	8-97122-742-1	01	1	9611-9711				●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO W/OIL PUMP(7RT) (C)	8-97141-646-0	01	1	9712-9802				●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO W/OIL PUMP(7RT) (C)	8-97177-807-0	01	1	9803-9807				●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO W/OIL PUMP(7RT) (C)	8-97210-807-0	01	1	9808-				●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) (A)	8-94419-944-3	01	1	9312-				●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) (A)	8-97019-744-0	01	1	9312-	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) (C)	8-94169-639-0	01	1	9312-		●	●
4	04.439 BRACKET; PTO CONT DUMP BODY 2.8M SHINMEIWA(RS7) (B)	8-97078-944-2	01	1	9312-9610				●
4	04.439 BRACKET; PTO CONT PTO W/OIL PUMP(7RT) (B)	8-97078-944-2	01	1	9611-				●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) (A)	8-94419-943-0	01	1	9312-				●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) (A)	8-97017-115-0	01	1	9312-	●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) (B)	8-94147-828-0	01	1	9312-		●	●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) (A)	8-94419-942-0	01	1	9312-				●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-94419-941-1	01	1	9312-	●			●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-94147-829-1	01	1	9312-		●	●
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	9312-	●	●	●	●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	9312-	●	●	●	●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2	9-09150-508-0	01	1	9312-	●	●	●	●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) 02.559 M8	9-09110-408-0	01	1	9312-	●	●	●	●
11	04.439 JOINT; JAW,YOKE PTO TRANSMISSION SIDE(V66)	8-94342-085-0	01	1	9312-	●	●	●	●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-94174-099-0	01	1	9312-	●	●	●	●
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) 03.430 ID=12.5	9-09160-512-0	01	1	9312-	●	●	●	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) 09.003	1-09987-158-1	01	1	9312-	●	●	●	●

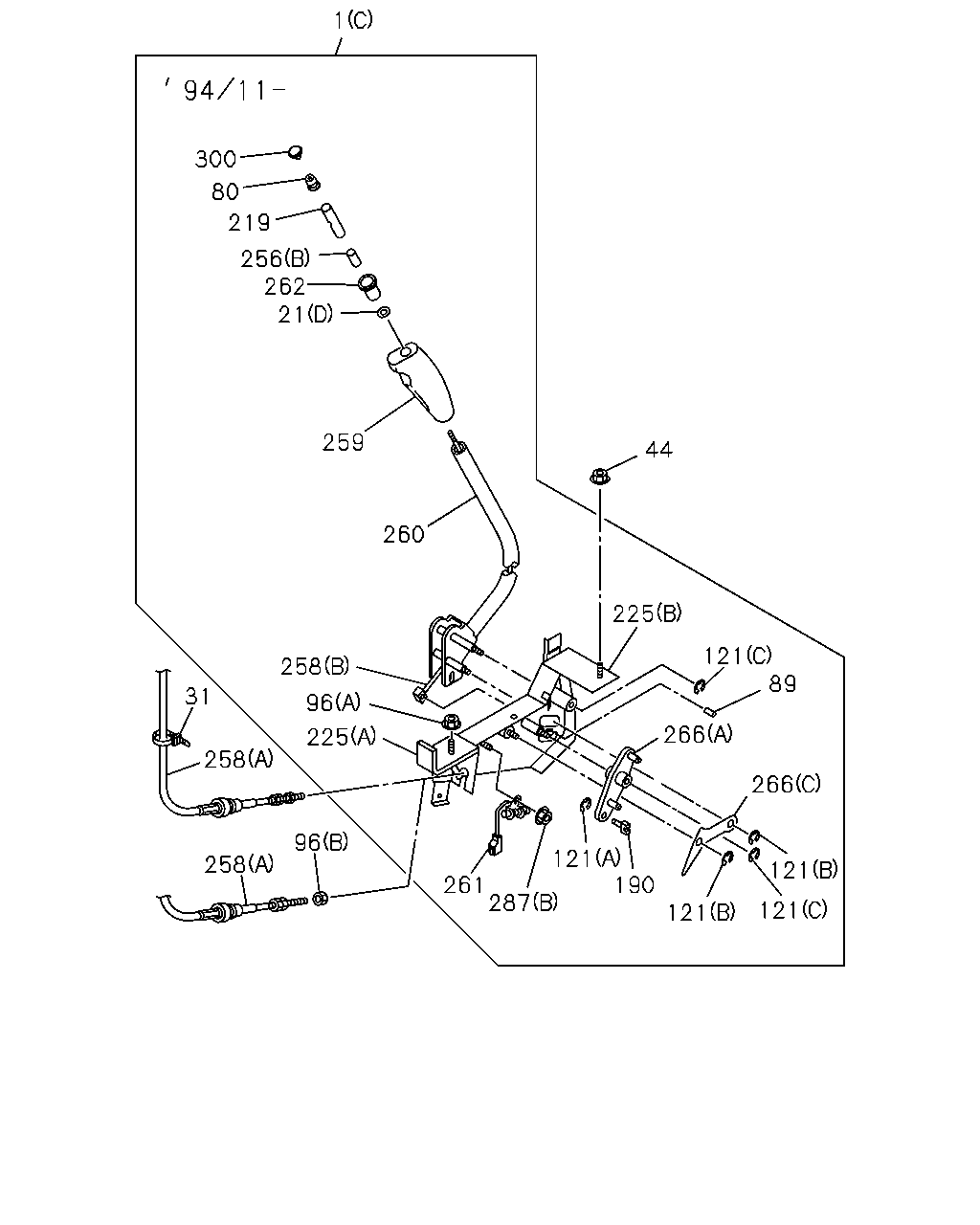

1 300 80 219 256 262 21 259 44 260 225 121 89 258 31 96 266 225 258 266 96 121 258 121 261 287 190 121 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) (A)	8-97017-114-1	01	1	9312-	●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) (D)	8-94169-638-3	01	1	9312-		●	●
1	04.439 LEVER ASM; PTO & DUMP CONT DUMP BODY 2.8M SHINMEIWA(RS7) (B)	8-97087-019-5	01	1	9312-9410				●
1	04.439 LEVER ASM; PTO & DUMP CONT DUMP BODY 2.8M SHINMEIWA(RS7) (C)	8-97122-742-1	01	1	9411-9610				●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO W/OIL PUMP(7RT) (C)	8-97122-742-1	01	1	9611-9711				●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO W/OIL PUMP(7RT) (C)	8-97141-646-0	01	1	9712-9802				●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO W/OIL PUMP(7RT) (C)	8-97177-807-0	01	1	9803-9807				●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO W/OIL PUMP(7RT) (C)	8-97210-807-0	01	1	9808-				●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) (A)	8-94419-944-3	01	1	9312-				●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 07.633 (A) ID=8.4 OD=22	9-09164-708-0	01	1	9408-9510	●
21	04.439 WASHER; PL,CONT LEVER 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) 07.633 (A) ID=8.4 OD=22	9-09164-708-0	01	1	9511-	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 16.674 (A) ID=8.4	9-09160-508-0	01	1	9312-9407	●	●	●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 16.674 (A) ID=8.4	9-09160-508-0	01	1	9408-9510		●	●	●
21	04.439 WASHER; PL,CONT LEVER 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) PTO TRANSMISSION SIDE(V66) 16.674 (A) ID=8.4	9-09160-508-0	01	1	9511-		●	●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 06.760 (B) ID=8.4 OD=22	9-09160-708-0	01	1	9312-	●	●	●	●
21	04.439 WASHER; PL,CONT LEVER DUMP BODY 2.8M SHINMEIWA(RS7) 06.760 (C) ID=8.4 OD=22	9-09160-708-0	04	1	9312-9410				●
21	04.439 WASHER; PL,CONT LEVER DUMP BODY 2.8M SHINMEIWA(RS7) 00.206 (D) ID=6.4	9-09160-506-0	01	1	9411-9502				●
31	04.439 CLIP; BAND,CABLE PTO TRANSMISSION SIDE(V66) 03.162 L=140	5-09707-031-0	01	1	9312-9610	●	●	●	●
31	04.439 CLIP; BAND,CABLE DUMP BODY 2.8M SHINMEIWA(RS7) 03.162 L=140	5-09707-031-0	01	1	9312-9610				●
31	04.439 CLIP; BAND,CABLE PTO W/OIL PUMP(7RT) 02.559 L=300	1-09707-001-0	01	1	9611-				●
31	04.439 CLIP; BAND,CABLE DUMP BODY 2.8M SHINMEIWA(RS7) 02.559 L=600	1-09707-107-0	02	1	9312-9610				●
44	04.439 NUT; BRKT PTO TRANSMISSION SIDE(V66) 02.559 M8	9-09110-408-0	01	1	9312-9606		●	●
44	04.439 NUT; BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) 02.559 M8	9-09110-408-0	01	1	9607-9704		●	●
44	04.439 NUT; BRKT DUMP BODY 2.8M SHINMEIWA(RS7) 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-9610				●
44	04.439 NUT; BRKT PTO W/OIL PUMP(7RT) 07.633 M8 FLANGE	0-91150-108-0	01	1	9611-				●
80	04.439 COVER; CONT LEVER DUMP BODY 2.8M SHINMEIWA(RS7)	8-97122-741-0	01	1	9411-9610				●
80	04.439 COVER; CONT LEVER PTO W/OIL PUMP(7RT)	8-97122-741-0	01	1	9611-				●
89	04.439 PIN; JOINT ROD DUMP BODY 2.8M SHINMEIWA(RS7) 04.435	8-94244-536-0	01	1	9312-9610				●
89	04.439 PIN; JOINT ROD PTO W/OIL PUMP(7RT) 04.435	8-94244-536-0	01	1	9611-				●
96	04.439 NUT DUMP BODY 2.8M SHINMEIWA(RS7) 00.777 M8 W/LK WASHER	8-94279-050-0	03	1	9312-9410				●
96	04.439 NUT DUMP BODY 2.8M SHINMEIWA(RS7) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	01	1	9411-9610				●
96	04.439 NUT PTO W/OIL PUMP(7RT) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	01	1	9611-				●
96	04.439 NUT PTO W/OIL PUMP(7RT) 00.413 (B) M6	9-09110-506-0	01	1	9803-				●
121	04.439 RING; SNAP DUMP BODY 2.8M SHINMEIWA(RS7) 04.040 (A) ID=4	9-09185-404-0	01	1	9312-9610				●
121	04.439 RING; SNAP PTO W/OIL PUMP(7RT) 04.040 (A) ID=4	9-09185-404-0	01	1	9611-				●
121	04.439 RING; SNAP DUMP BODY 2.8M SHINMEIWA(RS7) 04.040 (B) ID=6	9-09185-406-0	02	1	9312-9610				●
121	04.439 RING; SNAP PTO W/OIL PUMP(7RT) 04.040 (B) ID=6	9-09185-406-0	02	1	9611-				●
121	04.439 RING; SNAP DUMP BODY 2.8M SHINMEIWA(RS7) 08.934 (C) ID=10	9-09185-410-0	02	1	9411-9610				●
121	04.439 RING; SNAP PTO W/OIL PUMP(7RT) 08.934 (C) ID=10	9-09185-410-0	02	1	9611-				●
190	04.439 BOSS; LEVER,PTO PTO TRANSMISSION SIDE(V66) 04.307	8-94366-842-1	01	1	9312-9510	●
190	04.439 BOSS; LEVER,PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) 04.307	8-94366-842-1	01	1	9511-	●
190	04.439 BOSS; LEVER,PTO DUMP BODY 2.8M SHINMEIWA(RS7)	8-97087-014-0	01	1	9407-9610				●
190	04.439 BOSS; LEVER,PTO PTO W/OIL PUMP(7RT)	8-97087-014-0	01	1	9611-9802				●
190	04.439 BOSS; LEVER,PTO PTO W/OIL PUMP(7RT)	8-97178-885-0	01	1	9803-				●
219	04.439 KNOB; LEVER DUMP BODY 2.8M SHINMEIWA(RS7)	8-97077-869-0	01	1	9312-9410				●
219	04.439 KNOB; LEVER DUMP BODY 2.8M SHINMEIWA(RS7)	8-97122-736-0	01	1	9411-9610				●
219	04.439 KNOB; LEVER PTO W/OIL PUMP(7RT)	8-97122-736-0	01	1	9611-				●
225	04.439 BRACKET; CONT LEVER DUMP BODY 2.8M SHINMEIWA(RS7) (A)	8-97066-493-1	01	1	9312-9610				●
225	04.439 BRACKET; CONT LEVER PTO W/OIL PUMP(7RT) (A)	8-97066-493-1	01	1	9611-				●
225	04.439 BRACKET; CONT LEVER DUMP BODY 2.8M SHINMEIWA(RS7) (B)	8-97087-023-4	01	1	9312-9410				●
225	04.439 BRACKET; CONT LEVER DUMP BODY 2.8M SHINMEIWA(RS7) (B)	8-97118-981-1	01	1	9411-9610				●
225	04.439 BRACKET; CONT LEVER PTO W/OIL PUMP(7RT) (B)	8-97118-981-1	01	1	9611-9802				●
225	04.439 BRACKET; CONT LEVER PTO W/OIL PUMP(7RT) (B)	8-97177-813-0	01	1	9803-				●
256	04.439 PLATE; LOCK PTO TRANSMISSION SIDE(V66) (A)	8-97104-865-0	01	1	9312-9407	●	●	●	●
256	04.439 PLATE; LOCK PTO TRANSMISSION SIDE(V66) (A)	8-97117-351-0	01	1	9408-	●	●	●	●
256	04.439 PLATE; LOCK DUMP BODY 2.8M SHINMEIWA(RS7) (B)	8-97114-287-0	01	1	9411-9502				●
258	04.439 CABLE; DUMP CONT DUMP BODY 2.8M SHINMEIWA(RS7) (A) L=3113	8-97085-723-3	01	1	9312-9411				●
258	04.439 CABLE; DUMP CONT DUMP BODY 2.8M SHINMEIWA(RS7) (A) L=3113	8-97121-906-0	01	1	9412-9602				●
258	04.439 CABLE; DUMP CONT DUMP BODY 2.8M SHINMEIWA(RS7) (B) L=530	8-97087-015-1	01	1	9312-9410				●
258	04.439 CABLE; DUMP CONT DUMP BODY 2.8M SHINMEIWA(RS7) (B) L=484	8-97122-738-1	01	1	9411-9610				●
258	04.439 CABLE; DUMP CONT PTO W/OIL PUMP(7RT) (B) L=484	8-97122-738-1	01	1	9611-				●
258	04.439 CABLE; DUMP CONT DUMP BODY 2.8M SHINMEIWA(RS7) (A) L=3113	8-97121-906-0	01	1	9603-9608				●
258	04.439 CABLE; DUMP CONT DUMP BODY 2.8M SHINMEIWA(RS7) (A) L=3113	8-97146-193-0	01	1	9609-9610				●
258	04.439 CABLE; DUMP CONT PTO W/OIL PUMP(7RT) (A) L=3113	8-97146-193-0	01	1	9611-9802				●
258	04.439 CABLE; DUMP CONT PTO W/OIL PUMP(7RT) (A) L=3113	8-97187-097-0	01	1	9803-				●
259	04.439 GRIP; CONT LEVER DUMP BODY 2.8M SHINMEIWA(RS7)	8-97035-902-0	01	1	9312-9410				●
259	04.439 GRIP; CONT LEVER DUMP BODY 2.8M SHINMEIWA(RS7)	8-97122-737-0	01	1	9411-9610				●
259	04.439 GRIP; CONT LEVER PTO W/OIL PUMP(7RT)	8-97122-737-0	01	1	9611-9711				●
259	04.439 GRIP; CONT LEVER PTO W/OIL PUMP(7RT)	8-97141-653-0	01	1	9712-				●
260	04.439 LEVER; DUMP CONT DUMP BODY 2.8M SHINMEIWA(RS7)	8-97087-022-1	01	1	9312-9410				●
260	04.439 LEVER; DUMP CONT DUMP BODY 2.8M SHINMEIWA(RS7)	8-97122-739-0	01	1	9411-9610				●
260	04.439 LEVER; DUMP CONT PTO W/OIL PUMP(7RT)	8-97122-739-0	01	1	9611-				●
261	04.439 SWITCH; DUMP CONT DUMP BODY 2.8M SHINMEIWA(RS7)	8-97038-838-0	01	1	9312-9610				●
261	04.439 SWITCH; DUMP CONT PTO W/OIL PUMP(7RT)	8-97038-838-0	01	1	9611-				●
262	04.439 RETAINER; SPRING DUMP BODY 2.8M SHINMEIWA(RS7)	8-97066-295-0	01	1	9312-9502				●
262	04.439 RETAINER; SPRING DUMP BODY 2.8M SHINMEIWA(RS7)	8-97129-397-0	01	1	9503-9610				●
262	04.439 RETAINER; SPRING PTO W/OIL PUMP(7RT)	8-97129-397-0	01	1	9611-				●
266	04.439 LINK; CONT DUMP BODY 2.8M SHINMEIWA(RS7) (A)	8-97087-025-1	01	1	9312-9410				●
266	04.439 LINK; CONT DUMP BODY 2.8M SHINMEIWA(RS7) (A)	8-97118-980-0	01	1	9411-9610				●
266	04.439 LINK; CONT PTO W/OIL PUMP(7RT) (A)	8-97118-980-0	01	1	9611-9807				●
266	04.439 LINK; CONT PTO W/OIL PUMP(7RT) (A)	8-97210-814-0	01	1	9808-				●
266	04.439 LINK; CONT DUMP BODY 2.8M SHINMEIWA(RS7) (B)	8-97087-026-0	01	1	9312-9410				●
266	04.439 LINK; CONT DUMP BODY 2.8M SHINMEIWA(RS7) (C)	8-97118-982-0	01	1	9411-9610				●
266	04.439 LINK; CONT PTO W/OIL PUMP(7RT) (C)	8-97118-982-0	01	1	9611-				●
287	04.439 NUT; SWITCH,CONT LEVER PTO TRANSMISSION SIDE(V66) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	01	1	9312-	●	●	●	●
287	04.439 NUT; SWITCH,CONT LEVER DUMP BODY 2.8M SHINMEIWA(RS7) 16.176 (B) M6	9-09110-406-0	01	1	9312-9610				●
287	04.439 NUT; SWITCH,CONT LEVER PTO W/OIL PUMP(7RT) 16.176 (B) M6	9-09110-406-0	01	1	9611-				●
300	04.439 CAP; KNOB DUMP BODY 2.8M SHINMEIWA(RS7)	8-97122-740-0	01	1	9411-9610				●
300	04.439 CAP; KNOB PTO W/OIL PUMP(7RT)	8-97122-740-0	01	1	9611-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
