1-30A — AIR CLEANER (#4732) — 155 parça

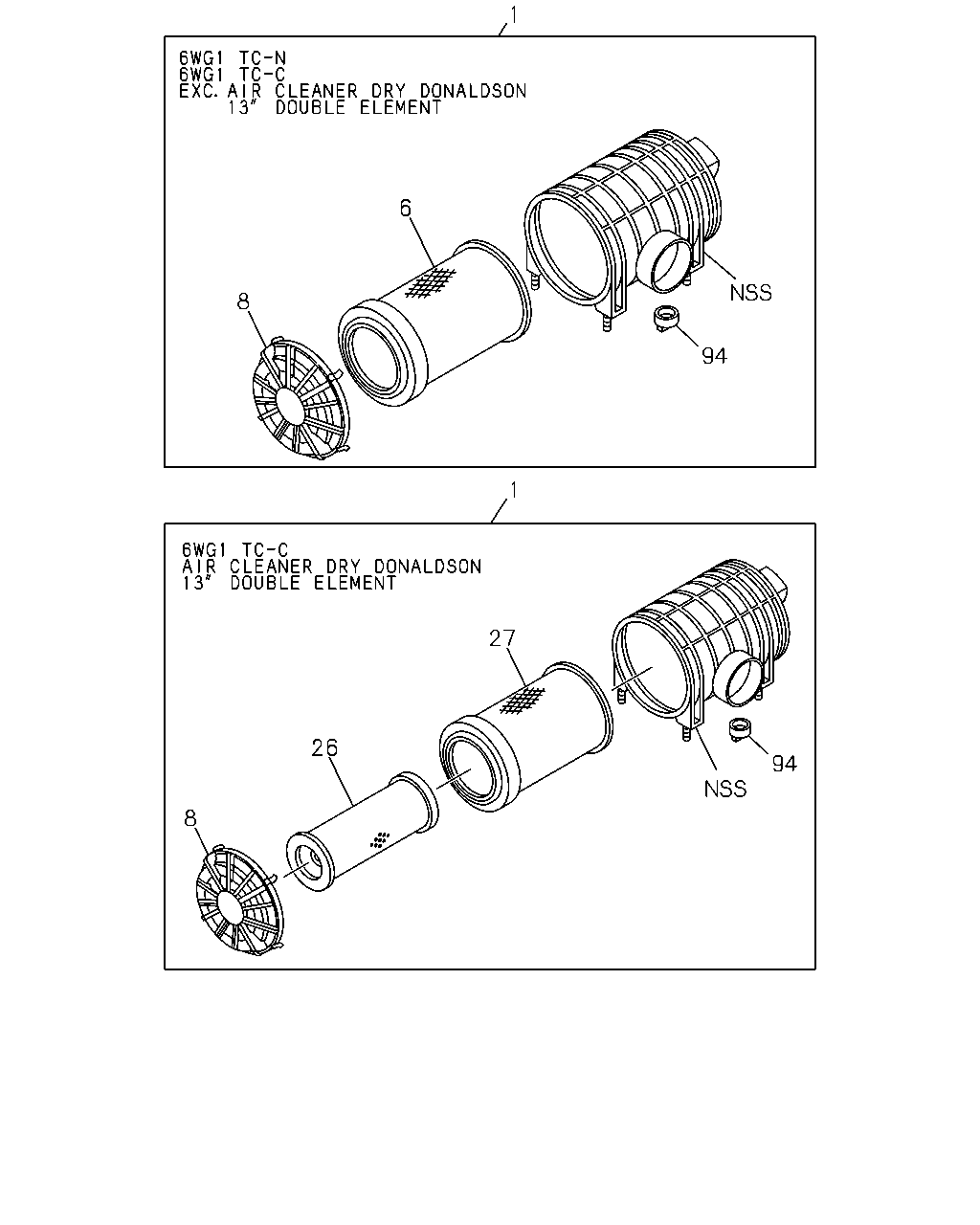

çizim 9274
1 6 8 94 1 27 26 94 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CLEANER ASM; AIR 1-14210-740-0 01 1 9603-9701 ●
1 CLEANER ASM; AIR
SHORT CHASSIS&RHD(EXZ5MC) EXC. THAILAND EQUIPMENT(PM9) 		1-14210-740-0 01 1 9702-9708 ●
1 CLEANER ASM; AIR
SHORT CHASSIS&LHD(EXZ6MC) 		1-14210-740-0 01 1 9702-9708 ●
1 CLEANER ASM; AIR
EXC. AIR CLEANER DRY DONALDSON 13" DOUBLE ELEME NT<Q2Y> 		1-14210-740-0 01 1 9709-9804 ●
1 CLEANER ASM; AIR
EXC. AIR CLEANER DRY DONALDSON 13" DOUBLE ELEME NT<Q2Y> 		1-14210-740-0 01 1 9805-9904 ● ●
1 CLEANER ASM; AIR
EXC. AIR CLEANER HEAVY DUTY<K45>,AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> 		1-14210-740-0 01 1 9905- ● ● ●
1 CLEANER ASM; AIR
SHORT CHASSIS&RHD(EXZ5MC) THAILAND EQUIPMENT(PM9) 		1-14210-808-0 01 1 9702-9708 ●
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> 		1-14210-808-0 01 1 9709-9804 ●
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> 		1-14210-808-0 01 1 9805-9904 ● ●
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> 		1-14210-832-0 01 1 9905- ● ● ●
1 CLEANER ASM; AIR
AIR CLEANER HEAVY DUTY<K45> 		1-14210-834-0 01 1 9905- ● ● ●
1 CLEANER ASM; AIR
SHORT CHASSIS&RHD(EXZ5MC) 		1-14210-787-3 01 1 9707-9904 ●
1 CLEANER ASM; AIR
SHORT CHASSIS&RHD(EXZ5MC) EXC. AIR CLEANER DRY DONALDSON 13" DOUBLE ELEME NT<Q2Y> 		1-14210-787-3 01 1 9905- ●
1 CLEANER ASM; AIR
SHORT CHASSIS&RHD(EXZ5MC) AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> 		1-14210-821-0 01 1 9905- ●
6 FILTER; ACL 1-14215-203-0 01 1 9603-9701 ●
6 FILTER; ACL
SHORT CHASSIS&RHD(EXZ5MC) EXC. THAILAND EQUIPMENT(PM9) 		1-14215-203-0 01 1 9702-9708 ●
6 FILTER; ACL
SHORT CHASSIS&LHD(EXZ6MC) 		1-14215-203-0 01 1 9702-9708 ●
6 FILTER; ACL
EXC. AIR CLEANER DRY DONALDSON 13" DOUBLE ELEME NT<Q2Y> 		1-14215-203-0 01 1 9709-9804 ●
6 FILTER; ACL
EXC. AIR CLEANER DRY DONALDSON 13" DOUBLE ELEME NT<Q2Y> 		1-14215-203-0 01 1 9805-9904 ● ●
6 FILTER; ACL
EXC. AIR CLEANER HEAVY DUTY<K45>,AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> 		1-14215-203-0 01 1 9905- ● ● ●
6 FILTER; ACL
SHORT CHASSIS&RHD(EXZ5MC) 		1-14215-213-0 01 1 9707-9904 ●
6 FILTER; ACL
SHORT CHASSIS&RHD(EXZ5MC) EXC. AIR CLEANER DRY DONALDSON 13" DOUBLE ELEME NT<Q2Y> 		1-14215-213-0 01 1 9905- ●
8 COVER ASM; ACL 1-14212-129-0 01 1 9603-9804 ●
8 COVER ASM; ACL 1-14212-129-0 01 1 9805-9904 ● ●
8 COVER ASM; ACL 1-14212-129-0 01 1 9905- ● ● ●
8 COVER ASM; ACL
SHORT CHASSIS&RHD(EXZ5MC) 		1-14212-132-0 01 1 9707-9904 ●
8 COVER ASM; ACL
SHORT CHASSIS&RHD(EXZ5MC) 		1-14212-132-0 01 1 9905- ●
26 FILTER; ACL,INNER
SHORT CHASSIS&RHD(EXZ5MC) THAILAND EQUIPMENT(PM9) 		1-14215-217-0 01 1 9702-9708 ●
26 FILTER; ACL,INNER
AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> 		1-14215-217-0 01 1 9709-9804 ●
26 FILTER; ACL,INNER
AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> 		1-14215-217-0 01 1 9805-9904 ● ●
26 FILTER; ACL,INNER 1-14215-217-0 01 1 9905- ● ● ●
26 FILTER; ACL,INNER
SHORT CHASSIS&RHD(EXZ5MC) AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> 		1-14215-220-0 01 1 9905- ●
27 FILTER; ACL,OUTER
SHORT CHASSIS&RHD(EXZ5MC) THAILAND EQUIPMENT(PM9) 		1-14215-203-0 01 1 9702-9708 ●
27 FILTER; ACL,OUTER
AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> 		1-14215-203-0 01 1 9709-9804 ●
27 FILTER; ACL,OUTER
AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> 		1-14215-203-0 01 1 9805-9904 ● ●
27 FILTER; ACL,OUTER 1-14215-203-0 01 1 9905- ● ● ●
27 FILTER; ACL,OUTER
SHORT CHASSIS&RHD(EXZ5MC) AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> 		1-14215-213-0 01 1 9905- ●
94 VALVE; VACUATOR 1-14219-251-0 01 1 9603-9804 ●
94 VALVE; VACUATOR 1-14219-251-0 01 1 9805-9904 ● ●
94 VALVE; VACUATOR 1-14219-251-0 01 1 9905- ● ● ●
94 VALVE; VACUATOR
SHORT CHASSIS&RHD(EXZ5MC) 		1-14219-192-0 01 1 9707-9904 ●
94 VALVE; VACUATOR
SHORT CHASSIS&RHD(EXZ5MC) 		1-14219-192-0 01 1 9905- ●

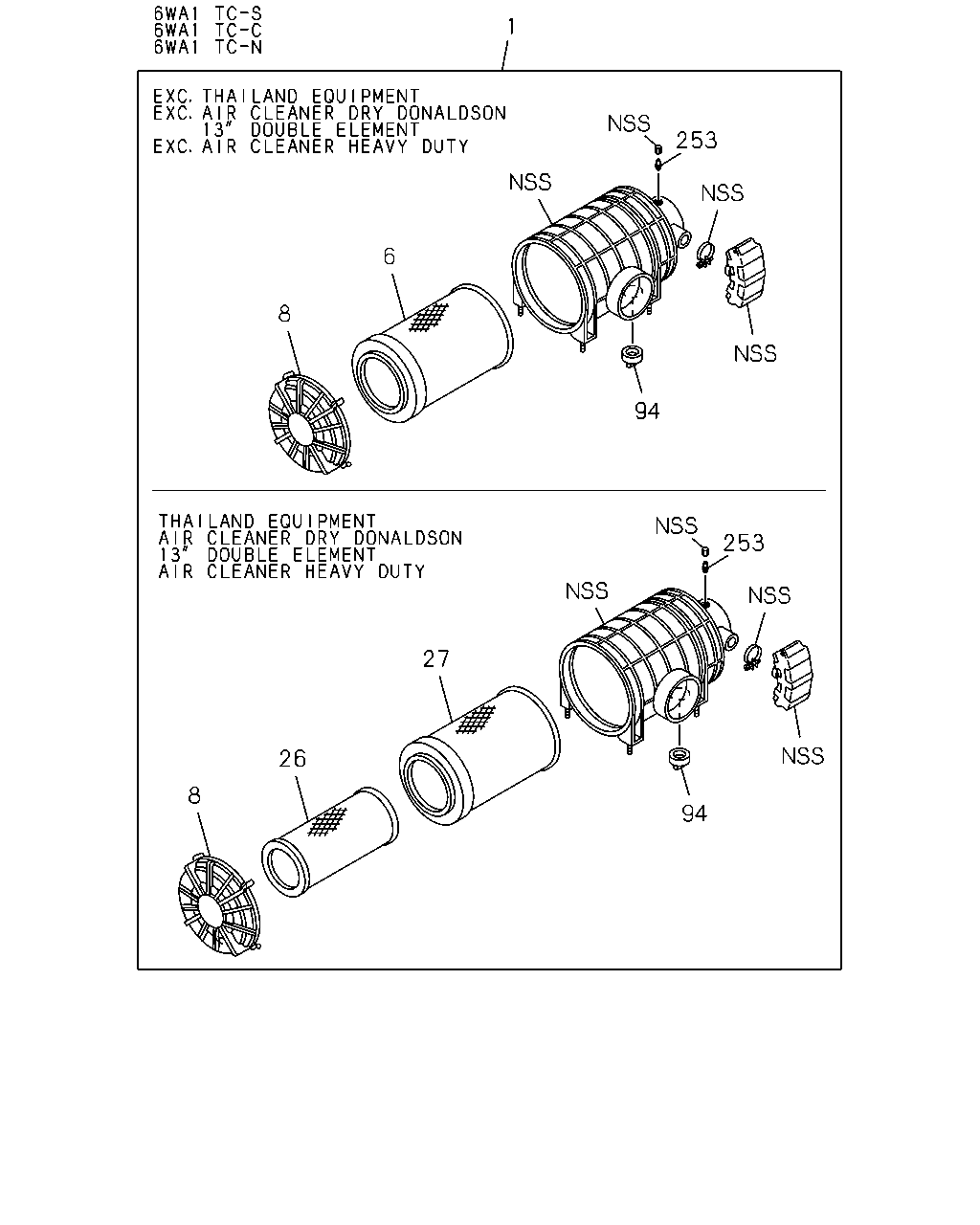

çizim 40410
1 253 6 8 94 253 27 26 8 94
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CLEANER ASM; AIR 1-14210-740-0 01 1 9603-9701 ●
1 CLEANER ASM; AIR
SHORT CHASSIS&RHD(EXZ5MC) EXC. THAILAND EQUIPMENT(PM9) 		1-14210-740-0 01 1 9702-9708 ●
1 CLEANER ASM; AIR
SHORT CHASSIS&LHD(EXZ6MC) 		1-14210-740-0 01 1 9702-9708 ●
1 CLEANER ASM; AIR
EXC. AIR CLEANER DRY DONALDSON 13" DOUBLE ELEME NT<Q2Y> 		1-14210-740-0 01 1 9709-9804 ●
1 CLEANER ASM; AIR
EXC. AIR CLEANER DRY DONALDSON 13" DOUBLE ELEME NT<Q2Y> 		1-14210-740-0 01 1 9805-9904 ● ●
1 CLEANER ASM; AIR
EXC. AIR CLEANER HEAVY DUTY<K45>,AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> 		1-14210-740-0 01 1 9905- ● ● ●
1 CLEANER ASM; AIR
SHORT CHASSIS&RHD(EXZ5MC) THAILAND EQUIPMENT(PM9) 		1-14210-808-0 01 1 9702-9708 ●
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> 		1-14210-808-0 01 1 9709-9804 ●
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> 		1-14210-808-0 01 1 9805-9904 ● ●
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> 		1-14210-832-0 01 1 9905- ● ● ●
1 CLEANER ASM; AIR
AIR CLEANER HEAVY DUTY<K45> 		1-14210-834-0 01 1 9905- ● ● ●
1 CLEANER ASM; AIR
SHORT CHASSIS&RHD(EXZ5MC) 		1-14210-787-3 01 1 9707-9904 ●
1 CLEANER ASM; AIR
SHORT CHASSIS&RHD(EXZ5MC) EXC. AIR CLEANER DRY DONALDSON 13" DOUBLE ELEME NT<Q2Y> 		1-14210-787-3 01 1 9905- ●
1 CLEANER ASM; AIR
SHORT CHASSIS&RHD(EXZ5MC) AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> 		1-14210-821-0 01 1 9905- ●
6 FILTER; ACL 1-14215-203-0 01 1 9603-9701 ●
6 FILTER; ACL
SHORT CHASSIS&RHD(EXZ5MC) EXC. THAILAND EQUIPMENT(PM9) 		1-14215-203-0 01 1 9702-9708 ●
6 FILTER; ACL
SHORT CHASSIS&LHD(EXZ6MC) 		1-14215-203-0 01 1 9702-9708 ●
6 FILTER; ACL
EXC. AIR CLEANER DRY DONALDSON 13" DOUBLE ELEME NT<Q2Y> 		1-14215-203-0 01 1 9709-9804 ●
6 FILTER; ACL
EXC. AIR CLEANER DRY DONALDSON 13" DOUBLE ELEME NT<Q2Y> 		1-14215-203-0 01 1 9805-9904 ● ●
6 FILTER; ACL
EXC. AIR CLEANER HEAVY DUTY<K45>,AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> 		1-14215-203-0 01 1 9905- ● ● ●
6 FILTER; ACL
SHORT CHASSIS&RHD(EXZ5MC) 		1-14215-213-0 01 1 9707-9904 ●
6 FILTER; ACL
SHORT CHASSIS&RHD(EXZ5MC) EXC. AIR CLEANER DRY DONALDSON 13" DOUBLE ELEME NT<Q2Y> 		1-14215-213-0 01 1 9905- ●
8 COVER ASM; ACL 1-14212-129-0 01 1 9603-9804 ●
8 COVER ASM; ACL 1-14212-129-0 01 1 9805-9904 ● ●
8 COVER ASM; ACL 1-14212-129-0 01 1 9905- ● ● ●
8 COVER ASM; ACL
SHORT CHASSIS&RHD(EXZ5MC) 		1-14212-132-0 01 1 9707-9904 ●
8 COVER ASM; ACL
SHORT CHASSIS&RHD(EXZ5MC) 		1-14212-132-0 01 1 9905- ●
26 FILTER; ACL,INNER
SHORT CHASSIS&RHD(EXZ5MC) THAILAND EQUIPMENT(PM9) 		1-14215-217-0 01 1 9702-9708 ●
26 FILTER; ACL,INNER
AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> 		1-14215-217-0 01 1 9709-9804 ●
26 FILTER; ACL,INNER
AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> 		1-14215-217-0 01 1 9805-9904 ● ●
26 FILTER; ACL,INNER 1-14215-217-0 01 1 9905- ● ● ●
26 FILTER; ACL,INNER
SHORT CHASSIS&RHD(EXZ5MC) AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> 		1-14215-220-0 01 1 9905- ●
27 FILTER; ACL,OUTER
SHORT CHASSIS&RHD(EXZ5MC) THAILAND EQUIPMENT(PM9) 		1-14215-203-0 01 1 9702-9708 ●
27 FILTER; ACL,OUTER
AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> 		1-14215-203-0 01 1 9709-9804 ●
27 FILTER; ACL,OUTER
AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> 		1-14215-203-0 01 1 9805-9904 ● ●
27 FILTER; ACL,OUTER 1-14215-203-0 01 1 9905- ● ● ●
27 FILTER; ACL,OUTER
SHORT CHASSIS&RHD(EXZ5MC) AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> 		1-14215-213-0 01 1 9905- ●
94 VALVE; VACUATOR 1-14219-251-0 01 1 9603-9804 ●
94 VALVE; VACUATOR 1-14219-251-0 01 1 9805-9904 ● ●
94 VALVE; VACUATOR 1-14219-251-0 01 1 9905- ● ● ●
94 VALVE; VACUATOR
SHORT CHASSIS&RHD(EXZ5MC) 		1-14219-192-0 01 1 9707-9904 ●
94 VALVE; VACUATOR
SHORT CHASSIS&RHD(EXZ5MC) 		1-14219-192-0 01 1 9905- ●
253 NIPPLE 1-14219-252-0 01 1 9905- ● ● ●

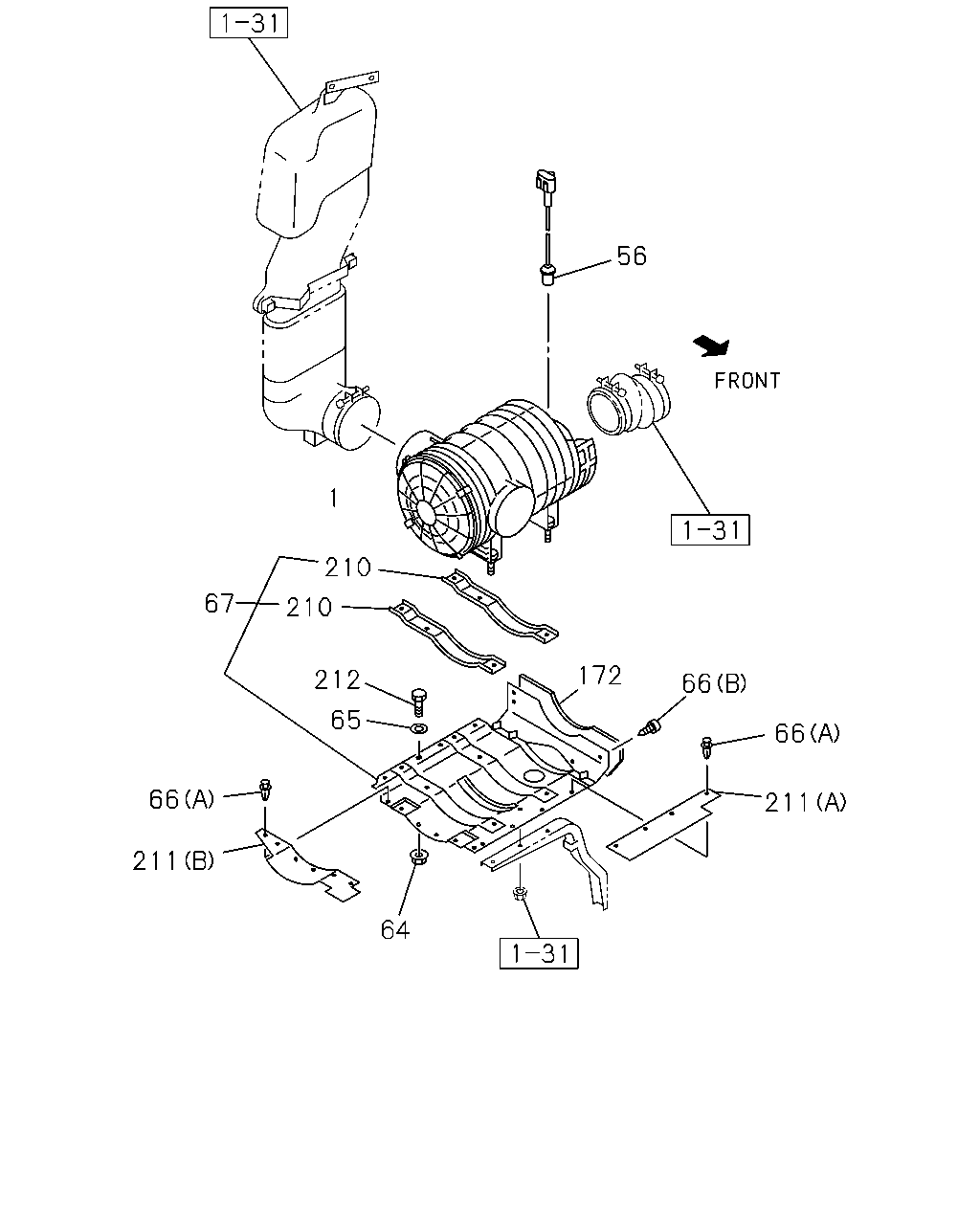

çizim 42231
56 1 210 67 210 172 212 66 65 66 66 211 211 64
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CLEANER ASM; AIR 1-14210-740-0 01 1 9603-9701 ●
1 CLEANER ASM; AIR
SHORT CHASSIS&RHD(EXZ5MC) EXC. THAILAND EQUIPMENT(PM9) 		1-14210-740-0 01 1 9702-9708 ●
1 CLEANER ASM; AIR
SHORT CHASSIS&LHD(EXZ6MC) 		1-14210-740-0 01 1 9702-9708 ●
1 CLEANER ASM; AIR
EXC. AIR CLEANER DRY DONALDSON 13" DOUBLE ELEME NT<Q2Y> 		1-14210-740-0 01 1 9709-9804 ●
1 CLEANER ASM; AIR
EXC. AIR CLEANER DRY DONALDSON 13" DOUBLE ELEME NT<Q2Y> 		1-14210-740-0 01 1 9805-9904 ● ●
1 CLEANER ASM; AIR
EXC. AIR CLEANER HEAVY DUTY<K45>,AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> 		1-14210-740-0 01 1 9905- ● ● ●
1 CLEANER ASM; AIR
SHORT CHASSIS&RHD(EXZ5MC) THAILAND EQUIPMENT(PM9) 		1-14210-808-0 01 1 9702-9708 ●
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> 		1-14210-808-0 01 1 9709-9804 ●
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> 		1-14210-808-0 01 1 9805-9904 ● ●
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> 		1-14210-832-0 01 1 9905- ● ● ●
1 CLEANER ASM; AIR
AIR CLEANER HEAVY DUTY<K45> 		1-14210-834-0 01 1 9905- ● ● ●
1 CLEANER ASM; AIR
SHORT CHASSIS&RHD(EXZ5MC) 		1-14210-787-3 01 1 9707-9904 ●
1 CLEANER ASM; AIR
SHORT CHASSIS&RHD(EXZ5MC) EXC. AIR CLEANER DRY DONALDSON 13" DOUBLE ELEME NT<Q2Y> 		1-14210-787-3 01 1 9905- ●
1 CLEANER ASM; AIR
SHORT CHASSIS&RHD(EXZ5MC) AIR CLEANER DRY DONALDSON 13" DOUBLE ELEMENT<Q2Y> 		1-14210-821-0 01 1 9905- ●
56 SWITCH; ACL 1-81530-016-0 01 1 9603-9706 ●
56 SWITCH; ACL 1-81530-016-0 01 1 9905- ● ● ● ●
56 SWITCH; ACL 1-81530-016-0 01 1 9707-9804 ● ●
56 SWITCH; ACL 1-81530-016-0 01 1 9805-9904 ● ● ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91150-110-0 07 1 9603-9606 ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91150-210-0 04 1 9607-9904 ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91150-210-0 04 1 9905- ● ● ● ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91150-210-0 04 1 9707-9804 ● ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91150-210-0 04 1 9805-9904 ● ● ●
65 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 03 1 9603-9706 ●
65 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 03 1 9905- ● ● ● ●
65 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 03 1 9707-9804 ● ●
65 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 03 1 9805-9904 ● ● ●
66 CLIP; ACL
(A) 		5-09987-033-0 10 1 9603-9706 ●
66 CLIP; ACL
(A) 		5-09987-033-0 10 1 9707-9801 ●
66 CLIP; ACL
SHORT CHASSIS&RHD(EXZ5MC) (A) 		5-09987-033-0 10 1 9707-9801 ●
66 CLIP; ACL
(A) 		5-09987-033-0 09 1 9802-9804 ●
66 CLIP; ACL
SHORT CHASSIS&RHD(EXZ5MC) (A) 		5-09987-033-0 09 1 9802-9804 ●
66 CLIP; ACL
(A) 		5-09987-033-0 09 1 9805-9904 ● ●
66 CLIP; ACL
SHORT CHASSIS&RHD(EXZ5MC) (A) 		5-09987-033-0 09 1 9805-9904 ●
66 CLIP; ACL
(A) 		5-09987-033-0 09 1 9905- ● ● ● ●
66 CLIP; ACL
(B) 		8-94279-048-0 07 1 9603-9706 ●
66 CLIP; ACL
(B) 		8-94279-048-0 07 1 9707-9804 ●
66 CLIP; ACL
SHORT CHASSIS&RHD(EXZ5MC) (B) 		8-94279-048-0 07 1 9707-9804 ●
66 CLIP; ACL
(B) 		8-94279-048-0 07 1 9805-9904 ● ●
66 CLIP; ACL
SHORT CHASSIS&RHD(EXZ5MC) (B) 		8-94279-048-0 07 1 9805-9904 ●
66 CLIP; ACL
(B) 		8-94279-048-0 07 1 9905- ● ● ● ●
67 COVER; ACL 1-53419-281-3 01 1 9603-9804 ●
67 COVER; ACL 1-53419-281-3 01 1 9805-9904 ● ●
67 COVER; ACL 1-53419-281-3 01 1 9905- ● ● ●
67 COVER; ACL
SHORT CHASSIS&RHD(EXZ5MC) 		1-53419-304-0 01 1 9707-9904 ●
67 COVER; ACL
SHORT CHASSIS&RHD(EXZ5MC) 		1-53419-304-0 01 1 9905- ●
172 INSULATOR; NOISE 1-53446-780-1 01 1 9603-9706 ●
172 INSULATOR; NOISE 1-53446-780-1 01 1 9707-9804 ●
172 INSULATOR; NOISE
SHORT CHASSIS&RHD(EXZ5MC) 		1-53446-780-1 01 1 9707-9804 ●
172 INSULATOR; NOISE 1-53446-780-1 01 1 9805-9904 ● ●
172 INSULATOR; NOISE
SHORT CHASSIS&RHD(EXZ5MC) 		1-53446-780-1 01 1 9805-9904 ●
172 INSULATOR; NOISE 1-53446-780-1 01 1 9905- ● ● ● ●
210 BRACKET; ACL MTG 1-53419-283-0 02 1 9603-9706 ●
210 BRACKET; ACL MTG 1-53419-283-0 02 1 9707-9804 ●
210 BRACKET; ACL MTG
SHORT CHASSIS&RHD(EXZ5MC) 		1-53419-283-0 02 1 9707-9804 ●
210 BRACKET; ACL MTG 1-53419-283-0 02 1 9805-9904 ● ●
210 BRACKET; ACL MTG
SHORT CHASSIS&RHD(EXZ5MC) 		1-53419-283-0 02 1 9805-9904 ●
210 BRACKET; ACL MTG 1-53419-283-0 02 1 9905- ● ● ● ●
211 RUBBER; SEAL
(A) 		1-79931-007-0 01 1 9603-9706 ●
211 RUBBER; SEAL
(A) 		1-79931-007-0 01 1 9707-9804 ● ●
211 RUBBER; SEAL
(A) 		1-79931-007-0 01 1 9805-9904 ● ● ●
211 RUBBER; SEAL
(A) 		1-79931-007-0 01 1 9905- ● ● ● ●
211 RUBBER; SEAL
(B) 		1-79931-008-1 01 1 9603-9706 ●
211 RUBBER; SEAL
(B) 		1-79931-008-2 01 1 9707-9804 ● ●
211 RUBBER; SEAL
(B) 		1-79931-008-2 01 1 9805-9904 ● ● ●
211 RUBBER; SEAL
(B) 		1-79931-008-2 01 1 9905- ● ● ● ●
212 BOLT; MUD COVER
M10X20 FLANGE 		0-28081-020-0 07 1 9603-9706 ●
212 BOLT; MUD COVER
M10X25 FLANGE 		0-28681-025-0 04 1 9905- ● ● ● ●
212 BOLT; MUD COVER
M10X25 FLANGE 		0-28681-025-0 04 1 9707-9804 ● ●
212 BOLT; MUD COVER
M10X25 FLANGE 		0-28681-025-0 04 1 9805-9904 ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
