Sayfa 2-81 - Isuzu EPC

2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#47319) — 259 parça

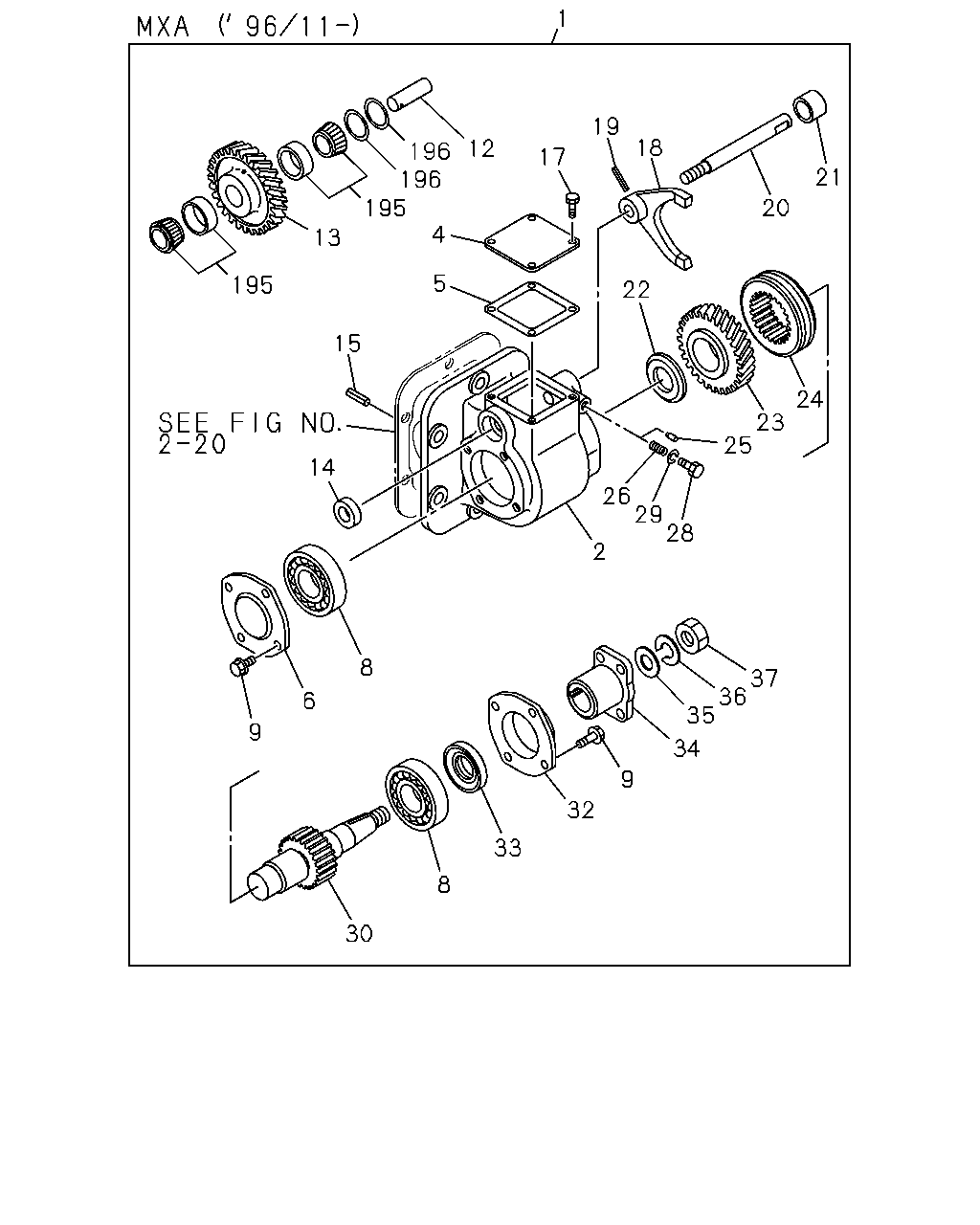

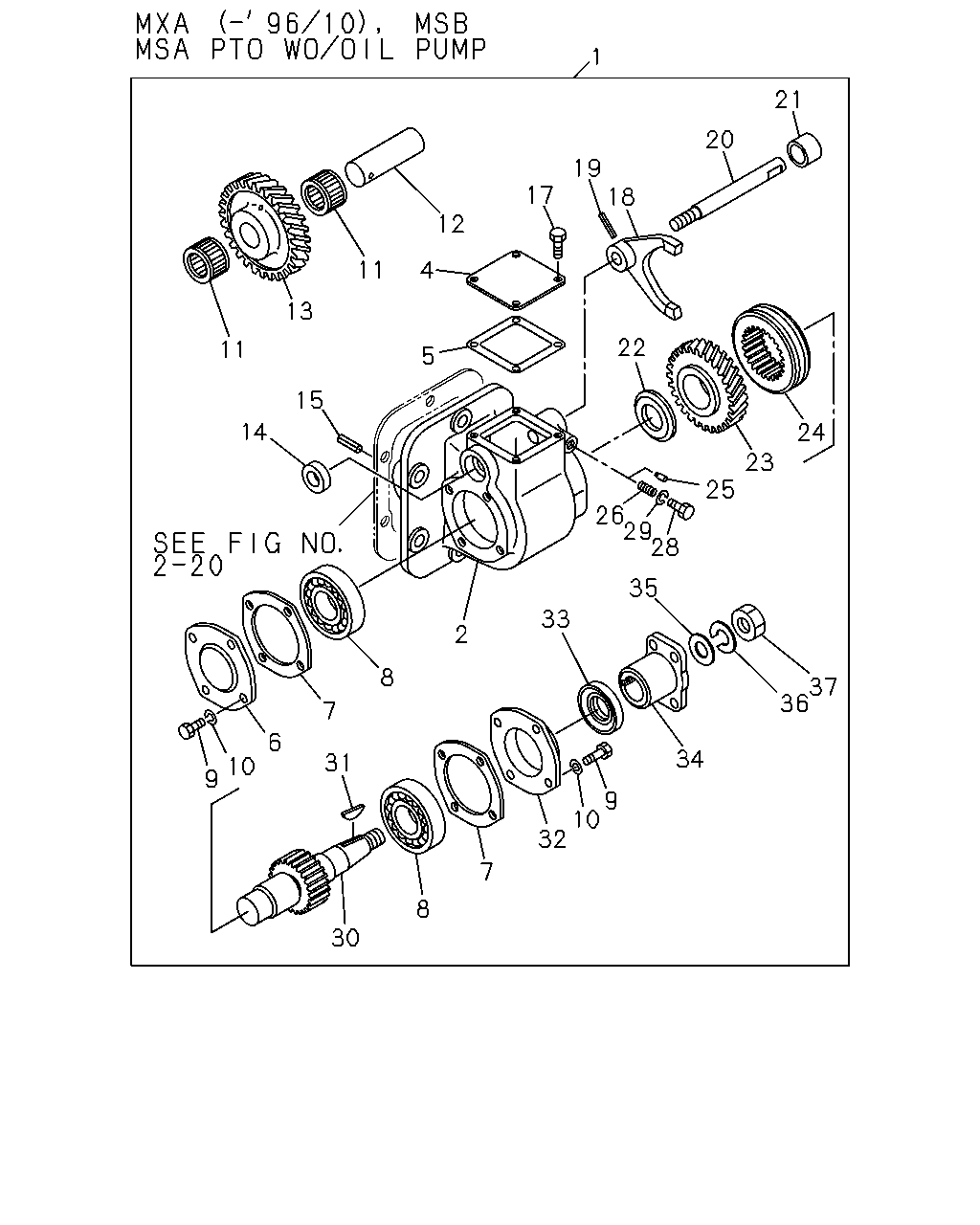

1 21 20 19 18 17 12 11 4 13 22 11 5 15 14 24 23 25 26 29 28 35 33 2 8 37 36 7 6 34 31 10 9 9 10 32 7 8 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-94343-023-3	01	1	9312-9610	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=A	8-97103-001-0	01	1	9611-9705	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=A	8-97178-512-1	01	1	9706-	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=H	8-94343-025-2	01	1	9312-		●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-94343-021-3	01	1	9312-				●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97172-539-1	01	1	9611-9710				●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97186-940-1	01	1	9711-9802				●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97201-879-0	01	1	9803-9803				●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97186-940-2	01	1	9804-				●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97192-181-0	01	1	9706-	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97076-703-1	01	1	9312-9705	●	●	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97076-703-1	01	1	9706-		●	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97139-687-0	01	1	9611-9710				●
2	04.439 CASE; GEAR,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97186-944-0	01	1	9706-				●
4	04.439 COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97106-718-0	01	1	9611-	●
4	04.439 COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38131-603-1	01	1	9312-9610	●	●	●	●
4	04.439 COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38131-603-1	01	1	9611-		●	●	●
5	04.439 GASKET; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97077-326-0	01	1	9611-	●
5	04.439 GASKET; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38132-602-1	01	1	9312-9610	●	●	●	●
5	04.439 GASKET; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38132-602-1	01	1	9611-		●	●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66)	9-38151-604-0	01	1	9312-	●	●	●	●
7	04.439 GASKET; OUTPUT SHAFT COVER,SIDE PTO TRANSMISSION SIDE(V66)	9-38152-604-1	02	1	9312-9610	●	●	●	●
7	04.439 GASKET; OUTPUT SHAFT COVER,SIDE PTO TRANSMISSION SIDE(V66)	9-38152-604-1	02	1	9611-		●	●	●
8	04.439 BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66) ID=25 OD=62	8-94343-031-1	02	1	9312-	●	●	●	●
8	04.439 BEARING; OUTPUT SHAFT,TRANS SIDE 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT) ID=25 OD=52	9-00090-657-0	02	1	9611-				●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 03.704 M8X16 W/LK WASHER	0-50040-816-0	08	1	9312-	●			●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 00.027 M8X16	0-20800-816-0	08	1	9312-		●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9611-				●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT) 01.062 (B) M8X16 FLANGE	0-28080-816-0	04	1	9611-				●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT) 07.010 (C) M8X20 FLANGE	0-28080-820-0	02	1	9611-				●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT) 09.171 (D) M10X45 FLANGE	0-28181-045-0	03	1	9611-				●
10	04.439 WASHER; OUTPUT SHAFT COVER,SIDE PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2	9-09150-508-0	04	1	9312-		●	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO TRANSMISSION SIDE(V66)	9-00096-646-0	02	1	9312-9610	●	●	●	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO TRANSMISSION SIDE(V66)	9-00096-646-0	02	1	9611-9611		●	●	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO TRANSMISSION SIDE(V66)	9-00096-646-0	02	1	9611-		●	●	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	9-00096-646-0	02	1	9611-				●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	9312-9610	●	●	●	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	9611-	●	●	●	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	9-38211-606-0	01	1	9611-				●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=32	8-94176-981-1	01	1	9312-9610	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=32	8-97106-719-0	01	1	9611-	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=34	9-38241-614-1	01	1	9312-		●	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=29	5-38241-018-2	01	1	9312-				●
13	04.439 GEAR; IDLE,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT) Z=32	8-97139-698-0	01	1	9611-				●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	9-09724-015-0	01	1	9312-	●	●	●	●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	9-09724-052-0	02	1	9611-				●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=16	9-09878-613-0	01	1	9312-9610	●	●	●	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=16	9-09878-613-0	01	1	9611-	●	●	●	●
15	04.439 PIN; SPR,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT) L=16	9-09878-613-0	01	1	9611-				●
17	04.439 BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 03.704 M8X16 W/LK WASHER	0-50040-816-0	04	1	9312-	●	●	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97027-045-0	01	1	9312-	●	●	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97139-694-0	01	1	9611-				●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) 05.511 L=25 OD=4	9-09678-515-0	01	1	9312-	●	●	●	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	9-09678-514-0	01	1	9611-				●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-94156-954-1	01	1	9312-	●	●	●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT) (A)	8-97139-691-0	01	1	9611-9710				●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT) (A)	8-97186-946-0	01	1	9711-				●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT) (B)	8-97139-703-0	01	1	9611-				●
21	04.439 COVER; SHIFTER ROD,TRANS SIDE PT PTO TRANSMISSION SIDE(V66)	9-33545-602-0	01	1	9312-	●	●	●	●
21	04.439 COVER; SHIFTER ROD,TRANS SIDE PT 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97139-693-0	01	1	9611-				●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66)	9-38245-603-0	01	1	9312-9610	●	●	●	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66)	9-38245-603-1	01	1	9611-	●	●	●	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	9-38245-603-1	01	1	9611-				●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=19	5-38240-005-2	01	1	9312-	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=22	9-38241-612-1	01	1	9312-		●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=22	5-38241-016-1	01	1	9312-				●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97139-696-0	01	1	9611-9710				●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT) Z=19	8-97186-947-0	01	1	9711-				●
24	04.439 SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38244-602-2	01	1	9312-	●	●	●	●
25	04.439 PIN; LK,SIDE PTO PTO TRANSMISSION SIDE(V66)	8-94169-071-0	01	1	9312-	●	●	●	●
25	04.439 PIN; LK,SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97139-695-0	01	1	9611-				●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	9-09940-380-0	01	1	9312-	●	●	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97139-700-0	01	1	9611-				●
28	04.439 BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) 04.686 M8X12	0-20800-812-0	01	1	9312-	●	●	●	●
28	04.439 BOLT; SPRING,SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97167-623-0	01	1	9611-				●
29	04.439 WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2	9-09150-508-0	01	1	9312-	●	●	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97118-183-0	01	1	9611-	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-607-1	01	1	9312-9610	●	●	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-607-1	01	1	9611-		●	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97139-690-0	01	1	9611-9710				●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97186-945-0	01	1	9711-				●
31	04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-08055-628-0	01	1	9312-9610	●	●	●	●
31	04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-08055-628-0	01	1	9611-		●	●	●
32	04.439 COVER; RR,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66)	9-38161-608-0	01	1	9312-	●	●	●	●
33	04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66)	9-09924-533-1	01	1	9312-	●	●	●	●
34	04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-97118-184-0	01	1	9611-	●
34	04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66)	9-33239-659-0	01	1	9312-9610	●	●	●	●
34	04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66)	9-33239-659-0	01	1	9611-		●	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 02.575 ID=15	9-09160-514-0	01	1	9312-	●	●	●	●
36	04.439 WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 00.796 ID=14.2	9-09150-514-0	01	1	9312-	●	●	●	●
37	04.439 NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 06.172 M14	9-99111-414-0	01	1	9312-	●	●	●	●

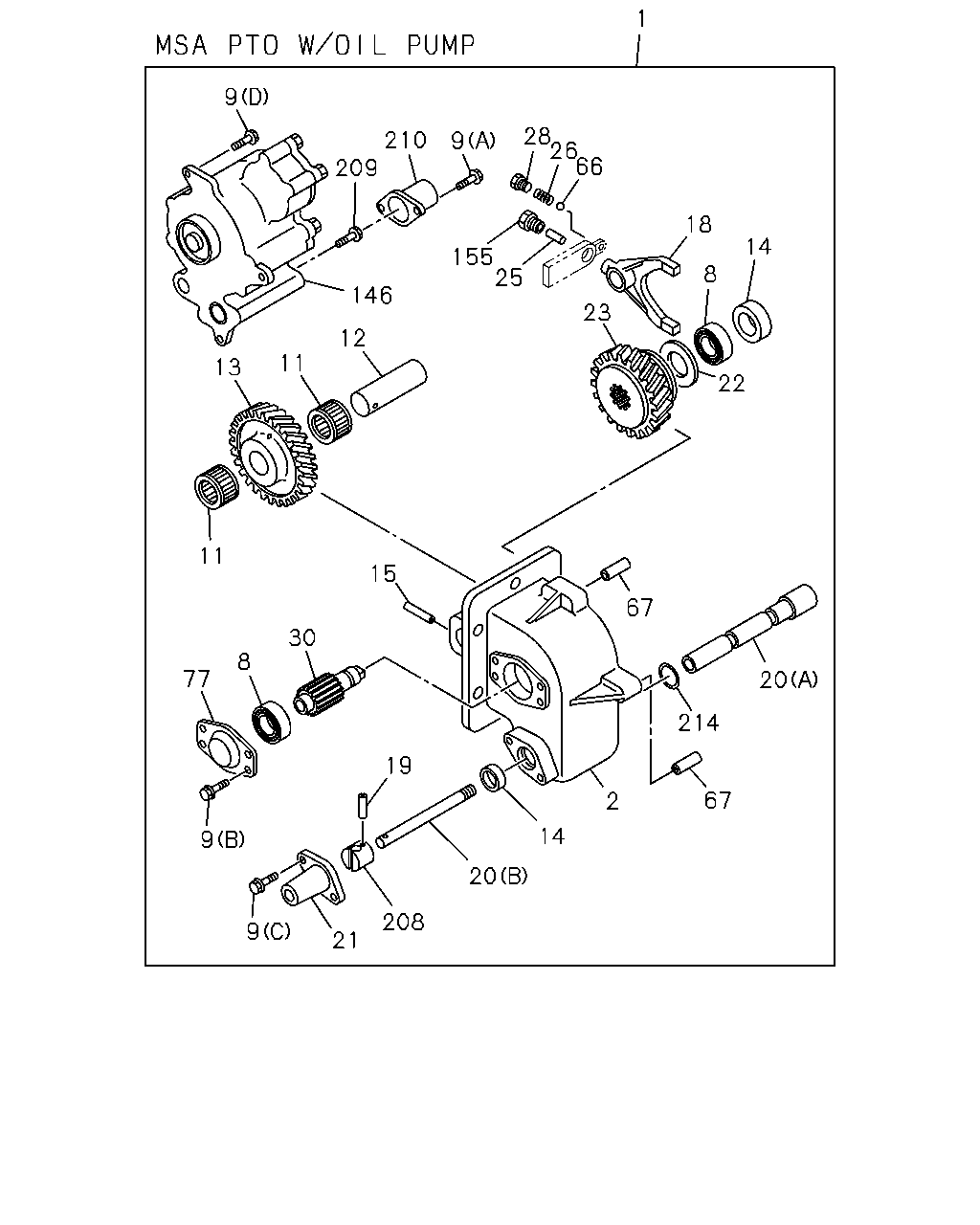

1 9 28 26 66 210 209 9 18 14 155 25 8 146 23 12 11 13 22 11 15 67 30 8 77 20 214 19 67 2 14 9 20 208 9 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-94343-023-3	01	1	9312-9610	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=A	8-97103-001-0	01	1	9611-9705	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=A	8-97178-512-1	01	1	9706-	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=H	8-94343-025-2	01	1	9312-		●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-94343-021-3	01	1	9312-				●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97172-539-1	01	1	9611-9710				●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97186-940-1	01	1	9711-9802				●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97201-879-0	01	1	9803-9803				●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97186-940-2	01	1	9804-				●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97192-181-0	01	1	9706-	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97076-703-1	01	1	9312-9705	●	●	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97076-703-1	01	1	9706-		●	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97139-687-0	01	1	9611-9710				●
2	04.439 CASE; GEAR,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97186-944-0	01	1	9706-				●
8	04.439 BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66) ID=25 OD=62	8-94343-031-1	02	1	9312-	●	●	●	●
8	04.439 BEARING; OUTPUT SHAFT,TRANS SIDE 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT) ID=25 OD=52	9-00090-657-0	02	1	9611-				●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 03.704 M8X16 W/LK WASHER	0-50040-816-0	08	1	9312-	●			●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 00.027 M8X16	0-20800-816-0	08	1	9312-		●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9611-				●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT) 01.062 (B) M8X16 FLANGE	0-28080-816-0	04	1	9611-				●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT) 07.010 (C) M8X20 FLANGE	0-28080-820-0	02	1	9611-				●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT) 09.171 (D) M10X45 FLANGE	0-28181-045-0	03	1	9611-				●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO TRANSMISSION SIDE(V66)	9-00096-646-0	02	1	9312-9610	●	●	●	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO TRANSMISSION SIDE(V66)	9-00096-646-0	02	1	9611-9611		●	●	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO TRANSMISSION SIDE(V66)	9-00096-646-0	02	1	9611-		●	●	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	9-00096-646-0	02	1	9611-				●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	9312-9610	●	●	●	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	9611-	●	●	●	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	9-38211-606-0	01	1	9611-				●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=32	8-94176-981-1	01	1	9312-9610	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=32	8-97106-719-0	01	1	9611-	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=34	9-38241-614-1	01	1	9312-		●	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=29	5-38241-018-2	01	1	9312-				●
13	04.439 GEAR; IDLE,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT) Z=32	8-97139-698-0	01	1	9611-				●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	9-09724-015-0	01	1	9312-	●	●	●	●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	9-09724-052-0	02	1	9611-				●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=16	9-09878-613-0	01	1	9312-9610	●	●	●	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=16	9-09878-613-0	01	1	9611-	●	●	●	●
15	04.439 PIN; SPR,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT) L=16	9-09878-613-0	01	1	9611-				●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97027-045-0	01	1	9312-	●	●	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97139-694-0	01	1	9611-				●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) 05.511 L=25 OD=4	9-09678-515-0	01	1	9312-	●	●	●	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	9-09678-514-0	01	1	9611-				●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-94156-954-1	01	1	9312-	●	●	●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT) (A)	8-97139-691-0	01	1	9611-9710				●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT) (A)	8-97186-946-0	01	1	9711-				●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT) (B)	8-97139-703-0	01	1	9611-				●
21	04.439 COVER; SHIFTER ROD,TRANS SIDE PT PTO TRANSMISSION SIDE(V66)	9-33545-602-0	01	1	9312-	●	●	●	●
21	04.439 COVER; SHIFTER ROD,TRANS SIDE PT 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97139-693-0	01	1	9611-				●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66)	9-38245-603-0	01	1	9312-9610	●	●	●	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66)	9-38245-603-1	01	1	9611-	●	●	●	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	9-38245-603-1	01	1	9611-				●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=19	5-38240-005-2	01	1	9312-	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=22	9-38241-612-1	01	1	9312-		●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=22	5-38241-016-1	01	1	9312-				●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97139-696-0	01	1	9611-9710				●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT) Z=19	8-97186-947-0	01	1	9711-				●
25	04.439 PIN; LK,SIDE PTO PTO TRANSMISSION SIDE(V66)	8-94169-071-0	01	1	9312-	●	●	●	●
25	04.439 PIN; LK,SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97139-695-0	01	1	9611-				●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	9-09940-380-0	01	1	9312-	●	●	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97139-700-0	01	1	9611-				●
28	04.439 BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) 04.686 M8X12	0-20800-812-0	01	1	9312-	●	●	●	●
28	04.439 BOLT; SPRING,SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97167-623-0	01	1	9611-				●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97118-183-0	01	1	9611-	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-607-1	01	1	9312-9610	●	●	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-607-1	01	1	9611-		●	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97139-690-0	01	1	9611-9710				●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97186-945-0	01	1	9711-				●
66	04.439 BALL; SHIFTER ROD,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97139-699-0	01	1	9611-				●
67	04.439 PIN; STRAIGHT 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT) 00.862 OD=8 L=20	9-08150-820-0	02	1	9611-				●
77	04.439 COVER; OUTPUT,RR,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97139-688-0	01	1	9611-				●
146	04.439 PUMP ASM; OIL,PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97172-664-2	01	1	9611-9802				●
146	04.439 PUMP ASM; OIL,PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97201-883-0	01	1	9803-				●
155	04.439 PLUG; SHIFTER ROD 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97139-701-0	01	1	9611-				●
208	04.439 CONNECTOR; CABLE 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97139-704-0	01	1	9611-				●
209	04.439 ADAPTER; STOPPER 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97166-656-0	01	1	9611-				●
210	04.439 CAP; SHIFT 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97166-655-0	01	1	9611-				●
214	04.439 GASKET; SHIFT ROD 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	9-09561-125-0	01	1	9611-				●

1 19 18 12 196 196 195 17 21 20 4 13 5 195 22 15 24 23 25 14 26 29 28 2 8 37 36 35 6 9 34 9 32 33 8 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-94343-023-3	01	1	9312-9610	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=A	8-97103-001-0	01	1	9611-9705	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=A	8-97178-512-1	01	1	9706-	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=H	8-94343-025-2	01	1	9312-		●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-94343-021-3	01	1	9312-				●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97172-539-1	01	1	9611-9710				●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97186-940-1	01	1	9711-9802				●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97201-879-0	01	1	9803-9803				●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97186-940-2	01	1	9804-				●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97192-181-0	01	1	9706-	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97076-703-1	01	1	9312-9705	●	●	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97076-703-1	01	1	9706-		●	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97139-687-0	01	1	9611-9710				●
2	04.439 CASE; GEAR,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97186-944-0	01	1	9706-				●
4	04.439 COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97106-718-0	01	1	9611-	●
4	04.439 COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38131-603-1	01	1	9312-9610	●	●	●	●
4	04.439 COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38131-603-1	01	1	9611-		●	●	●
5	04.439 GASKET; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97077-326-0	01	1	9611-	●
5	04.439 GASKET; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38132-602-1	01	1	9312-9610	●	●	●	●
5	04.439 GASKET; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38132-602-1	01	1	9611-		●	●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66)	9-38151-604-0	01	1	9312-	●	●	●	●
8	04.439 BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66) ID=25 OD=62	8-94343-031-1	02	1	9312-	●	●	●	●
8	04.439 BEARING; OUTPUT SHAFT,TRANS SIDE 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT) ID=25 OD=52	9-00090-657-0	02	1	9611-				●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 03.704 M8X16 W/LK WASHER	0-50040-816-0	08	1	9312-	●			●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 00.027 M8X16	0-20800-816-0	08	1	9312-		●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9611-				●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT) 01.062 (B) M8X16 FLANGE	0-28080-816-0	04	1	9611-				●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT) 07.010 (C) M8X20 FLANGE	0-28080-820-0	02	1	9611-				●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT) 09.171 (D) M10X45 FLANGE	0-28181-045-0	03	1	9611-				●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	9312-9610	●	●	●	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	9611-	●	●	●	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	9-38211-606-0	01	1	9611-				●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=32	8-94176-981-1	01	1	9312-9610	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=32	8-97106-719-0	01	1	9611-	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=34	9-38241-614-1	01	1	9312-		●	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=29	5-38241-018-2	01	1	9312-				●
13	04.439 GEAR; IDLE,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT) Z=32	8-97139-698-0	01	1	9611-				●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	9-09724-015-0	01	1	9312-	●	●	●	●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	9-09724-052-0	02	1	9611-				●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=16	9-09878-613-0	01	1	9312-9610	●	●	●	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=16	9-09878-613-0	01	1	9611-	●	●	●	●
15	04.439 PIN; SPR,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT) L=16	9-09878-613-0	01	1	9611-				●
17	04.439 BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 03.704 M8X16 W/LK WASHER	0-50040-816-0	04	1	9312-	●	●	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97027-045-0	01	1	9312-	●	●	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97139-694-0	01	1	9611-				●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) 05.511 L=25 OD=4	9-09678-515-0	01	1	9312-	●	●	●	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	9-09678-514-0	01	1	9611-				●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-94156-954-1	01	1	9312-	●	●	●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT) (A)	8-97139-691-0	01	1	9611-9710				●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT) (A)	8-97186-946-0	01	1	9711-				●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT) (B)	8-97139-703-0	01	1	9611-				●
21	04.439 COVER; SHIFTER ROD,TRANS SIDE PT PTO TRANSMISSION SIDE(V66)	9-33545-602-0	01	1	9312-	●	●	●	●
21	04.439 COVER; SHIFTER ROD,TRANS SIDE PT 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97139-693-0	01	1	9611-				●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66)	9-38245-603-0	01	1	9312-9610	●	●	●	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66)	9-38245-603-1	01	1	9611-	●	●	●	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	9-38245-603-1	01	1	9611-				●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=19	5-38240-005-2	01	1	9312-	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=22	9-38241-612-1	01	1	9312-		●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=22	5-38241-016-1	01	1	9312-				●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97139-696-0	01	1	9611-9710				●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT) Z=19	8-97186-947-0	01	1	9711-				●
24	04.439 SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38244-602-2	01	1	9312-	●	●	●	●
25	04.439 PIN; LK,SIDE PTO PTO TRANSMISSION SIDE(V66)	8-94169-071-0	01	1	9312-	●	●	●	●
25	04.439 PIN; LK,SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97139-695-0	01	1	9611-				●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	9-09940-380-0	01	1	9312-	●	●	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97139-700-0	01	1	9611-				●
28	04.439 BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) 04.686 M8X12	0-20800-812-0	01	1	9312-	●	●	●	●
28	04.439 BOLT; SPRING,SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97167-623-0	01	1	9611-				●
29	04.439 WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2	9-09150-508-0	01	1	9312-	●	●	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97118-183-0	01	1	9611-	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-607-1	01	1	9312-9610	●	●	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-607-1	01	1	9611-		●	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97139-690-0	01	1	9611-9710				●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO 4BE1 ENG(RLH) DUMP CHASSIS(V4D) PTO W/OIL PUMP(7RT)	8-97186-945-0	01	1	9711-				●
32	04.439 COVER; RR,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66)	9-38161-608-0	01	1	9312-	●	●	●	●
33	04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66)	9-09924-533-1	01	1	9312-	●	●	●	●
34	04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-97118-184-0	01	1	9611-	●
34	04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66)	9-33239-659-0	01	1	9312-9610	●	●	●	●
34	04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66)	9-33239-659-0	01	1	9611-		●	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 02.575 ID=15	9-09160-514-0	01	1	9312-	●	●	●	●
36	04.439 WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 00.796 ID=14.2	9-09150-514-0	01	1	9312-	●	●	●	●
37	04.439 NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 06.172 M14	9-99111-414-0	01	1	9312-	●	●	●	●
195	04.439 BEARING; ROLLER,TAPER,PTO PTO TRANSMISSION SIDE(V66) NSK	8-97106-734-0	02	1	9611-	●
195	04.439 BEARING; ROLLER,TAPER,PTO PTO TRANSMISSION SIDE(V66) KOYO	8-97106-735-0	02	1	9611-	●
195	04.439 BEARING; ROLLER,TAPER,PTO PTO TRANSMISSION SIDE(V66) T=1.50	8-97106-724-0	02	1	9611-	●
195	04.439 BEARING; ROLLER,TAPER,PTO PTO TRANSMISSION SIDE(V66) T=1.60	8-97106-725-0	02	1	9611-	●
195	04.439 BEARING; ROLLER,TAPER,PTO PTO TRANSMISSION SIDE(V66) T=1.65	8-97106-726-0	02	1	9611-	●
195	04.439 BEARING; ROLLER,TAPER,PTO PTO TRANSMISSION SIDE(V66) T=1.70	8-97106-727-0	02	1	9611-	●
195	04.439 BEARING; ROLLER,TAPER,PTO PTO TRANSMISSION SIDE(V66) T=1.80	8-97106-728-0	02	1	9611-	●
195	04.439 BEARING; ROLLER,TAPER,PTO PTO TRANSMISSION SIDE(V66) T=1.85	8-97106-729-0	02	1	9611-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
