2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#47316) — 79 parça

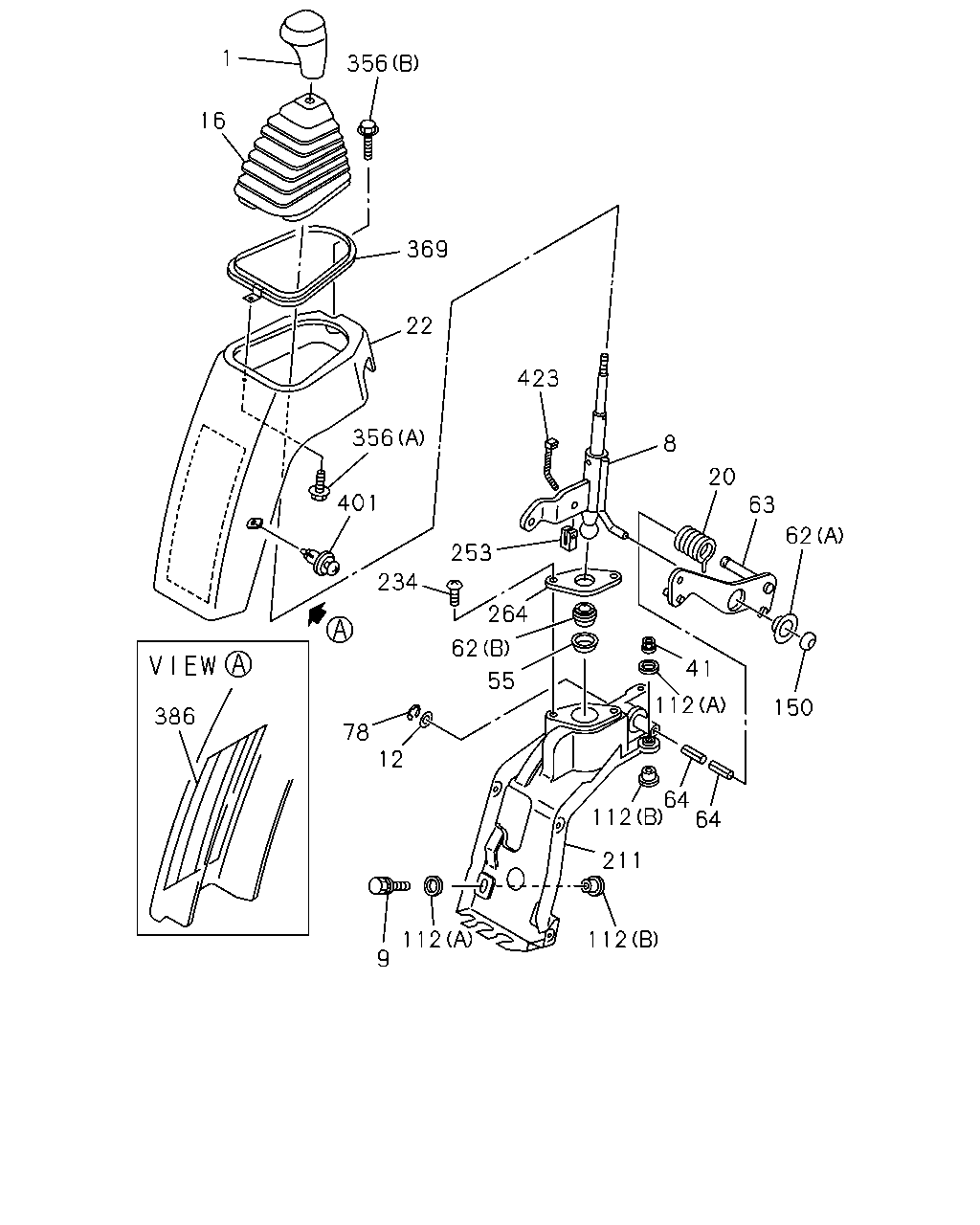

çizim 65752
1 356 16 369 22 423 356 8 20 401 63 62 253 234 264 62 41 55 112 150 386 78 12 64 112 64 211 112 112 9
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.006 KNOB; CHANGE LEVER
DARK BEIGE 		8-97009-442-0 01 1 9312-9711 ● ●
1 04.006 KNOB; CHANGE LEVER
DARK GRAY 		8-97098-657-0 01 1 9712- ● ●
1 04.006 KNOB; CHANGE LEVER
DARK BEIGE 		8-97009-441-0 01 1 9312-9711 ● ●
1 04.006 KNOB; CHANGE LEVER
DARK GRAY 		8-97155-173-0 01 1 9712- ● ●
8 04.006 LEVER; CHANGE 8-97093-841-1 01 1 9312-9802 ● ● ● ●
8 04.006 LEVER; CHANGE 8-97204-506-0 01 1 9803- ● ● ● ●
9 04.012 BOLT; CHANGE LEVER
07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 9312- ● ● ● ●
12 04.012 WASHER; PL,CHANGE LEVER
03.430 ID=12.5 		9-09160-512-0 01 1 9312-9504 ● ● ● ●
16 04.015 BOOT; CHANGE LEVER 8-97066-287-1 01 1 9312- ● ● ● ●
20 04.012 SPRING; CHANGE LEVER 8-97091-424-0 01 1 9312-9802 ● ● ● ●
20 04.012 SPRING; CHANGE LEVER 8-97204-514-0 01 1 9803- ● ● ● ●
22 04.015 COVER; DUST,CHANGE LEVER
DARK BEIGE 		8-97082-704-1 01 1 9312-9711 ● ● ● ●
22 04.015 COVER; DUST,CHANGE LEVER
DARK GRAY 		8-94351-595-1 01 1 9712- ● ● ● ●
41 04.012 NUT; CHANGE LEVER
07.832 M8 FLANGE 		8-94459-656-0 02 1 9312-9602 ● ● ● ●
41 04.012 NUT; CHANGE LEVER
09.011 M8 W/LK WASHER 		8-97065-435-0 02 1 9603- ● ● ● ●
55 04.012 SEAT; RUBBER,SELECT SPRING 8-97083-150-0 01 1 9312-9802 ● ● ● ●
62 04.012 SEAT; BALL,CHANGE LEVER
(A) 		8-97049-148-0 01 1 9312-9802 ● ● ● ●
62 04.012 SEAT; BALL,CHANGE LEVER 8-97011-895-1 01 1 9803- ● ● ● ●
62 04.012 SEAT; BALL,CHANGE LEVER
(B) 		8-97091-423-0 01 1 9312-9802 ● ● ● ●
63 04.006 LEVER; RELAY,SELECT 8-97083-147-1 01 1 9312-9604 ● ● ● ●
63 04.006 LEVER; RELAY,SELECT 8-97143-199-0 01 1 9605- ● ● ● ●
64 04.008 BUSHING; SELECT LEVER 8-97083-149-0 02 1 9312-9802 ● ● ● ●
78 04.008 RING; SNAP,CHANGE LEVER
08.934 ID=10 		9-09185-410-0 01 1 9312-9802 ● ● ● ●
112 04.012 RUBBER; CUSHION
(A) 		8-97091-426-0 04 1 9312- ● ● ● ●
112 04.012 RUBBER; CUSHION
(B) 		8-97091-427-0 04 1 9312- ● ● ● ●
150 04.008 BALL; DETENT,CONT LEVER 8-97049-147-0 01 1 9312- ● ● ● ●
211 04.010 BRACKET; CHANGE LEVER 8-97083-139-1 01 1 9312-9604 ● ● ● ●
211 04.010 BRACKET; CHANGE LEVER 8-97143-198-0 01 1 9605-9802 ● ● ● ●
211 04.010 BRACKET; CHANGE LEVER 8-97204-505-0 01 1 9803- ● ● ● ●
234 04.010 BOLT; BRKT 8-97011-898-0 02 1 9312-9802 ● ● ● ●
234 04.010 BOLT; BRKT 8-97204-512-0 02 1 9803- ● ● ● ●
253 04.012 STOPPER; CHANGE LEVER 8-97026-014-0 01 1 9312-9802 ● ● ● ●
253 04.012 STOPPER; CHANGE LEVER 8-97204-510-0 01 1 9803- ● ● ● ●
264 04.015 PLATE; COVER 8-97083-151-0 01 1 9312-9802 ● ● ● ●
264 04.015 PLATE; COVER 8-97204-511-0 01 1 9803- ● ● ● ●
356 04.012 SCREW; COVER
02.510 (A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9312- ● ● ● ●
356 04.012 SCREW; COVER
(B) M6X12 		8-97094-854-0 01 1 9312- ● ● ● ●
369 04.012 RETAINER; REINF 8-97066-288-0 01 1 9312- ● ● ● ●
386 04.015 INSULATION; CHANGE LEVER 8-97867-282-0 01 1 9604-9807 ● ● ● ●
401 04.012 CLIP; COVER
DARK BEIGE 		8-97009-447-0 03 1 9312-9711 ● ● ● ●
401 04.012 CLIP; COVER
DARK GRAY 		8-97098-523-0 03 1 9712- ● ● ● ●
423 04.008 CLIP; BAND 8-97062-120-0 01 1 9312-9802 ● ● ● ●

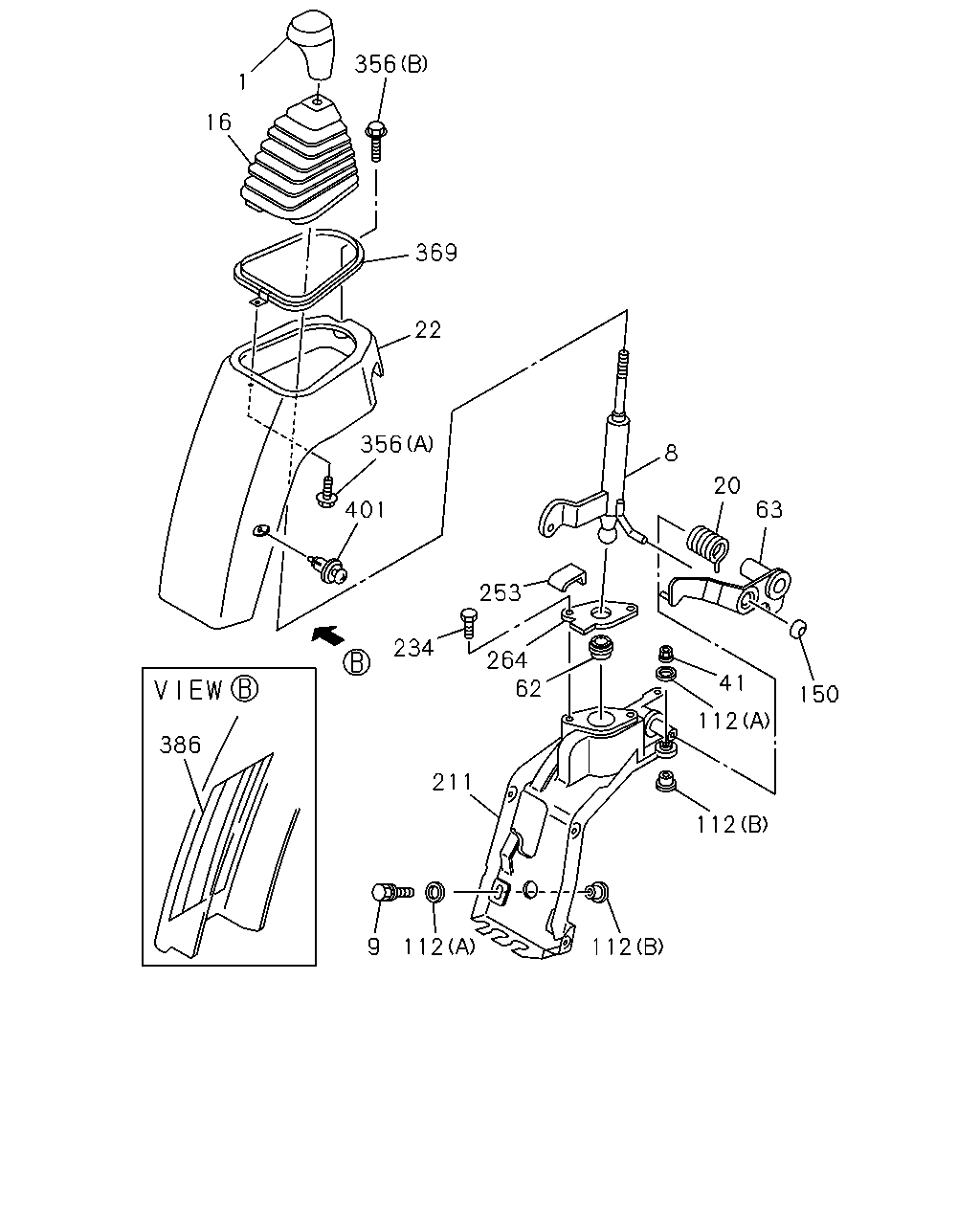

çizim 65828
356 1 16 369 22 356 8 20 63 401 253 234 264 62 41 150 112 386 211 112 9 112 112
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.006 KNOB; CHANGE LEVER
DARK BEIGE 		8-97009-442-0 01 1 9312-9711 ● ●
1 04.006 KNOB; CHANGE LEVER
DARK GRAY 		8-97098-657-0 01 1 9712- ● ●
1 04.006 KNOB; CHANGE LEVER
DARK BEIGE 		8-97009-441-0 01 1 9312-9711 ● ●
1 04.006 KNOB; CHANGE LEVER
DARK GRAY 		8-97155-173-0 01 1 9712- ● ●
8 04.006 LEVER; CHANGE 8-97093-841-1 01 1 9312-9802 ● ● ● ●
8 04.006 LEVER; CHANGE 8-97204-506-0 01 1 9803- ● ● ● ●
9 04.012 BOLT; CHANGE LEVER
07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 9312- ● ● ● ●
16 04.015 BOOT; CHANGE LEVER 8-97066-287-1 01 1 9312- ● ● ● ●
20 04.012 SPRING; CHANGE LEVER 8-97091-424-0 01 1 9312-9802 ● ● ● ●
20 04.012 SPRING; CHANGE LEVER 8-97204-514-0 01 1 9803- ● ● ● ●
22 04.015 COVER; DUST,CHANGE LEVER
DARK BEIGE 		8-97082-704-1 01 1 9312-9711 ● ● ● ●
22 04.015 COVER; DUST,CHANGE LEVER
DARK GRAY 		8-94351-595-1 01 1 9712- ● ● ● ●
41 04.012 NUT; CHANGE LEVER
07.832 M8 FLANGE 		8-94459-656-0 02 1 9312-9602 ● ● ● ●
41 04.012 NUT; CHANGE LEVER
09.011 M8 W/LK WASHER 		8-97065-435-0 02 1 9603- ● ● ● ●
62 04.012 SEAT; BALL,CHANGE LEVER
(A) 		8-97049-148-0 01 1 9312-9802 ● ● ● ●
62 04.012 SEAT; BALL,CHANGE LEVER 8-97011-895-1 01 1 9803- ● ● ● ●
62 04.012 SEAT; BALL,CHANGE LEVER
(B) 		8-97091-423-0 01 1 9312-9802 ● ● ● ●
63 04.006 LEVER; RELAY,SELECT 8-97083-147-1 01 1 9312-9604 ● ● ● ●
63 04.006 LEVER; RELAY,SELECT 8-97143-199-0 01 1 9605- ● ● ● ●
112 04.012 RUBBER; CUSHION
(A) 		8-97091-426-0 04 1 9312- ● ● ● ●
112 04.012 RUBBER; CUSHION
(B) 		8-97091-427-0 04 1 9312- ● ● ● ●
150 04.008 BALL; DETENT,CONT LEVER 8-97049-147-0 01 1 9312- ● ● ● ●
211 04.010 BRACKET; CHANGE LEVER 8-97083-139-1 01 1 9312-9604 ● ● ● ●
211 04.010 BRACKET; CHANGE LEVER 8-97143-198-0 01 1 9605-9802 ● ● ● ●
211 04.010 BRACKET; CHANGE LEVER 8-97204-505-0 01 1 9803- ● ● ● ●
234 04.010 BOLT; BRKT 8-97011-898-0 02 1 9312-9802 ● ● ● ●
234 04.010 BOLT; BRKT 8-97204-512-0 02 1 9803- ● ● ● ●
253 04.012 STOPPER; CHANGE LEVER 8-97026-014-0 01 1 9312-9802 ● ● ● ●
253 04.012 STOPPER; CHANGE LEVER 8-97204-510-0 01 1 9803- ● ● ● ●
264 04.015 PLATE; COVER 8-97083-151-0 01 1 9312-9802 ● ● ● ●
264 04.015 PLATE; COVER 8-97204-511-0 01 1 9803- ● ● ● ●
356 04.012 SCREW; COVER
02.510 (A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9312- ● ● ● ●
356 04.012 SCREW; COVER
(B) M6X12 		8-97094-854-0 01 1 9312- ● ● ● ●
369 04.012 RETAINER; REINF 8-97066-288-0 01 1 9312- ● ● ● ●
386 04.015 INSULATION; CHANGE LEVER 8-97867-282-0 01 1 9604-9807 ● ● ● ●
401 04.012 CLIP; COVER
DARK BEIGE 		8-97009-447-0 03 1 9312-9711 ● ● ● ●
401 04.012 CLIP; COVER
DARK GRAY 		8-97098-523-0 03 1 9712- ● ● ● ●
