Sayfa 2-26 - Isuzu EPC

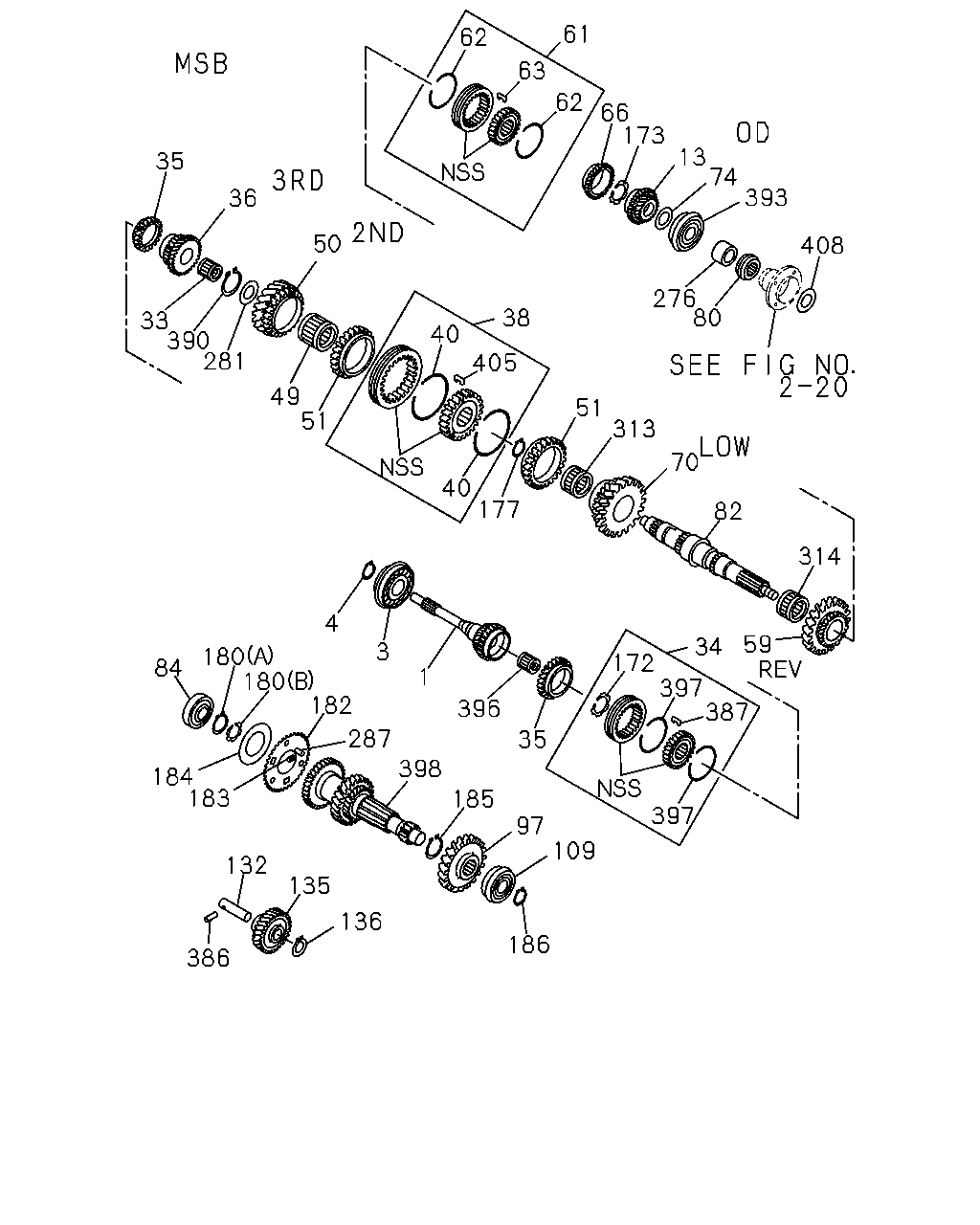

2-26 — MANUAL TRANSMISSION GEAR (#47314) — 348 parça

61 62 63 62 66 173 13 74 393 35 36 50 408 276 80 38 33 390 281 40 405 49 51 51 313 70 40 177 82 314 4 59 34 3 180 180 182 172 397 387 84 1 396 287 35 398 184 183 397 185 97 109 132 135 136 186 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.351 SHAFT; TOP GEAR,TRANS Z=29	8-97034-848-0	01	1	9312-9611	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=29	8-97168-980-0	01	1	9612-	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=28	8-97091-558-1	01	1	9312-		●
1	04.351 SHAFT; TOP GEAR,TRANS Z=30	8-97103-632-0	01	1	9312-			●
1	04.351 SHAFT; TOP GEAR,TRANS Z=26	8-97035-552-1	01	1	9312-				●
3	04.403 BEARING; TOP GEAR SHAFT	8-97035-047-0	01	1	9312-	●
3	04.403 BEARING; TOP GEAR SHAFT 04.408 NSK	8-94178-732-1	01	1	9312-		●	●
3	04.403 BEARING; TOP GEAR SHAFT 04.352 KOYO	8-94462-615-0	01	1	9312-		●	●
3	04.403 BEARING; TOP GEAR SHAFT 04.355	8-94178-731-0	01	1	9312-				●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT	8-97035-040-0	01	1	9312-	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 08.934 ID=37.0	9-09180-040-0	01	1	9312-		●	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.353 ID=41.5	5-09589-009-0	01	1	9312-				●
13	04.415 GEAR; 5TH,MAINSHAFT Z=23	8-97034-856-0	01	1	9312-	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=24	8-94316-776-2	01	1	9312-9603		●
13	04.415 GEAR; 5TH,MAINSHAFT Z=24	8-97147-816-0	01	1	9604-		●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25	8-97077-339-1	01	1	9312-9603			●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25	8-97147-817-0	01	1	9604-9801			●
13	04.415 GEAR; 5TH,MAINSHAFT 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> Z=25	8-97147-817-0	01	1	9802-			●
13	04.415 GEAR; 5TH,MAINSHAFT 4JB1 ENG(RLF) TURBOCHARGER<K51> Z=25	8-97191-205-0	01	1	9802-			●
13	04.415 GEAR; 5TH,MAINSHAFT Z=21	8-94316-704-1	01	1	9312-				●
33	04.352 BEARING; NEEDLE,3RD GEAR NSK	9-00096-638-0	01	1	9312-	●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NTN	8-97201-005-0	01	1	9802-	●
33	04.352 BEARING; NEEDLE,3RD GEAR	8-94317-158-0	01	1	9312-		●	●
33	04.352 BEARING; NEEDLE,3RD GEAR NTN	8-94340-671-0	01	1	9312-				●
33	04.352 BEARING; NEEDLE,3RD GEAR KOYO	8-94388-911-0	01	1	9312-				●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97048-745-2	01	1	9312-		●	●
35	04.383 RING; BLOCK,4TH & 3RD Z=36	8-94128-775-2	02	1	9312-	●	●	●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=37	8-97091-430-1	01	1	9312-	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=31	8-94316-760-2	01	1	9312-		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=33	8-94316-761-2	01	1	9312-			●
36	04.415 GEAR; 3RD,MAINSHAFT Z=33	8-94316-688-3	01	1	9312-				●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-97048-748-0	01	1	9312-		●	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-97023-708-0	02	1	9312-	●	●	●	●
49	04.352 BEARING; NEEDLE,2ND GEAR NSK	9-00096-638-0	01	1	9312-	●			●
49	04.352 BEARING; NEEDLE,2ND GEAR 04.419 NTN	8-97201-005-0	01	1	9802-	●			●
49	04.352 BEARING; NEEDLE,2ND GEAR 04.419 NSK	5-09811-014-0	01	1	9312-		●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=37	8-94178-506-4	01	1	9312-	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=34	8-94316-764-3	01	1	9312-		●
50	04.395 GEAR; 2ND,MAINSHAFT Z=36	8-97014-034-2	01	1	9312-9510			●
50	04.395 GEAR; 2ND,MAINSHAFT 4JB1 ENG(RLF) Z=36	8-97014-034-2	01	1	9511-9801			●
50	04.395 GEAR; 2ND,MAINSHAFT 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> Z=36	8-97014-034-2	01	1	9802-			●
50	04.395 GEAR; 2ND,MAINSHAFT 4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> Z=36	8-94316-766-3	01	1	9507-9509			●
50	04.395 GEAR; 2ND,MAINSHAFT 4JG2 ENG(RJC) Z=36	8-94316-766-3	01	1	9510-9801			●
50	04.395 GEAR; 2ND,MAINSHAFT 4JB1 ENG(RLF) TURBOCHARGER<K51> Z=36	8-94316-766-3	01	1	9802-			●
50	04.395 GEAR; 2ND,MAINSHAFT 4JG2 ENG(RJC) Z=36	8-94316-766-3	01	1	9802-			●
50	04.395 GEAR; 2ND,MAINSHAFT Z=35	8-94172-563-2	01	1	9312-				●
51	04.383 RING; BLOCK,LOW & 2ND Z=30	8-97074-619-1	02	1	9312-	●	●	●	●
59	04.417 GEAR; REV MAINSHAFT Z=40	8-94317-146-2	01	1	9312-	●			●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97014-023-3	01	1	9312-9606		●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-94317-252-1	01	1	9312-9408			●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97115-777-0	01	1	9409-9606			●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97115-777-0	01	1	9607-		●	●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97048-750-0	01	1	9312-		●	●
62	04.384 SPRING; INSERT,REV & 5TH	8-97023-709-0	02	1	9312-	●			●
62	04.384 SPRING; INSERT,REV & 5TH	8-97023-710-0	02	1	9312-		●	●
63	04.384 INSERT; SYN,REV & 5TH	9-33263-613-0	03	1	9312-	●	●	●	●
66	04.383 RING; BLOCK,SYN Z=45	8-97061-752-0	01	1	9312-	●			●
66	04.383 RING; BLOCK,SYN Z=36	8-94128-775-2	01	1	9312-		●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97084-377-1	01	1	9312-	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JG2 ENG(RJC) Z=43	8-94316-768-4	01	1	9607-		●
70	04.417 GEAR; 1ST,MAINSHAFT 4JB1 ENG(RLF) TURBOCHARGER<K51> Z=43	8-94316-768-4	01	1	9607-		●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97014-033-3	01	1	9312-9711		●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> Z=43	8-97014-033-3	01	1	9712-		●
70	04.417 GEAR; 1ST,MAINSHAFT 4JG2 ENG(RJC),4JB1 ENG(RLF) Z=43	8-97014-033-3	01	1	9712-			●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97084-378-1	01	1	9312-				●
74	04.419 WASHER; THRUST,REV GEAR	9-33271-607-1	01	1	9312-		●	●
74	04.419 WASHER; THRUST,REV GEAR 04.416	9-33271-606-1	01	1	9312-				●
80	04.343 GEAR; SPD DRIVE Z=4	8-97011-348-0	01	1	9312-	●			●
80	04.343 GEAR; SPD DRIVE Z=4	8-97011-350-0	01	1	9312-		●	●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-40-28	8-97034-847-1	01	1	9312-	●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-31-24	8-97045-932-1	01	1	9312-		●	●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-28	8-97045-931-1	01	1	9312-				●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK	8-97035-048-0	01	1	9312-	●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK	5-09800-062-1	01	1	9312-		●	●
84	04.422 BEARING; COUNTER SHAFT,FRT	8-94455-830-0	01	1	9312-				●
97	04.415 GEAR; 5TH,COUNTER Z=55	8-94316-786-1	01	1	9312-		●
97	04.415 GEAR; 5TH,COUNTER Z=53	8-97077-341-1	01	1	9312-			●
109	04.422 BEARING; COUNTER SHAFT,RR	8-97035-049-0	01	1	9312-	●
109	04.422 BEARING; COUNTER SHAFT,RR 4JB1 ENG(RLF)	8-97095-913-0	01	1	9312-9510		●
109	04.422 BEARING; COUNTER SHAFT,RR 4JG2 ENG(RJC) MANUAL TILT CAB<RWZ>	8-97095-913-0	01	1	9312-9510			●
109	04.422 BEARING; COUNTER SHAFT,RR 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97095-913-0	01	1	9511-9511		●
109	04.422 BEARING; COUNTER SHAFT,RR 4JB1 ENG(RLF)	8-97095-913-0	01	1	9511-9511			●
109	04.422 BEARING; COUNTER SHAFT,RR	8-97095-913-0	01	1	9512-		●	●
109	04.422 BEARING; COUNTER SHAFT,RR 4JB1 ENG(RLF) 04.352 NSK	5-09800-063-2	01	1	9312-9510			●
109	04.422 BEARING; COUNTER SHAFT,RR	8-94178-734-0	01	1	9312-				●
132	04.433 SHAFT; REV	8-94415-162-1	01	1	9312-	●			●
132	04.433 SHAFT; REV	9-33351-604-1	01	1	9312-		●	●
135	04.430 GEAR; REV IDLER Z=27	5-33361-042-2	01	1	9312-	●			●
135	04.430 GEAR; REV IDLER Z=29	8-97081-539-3	01	1	9312-		●	●
136	04.437 WASHER; THRUST,REV IDLE,RR	8-97081-579-2	01	1	9312-		●	●
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.75	8-94402-405-0	01	1	9312-	●	●	●	●
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.80	8-94402-406-0	01	1	9312-	●	●	●	●
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.85	8-94402-407-0	01	1	9312-	●	●	●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.85	8-94151-522-0	01	1	9312-	●	●	●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.90	8-94151-523-0	01	1	9312-	●	●	●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.95	8-94151-524-0	01	1	9312-	●	●	●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=2.00	8-94157-747-0	01	1	9312-	●	●	●	●
177	04.384 RING; SNAP,CLU HUB T=1.75	8-94402-405-0	01	1	9312-		●	●
177	04.384 RING; SNAP,CLU HUB T=1.80	8-94402-406-0	01	1	9312-		●	●
177	04.384 RING; SNAP,CLU HUB T=1.85	8-94402-407-0	01	1	9312-		●	●
180	04.422 RING; SNAP,CLUSTER GEAR 08.934 (A) ID=32.2	9-09180-035-0	01	1	9312-	●	●	●
180	04.422 RING; SNAP,CLUSTER GEAR (B) ID=38.5	8-94146-483-0	01	1	9312-		●	●
180	04.422 RING; SNAP,CLUSTER GEAR (A) ID=29.6	9-09180-032-0	01	1	9312-				●
182	04.422 PLATE; CLUSTER GEAR	8-94131-924-1	01	1	9312-	●
182	04.422 PLATE; CLUSTER GEAR 4JG2 ENG(RJC)	8-94129-632-1	01	1	9607-		●
182	04.422 PLATE; CLUSTER GEAR 4JB1 ENG(RLF) TURBOCHARGER<K51>	8-94129-632-1	01	1	9607-		●
182	04.422 PLATE; CLUSTER GEAR	8-97095-984-0	01	1	9312-9510		●	●
182	04.422 PLATE; CLUSTER GEAR 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>	8-97095-984-0	01	1	9511-		●
182	04.422 PLATE; CLUSTER GEAR	8-97095-984-0	01	1	9511-			●
182	04.422 PLATE; CLUSTER GEAR	8-94131-923-1	01	1	9312-				●
183	04.422 SPRING; PLATE,CLUSTER GEAR	8-94148-196-0	03	1	9312-	●			●
183	04.422 SPRING; PLATE,CLUSTER GEAR	8-94132-168-0	03	1	9312-		●	●
184	04.422 SPRING; CLUSTER GEAR	8-94101-320-0	01	1	9312-	●			●
184	04.422 SPRING; CLUSTER GEAR	8-94128-790-1	01	1	9312-		●	●
185	04.422 RING; SNAP,CLUSTER GEAR ID=41.5	9-09180-045-0	01	1	9312-		●	●
186	04.422 RING; SNAP,CLUSTER GEAR 08.934 ID=32.2	9-09180-035-0	01	1	9312-	●			●
186	04.422 RING; SNAP,CLUSTER GEAR ID=29.6	9-09180-032-0	01	1	9312-		●	●
276	04.419 SPACER; BRG TO DRIVE GEAR	8-97034-876-0	01	1	9312-	●
276	04.419 SPACER; BRG TO DRIVE GEAR	9-33235-606-1	01	1	9312-		●	●
276	04.419 SPACER; BRG TO DRIVE GEAR 04.545	9-33235-602-2	01	1	9312-				●
281	04.419 WASHER; THRUST,MAINSHAFT	5-33271-007-0	01	1	9312-		●	●
281	04.419 WASHER; THRUST,MAINSHAFT	8-94340-194-1	01	1	9312-				●
287	04.422 PIN; COUNTER GEAR	8-94402-462-0	03	1	9312-9510	●	●		●
287	04.422 PIN; COUNTER GEAR 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS)	8-94402-462-0	03	1	9511-9711	●	●		●
287	04.422 PIN; COUNTER GEAR 4BE1 ENG(RLH),4HF1 ENG(RLS)	8-94402-462-0	03	1	9712-	●			●
287	04.422 PIN; COUNTER GEAR 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>	8-94402-462-0	03	1	9712-		●
287	04.422 PIN; COUNTER GEAR	8-94402-462-0	01	1	9312-9606			●
287	04.422 PIN; COUNTER GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94402-462-0	01	1	9607-9711		●	●
287	04.422 PIN; COUNTER GEAR 4JG2 ENG(RJC)	8-94402-462-0	01	1	9712-		●
287	04.422 PIN; COUNTER GEAR 4JB1 ENG(RLF) TURBOCHARGER<K51>	8-94402-462-0	01	1	9712-		●
287	04.422 PIN; COUNTER GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94402-462-0	01	1	9712-			●
313	04.419 BEARING; NEEDLE,LOW GEAR 04.352 NSK	9-00096-638-0	01	1	9312-	●			●
313	04.419 BEARING; NEEDLE,LOW GEAR NTN	8-97201-005-0	01	1	9802-	●			●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	8-94317-161-0	01	1	9312-		●	●
313	04.419 BEARING; NEEDLE,LOW GEAR KOYO	8-97010-547-0	01	1	9312-		●	●
314	04.419 BEARING; NEEDLE,REV GEAR 04.352 NSK	9-00096-638-0	01	1	9312-	●			●
314	04.419 BEARING; NEEDLE,REV GEAR NTN	8-97201-005-0	01	1	9802-	●			●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	5-09811-014-0	01	1	9312-		●	●
386	04.435 PIN; REV SHAFT	8-94128-794-0	01	1	9312-		●	●
387	04.384 INSERT; SYN,4TH & 3RD	5-33263-001-0	03	1	9312-	●	●	●	●
390	04.383 RING; SNAP,CLU HUB 04.384 T=1.75	8-94151-520-0	01	1	9312-		●	●	●
390	04.383 RING; SNAP,CLU HUB 04.384 T=1.80	8-94151-521-0	01	1	9312-		●	●	●
390	04.383 RING; SNAP,CLU HUB 04.416 T=1.85	8-94151-522-0	01	1	9312-		●	●	●
390	04.383 RING; SNAP,CLU HUB 04.416 T=1.90	8-94151-523-0	01	1	9512-			●
393	04.352 BEARING; MAINSHAFT END 04.355	8-94178-731-0	01	1	9312-	●
393	04.352 BEARING; MAINSHAFT END 04.422	8-97095-913-0	01	1	9312-9506		●
393	04.352 BEARING; MAINSHAFT END 4JB1 ENG(RLF) 04.422	8-97095-913-0	01	1	9507-9509		●
393	04.352 BEARING; MAINSHAFT END 4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> 04.422	8-97095-913-0	01	1	9507-9509			●
393	04.352 BEARING; MAINSHAFT END 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.422	8-97095-913-0	01	1	9510-9511		●
393	04.352 BEARING; MAINSHAFT END 4JB1 ENG(RLF) 04.422	8-97095-913-0	01	1	9510-9511			●
393	04.352 BEARING; MAINSHAFT END 04.422	8-97095-913-0	01	1	9512-		●	●
393	04.352 BEARING; MAINSHAFT END NSK	5-09800-063-2	01	1	9312-9406			●
393	04.352 BEARING; MAINSHAFT END 4JB1 ENG(RLF) NSK	5-09800-063-2	01	1	9407-9511			●
393	04.352 BEARING; MAINSHAFT END 04.408 NSK	8-94178-732-1	01	1	9312-				●
393	04.352 BEARING; MAINSHAFT END KOYO	8-94462-615-0	01	1	9312-				●
396	04.352 BEARING; NEEDLE,MAINSHAFT	8-97035-050-0	01	1	9312-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1 ENG(RLF) TURBOCHARGER<K51>	8-97161-658-0	01	1	9712-9801		●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1 ENG(RLF) TURBOCHARGER<K51>	8-97161-658-0	01	1	9802-		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 04.520	9-00096-606-0	01	1	9312-9711		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JG2 ENG(RJC) 04.520	9-00096-606-0	01	1	9712-		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 04.520	9-00096-606-0	01	1	9712-		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 04.399	8-94178-729-1	01	1	9312-				●
397	04.384 SPRING; INSERT,4TH & 3RD	8-97023-710-0	02	1	9312-	●	●	●	●
398	04.421 GEAR; COUNTER Z=45-49-36-20-14-13	8-97075-976-0	01	1	9312-	●
398	04.421 GEAR; COUNTER Z=51-34-22-14	8-97030-871-0	01	1	9312-9510		●
398	04.421 GEAR; COUNTER 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> Z=51-34-22-14	8-97030-871-0	01	1	9511-		●
398	04.421 GEAR; COUNTER 4JG2 ENG(RJC) Z=51-34-22-14	8-97029-335-0	01	1	9607-		●
398	04.421 GEAR; COUNTER 4JB1 ENG(RLF) TURBOCHARGER<K51> Z=51-34-22-14	8-97029-335-0	01	1	9607-		●
398	04.421 GEAR; COUNTER Z=49-34-22-14	8-97077-337-0	01	1	9312-9801			●
398	04.421 GEAR; COUNTER 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> Z=49-34-22-14	8-97077-337-0	01	1	9802-			●
398	04.421 GEAR; COUNTER 4JB1 ENG(RLF) TURBOCHARGER<K51> Z=49-34-22-14	8-97191-207-0	01	1	9802-			●
398	04.421 GEAR; COUNTER Z=49	8-97017-874-0	01	1	9312-				●
405	04.384 INSERT; SYN,LOW & 2ND	5-33263-001-0	03	1	9312-	●	●	●	●
408	04.384 SPRING	8-97081-577-0	01	1	9312-		●	●

314 318 74 393 276 80 49 82 313 70 66 62 63 62 397 387 397 14 35 13 173 281 36 51 175 234 59 390 87 4 405 3 32 33 40 40 1 180 396 172 182 174 35 287 51 84 50 398 184 109 186 183 190 132 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.351 SHAFT; TOP GEAR,TRANS Z=29	8-97034-848-0	01	1	9312-9611	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=29	8-97168-980-0	01	1	9612-	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=28	8-97091-558-1	01	1	9312-		●
1	04.351 SHAFT; TOP GEAR,TRANS Z=30	8-97103-632-0	01	1	9312-			●
1	04.351 SHAFT; TOP GEAR,TRANS Z=26	8-97035-552-1	01	1	9312-				●
3	04.403 BEARING; TOP GEAR SHAFT	8-97035-047-0	01	1	9312-	●
3	04.403 BEARING; TOP GEAR SHAFT 04.408 NSK	8-94178-732-1	01	1	9312-		●	●
3	04.403 BEARING; TOP GEAR SHAFT 04.352 KOYO	8-94462-615-0	01	1	9312-		●	●
3	04.403 BEARING; TOP GEAR SHAFT 04.355	8-94178-731-0	01	1	9312-				●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT	8-97035-040-0	01	1	9312-	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 08.934 ID=37.0	9-09180-040-0	01	1	9312-		●	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.353 ID=41.5	5-09589-009-0	01	1	9312-				●
13	04.415 GEAR; 5TH,MAINSHAFT Z=23	8-97034-856-0	01	1	9312-	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=24	8-94316-776-2	01	1	9312-9603		●
13	04.415 GEAR; 5TH,MAINSHAFT Z=24	8-97147-816-0	01	1	9604-		●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25	8-97077-339-1	01	1	9312-9603			●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25	8-97147-817-0	01	1	9604-9801			●
13	04.415 GEAR; 5TH,MAINSHAFT 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> Z=25	8-97147-817-0	01	1	9802-			●
13	04.415 GEAR; 5TH,MAINSHAFT 4JB1 ENG(RLF) TURBOCHARGER<K51> Z=25	8-97191-205-0	01	1	9802-			●
13	04.415 GEAR; 5TH,MAINSHAFT Z=21	8-94316-704-1	01	1	9312-				●
14	04.419 BEARING; NEEDLE,5TH	8-97035-069-0	01	1	9312-9512	●
14	04.419 BEARING; NEEDLE,5TH	8-97147-572-0	01	1	9601-	●
32	04.415 COLLAR; 3RD GEAR	8-94178-500-2	01	1	9312-	●
33	04.352 BEARING; NEEDLE,3RD GEAR NSK	9-00096-638-0	01	1	9312-	●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NTN	8-97201-005-0	01	1	9802-	●
33	04.352 BEARING; NEEDLE,3RD GEAR	8-94317-158-0	01	1	9312-		●	●
33	04.352 BEARING; NEEDLE,3RD GEAR NTN	8-94340-671-0	01	1	9312-				●
33	04.352 BEARING; NEEDLE,3RD GEAR KOYO	8-94388-911-0	01	1	9312-				●
35	04.383 RING; BLOCK,4TH & 3RD Z=36	8-94128-775-2	02	1	9312-	●	●	●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=37	8-97091-430-1	01	1	9312-	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=31	8-94316-760-2	01	1	9312-		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=33	8-94316-761-2	01	1	9312-			●
36	04.415 GEAR; 3RD,MAINSHAFT Z=33	8-94316-688-3	01	1	9312-				●
40	04.384 SPRING; INSERT,LOW & 2ND	8-97023-708-0	02	1	9312-	●	●	●	●
49	04.352 BEARING; NEEDLE,2ND GEAR NSK	9-00096-638-0	01	1	9312-	●			●
49	04.352 BEARING; NEEDLE,2ND GEAR 04.419 NTN	8-97201-005-0	01	1	9802-	●			●
49	04.352 BEARING; NEEDLE,2ND GEAR 04.419 NSK	5-09811-014-0	01	1	9312-		●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=37	8-94178-506-4	01	1	9312-	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=34	8-94316-764-3	01	1	9312-		●
50	04.395 GEAR; 2ND,MAINSHAFT Z=36	8-97014-034-2	01	1	9312-9510			●
50	04.395 GEAR; 2ND,MAINSHAFT 4JB1 ENG(RLF) Z=36	8-97014-034-2	01	1	9511-9801			●
50	04.395 GEAR; 2ND,MAINSHAFT 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> Z=36	8-97014-034-2	01	1	9802-			●
50	04.395 GEAR; 2ND,MAINSHAFT 4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> Z=36	8-94316-766-3	01	1	9507-9509			●
50	04.395 GEAR; 2ND,MAINSHAFT 4JG2 ENG(RJC) Z=36	8-94316-766-3	01	1	9510-9801			●
50	04.395 GEAR; 2ND,MAINSHAFT 4JB1 ENG(RLF) TURBOCHARGER<K51> Z=36	8-94316-766-3	01	1	9802-			●
50	04.395 GEAR; 2ND,MAINSHAFT 4JG2 ENG(RJC) Z=36	8-94316-766-3	01	1	9802-			●
50	04.395 GEAR; 2ND,MAINSHAFT Z=35	8-94172-563-2	01	1	9312-				●
51	04.383 RING; BLOCK,LOW & 2ND Z=30	8-97074-619-1	02	1	9312-	●	●	●	●
59	04.417 GEAR; REV MAINSHAFT Z=40	8-94317-146-2	01	1	9312-	●			●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97014-023-3	01	1	9312-9606		●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-94317-252-1	01	1	9312-9408			●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97115-777-0	01	1	9409-9606			●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97115-777-0	01	1	9607-		●	●
62	04.384 SPRING; INSERT,REV & 5TH	8-97023-709-0	02	1	9312-	●			●
62	04.384 SPRING; INSERT,REV & 5TH	8-97023-710-0	02	1	9312-		●	●
63	04.384 INSERT; SYN,REV & 5TH	9-33263-613-0	03	1	9312-	●	●	●	●
66	04.383 RING; BLOCK,SYN Z=45	8-97061-752-0	01	1	9312-	●			●
66	04.383 RING; BLOCK,SYN Z=36	8-94128-775-2	01	1	9312-		●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97084-377-1	01	1	9312-	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JG2 ENG(RJC) Z=43	8-94316-768-4	01	1	9607-		●
70	04.417 GEAR; 1ST,MAINSHAFT 4JB1 ENG(RLF) TURBOCHARGER<K51> Z=43	8-94316-768-4	01	1	9607-		●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97014-033-3	01	1	9312-9711		●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> Z=43	8-97014-033-3	01	1	9712-		●
70	04.417 GEAR; 1ST,MAINSHAFT 4JG2 ENG(RJC),4JB1 ENG(RLF) Z=43	8-97014-033-3	01	1	9712-			●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97084-378-1	01	1	9312-				●
74	04.419 WASHER; THRUST,REV GEAR	9-33271-607-1	01	1	9312-		●	●
74	04.419 WASHER; THRUST,REV GEAR 04.416	9-33271-606-1	01	1	9312-				●
80	04.343 GEAR; SPD DRIVE Z=4	8-97011-348-0	01	1	9312-	●			●
80	04.343 GEAR; SPD DRIVE Z=4	8-97011-350-0	01	1	9312-		●	●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-40-28	8-97034-847-1	01	1	9312-	●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-31-24	8-97045-932-1	01	1	9312-		●	●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-28	8-97045-931-1	01	1	9312-				●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK	8-97035-048-0	01	1	9312-	●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK	5-09800-062-1	01	1	9312-		●	●
84	04.422 BEARING; COUNTER SHAFT,FRT	8-94455-830-0	01	1	9312-				●
87	04.416 BALL; THRUST WASHER	8-94340-506-0	01	1	9312-				●
109	04.422 BEARING; COUNTER SHAFT,RR	8-97035-049-0	01	1	9312-	●
109	04.422 BEARING; COUNTER SHAFT,RR 4JB1 ENG(RLF)	8-97095-913-0	01	1	9312-9510		●
109	04.422 BEARING; COUNTER SHAFT,RR 4JG2 ENG(RJC) MANUAL TILT CAB<RWZ>	8-97095-913-0	01	1	9312-9510			●
109	04.422 BEARING; COUNTER SHAFT,RR 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97095-913-0	01	1	9511-9511		●
109	04.422 BEARING; COUNTER SHAFT,RR 4JB1 ENG(RLF)	8-97095-913-0	01	1	9511-9511			●
109	04.422 BEARING; COUNTER SHAFT,RR	8-97095-913-0	01	1	9512-		●	●
109	04.422 BEARING; COUNTER SHAFT,RR 4JB1 ENG(RLF) 04.352 NSK	5-09800-063-2	01	1	9312-9510			●
109	04.422 BEARING; COUNTER SHAFT,RR	8-94178-734-0	01	1	9312-				●
132	04.433 SHAFT; REV	8-94415-162-1	01	1	9312-	●			●
132	04.433 SHAFT; REV	9-33351-604-1	01	1	9312-		●	●
135	04.430 GEAR; REV IDLER Z=27	5-33361-042-2	01	1	9312-	●			●
135	04.430 GEAR; REV IDLER Z=29	8-97081-539-3	01	1	9312-		●	●
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.75	8-94402-405-0	01	1	9312-	●	●	●	●
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.80	8-94402-406-0	01	1	9312-	●	●	●	●
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.85	8-94402-407-0	01	1	9312-	●	●	●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.85	8-94151-522-0	01	1	9312-	●	●	●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.90	8-94151-523-0	01	1	9312-	●	●	●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.95	8-94151-524-0	01	1	9312-	●	●	●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=2.00	8-94157-747-0	01	1	9312-	●	●	●	●
174	04.380 SYNCHRONIZER ASM; 2ND-3RD	8-97091-432-0	01	1	9312-9711	●			●
174	04.380 SYNCHRONIZER ASM; 2ND-3RD	8-97190-992-0	01	1	9712-	●			●
175	04.380 SYNCHRONIZER; LOW-REV	8-97091-434-0	01	1	9312-	●			●
180	04.422 RING; SNAP,CLUSTER GEAR 08.934 (A) ID=32.2	9-09180-035-0	01	1	9312-	●	●	●
180	04.422 RING; SNAP,CLUSTER GEAR (B) ID=38.5	8-94146-483-0	01	1	9312-		●	●
180	04.422 RING; SNAP,CLUSTER GEAR (A) ID=29.6	9-09180-032-0	01	1	9312-				●
182	04.422 PLATE; CLUSTER GEAR	8-94131-924-1	01	1	9312-	●
182	04.422 PLATE; CLUSTER GEAR 4JG2 ENG(RJC)	8-94129-632-1	01	1	9607-		●
182	04.422 PLATE; CLUSTER GEAR 4JB1 ENG(RLF) TURBOCHARGER<K51>	8-94129-632-1	01	1	9607-		●
182	04.422 PLATE; CLUSTER GEAR	8-97095-984-0	01	1	9312-9510		●	●
182	04.422 PLATE; CLUSTER GEAR 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>	8-97095-984-0	01	1	9511-		●
182	04.422 PLATE; CLUSTER GEAR	8-97095-984-0	01	1	9511-			●
182	04.422 PLATE; CLUSTER GEAR	8-94131-923-1	01	1	9312-				●
183	04.422 SPRING; PLATE,CLUSTER GEAR	8-94148-196-0	03	1	9312-	●			●
183	04.422 SPRING; PLATE,CLUSTER GEAR	8-94132-168-0	03	1	9312-		●	●
184	04.422 SPRING; CLUSTER GEAR	8-94101-320-0	01	1	9312-	●			●
184	04.422 SPRING; CLUSTER GEAR	8-94128-790-1	01	1	9312-		●	●
186	04.422 RING; SNAP,CLUSTER GEAR 08.934 ID=32.2	9-09180-035-0	01	1	9312-	●			●
186	04.422 RING; SNAP,CLUSTER GEAR ID=29.6	9-09180-032-0	01	1	9312-		●	●
190	04.435 BALL; LK,REV SHAFT 04.311	9-00097-509-0	01	1	9312-	●			●
234	04.380 SYNCHRONIZER ASM; 4TH TO 5TH	8-97034-841-1	01	1	9312-	●
234	04.380 SYNCHRONIZER ASM; 4TH TO 5TH	8-97048-745-2	01	1	9312-				●
276	04.419 SPACER; BRG TO DRIVE GEAR	8-97034-876-0	01	1	9312-	●
276	04.419 SPACER; BRG TO DRIVE GEAR	9-33235-606-1	01	1	9312-		●	●
276	04.419 SPACER; BRG TO DRIVE GEAR 04.545	9-33235-602-2	01	1	9312-				●
281	04.419 WASHER; THRUST,MAINSHAFT	5-33271-007-0	01	1	9312-		●	●
281	04.419 WASHER; THRUST,MAINSHAFT	8-94340-194-1	01	1	9312-				●
287	04.422 PIN; COUNTER GEAR	8-94402-462-0	03	1	9312-9510	●	●		●
287	04.422 PIN; COUNTER GEAR 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS)	8-94402-462-0	03	1	9511-9711	●	●		●
287	04.422 PIN; COUNTER GEAR 4BE1 ENG(RLH),4HF1 ENG(RLS)	8-94402-462-0	03	1	9712-	●			●
287	04.422 PIN; COUNTER GEAR 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>	8-94402-462-0	03	1	9712-		●
287	04.422 PIN; COUNTER GEAR	8-94402-462-0	01	1	9312-9606			●
287	04.422 PIN; COUNTER GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94402-462-0	01	1	9607-9711		●	●
287	04.422 PIN; COUNTER GEAR 4JG2 ENG(RJC)	8-94402-462-0	01	1	9712-		●
287	04.422 PIN; COUNTER GEAR 4JB1 ENG(RLF) TURBOCHARGER<K51>	8-94402-462-0	01	1	9712-		●
287	04.422 PIN; COUNTER GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94402-462-0	01	1	9712-			●
313	04.419 BEARING; NEEDLE,LOW GEAR 04.352 NSK	9-00096-638-0	01	1	9312-	●			●
313	04.419 BEARING; NEEDLE,LOW GEAR NTN	8-97201-005-0	01	1	9802-	●			●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	8-94317-161-0	01	1	9312-		●	●
313	04.419 BEARING; NEEDLE,LOW GEAR KOYO	8-97010-547-0	01	1	9312-		●	●
314	04.419 BEARING; NEEDLE,REV GEAR 04.352 NSK	9-00096-638-0	01	1	9312-	●			●
314	04.419 BEARING; NEEDLE,REV GEAR NTN	8-97201-005-0	01	1	9802-	●			●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	5-09811-014-0	01	1	9312-		●	●
318	04.419 COLLAR; DIST,REV GEAR	8-97076-908-0	01	1	9312-	●
318	04.419 COLLAR; DIST,REV GEAR 04.416	9-33234-618-1	01	1	9312-				●
387	04.384 INSERT; SYN,4TH & 3RD	5-33263-001-0	03	1	9312-	●	●	●	●
390	04.383 RING; SNAP,CLU HUB 04.384 T=1.75	8-94151-520-0	01	1	9312-		●	●	●
390	04.383 RING; SNAP,CLU HUB 04.384 T=1.80	8-94151-521-0	01	1	9312-		●	●	●
390	04.383 RING; SNAP,CLU HUB 04.416 T=1.85	8-94151-522-0	01	1	9312-		●	●	●
390	04.383 RING; SNAP,CLU HUB 04.416 T=1.90	8-94151-523-0	01	1	9512-			●
393	04.352 BEARING; MAINSHAFT END 04.355	8-94178-731-0	01	1	9312-	●
393	04.352 BEARING; MAINSHAFT END 04.422	8-97095-913-0	01	1	9312-9506		●
393	04.352 BEARING; MAINSHAFT END 4JB1 ENG(RLF) 04.422	8-97095-913-0	01	1	9507-9509		●
393	04.352 BEARING; MAINSHAFT END 4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> 04.422	8-97095-913-0	01	1	9507-9509			●
393	04.352 BEARING; MAINSHAFT END 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.422	8-97095-913-0	01	1	9510-9511		●
393	04.352 BEARING; MAINSHAFT END 4JB1 ENG(RLF) 04.422	8-97095-913-0	01	1	9510-9511			●
393	04.352 BEARING; MAINSHAFT END 04.422	8-97095-913-0	01	1	9512-		●	●
393	04.352 BEARING; MAINSHAFT END NSK	5-09800-063-2	01	1	9312-9406			●
393	04.352 BEARING; MAINSHAFT END 4JB1 ENG(RLF) NSK	5-09800-063-2	01	1	9407-9511			●
393	04.352 BEARING; MAINSHAFT END 04.408 NSK	8-94178-732-1	01	1	9312-				●
393	04.352 BEARING; MAINSHAFT END KOYO	8-94462-615-0	01	1	9312-				●
396	04.352 BEARING; NEEDLE,MAINSHAFT	8-97035-050-0	01	1	9312-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1 ENG(RLF) TURBOCHARGER<K51>	8-97161-658-0	01	1	9712-9801		●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1 ENG(RLF) TURBOCHARGER<K51>	8-97161-658-0	01	1	9802-		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 04.520	9-00096-606-0	01	1	9312-9711		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JG2 ENG(RJC) 04.520	9-00096-606-0	01	1	9712-		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 04.520	9-00096-606-0	01	1	9712-		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 04.399	8-94178-729-1	01	1	9312-				●
397	04.384 SPRING; INSERT,4TH & 3RD	8-97023-710-0	02	1	9312-	●	●	●	●
398	04.421 GEAR; COUNTER Z=45-49-36-20-14-13	8-97075-976-0	01	1	9312-	●
398	04.421 GEAR; COUNTER Z=51-34-22-14	8-97030-871-0	01	1	9312-9510		●
398	04.421 GEAR; COUNTER 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> Z=51-34-22-14	8-97030-871-0	01	1	9511-		●
398	04.421 GEAR; COUNTER 4JG2 ENG(RJC) Z=51-34-22-14	8-97029-335-0	01	1	9607-		●
398	04.421 GEAR; COUNTER 4JB1 ENG(RLF) TURBOCHARGER<K51> Z=51-34-22-14	8-97029-335-0	01	1	9607-		●
398	04.421 GEAR; COUNTER Z=49-34-22-14	8-97077-337-0	01	1	9312-9801			●
398	04.421 GEAR; COUNTER 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> Z=49-34-22-14	8-97077-337-0	01	1	9802-			●
398	04.421 GEAR; COUNTER 4JB1 ENG(RLF) TURBOCHARGER<K51> Z=49-34-22-14	8-97191-207-0	01	1	9802-			●
398	04.421 GEAR; COUNTER Z=49	8-97017-874-0	01	1	9312-				●
405	04.384 INSERT; SYN,LOW & 2ND	5-33263-001-0	03	1	9312-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
