◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50694 - NKR-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#47310) — 54 parça

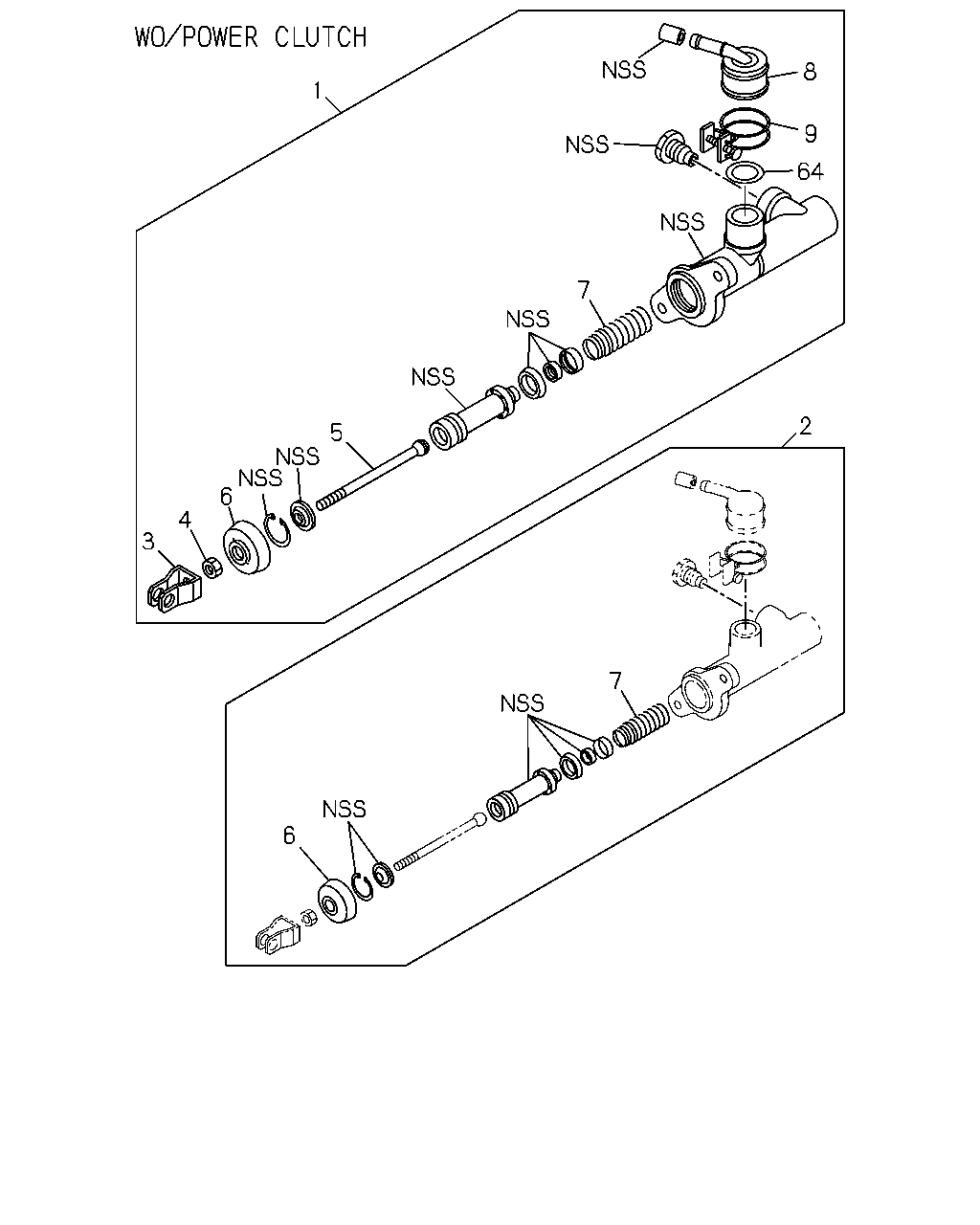

çizim 66179
8 1 9 64 7 2 5 6 4 3 7 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> 		8-97048-927-3 01 1 9312-9410 ● ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> 		8-97124-112-0 01 1 9411-9611 ● ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> 		8-97162-964-0 01 1 9612- ● ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH<S2T> 		8-97035-919-2 01 1 9312-9410 ● ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH<S2T> 		8-97124-110-0 01 1 9411-9611 ● ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH<S2T> 		8-97162-963-0 01 1 9612- ● ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		5-87831-404-1 01 1 9312-9611 ● ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		5-87831-617-0 01 1 9612- ● ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		5-87831-403-1 01 1 9312-9611 ● ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		5-87831-597-0 01 1 9612- ● ● ● ●
3 00.777 JOINT; JAW,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97083-160-0 01 1 9312-9611 ● ● ● ●
3 00.777 JOINT; JAW,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-770-0 01 1 9612- ● ● ● ●
4 00.777 NUT; JAW JOINT
EXC. POWER ASSIST CLUTCH<S2T> 00.787 M8 		9-09111-408-0 01 1 9312- ● ● ● ●
5 00.775 ROD; PUSH,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97083-159-0 01 1 9312-9611 ● ● ● ●
5 00.775 ROD; PUSH,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-768-0 01 1 9612- ● ● ● ●
6 00.775 BOOT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97014-563-0 01 1 9312-9611 ● ● ● ●
6 00.775 BOOT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-153-0 01 1 9612- ● ● ● ●
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97076-981-0 01 1 9312-9611 ● ● ● ●
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-94412-200-0 01 1 9612- ● ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97076-982-0 01 1 9312-9611 ● ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-148-0 01 1 9612- ● ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97081-422-0 01 1 9312-9611 ● ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-780-0 01 1 9612- ● ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL 8-97083-129-0 01 1 9312-9611 ● ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-154-0 01 1 9612- ● ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97163-191-0 01 1 9612- ● ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-94147-279-0 01 1 9312-9611 ● ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-143-0 01 1 9612- ● ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-773-0 01 1 9612- ● ● ● ●
64 00.777 GASKET; CONNECTOR
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-767-0 01 1 9612- ● ● ● ●

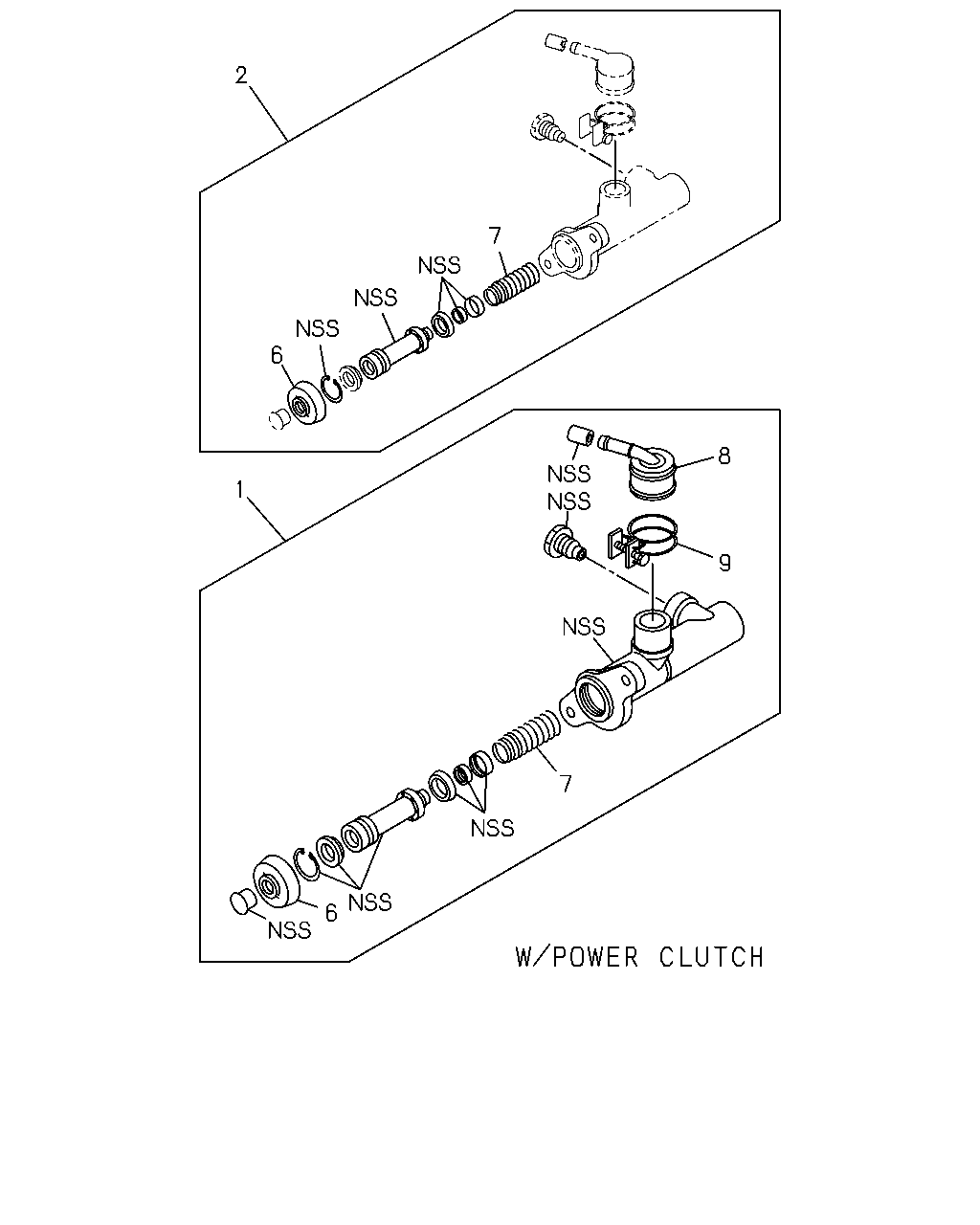

çizim 68809
2 7 6 8 1 9 7 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> 		8-97048-927-3 01 1 9312-9410 ● ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> 		8-97124-112-0 01 1 9411-9611 ● ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> 		8-97162-964-0 01 1 9612- ● ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH<S2T> 		8-97035-919-2 01 1 9312-9410 ● ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH<S2T> 		8-97124-110-0 01 1 9411-9611 ● ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH<S2T> 		8-97162-963-0 01 1 9612- ● ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		5-87831-404-1 01 1 9312-9611 ● ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		5-87831-617-0 01 1 9612- ● ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		5-87831-403-1 01 1 9312-9611 ● ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		5-87831-597-0 01 1 9612- ● ● ● ●
6 00.775 BOOT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97014-563-0 01 1 9312-9611 ● ● ● ●
6 00.775 BOOT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-153-0 01 1 9612- ● ● ● ●
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97076-981-0 01 1 9312-9611 ● ● ● ●
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-94412-200-0 01 1 9612- ● ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97076-982-0 01 1 9312-9611 ● ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-148-0 01 1 9612- ● ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97081-422-0 01 1 9312-9611 ● ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-780-0 01 1 9612- ● ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL 8-97083-129-0 01 1 9312-9611 ● ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-154-0 01 1 9612- ● ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97163-191-0 01 1 9612- ● ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-94147-279-0 01 1 9312-9611 ● ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-143-0 01 1 9612- ● ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-773-0 01 1 9612- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
