2-07 — CLUTCH BOOSTER; MINIPACK (#47309) — 11 parça

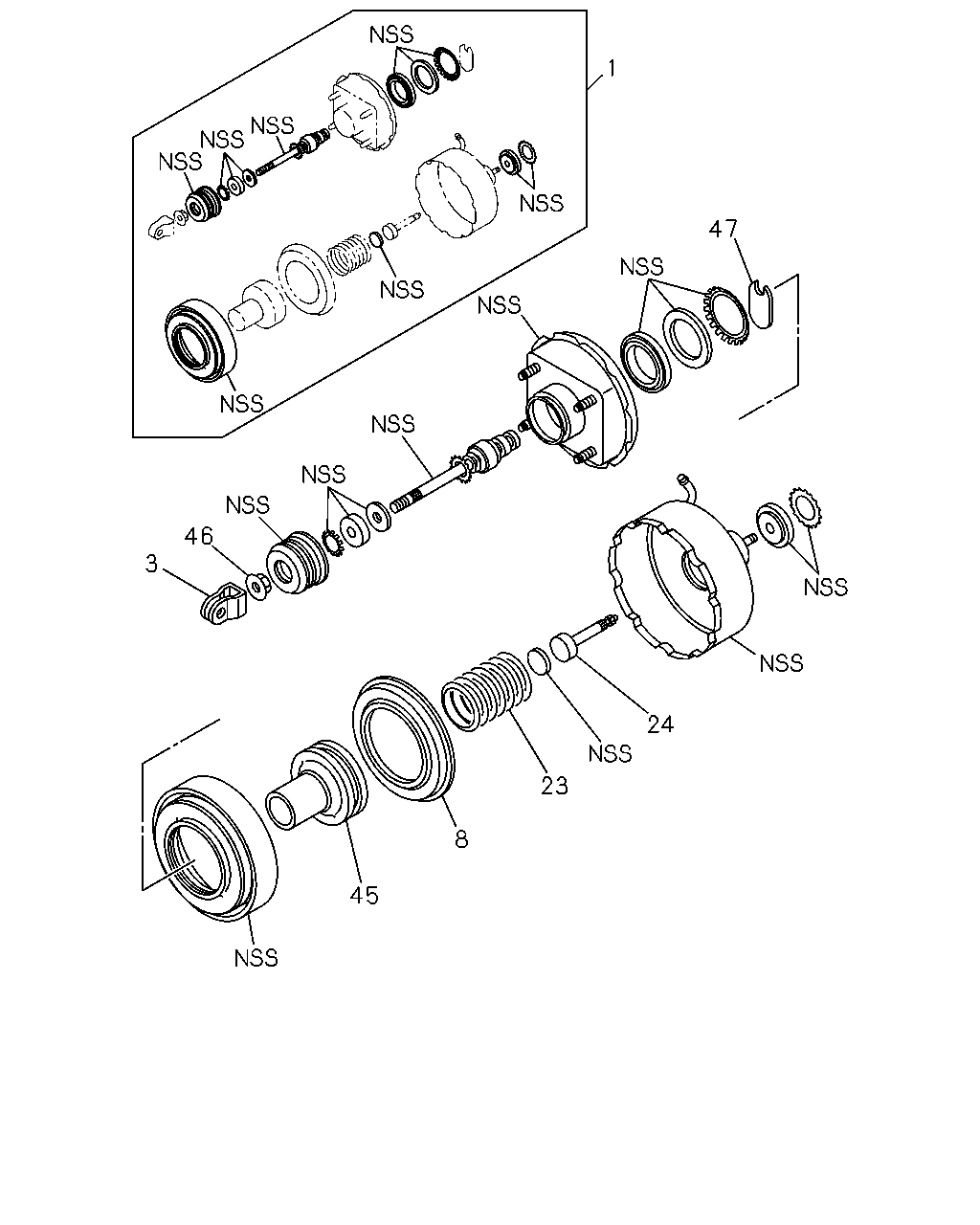

çizim 18450
1 47 46 3 24 23 8 45
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.775 REPAIR KIT; CLU BOOSTER
POWER ASSIST CLUTCH<S2T> 		8-97080-111-0 01 1 9312-9703 ● ● ● ●
1 00.775 REPAIR KIT; CLU BOOSTER
POWER ASSIST CLUTCH<S2T> 		8-97174-145-0 01 1 9704- ● ● ● ●
3 00.787 CLEVIS; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH<S2T> 04.662 		8-94341-787-0 01 1 9312-9703 ● ● ● ●
3 00.787 CLEVIS; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH<S2T> 		8-97174-147-0 01 1 9704- ● ● ● ●
8 00.775 RETAINER; DIAPH
POWER ASSIST CLUTCH<S2T> 		8-97015-778-0 01 1 9312-9703 ● ● ● ●
23 00.775 SPRING; SHELL,CLU BOOSTER
POWER ASSIST CLUTCH<S2T> 		8-94369-071-0 01 1 9312-9703 ● ● ● ●
24 00.787 ROD; PUSH,CLU BOOSTER
POWER ASSIST CLUTCH<S2T> 		8-97094-972-0 01 1 9312-9703 ● ● ● ●
45 00.775 PLATE; END,CLU BOOSTER
POWER ASSIST CLUTCH<S2T> 		8-97103-376-0 01 1 9312-9703 ● ● ● ●
46 00.787 NUT; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH<S2T> 04.785 M10 FLANGE 		0-91150-110-0 01 1 9312-9703 ● ● ● ●
46 00.787 NUT; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH<S2T> 		8-97174-148-0 01 1 9704- ● ● ● ●
47 00.775 KEY; CLU BOOSTER
POWER ASSIST CLUTCH<S2T> 04.924 		8-94123-120-0 01 1 9312-9703 ● ● ● ●
