◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50694 - NKR-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶

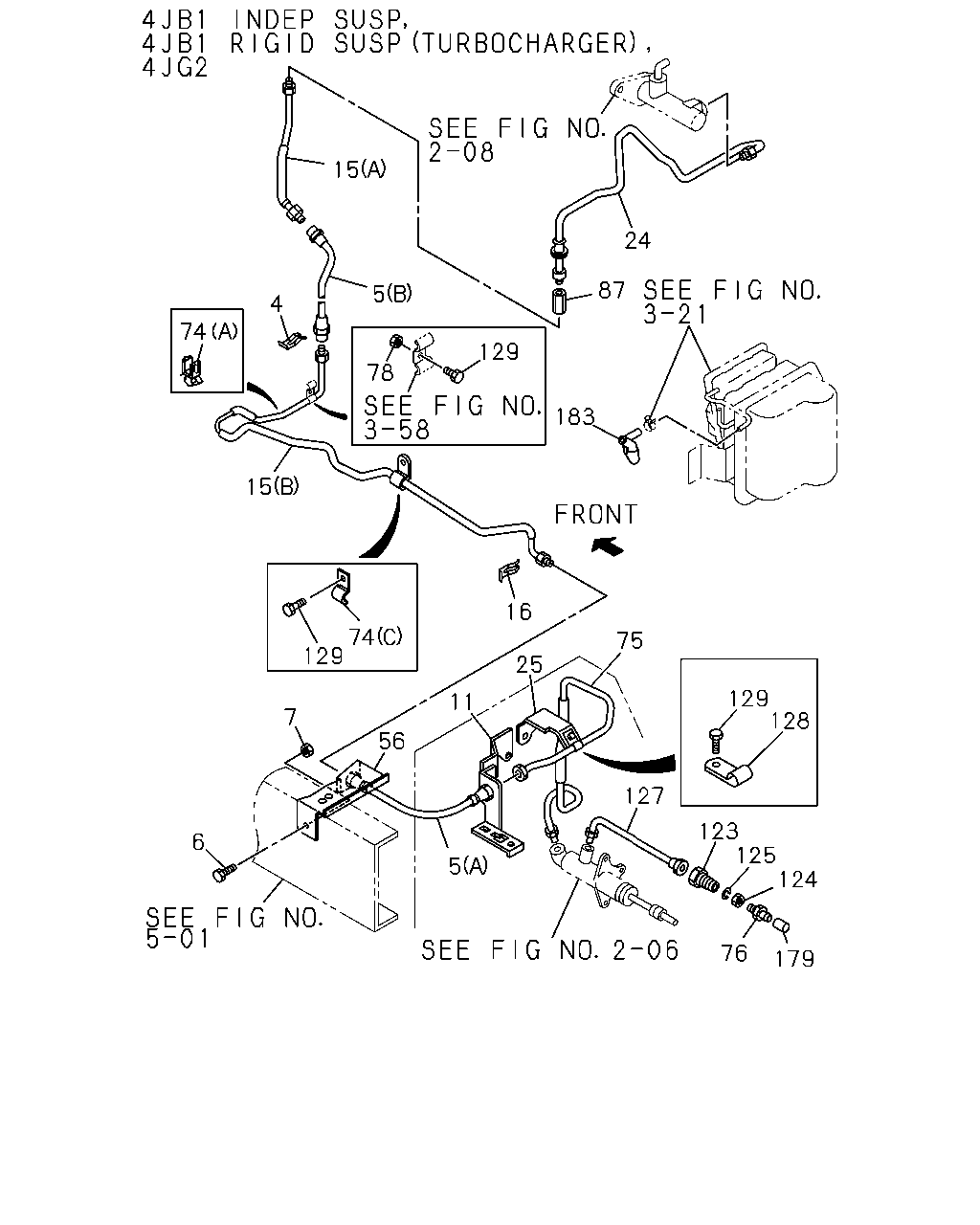

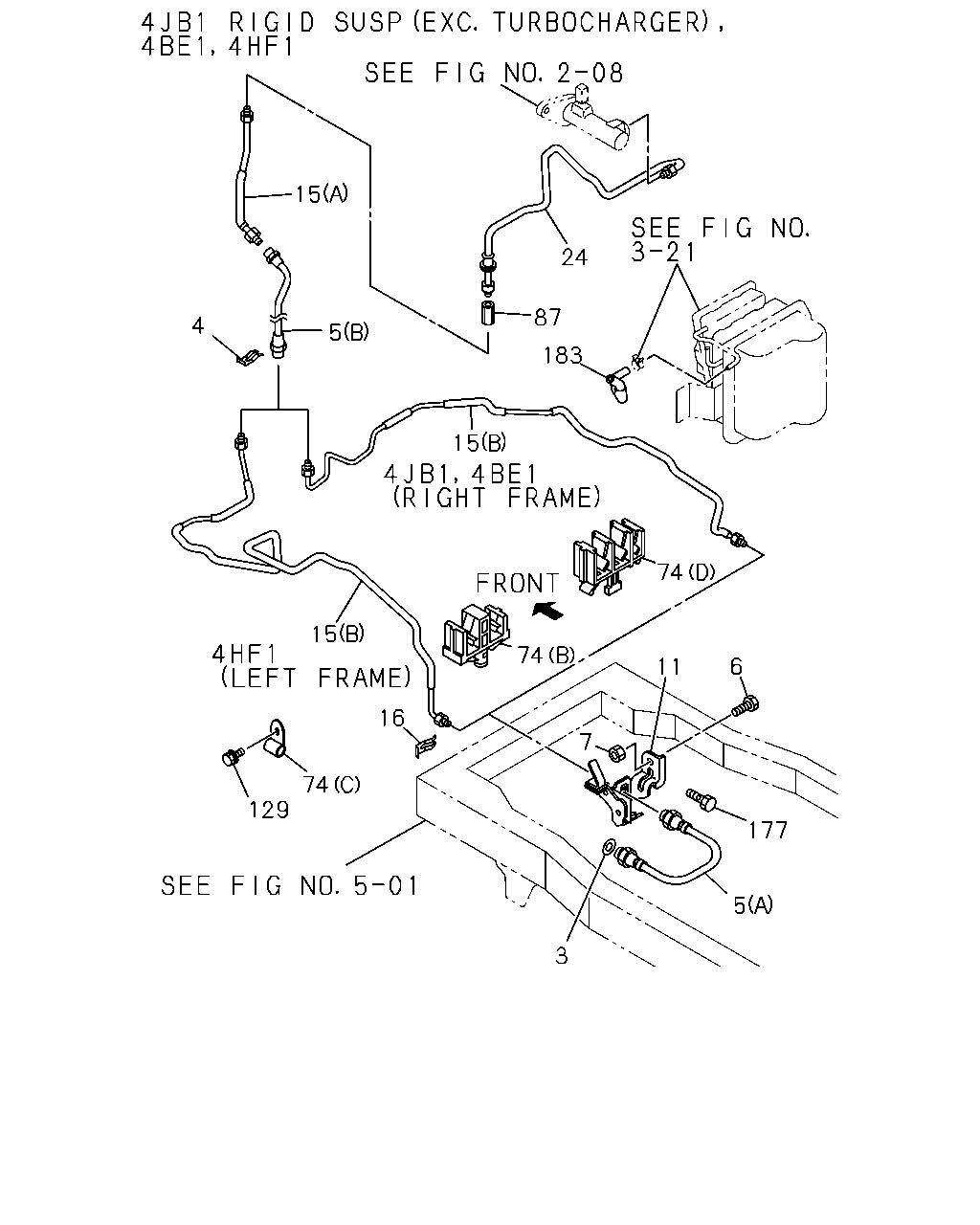

2-05 — CLUTCH PIPING (#47307) — 269 parça
çizim 69128
15 24 87 5 4 74 129 78 183 15 16 74 129 75 25 129 128 11 7 56 127 123 125 124 6 5 76 179
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 9312-9406 ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 9407- ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94374-552-1 01 1 9312-9506 ●
5 00.785 HOSE; FLEX,CLU PIPE
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94374-552-1 01 1 9507-9711 ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-94374-552-1 01 1 9507-9711 ●
5 00.785 HOSE; FLEX,CLU PIPE
TURBOCHARGER<K51> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94374-552-1 01 1 9712- ●
5 00.785 HOSE; FLEX,CLU PIPE
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94374-552-1 01 1 9712- ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-94374-552-1 01 1 9712- ●
5 00.785 HOSE; FLEX,CLU PIPE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97064-108-1 01 1 9312-9711 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97064-108-1 01 1 9712- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 9312-9406 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 9407- ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97018-982-0 01 1 9312- ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-94482-265-1 01 1 9312- ●
6 00.785 BOLT; BRKT,FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 01 1 9312-9503 ●
6 00.785 BOLT; BRKT,FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9504-9506 ●
6 00.785 BOLT; BRKT,FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9507-9711 ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9507-9711 ●
6 00.785 BOLT; BRKT,FLEX HOSE
TURBOCHARGER<K51> EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9712- ●
6 00.785 BOLT; BRKT,FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9712- ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9712- ●
6 00.785 BOLT; BRKT,FLEX HOSE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9312-9411 ●
6 00.785 BOLT; BRKT,FLEX HOSE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9312-9411 ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9412-9711 ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9412-9711 ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712- ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712- ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9712- ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8 		9-09110-408-0 01 1 9312-9502 ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
02.559 M8 		9-09110-408-0 01 1 9312-9502 ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9503- ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9503- ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94411-135-0 01 1 9312-9711 ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-94411-135-0 01 1 9312-9711 ●
11 00.785 BRACKET; FLEX HOSE,CLU
EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) 		8-94411-135-0 01 1 9712- ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-94411-135-0 01 1 9712- ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97063-755-0 01 1 9312- ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97091-929-0 01 1 9507-9510 ●
11 00.785 BRACKET; FLEX HOSE,CLU
SGL TIRE&SGL CAB(NKB5SC) SMALL DUAL RR TIRE(NKN5SC) 		8-97091-929-0 01 1 9511-9606 ●
11 00.785 BRACKET; FLEX HOSE,CLU
FRT INDEPENDENT SUSPENSION(6PP) 		8-97091-929-0 01 1 9607-9711 ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97091-929-0 01 1 9607-9711 ●
11 00.785 BRACKET; FLEX HOSE,CLU
TURBOCHARGER<K51> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97091-929-0 01 1 9712- ●
11 00.785 BRACKET; FLEX HOSE,CLU
FRT INDEPENDENT SUSPENSION(6PP) 		8-97091-929-0 01 1 9712- ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97091-929-0 01 1 9712- ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97100-830-3 01 1 9312-9510 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
REAR WIDE TREAD(V4T) (B) 		8-97100-830-3 01 1 9312-9510 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (B) 		8-97100-830-3 01 1 9511-9711 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (B) 		8-97100-830-3 01 1 9712- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97035-987-0 01 1 9312-9506 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97035-987-0 01 1 9507- ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97077-290-1 01 1 9312-9510 ●
15 00.785 PIPE; CLU,FLEX HOSE
DUAL RR TIRE&SHORT(NKC**C) EXC. REAR WIDE TREAD(V4T) (B) 		8-97077-290-1 01 1 9312-9510 ●
15 00.785 PIPE; CLU,FLEX HOSE
FRAME-KICK UP<7EW> (B) 		8-97077-290-1 01 1 9511- ●
15 00.785 PIPE; CLU,FLEX HOSE
SGL CAB&MIDDLE(NK**SF) (B) 		8-97063-342-3 01 1 9312-9510 ●
15 00.785 PIPE; CLU,FLEX HOSE
DUAL RR TIRE&SGL CAB(NKC*S*) EXC. FRAME-KICK UP<7EW> (B) 		8-97063-342-3 01 1 9511-9705 ●
15 00.785 PIPE; CLU,FLEX HOSE
DUAL RR TIRE&SGL CAB(NKC*S*) EXC. FRAME-KICK UP<7EW> (B) 		8-97140-099-2 01 1 9706-9711 ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (B) 		8-97140-099-2 01 1 9712- ●
15 00.785 PIPE; CLU,FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97061-379-1 01 1 9507-9707 ●
15 00.785 PIPE; CLU,FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97185-249-0 01 1 9708- ●
15 00.785 PIPE; CLU,FLEX HOSE
SGL TIRE&SGL CAB(NKB*S*) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97122-637-0 01 1 9511-9606 ●
15 00.785 PIPE; CLU,FLEX HOSE
SMALL DUAL RR TIRE(NKN***) (B) 		8-97122-637-0 01 1 9511-9606 ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97122-637-0 01 1 9607-9711 ●
15 00.785 PIPE; CLU,FLEX HOSE
TURBOCHARGER<K51> (B) 		8-97122-637-0 01 1 9712- ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97122-637-0 01 1 9712- ●
16 00.785 CLIP; FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) 		8-94167-006-0 02 1 9312-9506 ●
16 00.785 CLIP; FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) 		8-94167-006-0 02 1 9507-9711 ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 02 1 9507-9711 ●
16 00.785 CLIP; FLEX HOSE
TURBOCHARGER<K51> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94167-006-0 02 1 9712- ●
16 00.785 CLIP; FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) 		8-94167-006-0 02 1 9712- ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 02 1 9712- ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 9312-9510 ● ● ● ●
16 00.785 CLIP; FLEX HOSE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94167-006-0 01 1 9511-9711 ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 9511-9711 ● ●
16 00.785 CLIP; FLEX HOSE
EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) 		8-94167-006-0 01 1 9712- ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 9712- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH<S2T> 		8-97035-973-0 01 1 9312- ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH<S2T> 		8-97035-986-0 01 1 9312- ● ● ● ●
25 00.785 BRACKET; OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97013-211-1 01 1 9312-9506 ●
25 00.785 BRACKET; OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97013-211-1 01 1 9507-9711 ●
25 00.785 BRACKET; OIL PIPE 8-97013-211-1 01 1 9507-9711 ●
25 00.785 BRACKET; OIL PIPE
TURBOCHARGER<K51> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97013-211-1 01 1 9712- ●
25 00.785 BRACKET; OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97013-211-1 01 1 9712- ●
25 00.785 BRACKET; OIL PIPE 8-97013-211-1 01 1 9712- ●
56 00.785 BRACKET; FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97090-299-0 01 1 9312-9506 ●
56 00.785 BRACKET; FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97090-299-0 01 1 9507-9711 ●
56 00.785 BRACKET; FLEX HOSE 8-97090-299-0 01 1 9507-9711 ●
56 00.785 BRACKET; FLEX HOSE
TURBOCHARGER<K51> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97090-299-0 01 1 9712- ●
56 00.785 BRACKET; FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97090-299-0 01 1 9712- ●
56 00.785 BRACKET; FLEX HOSE 8-97090-299-0 01 1 9712- ●
74 00.785 CLIP; CLU OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 03.162 (C) 		9-09716-287-0 01 1 9312-9410 ●
74 00.785 CLIP; CLU OIL PIPE
03.162 (C) 		9-09716-287-0 01 1 9507-9510 ● ● ●
74 00.785 CLIP; CLU OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 03.162 (C) 		9-09716-287-0 01 1 9511- ●
74 00.785 CLIP; CLU OIL PIPE
04.686 (B) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 03 1 9312-9401 ●
74 00.785 CLIP; CLU OIL PIPE
04.686 (B) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 9402- ●
74 00.785 CLIP; CLU OIL PIPE
03.162 (D) ID=5 & 6.5 & 8.2 		8-94128-316-1 01 1 9402- ●
74 00.785 CLIP; CLU OIL PIPE
SGL CAB&MIDDLE(NK**SF) 04.686 (D) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 01 1 9312-9408 ●
74 00.785 CLIP; CLU OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) H=28.5 		8-94486-808-0 01 1 9604- ●
74 00.785 CLIP; CLU OIL PIPE
SGL CAB(NK**S*) EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) H=28.5 		8-94486-808-0 02 1 9604-9711 ●
74 00.785 CLIP; CLU OIL PIPE
TURBOCHARGER<K51> 03.162 (A) H=28.5 		8-94486-808-0 02 1 9712- ●
74 00.785 CLIP; CLU OIL PIPE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) H=28.5 		8-94486-808-0 02 1 9712- ●
75 00.785 PIPE ASM; CLU,HSG
FRT INDEPENDENT SUSPENSION(6PP) 		8-97063-756-2 01 1 9312-9506 ●
75 00.785 PIPE ASM; CLU,HSG
FRT INDEPENDENT SUSPENSION(6PP) 		8-97063-756-2 01 1 9507-9711 ●
75 00.785 PIPE ASM; CLU,HSG 8-97063-756-2 01 1 9507-9711 ●
75 00.785 PIPE ASM; CLU,HSG
TURBOCHARGER<K51> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97063-756-2 01 1 9712- ●
75 00.785 PIPE ASM; CLU,HSG
FRT INDEPENDENT SUSPENSION(6PP) 		8-97063-756-2 01 1 9712- ●
75 00.785 PIPE ASM; CLU,HSG 8-97063-756-2 01 1 9712- ●
76 00.785 SCREW; BREATHER
FRT INDEPENDENT SUSPENSION(6PP) 00.780 M8X16.5 		8-94115-113-0 01 1 9312-9506 ●
76 00.785 SCREW; BREATHER
FRT INDEPENDENT SUSPENSION(6PP) 00.780 M8X16.5 		8-94115-113-0 01 1 9507-9607 ●
76 00.785 SCREW; BREATHER
00.780 M8X16.5 		8-94115-113-0 01 1 9507-9607 ●
76 00.785 SCREW; BREATHER
FRT INDEPENDENT SUSPENSION(6PP) 00.780 M8X16.5 		8-94115-113-0 01 1 9608- ● ●
78 00.785 NUT; CLIP,CLU PIPE
FRT INDEPENDENT SUSPENSION(6PP) 04.594 M6 FLANGE 		0-91150-106-0 01 1 9312-9506 ●
78 00.785 NUT; CLIP,CLU PIPE
FRT INDEPENDENT SUSPENSION(6PP) 04.594 M6 FLANGE 		0-91150-106-0 01 1 9507-9604 ● ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 9312-9406 ● ● ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 9407- ● ● ● ●
123 00.785 UNION; AIR PIPE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97013-854-0 01 1 9312-9506 ●
123 00.785 UNION; AIR PIPE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97013-854-0 01 1 9507-9607 ●
123 00.785 UNION; AIR PIPE 8-97013-854-0 01 1 9507-9607 ●
123 00.785 UNION; AIR PIPE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97013-854-0 01 1 9608- ● ●
124 00.785 NUT; PIPE UNION
FRT INDEPENDENT SUSPENSION(6PP) 04.681 M16 		9-99111-416-0 01 1 9312-9506 ●
124 00.785 NUT; PIPE UNION
FRT INDEPENDENT SUSPENSION(6PP) 04.681 M16 		9-99111-416-0 01 1 9507-9607 ●
124 00.785 NUT; PIPE UNION
04.681 M16 		9-99111-416-0 01 1 9507-9607 ●
124 00.785 NUT; PIPE UNION
FRT INDEPENDENT SUSPENSION(6PP) 04.681 M16 		9-99111-416-0 01 1 9608- ● ●
125 00.785 WASHER; LK,PIPE UNION
FRT INDEPENDENT SUSPENSION(6PP) 06.897 ID=16.2 		9-09150-516-0 01 1 9312-9506 ●
125 00.785 WASHER; LK,PIPE UNION
FRT INDEPENDENT SUSPENSION(6PP) 06.897 ID=16.2 		9-09150-516-0 01 1 9507-9607 ●
125 00.785 WASHER; LK,PIPE UNION
06.897 ID=16.2 		9-09150-516-0 01 1 9507-9607 ●
125 00.785 WASHER; LK,PIPE UNION
FRT INDEPENDENT SUSPENSION(6PP) 06.897 ID=16.2 		9-09150-516-0 01 1 9608- ● ●
127 00.785 PIPE; AIR,UNION TO MAG VLV
FRT INDEPENDENT SUSPENSION(6PP) 		8-97062-512-1 01 1 9312-9506 ●
127 00.785 PIPE; AIR,UNION TO MAG VLV
FRT INDEPENDENT SUSPENSION(6PP) 		8-97062-512-1 01 1 9507-9607 ●
127 00.785 PIPE; AIR,UNION TO MAG VLV 8-97062-512-1 01 1 9507-9607 ●
127 00.785 PIPE; AIR,UNION TO MAG VLV
FRT INDEPENDENT SUSPENSION(6PP) 		8-97062-512-1 01 1 9608- ● ●
128 00.785 CLIP; AIR PIPE
FRT INDEPENDENT SUSPENSION(6PP) 03.145 ID=7 L=16 		9-09524-622-0 02 1 9312-9506 ●
128 00.785 CLIP; AIR PIPE
FRT INDEPENDENT SUSPENSION(6PP) 03.145 ID=7 L=16 		9-09524-622-0 02 1 9507-9711 ●
128 00.785 CLIP; AIR PIPE
03.145 ID=7 L=16 		9-09524-622-0 02 1 9507-9711 ●
128 00.785 CLIP; AIR PIPE
TURBOCHARGER<K51> EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.145 ID=7 L=16 		9-09524-622-0 02 1 9712- ●
128 00.785 CLIP; AIR PIPE
FRT INDEPENDENT SUSPENSION(6PP) 03.145 ID=7 L=16 		9-09524-622-0 02 1 9712- ●
128 00.785 CLIP; AIR PIPE
03.145 ID=7 L=16 		9-09524-622-0 02 1 9712- ●
129 00.785 BOLT; PIPE CLIP
FRT INDEPENDENT SUSPENSION(6PP) 00.669 M6X12 		0-20800-612-0 02 1 9312-9506 ●
129 00.785 BOLT; PIPE CLIP
FRT INDEPENDENT SUSPENSION(6PP) 00.669 M6X12 		0-20800-612-0 02 1 9507-9606 ●
129 00.785 BOLT; PIPE CLIP
00.669 M6X12 		0-20800-612-0 02 1 9507-9606 ●
129 00.785 BOLT; PIPE CLIP
FRT INDEPENDENT SUSPENSION(6PP) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9607-9711 ●
129 00.785 BOLT; PIPE CLIP
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9607-9711 ●
129 00.785 BOLT; PIPE CLIP
TURBOCHARGER<K51> EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9712- ●
129 00.785 BOLT; PIPE CLIP
FRT INDEPENDENT SUSPENSION(6PP) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9712- ●
129 00.785 BOLT; PIPE CLIP
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9712- ●
129 00.785 BOLT; PIPE CLIP
FRT INDEPENDENT SUSPENSION(6PP) M6X20 FLANGE 		0-28480-620-0 01 1 9312-9506 ●
129 00.785 BOLT; PIPE CLIP
FRT INDEPENDENT SUSPENSION(6PP) M6X20 FLANGE 		0-28480-620-0 01 1 9507-9603 ● ●
129 00.785 BOLT; PIPE CLIP
SGL TIRE&SGL CAB(NKB*S*) FRT INDEPENDENT SUSPENSION(6PP) M6X20 FLANGE 		0-28480-620-0 01 1 9604-9604 ● ● ● ●
129 00.785 BOLT; PIPE CLIP
SGL TIRE&SGL CAB(NKB*S*) FRT INDEPENDENT SUSPENSION(6PP) M6X20 FLANGE 		0-28480-620-0 01 1 9604-9604 ● ●
129 00.785 BOLT; PIPE CLIP
FRT INDEPENDENT SUSPENSION(6PP) M6X20 FLANGE 		0-28480-620-0 01 1 9605- ●
129 00.785 BOLT; PIPE CLIP
03.670 M6X20 FLANGE 		0-28080-620-0 01 1 9507-9510 ● ● ●
129 00.785 BOLT; PIPE CLIP
FRT INDEPENDENT SUSPENSION(6PP) 03.670 M6X20 FLANGE 		0-28080-620-0 01 1 9511-9603 ●
179 00.785 CAP; BREATHER
FRT INDEPENDENT SUSPENSION(6PP) 00.780 OD=9.5 		9-47619-005-0 01 1 9312-9506 ●
179 00.785 CAP; BREATHER
FRT INDEPENDENT SUSPENSION(6PP) 00.780 OD=9.5 		9-47619-005-0 01 1 9507-9607 ●
179 00.785 CAP; BREATHER
00.780 OD=9.5 		9-47619-005-0 01 1 9507-9607 ●
179 00.785 CAP; BREATHER
FRT INDEPENDENT SUSPENSION(6PP) 00.780 OD=9.5 		9-47619-005-0 01 1 9608- ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> 		8-97108-639-0 01 1 9312-9503 ● ● ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> 		8-97129-874-0 01 1 9504- ● ● ● ●
çizim 70954
15 24 87 4 5 183 15 74 15 74 11 6 16 7 74 129 177 5 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 00.785 GASKET; FLEX HOSE,CLU
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		9-09920-873-1 01 1 9312-9510 ● ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		9-09920-873-1 01 1 9511-9711 ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU
EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) 		9-09920-873-1 01 1 9712- ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU
FRT INDEPENDENT SUSPENSION(6PP) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 9312- ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 9312-9406 ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 9407- ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94374-552-1 01 1 9312-9506 ●
5 00.785 HOSE; FLEX,CLU PIPE
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94374-552-1 01 1 9507-9711 ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-94374-552-1 01 1 9507-9711 ●
5 00.785 HOSE; FLEX,CLU PIPE
TURBOCHARGER<K51> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94374-552-1 01 1 9712- ●
5 00.785 HOSE; FLEX,CLU PIPE
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94374-552-1 01 1 9712- ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-94374-552-1 01 1 9712- ●
5 00.785 HOSE; FLEX,CLU PIPE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97064-108-1 01 1 9312-9711 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97064-108-1 01 1 9712- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 9312-9406 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 9407- ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97018-982-0 01 1 9312- ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-94482-265-1 01 1 9312- ●
6 00.785 BOLT; BRKT,FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 01 1 9312-9503 ●
6 00.785 BOLT; BRKT,FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9504-9506 ●
6 00.785 BOLT; BRKT,FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9507-9711 ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9507-9711 ●
6 00.785 BOLT; BRKT,FLEX HOSE
TURBOCHARGER<K51> EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9712- ●
6 00.785 BOLT; BRKT,FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9712- ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9712- ●
6 00.785 BOLT; BRKT,FLEX HOSE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9312-9411 ●
6 00.785 BOLT; BRKT,FLEX HOSE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9312-9411 ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9412-9711 ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9412-9711 ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712- ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712- ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9712- ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8 		9-09110-408-0 01 1 9312-9502 ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
02.559 M8 		9-09110-408-0 01 1 9312-9502 ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9503- ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9503- ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94411-135-0 01 1 9312-9711 ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-94411-135-0 01 1 9312-9711 ●
11 00.785 BRACKET; FLEX HOSE,CLU
EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) 		8-94411-135-0 01 1 9712- ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-94411-135-0 01 1 9712- ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97063-755-0 01 1 9312- ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97091-929-0 01 1 9507-9510 ●
11 00.785 BRACKET; FLEX HOSE,CLU
SGL TIRE&SGL CAB(NKB5SC) SMALL DUAL RR TIRE(NKN5SC) 		8-97091-929-0 01 1 9511-9606 ●
11 00.785 BRACKET; FLEX HOSE,CLU
FRT INDEPENDENT SUSPENSION(6PP) 		8-97091-929-0 01 1 9607-9711 ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97091-929-0 01 1 9607-9711 ●
11 00.785 BRACKET; FLEX HOSE,CLU
TURBOCHARGER<K51> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97091-929-0 01 1 9712- ●
11 00.785 BRACKET; FLEX HOSE,CLU
FRT INDEPENDENT SUSPENSION(6PP) 		8-97091-929-0 01 1 9712- ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97091-929-0 01 1 9712- ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97100-830-3 01 1 9312-9510 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
REAR WIDE TREAD(V4T) (B) 		8-97100-830-3 01 1 9312-9510 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (B) 		8-97100-830-3 01 1 9511-9711 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (B) 		8-97100-830-3 01 1 9712- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97035-987-0 01 1 9312-9506 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97035-987-0 01 1 9507- ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97077-290-1 01 1 9312-9510 ●
15 00.785 PIPE; CLU,FLEX HOSE
DUAL RR TIRE&SHORT(NKC**C) EXC. REAR WIDE TREAD(V4T) (B) 		8-97077-290-1 01 1 9312-9510 ●
15 00.785 PIPE; CLU,FLEX HOSE
FRAME-KICK UP<7EW> (B) 		8-97077-290-1 01 1 9511- ●
15 00.785 PIPE; CLU,FLEX HOSE
SGL CAB&MIDDLE(NK**SF) (B) 		8-97063-342-3 01 1 9312-9510 ●
15 00.785 PIPE; CLU,FLEX HOSE
DUAL RR TIRE&SGL CAB(NKC*S*) EXC. FRAME-KICK UP<7EW> (B) 		8-97063-342-3 01 1 9511-9705 ●
15 00.785 PIPE; CLU,FLEX HOSE
DUAL RR TIRE&SGL CAB(NKC*S*) EXC. FRAME-KICK UP<7EW> (B) 		8-97140-099-2 01 1 9706-9711 ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (B) 		8-97140-099-2 01 1 9712- ●
15 00.785 PIPE; CLU,FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97061-379-1 01 1 9507-9707 ●
15 00.785 PIPE; CLU,FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97185-249-0 01 1 9708- ●
15 00.785 PIPE; CLU,FLEX HOSE
SGL TIRE&SGL CAB(NKB*S*) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97122-637-0 01 1 9511-9606 ●
15 00.785 PIPE; CLU,FLEX HOSE
SMALL DUAL RR TIRE(NKN***) (B) 		8-97122-637-0 01 1 9511-9606 ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97122-637-0 01 1 9607-9711 ●
15 00.785 PIPE; CLU,FLEX HOSE
TURBOCHARGER<K51> (B) 		8-97122-637-0 01 1 9712- ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97122-637-0 01 1 9712- ●
16 00.785 CLIP; FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) 		8-94167-006-0 02 1 9312-9506 ●
16 00.785 CLIP; FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) 		8-94167-006-0 02 1 9507-9711 ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 02 1 9507-9711 ●
16 00.785 CLIP; FLEX HOSE
TURBOCHARGER<K51> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94167-006-0 02 1 9712- ●
16 00.785 CLIP; FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) 		8-94167-006-0 02 1 9712- ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 02 1 9712- ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 9312-9510 ● ● ● ●
16 00.785 CLIP; FLEX HOSE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94167-006-0 01 1 9511-9711 ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 9511-9711 ● ●
16 00.785 CLIP; FLEX HOSE
EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) 		8-94167-006-0 01 1 9712- ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 9712- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH<S2T> 		8-97035-973-0 01 1 9312- ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH<S2T> 		8-97035-986-0 01 1 9312- ● ● ● ●
74 00.785 CLIP; CLU OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 03.162 (C) 		9-09716-287-0 01 1 9312-9410 ●
74 00.785 CLIP; CLU OIL PIPE
03.162 (C) 		9-09716-287-0 01 1 9507-9510 ● ● ●
74 00.785 CLIP; CLU OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 03.162 (C) 		9-09716-287-0 01 1 9511- ●
74 00.785 CLIP; CLU OIL PIPE
04.686 (B) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 03 1 9312-9401 ●
74 00.785 CLIP; CLU OIL PIPE
04.686 (B) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 9402- ●
74 00.785 CLIP; CLU OIL PIPE
03.162 (D) ID=5 & 6.5 & 8.2 		8-94128-316-1 01 1 9402- ●
74 00.785 CLIP; CLU OIL PIPE
SGL CAB&MIDDLE(NK**SF) 04.686 (D) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 01 1 9312-9408 ●
74 00.785 CLIP; CLU OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) H=28.5 		8-94486-808-0 01 1 9604- ●
74 00.785 CLIP; CLU OIL PIPE
SGL CAB(NK**S*) EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) H=28.5 		8-94486-808-0 02 1 9604-9711 ●
74 00.785 CLIP; CLU OIL PIPE
TURBOCHARGER<K51> 03.162 (A) H=28.5 		8-94486-808-0 02 1 9712- ●
74 00.785 CLIP; CLU OIL PIPE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) H=28.5 		8-94486-808-0 02 1 9712- ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 9312-9406 ● ● ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 9407- ● ● ● ●
129 00.785 BOLT; PIPE CLIP
FRT INDEPENDENT SUSPENSION(6PP) 00.669 M6X12 		0-20800-612-0 02 1 9312-9506 ●
129 00.785 BOLT; PIPE CLIP
FRT INDEPENDENT SUSPENSION(6PP) 00.669 M6X12 		0-20800-612-0 02 1 9507-9606 ●
129 00.785 BOLT; PIPE CLIP
00.669 M6X12 		0-20800-612-0 02 1 9507-9606 ●
129 00.785 BOLT; PIPE CLIP
FRT INDEPENDENT SUSPENSION(6PP) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9607-9711 ●
129 00.785 BOLT; PIPE CLIP
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9607-9711 ●
129 00.785 BOLT; PIPE CLIP
TURBOCHARGER<K51> EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9712- ●
129 00.785 BOLT; PIPE CLIP
FRT INDEPENDENT SUSPENSION(6PP) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9712- ●
129 00.785 BOLT; PIPE CLIP
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9712- ●
129 00.785 BOLT; PIPE CLIP
FRT INDEPENDENT SUSPENSION(6PP) M6X20 FLANGE 		0-28480-620-0 01 1 9312-9506 ●
129 00.785 BOLT; PIPE CLIP
FRT INDEPENDENT SUSPENSION(6PP) M6X20 FLANGE 		0-28480-620-0 01 1 9507-9603 ● ●
129 00.785 BOLT; PIPE CLIP
SGL TIRE&SGL CAB(NKB*S*) FRT INDEPENDENT SUSPENSION(6PP) M6X20 FLANGE 		0-28480-620-0 01 1 9604-9604 ● ● ● ●
129 00.785 BOLT; PIPE CLIP
SGL TIRE&SGL CAB(NKB*S*) FRT INDEPENDENT SUSPENSION(6PP) M6X20 FLANGE 		0-28480-620-0 01 1 9604-9604 ● ●
129 00.785 BOLT; PIPE CLIP
FRT INDEPENDENT SUSPENSION(6PP) M6X20 FLANGE 		0-28480-620-0 01 1 9605- ●
129 00.785 BOLT; PIPE CLIP
03.670 M6X20 FLANGE 		0-28080-620-0 01 1 9507-9510 ● ● ●
129 00.785 BOLT; PIPE CLIP
FRT INDEPENDENT SUSPENSION(6PP) 03.670 M6X20 FLANGE 		0-28080-620-0 01 1 9511-9603 ●
177 00.777 BOLT; EYE,FLEX HOSE TO M/CYL
FRT INDEPENDENT SUSPENSION(6PP) 04.665 M10X22 		5-09675-017-0 01 1 9312- ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> 		8-97108-639-0 01 1 9312-9503 ● ● ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> 		8-97129-874-0 01 1 9504- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
