◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50694 - NKR-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#47305) — 98 parça

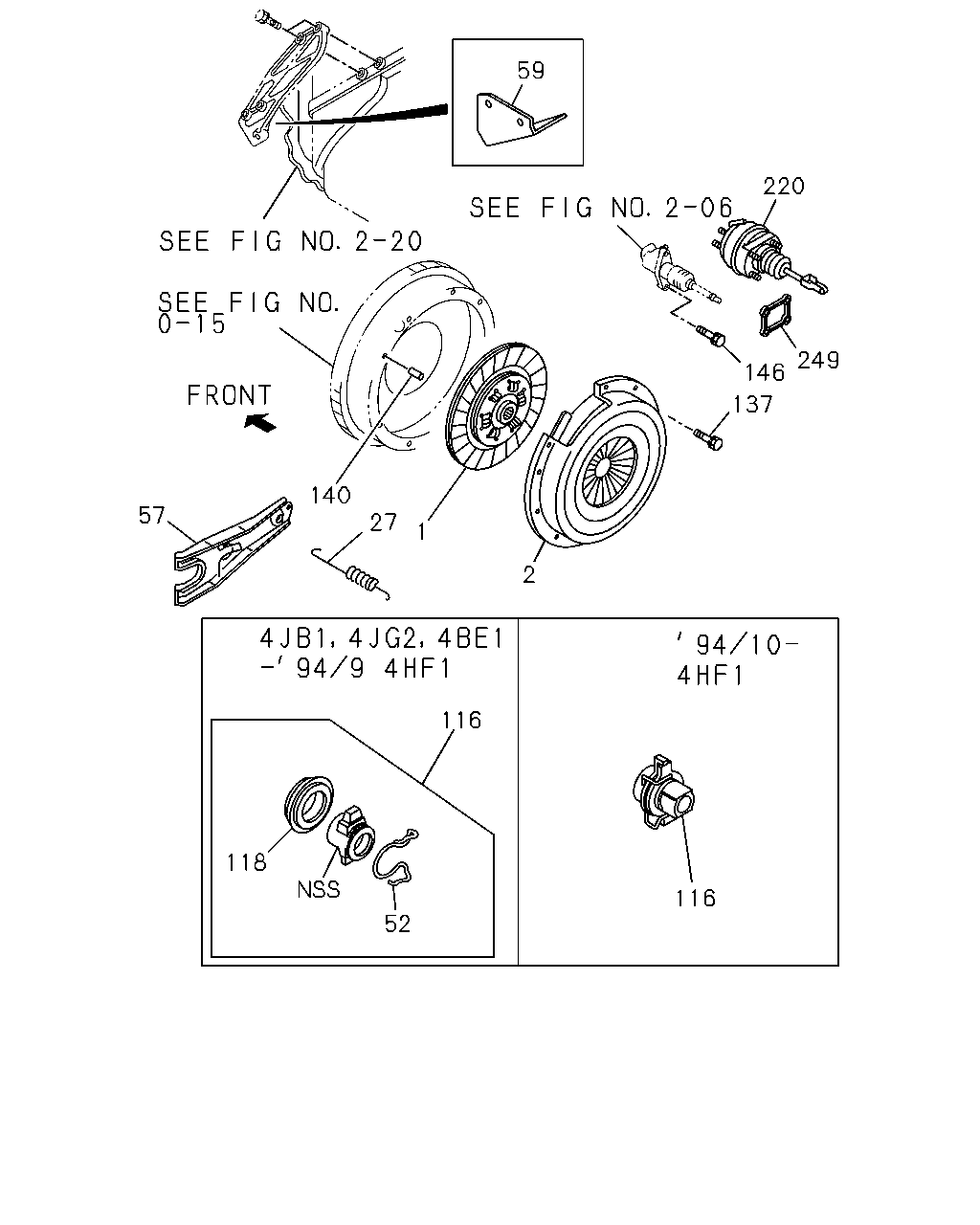

çizim 66207
59 220 249 146 137 140 57 27 1 2 116 118 116 52
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.886 DISC; CLUTCH
9.5" 		8-97013-548-0 01 1 9312-9711 ●
1 00.886 DISC; CLUTCH
EXC. TURBOCHARGER<K51> 9.5" 		8-97013-548-0 01 1 9712- ●
1 00.886 DISC; CLUTCH
10.8" 		8-97079-521-0 01 1 9312- ●
1 00.886 DISC; CLUTCH 8-97076-639-2 01 1 9312-9503 ●
1 00.886 DISC; CLUTCH 8-97118-840-0 01 1 9504-9511 ●
1 00.886 DISC; CLUTCH 8-97139-129-0 01 1 9512-9701 ●
1 00.886 DISC; CLUTCH 8-97162-966-1 01 1 9702- ●
1 00.886 DISC; CLUTCH 8-97080-564-1 01 1 9507-9509 ●
1 00.886 DISC; CLUTCH 8-97135-492-0 01 1 9510-9711 ●
1 00.886 DISC; CLUTCH
TURBOCHARGER<K51> 		8-97135-492-0 01 1 9712-9806 ●
1 00.886 DISC; CLUTCH 8-97135-492-0 01 1 9712-9806 ●
1 00.886 DISC; CLUTCH
TURBOCHARGER<K51> 		8-97207-245-0 01 1 9807-9809 ●
1 00.886 DISC; CLUTCH 8-97207-245-0 01 1 9807-9809 ●
1 00.886 DISC; CLUTCH
TURBOCHARGER<K51> 		8-97217-985-0 01 1 9810- ●
1 00.886 DISC; CLUTCH 8-97217-985-0 01 1 9810- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-94259-132-1 01 1 9312-9711 ●
2 00.859 PLATE ASM; PRESSURE,CLU
EXC. TURBOCHARGER<K51> 		8-94259-132-1 01 1 9712- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97031-759-2 01 1 9312- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97031-757-2 01 1 9312- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97109-246-0 01 1 9507-9711 ●
2 00.859 PLATE ASM; PRESSURE,CLU
TURBOCHARGER<K51> 		8-97109-246-0 01 1 9712- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97109-246-0 01 1 9712- ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-94321-406-1 01 1 9312-9506 ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-94321-406-1 01 1 9507-9712 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-97184-358-0 01 1 9801- ● ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-94335-691-2 01 1 9312-9712 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-97184-359-0 01 1 9801- ● ●
52 00.797 SPRING; SHIFT BLOCK TO FORK 8-94460-893-0 01 1 9312-9711 ●
52 00.797 SPRING; SHIFT BLOCK TO FORK
M/T MSB5M(RM5),M/T MSB5S(R45) EXC. TURBOCHARGER<K51> 		8-94460-893-0 01 1 9712- ●
52 00.797 SPRING; SHIFT BLOCK TO FORK 8-97017-094-0 01 1 9312-9409 ● ●
52 00.797 SPRING; SHIFT BLOCK TO FORK 8-97017-094-0 01 1 9410-9506 ●
52 00.797 SPRING; SHIFT BLOCK TO FORK 8-97017-094-0 01 1 9507-9509 ● ●
52 00.797 SPRING; SHIFT BLOCK TO FORK
M/T MSA5G(S7G) 		8-97017-094-0 01 1 9510-9606 ●
52 00.797 SPRING; SHIFT BLOCK TO FORK
M/T MSB5S(R45) 		8-97017-094-0 01 1 9510-9606 ●
52 00.797 SPRING; SHIFT BLOCK TO FORK
M/T MSA5G(S7G) 		8-97017-094-0 01 1 9607-9711 ●
52 00.797 SPRING; SHIFT BLOCK TO FORK
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-97017-094-0 01 1 9607-9711 ●
52 00.797 SPRING; SHIFT BLOCK TO FORK
M/T MSB5M(RM5) TURBOCHARGER<K51> 		8-97017-094-0 01 1 9712-9801 ●
52 00.797 SPRING; SHIFT BLOCK TO FORK
M/T MSA5G(S7G) 		8-97017-094-0 01 1 9712-9801 ●
52 00.797 SPRING; SHIFT BLOCK TO FORK
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-97017-094-0 01 1 9712-9801 ●
52 00.797 SPRING; SHIFT BLOCK TO FORK
M/T MSB5M(RM5),M/T MSB5S(R45) TURBOCHARGER<K51> 		8-97017-094-0 01 1 9802- ●
52 00.797 SPRING; SHIFT BLOCK TO FORK
M/T MSA5G(S7G) 		8-97017-094-0 01 1 9802- ●
52 00.797 SPRING; SHIFT BLOCK TO FORK
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-97017-094-0 01 1 9802- ●
57 00.795 FORK; SHIFT,CLU 8-97024-528-0 01 1 9312-9711 ●
57 00.795 FORK; SHIFT,CLU
M/T MSB5M(RM5),M/T MSB5S(R45) EXC. TURBOCHARGER<K51> 		8-97024-528-0 01 1 9712- ●
57 00.795 FORK; SHIFT,CLU 8-97022-322-0 01 1 9312- ●
57 00.795 FORK; SHIFT,CLU
SGL CAB&MIDDLE(NK**SF) 		8-97045-138-0 01 1 9312-9510 ●
57 00.795 FORK; SHIFT,CLU
M/T MXA5R(RMT) 		8-97045-138-0 01 1 9511-9712 ●
57 00.795 FORK; SHIFT,CLU
M/T MXA5R(RMT) 		8-97187-936-0 01 1 9801- ●
57 00.795 FORK; SHIFT,CLU 8-97033-701-0 01 1 9507-9509 ●
57 00.795 FORK; SHIFT,CLU
M/T MSB5S(R45) 		8-97033-701-0 01 1 9510-9606 ●
57 00.795 FORK; SHIFT,CLU
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-97033-701-0 01 1 9607-9711 ●
57 00.795 FORK; SHIFT,CLU
M/T MSB5M(RM5) TURBOCHARGER<K51> 		8-97033-701-0 01 1 9712-9801 ●
57 00.795 FORK; SHIFT,CLU
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-97033-701-0 01 1 9712-9801 ●
57 00.795 FORK; SHIFT,CLU
M/T MSB5M(RM5),M/T MSB5S(R45) TURBOCHARGER<K51> 		8-97033-701-0 01 1 9802- ●
57 00.795 FORK; SHIFT,CLU
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-97033-701-0 01 1 9802- ●
59 00.782 GUIDE; AIR,SLAVE CYL
FRT INDEPENDENT SUSPENSION(6PP) 		8-97089-844-1 01 1 9312-9408 ●
116 00.799 BLOCK; SHIFT,CLU 8-94313-167-0 01 1 9312-9711 ●
116 00.799 BLOCK; SHIFT,CLU
M/T MSB5M(RM5),M/T MSB5S(R45) EXC. TURBOCHARGER<K51> 		8-94313-167-0 01 1 9712- ●
116 00.799 BLOCK; SHIFT,CLU 8-97022-320-0 01 1 9312- ●
116 00.799 BLOCK; SHIFT,CLU
SGL CAB&MIDDLE(NK**SF) 		8-97013-553-0 01 1 9312-9409 ●
116 00.799 BLOCK; SHIFT,CLU
SGL CAB&MIDDLE(NK**SF) 		8-97089-652-0 01 1 9410-9510 ●
116 00.799 BLOCK; SHIFT,CLU
M/T MXA5R(RMT) 		8-97089-652-0 01 1 9511-9603 ●
116 00.799 BLOCK; SHIFT,CLU
M/T MXA5R(RMT) 		8-97089-652-0 01 1 9604- ●
116 00.799 BLOCK; SHIFT,CLU 8-97033-699-0 01 1 9507-9509 ●
116 00.799 BLOCK; SHIFT,CLU
M/T MSB5S(R45) 		8-97033-699-0 01 1 9510-9606 ●
116 00.799 BLOCK; SHIFT,CLU
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-97033-699-0 01 1 9607-9711 ●
116 00.799 BLOCK; SHIFT,CLU
M/T MSB5M(RM5) TURBOCHARGER<K51> 		8-97033-699-0 01 1 9712-9801 ●
116 00.799 BLOCK; SHIFT,CLU
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-97033-699-0 01 1 9712-9801 ●
116 00.799 BLOCK; SHIFT,CLU
M/T MSB5M(RM5),M/T MSB5S(R45) TURBOCHARGER<K51> 		8-97033-699-0 01 1 9802- ●
116 00.799 BLOCK; SHIFT,CLU
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-97033-699-0 01 1 9802- ●
118 00.799 BEARING; CLU RELEASE 5-31314-001-1 01 1 9312-9711 ●
118 00.799 BEARING; CLU RELEASE
M/T MSB5M(RM5),M/T MSB5S(R45) EXC. TURBOCHARGER<K51> 		5-31314-001-1 01 1 9712- ●
118 00.799 BEARING; CLU RELEASE 8-97023-074-0 01 1 9312- ●
118 00.799 BEARING; CLU RELEASE
SGL CAB&MIDDLE(NK**SF) 		1-09820-078-0 01 1 9312-9409 ●
118 00.799 BEARING; CLU RELEASE 8-94379-499-0 01 1 9507-9509 ●
118 00.799 BEARING; CLU RELEASE
M/T MSB5S(R45) 		8-94379-499-0 01 1 9510-9606 ●
118 00.799 BEARING; CLU RELEASE
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-94379-499-0 01 1 9607-9711 ●
118 00.799 BEARING; CLU RELEASE
M/T MSB5M(RM5) TURBOCHARGER<K51> 		8-94379-499-0 01 1 9712-9801 ●
118 00.799 BEARING; CLU RELEASE
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-94379-499-0 01 1 9712-9801 ●
118 00.799 BEARING; CLU RELEASE
M/T MSB5M(RM5),M/T MSB5S(R45) TURBOCHARGER<K51> 		8-94379-499-0 01 1 9802- ●
118 00.799 BEARING; CLU RELEASE
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-94379-499-0 01 1 9802- ●
137 00.862 BOLT; CLU COVER
M8X18 W/LK WASHER 		8-94321-840-1 06 1 9312-9506 ●
137 00.862 BOLT; CLU COVER
M8X18 W/LK WASHER 		8-94321-840-1 06 1 9507-9611 ● ●
137 00.862 BOLT; CLU COVER
01.062 M8X16 FLANGE 		0-28080-816-0 06 1 9612- ● ●
137 00.862 BOLT; CLU COVER
M8X18 W/LK WASHER 		8-94321-840-1 12 1 9312-9611 ●
137 00.862 BOLT; CLU COVER
01.062 M8X16 FLANGE 		0-28080-816-0 12 1 9612- ●
137 00.862 BOLT; CLU COVER
M10X20 W/LK WASHER 		8-94462-038-1 10 1 9312-9702 ●
137 00.862 BOLT; CLU COVER
02.559 M10X16 FLANGE 		0-28081-016-0 10 1 9703- ●
140 00.862 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 02 1 9312-9506 ● ●
140 00.862 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 02 1 9507- ● ● ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 9312- ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M8X30 W/LK WASHER 		0-50040-830-0 02 1 9312-9506 ● ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M8X30 W/LK WASHER 		0-50040-830-0 02 1 9507-9606 ● ● ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9607- ● ● ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH<S2T> 		8-97048-928-2 01 1 9312-9506 ● ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH<S2T> 		8-97048-928-2 01 1 9507-9703 ● ● ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH<S2T> 		8-97162-962-1 01 1 9704- ● ● ● ●
249 00.864 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH<S2T> 		8-97167-489-0 01 1 9704- ● ● ● ●
