Sayfa 1-56 - Isuzu EPC

1-56 — EXHAUST BRAKE SYSTEM (#47304) — 294 parça

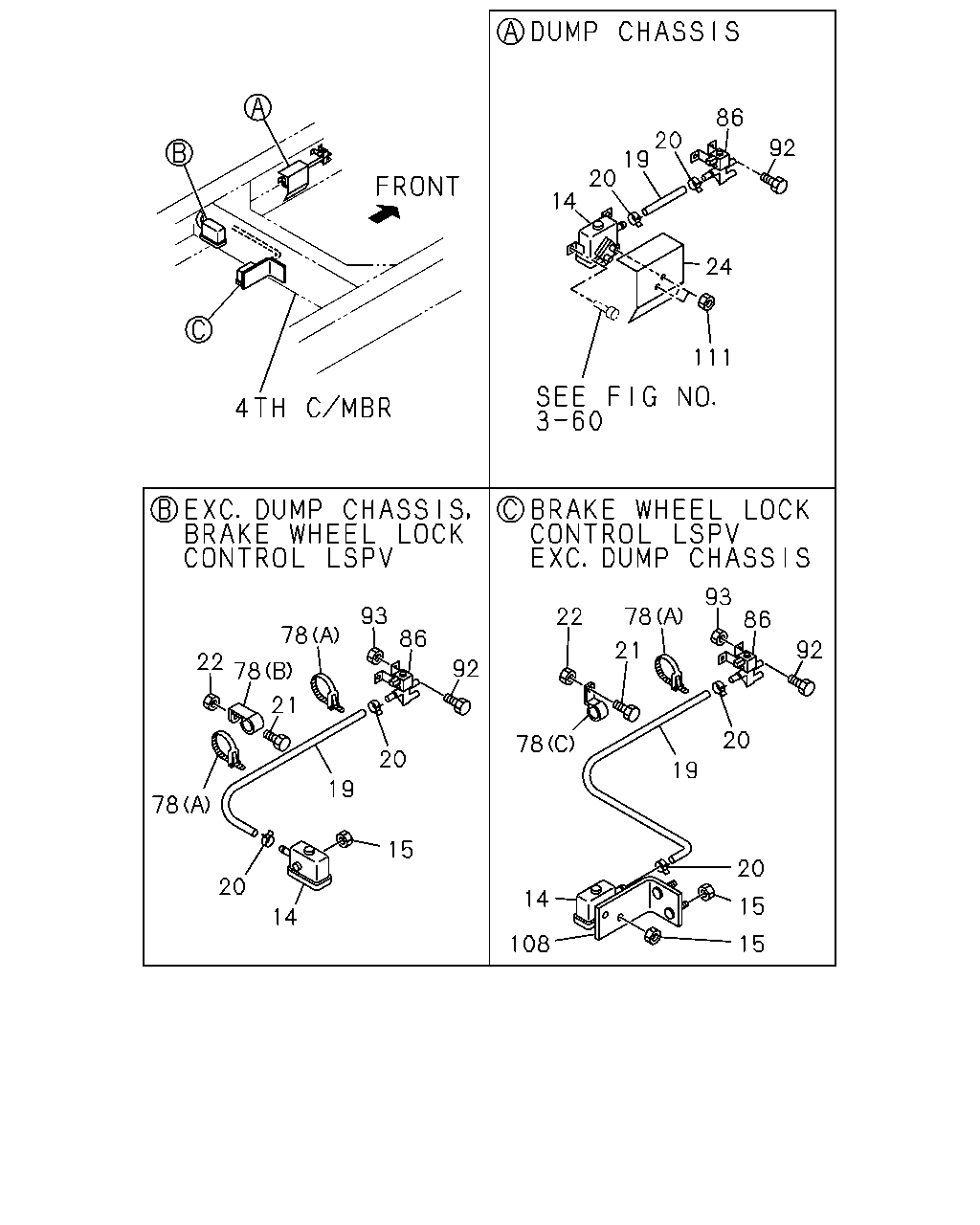

86 20 1 20 92 14 24 111 93 93 78 22 86 78 86 92 21 22 78 92 21 20 78 20 19 19 78 15 20 20 14 15 14 108 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.632 BRAKE UNIT; EXH 4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-97034-024-0	01	1	9312-9506	●	●	●	●	●
1	03.632 BRAKE UNIT; EXH EXHAUST BRAKE<NF8>	8-97034-024-0	01	1	9312-9506						●
1	03.632 BRAKE UNIT; EXH 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-97034-024-1	01	1	9507-9711	●	●	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>	8-97034-024-3	01	1	9712-	●	●	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-97102-372-2	01	1	9712-	●		●
1	03.632 BRAKE UNIT; EXH 4BE1 ENG(RLH) EXHAUST BRAKE<NF8>	8-97106-362-1	01	1	9312-9711	●		●	●	●
1	03.632 BRAKE UNIT; EXH 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> REAR WIDE TREAD(V4T)	8-97106-362-1	01	1	9312-9711		●
1	03.632 BRAKE UNIT; EXH 4BE1 ENG(RLH) EXHAUST BRAKE<NF8>	8-97106-362-1	01	1	9712-	●		●	●
1	03.632 BRAKE UNIT; EXH 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> REAR WIDE TREAD(V4T)	8-97106-362-1	01	1	9712-		●
1	03.632 BRAKE UNIT; EXH 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> EXC. REAR WIDE TREAD(V4T)	8-97106-363-1	01	1	9312-		●
1	03.632 BRAKE UNIT; EXH 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> THAILAND EQUIPMENT(PM9)	8-97034-028-1	01	1	9701-9701		●	●
1	03.632 BRAKE UNIT; EXH 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> THAILAND EQUIPMENT(PM9)	8-97135-836-0	01	1	9701-9706		●	●
1	03.632 BRAKE UNIT; EXH 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> THAILAND EQUIPMENT(PM9)	8-97174-739-0	01	1	9707-9711		●	●
1	03.632 BRAKE UNIT; EXH 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> THAILAND EQUIPMENT(PM9)	8-97174-739-0	01	1	9712-	●	●	●
1	03.632 BRAKE UNIT; EXH 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. THAILAND EQUIPMENT(PM9)	8-97135-833-0	01	1	9701-9711		●	●
1	03.632 BRAKE UNIT; EXH 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. THAILAND EQUIPMENT(PM9)	8-97135-833-1	01	1	9712-	●	●	●		●
1	03.632 BRAKE UNIT; EXH 4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97078-766-1	01	1	9312-9510			●
1	03.632 BRAKE UNIT; EXH 4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97078-766-1	01	1	9511-9612		●	●
14	03.634 FILTER; AIR,EXH BRAKE 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH> EXC. DUMP CHASSIS(V4D)	8-94419-755-2	01	1	9312-9711	●	●			●
14	03.634 FILTER; AIR,EXH BRAKE 4BE1 ENG(RLH) EXHAUST BRAKE<NF8>	8-94419-755-2	01	1	9312-9711				●
14	03.634 FILTER; AIR,EXH BRAKE 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH> EXC. DUMP CHASSIS(V4D)	8-94419-755-2	01	1	9712-	●	●
14	03.634 FILTER; AIR,EXH BRAKE 4BE1 ENG(RLH) EXHAUST BRAKE<NF8>	8-94419-755-2	01	1	9712-				●
14	03.634 FILTER; AIR,EXH BRAKE 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH>	8-94419-756-2	01	1	9312-9711	●	●			●
14	03.634 FILTER; AIR,EXH BRAKE 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH>	8-94419-756-2	01	1	9712-	●	●
14	03.634 FILTER; AIR,EXH BRAKE 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> DUMP CHASSIS(V4D)	8-97087-417-0	01	1	9312-		●
14	03.634 FILTER; AIR,EXH BRAKE 4BE1 ENG(RLH) EXHAUST BRAKE<NF8>	8-94417-220-2	01	1	9312-			●
14	03.634 FILTER; AIR,EXH BRAKE 4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97033-888-0	01	1	9312-9510			●
14	03.634 FILTER; AIR,EXH BRAKE 4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97033-888-0	01	1	9511-9711		●	●
14	03.634 FILTER; AIR,EXH BRAKE 4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97033-888-0	01	1	9712-	●	●	●		●
14	03.634 FILTER; AIR,EXH BRAKE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-97033-888-0	01	1	9712-	●		●
15	03.634 NUT; AIR FILTER 4BE1 ENG(RLH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D) 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9711	●	●	●	●	●
15	03.634 NUT; AIR FILTER 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH> EXC. DUMP CHASSIS(V4D) 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9711	●	●			●
15	03.634 NUT; AIR FILTER 4BE1 ENG(RLH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D) 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-	●	●	●	●	●
15	03.634 NUT; AIR FILTER 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH> EXC. DUMP CHASSIS(V4D) 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-	●	●
15	03.634 NUT; AIR FILTER 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> TURBOCHARGER<K51> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-	●		●
19	03.630 HOSE; AIR FILTER 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH> EXC. DUMP CHASSIS(V4D) L=110 SERVICED BY L=3000	0-08258-300-0	01	1	9312-9711	●	●			●
19	03.630 HOSE; AIR FILTER 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH> EXC. DUMP CHASSIS(V4D) L=110 SERVICED BY L=3000	0-08258-300-0	01	1	9712-	●	●
19	03.630 HOSE; AIR FILTER 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> L=880 SERVICED BY L=3000	0-08258-300-0	01	1	9312-9711	●	●			●
19	03.630 HOSE; AIR FILTER 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> L=880 SERVICED BY L=3000	0-08258-300-0	01	1	9312-9711			●	●
19	03.630 HOSE; AIR FILTER 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> L=880 SERVICED BY L=3000	0-08258-300-0	01	1	9712-	●	●
19	03.630 HOSE; AIR FILTER 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> L=880 SERVICED BY L=3000	0-08258-300-0	01	1	9712-			●	●
19	03.630 HOSE; AIR FILTER 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> DUMP CHASSIS(V4D) L=220 SERVICED BY L=3000	0-08258-300-0	01	1	9312-9510		●
19	03.630 HOSE; AIR FILTER 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> L=220 SERVICED BY L=3000	0-08258-300-0	01	1	9511-9711		●
19	03.630 HOSE; AIR FILTER 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> DUMP CHASSIS(V4D) L=220 SERVICED BY L=3000	0-08258-300-0	01	1	9511-9711		●
19	03.630 HOSE; AIR FILTER 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> L=220 SERVICED BY L=3000	0-08258-300-0	01	1	9712-	●	●			●
19	03.630 HOSE; AIR FILTER 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> DUMP CHASSIS(V4D) L=220 SERVICED BY L=3000	0-08258-300-0	01	1	9712-		●
19	03.630 HOSE; AIR FILTER 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> L=180 SERVICED BY L=3000	0-08258-300-0	01	1	9312-9711			●
19	03.630 HOSE; AIR FILTER 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> L=180 SERVICED BY L=3000	0-08258-300-0	01	1	9712-			●
19	03.630 HOSE; AIR FILTER 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> L=180 SERVICED BY L=3000	0-08258-300-0	01	1	9712-			●
20	03.630 CLIP; HOSE,AIR FILTER 4BE1 ENG(RLH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 04.930 ID=16	8-94238-568-0	02	1	9312-9402	●	●	●	●	●
21	03.630 BOLT; HOSE TO FRAME 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9312-9411	●	●	●	●	●
21	03.630 BOLT; HOSE TO FRAME 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9412-9711	●	●	●	●	●
21	03.630 BOLT; HOSE TO FRAME 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9712-	●	●	●	●
21	03.630 BOLT; HOSE TO FRAME 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH> EXC. DUMP CHASSIS(V4D) 03.670 M6X20 FLANGE	0-28080-620-0	01	1	9312-9702	●	●			●
21	03.630 BOLT; HOSE TO FRAME 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH> EXC. DUMP CHASSIS(V4D) 04.930 M6X20 FLANGE	0-28680-620-0	01	1	9703-9711	●	●			●
21	03.630 BOLT; HOSE TO FRAME 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH> EXC. DUMP CHASSIS(V4D) 04.930 M6X20 FLANGE	0-28680-620-0	01	1	9712-	●	●
22	03.630 NUT; HOSE TO FRAME 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D) 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-9711	●	●	●	●	●
22	03.630 NUT; HOSE TO FRAME 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D) 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-	●	●	●	●
22	03.630 NUT; HOSE TO FRAME 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH> EXC. DUMP CHASSIS(V4D) 04.594 M6 FLANGE	0-91150-106-0	01	1	9312-9711	●	●			●
22	03.630 NUT; HOSE TO FRAME 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH> EXC. DUMP CHASSIS(V4D) 04.594 M6 FLANGE	0-91150-106-0	01	1	9712-	●	●
24	03.008 PROTECTOR; AIR FILTER 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> DUMP CHASSIS(V4D)	8-97086-415-0	01	1	9312-		●
78	03.636 CLIP; HOSE 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D) 02.559 (B) ID=17.5	8-94455-485-0	01	1	9312-9711	●	●	●	●	●
78	03.636 CLIP; HOSE 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D) 02.559 (B) ID=17.5	8-94455-485-0	01	1	9712-	●	●	●	●
78	03.636 CLIP; HOSE 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH> EXC. DUMP CHASSIS(V4D) 03.630 (C) ID=19 H=21 L=24	5-09700-360-0	01	1	9312-9711	●	●			●
78	03.636 CLIP; HOSE 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH> EXC. DUMP CHASSIS(V4D) 03.630 (C) ID=19 H=21 L=24	5-09700-360-0	01	1	9712-	●	●
78	03.636 CLIP; HOSE 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH> EXC. DUMP CHASSIS(V4D) 03.162 (A) L=140	5-09707-031-0	01	1	9312-9711	●	●			●
78	03.636 CLIP; HOSE 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH> EXC. DUMP CHASSIS(V4D) 03.162 (A) L=140	5-09707-031-1	01	1	9712-	●	●
78	03.636 CLIP; HOSE 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 03.162 (A) L=140	5-09707-031-0	02	1	9312-9711	●	●			●
78	03.636 CLIP; HOSE 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> 03.162 (A) L=140	5-09707-031-0	02	1	9312-9711			●	●
78	03.636 CLIP; HOSE 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 03.162 (A) L=140	5-09707-031-1	02	1	9712-	●	●
78	03.636 CLIP; HOSE 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> 03.162 (A) L=140	5-09707-031-1	02	1	9712-			●	●
86	03.636 VALVE; MAG,EXH BRK 4BE1 ENG(RLH) EXHAUST BRAKE<NF8>	8-97066-720-1	01	1	9312-9711	●	●	●	●	●
86	03.636 VALVE; MAG,EXH BRK 4BE1 ENG(RLH) EXHAUST BRAKE<NF8>	8-97066-720-1	01	1	9712-	●	●	●	●
86	03.636 VALVE; MAG,EXH BRK 4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-97069-300-2	01	1	9312-9506	●	●	●	●	●
86	03.636 VALVE; MAG,EXH BRK EXHAUST BRAKE<NF8>	8-97069-300-2	01	1	9312-9506						●
86	03.636 VALVE; MAG,EXH BRK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-97069-300-2	01	1	9507-9711	●	●	●	●	●	●
86	03.636 VALVE; MAG,EXH BRK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>	8-97069-300-2	01	1	9712-	●	●	●	●	●	●
86	03.636 VALVE; MAG,EXH BRK 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-97161-801-0	01	1	9712-	●		●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> (B)	8-97065-472-0	01	1	9511-9711		●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> (B)	8-97065-472-0	01	1	9712-	●	●			●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> (A)	8-97101-047-0	01	1	9312-			●
92	08.900 BOLT; MAG VLV 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> 03.613 M10X30 W/LK&PL WASHER	0-50141-030-0	02	1	9312-9410	●	●	●	●	●
92	08.900 BOLT; MAG VLV 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> 03.613 M10X30 W/LK&PL WASHER	0-50141-030-0	02	1	9411-9702	●	●			●
92	08.900 BOLT; MAG VLV 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> 03.405 M10X30 FLANGE	0-28681-030-0	02	1	9703-9711	●	●			●
92	08.900 BOLT; MAG VLV 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> 03.405 M10X30 FLANGE	0-28681-030-0	02	1	9712-	●	●
92	08.900 BOLT; MAG VLV 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> 03.613 M10X30 W/LK&PL WASHER	0-50141-030-0	01	1	9411-9702			●	●
92	08.900 BOLT; MAG VLV 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9703-			●	●
93	08.917 NUT; MAG VLV 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D) 04.785 M10 FLANGE	0-91150-110-0	02	1	9312-9410	●	●	●	●	●
93	08.917 NUT; MAG VLV 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D) 04.785 M10 FLANGE	0-91150-110-0	02	1	9411-9711	●	●			●
93	08.917 NUT; MAG VLV 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D) 04.785 M10 FLANGE	0-91150-110-0	02	1	9712-	●	●
93	08.917 NUT; MAG VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-9506	●	●	●	●	●
93	08.917 NUT; MAG VLV EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-9506						●
93	08.917 NUT; MAG VLV 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	01	1	9507-9711	●	●	●	●	●	●
93	08.917 NUT; MAG VLV 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-	●	●	●	●	●	●
93	08.917 NUT; MAG VLV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. BRK WHL LK CONT LSPV<6PH> 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-9711		●
93	08.917 NUT; MAG VLV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-9711			●
93	08.917 NUT; MAG VLV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH> 07.633 M8 FLANGE	0-91150-108-0	04	1	9712-	●	●			●
93	08.917 NUT; MAG VLV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9510			●
93	08.917 NUT; MAG VLV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH> 07.633 M8 FLANGE	0-91150-108-0	04	1	9511-9711		●
93	08.917 NUT; MAG VLV 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-	●		●
93	08.917 NUT; MAG VLV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. BRK WHL LK CONT LSPV<6PH> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-		●
93	08.917 NUT; MAG VLV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-			●
93	08.917 NUT; MAG VLV 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> 04.785 M10 FLANGE	0-91150-110-0	01	1	9411-			●	●
108	03.634 BRACKET; AIR FILTER 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH> EXC. DUMP CHASSIS(V4D)	8-97107-602-1	01	1	9312-9711	●	●			●
108	03.634 BRACKET; AIR FILTER 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH> EXC. DUMP CHASSIS(V4D)	8-97107-602-1	01	1	9712-	●	●
108	03.634 BRACKET; AIR FILTER 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH>	8-97106-474-1	01	1	9511-9711		●
108	03.634 BRACKET; AIR FILTER 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH>	8-97106-474-2	01	1	9712-	●	●			●
111	03.640 NUT; PROTECTOR TO FILTER 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> DUMP CHASSIS(V4D) 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-		●

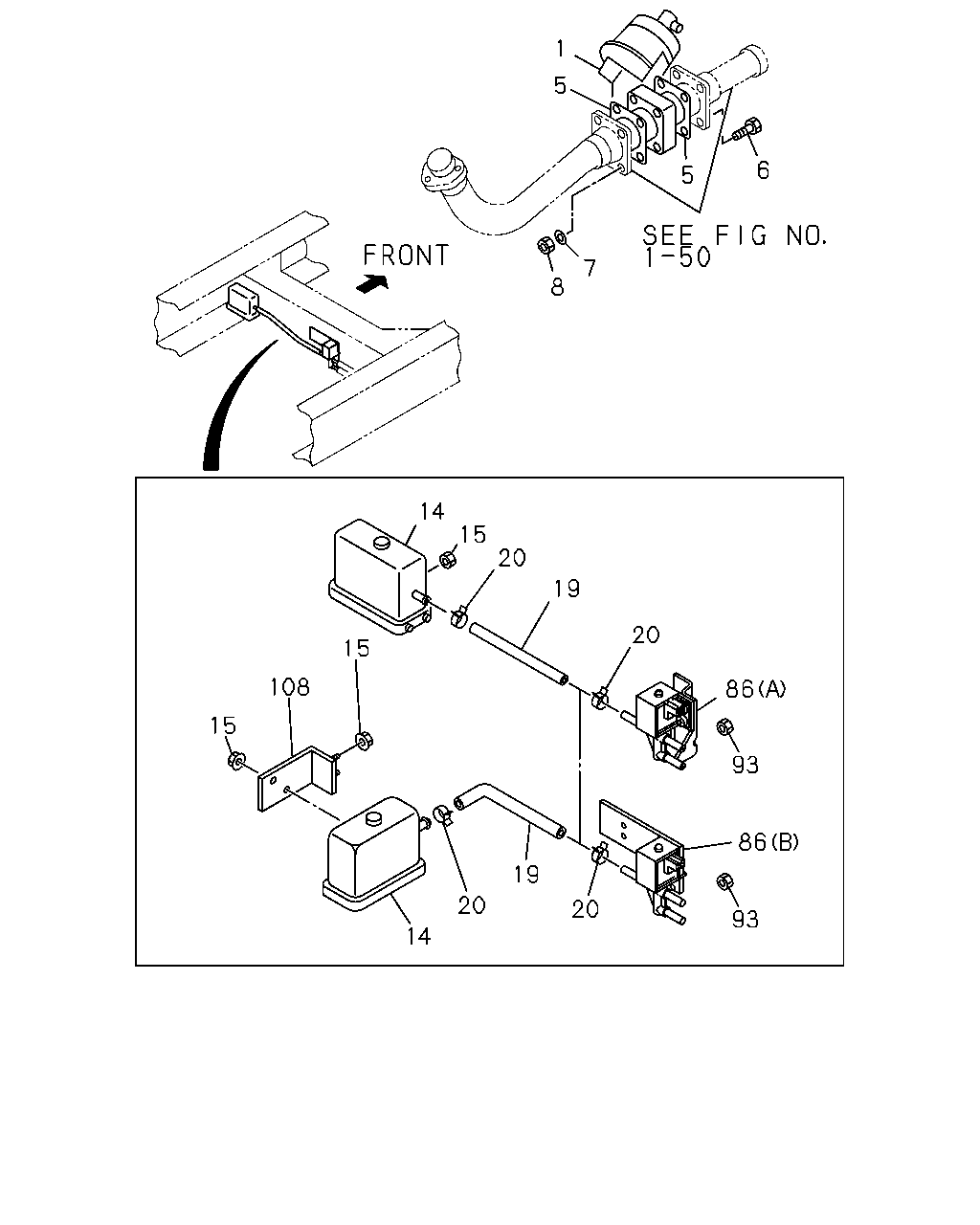

1 5 6 5 7 8 14 15 20 19 20 15 108 86 15 93 86 19 20 20 93 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.632 BRAKE UNIT; EXH 4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-97034-024-0	01	1	9312-9506	●	●	●	●	●
1	03.632 BRAKE UNIT; EXH EXHAUST BRAKE<NF8>	8-97034-024-0	01	1	9312-9506						●
1	03.632 BRAKE UNIT; EXH 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-97034-024-1	01	1	9507-9711	●	●	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>	8-97034-024-3	01	1	9712-	●	●	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-97102-372-2	01	1	9712-	●		●
1	03.632 BRAKE UNIT; EXH 4BE1 ENG(RLH) EXHAUST BRAKE<NF8>	8-97106-362-1	01	1	9312-9711	●		●	●	●
1	03.632 BRAKE UNIT; EXH 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> REAR WIDE TREAD(V4T)	8-97106-362-1	01	1	9312-9711		●
1	03.632 BRAKE UNIT; EXH 4BE1 ENG(RLH) EXHAUST BRAKE<NF8>	8-97106-362-1	01	1	9712-	●		●	●
1	03.632 BRAKE UNIT; EXH 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> REAR WIDE TREAD(V4T)	8-97106-362-1	01	1	9712-		●
1	03.632 BRAKE UNIT; EXH 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> EXC. REAR WIDE TREAD(V4T)	8-97106-363-1	01	1	9312-		●
1	03.632 BRAKE UNIT; EXH 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> THAILAND EQUIPMENT(PM9)	8-97034-028-1	01	1	9701-9701		●	●
1	03.632 BRAKE UNIT; EXH 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> THAILAND EQUIPMENT(PM9)	8-97135-836-0	01	1	9701-9706		●	●
1	03.632 BRAKE UNIT; EXH 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> THAILAND EQUIPMENT(PM9)	8-97174-739-0	01	1	9707-9711		●	●
1	03.632 BRAKE UNIT; EXH 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> THAILAND EQUIPMENT(PM9)	8-97174-739-0	01	1	9712-	●	●	●
1	03.632 BRAKE UNIT; EXH 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. THAILAND EQUIPMENT(PM9)	8-97135-833-0	01	1	9701-9711		●	●
1	03.632 BRAKE UNIT; EXH 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. THAILAND EQUIPMENT(PM9)	8-97135-833-1	01	1	9712-	●	●	●		●
1	03.632 BRAKE UNIT; EXH 4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97078-766-1	01	1	9312-9510			●
1	03.632 BRAKE UNIT; EXH 4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97078-766-1	01	1	9511-9612		●	●
5	03.634 GASKET; EXH BRAKE UNIT 4BE1 ENG(RLH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	9312-9612	●	●	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	9701-9711	●	●	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. THAILAND EQUIPMENT(PM9) ID=54	8-94328-354-0	02	1	9701-9711		●	●
5	03.634 GASKET; EXH BRAKE UNIT 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	9712-	●	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. THAILAND EQUIPMENT(PM9) ID=54	8-94328-354-0	02	1	9712-	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	9712-	●		●
5	03.634 GASKET; EXH BRAKE UNIT 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	9712-					●
5	03.634 GASKET; EXH BRAKE UNIT 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> THAILAND EQUIPMENT(PM9) ID=64	8-97037-694-0	02	1	9701-9711		●	●
5	03.634 GASKET; EXH BRAKE UNIT 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> THAILAND EQUIPMENT(PM9) ID=64	8-97037-694-0	02	1	9712-	●	●	●
6	03.632 BOLT; EXH BRAKE UNIT FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 03.708 M8X70	0-10805-870-0	04	1	9312-9711	●	●	●	●	●
6	03.632 BOLT; EXH BRAKE UNIT FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 03.708 M8X70	0-10805-870-0	04	1	9712-	●	●	●	●	●
6	03.632 BOLT; EXH BRAKE UNIT FIX 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> TURBOCHARGER<K51> 03.708 M8X70	0-10805-870-0	04	1	9712-	●		●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> T=1.9	5-09500-012-0	04	1	9312-9711	●	●	●	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> T=1.9	5-09500-012-0	04	1	9712-	●	●	●	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> TURBOCHARGER<K51> T=1.9	5-09500-012-0	04	1	9712-	●		●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 03.613 ID=10.5	5-09500-013-0	04	1	9312-9506	●	●	●	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX EXHAUST BRAKE<NF8> 03.613 ID=10.5	5-09500-013-0	04	1	9312-9506						●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 03.613 ID=10.5	5-09500-013-0	04	1	9507-9711	●	●	●	●	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 03.613 ID=10.5	5-09500-013-0	04	1	9712-	●	●	●	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 02.559 M8	9-09110-408-0	04	1	9312-9711	●	●	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 02.559 M8	9-09110-408-0	04	1	9712-	●	●	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> TURBOCHARGER<K51> 02.559 M8	9-09110-408-0	04	1	9712-	●		●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 03.613 M10 H=18	9-09640-014-0	04	1	9312-9506	●	●	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX EXHAUST BRAKE<NF8> 03.613 M10 H=18	9-09640-014-0	04	1	9312-9506						●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 03.613 M10 H=18	9-09640-014-0	04	1	9507-9711	●	●	●	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 03.613 M10 H=18	9-09640-014-0	04	1	9712-	●	●	●	●	●	●
14	03.634 FILTER; AIR,EXH BRAKE 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH> EXC. DUMP CHASSIS(V4D)	8-94419-755-2	01	1	9312-9711	●	●			●
14	03.634 FILTER; AIR,EXH BRAKE 4BE1 ENG(RLH) EXHAUST BRAKE<NF8>	8-94419-755-2	01	1	9312-9711				●
14	03.634 FILTER; AIR,EXH BRAKE 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH> EXC. DUMP CHASSIS(V4D)	8-94419-755-2	01	1	9712-	●	●
14	03.634 FILTER; AIR,EXH BRAKE 4BE1 ENG(RLH) EXHAUST BRAKE<NF8>	8-94419-755-2	01	1	9712-				●
14	03.634 FILTER; AIR,EXH BRAKE 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH>	8-94419-756-2	01	1	9312-9711	●	●			●
14	03.634 FILTER; AIR,EXH BRAKE 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH>	8-94419-756-2	01	1	9712-	●	●
14	03.634 FILTER; AIR,EXH BRAKE 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> DUMP CHASSIS(V4D)	8-97087-417-0	01	1	9312-		●
14	03.634 FILTER; AIR,EXH BRAKE 4BE1 ENG(RLH) EXHAUST BRAKE<NF8>	8-94417-220-2	01	1	9312-			●
14	03.634 FILTER; AIR,EXH BRAKE 4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97033-888-0	01	1	9312-9510			●
14	03.634 FILTER; AIR,EXH BRAKE 4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97033-888-0	01	1	9511-9711		●	●
14	03.634 FILTER; AIR,EXH BRAKE 4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97033-888-0	01	1	9712-	●	●	●		●
14	03.634 FILTER; AIR,EXH BRAKE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-97033-888-0	01	1	9712-	●		●
15	03.634 NUT; AIR FILTER 4BE1 ENG(RLH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D) 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9711	●	●	●	●	●
15	03.634 NUT; AIR FILTER 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH> EXC. DUMP CHASSIS(V4D) 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9711	●	●			●
15	03.634 NUT; AIR FILTER 4BE1 ENG(RLH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D) 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-	●	●	●	●	●
15	03.634 NUT; AIR FILTER 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH> EXC. DUMP CHASSIS(V4D) 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-	●	●
15	03.634 NUT; AIR FILTER 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> TURBOCHARGER<K51> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-	●		●
19	03.630 HOSE; AIR FILTER 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH> EXC. DUMP CHASSIS(V4D) L=110 SERVICED BY L=3000	0-08258-300-0	01	1	9312-9711	●	●			●
19	03.630 HOSE; AIR FILTER 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH> EXC. DUMP CHASSIS(V4D) L=110 SERVICED BY L=3000	0-08258-300-0	01	1	9712-	●	●
19	03.630 HOSE; AIR FILTER 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> L=880 SERVICED BY L=3000	0-08258-300-0	01	1	9312-9711	●	●			●
19	03.630 HOSE; AIR FILTER 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> L=880 SERVICED BY L=3000	0-08258-300-0	01	1	9312-9711			●	●
19	03.630 HOSE; AIR FILTER 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> L=880 SERVICED BY L=3000	0-08258-300-0	01	1	9712-	●	●
19	03.630 HOSE; AIR FILTER 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> L=880 SERVICED BY L=3000	0-08258-300-0	01	1	9712-			●	●
19	03.630 HOSE; AIR FILTER 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> DUMP CHASSIS(V4D) L=220 SERVICED BY L=3000	0-08258-300-0	01	1	9312-9510		●
19	03.630 HOSE; AIR FILTER 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> L=220 SERVICED BY L=3000	0-08258-300-0	01	1	9511-9711		●
19	03.630 HOSE; AIR FILTER 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> DUMP CHASSIS(V4D) L=220 SERVICED BY L=3000	0-08258-300-0	01	1	9511-9711		●
19	03.630 HOSE; AIR FILTER 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> L=220 SERVICED BY L=3000	0-08258-300-0	01	1	9712-	●	●			●
19	03.630 HOSE; AIR FILTER 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> DUMP CHASSIS(V4D) L=220 SERVICED BY L=3000	0-08258-300-0	01	1	9712-		●
19	03.630 HOSE; AIR FILTER 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> L=180 SERVICED BY L=3000	0-08258-300-0	01	1	9312-9711			●
19	03.630 HOSE; AIR FILTER 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> L=180 SERVICED BY L=3000	0-08258-300-0	01	1	9712-			●
19	03.630 HOSE; AIR FILTER 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> L=180 SERVICED BY L=3000	0-08258-300-0	01	1	9712-			●
20	03.630 CLIP; HOSE,AIR FILTER 4BE1 ENG(RLH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 04.930 ID=16	8-94238-568-0	02	1	9312-9402	●	●	●	●	●
86	03.636 VALVE; MAG,EXH BRK 4BE1 ENG(RLH) EXHAUST BRAKE<NF8>	8-97066-720-1	01	1	9312-9711	●	●	●	●	●
86	03.636 VALVE; MAG,EXH BRK 4BE1 ENG(RLH) EXHAUST BRAKE<NF8>	8-97066-720-1	01	1	9712-	●	●	●	●
86	03.636 VALVE; MAG,EXH BRK 4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-97069-300-2	01	1	9312-9506	●	●	●	●	●
86	03.636 VALVE; MAG,EXH BRK EXHAUST BRAKE<NF8>	8-97069-300-2	01	1	9312-9506						●
86	03.636 VALVE; MAG,EXH BRK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-97069-300-2	01	1	9507-9711	●	●	●	●	●	●
86	03.636 VALVE; MAG,EXH BRK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>	8-97069-300-2	01	1	9712-	●	●	●	●	●	●
86	03.636 VALVE; MAG,EXH BRK 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-97161-801-0	01	1	9712-	●		●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> (B)	8-97065-472-0	01	1	9511-9711		●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> (B)	8-97065-472-0	01	1	9712-	●	●			●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> (A)	8-97101-047-0	01	1	9312-			●
93	08.917 NUT; MAG VLV 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D) 04.785 M10 FLANGE	0-91150-110-0	02	1	9312-9410	●	●	●	●	●
93	08.917 NUT; MAG VLV 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D) 04.785 M10 FLANGE	0-91150-110-0	02	1	9411-9711	●	●			●
93	08.917 NUT; MAG VLV 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D) 04.785 M10 FLANGE	0-91150-110-0	02	1	9712-	●	●
93	08.917 NUT; MAG VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-9506	●	●	●	●	●
93	08.917 NUT; MAG VLV EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-9506						●
93	08.917 NUT; MAG VLV 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	01	1	9507-9711	●	●	●	●	●	●
93	08.917 NUT; MAG VLV 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-	●	●	●	●	●	●
93	08.917 NUT; MAG VLV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. BRK WHL LK CONT LSPV<6PH> 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-9711		●
93	08.917 NUT; MAG VLV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-9711			●
93	08.917 NUT; MAG VLV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH> 07.633 M8 FLANGE	0-91150-108-0	04	1	9712-	●	●			●
93	08.917 NUT; MAG VLV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9510			●
93	08.917 NUT; MAG VLV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH> 07.633 M8 FLANGE	0-91150-108-0	04	1	9511-9711		●
93	08.917 NUT; MAG VLV 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-	●		●
93	08.917 NUT; MAG VLV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. BRK WHL LK CONT LSPV<6PH> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-		●
93	08.917 NUT; MAG VLV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-			●
93	08.917 NUT; MAG VLV 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> 04.785 M10 FLANGE	0-91150-110-0	01	1	9411-			●	●
108	03.634 BRACKET; AIR FILTER 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH> EXC. DUMP CHASSIS(V4D)	8-97107-602-1	01	1	9312-9711	●	●			●
108	03.634 BRACKET; AIR FILTER 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH> EXC. DUMP CHASSIS(V4D)	8-97107-602-1	01	1	9712-	●	●
108	03.634 BRACKET; AIR FILTER 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH>	8-97106-474-1	01	1	9511-9711		●
108	03.634 BRACKET; AIR FILTER 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH>	8-97106-474-2	01	1	9712-	●	●			●

1 93 7 8 86 1 10 4 4 11 9 6 5 7 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.632 BRAKE UNIT; EXH 4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-97034-024-0	01	1	9312-9506	●	●	●	●	●
1	03.632 BRAKE UNIT; EXH EXHAUST BRAKE<NF8>	8-97034-024-0	01	1	9312-9506						●
1	03.632 BRAKE UNIT; EXH 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-97034-024-1	01	1	9507-9711	●	●	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>	8-97034-024-3	01	1	9712-	●	●	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-97102-372-2	01	1	9712-	●		●
1	03.632 BRAKE UNIT; EXH 4BE1 ENG(RLH) EXHAUST BRAKE<NF8>	8-97106-362-1	01	1	9312-9711	●		●	●	●
1	03.632 BRAKE UNIT; EXH 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> REAR WIDE TREAD(V4T)	8-97106-362-1	01	1	9312-9711		●
1	03.632 BRAKE UNIT; EXH 4BE1 ENG(RLH) EXHAUST BRAKE<NF8>	8-97106-362-1	01	1	9712-	●		●	●
1	03.632 BRAKE UNIT; EXH 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> REAR WIDE TREAD(V4T)	8-97106-362-1	01	1	9712-		●
1	03.632 BRAKE UNIT; EXH 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> EXC. REAR WIDE TREAD(V4T)	8-97106-363-1	01	1	9312-		●
1	03.632 BRAKE UNIT; EXH 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> THAILAND EQUIPMENT(PM9)	8-97034-028-1	01	1	9701-9701		●	●
1	03.632 BRAKE UNIT; EXH 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> THAILAND EQUIPMENT(PM9)	8-97135-836-0	01	1	9701-9706		●	●
1	03.632 BRAKE UNIT; EXH 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> THAILAND EQUIPMENT(PM9)	8-97174-739-0	01	1	9707-9711		●	●
1	03.632 BRAKE UNIT; EXH 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> THAILAND EQUIPMENT(PM9)	8-97174-739-0	01	1	9712-	●	●	●
1	03.632 BRAKE UNIT; EXH 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. THAILAND EQUIPMENT(PM9)	8-97135-833-0	01	1	9701-9711		●	●
1	03.632 BRAKE UNIT; EXH 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. THAILAND EQUIPMENT(PM9)	8-97135-833-1	01	1	9712-	●	●	●		●
1	03.632 BRAKE UNIT; EXH 4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97078-766-1	01	1	9312-9510			●
1	03.632 BRAKE UNIT; EXH 4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97078-766-1	01	1	9511-9612		●	●
4	03.634 BRACKET; EXH BRAKE UNIT 4BE1 ENG(RLH) (A)	5-22186-011-0	01	1	9312-9711	●	●	●	●	●
4	03.634 BRACKET; EXH BRAKE UNIT 4BE1 ENG(RLH) (A)	5-22186-011-0	01	1	9712-	●	●	●	●
4	03.634 BRACKET; EXH BRAKE UNIT 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> (B)	8-97094-814-1	01	1	9312-9711	●	●	●	●	●
4	03.634 BRACKET; EXH BRAKE UNIT 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> (B)	8-97094-814-1	01	1	9712-	●	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4BE1 ENG(RLH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	9312-9612	●	●	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	9701-9711	●	●	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. THAILAND EQUIPMENT(PM9) ID=54	8-94328-354-0	02	1	9701-9711		●	●
5	03.634 GASKET; EXH BRAKE UNIT 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	9712-	●	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. THAILAND EQUIPMENT(PM9) ID=54	8-94328-354-0	02	1	9712-	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	9712-	●		●
5	03.634 GASKET; EXH BRAKE UNIT 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	9712-					●
5	03.634 GASKET; EXH BRAKE UNIT 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> THAILAND EQUIPMENT(PM9) ID=64	8-97037-694-0	02	1	9701-9711		●	●
5	03.634 GASKET; EXH BRAKE UNIT 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> THAILAND EQUIPMENT(PM9) ID=64	8-97037-694-0	02	1	9712-	●	●	●
6	03.632 BOLT; EXH BRAKE UNIT FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 03.708 M8X70	0-10805-870-0	04	1	9312-9711	●	●	●	●	●
6	03.632 BOLT; EXH BRAKE UNIT FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 03.708 M8X70	0-10805-870-0	04	1	9712-	●	●	●	●	●
6	03.632 BOLT; EXH BRAKE UNIT FIX 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> TURBOCHARGER<K51> 03.708 M8X70	0-10805-870-0	04	1	9712-	●		●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> T=1.9	5-09500-012-0	04	1	9312-9711	●	●	●	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> T=1.9	5-09500-012-0	04	1	9712-	●	●	●	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> TURBOCHARGER<K51> T=1.9	5-09500-012-0	04	1	9712-	●		●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 03.613 ID=10.5	5-09500-013-0	04	1	9312-9506	●	●	●	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX EXHAUST BRAKE<NF8> 03.613 ID=10.5	5-09500-013-0	04	1	9312-9506						●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 03.613 ID=10.5	5-09500-013-0	04	1	9507-9711	●	●	●	●	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 03.613 ID=10.5	5-09500-013-0	04	1	9712-	●	●	●	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 02.559 M8	9-09110-408-0	04	1	9312-9711	●	●	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 02.559 M8	9-09110-408-0	04	1	9712-	●	●	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> TURBOCHARGER<K51> 02.559 M8	9-09110-408-0	04	1	9712-	●		●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 03.613 M10 H=18	9-09640-014-0	04	1	9312-9506	●	●	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX EXHAUST BRAKE<NF8> 03.613 M10 H=18	9-09640-014-0	04	1	9312-9506						●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 03.613 M10 H=18	9-09640-014-0	04	1	9507-9711	●	●	●	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 03.613 M10 H=18	9-09640-014-0	04	1	9712-	●	●	●	●	●	●
9	03.634 BOLT; BRKT,EXH BRAKE UNIT 4BE1 ENG(RLH) 01.652 M10X25 W/LK WASHER	0-50041-025-0	02	1	9312-9711	●	●	●	●	●
9	03.634 BOLT; BRKT,EXH BRAKE UNIT 4BE1 ENG(RLH) 01.652 M10X25 W/LK WASHER	0-50041-025-0	02	1	9712-	●	●	●	●
10	03.634 NUT; BRKT,EXH BRAKE 4BE1 ENG(RLH) 09.011 M10	9-09110-410-0	02	1	9312-9711	●	●	●	●	●
10	03.634 NUT; BRKT,EXH BRAKE 4BE1 ENG(RLH) 09.011 M10	9-09110-410-0	02	1	9712-	●	●	●	●
11	03.634 WASHER; PL,BRKT,EXH BRAKE UNIT 4BE1 ENG(RLH) 04.085 ID=10.5 OD=26	9-09164-710-0	02	1	9312-9711	●	●	●	●	●
11	03.634 WASHER; PL,BRKT,EXH BRAKE UNIT 4BE1 ENG(RLH) 04.085 ID=10.5 OD=26	9-09164-710-0	02	1	9712-	●	●	●	●
86	03.636 VALVE; MAG,EXH BRK 4BE1 ENG(RLH) EXHAUST BRAKE<NF8>	8-97066-720-1	01	1	9312-9711	●	●	●	●	●
86	03.636 VALVE; MAG,EXH BRK 4BE1 ENG(RLH) EXHAUST BRAKE<NF8>	8-97066-720-1	01	1	9712-	●	●	●	●
86	03.636 VALVE; MAG,EXH BRK 4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-97069-300-2	01	1	9312-9506	●	●	●	●	●
86	03.636 VALVE; MAG,EXH BRK EXHAUST BRAKE<NF8>	8-97069-300-2	01	1	9312-9506						●
86	03.636 VALVE; MAG,EXH BRK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-97069-300-2	01	1	9507-9711	●	●	●	●	●	●
86	03.636 VALVE; MAG,EXH BRK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>	8-97069-300-2	01	1	9712-	●	●	●	●	●	●
86	03.636 VALVE; MAG,EXH BRK 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-97161-801-0	01	1	9712-	●		●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> (B)	8-97065-472-0	01	1	9511-9711		●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> (B)	8-97065-472-0	01	1	9712-	●	●			●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> (A)	8-97101-047-0	01	1	9312-			●
93	08.917 NUT; MAG VLV 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D) 04.785 M10 FLANGE	0-91150-110-0	02	1	9312-9410	●	●	●	●	●
93	08.917 NUT; MAG VLV 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D) 04.785 M10 FLANGE	0-91150-110-0	02	1	9411-9711	●	●			●
93	08.917 NUT; MAG VLV 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> EXC. DUMP CHASSIS(V4D) 04.785 M10 FLANGE	0-91150-110-0	02	1	9712-	●	●
93	08.917 NUT; MAG VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-9506	●	●	●	●	●
93	08.917 NUT; MAG VLV EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-9506						●
93	08.917 NUT; MAG VLV 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	01	1	9507-9711	●	●	●	●	●	●
93	08.917 NUT; MAG VLV 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-	●	●	●	●	●	●
93	08.917 NUT; MAG VLV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. BRK WHL LK CONT LSPV<6PH> 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-9711		●
93	08.917 NUT; MAG VLV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-9711			●
93	08.917 NUT; MAG VLV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH> 07.633 M8 FLANGE	0-91150-108-0	04	1	9712-	●	●			●
93	08.917 NUT; MAG VLV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9510			●
93	08.917 NUT; MAG VLV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH> 07.633 M8 FLANGE	0-91150-108-0	04	1	9511-9711		●
93	08.917 NUT; MAG VLV 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-	●		●
93	08.917 NUT; MAG VLV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. BRK WHL LK CONT LSPV<6PH> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-		●
93	08.917 NUT; MAG VLV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-			●
93	08.917 NUT; MAG VLV 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> 04.785 M10 FLANGE	0-91150-110-0	01	1	9411-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
