Sayfa 1-45 - Isuzu EPC

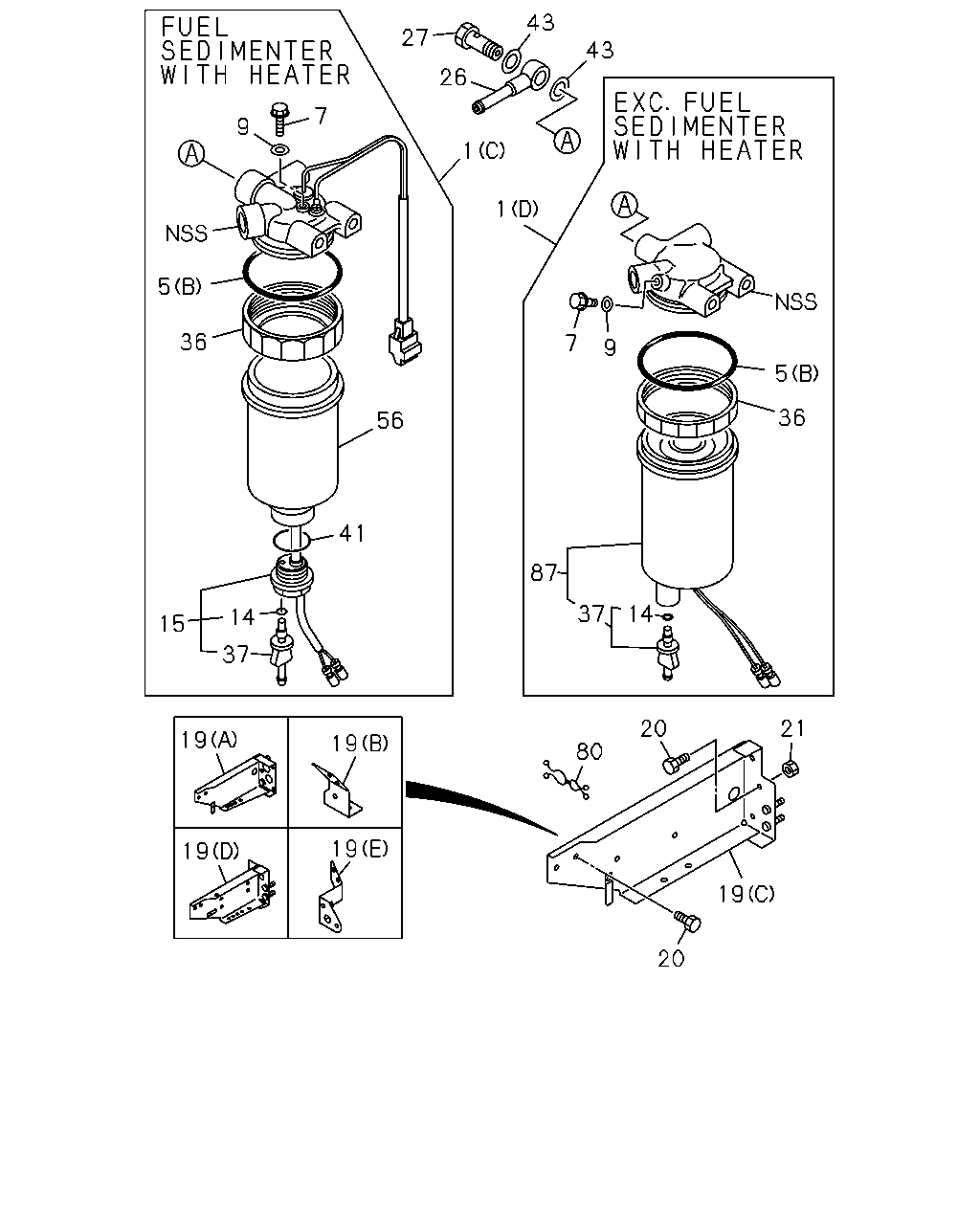

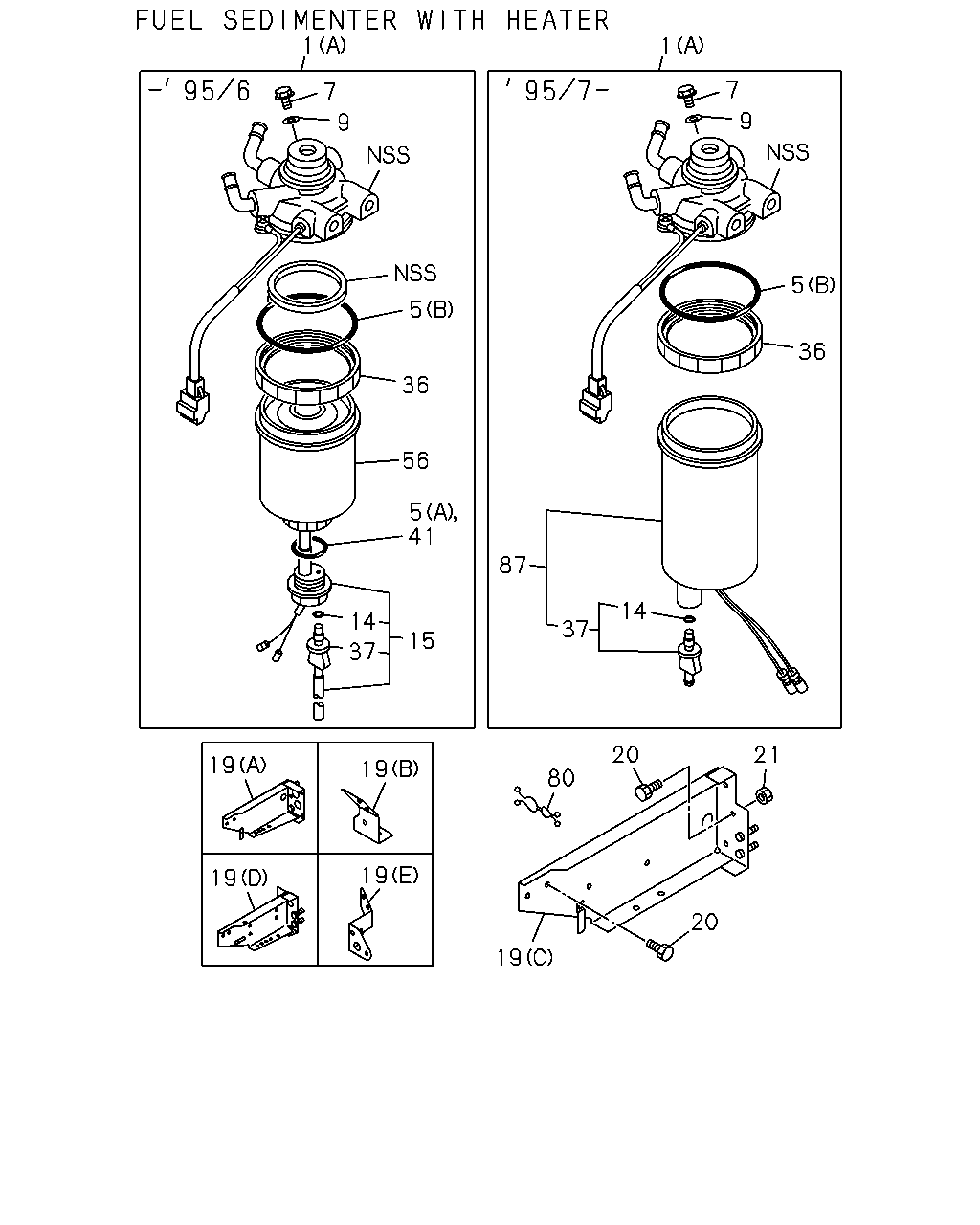

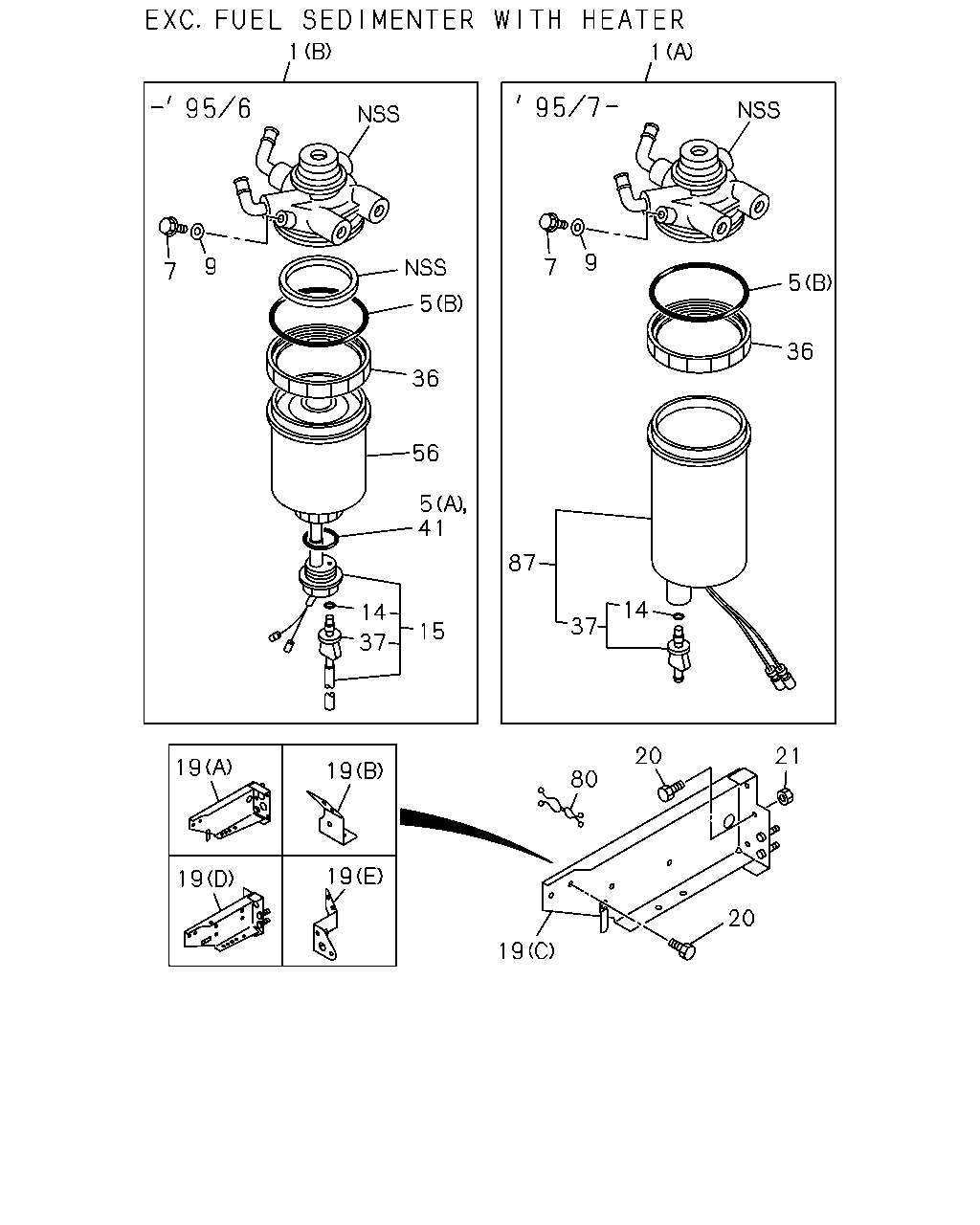

1-45 — WATER SEDIMENTER; FUEL (#47301) — 603 parça

1 1 9 9 7 7 5 5 36 36 56 5 41 87 14 14 37 15 37 20 21 19 19 80 19 19 20 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-0	01	1	9312-9506	●	●	●	●	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-1	01	1	9507-	●	●	●	●	●	●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-0	01	1	9312-9506	●	●	●	●	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-1	01	1	9507-	●	●	●	●	●	●
1	03.890 SEDIMENTER; FUEL 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-94311-522-2	01	1	9312-	●		●	●	●	●
1	03.890 SEDIMENTER; FUEL 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D)	8-94144-933-3	01	1	9312-	●		●	●	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER (B)	5-09623-075-0	01	1	9312-	●	●	●	●	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	9-19563-334-0	01	1	9507-9510	●	●	●	●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	9312-	●		●	●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94132-674-0	01	1	9312-	●		●	●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER	8-94132-674-0	01	1	9312-		●
7	03.890 PLUG; DRAIN,SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895	9-09612-021-0	01	1	9312-	●		●	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	9312-	●		●	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94132-675-0	01	1	9312-	●		●	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR	8-94132-675-0	01	1	9312-		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895	9-09571-406-0	01	1	9312-	●		●	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JB1 ENG(RLF)	8-94447-156-0	01	1	9312-9506	●	●	●	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94447-156-0	01	1	9507-9808	●	●	●	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	9809-	●	●	●	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4BE1 ENG(RLH),4HF1 ENG(RLS)	8-94416-377-0	01	1	9312-9808	●		●	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU>	8-94416-377-0	01	1	9809-	●		●	●	●	●
15	03.890 SENSOR ASM; SEDIMENTER 4JB1 ENG(RLF)	8-97103-765-0	01	1	9312-9506	●	●	●	●	●	●
15	03.890 SENSOR ASM; SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS)	8-94153-430-0	01	1	9312-9808	●		●	●	●	●
15	03.890 SENSOR ASM; SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU>	8-94153-430-0	01	1	9809-	●		●	●	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	9312-9410	●				●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	9312-9410			●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	9312-9410				●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) (B)	8-94366-685-0	01	1	9312-9410						●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	9411-9510	●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	9411-9510			●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	9411-9510				●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) (B)	8-94366-685-0	01	1	9411-9510						●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	9511-9711	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	9511-9711			●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	9511-9711			●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) (B)	8-94366-685-0	01	1	9511-9711						●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	9712-	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	9712-			●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	9712-			●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1 ENG(RLS) (B)	8-94366-685-0	01	1	9712-						●
19	03.890 BRACKET; FUEL SEDIMENTER 4JB1 ENG(RLF) (A)	8-97090-294-3	01	1	9312-9506	●					●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) (A)	8-97090-294-3	01	1	9312-9506	●
19	03.890 BRACKET; FUEL SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) (A)	8-97090-294-3	01	1	9507-9510	●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) (A)	8-97090-294-3	01	1	9507-9510	●
19	03.890 BRACKET; FUEL SEDIMENTER 4JB1 ENG(RLF) (A)	8-97090-294-3	01	1	9507-9510						●
19	03.890 BRACKET; FUEL SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) (A)	8-97090-294-3	01	1	9511-9711	●					●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) (A)	8-97090-294-3	01	1	9511-9711	●
19	03.890 BRACKET; FUEL SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) (A)	8-97090-294-3	01	1	9712-	●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (A)	8-97090-294-3	01	1	9712-	●
19	03.890 BRACKET; FUEL SEDIMENTER 4JB1 ENG(RLF) (A)	8-97090-294-3	01	1	9712-						●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B),DUMP CHASSIS(V4D) (E)	8-97107-892-0	01	1	9312-			●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) (E)	8-97107-892-0	01	1	9312-				●
19	03.890 BRACKET; FUEL SEDIMENTER 4JB1 ENG(RLF) (C)	8-97090-296-3	01	1	9312-9510			●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) (C)	8-97090-296-3	01	1	9312-9510			●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (C)	8-97090-296-3	01	1	9312-9510				●
19	03.890 BRACKET; FUEL SEDIMENTER 4JB1 ENG(RLF) (C)	8-97090-296-3	01	1	9511-9606			●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (C)	8-97090-296-3	01	1	9511-9606			●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) (C)	8-97090-296-3	01	1	9607-			●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (C)	8-97090-296-3	01	1	9607-			●	●
19	03.890 BRACKET; FUEL SEDIMENTER (D)	8-97103-344-1	01	1	9312-					●
20	03.890 BOLT; BRKT TO SEDIMENTER 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9312-9704	●	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9705-	●	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9312-9405	●	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9312-9405	●					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9312-9405	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B),DUMP CHASSIS(V4D) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9312-9405			●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9312-9405					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9406-9506	●	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9406-9506	●	●				●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9406-9506	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B),DUMP CHASSIS(V4D) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9406-9506			●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9406-9506					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9507-9711	●	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9507-9711	●	●				●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9507-9711	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B),DUMP CHASSIS(V4D) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9507-9711			●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9507-9711					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9712-	●	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9712-	●	●				●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9712-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B),DUMP CHASSIS(V4D) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9712-			●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9712-					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9312-9510	●				●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9312-9510			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9312-9510				●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9312-9510						●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9511-9711	●				●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9511-9711			●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9511-9711			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9511-9711						●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9712-	●				●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9712-			●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9712-			●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9312-9405		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9406-9506	●					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9406-9506	●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9406-9506		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9507-9510	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9507-9510	●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9507-9510		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9507-9510						●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9511-9711	●					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9511-9711	●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9511-9711		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9712-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9712-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9712-		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9712-						●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	9312-9510			●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	9312-9510			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	9312-9510				●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	9511-9606			●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	9511-9606			●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	9607-			●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	9607-			●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X25 FLANGE	0-28080-825-0	02	1	9312-					●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9312-	●		●	●	●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 01.540 M8 FLANGE	0-91150-208-0	02	1	9312-9510	●				●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) 01.540 M8 FLANGE	0-91150-208-0	02	1	9312-9510			●
21	03.890 NUT; BRKT TO FRAME 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 01.540 M8 FLANGE	0-91150-208-0	02	1	9312-9510				●
21	03.890 NUT; BRKT TO FRAME 01.540 M8 FLANGE	0-91150-208-0	02	1	9312-9510					●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) 01.540 M8 FLANGE	0-91150-208-0	02	1	9312-9510						●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-9711	●				●
21	03.890 NUT; BRKT TO FRAME 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-9711			●	●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-9711			●
21	03.890 NUT; BRKT TO FRAME 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-9711					●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-9711						●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-	●				●
21	03.890 NUT; BRKT TO FRAME 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-			●	●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-			●
21	03.890 NUT; BRKT TO FRAME 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-					●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 08.917 M10 FLANGE	0-91150-210-0	02	1	9312-9405	●					●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 08.917 M10 FLANGE	0-91150-210-0	02	1	9312-9405	●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B),DUMP CHASSIS(V4D) 08.917 M10 FLANGE	0-91150-210-0	02	1	9312-9405			●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 08.917 M10 FLANGE	0-91150-210-0	02	1	9312-9405				●
21	03.890 NUT; BRKT TO FRAME 08.917 M10 FLANGE	0-91150-210-0	02	1	9312-9405					●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 08.917 M10 FLANGE	0-91150-210-0	02	1	9406-9506	●					●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 08.917 M10 FLANGE	0-91150-210-0	02	1	9406-9506	●
21	03.890 NUT; BRKT TO FRAME 08.917 M10 FLANGE	0-91150-210-0	02	1	9406-9506		●			●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B),DUMP CHASSIS(V4D) 08.917 M10 FLANGE	0-91150-210-0	02	1	9406-9506			●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 08.917 M10 FLANGE	0-91150-210-0	02	1	9406-9506				●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) 08.917 M10 FLANGE	0-91150-210-0	02	1	9507-9510	●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 08.917 M10 FLANGE	0-91150-210-0	02	1	9507-9510	●
21	03.890 NUT; BRKT TO FRAME 08.917 M10 FLANGE	0-91150-210-0	02	1	9507-9510		●			●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B),DUMP CHASSIS(V4D) 08.917 M10 FLANGE	0-91150-210-0	02	1	9507-9510			●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 08.917 M10 FLANGE	0-91150-210-0	02	1	9507-9510				●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 08.917 M10 FLANGE	0-91150-210-0	02	1	9507-9510						●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B),DUMP CHASSIS(V4D) 08.917 M10 FLANGE	0-91150-210-0	02	1	9511-9711			●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 08.917 M10 FLANGE	0-91150-210-0	02	1	9511-9711				●
21	03.890 NUT; BRKT TO FRAME 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 08.917 M10 FLANGE	0-91150-210-0	02	1	9712-	●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B),DUMP CHASSIS(V4D) 08.917 M10 FLANGE	0-91150-210-0	02	1	9712-			●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 08.917 M10 FLANGE	0-91150-210-0	02	1	9712-				●
21	03.890 NUT; BRKT TO FRAME 4HF1 ENG(RLS) 08.917 M10 FLANGE	0-91150-210-0	02	1	9712-						●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	02	1	9511-9711	●					●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE	0-91150-110-0	02	1	9511-9711	●
21	03.890 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	02	1	9511-9711		●			●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	02	1	9712-	●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE	0-91150-110-0	02	1	9712-	●
21	03.890 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	02	1	9712-		●			●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	02	1	9712-						●
21	03.890 NUT; BRKT TO FRAME 01.540 M8 FLANGE	0-91150-208-0	01	1	9312-9405		●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 01.540 M8 FLANGE	0-91150-208-0	01	1	9406-9506	●					●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 01.540 M8 FLANGE	0-91150-208-0	01	1	9406-9506	●
21	03.890 NUT; BRKT TO FRAME 01.540 M8 FLANGE	0-91150-208-0	01	1	9406-9506		●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) 01.540 M8 FLANGE	0-91150-208-0	01	1	9507-9510	●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 01.540 M8 FLANGE	0-91150-208-0	01	1	9507-9510	●
21	03.890 NUT; BRKT TO FRAME 01.540 M8 FLANGE	0-91150-208-0	01	1	9507-9510		●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 01.540 M8 FLANGE	0-91150-208-0	01	1	9507-9510						●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	9511-9711	●					●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	01	1	9511-9711	●
21	03.890 NUT; BRKT TO FRAME 07.633 M8 FLANGE	0-91150-108-0	01	1	9511-9711		●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-	●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-	●
21	03.890 NUT; BRKT TO FRAME 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-		●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-						●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 08.917 M10 FLANGE	0-91150-210-0	03	1	9312-9510			●	●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 08.917 M10 FLANGE	0-91150-210-0	03	1	9312-9510			●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 08.917 M10 FLANGE	0-91150-210-0	03	1	9312-9510				●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	03	1	9511-9606			●	●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE	0-91150-110-0	03	1	9511-9606			●	●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	03	1	9607-			●	●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE	0-91150-110-0	03	1	9607-			●	●
36	03.890 RING; BODY TO CASE	5-13234-001-0	01	1	9312-	●	●	●	●	●	●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF)	8-94450-148-0	01	1	9312-9506	●	●	●	●	●	●
37	03.890 PLUG; SENSOR 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94450-148-0	01	1	9507-9803	●	●	●	●	●	●
37	03.890 PLUG; SENSOR 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94450-148-0	01	1	9804-	●	●	●	●	●	●
37	03.890 PLUG; SENSOR 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	9804-9808	●	●	●	●	●	●
37	03.890 PLUG; SENSOR EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	9809-	●	●	●	●	●	●
37	03.890 PLUG; SENSOR 4BE1 ENG(RLH),4HF1 ENG(RLS)	8-94416-376-0	01	1	9312-9808	●		●	●	●	●
37	03.890 PLUG; SENSOR 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU>	8-94416-376-0	01	1	9809-	●		●	●	●	●
41	03.890 GASKET; SENSOR TO CASE 4BE1 ENG(RLH),4HF1 ENG(RLS) 08.927	9-09563-334-0	01	1	9312-9711	●		●	●	●	●
41	03.890 GASKET; SENSOR TO CASE 08.927	9-09563-334-0	01	1	9712-9803	●	●	●	●	●	●
41	03.890 GASKET; SENSOR TO CASE FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	9804-9808	●	●	●	●	●	●
41	03.890 GASKET; SENSOR TO CASE 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	9804-9808	●		●	●	●	●
41	03.890 GASKET; SENSOR TO CASE FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	9809-	●	●	●	●	●	●
56	03.890 CASE; FUEL SEDIMENTER	5-13211-030-0	01	1	9312-9506	●	●	●	●	●	●
56	03.890 CASE; FUEL SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU>	5-13211-030-1	01	1	9507-	●		●	●	●	●
80	03.890 CLIP; SEDIMENTER 4HF1 ENG(RLS) 03.680 ID=20 & 12	8-94328-912-0	01	1	9312-9404				●
87	03.890 CASE ASM; SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97219-363-0	01	1	9507-	●	●	●	●	●	●
87	03.890 CASE ASM; SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97219-363-0	01	1	9507-	●		●	●	●	●

1 1 7 7 9 9 5 5 36 36 56 5 41 87 14 14 37 15 37 20 21 19 19 80 19 19 20 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-0	01	1	9312-9506	●	●	●	●	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-1	01	1	9507-	●	●	●	●	●	●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-0	01	1	9312-9506	●	●	●	●	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-1	01	1	9507-	●	●	●	●	●	●
1	03.890 SEDIMENTER; FUEL 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-94311-522-2	01	1	9312-	●		●	●	●	●
1	03.890 SEDIMENTER; FUEL 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D)	8-94144-933-3	01	1	9312-	●		●	●	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER (B)	5-09623-075-0	01	1	9312-	●	●	●	●	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	9-19563-334-0	01	1	9507-9510	●	●	●	●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	9312-	●		●	●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94132-674-0	01	1	9312-	●		●	●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER	8-94132-674-0	01	1	9312-		●
7	03.890 PLUG; DRAIN,SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895	9-09612-021-0	01	1	9312-	●		●	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	9312-	●		●	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94132-675-0	01	1	9312-	●		●	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR	8-94132-675-0	01	1	9312-		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895	9-09571-406-0	01	1	9312-	●		●	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JB1 ENG(RLF)	8-94447-156-0	01	1	9312-9506	●	●	●	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94447-156-0	01	1	9507-9808	●	●	●	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	9809-	●	●	●	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4BE1 ENG(RLH),4HF1 ENG(RLS)	8-94416-377-0	01	1	9312-9808	●		●	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU>	8-94416-377-0	01	1	9809-	●		●	●	●	●
15	03.890 SENSOR ASM; SEDIMENTER 4JB1 ENG(RLF)	8-97103-765-0	01	1	9312-9506	●	●	●	●	●	●
15	03.890 SENSOR ASM; SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS)	8-94153-430-0	01	1	9312-9808	●		●	●	●	●
15	03.890 SENSOR ASM; SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU>	8-94153-430-0	01	1	9809-	●		●	●	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	9312-9410	●				●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	9312-9410			●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	9312-9410				●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) (B)	8-94366-685-0	01	1	9312-9410						●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	9411-9510	●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	9411-9510			●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	9411-9510				●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) (B)	8-94366-685-0	01	1	9411-9510						●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	9511-9711	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	9511-9711			●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	9511-9711			●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) (B)	8-94366-685-0	01	1	9511-9711						●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	9712-	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	9712-			●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	9712-			●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1 ENG(RLS) (B)	8-94366-685-0	01	1	9712-						●
19	03.890 BRACKET; FUEL SEDIMENTER 4JB1 ENG(RLF) (A)	8-97090-294-3	01	1	9312-9506	●					●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) (A)	8-97090-294-3	01	1	9312-9506	●
19	03.890 BRACKET; FUEL SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) (A)	8-97090-294-3	01	1	9507-9510	●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) (A)	8-97090-294-3	01	1	9507-9510	●
19	03.890 BRACKET; FUEL SEDIMENTER 4JB1 ENG(RLF) (A)	8-97090-294-3	01	1	9507-9510						●
19	03.890 BRACKET; FUEL SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) (A)	8-97090-294-3	01	1	9511-9711	●					●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) (A)	8-97090-294-3	01	1	9511-9711	●
19	03.890 BRACKET; FUEL SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) (A)	8-97090-294-3	01	1	9712-	●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (A)	8-97090-294-3	01	1	9712-	●
19	03.890 BRACKET; FUEL SEDIMENTER 4JB1 ENG(RLF) (A)	8-97090-294-3	01	1	9712-						●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B),DUMP CHASSIS(V4D) (E)	8-97107-892-0	01	1	9312-			●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) (E)	8-97107-892-0	01	1	9312-				●
19	03.890 BRACKET; FUEL SEDIMENTER 4JB1 ENG(RLF) (C)	8-97090-296-3	01	1	9312-9510			●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) (C)	8-97090-296-3	01	1	9312-9510			●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (C)	8-97090-296-3	01	1	9312-9510				●
19	03.890 BRACKET; FUEL SEDIMENTER 4JB1 ENG(RLF) (C)	8-97090-296-3	01	1	9511-9606			●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (C)	8-97090-296-3	01	1	9511-9606			●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) (C)	8-97090-296-3	01	1	9607-			●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (C)	8-97090-296-3	01	1	9607-			●	●
19	03.890 BRACKET; FUEL SEDIMENTER (D)	8-97103-344-1	01	1	9312-					●
20	03.890 BOLT; BRKT TO SEDIMENTER 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9312-9704	●	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9705-	●	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9312-9405	●	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9312-9405	●					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9312-9405	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B),DUMP CHASSIS(V4D) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9312-9405			●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9312-9405					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9406-9506	●	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9406-9506	●	●				●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9406-9506	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B),DUMP CHASSIS(V4D) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9406-9506			●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9406-9506					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9507-9711	●	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9507-9711	●	●				●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9507-9711	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B),DUMP CHASSIS(V4D) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9507-9711			●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9507-9711					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9712-	●	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9712-	●	●				●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9712-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B),DUMP CHASSIS(V4D) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9712-			●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9712-					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9312-9510	●				●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9312-9510			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9312-9510				●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9312-9510						●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9511-9711	●				●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9511-9711			●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9511-9711			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9511-9711						●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9712-	●				●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9712-			●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9712-			●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9312-9405		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9406-9506	●					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9406-9506	●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9406-9506		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9507-9510	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9507-9510	●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9507-9510		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9507-9510						●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9511-9711	●					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9511-9711	●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9511-9711		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9712-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9712-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9712-		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9712-						●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	9312-9510			●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	9312-9510			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	9312-9510				●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	9511-9606			●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	9511-9606			●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	9607-			●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	9607-			●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X25 FLANGE	0-28080-825-0	02	1	9312-					●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9312-	●		●	●	●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 01.540 M8 FLANGE	0-91150-208-0	02	1	9312-9510	●				●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) 01.540 M8 FLANGE	0-91150-208-0	02	1	9312-9510			●
21	03.890 NUT; BRKT TO FRAME 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 01.540 M8 FLANGE	0-91150-208-0	02	1	9312-9510				●
21	03.890 NUT; BRKT TO FRAME 01.540 M8 FLANGE	0-91150-208-0	02	1	9312-9510					●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) 01.540 M8 FLANGE	0-91150-208-0	02	1	9312-9510						●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-9711	●				●
21	03.890 NUT; BRKT TO FRAME 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-9711			●	●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-9711			●
21	03.890 NUT; BRKT TO FRAME 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-9711					●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-9711						●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-	●				●
21	03.890 NUT; BRKT TO FRAME 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-			●	●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-			●
21	03.890 NUT; BRKT TO FRAME 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-					●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 08.917 M10 FLANGE	0-91150-210-0	02	1	9312-9405	●					●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 08.917 M10 FLANGE	0-91150-210-0	02	1	9312-9405	●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B),DUMP CHASSIS(V4D) 08.917 M10 FLANGE	0-91150-210-0	02	1	9312-9405			●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 08.917 M10 FLANGE	0-91150-210-0	02	1	9312-9405				●
21	03.890 NUT; BRKT TO FRAME 08.917 M10 FLANGE	0-91150-210-0	02	1	9312-9405					●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 08.917 M10 FLANGE	0-91150-210-0	02	1	9406-9506	●					●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 08.917 M10 FLANGE	0-91150-210-0	02	1	9406-9506	●
21	03.890 NUT; BRKT TO FRAME 08.917 M10 FLANGE	0-91150-210-0	02	1	9406-9506		●			●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B),DUMP CHASSIS(V4D) 08.917 M10 FLANGE	0-91150-210-0	02	1	9406-9506			●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 08.917 M10 FLANGE	0-91150-210-0	02	1	9406-9506				●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) 08.917 M10 FLANGE	0-91150-210-0	02	1	9507-9510	●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 08.917 M10 FLANGE	0-91150-210-0	02	1	9507-9510	●
21	03.890 NUT; BRKT TO FRAME 08.917 M10 FLANGE	0-91150-210-0	02	1	9507-9510		●			●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B),DUMP CHASSIS(V4D) 08.917 M10 FLANGE	0-91150-210-0	02	1	9507-9510			●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 08.917 M10 FLANGE	0-91150-210-0	02	1	9507-9510				●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 08.917 M10 FLANGE	0-91150-210-0	02	1	9507-9510						●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B),DUMP CHASSIS(V4D) 08.917 M10 FLANGE	0-91150-210-0	02	1	9511-9711			●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 08.917 M10 FLANGE	0-91150-210-0	02	1	9511-9711				●
21	03.890 NUT; BRKT TO FRAME 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 08.917 M10 FLANGE	0-91150-210-0	02	1	9712-	●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B),DUMP CHASSIS(V4D) 08.917 M10 FLANGE	0-91150-210-0	02	1	9712-			●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 08.917 M10 FLANGE	0-91150-210-0	02	1	9712-				●
21	03.890 NUT; BRKT TO FRAME 4HF1 ENG(RLS) 08.917 M10 FLANGE	0-91150-210-0	02	1	9712-						●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	02	1	9511-9711	●					●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE	0-91150-110-0	02	1	9511-9711	●
21	03.890 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	02	1	9511-9711		●			●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	02	1	9712-	●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE	0-91150-110-0	02	1	9712-	●
21	03.890 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	02	1	9712-		●			●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	02	1	9712-						●
21	03.890 NUT; BRKT TO FRAME 01.540 M8 FLANGE	0-91150-208-0	01	1	9312-9405		●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 01.540 M8 FLANGE	0-91150-208-0	01	1	9406-9506	●					●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 01.540 M8 FLANGE	0-91150-208-0	01	1	9406-9506	●
21	03.890 NUT; BRKT TO FRAME 01.540 M8 FLANGE	0-91150-208-0	01	1	9406-9506		●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) 01.540 M8 FLANGE	0-91150-208-0	01	1	9507-9510	●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 01.540 M8 FLANGE	0-91150-208-0	01	1	9507-9510	●
21	03.890 NUT; BRKT TO FRAME 01.540 M8 FLANGE	0-91150-208-0	01	1	9507-9510		●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 01.540 M8 FLANGE	0-91150-208-0	01	1	9507-9510						●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	9511-9711	●					●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	01	1	9511-9711	●
21	03.890 NUT; BRKT TO FRAME 07.633 M8 FLANGE	0-91150-108-0	01	1	9511-9711		●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-	●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-	●
21	03.890 NUT; BRKT TO FRAME 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-		●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-						●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 08.917 M10 FLANGE	0-91150-210-0	03	1	9312-9510			●	●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 08.917 M10 FLANGE	0-91150-210-0	03	1	9312-9510			●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 08.917 M10 FLANGE	0-91150-210-0	03	1	9312-9510				●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	03	1	9511-9606			●	●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE	0-91150-110-0	03	1	9511-9606			●	●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	03	1	9607-			●	●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE	0-91150-110-0	03	1	9607-			●	●
36	03.890 RING; BODY TO CASE	5-13234-001-0	01	1	9312-	●	●	●	●	●	●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF)	8-94450-148-0	01	1	9312-9506	●	●	●	●	●	●
37	03.890 PLUG; SENSOR 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94450-148-0	01	1	9507-9803	●	●	●	●	●	●
37	03.890 PLUG; SENSOR 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94450-148-0	01	1	9804-	●	●	●	●	●	●
37	03.890 PLUG; SENSOR 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	9804-9808	●	●	●	●	●	●
37	03.890 PLUG; SENSOR EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	9809-	●	●	●	●	●	●
37	03.890 PLUG; SENSOR 4BE1 ENG(RLH),4HF1 ENG(RLS)	8-94416-376-0	01	1	9312-9808	●		●	●	●	●
37	03.890 PLUG; SENSOR 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU>	8-94416-376-0	01	1	9809-	●		●	●	●	●
41	03.890 GASKET; SENSOR TO CASE 4BE1 ENG(RLH),4HF1 ENG(RLS) 08.927	9-09563-334-0	01	1	9312-9711	●		●	●	●	●
41	03.890 GASKET; SENSOR TO CASE 08.927	9-09563-334-0	01	1	9712-9803	●	●	●	●	●	●
41	03.890 GASKET; SENSOR TO CASE FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	9804-9808	●	●	●	●	●	●
41	03.890 GASKET; SENSOR TO CASE 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	9804-9808	●		●	●	●	●
41	03.890 GASKET; SENSOR TO CASE FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	9809-	●	●	●	●	●	●
56	03.890 CASE; FUEL SEDIMENTER	5-13211-030-0	01	1	9312-9506	●	●	●	●	●	●
56	03.890 CASE; FUEL SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU>	5-13211-030-1	01	1	9507-	●		●	●	●	●
80	03.890 CLIP; SEDIMENTER 4HF1 ENG(RLS) 03.680 ID=20 & 12	8-94328-912-0	01	1	9312-9404				●
87	03.890 CASE ASM; SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97219-363-0	01	1	9507-	●	●	●	●	●	●
87	03.890 CASE ASM; SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97219-363-0	01	1	9507-	●		●	●	●	●

43 27 43 26 7 9 1 1 5 36 7 9 5 36 56 41 87 37 14 14 15 37 20 21 19 19 80 19 19 19 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-0	01	1	9312-9506	●	●	●	●	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-1	01	1	9507-	●	●	●	●	●	●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-0	01	1	9312-9506	●	●	●	●	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-1	01	1	9507-	●	●	●	●	●	●
1	03.890 SEDIMENTER; FUEL 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-94311-522-2	01	1	9312-	●		●	●	●	●
1	03.890 SEDIMENTER; FUEL 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D)	8-94144-933-3	01	1	9312-	●		●	●	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER (B)	5-09623-075-0	01	1	9312-	●	●	●	●	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	9-19563-334-0	01	1	9507-9510	●	●	●	●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	9312-	●		●	●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94132-674-0	01	1	9312-	●		●	●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER	8-94132-674-0	01	1	9312-		●
7	03.890 PLUG; DRAIN,SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895	9-09612-021-0	01	1	9312-	●		●	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	9312-	●		●	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94132-675-0	01	1	9312-	●		●	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR	8-94132-675-0	01	1	9312-		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895	9-09571-406-0	01	1	9312-	●		●	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JB1 ENG(RLF)	8-94447-156-0	01	1	9312-9506	●	●	●	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94447-156-0	01	1	9507-9808	●	●	●	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	9809-	●	●	●	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4BE1 ENG(RLH),4HF1 ENG(RLS)	8-94416-377-0	01	1	9312-9808	●		●	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU>	8-94416-377-0	01	1	9809-	●		●	●	●	●
15	03.890 SENSOR ASM; SEDIMENTER 4JB1 ENG(RLF)	8-97103-765-0	01	1	9312-9506	●	●	●	●	●	●
15	03.890 SENSOR ASM; SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS)	8-94153-430-0	01	1	9312-9808	●		●	●	●	●
15	03.890 SENSOR ASM; SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU>	8-94153-430-0	01	1	9809-	●		●	●	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	9312-9410	●				●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	9312-9410			●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	9312-9410				●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) (B)	8-94366-685-0	01	1	9312-9410						●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	9411-9510	●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	9411-9510			●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	9411-9510				●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) (B)	8-94366-685-0	01	1	9411-9510						●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	9511-9711	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	9511-9711			●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	9511-9711			●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) (B)	8-94366-685-0	01	1	9511-9711						●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	9712-	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	9712-			●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	9712-			●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1 ENG(RLS) (B)	8-94366-685-0	01	1	9712-						●
19	03.890 BRACKET; FUEL SEDIMENTER 4JB1 ENG(RLF) (A)	8-97090-294-3	01	1	9312-9506	●					●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) (A)	8-97090-294-3	01	1	9312-9506	●
19	03.890 BRACKET; FUEL SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) (A)	8-97090-294-3	01	1	9507-9510	●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) (A)	8-97090-294-3	01	1	9507-9510	●
19	03.890 BRACKET; FUEL SEDIMENTER 4JB1 ENG(RLF) (A)	8-97090-294-3	01	1	9507-9510						●
19	03.890 BRACKET; FUEL SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) (A)	8-97090-294-3	01	1	9511-9711	●					●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) (A)	8-97090-294-3	01	1	9511-9711	●
19	03.890 BRACKET; FUEL SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) (A)	8-97090-294-3	01	1	9712-	●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (A)	8-97090-294-3	01	1	9712-	●
19	03.890 BRACKET; FUEL SEDIMENTER 4JB1 ENG(RLF) (A)	8-97090-294-3	01	1	9712-						●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B),DUMP CHASSIS(V4D) (E)	8-97107-892-0	01	1	9312-			●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) (E)	8-97107-892-0	01	1	9312-				●
19	03.890 BRACKET; FUEL SEDIMENTER 4JB1 ENG(RLF) (C)	8-97090-296-3	01	1	9312-9510			●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) (C)	8-97090-296-3	01	1	9312-9510			●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (C)	8-97090-296-3	01	1	9312-9510				●
19	03.890 BRACKET; FUEL SEDIMENTER 4JB1 ENG(RLF) (C)	8-97090-296-3	01	1	9511-9606			●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (C)	8-97090-296-3	01	1	9511-9606			●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) (C)	8-97090-296-3	01	1	9607-			●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (C)	8-97090-296-3	01	1	9607-			●	●
19	03.890 BRACKET; FUEL SEDIMENTER (D)	8-97103-344-1	01	1	9312-					●
20	03.890 BOLT; BRKT TO SEDIMENTER 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9312-9704	●	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9705-	●	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9312-9405	●	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9312-9405	●					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9312-9405	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B),DUMP CHASSIS(V4D) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9312-9405			●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9312-9405					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9406-9506	●	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9406-9506	●	●				●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9406-9506	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B),DUMP CHASSIS(V4D) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9406-9506			●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9406-9506					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9507-9711	●	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9507-9711	●	●				●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9507-9711	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B),DUMP CHASSIS(V4D) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9507-9711			●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9507-9711					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9712-	●	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9712-	●	●				●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9712-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B),DUMP CHASSIS(V4D) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9712-			●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9712-					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9312-9510	●				●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9312-9510			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9312-9510				●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9312-9510						●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9511-9711	●				●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9511-9711			●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9511-9711			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9511-9711						●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9712-	●				●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9712-			●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9712-			●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9312-9405		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9406-9506	●					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9406-9506	●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9406-9506		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9507-9510	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9507-9510	●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9507-9510		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9507-9510						●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9511-9711	●					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9511-9711	●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9511-9711		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9712-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9712-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9712-		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9712-						●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	9312-9510			●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	9312-9510			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	9312-9510				●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	9511-9606			●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	9511-9606			●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	9607-			●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	9607-			●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X25 FLANGE	0-28080-825-0	02	1	9312-					●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9312-	●		●	●	●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 01.540 M8 FLANGE	0-91150-208-0	02	1	9312-9510	●				●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) 01.540 M8 FLANGE	0-91150-208-0	02	1	9312-9510			●
21	03.890 NUT; BRKT TO FRAME 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 01.540 M8 FLANGE	0-91150-208-0	02	1	9312-9510				●
21	03.890 NUT; BRKT TO FRAME 01.540 M8 FLANGE	0-91150-208-0	02	1	9312-9510					●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) 01.540 M8 FLANGE	0-91150-208-0	02	1	9312-9510						●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-9711	●				●
21	03.890 NUT; BRKT TO FRAME 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-9711			●	●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-9711			●
21	03.890 NUT; BRKT TO FRAME 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-9711					●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-9711						●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-	●				●
21	03.890 NUT; BRKT TO FRAME 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-			●	●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-			●
21	03.890 NUT; BRKT TO FRAME 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-					●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 08.917 M10 FLANGE	0-91150-210-0	02	1	9312-9405	●					●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 08.917 M10 FLANGE	0-91150-210-0	02	1	9312-9405	●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B),DUMP CHASSIS(V4D) 08.917 M10 FLANGE	0-91150-210-0	02	1	9312-9405			●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 08.917 M10 FLANGE	0-91150-210-0	02	1	9312-9405				●
21	03.890 NUT; BRKT TO FRAME 08.917 M10 FLANGE	0-91150-210-0	02	1	9312-9405					●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 08.917 M10 FLANGE	0-91150-210-0	02	1	9406-9506	●					●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 08.917 M10 FLANGE	0-91150-210-0	02	1	9406-9506	●
21	03.890 NUT; BRKT TO FRAME 08.917 M10 FLANGE	0-91150-210-0	02	1	9406-9506		●			●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B),DUMP CHASSIS(V4D) 08.917 M10 FLANGE	0-91150-210-0	02	1	9406-9506			●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 08.917 M10 FLANGE	0-91150-210-0	02	1	9406-9506				●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) 08.917 M10 FLANGE	0-91150-210-0	02	1	9507-9510	●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 08.917 M10 FLANGE	0-91150-210-0	02	1	9507-9510	●
21	03.890 NUT; BRKT TO FRAME 08.917 M10 FLANGE	0-91150-210-0	02	1	9507-9510		●			●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B),DUMP CHASSIS(V4D) 08.917 M10 FLANGE	0-91150-210-0	02	1	9507-9510			●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 08.917 M10 FLANGE	0-91150-210-0	02	1	9507-9510				●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 08.917 M10 FLANGE	0-91150-210-0	02	1	9507-9510						●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B),DUMP CHASSIS(V4D) 08.917 M10 FLANGE	0-91150-210-0	02	1	9511-9711			●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 08.917 M10 FLANGE	0-91150-210-0	02	1	9511-9711				●
21	03.890 NUT; BRKT TO FRAME 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 08.917 M10 FLANGE	0-91150-210-0	02	1	9712-	●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B),DUMP CHASSIS(V4D) 08.917 M10 FLANGE	0-91150-210-0	02	1	9712-			●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 08.917 M10 FLANGE	0-91150-210-0	02	1	9712-				●
21	03.890 NUT; BRKT TO FRAME 4HF1 ENG(RLS) 08.917 M10 FLANGE	0-91150-210-0	02	1	9712-						●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	02	1	9511-9711	●					●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE	0-91150-110-0	02	1	9511-9711	●
21	03.890 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	02	1	9511-9711		●			●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	02	1	9712-	●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE	0-91150-110-0	02	1	9712-	●
21	03.890 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	02	1	9712-		●			●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	02	1	9712-						●
21	03.890 NUT; BRKT TO FRAME 01.540 M8 FLANGE	0-91150-208-0	01	1	9312-9405		●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 01.540 M8 FLANGE	0-91150-208-0	01	1	9406-9506	●					●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 01.540 M8 FLANGE	0-91150-208-0	01	1	9406-9506	●
21	03.890 NUT; BRKT TO FRAME 01.540 M8 FLANGE	0-91150-208-0	01	1	9406-9506		●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) 01.540 M8 FLANGE	0-91150-208-0	01	1	9507-9510	●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 01.540 M8 FLANGE	0-91150-208-0	01	1	9507-9510	●
21	03.890 NUT; BRKT TO FRAME 01.540 M8 FLANGE	0-91150-208-0	01	1	9507-9510		●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 01.540 M8 FLANGE	0-91150-208-0	01	1	9507-9510						●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	9511-9711	●					●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	01	1	9511-9711	●
21	03.890 NUT; BRKT TO FRAME 07.633 M8 FLANGE	0-91150-108-0	01	1	9511-9711		●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-	●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-	●
21	03.890 NUT; BRKT TO FRAME 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-		●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-						●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 08.917 M10 FLANGE	0-91150-210-0	03	1	9312-9510			●	●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH) FUEL FILTER DUAL(S6B) 08.917 M10 FLANGE	0-91150-210-0	03	1	9312-9510			●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 08.917 M10 FLANGE	0-91150-210-0	03	1	9312-9510				●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	03	1	9511-9606			●	●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE	0-91150-110-0	03	1	9511-9606			●	●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	03	1	9607-			●	●
21	03.890 NUT; BRKT TO FRAME 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE	0-91150-110-0	03	1	9607-			●	●
26	03.163 PIPE; FUEL,IN & OUT 4BE1 ENG(RLH),4HF1 ENG(RLS)	5-15411-223-1	02	1	9312-	●		●	●	●	●
27	03.890 BOLT; EYE,FUEL PIPE TO SEDIMENTE 4BE1 ENG(RLH),4HF1 ENG(RLS) 03.162 M14X29 EYE BOLT	9-09906-325-1	02	1	9312-	●		●	●	●	●
36	03.890 RING; BODY TO CASE	5-13234-001-0	01	1	9312-	●	●	●	●	●	●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF)	8-94450-148-0	01	1	9312-9506	●	●	●	●	●	●
37	03.890 PLUG; SENSOR 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94450-148-0	01	1	9507-9803	●	●	●	●	●	●
37	03.890 PLUG; SENSOR 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94450-148-0	01	1	9804-	●	●	●	●	●	●
37	03.890 PLUG; SENSOR 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	9804-9808	●	●	●	●	●	●
37	03.890 PLUG; SENSOR EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	9809-	●	●	●	●	●	●
37	03.890 PLUG; SENSOR 4BE1 ENG(RLH),4HF1 ENG(RLS)	8-94416-376-0	01	1	9312-9808	●		●	●	●	●
37	03.890 PLUG; SENSOR 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU>	8-94416-376-0	01	1	9809-	●		●	●	●	●
41	03.890 GASKET; SENSOR TO CASE 4BE1 ENG(RLH),4HF1 ENG(RLS) 08.927	9-09563-334-0	01	1	9312-9711	●		●	●	●	●
41	03.890 GASKET; SENSOR TO CASE 08.927	9-09563-334-0	01	1	9712-9803	●	●	●	●	●	●
41	03.890 GASKET; SENSOR TO CASE FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	9804-9808	●	●	●	●	●	●
41	03.890 GASKET; SENSOR TO CASE 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	9804-9808	●		●	●	●	●
41	03.890 GASKET; SENSOR TO CASE FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	9809-	●	●	●	●	●	●
43	03.890 GASKET; FUEL PIPE TO SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9312-	●		●	●	●	●
56	03.890 CASE; FUEL SEDIMENTER	5-13211-030-0	01	1	9312-9506	●	●	●	●	●	●
56	03.890 CASE; FUEL SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU>	5-13211-030-1	01	1	9507-	●		●	●	●	●
80	03.890 CLIP; SEDIMENTER 4HF1 ENG(RLS) 03.680 ID=20 & 12	8-94328-912-0	01	1	9312-9404				●
87	03.890 CASE ASM; SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97219-363-0	01	1	9507-	●	●	●	●	●	●
87	03.890 CASE ASM; SEDIMENTER 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97219-363-0	01	1	9507-	●		●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
