1-11A — RADIATOR HOSE AND SUB TANK (#4730) — 223 parça

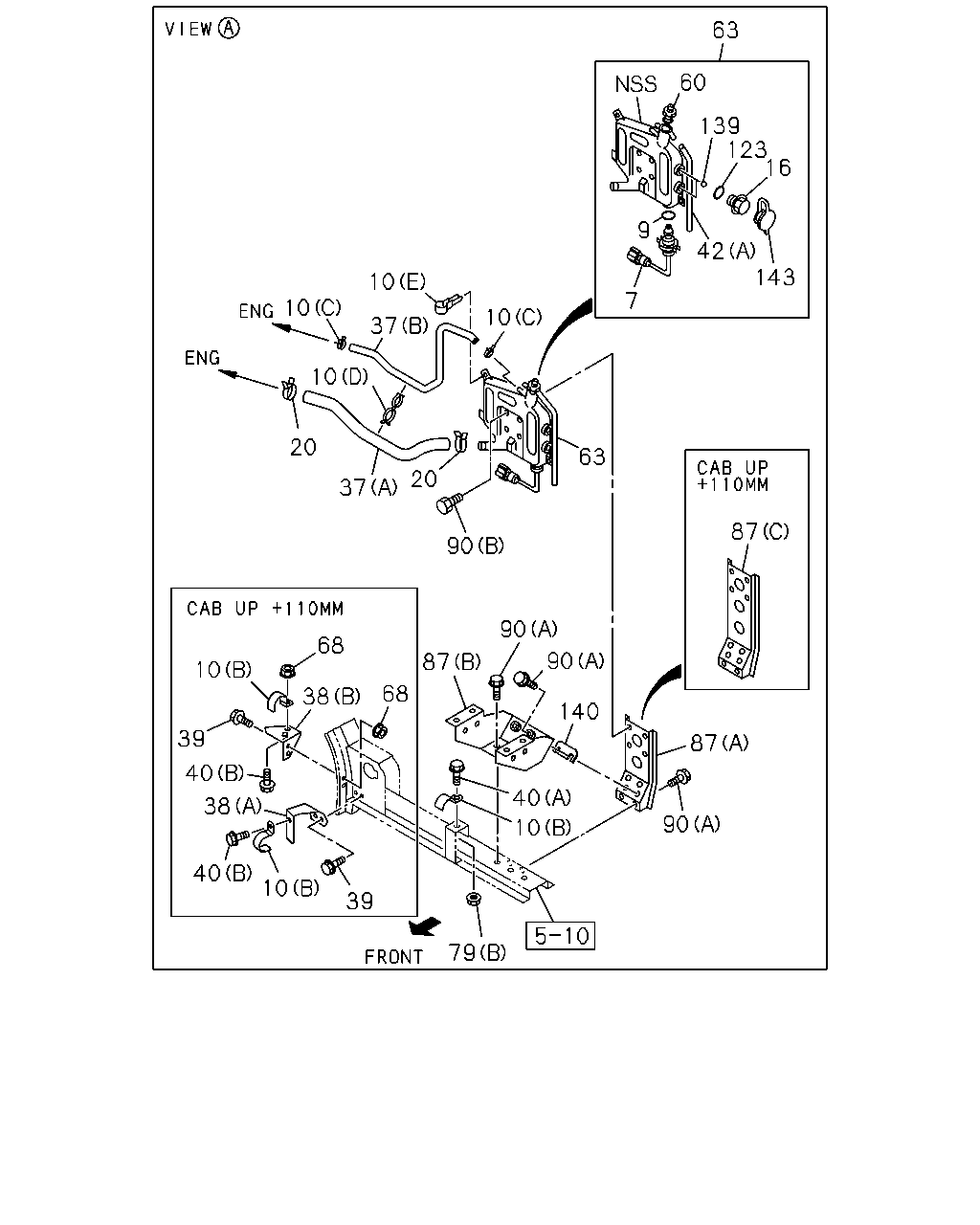

çizim 7752
63 60 139 123 16 9 42 143 10 10 7 10 37 10 20 63 20 37 87 90 90 68 90 87 10 38 68 140 39 7 40 40 38 90 10 40 10 39 79
BalonParca AdiParca NoAdetTipApplied Date A B C D E
7 SWITCH ASM; TANK 1-82480-045-0 01 1 9603-9706 ●
7 SWITCH ASM; TANK 1-82480-045-0 01 1 9905- ● ● ● ●
7 SWITCH ASM; TANK 1-82480-045-0 01 1 9707-9804 ● ●
7 SWITCH ASM; TANK 1-82480-045-0 01 1 9805-9904 ● ● ●
9 GASKET; SWITCH
ID=28 T=2.5 		1-09630-126-0 01 1 9603-9706 ●
9 GASKET; SWITCH
ID=28 T=2.5 		1-09630-126-0 01 1 9905- ● ● ● ●
9 GASKET; SWITCH
ID=28 T=2.5 		1-09630-126-0 01 1 9707-9804 ● ●
9 GASKET; SWITCH
ID=28 T=2.5 		1-09630-126-0 01 1 9805-9904 ● ● ●
10 CLIP; RUBBER HOSE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 9603-9706 ●
10 CLIP; RUBBER HOSE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 9905- ● ● ● ●
10 CLIP; RUBBER HOSE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 9707-9804 ● ●
10 CLIP; RUBBER HOSE
(B) D=43 		1-09700-703-0 01 1 9603-9706 ●
10 CLIP; RUBBER HOSE
CAB UP +110MM<TGG> (B) D=43 		1-09700-703-0 02 1 9905- ● ●
10 CLIP; RUBBER HOSE
(C) ID=14 		1-09704-102-0 04 1 9603-9706 ●
10 CLIP; RUBBER HOSE
(C) ID=14 		1-09704-102-0 04 1 9905- ● ● ● ●
10 CLIP; RUBBER HOSE
(C) ID=14 		1-09704-102-0 04 1 9707-9804 ● ●
10 CLIP; RUBBER HOSE
(D) ID=44 & 16 		1-09709-125-0 04 1 9603-9706 ●
10 CLIP; RUBBER HOSE
(D) ID=44 & 16 		1-09709-125-0 04 1 9905- ● ● ● ●
10 CLIP; RUBBER HOSE
(D) ID=44 & 16 		1-09709-125-0 04 1 9707-9804 ● ●
10 CLIP; RUBBER HOSE
(E) ID=14 L=44 		9-09917-427-0 02 1 9603-9706 ●
10 CLIP; RUBBER HOSE
(E) ID=14 L=44 		9-09917-427-0 02 1 9905- ● ● ● ●
10 CLIP; RUBBER HOSE
(E) ID=14 L=44 		9-09917-427-0 02 1 9707-9804 ● ●
10 CLIP; RUBBER HOSE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 9805-9904 ● ● ●
10 CLIP; RUBBER HOSE
(C) ID=14 		1-09704-102-0 04 1 9805-9904 ● ● ●
10 CLIP; RUBBER HOSE
(D) ID=44 & 16 		1-09709-125-0 04 1 9805-9904 ● ● ●
10 CLIP; RUBBER HOSE
(E) ID=14 L=44 		9-09917-427-0 02 1 9805-9904 ● ● ●
10 CLIP; RUBBER HOSE
(F) L=250 		1-09707-126-0 01 1 0010-0010 ● ● ● ●
10 CLIP; RUBBER HOSE
(F) L=350 		1-09707-183-0 01 1 0011- ● ● ● ●
10 CLIP; RUBBER HOSE
(B) D=43 		1-09700-703-0 01 1 9905- ● ●
10 CLIP; RUBBER HOSE
EXC. CAB UP +110MM<TGG> (B) D=43 		1-09700-703-0 01 1 9905- ● ●
16 PLUG; TANK 1-21464-425-0 02 1 9603-9609 ●
16 PLUG; TANK 1-21464-514-0 02 1 9610-9706 ●
16 PLUG; TANK 1-21464-514-0 02 1 9905- ● ● ● ●
16 PLUG; TANK 1-21464-514-0 02 1 9707-9804 ● ●
16 PLUG; TANK 1-21464-514-0 02 1 9805-9904 ● ● ●
20 CLIP; HOSE,RAD
ID=31 		1-09707-093-1 02 1 9603-9706 ●
20 CLIP; HOSE,RAD
ID=31 		1-09707-093-1 02 1 9905- ● ● ● ●
20 CLIP; HOSE,RAD
ID=31 		1-09707-093-1 02 1 9707-9804 ● ●
20 CLIP; HOSE,RAD
ID=31 		1-09707-093-1 02 1 9805-9904 ● ● ●
37 HOSE; RUBBER
(B) L=1350 SERVICED BY L=3000 		0-03259-300-0 01 1 9603-9904 ●
37 HOSE; RUBBER
CAB UP +110MM<TGG> (B) L=1450 SERVICED BY L=3000 		0-03259-300-0 01 1 9905- ● ●
37 HOSE; RUBBER
(A) 		1-21437-583-0 01 1 9603-9904 ●
37 HOSE; RUBBER
(A) 		1-21437-583-0 01 1 9905- ● ●
37 HOSE; RUBBER
EXC. CAB UP +110MM<TGG> (A) 		1-21437-583-0 01 1 9905- ● ●
37 HOSE; RUBBER
(B) L=1350 SERVICED BY L=3000 		0-03259-300-0 01 1 9905- ● ●
37 HOSE; RUBBER
EXC. CAB UP +110MM<TGG> (B) L=1350 SERVICED BY L=3000 		0-03259-300-0 01 1 9905- ● ●
37 HOSE; RUBBER
(B) L=1350 SERVICED BY L=3000 		0-03259-300-0 01 1 9707-9904 ●
37 HOSE; RUBBER
(A) 		1-21437-583-0 01 1 9707-9904 ●
37 HOSE; RUBBER
CAB UP +110MM<TGG> (A) 		1-21437-568-1 01 1 9905- ● ●
38 BRACKET; RUBBER HOSE
CAB UP +110MM<TGG> (A) 		1-21489-158-2 01 1 9905- ● ●
38 BRACKET; RUBBER HOSE
CAB UP +110MM<TGG> (B) 		1-21489-165-1 01 1 9905- ● ●
39 BOLT; BRKT FIX
CAB UP +110MM<TGG> M8X20 FLANGE 		0-28680-820-0 04 1 9905- ● ●
40 BOLT; CLIP
(A) M10X20 FLANGE 		0-28081-020-0 01 1 9603-9606 ●
40 BOLT; CLIP
(A) M10X20 FLANGE 		0-28681-020-0 01 1 9607-9706 ●
40 BOLT; CLIP
(A) M10X25 FLANGE 		0-28681-025-0 01 1 9905- ● ● ● ●
40 BOLT; CLIP
(A) M10X25 FLANGE 		0-28681-025-0 01 1 9707-9804 ● ●
40 BOLT; CLIP
(A) M10X25 FLANGE 		0-28681-025-0 01 1 9805-9904 ● ● ●
40 BOLT; CLIP
CAB UP +110MM<TGG> (B) M10X25 FLANGE 		0-28681-025-0 02 1 9905- ● ●
42 HOSE; RUBBER
(B) L=560 SERVICED BY L=3000 		0-03259-300-0 01 1 9603-9706 ●
42 HOSE; RUBBER
(B) L=560 SERVICED BY L=3000 		0-03259-300-0 01 1 9707-9804 ●
42 HOSE; RUBBER
SHORT CHASSIS&RHD(EXZ5MC) (B) L=560 SERVICED BY L=3000 		0-03259-300-0 01 1 9707-9804 ●
42 HOSE; RUBBER
(B) L=560 SERVICED BY L=3000 		0-03259-300-0 01 1 9805-9904 ● ●
42 HOSE; RUBBER
SHORT CHASSIS&RHD(EXZ5MC) (B) L=560 SERVICED BY L=3000 		0-03259-300-0 01 1 9805-9904 ●
42 HOSE; RUBBER
(B) L=560 SERVICED BY L=3000 		0-03259-300-0 01 1 9905- ● ● ● ●
42 HOSE; RUBBER
(A) L=850 		1-21489-154-0 01 1 9603-9904 ●
42 HOSE; RUBBER
(A) L=850 		1-21489-154-0 01 1 9905- ● ● ● ●
42 HOSE; RUBBER
(A) L=850 		1-21489-154-0 01 1 9707-9804 ● ●
42 HOSE; RUBBER
(A) L=850 		1-21489-154-0 01 1 9805-9904 ● ● ●
60 CAP; SUB TANK 1-21450-083-4 01 1 9603-9706 ●
60 CAP; SUB TANK 1-21450-137-0 01 1 9905- ● ● ● ●
60 CAP; SUB TANK 1-21450-137-0 01 1 9707-9804 ● ●
60 CAP; SUB TANK 1-21450-137-0 01 1 9805-9904 ● ● ●
63 TANK ASM; SUB 1-21481-097-1 01 1 9603-9609 ●
63 TANK ASM; SUB 1-21481-106-1 01 1 9610-9706 ●
63 TANK ASM; SUB 1-21481-106-1 01 1 9905-0003 ● ● ● ●
63 TANK ASM; SUB 1-21481-128-0 01 1 0004- ● ● ● ●
63 TANK ASM; SUB 1-21481-106-1 01 1 9707-9804 ● ●
63 TANK ASM; SUB 1-21481-106-1 01 1 9805-9904 ● ● ●
68 NUT; BRKT
CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 04 1 9905- ● ●
79 NUT; CLIP,HOSE
(A) M8 FLANGE 		0-91150-108-0 01 1 9603-9706 ●
79 NUT; CLIP,HOSE
(A) M8 FLANGE 		0-91150-108-0 01 1 9905- ● ● ● ●
79 NUT; CLIP,HOSE
(A) M8 FLANGE 		0-91150-108-0 01 1 9707-9804 ● ●
79 NUT; CLIP,HOSE
(B) M10 FLANGE 		0-91150-210-0 01 1 9607-9706 ●
79 NUT; CLIP,HOSE
(B) M10 FLANGE 		0-91150-210-0 01 1 9905- ● ● ● ●
79 NUT; CLIP,HOSE
(B) M10 FLANGE 		0-91150-210-0 01 1 9707-9804 ● ●
79 NUT; CLIP,HOSE
(A) M8 FLANGE 		0-91150-108-0 01 1 9805-9904 ● ● ●
79 NUT; CLIP,HOSE
(B) M10 FLANGE 		0-91150-210-0 01 1 9805-9904 ● ● ●
87 BRACKET; SUB TANK
(B) 		1-21489-155-0 01 1 9603-9706 ●
87 BRACKET; SUB TANK
(B) 		1-21489-155-0 01 1 9905- ● ● ● ●
87 BRACKET; SUB TANK
(B) 		1-21489-155-0 01 1 9707-9804 ● ●
87 BRACKET; SUB TANK
(A) 		1-21489-156-0 01 1 9603-9706 ●
87 BRACKET; SUB TANK
(A) 		1-21489-156-0 01 1 9905- ● ●
87 BRACKET; SUB TANK
EXC. CAB UP +110MM<TGG> (A) 		1-21489-156-0 01 1 9905- ● ●
87 BRACKET; SUB TANK
(B) 		1-21489-155-0 01 1 9805-9904 ● ● ●
87 BRACKET; SUB TANK
(A) 		1-21489-156-0 01 1 9707-9904 ●
87 BRACKET; SUB TANK
CAB UP +110MM<TGG> (C) 		1-21489-162-0 01 1 9905- ● ●
90 BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE 		0-28080-820-0 06 1 9603-9606 ●
90 BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE 		0-28680-820-0 06 1 9905- ● ● ● ●
90 BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE 		0-28680-820-0 06 1 9707-9804 ● ●
90 BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 9603-9706 ●
90 BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 9905- ● ● ● ●
90 BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 9707-9804 ● ●
90 BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 9805-9904 ● ● ●
90 BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE 		0-28680-820-0 06 1 9808-9904 ● ● ●
123 GASKET
ID=26.2 		8-94399-716-1 02 1 9603-9706 ●
123 GASKET
ID=26.2 		8-94399-716-1 02 1 9905- ● ● ● ●
123 GASKET
ID=26.2 		8-94399-716-1 02 1 9707-9804 ● ●
123 GASKET
ID=26.2 		8-94399-716-1 02 1 9805-9904 ● ● ●
139 FLOAT 1-21489-118-1 02 1 9603-9706 ●
139 FLOAT 1-21489-161-0 02 1 9905- ● ● ● ●
139 FLOAT 1-21489-161-0 02 1 9707-9804 ● ●
139 FLOAT 1-21489-161-0 02 1 9805-9904 ● ● ●
140 SHIM
T=0.8 		1-53458-716-0 AR 1 9603-9706 ●
140 SHIM
T=0.8 		1-53458-716-0 AR 1 9905- ● ● ● ●
140 SHIM
T=0.8 		1-53458-716-0 AR 1 9707-9804 ● ●
140 SHIM
T=0.8 		1-53458-716-0 AR 1 9805-9904 ● ● ●
143 COVER; PLUG 1-82389-017-0 02 1 9610-9706 ●
143 COVER; PLUG 1-82389-017-0 02 1 9905- ● ● ● ●
143 COVER; PLUG 1-82389-017-0 02 1 9707-9804 ● ●
143 COVER; PLUG 1-82389-017-0 02 1 9805-9904 ● ● ●

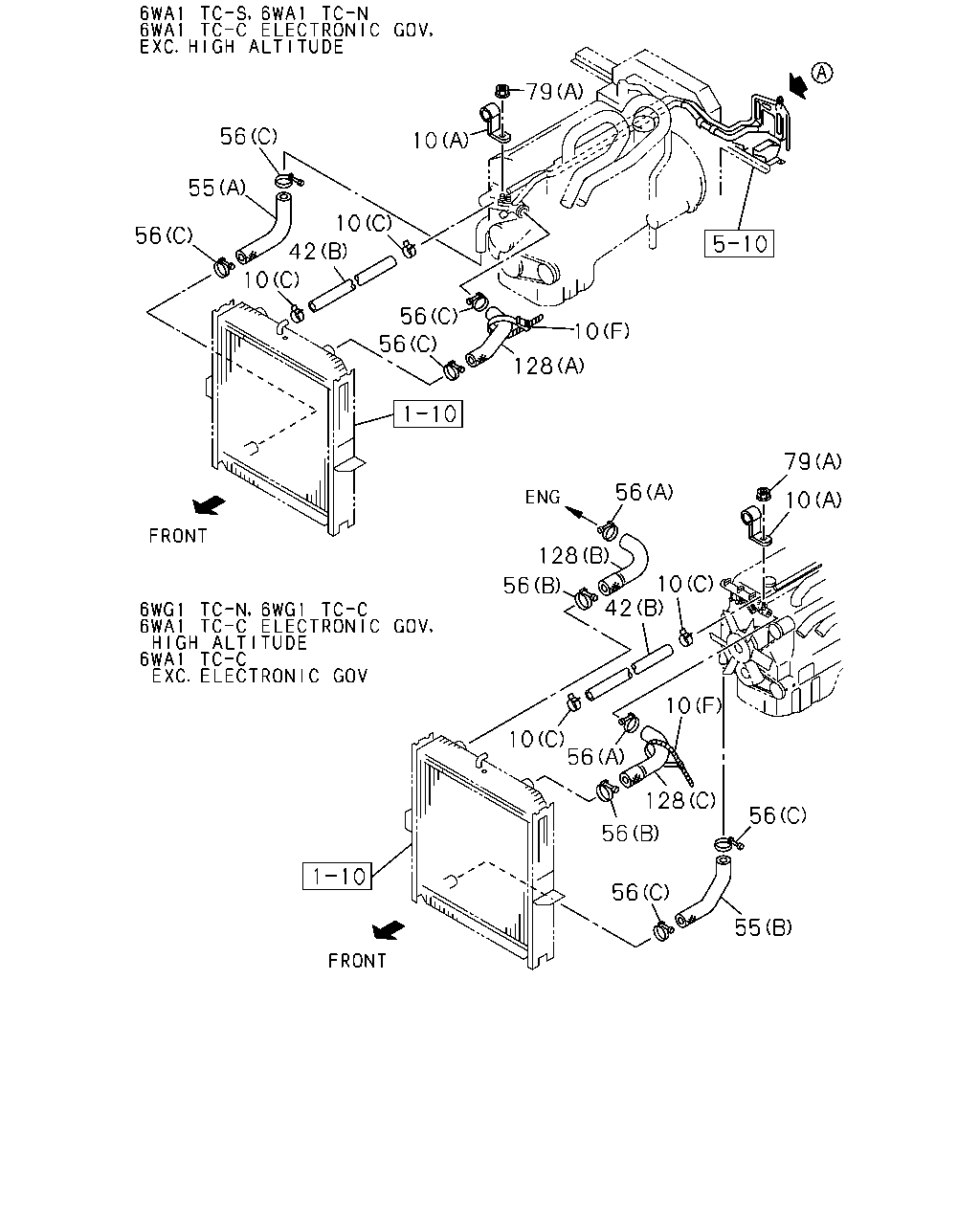

çizim 39204
79 56 10 55 10 42 56 10 56 56 10 128 79 56 10 128 10 42 56 10 10 56 128 56 56 56 55
BalonParca AdiParca NoAdetTipApplied Date A B C D E
10 CLIP; RUBBER HOSE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 9603-9706 ●
10 CLIP; RUBBER HOSE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 9905- ● ● ● ●
10 CLIP; RUBBER HOSE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 9707-9804 ● ●
10 CLIP; RUBBER HOSE
(B) D=43 		1-09700-703-0 01 1 9603-9706 ●
10 CLIP; RUBBER HOSE
CAB UP +110MM<TGG> (B) D=43 		1-09700-703-0 02 1 9905- ● ●
10 CLIP; RUBBER HOSE
(C) ID=14 		1-09704-102-0 04 1 9603-9706 ●
10 CLIP; RUBBER HOSE
(C) ID=14 		1-09704-102-0 04 1 9905- ● ● ● ●
10 CLIP; RUBBER HOSE
(C) ID=14 		1-09704-102-0 04 1 9707-9804 ● ●
10 CLIP; RUBBER HOSE
(D) ID=44 & 16 		1-09709-125-0 04 1 9603-9706 ●
10 CLIP; RUBBER HOSE
(D) ID=44 & 16 		1-09709-125-0 04 1 9905- ● ● ● ●
10 CLIP; RUBBER HOSE
(D) ID=44 & 16 		1-09709-125-0 04 1 9707-9804 ● ●
10 CLIP; RUBBER HOSE
(E) ID=14 L=44 		9-09917-427-0 02 1 9603-9706 ●
10 CLIP; RUBBER HOSE
(E) ID=14 L=44 		9-09917-427-0 02 1 9905- ● ● ● ●
10 CLIP; RUBBER HOSE
(E) ID=14 L=44 		9-09917-427-0 02 1 9707-9804 ● ●
10 CLIP; RUBBER HOSE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 9805-9904 ● ● ●
10 CLIP; RUBBER HOSE
(C) ID=14 		1-09704-102-0 04 1 9805-9904 ● ● ●
10 CLIP; RUBBER HOSE
(D) ID=44 & 16 		1-09709-125-0 04 1 9805-9904 ● ● ●
10 CLIP; RUBBER HOSE
(E) ID=14 L=44 		9-09917-427-0 02 1 9805-9904 ● ● ●
10 CLIP; RUBBER HOSE
(F) L=250 		1-09707-126-0 01 1 0010-0010 ● ● ● ●
10 CLIP; RUBBER HOSE
(F) L=350 		1-09707-183-0 01 1 0011- ● ● ● ●
10 CLIP; RUBBER HOSE
(B) D=43 		1-09700-703-0 01 1 9905- ● ●
10 CLIP; RUBBER HOSE
EXC. CAB UP +110MM<TGG> (B) D=43 		1-09700-703-0 01 1 9905- ● ●
42 HOSE; RUBBER
(B) L=560 SERVICED BY L=3000 		0-03259-300-0 01 1 9603-9706 ●
42 HOSE; RUBBER
(B) L=560 SERVICED BY L=3000 		0-03259-300-0 01 1 9707-9804 ●
42 HOSE; RUBBER
SHORT CHASSIS&RHD(EXZ5MC) (B) L=560 SERVICED BY L=3000 		0-03259-300-0 01 1 9707-9804 ●
42 HOSE; RUBBER
(B) L=560 SERVICED BY L=3000 		0-03259-300-0 01 1 9805-9904 ● ●
42 HOSE; RUBBER
SHORT CHASSIS&RHD(EXZ5MC) (B) L=560 SERVICED BY L=3000 		0-03259-300-0 01 1 9805-9904 ●
42 HOSE; RUBBER
(B) L=560 SERVICED BY L=3000 		0-03259-300-0 01 1 9905- ● ● ● ●
42 HOSE; RUBBER
(A) L=850 		1-21489-154-0 01 1 9603-9904 ●
42 HOSE; RUBBER
(A) L=850 		1-21489-154-0 01 1 9905- ● ● ● ●
42 HOSE; RUBBER
(A) L=850 		1-21489-154-0 01 1 9707-9804 ● ●
42 HOSE; RUBBER
(A) L=850 		1-21489-154-0 01 1 9805-9904 ● ● ●
55 HOSE; WATER,RAD OUTLET
(A) 		1-21437-448-2 01 1 9603-9804 ●
55 HOSE; WATER,RAD OUTLET
(A) 		1-21437-448-2 01 1 9805-9904 ● ●
55 HOSE; WATER,RAD OUTLET
SHORT CHASSIS&RHD(EXZ5MC) (A) 		1-21437-448-2 01 1 9905-9912 ●
55 HOSE; WATER,RAD OUTLET
ELECTRONIC GOV RED3(KG5) EXC. INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATO R(Q3T) (A) 		1-21437-448-2 01 1 9905-9912 ●
55 HOSE; WATER,RAD OUTLET
SHORT CHASSIS&RHD(EXZ5MC) INDONESIA EQUIPMENT(WR7) EXC. ELECTRONIC GOV RED3(KG5) (A) 		1-21437-448-2 01 1 9905-9912 ●
55 HOSE; WATER,RAD OUTLET
(A) 		1-21437-448-2 01 1 9905-9912 ●
55 HOSE; WATER,RAD OUTLET
(A) 		1-21437-448-2 01 1 0001- ● ● ●
55 HOSE; WATER,RAD OUTLET
EXC. CAB UP +110MM<TGG> (A) 		1-21437-448-2 01 1 0001- ●
55 HOSE; WATER,RAD OUTLET
SHORT CHASSIS&RHD(EXZ5MC) (B) 		1-21437-609-1 01 1 9707-9904 ●
55 HOSE; WATER,RAD OUTLET
SHORT CHASSIS&RHD(EXZ5MC) (B) 		1-21437-615-1 01 1 9905-9912 ●
55 HOSE; WATER,RAD OUTLET
SHORT CHASSIS&LHD(EXZ6MC) CAB UP +110MM<TGG> RADIATOR HEAVY DUTY<V05> (B) 		1-21437-615-1 01 1 0001- ●
55 HOSE; WATER,RAD OUTLET
SHORT CHASSIS&RHD(EXZ5MC) (B) 		1-21437-615-1 01 1 0001- ●
55 HOSE; WATER,RAD OUTLET
ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) (B) 		1-21437-710-0 01 1 9905-9912 ●
55 HOSE; WATER,RAD OUTLET
SHORT CHASSIS&RHD(EXZ5MC) EXC. ELECTRONIC GOV RED3(KG5),INDONESIA EQUIPMENT(WR7) (B) 		1-21437-710-0 01 1 9905-9912 ●
55 HOSE; WATER,RAD OUTLET
SHORT CHASSIS&LHD(EXZ6MC) EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-21437-710-0 01 1 9905-9912 ●
55 HOSE; WATER,RAD OUTLET
SHORT CHASSIS&RHD(EXZ5MC) CAB UP +110MM<TGG> (B) 		1-21437-710-0 01 1 0001- ●
55 HOSE; WATER,RAD OUTLET
SHORT CHASSIS&LHD(EXZ6MC) CAB UP +110MM<TGG> EXC. RADIATOR HEAVY DUTY<V05> (B) 		1-21437-710-0 01 1 0001- ●
56 CLIP; WATER HOSE,RAD
(C) ID=72 		1-09704-068-0 04 1 9603-9804 ●
56 CLIP; WATER HOSE,RAD
(C) ID=72 		1-09704-068-0 04 1 9805-9904 ● ●
56 CLIP; WATER HOSE,RAD
SHORT CHASSIS&RHD(EXZ5MC) (C) ID=72 		1-09704-068-0 04 1 9905-9912 ●
56 CLIP; WATER HOSE,RAD
ELECTRONIC GOV RED3(KG5) EXC. INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATO R(Q3T) (C) ID=72 		1-09704-068-0 04 1 9905-9912 ●
56 CLIP; WATER HOSE,RAD
SHORT CHASSIS&RHD(EXZ5MC) INDONESIA EQUIPMENT(WR7) EXC. ELECTRONIC GOV RED3(KG5) (C) ID=72 		1-09704-068-0 04 1 9905-9912 ●
56 CLIP; WATER HOSE,RAD
(C) ID=72 		1-09704-068-0 04 1 9905-9912 ●
56 CLIP; WATER HOSE,RAD
CAB UP +110MM<TGG> (C) ID=72 		1-09704-068-0 02 1 0001- ● ●
56 CLIP; WATER HOSE,RAD
SHORT CHASSIS&RHD(EXZ5MC) (A) ID=57 		1-09704-066-0 02 1 9707-9904 ●
56 CLIP; WATER HOSE,RAD
ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) (A) ID=57 		1-09704-066-0 02 1 9905-9912 ●
56 CLIP; WATER HOSE,RAD
SHORT CHASSIS&RHD(EXZ5MC) EXC. ELECTRONIC GOV RED3(KG5),INDONESIA EQUIPMENT(WR7) (A) ID=57 		1-09704-066-0 02 1 9905-9912 ●
56 CLIP; WATER HOSE,RAD
SHORT CHASSIS&LHD(EXZ6MC) EXC. ELECTRONIC GOV RED3(KG5) (A) ID=57 		1-09704-066-0 02 1 9905-9912 ●
56 CLIP; WATER HOSE,RAD
SHORT CHASSIS&RHD(EXZ5MC) (A) ID=57 		1-09704-066-0 02 1 9905-9912 ●
56 CLIP; WATER HOSE,RAD
CAB UP +110MM<TGG> (A) ID=57 		1-09704-066-0 02 1 0001- ● ●
56 CLIP; WATER HOSE,RAD
SHORT CHASSIS&RHD(EXZ5MC) (B) ID=63 		1-09704-067-0 02 1 9707-9904 ●
56 CLIP; WATER HOSE,RAD
ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) (B) ID=63 		1-09704-067-0 02 1 9905-9912 ●
56 CLIP; WATER HOSE,RAD
SHORT CHASSIS&RHD(EXZ5MC) EXC. ELECTRONIC GOV RED3(KG5),INDONESIA EQUIPMENT(WR7) (B) ID=63 		1-09704-067-0 02 1 9905-9912 ●
56 CLIP; WATER HOSE,RAD
SHORT CHASSIS&LHD(EXZ6MC) EXC. ELECTRONIC GOV RED3(KG5) (B) ID=63 		1-09704-067-0 02 1 9905-9912 ●
56 CLIP; WATER HOSE,RAD
SHORT CHASSIS&RHD(EXZ5MC) (B) ID=63 		1-09704-067-0 02 1 9905-9912 ●
56 CLIP; WATER HOSE,RAD
CAB UP +110MM<TGG> (B) ID=63 		1-09704-067-0 02 1 0001- ● ●
56 CLIP; WATER HOSE,RAD
SHORT CHASSIS&RHD(EXZ5MC) (C) ID=72 		1-09704-068-0 02 1 9707-9904 ●
56 CLIP; WATER HOSE,RAD
ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) (C) ID=72 		1-09704-068-0 02 1 9905-9912 ●
56 CLIP; WATER HOSE,RAD
SHORT CHASSIS&RHD(EXZ5MC) EXC. ELECTRONIC GOV RED3(KG5),INDONESIA EQUIPMENT(WR7) (C) ID=72 		1-09704-068-0 02 1 9905-9912 ●
56 CLIP; WATER HOSE,RAD
SHORT CHASSIS&LHD(EXZ6MC) EXC. ELECTRONIC GOV RED3(KG5) (C) ID=72 		1-09704-068-0 02 1 9905-9912 ●
56 CLIP; WATER HOSE,RAD
SHORT CHASSIS&RHD(EXZ5MC) (C) ID=72 		1-09704-068-0 02 1 9905-9912 ●
56 CLIP; WATER HOSE,RAD
(C) ID=72 		1-09704-068-0 04 1 0001- ● ● ●
56 CLIP; WATER HOSE,RAD
EXC. CAB UP +110MM<TGG> (C) ID=72 		1-09704-068-0 04 1 0001- ●
79 NUT; CLIP,HOSE
(A) M8 FLANGE 		0-91150-108-0 01 1 9603-9706 ●
79 NUT; CLIP,HOSE
(A) M8 FLANGE 		0-91150-108-0 01 1 9905- ● ● ● ●
79 NUT; CLIP,HOSE
(A) M8 FLANGE 		0-91150-108-0 01 1 9707-9804 ● ●
79 NUT; CLIP,HOSE
(B) M10 FLANGE 		0-91150-210-0 01 1 9607-9706 ●
79 NUT; CLIP,HOSE
(B) M10 FLANGE 		0-91150-210-0 01 1 9905- ● ● ● ●
79 NUT; CLIP,HOSE
(B) M10 FLANGE 		0-91150-210-0 01 1 9707-9804 ● ●
79 NUT; CLIP,HOSE
(A) M8 FLANGE 		0-91150-108-0 01 1 9805-9904 ● ● ●
79 NUT; CLIP,HOSE
(B) M10 FLANGE 		0-91150-210-0 01 1 9805-9904 ● ● ●
128 HOSE; WATER,RAD INL
(A) 		1-21437-495-1 01 1 9603-9804 ●
128 HOSE; WATER,RAD INL
(A) 		1-21437-495-1 01 1 9805-9904 ● ●
128 HOSE; WATER,RAD INL
SHORT CHASSIS&RHD(EXZ5MC) (A) 		1-21437-495-1 01 1 9905-9912 ●
128 HOSE; WATER,RAD INL
ELECTRONIC GOV RED3(KG5) EXC. INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATO R(Q3T) (A) 		1-21437-495-1 01 1 9905-9912 ●
128 HOSE; WATER,RAD INL
SHORT CHASSIS&RHD(EXZ5MC) INDONESIA EQUIPMENT(WR7) EXC. ELECTRONIC GOV RED3(KG5) (A) 		1-21437-495-1 01 1 9905-9912 ●
128 HOSE; WATER,RAD INL
(A) 		1-21437-495-1 01 1 9905-9912 ●
128 HOSE; WATER,RAD INL
(A) 		1-21437-495-1 01 1 0001- ● ● ●
128 HOSE; WATER,RAD INL
EXC. CAB UP +110MM<TGG> (A) 		1-21437-495-1 01 1 0001- ●
128 HOSE; WATER,RAD INL
SHORT CHASSIS&RHD(EXZ5MC) (C) 		1-21437-553-0 01 1 9707-9904 ●
128 HOSE; WATER,RAD INL
ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) (C) 		1-21437-618-1 01 1 9905-9912 ●
128 HOSE; WATER,RAD INL
SHORT CHASSIS&RHD(EXZ5MC) EXC. ELECTRONIC GOV RED3(KG5),INDONESIA EQUIPMENT(WR7) (C) 		1-21437-618-1 01 1 9905-9912 ●
128 HOSE; WATER,RAD INL
SHORT CHASSIS&LHD(EXZ6MC) EXC. ELECTRONIC GOV RED3(KG5) (C) 		1-21437-618-1 01 1 9905-9912 ●
128 HOSE; WATER,RAD INL
SHORT CHASSIS&RHD(EXZ5MC) (C) 		1-21437-618-1 01 1 9905-9912 ●
128 HOSE; WATER,RAD INL
CAB UP +110MM<TGG> (C) 		1-21437-618-1 01 1 0001- ● ●
128 HOSE; WATER,RAD INL
SHORT CHASSIS&RHD(EXZ5MC) (B) 		1-21437-552-0 01 1 9707-9904 ●
128 HOSE; WATER,RAD INL
ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) (B) 		1-21437-617-0 01 1 9905-9912 ●
128 HOSE; WATER,RAD INL
SHORT CHASSIS&RHD(EXZ5MC) EXC. ELECTRONIC GOV RED3(KG5),INDONESIA EQUIPMENT(WR7) (B) 		1-21437-617-0 01 1 9905-9912 ●
128 HOSE; WATER,RAD INL
SHORT CHASSIS&LHD(EXZ6MC) EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-21437-617-0 01 1 9905-9912 ●
128 HOSE; WATER,RAD INL
SHORT CHASSIS&RHD(EXZ5MC) (B) 		1-21437-617-0 01 1 9905-9912 ●
128 HOSE; WATER,RAD INL
CAB UP +110MM<TGG> (B) 		1-21437-617-0 01 1 0001- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
