◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50694 - NKR-RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶

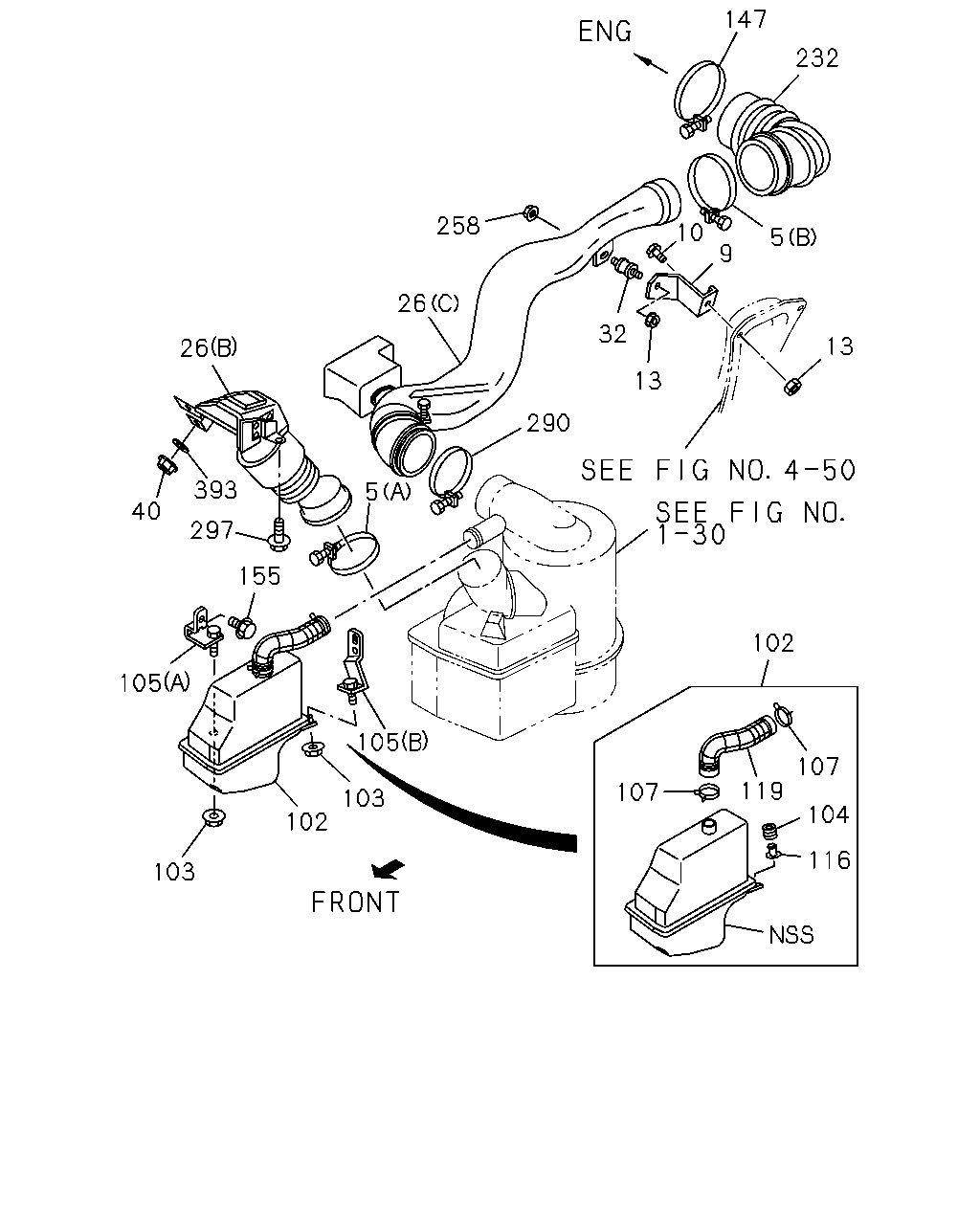

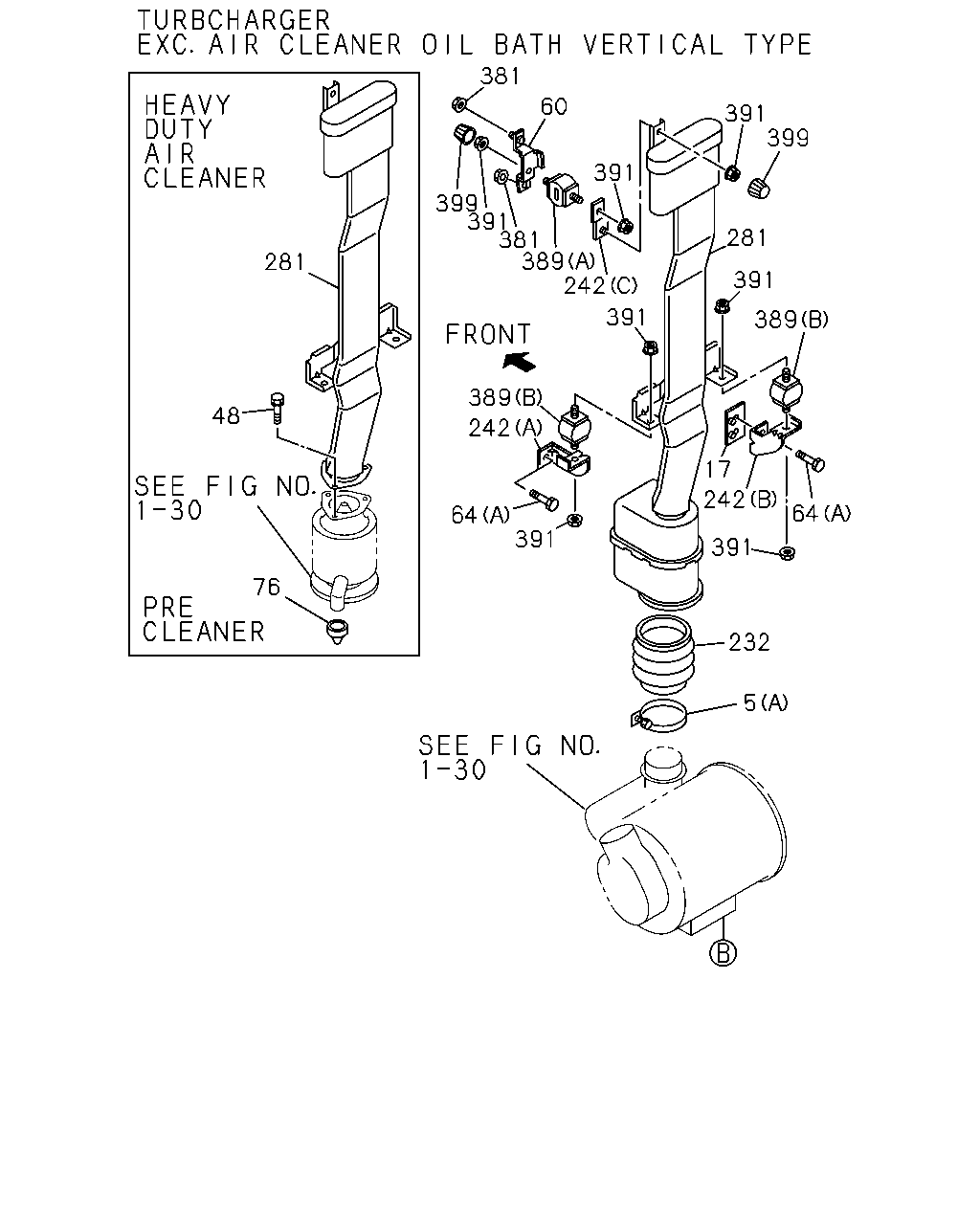

1-31 — AIR DUCT (#47298) — 1374 parça

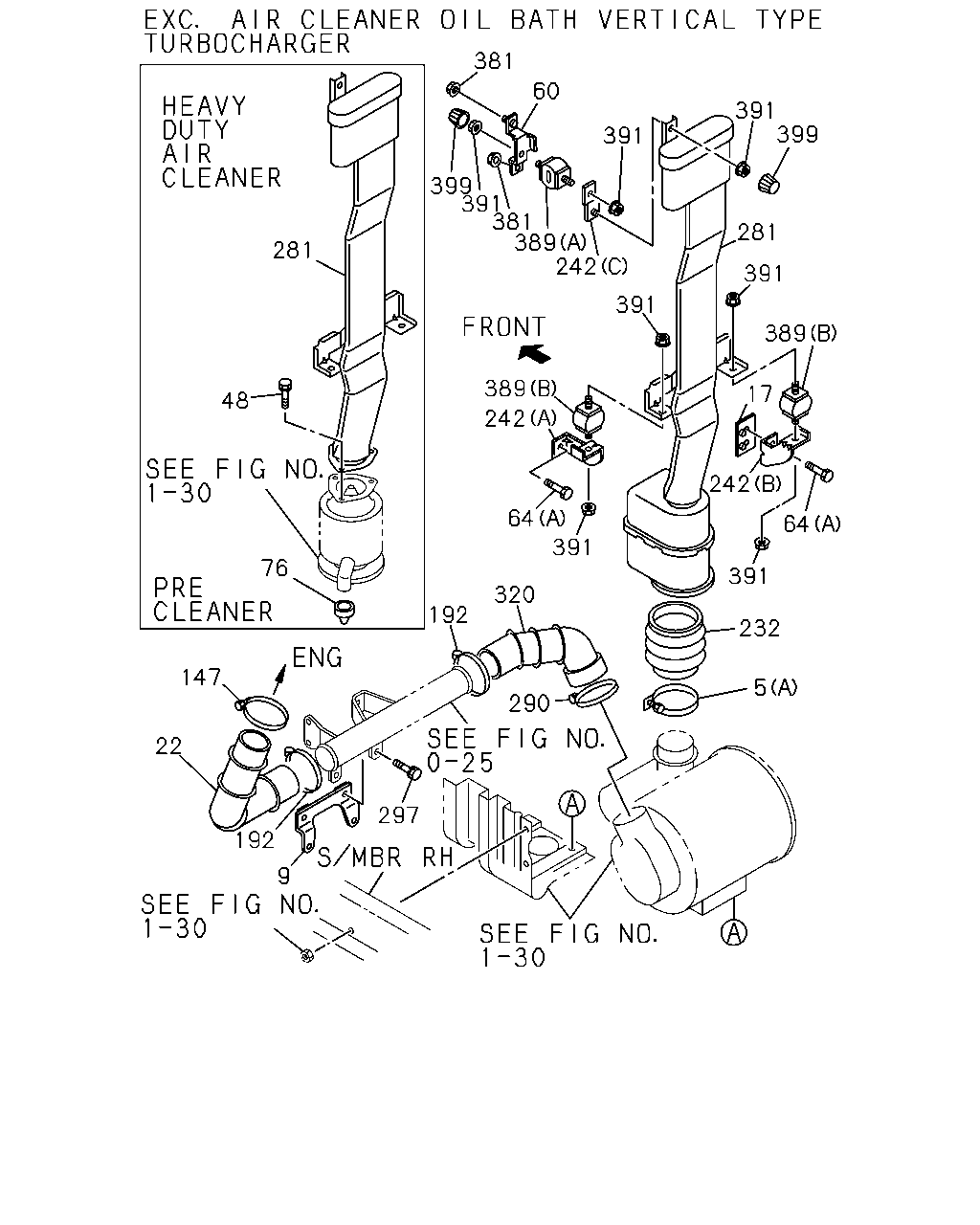

çizim 16231
381 60 391 399 391 399 391 381 389 242 281 281 391 391 389 389 17 48 242 242 64 64 391 76 391 320 192 232 147 5 290 22 297 192 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 03.407 CLIP; AIR DUCT
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67 		9-09915-069-1 01 1 9312-9711 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67 		9-09915-069-1 01 1 9712- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87 		8-97087-432-0 01 1 9312-9506 ● ● ●
5 03.407 CLIP; AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87 		8-97087-432-0 01 1 9312-9506 ●
5 03.407 CLIP; AIR DUCT
(A) ID=87 		8-97087-432-0 01 1 9312-9506 ● ● ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87 		8-97087-432-0 01 1 9507-9711 ● ● ●
5 03.407 CLIP; AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87 		8-97087-432-0 01 1 9507-9711 ●
5 03.407 CLIP; AIR DUCT
(A) ID=87 		8-97087-432-0 01 1 9507-9711 ● ● ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87 		8-97087-432-0 01 1 9712- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87 		8-97087-432-0 01 1 9712- ● ● ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=92 		9-09915-072-1 01 1 9712- ● ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) D=101.6 		9-09915-502-1 01 1 9312-9510 ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) D=101.6 		9-09915-502-1 01 1 9511-9711 ● ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> D=101.6 		9-09915-502-1 01 1 9712- ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) D=101.6 		9-09915-502-1 01 1 9712- ● ●
9 03.417 BRACKET; INT PIPE
AIR INTAKE SYSTEM FRONT<6PC> 		8-97089-654-1 01 1 9312-9711 ● ● ● ●
9 03.417 BRACKET; INT PIPE
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-97089-654-1 01 1 9712- ● ●
9 03.417 BRACKET; INT PIPE
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97089-655-0 01 1 9312-9711 ● ● ● ●
9 03.417 BRACKET; INT PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97089-655-0 01 1 9712- ● ● ● ●
9 03.417 BRACKET; INT PIPE
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-94155-425-1 01 1 9312-9506 ● ● ●
9 03.417 BRACKET; INT PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-94155-425-1 01 1 9507- ● ● ●
9 03.417 BRACKET; INT PIPE
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97102-618-0 01 1 9801- ● ●
17 03.403 GASKET; AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> 		8-97853-699-2 01 1 9312- ●
17 03.403 GASKET; AIR DUCT 8-97853-699-2 01 1 9312- ● ●
22 03.417 HOSE; CONNECTOR,ENG TO PIPE
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97107-173-0 01 1 9312-9506 ● ● ●
22 03.417 HOSE; CONNECTOR,ENG TO PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97107-173-0 01 1 9507-9711 ● ● ●
22 03.417 HOSE; CONNECTOR,ENG TO PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 		8-97107-173-0 01 1 9712- ● ● ●
48 03.417 BOLT; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 04.785 M8X18 W/LK WASHER 		0-50040-818-0 03 1 9312-9711 ● ● ●
48 03.417 BOLT; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 01.062 M8X16 FLANGE 		0-28080-816-0 03 1 9712- ● ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 		8-97856-956-0 01 1 9312-9506 ● ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 		8-97856-956-0 01 1 9507- ● ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4HF1 ENG(RLS) 		8-97856-957-0 01 1 9312-9510 ●
60 03.417 BRACKET; AIR DUCT,UPR
4HF1 ENG(RLS) 		8-97856-957-0 01 1 9511-9711 ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97856-957-0 01 1 9712- ●
60 03.417 BRACKET; AIR DUCT,UPR
4HF1 ENG(RLS) 		8-97856-957-0 01 1 9712- ● ●
64 03.417 BOLT; BRKT,AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> 03.483 (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9312- ●
64 03.417 BOLT; BRKT,AIR DUCT
03.483 (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9312- ● ●
64 03.417 BOLT; BRKT,AIR DUCT
4HF1 ENG(RLS) 04.047 (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 9312-9412 ●
76 03.403 VALVE; PRE ACL
4JB1 ENG(RLF),4BE1 ENG(RLH) HEAVY DUTY AIR CLEANER<K46> 03.415 		8-94447-157-0 01 1 9312-9506 ● ● ●
76 03.403 VALVE; PRE ACL
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) HEAVY DUTY AIR CLEANER<K46> 03.415 		8-94447-157-0 01 1 9507-9606 ●
76 03.403 VALVE; PRE ACL
4JB1 ENG(RLF),4BE1 ENG(RLH) HEAVY DUTY AIR CLEANER<K46> 03.415 		8-94447-157-0 01 1 9507-9606 ● ●
76 03.403 VALVE; PRE ACL
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) HEAVY DUTY AIR CLEANER<K46> 03.415 		8-94447-157-0 01 1 9607- ● ● ●
147 03.417 CLIP; HOSE TO ENG
4JB1 ENG(RLF),4BE1 ENG(RLH) 03.407 ID=79 		9-09915-734-1 01 1 9312-9506 ● ● ● ● ● ●
147 03.417 CLIP; HOSE TO ENG
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 03.407 ID=79 		9-09915-734-1 01 1 9507-9711 ● ● ● ● ● ●
147 03.417 CLIP; HOSE TO ENG
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=79 		9-09915-734-1 01 1 9712- ● ● ● ●
147 03.417 CLIP; HOSE TO ENG
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.407 ID=79 		9-09915-734-1 01 1 9712- ● ● ●
147 03.417 CLIP; HOSE TO ENG
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9712- ● ●
147 03.417 CLIP; HOSE TO ENG
4HF1 ENG(RLS) 03.008 ID=95 		9-09915-733-1 01 1 9312-9510 ●
147 03.417 CLIP; HOSE TO ENG
4HF1 ENG(RLS) 03.008 ID=95 		9-09915-733-1 01 1 9511-9711 ● ●
147 03.417 CLIP; HOSE TO ENG
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95 		9-09915-733-1 01 1 9712- ●
147 03.417 CLIP; HOSE TO ENG
4HF1 ENG(RLS) 03.008 ID=95 		9-09915-733-1 01 1 9712- ● ●
192 03.407 CLIP; HOSE
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> ID=79 		9-09915-734-1 02 1 9312-9506 ● ● ●
192 03.407 CLIP; HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> ID=79 		9-09915-734-1 02 1 9507-9711 ● ● ●
192 03.407 CLIP; HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> ID=79 		9-09915-734-1 02 1 9712- ● ● ●
192 03.407 CLIP; HOSE
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> ID=87 		8-97087-432-0 01 1 9712- ● ●
232 03.417 HOSE; CONN
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97096-429-1 01 1 9312-9711 ● ● ● ●
232 03.417 HOSE; CONN
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97096-429-1 01 1 9712- ● ● ● ●
232 03.417 HOSE; CONN
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 		5-14231-115-1 01 1 9312-9506 ● ● ●
232 03.417 HOSE; CONN
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 		5-14231-115-1 01 1 9507- ● ● ●
232 03.417 HOSE; CONN
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-94373-874-1 01 1 9312- ● ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97102-361-0 01 1 9712- ● ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) 		8-97042-301-2 01 1 9312-9510 ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) 		8-97042-301-2 01 1 9511-9609 ● ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) 		8-97109-423-0 01 1 9610-9711 ● ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97109-423-0 01 1 9712- ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) 		8-97109-423-0 01 1 9712- ● ●
242 03.417 BRACKET; AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97856-935-0 01 1 9312-9506 ● ● ●
242 03.417 BRACKET; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97856-935-0 01 1 9507- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (C) 		8-97856-958-0 01 1 9312-9506 ● ● ●
242 03.417 BRACKET; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (C) 		8-97856-958-0 01 1 9507- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97856-967-1 01 1 9312-9506 ● ● ●
242 03.417 BRACKET; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97856-967-1 01 1 9507- ● ● ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (D) 		8-97853-633-1 01 1 9312-9510 ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (D) 		8-97853-633-1 01 1 9511-9711 ● ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (D) 		8-97853-633-1 01 1 9712- ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (D) 		8-97853-633-1 01 1 9712- ● ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (E) 		8-97853-634-0 01 1 9312-9412 ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (G) 		8-97857-844-0 01 1 9501-9510 ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (G) 		8-97857-844-0 01 1 9511-9711 ● ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (G) 		8-97857-844-0 01 1 9712- ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (G) 		8-97857-844-0 01 1 9712- ● ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (F) 		8-97853-635-1 01 1 9312-9412 ●
281 03.417 DUCT; AIR,VERTICAL INT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97076-959-2 01 1 9312-9506 ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97076-959-2 01 1 9507- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 		8-97089-948-2 01 1 9312- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
AIR INTAKE FRONT VERTICAL<6NN> 		8-94311-105-1 01 1 9312-9404 ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) 		8-97042-039-3 01 1 9312-9312 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) 		8-97108-552-0 01 1 9401-9502 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97108-552-0 01 1 9503-9510 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97139-239-0 01 1 9511-9605 ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97161-847-0 01 1 9606-9711 ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97161-847-0 01 1 9712- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> 		8-97120-084-0 01 1 9503-9510 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> 		8-97120-084-0 01 1 9511-9711 ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 		8-97120-084-0 01 1 9712- ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9312-9401 ● ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 03.407 ID=92 		9-09915-072-1 01 1 9312-9401 ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9402-9506 ● ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 03.407 ID=92 		9-09915-072-1 01 1 9402-9506 ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9507-9711 ● ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 03.407 ID=92 		9-09915-072-1 01 1 9507-9711 ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9712- ● ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.407 ID=92 		9-09915-072-1 01 1 9712- ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.407 ID=79 		9-09915-734-1 01 1 9312-9506 ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.407 ID=79 		9-09915-734-1 01 1 9507-9709 ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 01.166 ID=76 		1-09704-069-0 01 1 9710-9711 ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.407 ID=79 		9-09915-734-1 01 1 9712- ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> 01.166 ID=57 		5-09704-051-0 01 1 9712- ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=87 		9-09915-071-1 01 1 9402- ● ● ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9312-9711 ●
297 03.417 BOLT; DUCT
02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9312-9711 ● ●
297 03.417 BOLT; DUCT
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9312-9711 ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9712- ● ● ● ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9312-9502 ●
297 03.417 BOLT; DUCT
03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9312-9502 ● ●
297 03.417 BOLT; DUCT
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9312-9502 ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9503-9605 ●
297 03.417 BOLT; DUCT
03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9503-9605 ● ● ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> 16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 01 1 9606-9711 ●
297 03.417 BOLT; DUCT
16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 01 1 9606-9711 ● ● ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> 16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 01 1 9712- ● ● ● ●
297 03.417 BOLT; DUCT
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. AIR INTAKE SYSTEM FRONT<6PC> 03.415 M8X35 FLANGE 		0-28080-835-0 02 1 9312-9404 ● ● ●
297 03.417 BOLT; DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.415 M8X35 FLANGE 		0-28080-835-0 02 1 9312-9404 ● ● ●
297 03.417 BOLT; DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.415 M8X35 FLANGE 		0-28080-835-0 01 1 9405-9411 ● ● ●
297 03.417 BOLT; DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 9412-9711 ● ● ●
297 03.417 BOLT; DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 9712- ● ●
297 03.417 BOLT; DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.206 M8X14 W/LK WASHER 		0-50040-814-0 01 1 9312-9506 ● ● ●
297 03.417 BOLT; DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.206 M8X14 W/LK WASHER 		0-50040-814-0 01 1 9507-9711 ● ● ●
297 03.417 BOLT; DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9712- ● ● ●
297 03.417 BOLT; DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 02 1 9312-9506 ● ● ●
297 03.417 BOLT; DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 02 1 9507-9711 ● ● ●
297 03.417 BOLT; DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.611 M10X20 FLANGE 		0-28681-020-0 02 1 9712-9805 ● ● ●
297 03.417 BOLT; DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M10X16 FLANGE 		0-28081-016-0 02 1 9806- ● ● ●
297 03.417 BOLT; DUCT
HALOGEN HEAD LAMP RECTANGULAR<TR4> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9312-9502 ●
320 03.417 HOSE; CONN,ACL
4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. FRAME-KICK UP<7EW> 		8-94325-846-0 01 1 9312- ● ● ●
320 03.417 HOSE; CONN,ACL
4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z>,FRAME-KICK UP<7EW> 		8-94313-594-0 01 1 9312- ● ● ●
320 03.417 HOSE; CONN,ACL
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94412-772-1 01 1 9312-9506 ● ● ●
320 03.417 HOSE; CONN,ACL
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94412-772-1 01 1 9507-9711 ● ● ●
320 03.417 HOSE; CONN,ACL
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. TURBOCHARGER<K51> 		8-94412-772-1 01 1 9712- ● ● ●
320 03.417 HOSE; CONN,ACL
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 		8-94110-075-2 01 1 9312-9506 ● ● ●
320 03.417 HOSE; CONN,ACL
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 		8-94110-075-2 01 1 9507-9711 ● ● ●
320 03.417 HOSE; CONN,ACL
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94110-075-2 01 1 9712- ● ● ●
320 03.417 HOSE; CONN,ACL
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 		8-97168-373-0 01 1 9712- ● ●
320 03.417 HOSE; CONN,ACL
4BE1 ENG(RLH) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> FRAME-KICK UP<7EW> 		8-97109-815-0 01 1 9312- ●
320 03.417 HOSE; CONN,ACL
4BE1 ENG(RLH) FRAME-KICK UP<7EW> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 		8-97106-732-0 01 1 9312- ●
320 03.417 HOSE; CONN,ACL
4HF1 ENG(RLS) 		8-97069-875-1 01 1 9312-9510 ●
320 03.417 HOSE; CONN,ACL
4HF1 ENG(RLS) 		8-97069-875-1 01 1 9511-9711 ● ●
320 03.417 HOSE; CONN,ACL
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97069-875-1 01 1 9712- ●
320 03.417 HOSE; CONN,ACL
4HF1 ENG(RLS) 		8-97069-875-1 01 1 9712- ● ●
381 03.417 NUT; BRKT,AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE 		1-09984-018-0 02 1 9312- ●
381 03.417 NUT; BRKT,AIR DUCT
16.800 M6 FLANGE 		1-09984-018-0 02 1 9312- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A) 		8-97080-149-0 01 1 9312- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (A) 		8-97080-149-0 01 1 9312- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B) 		8-97081-886-0 02 1 9312- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-97081-886-0 02 1 9312- ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE 		8-94279-517-0 07 1 9312-9506 ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE 		8-94279-517-0 07 1 9507- ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HF1 ENG(RLS) M8 FLANGE 		8-94279-517-0 06 1 9312-9510 ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HF1 ENG(RLS) M8 FLANGE 		8-94279-517-0 06 1 9511-9711 ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE 		8-94279-517-0 06 1 9712- ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HF1 ENG(RLS) M8 FLANGE 		8-94279-517-0 06 1 9712- ● ●
399 03.417 CAP; BRKT,AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> 		8-94273-605-0 02 1 9312- ●
399 03.417 CAP; BRKT,AIR DUCT 8-94273-605-0 02 1 9312- ● ●

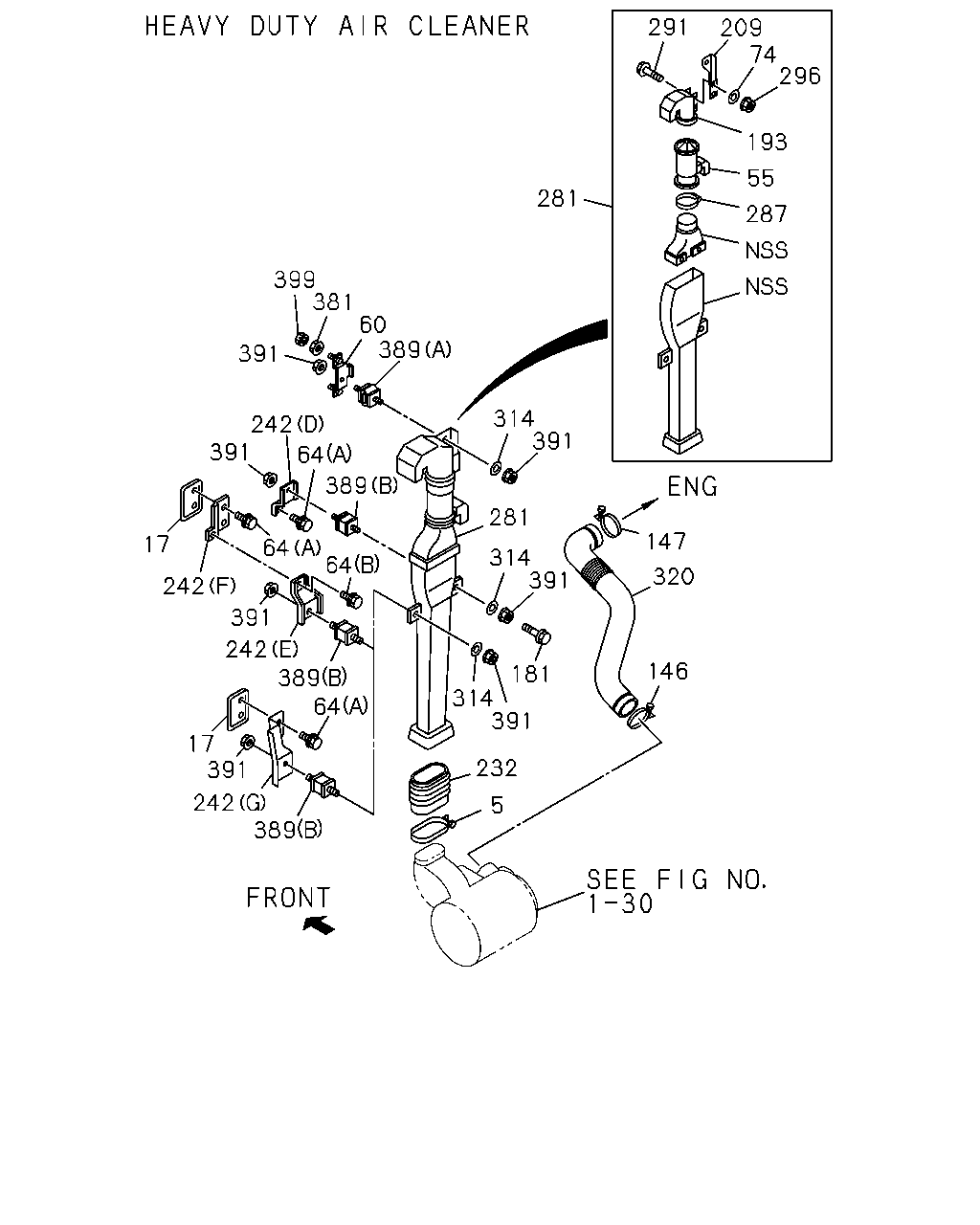

çizim 17790
291 209 74 296 193 55 281 287 399 381 60 389 391 314 391 242 391 64 389 281 147 17 64 64 314 391 320 242 391 242 389 64 146 181 314 391 17 391 232 242 389 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 03.407 CLIP; AIR DUCT
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67 		9-09915-069-1 01 1 9312-9711 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67 		9-09915-069-1 01 1 9712- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87 		8-97087-432-0 01 1 9312-9506 ● ● ●
5 03.407 CLIP; AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87 		8-97087-432-0 01 1 9312-9506 ●
5 03.407 CLIP; AIR DUCT
(A) ID=87 		8-97087-432-0 01 1 9312-9506 ● ● ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87 		8-97087-432-0 01 1 9507-9711 ● ● ●
5 03.407 CLIP; AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87 		8-97087-432-0 01 1 9507-9711 ●
5 03.407 CLIP; AIR DUCT
(A) ID=87 		8-97087-432-0 01 1 9507-9711 ● ● ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87 		8-97087-432-0 01 1 9712- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87 		8-97087-432-0 01 1 9712- ● ● ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=92 		9-09915-072-1 01 1 9712- ● ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) D=101.6 		9-09915-502-1 01 1 9312-9510 ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) D=101.6 		9-09915-502-1 01 1 9511-9711 ● ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> D=101.6 		9-09915-502-1 01 1 9712- ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) D=101.6 		9-09915-502-1 01 1 9712- ● ●
17 03.403 GASKET; AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> 		8-97853-699-2 01 1 9312- ●
17 03.403 GASKET; AIR DUCT 8-97853-699-2 01 1 9312- ● ●
55 03.402 CLEANER ASM; AIR,PRE
4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> 		8-97126-267-0 01 1 9503-9510 ●
55 03.402 CLEANER ASM; AIR,PRE
4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> 		8-97126-267-0 01 1 9511-9711 ● ●
55 03.402 CLEANER ASM; AIR,PRE
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 		8-97126-267-0 01 1 9712- ● ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 		8-97856-956-0 01 1 9312-9506 ● ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 		8-97856-956-0 01 1 9507- ● ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4HF1 ENG(RLS) 		8-97856-957-0 01 1 9312-9510 ●
60 03.417 BRACKET; AIR DUCT,UPR
4HF1 ENG(RLS) 		8-97856-957-0 01 1 9511-9711 ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97856-957-0 01 1 9712- ●
60 03.417 BRACKET; AIR DUCT,UPR
4HF1 ENG(RLS) 		8-97856-957-0 01 1 9712- ● ●
64 03.417 BOLT; BRKT,AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> 03.483 (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9312- ●
64 03.417 BOLT; BRKT,AIR DUCT
03.483 (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9312- ● ●
64 03.417 BOLT; BRKT,AIR DUCT
4HF1 ENG(RLS) 04.047 (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 9312-9412 ●
74 03.417 WASHER; PL,ACL
4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> 06.760 ID=8.4 OD=22 		9-09160-708-0 02 1 9503-9510 ●
74 03.417 WASHER; PL,ACL
4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> 06.760 ID=8.4 OD=22 		9-09160-708-0 02 1 9511-9711 ● ●
74 03.417 WASHER; PL,ACL
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 06.760 ID=8.4 OD=22 		9-09160-708-0 02 1 9712- ● ● ●
146 03.417 CLIP; HOSE,ACL
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=79 		9-09915-734-1 01 1 9312- ● ●
146 03.417 CLIP; HOSE,ACL
4HF1 ENG(RLS) 03.008 ID=95 		9-09915-733-1 01 1 9312-9510 ●
146 03.417 CLIP; HOSE,ACL
4HF1 ENG(RLS) 03.008 ID=95 		9-09915-733-1 01 1 9511-9711 ● ●
146 03.417 CLIP; HOSE,ACL
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95 		9-09915-733-1 01 1 9712- ●
146 03.417 CLIP; HOSE,ACL
4HF1 ENG(RLS) 03.008 ID=95 		9-09915-733-1 01 1 9712- ● ●
147 03.417 CLIP; HOSE TO ENG
4JB1 ENG(RLF),4BE1 ENG(RLH) 03.407 ID=79 		9-09915-734-1 01 1 9312-9506 ● ● ● ● ● ●
147 03.417 CLIP; HOSE TO ENG
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 03.407 ID=79 		9-09915-734-1 01 1 9507-9711 ● ● ● ● ● ●
147 03.417 CLIP; HOSE TO ENG
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=79 		9-09915-734-1 01 1 9712- ● ● ● ●
147 03.417 CLIP; HOSE TO ENG
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.407 ID=79 		9-09915-734-1 01 1 9712- ● ● ●
147 03.417 CLIP; HOSE TO ENG
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9712- ● ●
147 03.417 CLIP; HOSE TO ENG
4HF1 ENG(RLS) 03.008 ID=95 		9-09915-733-1 01 1 9312-9510 ●
147 03.417 CLIP; HOSE TO ENG
4HF1 ENG(RLS) 03.008 ID=95 		9-09915-733-1 01 1 9511-9711 ● ●
147 03.417 CLIP; HOSE TO ENG
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95 		9-09915-733-1 01 1 9712- ●
147 03.417 CLIP; HOSE TO ENG
4HF1 ENG(RLS) 03.008 ID=95 		9-09915-733-1 01 1 9712- ● ●
181 03.407 BOLT; AIR DUCT TO RAD
4HF1 ENG(RLS) 06.672 M8X16 FLANGE 		0-28280-816-0 01 1 9312-9510 ●
181 03.407 BOLT; AIR DUCT TO RAD
4HF1 ENG(RLS) 06.672 M8X16 FLANGE 		0-28280-816-0 01 1 9511-9605 ● ●
181 03.407 BOLT; AIR DUCT TO RAD
4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9606-9711 ● ●
181 03.407 BOLT; AIR DUCT TO RAD
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712- ●
181 03.407 BOLT; AIR DUCT TO RAD
4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712- ● ●
193 03.417 COVER; DUCT,AIR INT
4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97138-604-0 01 1 9511-9711 ● ●
193 03.417 COVER; DUCT,AIR INT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97138-604-0 01 1 9712- ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HF1 ENG(RLS) 		8-97044-953-0 01 1 9312-9312 ●
193 03.417 COVER; DUCT,AIR INT
4HF1 ENG(RLS) 		8-97113-189-0 01 1 9401-9502 ●
193 03.417 COVER; DUCT,AIR INT
4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97113-189-0 01 1 9503-9510 ●
193 03.417 COVER; DUCT,AIR INT
4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> 		8-97120-078-1 01 1 9503-9510 ●
193 03.417 COVER; DUCT,AIR INT
4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> 		8-97120-078-1 01 1 9511-9711 ● ●
193 03.417 COVER; DUCT,AIR INT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 		8-97120-078-1 01 1 9712- ● ● ●
209 03.405 BRACKET; ACL
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.417 		8-97035-698-0 01 1 9312-9711 ● ● ●
209 03.405 BRACKET; ACL
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.417 		8-97035-698-0 01 1 9712- ● ●
209 03.405 BRACKET; ACL
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> FRT INDEPENDENT SUSPENSION(6PP) 03.417 		8-94373-872-2 01 1 9312-9510 ● ●
209 03.405 BRACKET; ACL
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> FRT INDEPENDENT SUSPENSION(6PP) 03.417 		8-94373-872-2 01 1 9511-9711 ●
209 03.405 BRACKET; ACL
4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> 		8-97120-080-1 01 1 9503-9510 ●
209 03.405 BRACKET; ACL
4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> 		8-97120-080-1 01 1 9511-9711 ● ●
209 03.405 BRACKET; ACL
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 		8-97120-080-1 01 1 9712- ● ● ●
232 03.417 HOSE; CONN
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97096-429-1 01 1 9312-9711 ● ● ● ●
232 03.417 HOSE; CONN
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97096-429-1 01 1 9712- ● ● ● ●
232 03.417 HOSE; CONN
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 		5-14231-115-1 01 1 9312-9506 ● ● ●
232 03.417 HOSE; CONN
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 		5-14231-115-1 01 1 9507- ● ● ●
232 03.417 HOSE; CONN
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-94373-874-1 01 1 9312- ● ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97102-361-0 01 1 9712- ● ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) 		8-97042-301-2 01 1 9312-9510 ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) 		8-97042-301-2 01 1 9511-9609 ● ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) 		8-97109-423-0 01 1 9610-9711 ● ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97109-423-0 01 1 9712- ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) 		8-97109-423-0 01 1 9712- ● ●
242 03.417 BRACKET; AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97856-935-0 01 1 9312-9506 ● ● ●
242 03.417 BRACKET; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97856-935-0 01 1 9507- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (C) 		8-97856-958-0 01 1 9312-9506 ● ● ●
242 03.417 BRACKET; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (C) 		8-97856-958-0 01 1 9507- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97856-967-1 01 1 9312-9506 ● ● ●
242 03.417 BRACKET; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97856-967-1 01 1 9507- ● ● ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (D) 		8-97853-633-1 01 1 9312-9510 ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (D) 		8-97853-633-1 01 1 9511-9711 ● ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (D) 		8-97853-633-1 01 1 9712- ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (D) 		8-97853-633-1 01 1 9712- ● ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (E) 		8-97853-634-0 01 1 9312-9412 ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (G) 		8-97857-844-0 01 1 9501-9510 ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (G) 		8-97857-844-0 01 1 9511-9711 ● ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (G) 		8-97857-844-0 01 1 9712- ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (G) 		8-97857-844-0 01 1 9712- ● ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (F) 		8-97853-635-1 01 1 9312-9412 ●
281 03.417 DUCT; AIR,VERTICAL INT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97076-959-2 01 1 9312-9506 ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97076-959-2 01 1 9507- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 		8-97089-948-2 01 1 9312- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
AIR INTAKE FRONT VERTICAL<6NN> 		8-94311-105-1 01 1 9312-9404 ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) 		8-97042-039-3 01 1 9312-9312 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) 		8-97108-552-0 01 1 9401-9502 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97108-552-0 01 1 9503-9510 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97139-239-0 01 1 9511-9605 ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97161-847-0 01 1 9606-9711 ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97161-847-0 01 1 9712- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> 		8-97120-084-0 01 1 9503-9510 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> 		8-97120-084-0 01 1 9511-9711 ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 		8-97120-084-0 01 1 9712- ● ● ●
287 03.417 CLIP; AIR DUCT
4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> 03.407 ID=87 		9-09915-071-1 01 1 9503-9510 ●
287 03.417 CLIP; AIR DUCT
4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> 03.407 ID=87 		9-09915-071-1 01 1 9511-9711 ● ●
287 03.417 CLIP; AIR DUCT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 03.407 ID=87 		9-09915-071-1 01 1 9712- ● ● ●
291 03.405 BOLT; ACL
4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9503-9510 ●
291 03.405 BOLT; ACL
4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9511-9711 ● ●
291 03.405 BOLT; ACL
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9712- ● ● ●
296 03.405 NUT; ACL
4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9503-9510 ●
296 03.405 NUT; ACL
4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9511-9711 ● ●
296 03.405 NUT; ACL
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9712- ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26 		9-09164-808-0 01 1 9312-9711 ● ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26 		9-09164-808-0 01 1 9312-9711 ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26 		9-09164-808-0 01 1 9712- ● ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26 		9-09164-808-0 01 1 9712- ● ●
314 03.417 WASHER; PL,AIR INT DUCT
4HF1 ENG(RLS) 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 9402-9510 ●
314 03.417 WASHER; PL,AIR INT DUCT
4HF1 ENG(RLS) 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 9511-9711 ● ●
314 03.417 WASHER; PL,AIR INT DUCT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 9712- ●
314 03.417 WASHER; PL,AIR INT DUCT
4HF1 ENG(RLS) 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 9712- ● ●
320 03.417 HOSE; CONN,ACL
4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. FRAME-KICK UP<7EW> 		8-94325-846-0 01 1 9312- ● ● ●
320 03.417 HOSE; CONN,ACL
4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z>,FRAME-KICK UP<7EW> 		8-94313-594-0 01 1 9312- ● ● ●
320 03.417 HOSE; CONN,ACL
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94412-772-1 01 1 9312-9506 ● ● ●
320 03.417 HOSE; CONN,ACL
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94412-772-1 01 1 9507-9711 ● ● ●
320 03.417 HOSE; CONN,ACL
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. TURBOCHARGER<K51> 		8-94412-772-1 01 1 9712- ● ● ●
320 03.417 HOSE; CONN,ACL
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 		8-94110-075-2 01 1 9312-9506 ● ● ●
320 03.417 HOSE; CONN,ACL
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 		8-94110-075-2 01 1 9507-9711 ● ● ●
320 03.417 HOSE; CONN,ACL
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94110-075-2 01 1 9712- ● ● ●
320 03.417 HOSE; CONN,ACL
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 		8-97168-373-0 01 1 9712- ● ●
320 03.417 HOSE; CONN,ACL
4BE1 ENG(RLH) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> FRAME-KICK UP<7EW> 		8-97109-815-0 01 1 9312- ●
320 03.417 HOSE; CONN,ACL
4BE1 ENG(RLH) FRAME-KICK UP<7EW> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 		8-97106-732-0 01 1 9312- ●
320 03.417 HOSE; CONN,ACL
4HF1 ENG(RLS) 		8-97069-875-1 01 1 9312-9510 ●
320 03.417 HOSE; CONN,ACL
4HF1 ENG(RLS) 		8-97069-875-1 01 1 9511-9711 ● ●
320 03.417 HOSE; CONN,ACL
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97069-875-1 01 1 9712- ●
320 03.417 HOSE; CONN,ACL
4HF1 ENG(RLS) 		8-97069-875-1 01 1 9712- ● ●
381 03.417 NUT; BRKT,AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE 		1-09984-018-0 02 1 9312- ●
381 03.417 NUT; BRKT,AIR DUCT
16.800 M6 FLANGE 		1-09984-018-0 02 1 9312- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A) 		8-97080-149-0 01 1 9312- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (A) 		8-97080-149-0 01 1 9312- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B) 		8-97081-886-0 02 1 9312- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-97081-886-0 02 1 9312- ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE 		8-94279-517-0 07 1 9312-9506 ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE 		8-94279-517-0 07 1 9507- ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HF1 ENG(RLS) M8 FLANGE 		8-94279-517-0 06 1 9312-9510 ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HF1 ENG(RLS) M8 FLANGE 		8-94279-517-0 06 1 9511-9711 ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE 		8-94279-517-0 06 1 9712- ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HF1 ENG(RLS) M8 FLANGE 		8-94279-517-0 06 1 9712- ● ●
399 03.417 CAP; BRKT,AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> 		8-94273-605-0 02 1 9312- ●
399 03.417 CAP; BRKT,AIR DUCT 8-94273-605-0 02 1 9312- ● ●

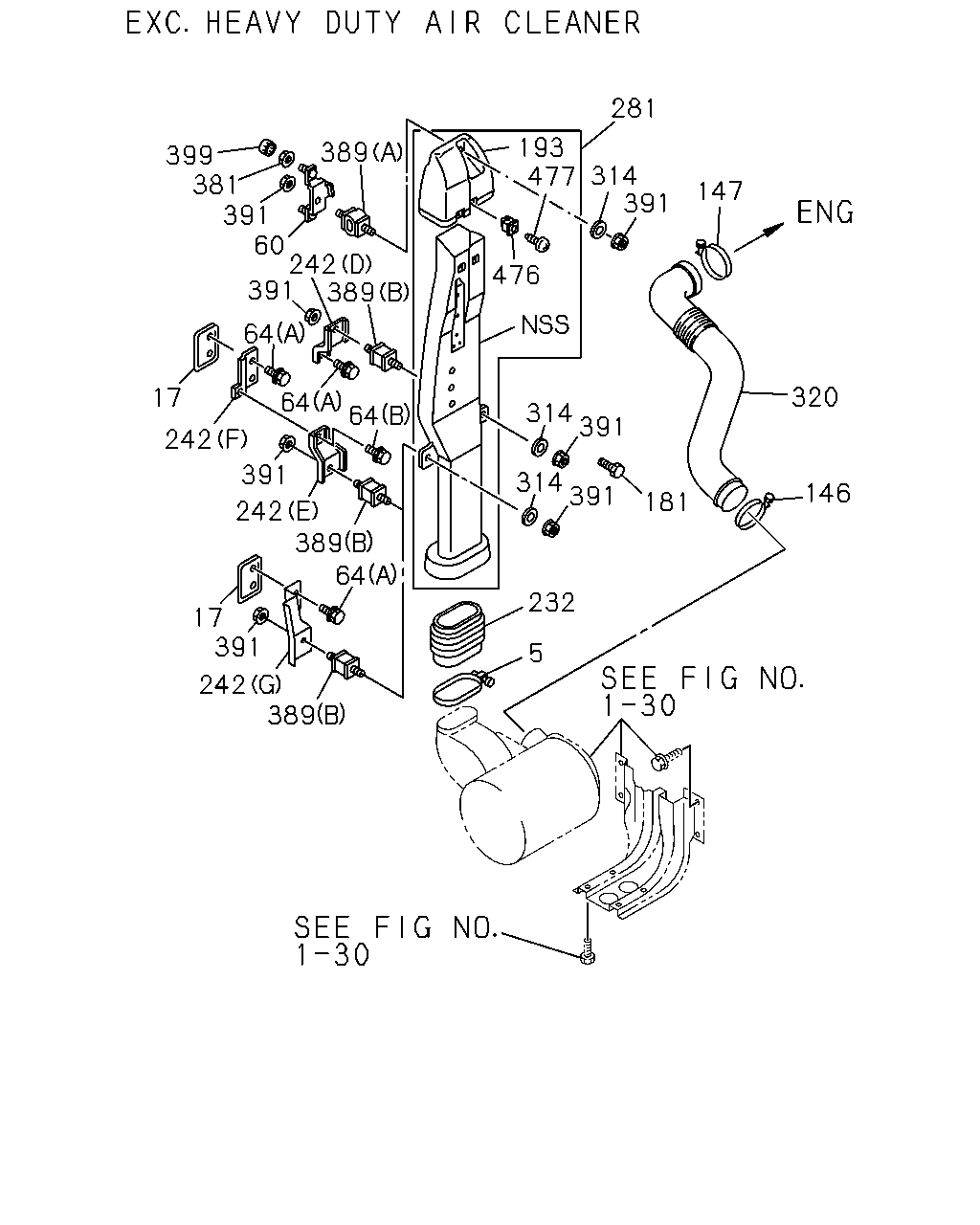

çizim 17967
281 193 477 389 399 381 391 60 242 391 389 314 391 147 476 64 320 17 64 314 391 64 242 314 391 391 146 181 242 389 64 232 17 391 5 242 389
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 03.407 CLIP; AIR DUCT
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67 		9-09915-069-1 01 1 9312-9711 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67 		9-09915-069-1 01 1 9712- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87 		8-97087-432-0 01 1 9312-9506 ● ● ●
5 03.407 CLIP; AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87 		8-97087-432-0 01 1 9312-9506 ●
5 03.407 CLIP; AIR DUCT
(A) ID=87 		8-97087-432-0 01 1 9312-9506 ● ● ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87 		8-97087-432-0 01 1 9507-9711 ● ● ●
5 03.407 CLIP; AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87 		8-97087-432-0 01 1 9507-9711 ●
5 03.407 CLIP; AIR DUCT
(A) ID=87 		8-97087-432-0 01 1 9507-9711 ● ● ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87 		8-97087-432-0 01 1 9712- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87 		8-97087-432-0 01 1 9712- ● ● ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=92 		9-09915-072-1 01 1 9712- ● ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) D=101.6 		9-09915-502-1 01 1 9312-9510 ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) D=101.6 		9-09915-502-1 01 1 9511-9711 ● ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> D=101.6 		9-09915-502-1 01 1 9712- ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) D=101.6 		9-09915-502-1 01 1 9712- ● ●
17 03.403 GASKET; AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> 		8-97853-699-2 01 1 9312- ●
17 03.403 GASKET; AIR DUCT 8-97853-699-2 01 1 9312- ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 		8-97856-956-0 01 1 9312-9506 ● ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 		8-97856-956-0 01 1 9507- ● ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4HF1 ENG(RLS) 		8-97856-957-0 01 1 9312-9510 ●
60 03.417 BRACKET; AIR DUCT,UPR
4HF1 ENG(RLS) 		8-97856-957-0 01 1 9511-9711 ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97856-957-0 01 1 9712- ●
60 03.417 BRACKET; AIR DUCT,UPR
4HF1 ENG(RLS) 		8-97856-957-0 01 1 9712- ● ●
64 03.417 BOLT; BRKT,AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> 03.483 (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9312- ●
64 03.417 BOLT; BRKT,AIR DUCT
03.483 (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9312- ● ●
64 03.417 BOLT; BRKT,AIR DUCT
4HF1 ENG(RLS) 04.047 (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 9312-9412 ●
146 03.417 CLIP; HOSE,ACL
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=79 		9-09915-734-1 01 1 9312- ● ●
146 03.417 CLIP; HOSE,ACL
4HF1 ENG(RLS) 03.008 ID=95 		9-09915-733-1 01 1 9312-9510 ●
146 03.417 CLIP; HOSE,ACL
4HF1 ENG(RLS) 03.008 ID=95 		9-09915-733-1 01 1 9511-9711 ● ●
146 03.417 CLIP; HOSE,ACL
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95 		9-09915-733-1 01 1 9712- ●
146 03.417 CLIP; HOSE,ACL
4HF1 ENG(RLS) 03.008 ID=95 		9-09915-733-1 01 1 9712- ● ●
147 03.417 CLIP; HOSE TO ENG
4JB1 ENG(RLF),4BE1 ENG(RLH) 03.407 ID=79 		9-09915-734-1 01 1 9312-9506 ● ● ● ● ● ●
147 03.417 CLIP; HOSE TO ENG
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 03.407 ID=79 		9-09915-734-1 01 1 9507-9711 ● ● ● ● ● ●
147 03.417 CLIP; HOSE TO ENG
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=79 		9-09915-734-1 01 1 9712- ● ● ● ●
147 03.417 CLIP; HOSE TO ENG
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.407 ID=79 		9-09915-734-1 01 1 9712- ● ● ●
147 03.417 CLIP; HOSE TO ENG
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9712- ● ●
147 03.417 CLIP; HOSE TO ENG
4HF1 ENG(RLS) 03.008 ID=95 		9-09915-733-1 01 1 9312-9510 ●
147 03.417 CLIP; HOSE TO ENG
4HF1 ENG(RLS) 03.008 ID=95 		9-09915-733-1 01 1 9511-9711 ● ●
147 03.417 CLIP; HOSE TO ENG
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95 		9-09915-733-1 01 1 9712- ●
147 03.417 CLIP; HOSE TO ENG
4HF1 ENG(RLS) 03.008 ID=95 		9-09915-733-1 01 1 9712- ● ●
181 03.407 BOLT; AIR DUCT TO RAD
4HF1 ENG(RLS) 06.672 M8X16 FLANGE 		0-28280-816-0 01 1 9312-9510 ●
181 03.407 BOLT; AIR DUCT TO RAD
4HF1 ENG(RLS) 06.672 M8X16 FLANGE 		0-28280-816-0 01 1 9511-9605 ● ●
181 03.407 BOLT; AIR DUCT TO RAD
4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9606-9711 ● ●
181 03.407 BOLT; AIR DUCT TO RAD
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712- ●
181 03.407 BOLT; AIR DUCT TO RAD
4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712- ● ●
193 03.417 COVER; DUCT,AIR INT
4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97138-604-0 01 1 9511-9711 ● ●
193 03.417 COVER; DUCT,AIR INT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97138-604-0 01 1 9712- ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HF1 ENG(RLS) 		8-97044-953-0 01 1 9312-9312 ●
193 03.417 COVER; DUCT,AIR INT
4HF1 ENG(RLS) 		8-97113-189-0 01 1 9401-9502 ●
193 03.417 COVER; DUCT,AIR INT
4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97113-189-0 01 1 9503-9510 ●
193 03.417 COVER; DUCT,AIR INT
4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> 		8-97120-078-1 01 1 9503-9510 ●
193 03.417 COVER; DUCT,AIR INT
4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> 		8-97120-078-1 01 1 9511-9711 ● ●
193 03.417 COVER; DUCT,AIR INT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 		8-97120-078-1 01 1 9712- ● ● ●
232 03.417 HOSE; CONN
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97096-429-1 01 1 9312-9711 ● ● ● ●
232 03.417 HOSE; CONN
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97096-429-1 01 1 9712- ● ● ● ●
232 03.417 HOSE; CONN
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 		5-14231-115-1 01 1 9312-9506 ● ● ●
232 03.417 HOSE; CONN
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 		5-14231-115-1 01 1 9507- ● ● ●
232 03.417 HOSE; CONN
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-94373-874-1 01 1 9312- ● ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97102-361-0 01 1 9712- ● ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) 		8-97042-301-2 01 1 9312-9510 ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) 		8-97042-301-2 01 1 9511-9609 ● ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) 		8-97109-423-0 01 1 9610-9711 ● ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97109-423-0 01 1 9712- ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) 		8-97109-423-0 01 1 9712- ● ●
242 03.417 BRACKET; AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97856-935-0 01 1 9312-9506 ● ● ●
242 03.417 BRACKET; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97856-935-0 01 1 9507- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (C) 		8-97856-958-0 01 1 9312-9506 ● ● ●
242 03.417 BRACKET; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (C) 		8-97856-958-0 01 1 9507- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97856-967-1 01 1 9312-9506 ● ● ●
242 03.417 BRACKET; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97856-967-1 01 1 9507- ● ● ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (D) 		8-97853-633-1 01 1 9312-9510 ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (D) 		8-97853-633-1 01 1 9511-9711 ● ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (D) 		8-97853-633-1 01 1 9712- ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (D) 		8-97853-633-1 01 1 9712- ● ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (E) 		8-97853-634-0 01 1 9312-9412 ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (G) 		8-97857-844-0 01 1 9501-9510 ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (G) 		8-97857-844-0 01 1 9511-9711 ● ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (G) 		8-97857-844-0 01 1 9712- ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (G) 		8-97857-844-0 01 1 9712- ● ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (F) 		8-97853-635-1 01 1 9312-9412 ●
281 03.417 DUCT; AIR,VERTICAL INT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97076-959-2 01 1 9312-9506 ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97076-959-2 01 1 9507- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 		8-97089-948-2 01 1 9312- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
AIR INTAKE FRONT VERTICAL<6NN> 		8-94311-105-1 01 1 9312-9404 ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) 		8-97042-039-3 01 1 9312-9312 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) 		8-97108-552-0 01 1 9401-9502 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97108-552-0 01 1 9503-9510 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97139-239-0 01 1 9511-9605 ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97161-847-0 01 1 9606-9711 ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97161-847-0 01 1 9712- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> 		8-97120-084-0 01 1 9503-9510 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> 		8-97120-084-0 01 1 9511-9711 ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 		8-97120-084-0 01 1 9712- ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26 		9-09164-808-0 01 1 9312-9711 ● ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26 		9-09164-808-0 01 1 9312-9711 ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26 		9-09164-808-0 01 1 9712- ● ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26 		9-09164-808-0 01 1 9712- ● ●
314 03.417 WASHER; PL,AIR INT DUCT
4HF1 ENG(RLS) 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 9402-9510 ●
314 03.417 WASHER; PL,AIR INT DUCT
4HF1 ENG(RLS) 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 9511-9711 ● ●
314 03.417 WASHER; PL,AIR INT DUCT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 9712- ●
314 03.417 WASHER; PL,AIR INT DUCT
4HF1 ENG(RLS) 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 9712- ● ●
320 03.417 HOSE; CONN,ACL
4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. FRAME-KICK UP<7EW> 		8-94325-846-0 01 1 9312- ● ● ●
320 03.417 HOSE; CONN,ACL
4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z>,FRAME-KICK UP<7EW> 		8-94313-594-0 01 1 9312- ● ● ●
320 03.417 HOSE; CONN,ACL
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94412-772-1 01 1 9312-9506 ● ● ●
320 03.417 HOSE; CONN,ACL
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94412-772-1 01 1 9507-9711 ● ● ●
320 03.417 HOSE; CONN,ACL
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. TURBOCHARGER<K51> 		8-94412-772-1 01 1 9712- ● ● ●
320 03.417 HOSE; CONN,ACL
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 		8-94110-075-2 01 1 9312-9506 ● ● ●
320 03.417 HOSE; CONN,ACL
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 		8-94110-075-2 01 1 9507-9711 ● ● ●
320 03.417 HOSE; CONN,ACL
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94110-075-2 01 1 9712- ● ● ●
320 03.417 HOSE; CONN,ACL
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 		8-97168-373-0 01 1 9712- ● ●
320 03.417 HOSE; CONN,ACL
4BE1 ENG(RLH) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> FRAME-KICK UP<7EW> 		8-97109-815-0 01 1 9312- ●
320 03.417 HOSE; CONN,ACL
4BE1 ENG(RLH) FRAME-KICK UP<7EW> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 		8-97106-732-0 01 1 9312- ●
320 03.417 HOSE; CONN,ACL
4HF1 ENG(RLS) 		8-97069-875-1 01 1 9312-9510 ●
320 03.417 HOSE; CONN,ACL
4HF1 ENG(RLS) 		8-97069-875-1 01 1 9511-9711 ● ●
320 03.417 HOSE; CONN,ACL
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97069-875-1 01 1 9712- ●
320 03.417 HOSE; CONN,ACL
4HF1 ENG(RLS) 		8-97069-875-1 01 1 9712- ● ●
381 03.417 NUT; BRKT,AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE 		1-09984-018-0 02 1 9312- ●
381 03.417 NUT; BRKT,AIR DUCT
16.800 M6 FLANGE 		1-09984-018-0 02 1 9312- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A) 		8-97080-149-0 01 1 9312- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (A) 		8-97080-149-0 01 1 9312- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B) 		8-97081-886-0 02 1 9312- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-97081-886-0 02 1 9312- ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE 		8-94279-517-0 07 1 9312-9506 ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE 		8-94279-517-0 07 1 9507- ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HF1 ENG(RLS) M8 FLANGE 		8-94279-517-0 06 1 9312-9510 ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HF1 ENG(RLS) M8 FLANGE 		8-94279-517-0 06 1 9511-9711 ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE 		8-94279-517-0 06 1 9712- ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HF1 ENG(RLS) M8 FLANGE 		8-94279-517-0 06 1 9712- ● ●
399 03.417 CAP; BRKT,AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> 		8-94273-605-0 02 1 9312- ●
399 03.417 CAP; BRKT,AIR DUCT 8-94273-605-0 02 1 9312- ● ●
476 03.417 GROMMET; SCREW,COVER
4HF1 ENG(RLS) 16.445 		1-09983-081-0 04 1 9312-9312 ●
477 03.417 SCREW; COVER
4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> 16.802 M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 9711-9711 ● ●
477 03.417 SCREW; COVER
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46> 16.802 M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 9712- ● ● ●
477 03.417 SCREW; COVER
4HF1 ENG(RLS) 16.802 M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 9312-9312 ●
477 03.417 SCREW; COVER
4HF1 ENG(RLS) 09.744 M5X20 TAPPING W/PL WASHER 		0-74110-520-0 18 1 9401-9502 ●
477 03.417 SCREW; COVER
4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> 09.744 M5X20 TAPPING W/PL WASHER 		0-74110-520-0 18 1 9503-9510 ●

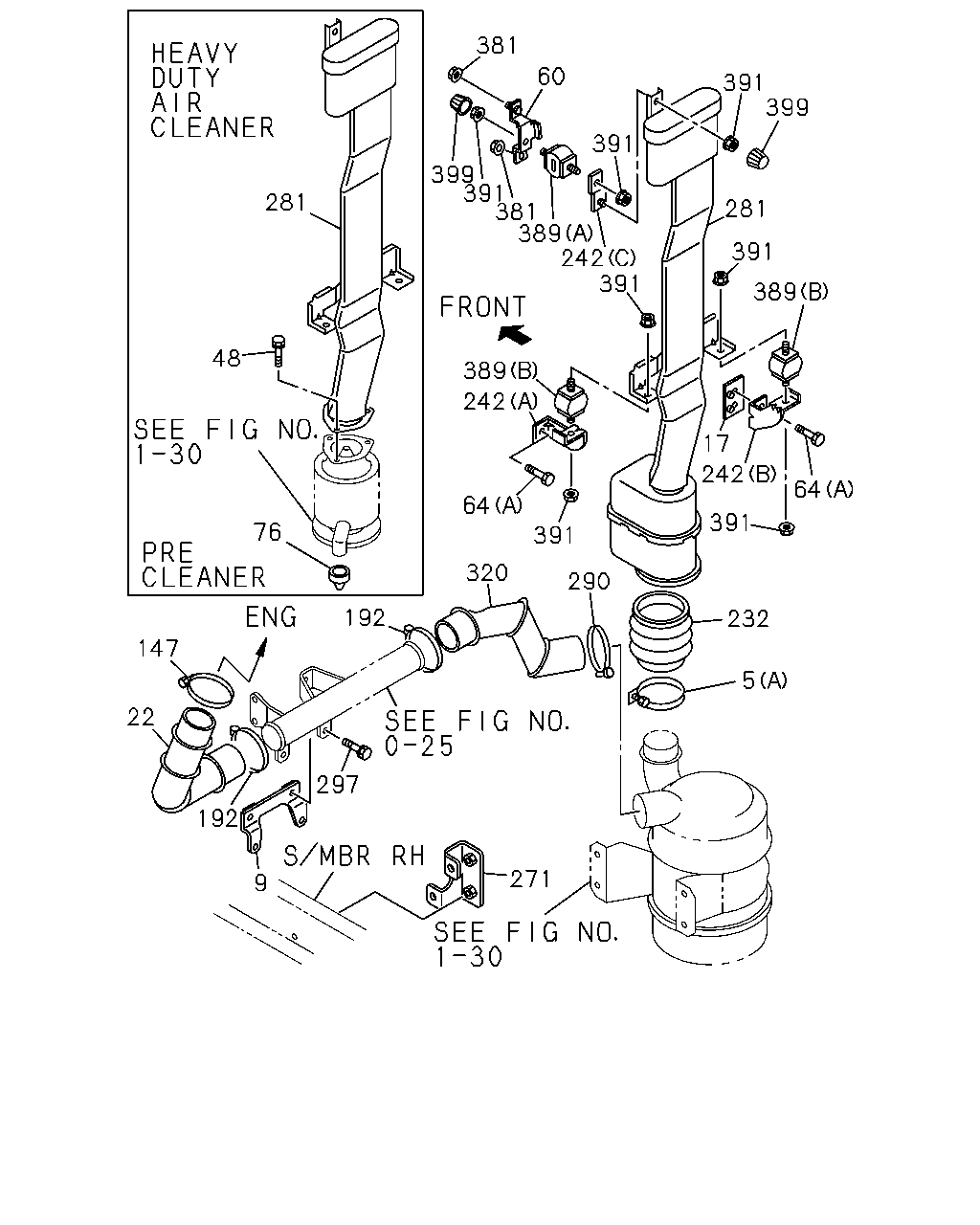

çizim 18359
381 60 391 399 391 399 391 381 389 242 391 281 281 391 389 48 389 242 17 242 64 64 391 76 391 320 290 192 232 147 5 22 297 192 271 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 03.407 CLIP; AIR DUCT
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67 		9-09915-069-1 01 1 9312-9711 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67 		9-09915-069-1 01 1 9712- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87 		8-97087-432-0 01 1 9312-9506 ● ● ●
5 03.407 CLIP; AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87 		8-97087-432-0 01 1 9312-9506 ●
5 03.407 CLIP; AIR DUCT
(A) ID=87 		8-97087-432-0 01 1 9312-9506 ● ● ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87 		8-97087-432-0 01 1 9507-9711 ● ● ●
5 03.407 CLIP; AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87 		8-97087-432-0 01 1 9507-9711 ●
5 03.407 CLIP; AIR DUCT
(A) ID=87 		8-97087-432-0 01 1 9507-9711 ● ● ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87 		8-97087-432-0 01 1 9712- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87 		8-97087-432-0 01 1 9712- ● ● ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=92 		9-09915-072-1 01 1 9712- ● ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) D=101.6 		9-09915-502-1 01 1 9312-9510 ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) D=101.6 		9-09915-502-1 01 1 9511-9711 ● ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> D=101.6 		9-09915-502-1 01 1 9712- ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) D=101.6 		9-09915-502-1 01 1 9712- ● ●
9 03.417 BRACKET; INT PIPE
AIR INTAKE SYSTEM FRONT<6PC> 		8-97089-654-1 01 1 9312-9711 ● ● ● ●
9 03.417 BRACKET; INT PIPE
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-97089-654-1 01 1 9712- ● ●
9 03.417 BRACKET; INT PIPE
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97089-655-0 01 1 9312-9711 ● ● ● ●
9 03.417 BRACKET; INT PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97089-655-0 01 1 9712- ● ● ● ●
9 03.417 BRACKET; INT PIPE
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-94155-425-1 01 1 9312-9506 ● ● ●
9 03.417 BRACKET; INT PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-94155-425-1 01 1 9507- ● ● ●
9 03.417 BRACKET; INT PIPE
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97102-618-0 01 1 9801- ● ●
17 03.403 GASKET; AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> 		8-97853-699-2 01 1 9312- ●
17 03.403 GASKET; AIR DUCT 8-97853-699-2 01 1 9312- ● ●
22 03.417 HOSE; CONNECTOR,ENG TO PIPE
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97107-173-0 01 1 9312-9506 ● ● ●
22 03.417 HOSE; CONNECTOR,ENG TO PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97107-173-0 01 1 9507-9711 ● ● ●
22 03.417 HOSE; CONNECTOR,ENG TO PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 		8-97107-173-0 01 1 9712- ● ● ●
48 03.417 BOLT; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 04.785 M8X18 W/LK WASHER 		0-50040-818-0 03 1 9312-9711 ● ● ●
48 03.417 BOLT; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 01.062 M8X16 FLANGE 		0-28080-816-0 03 1 9712- ● ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 		8-97856-956-0 01 1 9312-9506 ● ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 		8-97856-956-0 01 1 9507- ● ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4HF1 ENG(RLS) 		8-97856-957-0 01 1 9312-9510 ●
60 03.417 BRACKET; AIR DUCT,UPR
4HF1 ENG(RLS) 		8-97856-957-0 01 1 9511-9711 ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97856-957-0 01 1 9712- ●
60 03.417 BRACKET; AIR DUCT,UPR
4HF1 ENG(RLS) 		8-97856-957-0 01 1 9712- ● ●
64 03.417 BOLT; BRKT,AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> 03.483 (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9312- ●
64 03.417 BOLT; BRKT,AIR DUCT
03.483 (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9312- ● ●
64 03.417 BOLT; BRKT,AIR DUCT
4HF1 ENG(RLS) 04.047 (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 9312-9412 ●
76 03.403 VALVE; PRE ACL
4JB1 ENG(RLF),4BE1 ENG(RLH) HEAVY DUTY AIR CLEANER<K46> 03.415 		8-94447-157-0 01 1 9312-9506 ● ● ●
76 03.403 VALVE; PRE ACL
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) HEAVY DUTY AIR CLEANER<K46> 03.415 		8-94447-157-0 01 1 9507-9606 ●
76 03.403 VALVE; PRE ACL
4JB1 ENG(RLF),4BE1 ENG(RLH) HEAVY DUTY AIR CLEANER<K46> 03.415 		8-94447-157-0 01 1 9507-9606 ● ●
76 03.403 VALVE; PRE ACL
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) HEAVY DUTY AIR CLEANER<K46> 03.415 		8-94447-157-0 01 1 9607- ● ● ●
147 03.417 CLIP; HOSE TO ENG
4JB1 ENG(RLF),4BE1 ENG(RLH) 03.407 ID=79 		9-09915-734-1 01 1 9312-9506 ● ● ● ● ● ●
147 03.417 CLIP; HOSE TO ENG
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 03.407 ID=79 		9-09915-734-1 01 1 9507-9711 ● ● ● ● ● ●
147 03.417 CLIP; HOSE TO ENG
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=79 		9-09915-734-1 01 1 9712- ● ● ● ●
147 03.417 CLIP; HOSE TO ENG
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.407 ID=79 		9-09915-734-1 01 1 9712- ● ● ●
147 03.417 CLIP; HOSE TO ENG
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9712- ● ●
147 03.417 CLIP; HOSE TO ENG
4HF1 ENG(RLS) 03.008 ID=95 		9-09915-733-1 01 1 9312-9510 ●
147 03.417 CLIP; HOSE TO ENG
4HF1 ENG(RLS) 03.008 ID=95 		9-09915-733-1 01 1 9511-9711 ● ●
147 03.417 CLIP; HOSE TO ENG
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95 		9-09915-733-1 01 1 9712- ●
147 03.417 CLIP; HOSE TO ENG
4HF1 ENG(RLS) 03.008 ID=95 		9-09915-733-1 01 1 9712- ● ●
192 03.407 CLIP; HOSE
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> ID=79 		9-09915-734-1 02 1 9312-9506 ● ● ●
192 03.407 CLIP; HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> ID=79 		9-09915-734-1 02 1 9507-9711 ● ● ●
192 03.407 CLIP; HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> ID=79 		9-09915-734-1 02 1 9712- ● ● ●
192 03.407 CLIP; HOSE
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> ID=87 		8-97087-432-0 01 1 9712- ● ●
232 03.417 HOSE; CONN
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97096-429-1 01 1 9312-9711 ● ● ● ●
232 03.417 HOSE; CONN
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97096-429-1 01 1 9712- ● ● ● ●
232 03.417 HOSE; CONN
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 		5-14231-115-1 01 1 9312-9506 ● ● ●
232 03.417 HOSE; CONN
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 		5-14231-115-1 01 1 9507- ● ● ●
232 03.417 HOSE; CONN
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-94373-874-1 01 1 9312- ● ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97102-361-0 01 1 9712- ● ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) 		8-97042-301-2 01 1 9312-9510 ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) 		8-97042-301-2 01 1 9511-9609 ● ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) 		8-97109-423-0 01 1 9610-9711 ● ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97109-423-0 01 1 9712- ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) 		8-97109-423-0 01 1 9712- ● ●
242 03.417 BRACKET; AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97856-935-0 01 1 9312-9506 ● ● ●
242 03.417 BRACKET; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97856-935-0 01 1 9507- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (C) 		8-97856-958-0 01 1 9312-9506 ● ● ●
242 03.417 BRACKET; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (C) 		8-97856-958-0 01 1 9507- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97856-967-1 01 1 9312-9506 ● ● ●
242 03.417 BRACKET; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97856-967-1 01 1 9507- ● ● ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (D) 		8-97853-633-1 01 1 9312-9510 ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (D) 		8-97853-633-1 01 1 9511-9711 ● ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (D) 		8-97853-633-1 01 1 9712- ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (D) 		8-97853-633-1 01 1 9712- ● ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (E) 		8-97853-634-0 01 1 9312-9412 ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (G) 		8-97857-844-0 01 1 9501-9510 ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (G) 		8-97857-844-0 01 1 9511-9711 ● ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (G) 		8-97857-844-0 01 1 9712- ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (G) 		8-97857-844-0 01 1 9712- ● ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (F) 		8-97853-635-1 01 1 9312-9412 ●
271 03.417 SPACER; BRKT,ACL
4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-97103-375-0 01 1 9312-9401 ●
271 03.417 SPACER; BRKT,ACL
4BE1 ENG(RLH) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. FRAME-KICK UP<7EW> 		8-97103-375-0 01 1 9402-9410 ● ●
271 03.417 SPACER; BRKT,ACL
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. FRAME-KICK UP<7EW> 		8-97103-375-0 01 1 9411- ● ●
271 03.417 SPACER; BRKT,ACL
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97105-142-0 01 1 9312- ●
281 03.417 DUCT; AIR,VERTICAL INT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97076-959-2 01 1 9312-9506 ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97076-959-2 01 1 9507- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 		8-97089-948-2 01 1 9312- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
AIR INTAKE FRONT VERTICAL<6NN> 		8-94311-105-1 01 1 9312-9404 ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) 		8-97042-039-3 01 1 9312-9312 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) 		8-97108-552-0 01 1 9401-9502 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97108-552-0 01 1 9503-9510 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97139-239-0 01 1 9511-9605 ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97161-847-0 01 1 9606-9711 ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97161-847-0 01 1 9712- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> 		8-97120-084-0 01 1 9503-9510 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> 		8-97120-084-0 01 1 9511-9711 ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 		8-97120-084-0 01 1 9712- ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9312-9401 ● ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 03.407 ID=92 		9-09915-072-1 01 1 9312-9401 ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9402-9506 ● ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 03.407 ID=92 		9-09915-072-1 01 1 9402-9506 ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9507-9711 ● ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 03.407 ID=92 		9-09915-072-1 01 1 9507-9711 ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9712- ● ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.407 ID=92 		9-09915-072-1 01 1 9712- ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.407 ID=79 		9-09915-734-1 01 1 9312-9506 ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.407 ID=79 		9-09915-734-1 01 1 9507-9709 ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 01.166 ID=76 		1-09704-069-0 01 1 9710-9711 ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.407 ID=79 		9-09915-734-1 01 1 9712- ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> 01.166 ID=57 		5-09704-051-0 01 1 9712- ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=87 		9-09915-071-1 01 1 9402- ● ● ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9312-9711 ●
297 03.417 BOLT; DUCT
02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9312-9711 ● ●
297 03.417 BOLT; DUCT
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9312-9711 ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9712- ● ● ● ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9312-9502 ●
297 03.417 BOLT; DUCT
03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9312-9502 ● ●
297 03.417 BOLT; DUCT
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9312-9502 ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9503-9605 ●
297 03.417 BOLT; DUCT
03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9503-9605 ● ● ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> 16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 01 1 9606-9711 ●
297 03.417 BOLT; DUCT
16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 01 1 9606-9711 ● ● ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> 16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 01 1 9712- ● ● ● ●
297 03.417 BOLT; DUCT
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. AIR INTAKE SYSTEM FRONT<6PC> 03.415 M8X35 FLANGE 		0-28080-835-0 02 1 9312-9404 ● ● ●
297 03.417 BOLT; DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.415 M8X35 FLANGE 		0-28080-835-0 02 1 9312-9404 ● ● ●
297 03.417 BOLT; DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.415 M8X35 FLANGE 		0-28080-835-0 01 1 9405-9411 ● ● ●
297 03.417 BOLT; DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 9412-9711 ● ● ●
297 03.417 BOLT; DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 9712- ● ●
297 03.417 BOLT; DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.206 M8X14 W/LK WASHER 		0-50040-814-0 01 1 9312-9506 ● ● ●
297 03.417 BOLT; DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.206 M8X14 W/LK WASHER 		0-50040-814-0 01 1 9507-9711 ● ● ●
297 03.417 BOLT; DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9712- ● ● ●
297 03.417 BOLT; DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 02 1 9312-9506 ● ● ●
297 03.417 BOLT; DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 02 1 9507-9711 ● ● ●
297 03.417 BOLT; DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.611 M10X20 FLANGE 		0-28681-020-0 02 1 9712-9805 ● ● ●
297 03.417 BOLT; DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M10X16 FLANGE 		0-28081-016-0 02 1 9806- ● ● ●
297 03.417 BOLT; DUCT
HALOGEN HEAD LAMP RECTANGULAR<TR4> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9312-9502 ●
320 03.417 HOSE; CONN,ACL
4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. FRAME-KICK UP<7EW> 		8-94325-846-0 01 1 9312- ● ● ●
320 03.417 HOSE; CONN,ACL
4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z>,FRAME-KICK UP<7EW> 		8-94313-594-0 01 1 9312- ● ● ●
320 03.417 HOSE; CONN,ACL
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94412-772-1 01 1 9312-9506 ● ● ●
320 03.417 HOSE; CONN,ACL
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94412-772-1 01 1 9507-9711 ● ● ●
320 03.417 HOSE; CONN,ACL
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. TURBOCHARGER<K51> 		8-94412-772-1 01 1 9712- ● ● ●
320 03.417 HOSE; CONN,ACL
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 		8-94110-075-2 01 1 9312-9506 ● ● ●
320 03.417 HOSE; CONN,ACL
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 		8-94110-075-2 01 1 9507-9711 ● ● ●
320 03.417 HOSE; CONN,ACL
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94110-075-2 01 1 9712- ● ● ●
320 03.417 HOSE; CONN,ACL
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 		8-97168-373-0 01 1 9712- ● ●
320 03.417 HOSE; CONN,ACL
4BE1 ENG(RLH) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> FRAME-KICK UP<7EW> 		8-97109-815-0 01 1 9312- ●
320 03.417 HOSE; CONN,ACL
4BE1 ENG(RLH) FRAME-KICK UP<7EW> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 		8-97106-732-0 01 1 9312- ●
320 03.417 HOSE; CONN,ACL
4HF1 ENG(RLS) 		8-97069-875-1 01 1 9312-9510 ●
320 03.417 HOSE; CONN,ACL
4HF1 ENG(RLS) 		8-97069-875-1 01 1 9511-9711 ● ●
320 03.417 HOSE; CONN,ACL
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97069-875-1 01 1 9712- ●
320 03.417 HOSE; CONN,ACL
4HF1 ENG(RLS) 		8-97069-875-1 01 1 9712- ● ●
381 03.417 NUT; BRKT,AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE 		1-09984-018-0 02 1 9312- ●
381 03.417 NUT; BRKT,AIR DUCT
16.800 M6 FLANGE 		1-09984-018-0 02 1 9312- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A) 		8-97080-149-0 01 1 9312- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (A) 		8-97080-149-0 01 1 9312- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B) 		8-97081-886-0 02 1 9312- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-97081-886-0 02 1 9312- ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE 		8-94279-517-0 07 1 9312-9506 ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE 		8-94279-517-0 07 1 9507- ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HF1 ENG(RLS) M8 FLANGE 		8-94279-517-0 06 1 9312-9510 ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HF1 ENG(RLS) M8 FLANGE 		8-94279-517-0 06 1 9511-9711 ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE 		8-94279-517-0 06 1 9712- ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HF1 ENG(RLS) M8 FLANGE 		8-94279-517-0 06 1 9712- ● ●
399 03.417 CAP; BRKT,AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> 		8-94273-605-0 02 1 9312- ●
399 03.417 CAP; BRKT,AIR DUCT 8-94273-605-0 02 1 9312- ● ●
çizim 18771
26 283 284 218 282 32 281 35 54 218
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
26 03.417 DUCT; AIR INT
MANUAL TILT CAB<RWZ> AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97089-950-1 01 1 9312-9404 ●
26 03.417 DUCT; AIR INT
MANUAL TILT CAB<RWZ> EXC. AIR INTAKE FRONT VERTICAL<6NN> (B) 		8-97089-950-1 01 1 9312-9404 ●
26 03.417 DUCT; AIR INT
MANUAL TILT CAB<RWZ> AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97089-950-1 01 1 9405-9510 ●
26 03.417 DUCT; AIR INT
MANUAL TILT CAB<RWZ> (B) 		8-97089-950-1 01 1 9405-9510 ●
26 03.417 DUCT; AIR INT
MANUAL TILT CAB<RWZ> AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97089-950-2 01 1 9511- ● ●
26 03.417 DUCT; AIR INT
AIR INTAKE SYSTEM FRONT<6PC> EXC. MANUAL TILT CAB<RWZ>,HALOGEN HEAD LAMP RECTANGULAR<TR4>,AIR INTAKE FR ONT VERTICAL<6NN> (B) 		8-97089-951-2 01 1 9312-9404 ● ● ● ●
26 03.417 DUCT; AIR INT
AIR INTAKE SYSTEM FRONT<6PC> EXC. MANUAL TILT CAB<RWZ>,HALOGEN HEAD LAMP RECTANGULAR<TR4>,AIR INTAKE FR ONT VERTICAL<6NN> (B) 		8-97089-951-2 01 1 9405-9510 ● ● ● ●
26 03.417 DUCT; AIR INT
AIR INTAKE SYSTEM FRONT<6PC> EXC. MANUAL TILT CAB<RWZ>,HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97089-951-2 01 1 9511- ● ● ● ●
26 03.417 DUCT; AIR INT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97035-696-3 01 1 9312- ● ● ●
26 03.417 DUCT; AIR INT
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97091-273-1 01 1 9312-9506 ● ● ●
26 03.417 DUCT; AIR INT
(A) 		8-97091-273-1 01 1 9312-9506 ●
26 03.417 DUCT; AIR INT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97091-273-1 01 1 9507- ● ● ●
26 03.417 DUCT; AIR INT
(A) 		8-97091-273-1 01 1 9507- ●
26 03.417 DUCT; AIR INT
AIR INTAKE FRONT VERTICAL<6NN> EXC. MANUAL TILT CAB<RWZ>,HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97089-956-1 01 1 9312-9404 ● ● ●
26 03.417 DUCT; AIR INT
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AIR INTAKE FRONT VERTICAL<6NN> (B) 		8-97089-949-0 01 1 9312-9404 ●
26 03.417 DUCT; AIR INT
HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97089-949-1 01 1 9405-9711 ●
26 03.417 DUCT; AIR INT
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (C) 		8-97106-364-2 01 1 9712- ● ●
26 03.417 DUCT; AIR INT
4JG2 ENG(RJC) HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97089-949-1 01 1 9712- ●
26 03.417 DUCT; AIR INT
MANUAL TILT CAB<RWZ> AIR INTAKE FRONT VERTICAL<6NN> (B) 		8-97089-955-0 01 1 9312-9404 ●
32 03.417 RUBBER; AIR DUCT MTG
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97077-387-0 01 1 9712- ● ●
32 03.417 RUBBER; AIR DUCT MTG
AIR INTAKE FRONT VERTICAL<6NN> 03.405 		8-94158-155-1 02 1 9312-9404 ● ● ●
35 03.406 SEAL; DUCT,INT
AIR INTAKE FRONT VERTICAL<6NN> 		8-94311-166-0 01 1 9312-9404 ● ● ●
54 03.417 CLIP; GASKET,AIR DUCT
AIR INTAKE FRONT VERTICAL<6NN> 		8-94365-762-0 01 1 9312-9404 ● ● ●
218 03.403 NUT; RUBBER MTG
AIR INTAKE FRONT VERTICAL<6NN> 07.633 M8 FLANGE 		0-91150-108-0 04 1 9312-9404 ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97076-959-2 01 1 9312-9506 ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97076-959-2 01 1 9507- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 		8-97089-948-2 01 1 9312- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
AIR INTAKE FRONT VERTICAL<6NN> 		8-94311-105-1 01 1 9312-9404 ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) 		8-97042-039-3 01 1 9312-9312 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) 		8-97108-552-0 01 1 9401-9502 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97108-552-0 01 1 9503-9510 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97139-239-0 01 1 9511-9605 ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97161-847-0 01 1 9606-9711 ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97161-847-0 01 1 9712- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> 		8-97120-084-0 01 1 9503-9510 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> 		8-97120-084-0 01 1 9511-9711 ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 		8-97120-084-0 01 1 9712- ● ● ●
282 03.410 BAFFLE; INT DUCT
AIR INTAKE FRONT VERTICAL<6NN> 		8-94311-713-0 01 1 9312-9404 ● ● ●
283 03.417 BOLT; BAFFLE,INT DUCT
AIR INTAKE FRONT VERTICAL<6NN> 03.634 M6X30 W/LK&PL WASHER 		0-50140-630-0 03 1 9312-9404 ● ● ●
284 03.403 NUT; BAFFLE,INT DUCT
AIR INTAKE FRONT VERTICAL<6NN> WELL NUT 		8-94311-999-0 03 1 9312-9404 ● ● ●
çizim 65831
147 232 258 10 5 9 26 32 13 26 13 290 393 5 40 297 155 102 105 105 107 119 107 103 104 102 116 103
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 03.407 CLIP; AIR DUCT
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67 		9-09915-069-1 01 1 9312-9711 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67 		9-09915-069-1 01 1 9712- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87 		8-97087-432-0 01 1 9312-9506 ● ● ●
5 03.407 CLIP; AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87 		8-97087-432-0 01 1 9312-9506 ●
5 03.407 CLIP; AIR DUCT
(A) ID=87 		8-97087-432-0 01 1 9312-9506 ● ● ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87 		8-97087-432-0 01 1 9507-9711 ● ● ●
5 03.407 CLIP; AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87 		8-97087-432-0 01 1 9507-9711 ●
5 03.407 CLIP; AIR DUCT
(A) ID=87 		8-97087-432-0 01 1 9507-9711 ● ● ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87 		8-97087-432-0 01 1 9712- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87 		8-97087-432-0 01 1 9712- ● ● ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=92 		9-09915-072-1 01 1 9712- ● ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) D=101.6 		9-09915-502-1 01 1 9312-9510 ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) D=101.6 		9-09915-502-1 01 1 9511-9711 ● ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> D=101.6 		9-09915-502-1 01 1 9712- ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) D=101.6 		9-09915-502-1 01 1 9712- ● ●
9 03.417 BRACKET; INT PIPE
AIR INTAKE SYSTEM FRONT<6PC> 		8-97089-654-1 01 1 9312-9711 ● ● ● ●
9 03.417 BRACKET; INT PIPE
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-97089-654-1 01 1 9712- ● ●
9 03.417 BRACKET; INT PIPE
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97089-655-0 01 1 9312-9711 ● ● ● ●
9 03.417 BRACKET; INT PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97089-655-0 01 1 9712- ● ● ● ●
9 03.417 BRACKET; INT PIPE
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-94155-425-1 01 1 9312-9506 ● ● ●
9 03.417 BRACKET; INT PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-94155-425-1 01 1 9507- ● ● ●
9 03.417 BRACKET; INT PIPE
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97102-618-0 01 1 9801- ● ●
10 03.417 BOLT; BRKT FIX
AIR INTAKE SYSTEM FRONT<6PC> 06.672 M8X25 W/LK WASHER 		0-51040-825-0 01 1 9312-9609 ●
10 03.417 BOLT; BRKT FIX
06.672 M8X25 W/LK WASHER 		0-51040-825-0 01 1 9312-9609 ● ● ●
10 03.417 BOLT; BRKT FIX
AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9610-9711 ●
10 03.417 BOLT; BRKT FIX
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9610-9711 ● ● ●
10 03.417 BOLT; BRKT FIX
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712- ● ● ● ●
10 03.417 BOLT; BRKT FIX
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9712- ● ●
13 03.417 NUT; BRKT FIX
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9712- ● ●
26 03.417 DUCT; AIR INT
MANUAL TILT CAB<RWZ> AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97089-950-1 01 1 9312-9404 ●
26 03.417 DUCT; AIR INT
MANUAL TILT CAB<RWZ> EXC. AIR INTAKE FRONT VERTICAL<6NN> (B) 		8-97089-950-1 01 1 9312-9404 ●
26 03.417 DUCT; AIR INT
MANUAL TILT CAB<RWZ> AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97089-950-1 01 1 9405-9510 ●
26 03.417 DUCT; AIR INT
MANUAL TILT CAB<RWZ> (B) 		8-97089-950-1 01 1 9405-9510 ●
26 03.417 DUCT; AIR INT
MANUAL TILT CAB<RWZ> AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97089-950-2 01 1 9511- ● ●
26 03.417 DUCT; AIR INT
AIR INTAKE SYSTEM FRONT<6PC> EXC. MANUAL TILT CAB<RWZ>,HALOGEN HEAD LAMP RECTANGULAR<TR4>,AIR INTAKE FR ONT VERTICAL<6NN> (B) 		8-97089-951-2 01 1 9312-9404 ● ● ● ●
26 03.417 DUCT; AIR INT
AIR INTAKE SYSTEM FRONT<6PC> EXC. MANUAL TILT CAB<RWZ>,HALOGEN HEAD LAMP RECTANGULAR<TR4>,AIR INTAKE FR ONT VERTICAL<6NN> (B) 		8-97089-951-2 01 1 9405-9510 ● ● ● ●
26 03.417 DUCT; AIR INT
AIR INTAKE SYSTEM FRONT<6PC> EXC. MANUAL TILT CAB<RWZ>,HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97089-951-2 01 1 9511- ● ● ● ●
26 03.417 DUCT; AIR INT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97035-696-3 01 1 9312- ● ● ●
26 03.417 DUCT; AIR INT
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97091-273-1 01 1 9312-9506 ● ● ●
26 03.417 DUCT; AIR INT
(A) 		8-97091-273-1 01 1 9312-9506 ●
26 03.417 DUCT; AIR INT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97091-273-1 01 1 9507- ● ● ●
26 03.417 DUCT; AIR INT
(A) 		8-97091-273-1 01 1 9507- ●
26 03.417 DUCT; AIR INT
AIR INTAKE FRONT VERTICAL<6NN> EXC. MANUAL TILT CAB<RWZ>,HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97089-956-1 01 1 9312-9404 ● ● ●
26 03.417 DUCT; AIR INT
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AIR INTAKE FRONT VERTICAL<6NN> (B) 		8-97089-949-0 01 1 9312-9404 ●
26 03.417 DUCT; AIR INT
HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97089-949-1 01 1 9405-9711 ●
26 03.417 DUCT; AIR INT
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (C) 		8-97106-364-2 01 1 9712- ● ●
26 03.417 DUCT; AIR INT
4JG2 ENG(RJC) HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97089-949-1 01 1 9712- ●
26 03.417 DUCT; AIR INT
MANUAL TILT CAB<RWZ> AIR INTAKE FRONT VERTICAL<6NN> (B) 		8-97089-955-0 01 1 9312-9404 ●
32 03.417 RUBBER; AIR DUCT MTG
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97077-387-0 01 1 9712- ● ●
32 03.417 RUBBER; AIR DUCT MTG
AIR INTAKE FRONT VERTICAL<6NN> 03.405 		8-94158-155-1 02 1 9312-9404 ● ● ●
40 03.417 NUT; AIR INT DUCT
HALOGEN HEAD LAMP RECTANGULAR<TR4> M8 FLANGE 		8-94279-517-0 01 1 9312-9711 ●
40 03.417 NUT; AIR INT DUCT
4JG2 ENG(RJC),4BE1 ENG(RLH) HALOGEN HEAD LAMP RECTANGULAR<TR4> M8 FLANGE 		8-94279-517-0 01 1 9712-9802 ●
40 03.417 NUT; AIR INT DUCT
4JG2 ENG(RJC),4BE1 ENG(RLH) HALOGEN HEAD LAMP RECTANGULAR<TR4> 09.005 M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 9803- ●
102 03.402 RESONATOR; AIR INT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-97103-542-0 01 1 9312-9711 ●
102 03.402 RESONATOR; AIR INT
4BE1 ENG(RLH) 		8-97103-542-0 01 1 9312-9711 ● ●
102 03.402 RESONATOR; AIR INT
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97103-542-0 01 1 9712- ●
102 03.402 RESONATOR; AIR INT
4BE1 ENG(RLH) 		8-97103-542-0 01 1 9712- ●
102 03.402 RESONATOR; AIR INT
4HF1 ENG(RLS) 		8-97103-542-0 01 1 9712- ●
102 03.402 RESONATOR; AIR INT
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97103-541-1 01 1 9312-9506 ● ● ●
102 03.402 RESONATOR; AIR INT 8-97103-541-1 01 1 9312-9506 ●
102 03.402 RESONATOR; AIR INT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97103-541-1 01 1 9507- ● ● ●
102 03.402 RESONATOR; AIR INT 8-97103-541-1 01 1 9507- ●
103 03.402 NUT; RESONATOR
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9312-9506 ● ● ●
103 03.402 NUT; RESONATOR
07.633 M8 FLANGE 		0-91150-108-0 02 1 9312-9506 ●
103 03.402 NUT; RESONATOR
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9507-9711 ● ● ● ●
103 03.402 NUT; RESONATOR
AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9712- ● ● ● ●
104 03.417 RUBBER; MOUNTING,RESONATOR
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-97095-600-0 02 1 9312-9506 ● ● ● ●
104 03.417 RUBBER; MOUNTING,RESONATOR
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-97095-600-0 02 1 9507-9711 ● ● ● ●
104 03.417 RUBBER; MOUNTING,RESONATOR
AIR INTAKE SYSTEM FRONT<6PC> 		8-97095-600-0 02 1 9712- ● ● ● ●
105 03.403 BRACKET; RESONATOR
AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97075-885-1 01 1 9312-9701 ● ● ● ●
105 03.403 BRACKET; RESONATOR
AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97174-754-0 01 1 9702- ● ● ● ●
105 03.403 BRACKET; RESONATOR
AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97092-039-1 01 1 9312- ● ● ● ●
107 03.417 CLIP; PROTECTOR
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-97095-785-0 02 1 9312-9506 ● ● ● ●
107 03.417 CLIP; PROTECTOR
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-97095-785-0 02 1 9507-9711 ● ● ● ●
107 03.417 CLIP; PROTECTOR
AIR INTAKE SYSTEM FRONT<6PC> 		8-97095-785-0 02 1 9712- ● ● ● ●
116 01.745 RETAINER; RESONATOR
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-97095-597-0 02 1 9312-9711 ●
116 01.745 RETAINER; RESONATOR
4BE1 ENG(RLH) 		8-97095-597-0 02 1 9312-9711 ● ●
116 01.745 RETAINER; RESONATOR
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97095-597-0 02 1 9712- ●
116 01.745 RETAINER; RESONATOR
4BE1 ENG(RLH) 		8-97095-597-0 02 1 9712- ●
116 01.745 RETAINER; RESONATOR
4HF1 ENG(RLS) 		8-97095-597-0 02 1 9712- ●
116 01.745 RETAINER; RESONATOR
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97105-842-0 02 1 9312-9506 ● ● ●
116 01.745 RETAINER; RESONATOR 8-97105-842-0 02 1 9312-9506 ●
116 01.745 RETAINER; RESONATOR
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97105-842-0 02 1 9507- ● ● ●
116 01.745 RETAINER; RESONATOR 8-97105-842-0 02 1 9507- ●
119 03.403 HOSE; RESONATOR
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-97105-844-0 01 1 9312-9711 ●
119 03.403 HOSE; RESONATOR
4BE1 ENG(RLH) 		8-97105-844-0 01 1 9312-9711 ● ●
119 03.403 HOSE; RESONATOR
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97105-844-0 01 1 9712- ●
119 03.403 HOSE; RESONATOR
4BE1 ENG(RLH) 		8-97105-844-0 01 1 9712- ●
119 03.403 HOSE; RESONATOR
4HF1 ENG(RLS) 		8-97105-844-0 01 1 9712- ●
119 03.403 HOSE; RESONATOR
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97109-542-0 01 1 9312-9506 ● ● ●
119 03.403 HOSE; RESONATOR 8-97109-542-0 01 1 9312-9506 ●
119 03.403 HOSE; RESONATOR
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97109-542-0 01 1 9507- ● ● ●
119 03.403 HOSE; RESONATOR 8-97109-542-0 01 1 9507- ●
147 03.417 CLIP; HOSE TO ENG
4JB1 ENG(RLF),4BE1 ENG(RLH) 03.407 ID=79 		9-09915-734-1 01 1 9312-9506 ● ● ● ● ● ●
147 03.417 CLIP; HOSE TO ENG
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 03.407 ID=79 		9-09915-734-1 01 1 9507-9711 ● ● ● ● ● ●
147 03.417 CLIP; HOSE TO ENG
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=79 		9-09915-734-1 01 1 9712- ● ● ● ●
147 03.417 CLIP; HOSE TO ENG
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.407 ID=79 		9-09915-734-1 01 1 9712- ● ● ●
147 03.417 CLIP; HOSE TO ENG
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9712- ● ●
147 03.417 CLIP; HOSE TO ENG
4HF1 ENG(RLS) 03.008 ID=95 		9-09915-733-1 01 1 9312-9510 ●
147 03.417 CLIP; HOSE TO ENG
4HF1 ENG(RLS) 03.008 ID=95 		9-09915-733-1 01 1 9511-9711 ● ●
147 03.417 CLIP; HOSE TO ENG
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95 		9-09915-733-1 01 1 9712- ●
147 03.417 CLIP; HOSE TO ENG
4HF1 ENG(RLS) 03.008 ID=95 		9-09915-733-1 01 1 9712- ● ●
155 03.417 BOLT; BRKT
4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 09.171 M10X30 W/LK WASHER 		0-50041-030-0 02 1 9312-9408 ●
155 03.417 BOLT; BRKT
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 09.171 M10X30 W/LK WASHER 		0-50041-030-0 02 1 9312-9408 ●
155 03.417 BOLT; BRKT
4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 09.171 M10X30 W/LK WASHER 		0-50041-030-0 02 1 9409-9410 ●
155 03.417 BOLT; BRKT
4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 09.171 M10X30 W/LK WASHER 		0-50041-030-0 02 1 9411-9510 ●
155 03.417 BOLT; BRKT
4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. FRAME-KICK UP<7EW> 09.171 M10X30 W/LK WASHER 		0-50041-030-0 02 1 9411-9510 ● ●
155 03.417 BOLT; BRKT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 01.531 M8X25 FLANGE 		0-28080-825-0 01 1 9312-9506 ● ● ●
155 03.417 BOLT; BRKT
01.531 M8X25 FLANGE 		0-28080-825-0 01 1 9312-9506 ●
155 03.417 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 01.531 M8X25 FLANGE 		0-28080-825-0 01 1 9507-9608 ● ● ● ●
155 03.417 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9609-9711 ● ● ● ●
155 03.417 BOLT; BRKT
AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712- ● ● ● ●
155 03.417 BOLT; BRKT
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 9409-9510 ●
232 03.417 HOSE; CONN
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97096-429-1 01 1 9312-9711 ● ● ● ●
232 03.417 HOSE; CONN
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97096-429-1 01 1 9712- ● ● ● ●
232 03.417 HOSE; CONN
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 		5-14231-115-1 01 1 9312-9506 ● ● ●
232 03.417 HOSE; CONN
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 		5-14231-115-1 01 1 9507- ● ● ●
232 03.417 HOSE; CONN
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-94373-874-1 01 1 9312- ● ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97102-361-0 01 1 9712- ● ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) 		8-97042-301-2 01 1 9312-9510 ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) 		8-97042-301-2 01 1 9511-9609 ● ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) 		8-97109-423-0 01 1 9610-9711 ● ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97109-423-0 01 1 9712- ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) 		8-97109-423-0 01 1 9712- ● ●
258 03.417 NUT; AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8 		9-09110-408-0 01 1 9312-9402 ● ● ● ●
258 03.417 NUT; AIR DUCT
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9312-9402 ● ● ●
258 03.417 NUT; AIR DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9312-9402 ● ● ●
258 03.417 NUT; AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9403-9404 ● ● ● ●
258 03.417 NUT; AIR DUCT
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9403-9404 ● ● ●
258 03.417 NUT; AIR DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9403-9404 ● ● ●
258 03.417 NUT; AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9405-9506 ● ● ● ●
258 03.417 NUT; AIR DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9405-9506 ● ● ●
258 03.417 NUT; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9507-9711 ● ● ● ●
258 03.417 NUT; AIR DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9507-9711 ● ● ●
258 03.417 NUT; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9712- ● ● ● ●
258 03.417 NUT; AIR DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9712- ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9312-9401 ● ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 03.407 ID=92 		9-09915-072-1 01 1 9312-9401 ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9402-9506 ● ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 03.407 ID=92 		9-09915-072-1 01 1 9402-9506 ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9507-9711 ● ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 03.407 ID=92 		9-09915-072-1 01 1 9507-9711 ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9712- ● ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.407 ID=92 		9-09915-072-1 01 1 9712- ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.407 ID=79 		9-09915-734-1 01 1 9312-9506 ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.407 ID=79 		9-09915-734-1 01 1 9507-9709 ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 01.166 ID=76 		1-09704-069-0 01 1 9710-9711 ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.407 ID=79 		9-09915-734-1 01 1 9712- ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> 01.166 ID=57 		5-09704-051-0 01 1 9712- ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=87 		9-09915-071-1 01 1 9402- ● ● ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9312-9711 ●
297 03.417 BOLT; DUCT
02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9312-9711 ● ●
297 03.417 BOLT; DUCT
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9312-9711 ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9712- ● ● ● ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9312-9502 ●
297 03.417 BOLT; DUCT
03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9312-9502 ● ●
297 03.417 BOLT; DUCT
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9312-9502 ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9503-9605 ●
297 03.417 BOLT; DUCT
03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9503-9605 ● ● ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> 16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 01 1 9606-9711 ●
297 03.417 BOLT; DUCT
16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 01 1 9606-9711 ● ● ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> 16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 01 1 9712- ● ● ● ●
297 03.417 BOLT; DUCT
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. AIR INTAKE SYSTEM FRONT<6PC> 03.415 M8X35 FLANGE 		0-28080-835-0 02 1 9312-9404 ● ● ●
297 03.417 BOLT; DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.415 M8X35 FLANGE 		0-28080-835-0 02 1 9312-9404 ● ● ●
297 03.417 BOLT; DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.415 M8X35 FLANGE 		0-28080-835-0 01 1 9405-9411 ● ● ●
297 03.417 BOLT; DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 9412-9711 ● ● ●
297 03.417 BOLT; DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 9712- ● ●
297 03.417 BOLT; DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.206 M8X14 W/LK WASHER 		0-50040-814-0 01 1 9312-9506 ● ● ●
297 03.417 BOLT; DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.206 M8X14 W/LK WASHER 		0-50040-814-0 01 1 9507-9711 ● ● ●
297 03.417 BOLT; DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9712- ● ● ●
297 03.417 BOLT; DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 02 1 9312-9506 ● ● ●
297 03.417 BOLT; DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 02 1 9507-9711 ● ● ●
297 03.417 BOLT; DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.611 M10X20 FLANGE 		0-28681-020-0 02 1 9712-9805 ● ● ●
297 03.417 BOLT; DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M10X16 FLANGE 		0-28081-016-0 02 1 9806- ● ● ●
297 03.417 BOLT; DUCT
HALOGEN HEAD LAMP RECTANGULAR<TR4> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9312-9502 ●
393 03.417 WASHER; LK,AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> 01.270 ID=10.5 OD=36 		8-97031-437-0 01 1 9312-9711 ●
393 03.417 WASHER; LK,AIR DUCT
01.270 ID=10.5 OD=36 		8-97031-437-0 01 1 9312-9711 ● ●
393 03.417 WASHER; LK,AIR DUCT
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 01.270 ID=10.5 OD=36 		8-97031-437-0 01 1 9312-9711 ●
393 03.417 WASHER; LK,AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 01.270 ID=10.5 OD=36 		8-97031-437-0 01 1 9712- ● ● ● ●
çizim 66117
320 290 192 232 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 03.407 CLIP; AIR DUCT
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67 		9-09915-069-1 01 1 9312-9711 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67 		9-09915-069-1 01 1 9712- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87 		8-97087-432-0 01 1 9312-9506 ● ● ●
5 03.407 CLIP; AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87 		8-97087-432-0 01 1 9312-9506 ●
5 03.407 CLIP; AIR DUCT
(A) ID=87 		8-97087-432-0 01 1 9312-9506 ● ● ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87 		8-97087-432-0 01 1 9507-9711 ● ● ●
5 03.407 CLIP; AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87 		8-97087-432-0 01 1 9507-9711 ●
5 03.407 CLIP; AIR DUCT
(A) ID=87 		8-97087-432-0 01 1 9507-9711 ● ● ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87 		8-97087-432-0 01 1 9712- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87 		8-97087-432-0 01 1 9712- ● ● ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=92 		9-09915-072-1 01 1 9712- ● ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) D=101.6 		9-09915-502-1 01 1 9312-9510 ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) D=101.6 		9-09915-502-1 01 1 9511-9711 ● ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> D=101.6 		9-09915-502-1 01 1 9712- ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) D=101.6 		9-09915-502-1 01 1 9712- ● ●
192 03.407 CLIP; HOSE
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> ID=79 		9-09915-734-1 02 1 9312-9506 ● ● ●
192 03.407 CLIP; HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> ID=79 		9-09915-734-1 02 1 9507-9711 ● ● ●
192 03.407 CLIP; HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> ID=79 		9-09915-734-1 02 1 9712- ● ● ●
192 03.407 CLIP; HOSE
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> ID=87 		8-97087-432-0 01 1 9712- ● ●
232 03.417 HOSE; CONN
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97096-429-1 01 1 9312-9711 ● ● ● ●
232 03.417 HOSE; CONN
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97096-429-1 01 1 9712- ● ● ● ●
232 03.417 HOSE; CONN
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 		5-14231-115-1 01 1 9312-9506 ● ● ●
232 03.417 HOSE; CONN
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 		5-14231-115-1 01 1 9507- ● ● ●
232 03.417 HOSE; CONN
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-94373-874-1 01 1 9312- ● ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97102-361-0 01 1 9712- ● ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) 		8-97042-301-2 01 1 9312-9510 ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) 		8-97042-301-2 01 1 9511-9609 ● ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) 		8-97109-423-0 01 1 9610-9711 ● ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97109-423-0 01 1 9712- ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) 		8-97109-423-0 01 1 9712- ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9312-9401 ● ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 03.407 ID=92 		9-09915-072-1 01 1 9312-9401 ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9402-9506 ● ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 03.407 ID=92 		9-09915-072-1 01 1 9402-9506 ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9507-9711 ● ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 03.407 ID=92 		9-09915-072-1 01 1 9507-9711 ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9712- ● ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.407 ID=92 		9-09915-072-1 01 1 9712- ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.407 ID=79 		9-09915-734-1 01 1 9312-9506 ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.407 ID=79 		9-09915-734-1 01 1 9507-9709 ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 01.166 ID=76 		1-09704-069-0 01 1 9710-9711 ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.407 ID=79 		9-09915-734-1 01 1 9712- ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> 01.166 ID=57 		5-09704-051-0 01 1 9712- ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=87 		9-09915-071-1 01 1 9402- ● ● ●
320 03.417 HOSE; CONN,ACL
4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. FRAME-KICK UP<7EW> 		8-94325-846-0 01 1 9312- ● ● ●
320 03.417 HOSE; CONN,ACL
4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z>,FRAME-KICK UP<7EW> 		8-94313-594-0 01 1 9312- ● ● ●
320 03.417 HOSE; CONN,ACL
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94412-772-1 01 1 9312-9506 ● ● ●
320 03.417 HOSE; CONN,ACL
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94412-772-1 01 1 9507-9711 ● ● ●
320 03.417 HOSE; CONN,ACL
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. TURBOCHARGER<K51> 		8-94412-772-1 01 1 9712- ● ● ●
320 03.417 HOSE; CONN,ACL
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 		8-94110-075-2 01 1 9312-9506 ● ● ●
320 03.417 HOSE; CONN,ACL
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 		8-94110-075-2 01 1 9507-9711 ● ● ●
320 03.417 HOSE; CONN,ACL
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94110-075-2 01 1 9712- ● ● ●
320 03.417 HOSE; CONN,ACL
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 		8-97168-373-0 01 1 9712- ● ●
320 03.417 HOSE; CONN,ACL
4BE1 ENG(RLH) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> FRAME-KICK UP<7EW> 		8-97109-815-0 01 1 9312- ●
320 03.417 HOSE; CONN,ACL
4BE1 ENG(RLH) FRAME-KICK UP<7EW> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 		8-97106-732-0 01 1 9312- ●
320 03.417 HOSE; CONN,ACL
4HF1 ENG(RLS) 		8-97069-875-1 01 1 9312-9510 ●
320 03.417 HOSE; CONN,ACL
4HF1 ENG(RLS) 		8-97069-875-1 01 1 9511-9711 ● ●
320 03.417 HOSE; CONN,ACL
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97069-875-1 01 1 9712- ●
320 03.417 HOSE; CONN,ACL
4HF1 ENG(RLS) 		8-97069-875-1 01 1 9712- ● ●
çizim 66206
147 232 5 258 26 314 26 15 393 192 290 9 10 5 40 297 155 102 105 107 105 119 107 104 103 116 102 103
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 03.407 CLIP; AIR DUCT
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67 		9-09915-069-1 01 1 9312-9711 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67 		9-09915-069-1 01 1 9712- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87 		8-97087-432-0 01 1 9312-9506 ● ● ●
5 03.407 CLIP; AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87 		8-97087-432-0 01 1 9312-9506 ●
5 03.407 CLIP; AIR DUCT
(A) ID=87 		8-97087-432-0 01 1 9312-9506 ● ● ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87 		8-97087-432-0 01 1 9507-9711 ● ● ●
5 03.407 CLIP; AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87 		8-97087-432-0 01 1 9507-9711 ●
5 03.407 CLIP; AIR DUCT
(A) ID=87 		8-97087-432-0 01 1 9507-9711 ● ● ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87 		8-97087-432-0 01 1 9712- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87 		8-97087-432-0 01 1 9712- ● ● ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=92 		9-09915-072-1 01 1 9712- ● ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) D=101.6 		9-09915-502-1 01 1 9312-9510 ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) D=101.6 		9-09915-502-1 01 1 9511-9711 ● ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> D=101.6 		9-09915-502-1 01 1 9712- ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) D=101.6 		9-09915-502-1 01 1 9712- ● ●
9 03.417 BRACKET; INT PIPE
AIR INTAKE SYSTEM FRONT<6PC> 		8-97089-654-1 01 1 9312-9711 ● ● ● ●
9 03.417 BRACKET; INT PIPE
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-97089-654-1 01 1 9712- ● ●
9 03.417 BRACKET; INT PIPE
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97089-655-0 01 1 9312-9711 ● ● ● ●
9 03.417 BRACKET; INT PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97089-655-0 01 1 9712- ● ● ● ●
9 03.417 BRACKET; INT PIPE
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-94155-425-1 01 1 9312-9506 ● ● ●
9 03.417 BRACKET; INT PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-94155-425-1 01 1 9507- ● ● ●
9 03.417 BRACKET; INT PIPE
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97102-618-0 01 1 9801- ● ●
10 03.417 BOLT; BRKT FIX
AIR INTAKE SYSTEM FRONT<6PC> 06.672 M8X25 W/LK WASHER 		0-51040-825-0 01 1 9312-9609 ●
10 03.417 BOLT; BRKT FIX
06.672 M8X25 W/LK WASHER 		0-51040-825-0 01 1 9312-9609 ● ● ●
10 03.417 BOLT; BRKT FIX
AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9610-9711 ●
10 03.417 BOLT; BRKT FIX
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9610-9711 ● ● ●
10 03.417 BOLT; BRKT FIX
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712- ● ● ● ●
10 03.417 BOLT; BRKT FIX
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9712- ● ●
15 03.417 INSULATOR
AIR INTAKE SYSTEM FRONT<6PC> 		8-94338-739-0 01 1 9312-9711 ● ● ● ●
15 03.417 INSULATOR
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-94338-739-0 01 1 9312-9711 ● ● ●
15 03.417 INSULATOR
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-94338-739-0 01 1 9712- ● ● ● ●
15 03.417 INSULATOR
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-94338-739-0 01 1 9712- ● ●
26 03.417 DUCT; AIR INT
MANUAL TILT CAB<RWZ> AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97089-950-1 01 1 9312-9404 ●
26 03.417 DUCT; AIR INT
MANUAL TILT CAB<RWZ> EXC. AIR INTAKE FRONT VERTICAL<6NN> (B) 		8-97089-950-1 01 1 9312-9404 ●
26 03.417 DUCT; AIR INT
MANUAL TILT CAB<RWZ> AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97089-950-1 01 1 9405-9510 ●
26 03.417 DUCT; AIR INT
MANUAL TILT CAB<RWZ> (B) 		8-97089-950-1 01 1 9405-9510 ●
26 03.417 DUCT; AIR INT
MANUAL TILT CAB<RWZ> AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97089-950-2 01 1 9511- ● ●
26 03.417 DUCT; AIR INT
AIR INTAKE SYSTEM FRONT<6PC> EXC. MANUAL TILT CAB<RWZ>,HALOGEN HEAD LAMP RECTANGULAR<TR4>,AIR INTAKE FR ONT VERTICAL<6NN> (B) 		8-97089-951-2 01 1 9312-9404 ● ● ● ●
26 03.417 DUCT; AIR INT
AIR INTAKE SYSTEM FRONT<6PC> EXC. MANUAL TILT CAB<RWZ>,HALOGEN HEAD LAMP RECTANGULAR<TR4>,AIR INTAKE FR ONT VERTICAL<6NN> (B) 		8-97089-951-2 01 1 9405-9510 ● ● ● ●
26 03.417 DUCT; AIR INT
AIR INTAKE SYSTEM FRONT<6PC> EXC. MANUAL TILT CAB<RWZ>,HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97089-951-2 01 1 9511- ● ● ● ●
26 03.417 DUCT; AIR INT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97035-696-3 01 1 9312- ● ● ●
26 03.417 DUCT; AIR INT
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97091-273-1 01 1 9312-9506 ● ● ●
26 03.417 DUCT; AIR INT
(A) 		8-97091-273-1 01 1 9312-9506 ●
26 03.417 DUCT; AIR INT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97091-273-1 01 1 9507- ● ● ●
26 03.417 DUCT; AIR INT
(A) 		8-97091-273-1 01 1 9507- ●
26 03.417 DUCT; AIR INT
AIR INTAKE FRONT VERTICAL<6NN> EXC. MANUAL TILT CAB<RWZ>,HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97089-956-1 01 1 9312-9404 ● ● ●
26 03.417 DUCT; AIR INT
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AIR INTAKE FRONT VERTICAL<6NN> (B) 		8-97089-949-0 01 1 9312-9404 ●
26 03.417 DUCT; AIR INT
HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97089-949-1 01 1 9405-9711 ●
26 03.417 DUCT; AIR INT
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (C) 		8-97106-364-2 01 1 9712- ● ●
26 03.417 DUCT; AIR INT
4JG2 ENG(RJC) HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97089-949-1 01 1 9712- ●
26 03.417 DUCT; AIR INT
MANUAL TILT CAB<RWZ> AIR INTAKE FRONT VERTICAL<6NN> (B) 		8-97089-955-0 01 1 9312-9404 ●
40 03.417 NUT; AIR INT DUCT
HALOGEN HEAD LAMP RECTANGULAR<TR4> M8 FLANGE 		8-94279-517-0 01 1 9312-9711 ●
40 03.417 NUT; AIR INT DUCT
4JG2 ENG(RJC),4BE1 ENG(RLH) HALOGEN HEAD LAMP RECTANGULAR<TR4> M8 FLANGE 		8-94279-517-0 01 1 9712-9802 ●
40 03.417 NUT; AIR INT DUCT
4JG2 ENG(RJC),4BE1 ENG(RLH) HALOGEN HEAD LAMP RECTANGULAR<TR4> 09.005 M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 9803- ●
102 03.402 RESONATOR; AIR INT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-97103-542-0 01 1 9312-9711 ●
102 03.402 RESONATOR; AIR INT
4BE1 ENG(RLH) 		8-97103-542-0 01 1 9312-9711 ● ●
102 03.402 RESONATOR; AIR INT
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97103-542-0 01 1 9712- ●
102 03.402 RESONATOR; AIR INT
4BE1 ENG(RLH) 		8-97103-542-0 01 1 9712- ●
102 03.402 RESONATOR; AIR INT
4HF1 ENG(RLS) 		8-97103-542-0 01 1 9712- ●
102 03.402 RESONATOR; AIR INT
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97103-541-1 01 1 9312-9506 ● ● ●
102 03.402 RESONATOR; AIR INT 8-97103-541-1 01 1 9312-9506 ●
102 03.402 RESONATOR; AIR INT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97103-541-1 01 1 9507- ● ● ●
102 03.402 RESONATOR; AIR INT 8-97103-541-1 01 1 9507- ●
103 03.402 NUT; RESONATOR
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9312-9506 ● ● ●
103 03.402 NUT; RESONATOR
07.633 M8 FLANGE 		0-91150-108-0 02 1 9312-9506 ●
103 03.402 NUT; RESONATOR
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9507-9711 ● ● ● ●
103 03.402 NUT; RESONATOR
AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9712- ● ● ● ●
104 03.417 RUBBER; MOUNTING,RESONATOR
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-97095-600-0 02 1 9312-9506 ● ● ● ●
104 03.417 RUBBER; MOUNTING,RESONATOR
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-97095-600-0 02 1 9507-9711 ● ● ● ●
104 03.417 RUBBER; MOUNTING,RESONATOR
AIR INTAKE SYSTEM FRONT<6PC> 		8-97095-600-0 02 1 9712- ● ● ● ●
105 03.403 BRACKET; RESONATOR
AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97075-885-1 01 1 9312-9701 ● ● ● ●
105 03.403 BRACKET; RESONATOR
AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97174-754-0 01 1 9702- ● ● ● ●
105 03.403 BRACKET; RESONATOR
AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97092-039-1 01 1 9312- ● ● ● ●
107 03.417 CLIP; PROTECTOR
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-97095-785-0 02 1 9312-9506 ● ● ● ●
107 03.417 CLIP; PROTECTOR
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-97095-785-0 02 1 9507-9711 ● ● ● ●
107 03.417 CLIP; PROTECTOR
AIR INTAKE SYSTEM FRONT<6PC> 		8-97095-785-0 02 1 9712- ● ● ● ●
116 01.745 RETAINER; RESONATOR
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-97095-597-0 02 1 9312-9711 ●
116 01.745 RETAINER; RESONATOR
4BE1 ENG(RLH) 		8-97095-597-0 02 1 9312-9711 ● ●
116 01.745 RETAINER; RESONATOR
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97095-597-0 02 1 9712- ●
116 01.745 RETAINER; RESONATOR
4BE1 ENG(RLH) 		8-97095-597-0 02 1 9712- ●
116 01.745 RETAINER; RESONATOR
4HF1 ENG(RLS) 		8-97095-597-0 02 1 9712- ●
116 01.745 RETAINER; RESONATOR
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97105-842-0 02 1 9312-9506 ● ● ●
116 01.745 RETAINER; RESONATOR 8-97105-842-0 02 1 9312-9506 ●
116 01.745 RETAINER; RESONATOR
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97105-842-0 02 1 9507- ● ● ●
116 01.745 RETAINER; RESONATOR 8-97105-842-0 02 1 9507- ●
119 03.403 HOSE; RESONATOR
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-97105-844-0 01 1 9312-9711 ●
119 03.403 HOSE; RESONATOR
4BE1 ENG(RLH) 		8-97105-844-0 01 1 9312-9711 ● ●
119 03.403 HOSE; RESONATOR
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97105-844-0 01 1 9712- ●
119 03.403 HOSE; RESONATOR
4BE1 ENG(RLH) 		8-97105-844-0 01 1 9712- ●
119 03.403 HOSE; RESONATOR
4HF1 ENG(RLS) 		8-97105-844-0 01 1 9712- ●
119 03.403 HOSE; RESONATOR
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97109-542-0 01 1 9312-9506 ● ● ●
119 03.403 HOSE; RESONATOR 8-97109-542-0 01 1 9312-9506 ●
119 03.403 HOSE; RESONATOR
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97109-542-0 01 1 9507- ● ● ●
119 03.403 HOSE; RESONATOR 8-97109-542-0 01 1 9507- ●
147 03.417 CLIP; HOSE TO ENG
4JB1 ENG(RLF),4BE1 ENG(RLH) 03.407 ID=79 		9-09915-734-1 01 1 9312-9506 ● ● ● ● ● ●
147 03.417 CLIP; HOSE TO ENG
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 03.407 ID=79 		9-09915-734-1 01 1 9507-9711 ● ● ● ● ● ●
147 03.417 CLIP; HOSE TO ENG
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=79 		9-09915-734-1 01 1 9712- ● ● ● ●
147 03.417 CLIP; HOSE TO ENG
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.407 ID=79 		9-09915-734-1 01 1 9712- ● ● ●
147 03.417 CLIP; HOSE TO ENG
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9712- ● ●
147 03.417 CLIP; HOSE TO ENG
4HF1 ENG(RLS) 03.008 ID=95 		9-09915-733-1 01 1 9312-9510 ●
147 03.417 CLIP; HOSE TO ENG
4HF1 ENG(RLS) 03.008 ID=95 		9-09915-733-1 01 1 9511-9711 ● ●
147 03.417 CLIP; HOSE TO ENG
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95 		9-09915-733-1 01 1 9712- ●
147 03.417 CLIP; HOSE TO ENG
4HF1 ENG(RLS) 03.008 ID=95 		9-09915-733-1 01 1 9712- ● ●
155 03.417 BOLT; BRKT
4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 09.171 M10X30 W/LK WASHER 		0-50041-030-0 02 1 9312-9408 ●
155 03.417 BOLT; BRKT
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 09.171 M10X30 W/LK WASHER 		0-50041-030-0 02 1 9312-9408 ●
155 03.417 BOLT; BRKT
4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 09.171 M10X30 W/LK WASHER 		0-50041-030-0 02 1 9409-9410 ●
155 03.417 BOLT; BRKT
4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 09.171 M10X30 W/LK WASHER 		0-50041-030-0 02 1 9411-9510 ●
155 03.417 BOLT; BRKT
4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. FRAME-KICK UP<7EW> 09.171 M10X30 W/LK WASHER 		0-50041-030-0 02 1 9411-9510 ● ●
155 03.417 BOLT; BRKT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 01.531 M8X25 FLANGE 		0-28080-825-0 01 1 9312-9506 ● ● ●
155 03.417 BOLT; BRKT
01.531 M8X25 FLANGE 		0-28080-825-0 01 1 9312-9506 ●
155 03.417 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 01.531 M8X25 FLANGE 		0-28080-825-0 01 1 9507-9608 ● ● ● ●
155 03.417 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9609-9711 ● ● ● ●
155 03.417 BOLT; BRKT
AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712- ● ● ● ●
155 03.417 BOLT; BRKT
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 9409-9510 ●
192 03.407 CLIP; HOSE
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> ID=79 		9-09915-734-1 02 1 9312-9506 ● ● ●
192 03.407 CLIP; HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> ID=79 		9-09915-734-1 02 1 9507-9711 ● ● ●
192 03.407 CLIP; HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> ID=79 		9-09915-734-1 02 1 9712- ● ● ●
192 03.407 CLIP; HOSE
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> ID=87 		8-97087-432-0 01 1 9712- ● ●
232 03.417 HOSE; CONN
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97096-429-1 01 1 9312-9711 ● ● ● ●
232 03.417 HOSE; CONN
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97096-429-1 01 1 9712- ● ● ● ●
232 03.417 HOSE; CONN
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 		5-14231-115-1 01 1 9312-9506 ● ● ●
232 03.417 HOSE; CONN
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 		5-14231-115-1 01 1 9507- ● ● ●
232 03.417 HOSE; CONN
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-94373-874-1 01 1 9312- ● ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97102-361-0 01 1 9712- ● ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) 		8-97042-301-2 01 1 9312-9510 ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) 		8-97042-301-2 01 1 9511-9609 ● ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) 		8-97109-423-0 01 1 9610-9711 ● ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97109-423-0 01 1 9712- ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) 		8-97109-423-0 01 1 9712- ● ●
258 03.417 NUT; AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8 		9-09110-408-0 01 1 9312-9402 ● ● ● ●
258 03.417 NUT; AIR DUCT
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9312-9402 ● ● ●
258 03.417 NUT; AIR DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9312-9402 ● ● ●
258 03.417 NUT; AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9403-9404 ● ● ● ●
258 03.417 NUT; AIR DUCT
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9403-9404 ● ● ●
258 03.417 NUT; AIR DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9403-9404 ● ● ●
258 03.417 NUT; AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9405-9506 ● ● ● ●
258 03.417 NUT; AIR DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9405-9506 ● ● ●
258 03.417 NUT; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9507-9711 ● ● ● ●
258 03.417 NUT; AIR DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9507-9711 ● ● ●
258 03.417 NUT; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9712- ● ● ● ●
258 03.417 NUT; AIR DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9712- ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9312-9401 ● ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 03.407 ID=92 		9-09915-072-1 01 1 9312-9401 ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9402-9506 ● ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 03.407 ID=92 		9-09915-072-1 01 1 9402-9506 ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9507-9711 ● ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 03.407 ID=92 		9-09915-072-1 01 1 9507-9711 ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9712- ● ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.407 ID=92 		9-09915-072-1 01 1 9712- ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.407 ID=79 		9-09915-734-1 01 1 9312-9506 ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.407 ID=79 		9-09915-734-1 01 1 9507-9709 ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 01.166 ID=76 		1-09704-069-0 01 1 9710-9711 ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.407 ID=79 		9-09915-734-1 01 1 9712- ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> 01.166 ID=57 		5-09704-051-0 01 1 9712- ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=87 		9-09915-071-1 01 1 9402- ● ● ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9312-9711 ●
297 03.417 BOLT; DUCT
02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9312-9711 ● ●
297 03.417 BOLT; DUCT
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9312-9711 ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9712- ● ● ● ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9312-9502 ●
297 03.417 BOLT; DUCT
03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9312-9502 ● ●
297 03.417 BOLT; DUCT
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9312-9502 ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9503-9605 ●
297 03.417 BOLT; DUCT
03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9503-9605 ● ● ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> 16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 01 1 9606-9711 ●
297 03.417 BOLT; DUCT
16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 01 1 9606-9711 ● ● ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> 16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 01 1 9712- ● ● ● ●
297 03.417 BOLT; DUCT
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. AIR INTAKE SYSTEM FRONT<6PC> 03.415 M8X35 FLANGE 		0-28080-835-0 02 1 9312-9404 ● ● ●
297 03.417 BOLT; DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.415 M8X35 FLANGE 		0-28080-835-0 02 1 9312-9404 ● ● ●
297 03.417 BOLT; DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.415 M8X35 FLANGE 		0-28080-835-0 01 1 9405-9411 ● ● ●
297 03.417 BOLT; DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 9412-9711 ● ● ●
297 03.417 BOLT; DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 9712- ● ●
297 03.417 BOLT; DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.206 M8X14 W/LK WASHER 		0-50040-814-0 01 1 9312-9506 ● ● ●
297 03.417 BOLT; DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.206 M8X14 W/LK WASHER 		0-50040-814-0 01 1 9507-9711 ● ● ●
297 03.417 BOLT; DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9712- ● ● ●
297 03.417 BOLT; DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 02 1 9312-9506 ● ● ●
297 03.417 BOLT; DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 02 1 9507-9711 ● ● ●
297 03.417 BOLT; DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.611 M10X20 FLANGE 		0-28681-020-0 02 1 9712-9805 ● ● ●
297 03.417 BOLT; DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M10X16 FLANGE 		0-28081-016-0 02 1 9806- ● ● ●
297 03.417 BOLT; DUCT
HALOGEN HEAD LAMP RECTANGULAR<TR4> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9312-9502 ●
314 03.417 WASHER; PL,AIR INT DUCT
AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26 		9-09164-808-0 01 1 9312-9711 ● ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26 		9-09164-808-0 01 1 9312-9711 ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26 		9-09164-808-0 01 1 9712- ● ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26 		9-09164-808-0 01 1 9712- ● ●
314 03.417 WASHER; PL,AIR INT DUCT
4HF1 ENG(RLS) 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 9402-9510 ●
314 03.417 WASHER; PL,AIR INT DUCT
4HF1 ENG(RLS) 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 9511-9711 ● ●
314 03.417 WASHER; PL,AIR INT DUCT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 9712- ●
314 03.417 WASHER; PL,AIR INT DUCT
4HF1 ENG(RLS) 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 9712- ● ●
393 03.417 WASHER; LK,AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> 01.270 ID=10.5 OD=36 		8-97031-437-0 01 1 9312-9711 ●
393 03.417 WASHER; LK,AIR DUCT
01.270 ID=10.5 OD=36 		8-97031-437-0 01 1 9312-9711 ● ●
393 03.417 WASHER; LK,AIR DUCT
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 01.270 ID=10.5 OD=36 		8-97031-437-0 01 1 9312-9711 ●
393 03.417 WASHER; LK,AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 01.270 ID=10.5 OD=36 		8-97031-437-0 01 1 9712- ● ● ● ●
çizim 68195
147 232 146 258 314 15 10 26 314 15 393 9 26 10 5 107 258 40 297 290 209 107 119 104 102 116 155 105 105 103 102 103
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 03.407 CLIP; AIR DUCT
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67 		9-09915-069-1 01 1 9312-9711 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67 		9-09915-069-1 01 1 9712- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87 		8-97087-432-0 01 1 9312-9506 ● ● ●
5 03.407 CLIP; AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87 		8-97087-432-0 01 1 9312-9506 ●
5 03.407 CLIP; AIR DUCT
(A) ID=87 		8-97087-432-0 01 1 9312-9506 ● ● ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87 		8-97087-432-0 01 1 9507-9711 ● ● ●
5 03.407 CLIP; AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87 		8-97087-432-0 01 1 9507-9711 ●
5 03.407 CLIP; AIR DUCT
(A) ID=87 		8-97087-432-0 01 1 9507-9711 ● ● ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87 		8-97087-432-0 01 1 9712- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87 		8-97087-432-0 01 1 9712- ● ● ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=92 		9-09915-072-1 01 1 9712- ● ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) D=101.6 		9-09915-502-1 01 1 9312-9510 ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) D=101.6 		9-09915-502-1 01 1 9511-9711 ● ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> D=101.6 		9-09915-502-1 01 1 9712- ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) D=101.6 		9-09915-502-1 01 1 9712- ● ●
9 03.417 BRACKET; INT PIPE
AIR INTAKE SYSTEM FRONT<6PC> 		8-97089-654-1 01 1 9312-9711 ● ● ● ●
9 03.417 BRACKET; INT PIPE
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-97089-654-1 01 1 9712- ● ●
9 03.417 BRACKET; INT PIPE
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97089-655-0 01 1 9312-9711 ● ● ● ●
9 03.417 BRACKET; INT PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97089-655-0 01 1 9712- ● ● ● ●
9 03.417 BRACKET; INT PIPE
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-94155-425-1 01 1 9312-9506 ● ● ●
9 03.417 BRACKET; INT PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-94155-425-1 01 1 9507- ● ● ●
9 03.417 BRACKET; INT PIPE
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97102-618-0 01 1 9801- ● ●
10 03.417 BOLT; BRKT FIX
AIR INTAKE SYSTEM FRONT<6PC> 06.672 M8X25 W/LK WASHER 		0-51040-825-0 01 1 9312-9609 ●
10 03.417 BOLT; BRKT FIX
06.672 M8X25 W/LK WASHER 		0-51040-825-0 01 1 9312-9609 ● ● ●
10 03.417 BOLT; BRKT FIX
AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9610-9711 ●
10 03.417 BOLT; BRKT FIX
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9610-9711 ● ● ●
10 03.417 BOLT; BRKT FIX
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712- ● ● ● ●
10 03.417 BOLT; BRKT FIX
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9712- ● ●
15 03.417 INSULATOR
AIR INTAKE SYSTEM FRONT<6PC> 		8-94338-739-0 01 1 9312-9711 ● ● ● ●
15 03.417 INSULATOR
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-94338-739-0 01 1 9312-9711 ● ● ●
15 03.417 INSULATOR
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-94338-739-0 01 1 9712- ● ● ● ●
15 03.417 INSULATOR
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-94338-739-0 01 1 9712- ● ●
26 03.417 DUCT; AIR INT
MANUAL TILT CAB<RWZ> AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97089-950-1 01 1 9312-9404 ●
26 03.417 DUCT; AIR INT
MANUAL TILT CAB<RWZ> EXC. AIR INTAKE FRONT VERTICAL<6NN> (B) 		8-97089-950-1 01 1 9312-9404 ●
26 03.417 DUCT; AIR INT
MANUAL TILT CAB<RWZ> AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97089-950-1 01 1 9405-9510 ●
26 03.417 DUCT; AIR INT
MANUAL TILT CAB<RWZ> (B) 		8-97089-950-1 01 1 9405-9510 ●
26 03.417 DUCT; AIR INT
MANUAL TILT CAB<RWZ> AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97089-950-2 01 1 9511- ● ●
26 03.417 DUCT; AIR INT
AIR INTAKE SYSTEM FRONT<6PC> EXC. MANUAL TILT CAB<RWZ>,HALOGEN HEAD LAMP RECTANGULAR<TR4>,AIR INTAKE FR ONT VERTICAL<6NN> (B) 		8-97089-951-2 01 1 9312-9404 ● ● ● ●
26 03.417 DUCT; AIR INT
AIR INTAKE SYSTEM FRONT<6PC> EXC. MANUAL TILT CAB<RWZ>,HALOGEN HEAD LAMP RECTANGULAR<TR4>,AIR INTAKE FR ONT VERTICAL<6NN> (B) 		8-97089-951-2 01 1 9405-9510 ● ● ● ●
26 03.417 DUCT; AIR INT
AIR INTAKE SYSTEM FRONT<6PC> EXC. MANUAL TILT CAB<RWZ>,HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97089-951-2 01 1 9511- ● ● ● ●
26 03.417 DUCT; AIR INT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97035-696-3 01 1 9312- ● ● ●
26 03.417 DUCT; AIR INT
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97091-273-1 01 1 9312-9506 ● ● ●
26 03.417 DUCT; AIR INT
(A) 		8-97091-273-1 01 1 9312-9506 ●
26 03.417 DUCT; AIR INT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97091-273-1 01 1 9507- ● ● ●
26 03.417 DUCT; AIR INT
(A) 		8-97091-273-1 01 1 9507- ●
26 03.417 DUCT; AIR INT
AIR INTAKE FRONT VERTICAL<6NN> EXC. MANUAL TILT CAB<RWZ>,HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97089-956-1 01 1 9312-9404 ● ● ●
26 03.417 DUCT; AIR INT
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AIR INTAKE FRONT VERTICAL<6NN> (B) 		8-97089-949-0 01 1 9312-9404 ●
26 03.417 DUCT; AIR INT
HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97089-949-1 01 1 9405-9711 ●
26 03.417 DUCT; AIR INT
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (C) 		8-97106-364-2 01 1 9712- ● ●
26 03.417 DUCT; AIR INT
4JG2 ENG(RJC) HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97089-949-1 01 1 9712- ●
26 03.417 DUCT; AIR INT
MANUAL TILT CAB<RWZ> AIR INTAKE FRONT VERTICAL<6NN> (B) 		8-97089-955-0 01 1 9312-9404 ●
40 03.417 NUT; AIR INT DUCT
HALOGEN HEAD LAMP RECTANGULAR<TR4> M8 FLANGE 		8-94279-517-0 01 1 9312-9711 ●
40 03.417 NUT; AIR INT DUCT
4JG2 ENG(RJC),4BE1 ENG(RLH) HALOGEN HEAD LAMP RECTANGULAR<TR4> M8 FLANGE 		8-94279-517-0 01 1 9712-9802 ●
40 03.417 NUT; AIR INT DUCT
4JG2 ENG(RJC),4BE1 ENG(RLH) HALOGEN HEAD LAMP RECTANGULAR<TR4> 09.005 M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 9803- ●
102 03.402 RESONATOR; AIR INT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-97103-542-0 01 1 9312-9711 ●
102 03.402 RESONATOR; AIR INT
4BE1 ENG(RLH) 		8-97103-542-0 01 1 9312-9711 ● ●
102 03.402 RESONATOR; AIR INT
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97103-542-0 01 1 9712- ●
102 03.402 RESONATOR; AIR INT
4BE1 ENG(RLH) 		8-97103-542-0 01 1 9712- ●
102 03.402 RESONATOR; AIR INT
4HF1 ENG(RLS) 		8-97103-542-0 01 1 9712- ●
102 03.402 RESONATOR; AIR INT
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97103-541-1 01 1 9312-9506 ● ● ●
102 03.402 RESONATOR; AIR INT 8-97103-541-1 01 1 9312-9506 ●
102 03.402 RESONATOR; AIR INT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97103-541-1 01 1 9507- ● ● ●
102 03.402 RESONATOR; AIR INT 8-97103-541-1 01 1 9507- ●
103 03.402 NUT; RESONATOR
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9312-9506 ● ● ●
103 03.402 NUT; RESONATOR
07.633 M8 FLANGE 		0-91150-108-0 02 1 9312-9506 ●
103 03.402 NUT; RESONATOR
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9507-9711 ● ● ● ●
103 03.402 NUT; RESONATOR
AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9712- ● ● ● ●
104 03.417 RUBBER; MOUNTING,RESONATOR
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-97095-600-0 02 1 9312-9506 ● ● ● ●
104 03.417 RUBBER; MOUNTING,RESONATOR
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-97095-600-0 02 1 9507-9711 ● ● ● ●
104 03.417 RUBBER; MOUNTING,RESONATOR
AIR INTAKE SYSTEM FRONT<6PC> 		8-97095-600-0 02 1 9712- ● ● ● ●
105 03.403 BRACKET; RESONATOR
AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97075-885-1 01 1 9312-9701 ● ● ● ●
105 03.403 BRACKET; RESONATOR
AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97174-754-0 01 1 9702- ● ● ● ●
105 03.403 BRACKET; RESONATOR
AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97092-039-1 01 1 9312- ● ● ● ●
107 03.417 CLIP; PROTECTOR
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-97095-785-0 02 1 9312-9506 ● ● ● ●
107 03.417 CLIP; PROTECTOR
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-97095-785-0 02 1 9507-9711 ● ● ● ●
107 03.417 CLIP; PROTECTOR
AIR INTAKE SYSTEM FRONT<6PC> 		8-97095-785-0 02 1 9712- ● ● ● ●
116 01.745 RETAINER; RESONATOR
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-97095-597-0 02 1 9312-9711 ●
116 01.745 RETAINER; RESONATOR
4BE1 ENG(RLH) 		8-97095-597-0 02 1 9312-9711 ● ●
116 01.745 RETAINER; RESONATOR
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97095-597-0 02 1 9712- ●
116 01.745 RETAINER; RESONATOR
4BE1 ENG(RLH) 		8-97095-597-0 02 1 9712- ●
116 01.745 RETAINER; RESONATOR
4HF1 ENG(RLS) 		8-97095-597-0 02 1 9712- ●
116 01.745 RETAINER; RESONATOR
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97105-842-0 02 1 9312-9506 ● ● ●
116 01.745 RETAINER; RESONATOR 8-97105-842-0 02 1 9312-9506 ●
116 01.745 RETAINER; RESONATOR
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97105-842-0 02 1 9507- ● ● ●
116 01.745 RETAINER; RESONATOR 8-97105-842-0 02 1 9507- ●
119 03.403 HOSE; RESONATOR
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-97105-844-0 01 1 9312-9711 ●
119 03.403 HOSE; RESONATOR
4BE1 ENG(RLH) 		8-97105-844-0 01 1 9312-9711 ● ●
119 03.403 HOSE; RESONATOR
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97105-844-0 01 1 9712- ●
119 03.403 HOSE; RESONATOR
4BE1 ENG(RLH) 		8-97105-844-0 01 1 9712- ●
119 03.403 HOSE; RESONATOR
4HF1 ENG(RLS) 		8-97105-844-0 01 1 9712- ●
119 03.403 HOSE; RESONATOR
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97109-542-0 01 1 9312-9506 ● ● ●
119 03.403 HOSE; RESONATOR 8-97109-542-0 01 1 9312-9506 ●
119 03.403 HOSE; RESONATOR
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97109-542-0 01 1 9507- ● ● ●
119 03.403 HOSE; RESONATOR 8-97109-542-0 01 1 9507- ●
146 03.417 CLIP; HOSE,ACL
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=79 		9-09915-734-1 01 1 9312- ● ●
146 03.417 CLIP; HOSE,ACL
4HF1 ENG(RLS) 03.008 ID=95 		9-09915-733-1 01 1 9312-9510 ●
146 03.417 CLIP; HOSE,ACL
4HF1 ENG(RLS) 03.008 ID=95 		9-09915-733-1 01 1 9511-9711 ● ●
146 03.417 CLIP; HOSE,ACL
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95 		9-09915-733-1 01 1 9712- ●
146 03.417 CLIP; HOSE,ACL
4HF1 ENG(RLS) 03.008 ID=95 		9-09915-733-1 01 1 9712- ● ●
147 03.417 CLIP; HOSE TO ENG
4JB1 ENG(RLF),4BE1 ENG(RLH) 03.407 ID=79 		9-09915-734-1 01 1 9312-9506 ● ● ● ● ● ●
147 03.417 CLIP; HOSE TO ENG
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 03.407 ID=79 		9-09915-734-1 01 1 9507-9711 ● ● ● ● ● ●
147 03.417 CLIP; HOSE TO ENG
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=79 		9-09915-734-1 01 1 9712- ● ● ● ●
147 03.417 CLIP; HOSE TO ENG
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.407 ID=79 		9-09915-734-1 01 1 9712- ● ● ●
147 03.417 CLIP; HOSE TO ENG
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9712- ● ●
147 03.417 CLIP; HOSE TO ENG
4HF1 ENG(RLS) 03.008 ID=95 		9-09915-733-1 01 1 9312-9510 ●
147 03.417 CLIP; HOSE TO ENG
4HF1 ENG(RLS) 03.008 ID=95 		9-09915-733-1 01 1 9511-9711 ● ●
147 03.417 CLIP; HOSE TO ENG
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95 		9-09915-733-1 01 1 9712- ●
147 03.417 CLIP; HOSE TO ENG
4HF1 ENG(RLS) 03.008 ID=95 		9-09915-733-1 01 1 9712- ● ●
155 03.417 BOLT; BRKT
4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 09.171 M10X30 W/LK WASHER 		0-50041-030-0 02 1 9312-9408 ●
155 03.417 BOLT; BRKT
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 09.171 M10X30 W/LK WASHER 		0-50041-030-0 02 1 9312-9408 ●
155 03.417 BOLT; BRKT
4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 09.171 M10X30 W/LK WASHER 		0-50041-030-0 02 1 9409-9410 ●
155 03.417 BOLT; BRKT
4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 09.171 M10X30 W/LK WASHER 		0-50041-030-0 02 1 9411-9510 ●
155 03.417 BOLT; BRKT
4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. FRAME-KICK UP<7EW> 09.171 M10X30 W/LK WASHER 		0-50041-030-0 02 1 9411-9510 ● ●
155 03.417 BOLT; BRKT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 01.531 M8X25 FLANGE 		0-28080-825-0 01 1 9312-9506 ● ● ●
155 03.417 BOLT; BRKT
01.531 M8X25 FLANGE 		0-28080-825-0 01 1 9312-9506 ●
155 03.417 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 01.531 M8X25 FLANGE 		0-28080-825-0 01 1 9507-9608 ● ● ● ●
155 03.417 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9609-9711 ● ● ● ●
155 03.417 BOLT; BRKT
AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712- ● ● ● ●
155 03.417 BOLT; BRKT
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 9409-9510 ●
209 03.405 BRACKET; ACL
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.417 		8-97035-698-0 01 1 9312-9711 ● ● ●
209 03.405 BRACKET; ACL
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.417 		8-97035-698-0 01 1 9712- ● ●
209 03.405 BRACKET; ACL
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> FRT INDEPENDENT SUSPENSION(6PP) 03.417 		8-94373-872-2 01 1 9312-9510 ● ●
209 03.405 BRACKET; ACL
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> FRT INDEPENDENT SUSPENSION(6PP) 03.417 		8-94373-872-2 01 1 9511-9711 ●
209 03.405 BRACKET; ACL
4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> 		8-97120-080-1 01 1 9503-9510 ●
209 03.405 BRACKET; ACL
4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> 		8-97120-080-1 01 1 9511-9711 ● ●
209 03.405 BRACKET; ACL
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 		8-97120-080-1 01 1 9712- ● ● ●
232 03.417 HOSE; CONN
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97096-429-1 01 1 9312-9711 ● ● ● ●
232 03.417 HOSE; CONN
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97096-429-1 01 1 9712- ● ● ● ●
232 03.417 HOSE; CONN
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 		5-14231-115-1 01 1 9312-9506 ● ● ●
232 03.417 HOSE; CONN
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 		5-14231-115-1 01 1 9507- ● ● ●
232 03.417 HOSE; CONN
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-94373-874-1 01 1 9312- ● ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97102-361-0 01 1 9712- ● ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) 		8-97042-301-2 01 1 9312-9510 ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) 		8-97042-301-2 01 1 9511-9609 ● ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) 		8-97109-423-0 01 1 9610-9711 ● ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97109-423-0 01 1 9712- ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) 		8-97109-423-0 01 1 9712- ● ●
258 03.417 NUT; AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8 		9-09110-408-0 01 1 9312-9402 ● ● ● ●
258 03.417 NUT; AIR DUCT
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9312-9402 ● ● ●
258 03.417 NUT; AIR DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9312-9402 ● ● ●
258 03.417 NUT; AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9403-9404 ● ● ● ●
258 03.417 NUT; AIR DUCT
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9403-9404 ● ● ●
258 03.417 NUT; AIR DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9403-9404 ● ● ●
258 03.417 NUT; AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9405-9506 ● ● ● ●
258 03.417 NUT; AIR DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9405-9506 ● ● ●
258 03.417 NUT; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9507-9711 ● ● ● ●
258 03.417 NUT; AIR DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9507-9711 ● ● ●
258 03.417 NUT; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9712- ● ● ● ●
258 03.417 NUT; AIR DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9712- ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9312-9401 ● ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 03.407 ID=92 		9-09915-072-1 01 1 9312-9401 ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9402-9506 ● ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 03.407 ID=92 		9-09915-072-1 01 1 9402-9506 ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9507-9711 ● ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 03.407 ID=92 		9-09915-072-1 01 1 9507-9711 ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9712- ● ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.407 ID=92 		9-09915-072-1 01 1 9712- ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.407 ID=79 		9-09915-734-1 01 1 9312-9506 ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.407 ID=79 		9-09915-734-1 01 1 9507-9709 ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 01.166 ID=76 		1-09704-069-0 01 1 9710-9711 ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.407 ID=79 		9-09915-734-1 01 1 9712- ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> 01.166 ID=57 		5-09704-051-0 01 1 9712- ● ●
290 03.374 CLIP; ACL TO AIR DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=87 		9-09915-071-1 01 1 9402- ● ● ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9312-9711 ●
297 03.417 BOLT; DUCT
02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9312-9711 ● ●
297 03.417 BOLT; DUCT
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9312-9711 ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9712- ● ● ● ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9312-9502 ●
297 03.417 BOLT; DUCT
03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9312-9502 ● ●
297 03.417 BOLT; DUCT
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9312-9502 ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9503-9605 ●
297 03.417 BOLT; DUCT
03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9503-9605 ● ● ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> 16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 01 1 9606-9711 ●
297 03.417 BOLT; DUCT
16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 01 1 9606-9711 ● ● ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> 16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 01 1 9712- ● ● ● ●
297 03.417 BOLT; DUCT
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. AIR INTAKE SYSTEM FRONT<6PC> 03.415 M8X35 FLANGE 		0-28080-835-0 02 1 9312-9404 ● ● ●
297 03.417 BOLT; DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.415 M8X35 FLANGE 		0-28080-835-0 02 1 9312-9404 ● ● ●
297 03.417 BOLT; DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.415 M8X35 FLANGE 		0-28080-835-0 01 1 9405-9411 ● ● ●
297 03.417 BOLT; DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 9412-9711 ● ● ●
297 03.417 BOLT; DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 9712- ● ●
297 03.417 BOLT; DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.206 M8X14 W/LK WASHER 		0-50040-814-0 01 1 9312-9506 ● ● ●
297 03.417 BOLT; DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.206 M8X14 W/LK WASHER 		0-50040-814-0 01 1 9507-9711 ● ● ●
297 03.417 BOLT; DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9712- ● ● ●
297 03.417 BOLT; DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 02 1 9312-9506 ● ● ●
297 03.417 BOLT; DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 02 1 9507-9711 ● ● ●
297 03.417 BOLT; DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.611 M10X20 FLANGE 		0-28681-020-0 02 1 9712-9805 ● ● ●
297 03.417 BOLT; DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M10X16 FLANGE 		0-28081-016-0 02 1 9806- ● ● ●
297 03.417 BOLT; DUCT
HALOGEN HEAD LAMP RECTANGULAR<TR4> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9312-9502 ●
314 03.417 WASHER; PL,AIR INT DUCT
AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26 		9-09164-808-0 01 1 9312-9711 ● ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26 		9-09164-808-0 01 1 9312-9711 ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26 		9-09164-808-0 01 1 9712- ● ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26 		9-09164-808-0 01 1 9712- ● ●
314 03.417 WASHER; PL,AIR INT DUCT
4HF1 ENG(RLS) 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 9402-9510 ●
314 03.417 WASHER; PL,AIR INT DUCT
4HF1 ENG(RLS) 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 9511-9711 ● ●
314 03.417 WASHER; PL,AIR INT DUCT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 9712- ●
314 03.417 WASHER; PL,AIR INT DUCT
4HF1 ENG(RLS) 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 9712- ● ●
393 03.417 WASHER; LK,AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> 01.270 ID=10.5 OD=36 		8-97031-437-0 01 1 9312-9711 ●
393 03.417 WASHER; LK,AIR DUCT
01.270 ID=10.5 OD=36 		8-97031-437-0 01 1 9312-9711 ● ●
393 03.417 WASHER; LK,AIR DUCT
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 01.270 ID=10.5 OD=36 		8-97031-437-0 01 1 9312-9711 ●
393 03.417 WASHER; LK,AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 01.270 ID=10.5 OD=36 		8-97031-437-0 01 1 9712- ● ● ● ●
çizim 70672
381 60 391 399 391 399 391 381 389 242 281 281 391 391 389 389 48 242 17 242 64 64 391 391 76 232 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 03.407 CLIP; AIR DUCT
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67 		9-09915-069-1 01 1 9312-9711 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67 		9-09915-069-1 01 1 9712- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87 		8-97087-432-0 01 1 9312-9506 ● ● ●
5 03.407 CLIP; AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87 		8-97087-432-0 01 1 9312-9506 ●
5 03.407 CLIP; AIR DUCT
(A) ID=87 		8-97087-432-0 01 1 9312-9506 ● ● ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87 		8-97087-432-0 01 1 9507-9711 ● ● ●
5 03.407 CLIP; AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87 		8-97087-432-0 01 1 9507-9711 ●
5 03.407 CLIP; AIR DUCT
(A) ID=87 		8-97087-432-0 01 1 9507-9711 ● ● ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87 		8-97087-432-0 01 1 9712- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87 		8-97087-432-0 01 1 9712- ● ● ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=92 		9-09915-072-1 01 1 9712- ● ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) D=101.6 		9-09915-502-1 01 1 9312-9510 ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) D=101.6 		9-09915-502-1 01 1 9511-9711 ● ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> D=101.6 		9-09915-502-1 01 1 9712- ●
5 03.407 CLIP; AIR DUCT
4HF1 ENG(RLS) D=101.6 		9-09915-502-1 01 1 9712- ● ●
17 03.403 GASKET; AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> 		8-97853-699-2 01 1 9312- ●
17 03.403 GASKET; AIR DUCT 8-97853-699-2 01 1 9312- ● ●
48 03.417 BOLT; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 04.785 M8X18 W/LK WASHER 		0-50040-818-0 03 1 9312-9711 ● ● ●
48 03.417 BOLT; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 01.062 M8X16 FLANGE 		0-28080-816-0 03 1 9712- ● ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 		8-97856-956-0 01 1 9312-9506 ● ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 		8-97856-956-0 01 1 9507- ● ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4HF1 ENG(RLS) 		8-97856-957-0 01 1 9312-9510 ●
60 03.417 BRACKET; AIR DUCT,UPR
4HF1 ENG(RLS) 		8-97856-957-0 01 1 9511-9711 ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97856-957-0 01 1 9712- ●
60 03.417 BRACKET; AIR DUCT,UPR
4HF1 ENG(RLS) 		8-97856-957-0 01 1 9712- ● ●
64 03.417 BOLT; BRKT,AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> 03.483 (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9312- ●
64 03.417 BOLT; BRKT,AIR DUCT
03.483 (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9312- ● ●
64 03.417 BOLT; BRKT,AIR DUCT
4HF1 ENG(RLS) 04.047 (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 9312-9412 ●
76 03.403 VALVE; PRE ACL
4JB1 ENG(RLF),4BE1 ENG(RLH) HEAVY DUTY AIR CLEANER<K46> 03.415 		8-94447-157-0 01 1 9312-9506 ● ● ●
76 03.403 VALVE; PRE ACL
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) HEAVY DUTY AIR CLEANER<K46> 03.415 		8-94447-157-0 01 1 9507-9606 ●
76 03.403 VALVE; PRE ACL
4JB1 ENG(RLF),4BE1 ENG(RLH) HEAVY DUTY AIR CLEANER<K46> 03.415 		8-94447-157-0 01 1 9507-9606 ● ●
76 03.403 VALVE; PRE ACL
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) HEAVY DUTY AIR CLEANER<K46> 03.415 		8-94447-157-0 01 1 9607- ● ● ●
232 03.417 HOSE; CONN
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97096-429-1 01 1 9312-9711 ● ● ● ●
232 03.417 HOSE; CONN
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97096-429-1 01 1 9712- ● ● ● ●
232 03.417 HOSE; CONN
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 		5-14231-115-1 01 1 9312-9506 ● ● ●
232 03.417 HOSE; CONN
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 		5-14231-115-1 01 1 9507- ● ● ●
232 03.417 HOSE; CONN
4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 		8-94373-874-1 01 1 9312- ● ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97102-361-0 01 1 9712- ● ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) 		8-97042-301-2 01 1 9312-9510 ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) 		8-97042-301-2 01 1 9511-9609 ● ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) 		8-97109-423-0 01 1 9610-9711 ● ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97109-423-0 01 1 9712- ●
232 03.417 HOSE; CONN
4HF1 ENG(RLS) 		8-97109-423-0 01 1 9712- ● ●
242 03.417 BRACKET; AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97856-935-0 01 1 9312-9506 ● ● ●
242 03.417 BRACKET; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97856-935-0 01 1 9507- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (C) 		8-97856-958-0 01 1 9312-9506 ● ● ●
242 03.417 BRACKET; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (C) 		8-97856-958-0 01 1 9507- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97856-967-1 01 1 9312-9506 ● ● ●
242 03.417 BRACKET; AIR DUCT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97856-967-1 01 1 9507- ● ● ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (D) 		8-97853-633-1 01 1 9312-9510 ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (D) 		8-97853-633-1 01 1 9511-9711 ● ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (D) 		8-97853-633-1 01 1 9712- ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (D) 		8-97853-633-1 01 1 9712- ● ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (E) 		8-97853-634-0 01 1 9312-9412 ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (G) 		8-97857-844-0 01 1 9501-9510 ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (G) 		8-97857-844-0 01 1 9511-9711 ● ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (G) 		8-97857-844-0 01 1 9712- ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (G) 		8-97857-844-0 01 1 9712- ● ●
242 03.417 BRACKET; AIR DUCT
4HF1 ENG(RLS) (F) 		8-97853-635-1 01 1 9312-9412 ●
281 03.417 DUCT; AIR,VERTICAL INT
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97076-959-2 01 1 9312-9506 ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97076-959-2 01 1 9507- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 		8-97089-948-2 01 1 9312- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
AIR INTAKE FRONT VERTICAL<6NN> 		8-94311-105-1 01 1 9312-9404 ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) 		8-97042-039-3 01 1 9312-9312 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) 		8-97108-552-0 01 1 9401-9502 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97108-552-0 01 1 9503-9510 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97139-239-0 01 1 9511-9605 ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97161-847-0 01 1 9606-9711 ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97161-847-0 01 1 9712- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> 		8-97120-084-0 01 1 9503-9510 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> 		8-97120-084-0 01 1 9511-9711 ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 		8-97120-084-0 01 1 9712- ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE 		1-09984-018-0 02 1 9312- ●
381 03.417 NUT; BRKT,AIR DUCT
16.800 M6 FLANGE 		1-09984-018-0 02 1 9312- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A) 		8-97080-149-0 01 1 9312- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (A) 		8-97080-149-0 01 1 9312- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B) 		8-97081-886-0 02 1 9312- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-97081-886-0 02 1 9312- ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE 		8-94279-517-0 07 1 9312-9506 ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE 		8-94279-517-0 07 1 9507- ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HF1 ENG(RLS) M8 FLANGE 		8-94279-517-0 06 1 9312-9510 ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HF1 ENG(RLS) M8 FLANGE 		8-94279-517-0 06 1 9511-9711 ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE 		8-94279-517-0 06 1 9712- ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HF1 ENG(RLS) M8 FLANGE 		8-94279-517-0 06 1 9712- ● ●
399 03.417 CAP; BRKT,AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> 		8-94273-605-0 02 1 9312- ●
399 03.417 CAP; BRKT,AIR DUCT 8-94273-605-0 02 1 9312- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
