1 |

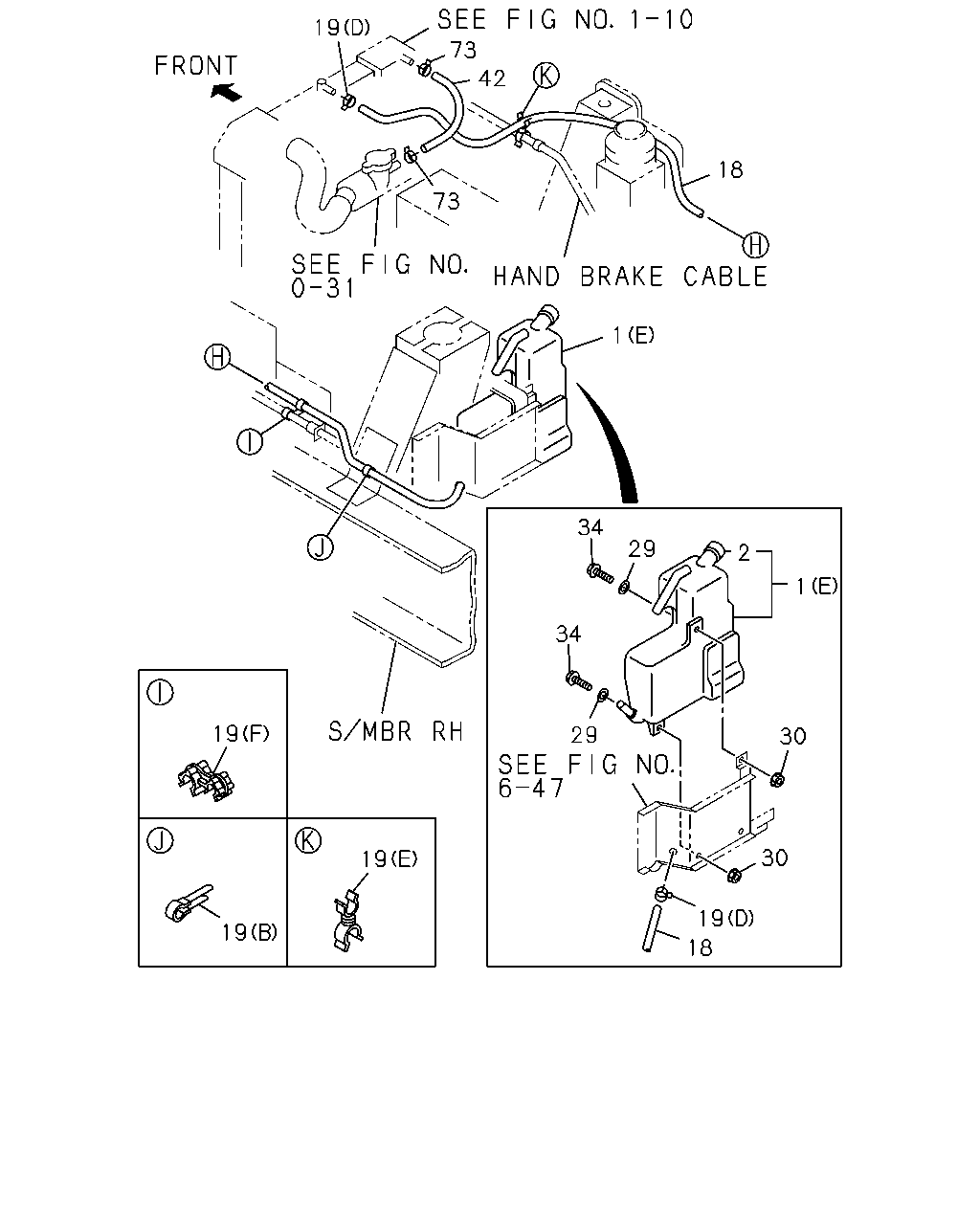

01.219 TANK; SURGE,RAD
4HF1 ENG(RLS)
THAILAND EQUIPMENT(PM9)
(E)
|
8-97210-844-0 |
01 |
1 |
9810- |
● |
● |
● |
|
|
|
| |
1 |
01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF)
THAILAND EQUIPMENT(PM9)
AIR INTAKE SYSTEM FRONT<6PC>
(E)
|
8-97210-844-0 |
01 |
1 |
9810- |
● |
|
|
|
|
|
| |
1 |
01.219 TANK; SURGE,RAD
4BE1 ENG(RLH)
(A)
|
8-94451-186-1 |
01 |
1 |
9312-9409 |
● |
|
|
● |
● |
|
| |
1 |
01.219 TANK; SURGE,RAD
4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
(A)
|
8-94451-186-1 |
01 |
1 |
9312-9409 |
● |
|
|
|
|
|
| |
1 |
01.219 TANK; SURGE,RAD
4JB1 ENG(RLF),4BE1 ENG(RLH)
(A)
|
8-94451-186-1 |
01 |
1 |
9312-9409 |
|
● |
● |
|
|
|
| |
1 |
01.219 TANK; SURGE,RAD
4BE1 ENG(RLH)
(A)
|
8-94451-186-1 |
01 |
1 |
9410-9506 |
● |
|
|
● |
● |
|
| |
1 |
01.219 TANK; SURGE,RAD
4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
(A)
|
8-94451-186-1 |
01 |
1 |
9410-9506 |
● |
|
|
|
|
|
| |
1 |
01.219 TANK; SURGE,RAD
4JB1 ENG(RLF),4BE1 ENG(RLH)
(A)
|
8-94451-186-1 |
01 |
1 |
9410-9506 |
|
● |
● |
|
|
|
| |
1 |
01.219 TANK; SURGE,RAD
4BE1 ENG(RLH)
(A)
|
8-94451-186-1 |
01 |
1 |
9507-9510 |
● |
|
|
● |
● |
|
| |
1 |
01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
(A)
|
8-94451-186-1 |
01 |
1 |
9507-9510 |
● |
|
|
|
|
|
| |
1 |
01.219 TANK; SURGE,RAD
4JB1 ENG(RLF),4BE1 ENG(RLH)
(A)
|
8-94451-186-1 |
01 |
1 |
9507-9510 |
|
● |
● |
|
|
|
| |
1 |

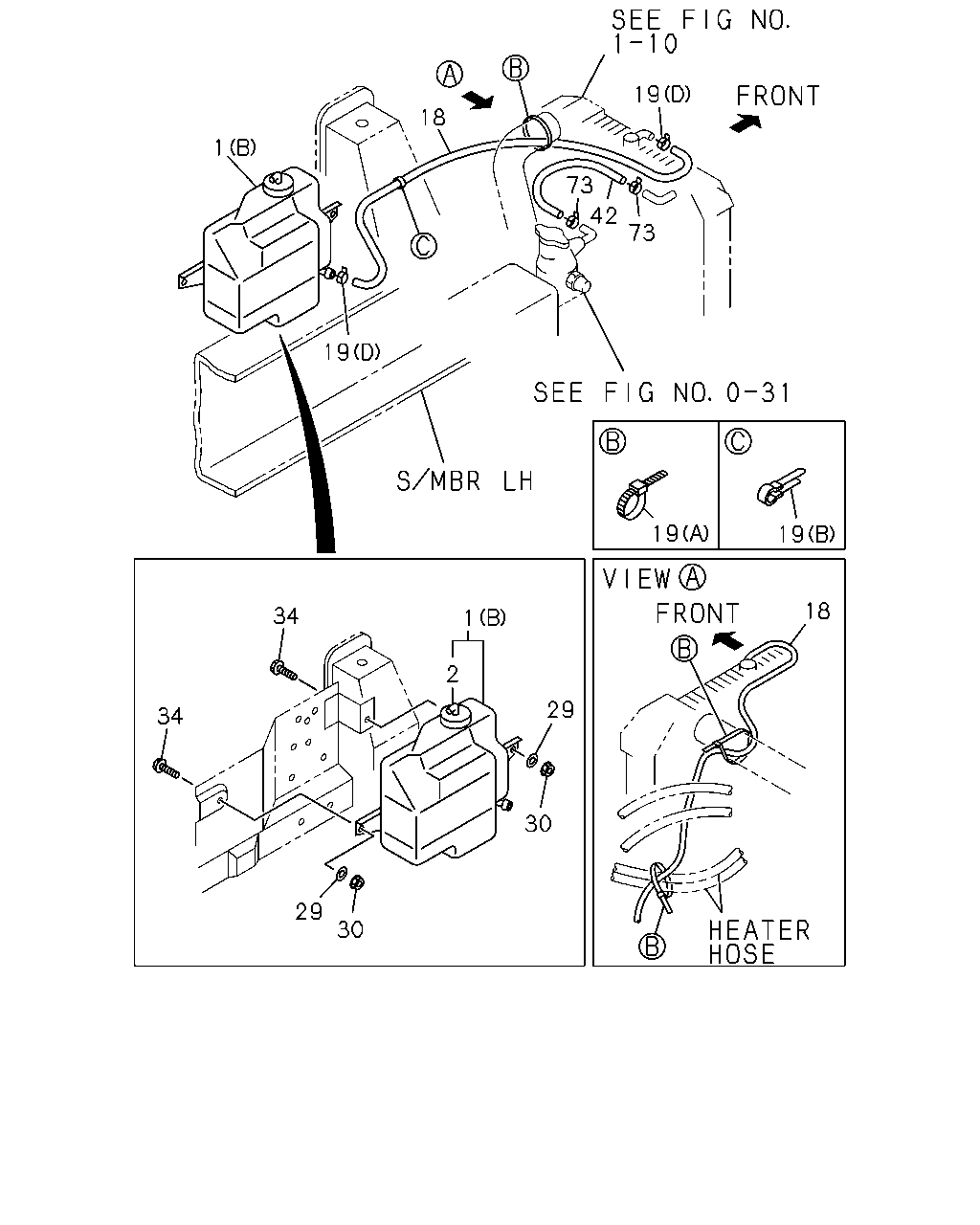

01.219 TANK; SURGE,RAD
4BE1 ENG(RLH)
(B)
|
8-97138-509-0 |
01 |
1 |
9511-9606 |
● |
|
|
● |
● |
|
| |
1 |
01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
(B)
|
8-97138-509-0 |
01 |
1 |
9511-9606 |
● |
|
|
|
|
|
| |
1 |
01.219 TANK; SURGE,RAD
4JB1 ENG(RLF),4BE1 ENG(RLH)
(B)
|
8-97138-509-0 |
01 |
1 |
9511-9606 |
|
● |
● |
|
|
|
| |
1 |
01.219 TANK; SURGE,RAD
4BE1 ENG(RLH)
(B)
|
8-97138-509-0 |
01 |
1 |
9607-9711 |
● |
|
|
● |
● |
|
| |
1 |
01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
(B)
|
8-97138-509-0 |
01 |
1 |
9607-9711 |
● |
|
|
|
|
|
| |
1 |
01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(B)
|
8-97138-509-0 |
01 |
1 |
9607-9711 |
|
● |
● |
|
|
|
| |
1 |
01.219 TANK; SURGE,RAD
4BE1 ENG(RLH)
(B)
|
8-97138-509-0 |
01 |
1 |
9712- |
● |
|
|
● |
|
|
| |
1 |
01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
(B)
|
8-97138-509-0 |
01 |
1 |
9712- |
● |
|
|
|
|
|
| |
1 |
01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(B)
|
8-97138-509-0 |
01 |
1 |
9712- |
|
● |
● |
|
|
|
| |
1 |

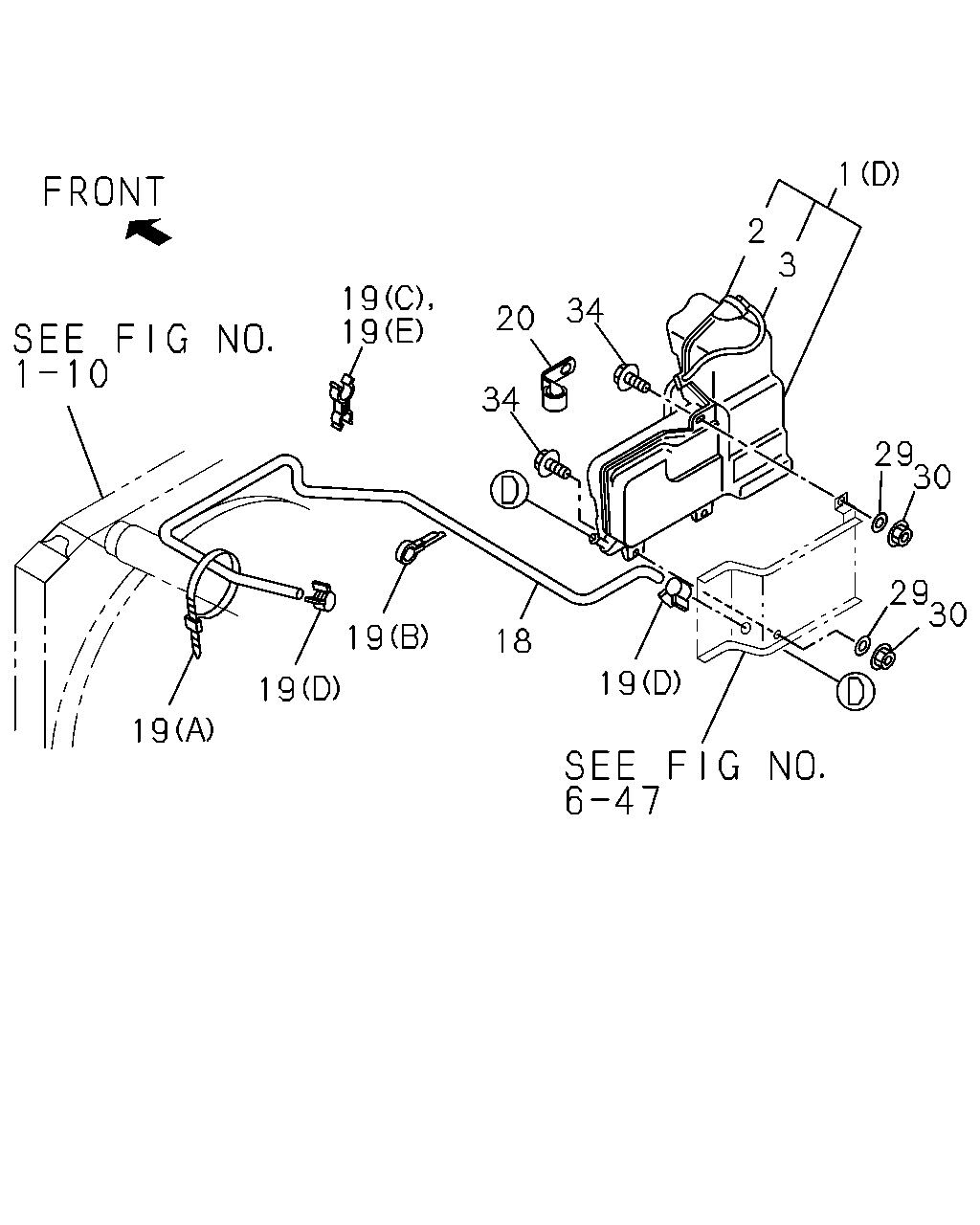

01.219 TANK; SURGE,RAD
4JB1 ENG(RLF)
EXC. AIR INTAKE REAR VERTICAL<KJ3>
(D)
|
8-97035-511-1 |
01 |
1 |
9312-9407 |
● |
|
|
|
● |
|
| |
1 |
01.219 TANK; SURGE,RAD
4HF1 ENG(RLS)
(D)
|
8-97035-511-1 |
01 |
1 |
9312-9407 |
|
|
● |
|
|
|
| |
1 |

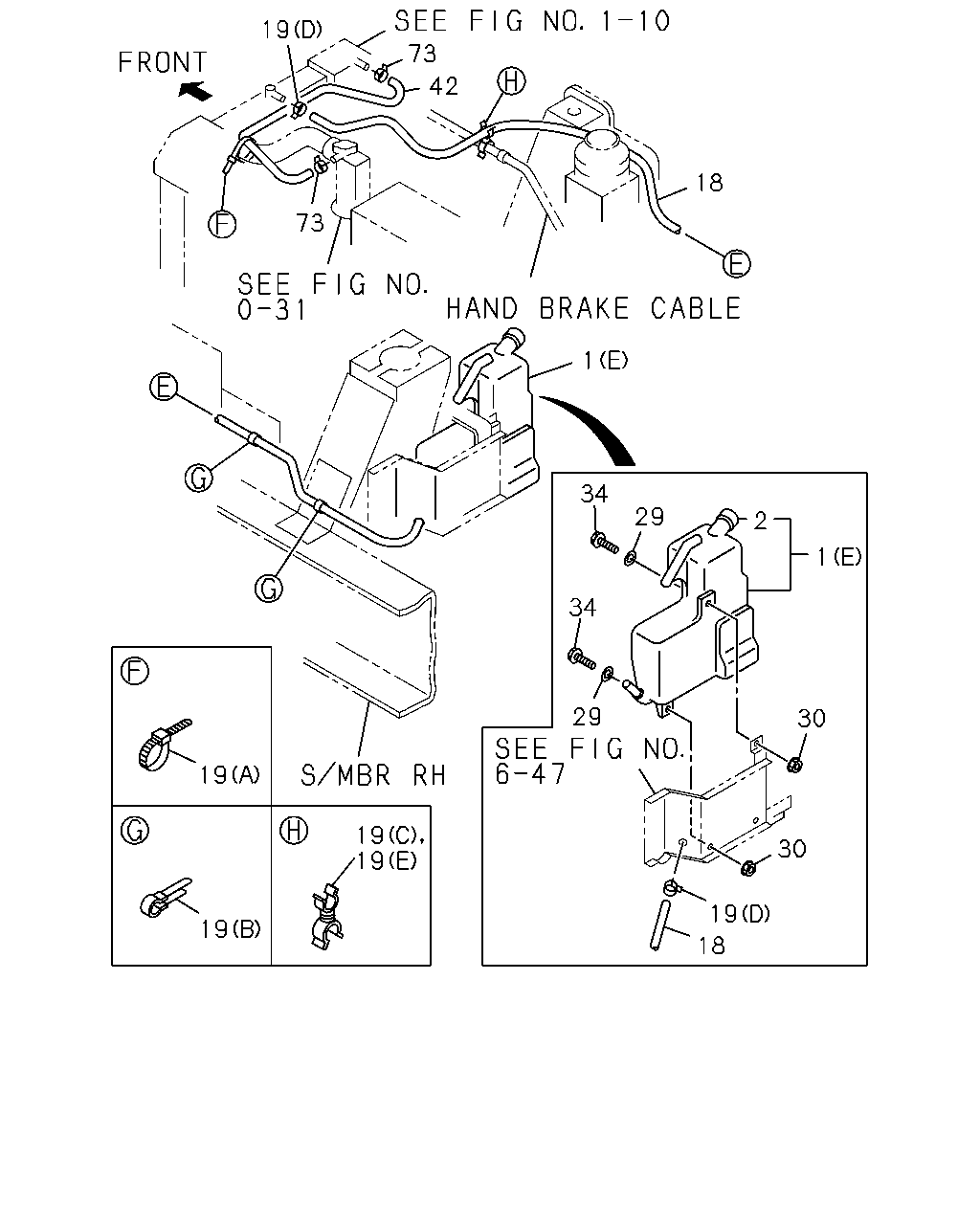

01.219 TANK; SURGE,RAD
4JB1 ENG(RLF)
EXC. AIR INTAKE REAR VERTICAL<KJ3>
(E)
|
8-97120-913-1 |
01 |
1 |
9408-9505 |
● |
|
|
|
● |
|
| |
1 |
01.219 TANK; SURGE,RAD
4HF1 ENG(RLS)
(E)
|
8-97120-913-1 |
01 |
1 |
9408-9505 |
|
|
● |
|
|
|
| |
1 |
01.219 TANK; SURGE,RAD
4JB1 ENG(RLF)
EXC. AIR INTAKE REAR VERTICAL<KJ3>
(E)
|
8-97131-202-0 |
01 |
1 |
9506-9506 |
● |
|
|
|
● |
|
| |
1 |
01.219 TANK; SURGE,RAD
4HF1 ENG(RLS)
(E)
|
8-97131-202-0 |
01 |
1 |
9506-9506 |
|
|
● |
|
|
|
| |
1 |
01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. AIR INTAKE REAR VERTICAL<KJ3>
(E)
|
8-97131-202-0 |
01 |
1 |
9507-9510 |
● |
|
|
|
● |
|
| |
1 |
01.219 TANK; SURGE,RAD
4HF1 ENG(RLS)
(E)
|
8-97131-202-0 |
01 |
1 |
9507-9510 |
|
|
● |
|
|
|
| |
1 |
01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. AIR INTAKE REAR VERTICAL<KJ3>
(E)
|
8-97131-202-0 |
01 |
1 |
9511-9711 |
● |
|
|
|
● |
|
| |
1 |
01.219 TANK; SURGE,RAD
4HF1 ENG(RLS)
(E)
|
8-97131-202-0 |
01 |
1 |
9511-9711 |
|
● |
● |
|
|
|
| |
1 |
01.219 TANK; SURGE,RAD
4HF1 ENG(RLS)
(E)
|
8-97131-202-0 |
01 |
1 |
9712-9809 |
● |
● |
● |
|
|
|
| |
1 |
01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF)
AIR INTAKE SYSTEM FRONT<6PC>
(E)
|
8-97131-202-0 |
01 |
1 |
9712-9809 |
● |
|
|
|
|
|
| |
1 |
01.219 TANK; SURGE,RAD
4JB1 ENG(RLF),4HF1 ENG(RLS)
(E)
|
8-97131-202-0 |
01 |
1 |
9712-9809 |
|
|
|
|
● |
|
| |
1 |
01.219 TANK; SURGE,RAD
4HF1 ENG(RLS)
EXC. THAILAND EQUIPMENT(PM9)
(E)
|
8-97131-202-0 |
01 |
1 |
9810- |
● |
● |
● |
|
|
|
| |
1 |
01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF)
AIR INTAKE SYSTEM FRONT<6PC>
EXC. THAILAND EQUIPMENT(PM9)
(E)
|
8-97131-202-0 |
01 |
1 |
9810- |
● |
|
|
|
|
|
| |
1 |
01.219 TANK; SURGE,RAD
4JB1 ENG(RLF),4HF1 ENG(RLS)
(E)
|
8-97131-202-0 |
01 |
1 |
9810- |
|
|
|
|
● |
|
| |
1 |

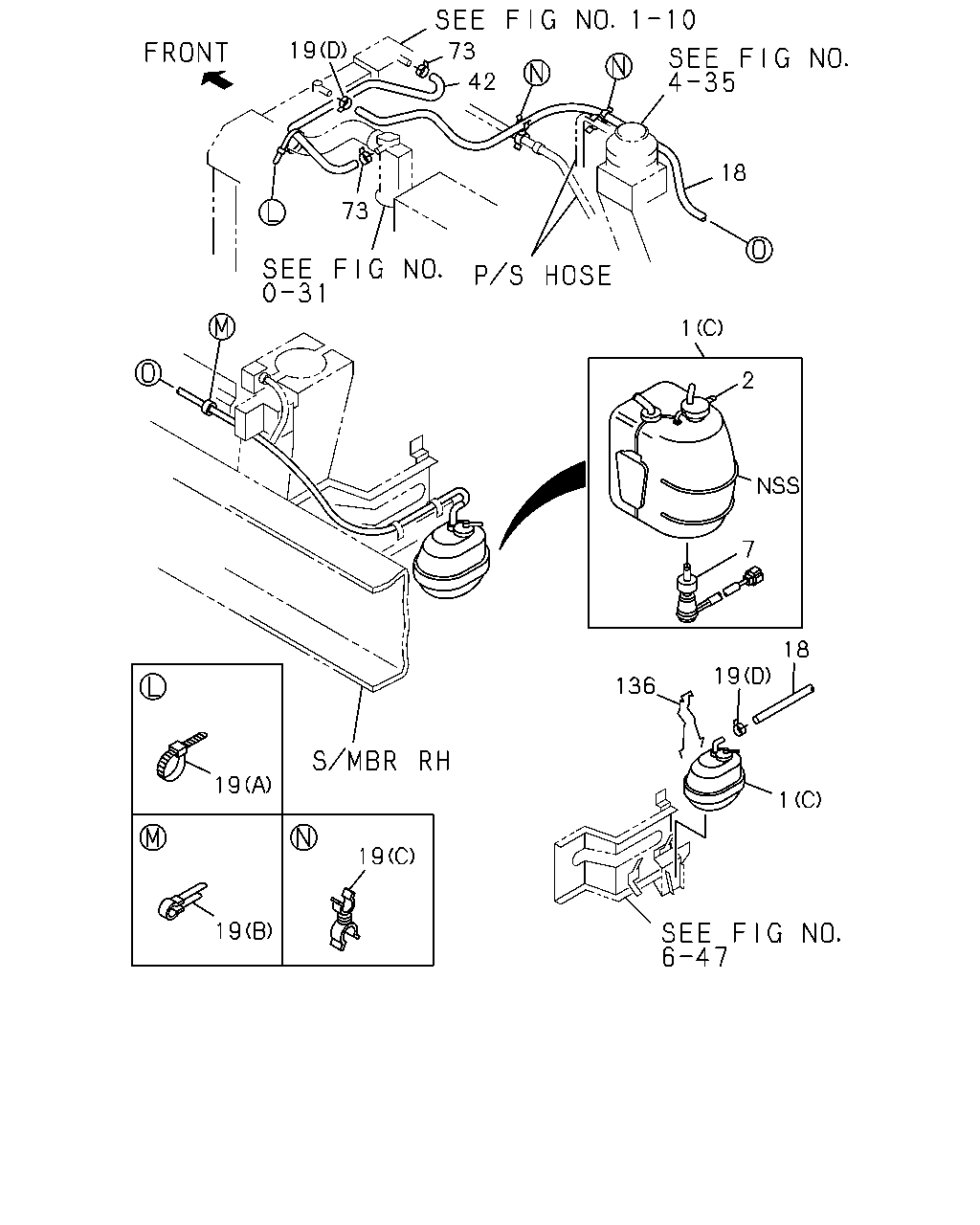

01.219 TANK; SURGE,RAD
(C)
|
8-94378-388-1 |
01 |
1 |
9312-9606 |
|
|
|
|
|
● |
| |
1 |
01.219 TANK; SURGE,RAD
4JB1 ENG(RLF)
(C)
|
8-94378-388-1 |
01 |
1 |
9312-9606 |
|
|
|
● |
|
|
| |
1 |
01.219 TANK; SURGE,RAD
(C)
|
8-94378-388-1 |
01 |
1 |
9607-9711 |
|
|
|
|
|
● |
| |
1 |
01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF)
(C)
|
8-94378-388-1 |
01 |
1 |
9607-9711 |
|
|
|
● |
|
|
| |
1 |
01.219 TANK; SURGE,RAD
(C)
|
8-94378-388-1 |
01 |
1 |
9712- |
|
|
|
|
|
● |
| |
1 |
01.219 TANK; SURGE,RAD
4JG2 ENG(RJC)
(C)
|
8-94378-388-1 |
01 |
1 |
9712- |
|
|
|
● |
|
|
| |
2 |
01.203 CAP; SURGE TANK
|
8-94449-363-0 |
01 |
1 |
9312-9406 |
● |
● |
● |
● |
● |
● |
| |
2 |
01.203 CAP; SURGE TANK
4JB1 ENG(RLF)
EXC. AIR INTAKE REAR VERTICAL<KJ3>
|
8-94449-363-0 |
01 |
1 |
9407-9407 |
● |
|
|
|
|
|
| |
2 |
01.203 CAP; SURGE TANK
|
8-94449-363-0 |
01 |
1 |
9407-9407 |
|
|
|
|
|
● |
| |
2 |
01.203 CAP; SURGE TANK
4HF1 ENG(RLS)
|
8-94449-363-0 |
01 |
1 |
9407-9407 |
|
|
● |
|
|
|
| |
2 |
01.203 CAP; SURGE TANK
4JB1 ENG(RLF)
|
8-94449-363-0 |
01 |
1 |
9407-9407 |
|
|
|
● |
● |
|
| |
2 |
01.203 CAP; SURGE TANK
|
8-94449-363-0 |
01 |
1 |
9408-9409 |
|
|
|
|
|
● |
| |
2 |
01.203 CAP; SURGE TANK
4JB1 ENG(RLF)
|
8-94449-363-0 |
01 |
1 |
9408-9409 |
|
|
|
● |
|
|
| |
2 |
01.203 CAP; SURGE TANK
4BE1 ENG(RLH)
|
8-94449-363-0 |
01 |
1 |
9410-9506 |
● |
|
|
|
● |
|
| |
2 |
01.203 CAP; SURGE TANK
4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
|
8-94449-363-0 |
01 |
1 |
9410-9506 |
● |
|
|
|
|
|
| |
2 |
01.203 CAP; SURGE TANK
|
8-94449-363-0 |
01 |
1 |
9410-9506 |
|
|
|
|
|
● |
| |
2 |
01.203 CAP; SURGE TANK
4JB1 ENG(RLF),4BE1 ENG(RLH)
|
8-94449-363-0 |
01 |
1 |
9410-9506 |
|
● |
● |
● |
|
|
| |
2 |
01.203 CAP; SURGE TANK
4BE1 ENG(RLH)
|
8-94449-363-0 |
01 |
1 |
9507-9606 |
● |
|
|
|
● |
|
| |
2 |
01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
|
8-94449-363-0 |
01 |
1 |
9507-9606 |
● |
|
|
|
|
|
| |
2 |
01.203 CAP; SURGE TANK
|
8-94449-363-0 |
01 |
1 |
9507-9606 |
|
|
|
|
|
● |
| |
2 |
01.203 CAP; SURGE TANK
4JB1 ENG(RLF),4BE1 ENG(RLH)
|
8-94449-363-0 |
01 |
1 |
9507-9606 |
|
● |
● |
● |
|
|
| |
2 |
01.203 CAP; SURGE TANK
4BE1 ENG(RLH)
|
8-94449-363-0 |
01 |
1 |
9607-9711 |
● |
|
|
|
● |
|
| |
2 |
01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
|
8-94449-363-0 |
01 |
1 |
9607-9711 |
● |
|
|
|
|
|
| |
2 |
01.203 CAP; SURGE TANK
|
8-94449-363-0 |
01 |
1 |
9607-9711 |
|
|
|
|
|
● |
| |
2 |
01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
|
8-94449-363-0 |
01 |
1 |
9607-9711 |
|
● |
● |
● |
|
|
| |
2 |
01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1
ENG(RLS)
|
8-94449-363-0 |
01 |
1 |
9712- |
● |
● |
● |
● |
|
|
| |
2 |
01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
|
8-94449-363-0 |
01 |
1 |
9712- |
● |
|
|
|
|
|
| |
2 |
01.203 CAP; SURGE TANK
|
8-94449-363-0 |
01 |
1 |
9712- |
|
|
|
|
|
● |
| |
2 |
01.203 CAP; SURGE TANK
4HF1 ENG(RLS)
THAILAND EQUIPMENT(PM9)
|
8-97217-796-0 |
01 |
1 |
9810- |
● |
● |
● |
|
|
|
| |
2 |
01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF)
THAILAND EQUIPMENT(PM9)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97217-796-0 |
01 |
1 |
9810- |
● |
|
|
|
|
|
| |
2 |
01.203 CAP; SURGE TANK
4JB1 ENG(RLF)
EXC. AIR INTAKE REAR VERTICAL<KJ3>
|
8-97126-876-0 |
01 |
1 |
9408-9506 |
● |
|
|
|
● |
|
| |
2 |
01.203 CAP; SURGE TANK
4HF1 ENG(RLS)
|
8-97126-876-0 |
01 |
1 |
9408-9506 |
|
|
● |
|
|
|
| |
2 |
01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. AIR INTAKE REAR VERTICAL<KJ3>
|
8-97126-876-0 |
01 |
1 |
9507-9510 |
● |
|
|
|
● |
|
| |
2 |
01.203 CAP; SURGE TANK
4HF1 ENG(RLS)
|
8-97126-876-0 |
01 |
1 |
9507-9510 |
|
|
● |
|
|
|
| |
2 |
01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. AIR INTAKE REAR VERTICAL<KJ3>
|
8-97126-876-0 |
01 |
1 |
9511-9711 |
● |
|
|
|
● |
|
| |
2 |
01.203 CAP; SURGE TANK
4HF1 ENG(RLS)
|
8-97126-876-0 |
01 |
1 |
9511-9711 |
|
● |
● |
|
|
|
| |
2 |
01.203 CAP; SURGE TANK
4HF1 ENG(RLS)
|
8-97126-876-0 |
01 |
1 |
9712-9809 |
● |
● |
● |
|
|
|
| |
2 |
01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97126-876-0 |
01 |
1 |
9712-9809 |
● |
|
|
|
|
|
| |
2 |
01.203 CAP; SURGE TANK
4JB1 ENG(RLF),4HF1 ENG(RLS)
|
8-97126-876-0 |
01 |
1 |
9712-9809 |
|
|
|
|
● |
|
| |
2 |
01.203 CAP; SURGE TANK
4HF1 ENG(RLS)
EXC. THAILAND EQUIPMENT(PM9)
|
8-97126-876-0 |
01 |
1 |
9810- |
● |
● |
● |
|
|
|
| |
2 |
01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF)
AIR INTAKE SYSTEM FRONT<6PC>
EXC. THAILAND EQUIPMENT(PM9)
|
8-97126-876-0 |
01 |
1 |
9810- |
● |
|
|
|
|
|
| |
2 |
01.203 CAP; SURGE TANK
4JB1 ENG(RLF),4HF1 ENG(RLS)
|
8-97126-876-0 |
01 |
1 |
9810- |
|
|
|
|
● |
|
| |
3 |
01.159 HOSE; SURGE TANK
4JB1 ENG(RLF)
EXC. AIR INTAKE REAR VERTICAL<KJ3>
01.240
L=430
SERVICED BY L=3000
|
0-03157-300-0 |
01 |
1 |
9312-9410 |
● |
|
|
|
● |
|
| |
3 |
01.159 HOSE; SURGE TANK
4HF1 ENG(RLS)
01.240
L=430
SERVICED BY L=3000
|
0-03157-300-0 |
01 |
1 |
9312-9410 |
|
|
● |
|
|
|
| |
3 |
01.159 HOSE; SURGE TANK
4JB1 ENG(RLF)
EXC. AIR INTAKE REAR VERTICAL<KJ3>
01.240
L=370
SERVICED BY L=3000
|
0-03157-300-0 |
01 |
1 |
9411-9505 |
● |
|
|
|
● |
|
| |
3 |
01.159 HOSE; SURGE TANK
4HF1 ENG(RLS)
01.240
L=370
SERVICED BY L=3000
|
0-03157-300-0 |
01 |
1 |
9411-9505 |
|
|
● |
|
|
|
| |
18 |
01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
L=860
|
8-97163-002-1 |
01 |
1 |
9609-9711 |
● |
|
|
|
|
|
| |
18 |
01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF)
L=860
|
8-97163-002-1 |
01 |
1 |
9609-9711 |
|
● |
● |
|
|
|
| |
18 |
01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
L=860
|
8-97163-002-1 |
01 |
1 |
9712- |
● |
● |
● |
|
|
|
| |
18 |
01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
|
8-97100-929-0 |
01 |
1 |
9312-9504 |
● |
● |
● |
|
|
|
| |
18 |
01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
|
8-97129-552-0 |
01 |
1 |
9505-9506 |
● |
● |
● |
|
|
|
| |
18 |
01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
|
8-97134-944-0 |
01 |
1 |
9507-9507 |
● |
● |
● |
|
|
|
| |
18 |
01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
|
8-97134-944-0 |
01 |
1 |
9507-9607 |
● |
● |
● |
|
|
|
| |
18 |
01.240 HOSE; RAD TO SURGE TANK
4BE1 ENG(RLH)
|
8-97106-370-0 |
01 |
1 |
9312-9504 |
● |
● |
● |
● |
● |
|
| |
18 |
01.240 HOSE; RAD TO SURGE TANK
4BE1 ENG(RLH)
|
8-97129-556-0 |
01 |
1 |
9505-9603 |
● |
● |
● |
● |
● |
|
| |
18 |
01.240 HOSE; RAD TO SURGE TANK
4BE1 ENG(RLH)
|
8-97160-892-1 |
01 |
1 |
9604-9607 |
● |
● |
● |
● |
● |
|
| |
18 |
01.240 HOSE; RAD TO SURGE TANK
4BE1 ENG(RLH)
|
8-97162-990-0 |
01 |
1 |
9608-9711 |
● |
● |
● |
● |
● |
|
| |
18 |
01.240 HOSE; RAD TO SURGE TANK
4BE1 ENG(RLH)
|
8-97162-990-0 |
01 |
1 |
9712- |
● |
● |
● |
● |
|
|
| |
18 |
01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF)
EXC. AIR INTAKE REAR VERTICAL<KJ3>
|
8-97102-906-0 |
01 |
1 |
9312-9504 |
● |
|
|
|
● |
|
| |
18 |
01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF)
EXC. AIR INTAKE REAR VERTICAL<KJ3>
|
8-97129-549-0 |
01 |
1 |
9505-9506 |
● |
|
|
|
● |
|
| |
18 |
01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. AIR INTAKE REAR VERTICAL<KJ3>
|
8-97129-549-0 |
01 |
1 |
9507-9607 |
● |
|
|
|
● |
|
| |
18 |
01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. AIR INTAKE REAR VERTICAL<KJ3>
L=1450
|
8-97162-122-1 |
01 |
1 |
9608-9711 |
● |
|
|
|
● |
|
| |
18 |
01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF)
AIR INTAKE SYSTEM FRONT<6PC>
L=1450
|
8-97162-122-1 |
01 |
1 |
9712- |
● |
|
|
|
|
|
| |
18 |
01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF)
L=1450
|
8-97162-122-1 |
01 |
1 |
9712- |
|
|
|
|
● |
|
| |
18 |
01.240 HOSE; RAD TO SURGE TANK
|
8-97093-834-3 |
01 |
1 |
9312-9504 |
|
|
|
|
|
● |
| |
18 |
01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF)
|
8-97093-834-3 |
01 |
1 |
9312-9504 |
|
|
|
● |
|
|
| |
18 |
01.240 HOSE; RAD TO SURGE TANK
|
8-97129-548-0 |
01 |
1 |
9505-9606 |
|
|
|
|
|
● |
| |
18 |
01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF)
|
8-97129-548-0 |
01 |
1 |
9505-9606 |
|
|
|
● |
|
|
| |
18 |
01.240 HOSE; RAD TO SURGE TANK
|
8-97129-548-0 |
01 |
1 |
9607-9607 |
|
|
|
|
|
● |
| |
18 |
01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF)
|
8-97129-548-0 |
01 |
1 |
9607-9607 |
|
|
|
● |
|
|
| |
18 |
01.240 HOSE; RAD TO SURGE TANK
L=1720
|
8-97162-124-1 |
01 |
1 |
9609-9711 |
|
|
|
|
|
● |
| |
18 |
01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF)
L=1720
|
8-97162-124-1 |
01 |
1 |
9609-9711 |
|
|
|
● |
|
|
| |
18 |
01.240 HOSE; RAD TO SURGE TANK
L=1720
|
8-97162-124-1 |
01 |
1 |
9712- |
|
|
|
|
|
● |
| |
18 |
01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC)
L=1720
|
8-97162-124-1 |
01 |
1 |
9712- |
|
|
|
● |
|
|
| |
18 |
01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS)
|
8-97095-064-4 |
01 |
1 |
9312-9504 |
|
|
● |
|
|
|
| |
18 |
01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS)
|
8-97129-554-1 |
01 |
1 |
9505-9510 |
|
|
● |
|
|
|
| |
18 |
01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS)
|
8-97129-554-1 |
01 |
1 |
9511-9604 |
|
● |
● |
|
|
|
| |
18 |
01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS)
|
8-97160-993-1 |
01 |
1 |
9605-9607 |
|
● |
● |
|
|
|
| |
18 |
01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS)
L=1595
|
8-97162-125-1 |
01 |
1 |
9608-9711 |
|
● |
● |
|
|
|
| |
18 |
01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS)
L=1595
|
8-97162-125-1 |
01 |
1 |
9712- |
● |
● |
● |
|
● |
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF)
EXC. AIR INTAKE REAR VERTICAL<KJ3>
04.104
(C)
ID=12 & 16.5
|
8-94400-865-0 |
02 |
1 |
9312-9406 |
● |
|
|
|
|
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
04.104
(C)
ID=12 & 16.5
|
8-94400-865-0 |
02 |
1 |
9312-9406 |
|
|
|
|
|
● |
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF)
04.104
(C)
ID=12 & 16.5
|
8-94400-865-0 |
02 |
1 |
9312-9406 |
|
|
|
● |
● |
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF)
EXC. AIR INTAKE REAR VERTICAL<KJ3>
04.104
(C)
ID=12 & 16.5
|
8-94400-865-0 |
02 |
1 |
9407-9506 |
● |
|
|
● |
● |
● |
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. AIR INTAKE REAR VERTICAL<KJ3>
04.104
(C)
ID=12 & 16.5
|
8-94400-865-0 |
02 |
1 |
9507-9509 |
● |
|
|
● |
● |
● |
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF)
POWER STEERING<N40>
EXC. AIR INTAKE REAR VERTICAL<KJ3>
04.104
(C)
ID=12 & 16.5
|
8-94400-865-0 |
02 |
1 |
9510-9711 |
● |
|
|
● |
● |
● |
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF)
POWER STEERING<N40>
AIR INTAKE SYSTEM FRONT<6PC>
04.104
(C)
ID=12 & 16.5
|
8-94400-865-0 |
02 |
1 |
9712- |
● |
|
|
● |
● |
● |
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
01.219
(D)
ID=12
|
8-94238-610-0 |
02 |
1 |
9312- |
● |
● |
● |
● |
● |
● |
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF)
03.164
(A)
L=217
|
8-94235-793-0 |
01 |
1 |
9312-9411 |
● |
● |
● |
● |
● |
● |
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH)
HEATER & DEFROSTER(C41)
FRT INDEPENDENT SUSPENSION(6PP)
03.164
(A)
L=217
|
8-94235-793-0 |
03 |
1 |
9412-9504 |
● |
|
|
|
● |
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH)
HEATER & DEFROSTER(C41)
DUMP CHASSIS(V4D)
03.164
(A)
L=217
|
8-94235-793-0 |
03 |
1 |
9412-9504 |
|
● |
|
|
|
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH)
HEATER & DEFROSTER(C41)
FRT INDEPENDENT SUSPENSION(6PP)
03.164
(A)
L=217
|
8-94235-793-0 |
02 |
1 |
9505-9510 |
● |
|
|
|
● |
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH)
HEATER & DEFROSTER(C41)
DUMP CHASSIS(V4D)
03.164
(A)
L=217
|
8-94235-793-0 |
02 |
1 |
9505-9510 |
|
● |
|
|
|
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH)
HEATER & DEFROSTER(C41)
FRT INDEPENDENT SUSPENSION(6PP)
03.164
(A)
L=217
|
8-94235-793-0 |
02 |
1 |
9511- |
● |
|
|
|
|
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH)
HEATER & DEFROSTER(C41)
DUMP CHASSIS(V4D)
03.164
(A)
L=217
|
8-94235-793-0 |
02 |
1 |
9511- |
|
● |
|
|
|
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1
ENG(RLS)
(B)
ID=14 L=47
|
5-09700-319-0 |
01 |
1 |
9312-9506 |
● |
● |
● |
● |
● |
● |
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH)
EXC. DUMP CHASSIS(V4D),FRT
INDEPENDENT SUSPENSION(6PP)
(B)
ID=14 L=47
|
5-09700-319-0 |
01 |
1 |
9312-9506 |
● |
● |
|
|
|
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
(B)
ID=14 L=47
|
5-09700-319-0 |
01 |
1 |
9507-9510 |
● |
● |
● |
● |
● |
● |
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH)
EXC. DUMP CHASSIS(V4D),FRT
INDEPENDENT SUSPENSION(6PP)
(B)
ID=14 L=47
|
5-09700-319-0 |
01 |
1 |
9507-9510 |
● |
● |
|
|
● |
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1
ENG(RLS)
(B)
ID=14 L=47
|
5-09700-319-0 |
01 |
1 |
9511- |
● |
● |
● |
● |
● |
● |
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH)
EXC. DUMP CHASSIS(V4D),FRT
INDEPENDENT SUSPENSION(6PP)
(B)
ID=14 L=47
|
5-09700-319-0 |
01 |
1 |
9511- |
● |
● |
|
|
|
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. AIR INTAKE REAR VERTICAL<KJ3>,
POWER STEERING<N40>
02.559
(E)
ID=10 & 11
|
8-94438-996-0 |
02 |
1 |
9510-9711 |
● |
|
|
● |
● |
● |
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF)
AIR INTAKE SYSTEM FRONT<6PC>
EXC. POWER STEERING<N40>
02.559
(E)
ID=10 & 11
|
8-94438-996-0 |
02 |
1 |
9712- |
● |
|
|
|
● |
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. POWER STEERING<N40>
02.559
(E)
ID=10 & 11
|
8-94438-996-0 |
02 |
1 |
9712- |
|
|
|
● |
|
● |
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH)
EXC. DUMP CHASSIS(V4D),FRT
INDEPENDENT SUSPENSION(6PP)
03.164
(A)
L=217
|
8-94235-793-0 |
02 |
1 |
9312-9411 |
● |
● |
● |
● |
● |
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF)
03.164
(A)
L=217
|
8-94235-793-0 |
01 |
1 |
9412-9504 |
● |
● |
● |
● |
● |
● |
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH)
EXC. HEATER & DEFROSTER(C41),DUMP
CHASSIS(V4D),FRT INDEPENDENT
SUSPENSION(6PP)
03.164
(A)
L=217
|
8-94235-793-0 |
01 |
1 |
9412-9504 |
● |
● |
● |
● |
● |
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH)
03.162
(A)
L=140
|
5-09707-031-0 |
02 |
1 |
9505-9603 |
● |
● |
● |
● |
● |
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH)
FRT INDEPENDENT SUSPENSION(6PP)
03.164
(A)
L=217
|
8-94235-793-0 |
03 |
1 |
9312-9411 |
● |
|
|
|
● |
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH)
DUMP CHASSIS(V4D)
03.164
(A)
L=217
|
8-94235-793-0 |
03 |
1 |
9312-9411 |
|
● |
|
|
|
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH)
HEATER & DEFROSTER(C41)
EXC. DUMP CHASSIS(V4D),FRT
INDEPENDENT SUSPENSION(6PP)
03.164
(A)
L=217
|
8-94235-793-0 |
02 |
1 |
9412-9504 |
● |
|
● |
● |
● |
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. HEATER & DEFROSTER(C41)
03.164
(A)
L=217
|
8-94235-793-0 |
02 |
1 |
9412-9504 |
● |
|
|
|
● |
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH)
DUMP CHASSIS(V4D)
EXC. HEATER & DEFROSTER(C41)
03.164
(A)
L=217
|
8-94235-793-0 |
02 |
1 |
9412-9504 |
|
● |
|
|
|
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF)
03.164
(A)
L=217
|
8-94235-793-0 |
01 |
1 |
9505-9506 |
● |
● |
● |
● |
● |
● |
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH)
HEATER & DEFROSTER(C41)
EXC. DUMP CHASSIS(V4D),FRT
INDEPENDENT SUSPENSION(6PP)
03.164
(A)
L=217
|
8-94235-793-0 |
01 |
1 |
9505-9506 |
● |
● |
● |
● |
● |
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. HEATER & DEFROSTER(C41)
03.164
(A)
L=217
|
8-94235-793-0 |
01 |
1 |
9505-9506 |
● |
|
|
|
● |
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH)
DUMP CHASSIS(V4D)
EXC. HEATER & DEFROSTER(C41)
03.164
(A)
L=217
|
8-94235-793-0 |
01 |
1 |
9505-9506 |
|
● |
|
|
|
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF)
03.164
(A)
L=217
|
8-94235-793-0 |
01 |
1 |
9507-9510 |
● |
● |
● |
● |
● |
● |
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH)
HEATER & DEFROSTER(C41)
EXC. DUMP CHASSIS(V4D),FRT
INDEPENDENT SUSPENSION(6PP)
03.164
(A)
L=217
|
8-94235-793-0 |
01 |
1 |
9507-9510 |
● |
● |
● |
● |
● |
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. HEATER & DEFROSTER(C41)
03.164
(A)
L=217
|
8-94235-793-0 |
01 |
1 |
9507-9510 |
● |
|
|
|
● |
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH)
DUMP CHASSIS(V4D)
EXC. HEATER & DEFROSTER(C41)
03.164
(A)
L=217
|
8-94235-793-0 |
01 |
1 |
9507-9510 |
|
● |
|
|
|
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF)
03.164
(A)
L=217
|
8-94235-793-0 |
01 |
1 |
9511-9603 |
● |
● |
● |
● |
● |
● |
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH)
HEATER & DEFROSTER(C41)
EXC. DUMP CHASSIS(V4D),FRT
INDEPENDENT SUSPENSION(6PP)
03.164
(A)
L=217
|
8-94235-793-0 |
01 |
1 |
9511-9603 |
● |
● |
● |
● |
● |
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. HEATER & DEFROSTER(C41)
03.164
(A)
L=217
|
8-94235-793-0 |
01 |
1 |
9511-9603 |
● |
|
|
|
|
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH)
DUMP CHASSIS(V4D)
EXC. HEATER & DEFROSTER(C41)
03.164
(A)
L=217
|
8-94235-793-0 |
01 |
1 |
9511-9603 |
|
● |
|
|
|
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH)
HEATER & DEFROSTER(C41)
EXC. DUMP CHASSIS(V4D),FRT
INDEPENDENT SUSPENSION(6PP)
03.164
(A)
L=217
|
8-94235-793-0 |
01 |
1 |
9604-9711 |
● |
● |
● |
● |
● |
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. HEATER & DEFROSTER(C41)
03.164
(A)
L=217
|
8-94235-793-0 |
01 |
1 |
9604-9711 |
● |
|
|
|
|
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH)
DUMP CHASSIS(V4D)
EXC. HEATER & DEFROSTER(C41)
03.164
(A)
L=217
|
8-94235-793-0 |
01 |
1 |
9604-9711 |
|
● |
|
|
|
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH)
HEATER & DEFROSTER(C41)
EXC. DUMP CHASSIS(V4D),FRT
INDEPENDENT SUSPENSION(6PP)
03.164
(A)
L=217
|
8-94235-793-0 |
01 |
1 |
9712- |
● |
● |
● |
● |
|
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. HEATER & DEFROSTER(C41)
03.164
(A)
L=217
|
8-94235-793-0 |
01 |
1 |
9712- |
● |
|
|
|
|
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH)
DUMP CHASSIS(V4D)
EXC. HEATER & DEFROSTER(C41)
03.164
(A)
L=217
|
8-94235-793-0 |
01 |
1 |
9712- |
|
● |
|
|
|
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS)
03.162
(E)
ID=11.5 & 14.5
|
8-94314-293-0 |
01 |
1 |
9312-9509 |
|
|
● |
|
|
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS)
02.559
(E)
ID=10 & 11
|
8-94438-996-0 |
01 |
1 |
9510-9510 |
|
|
● |
|
|
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS)
02.559
(E)
ID=10 & 11
|
8-94438-996-0 |
01 |
1 |
9511-9711 |
|
● |
● |
|
|
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS)
02.559
(E)
ID=10 & 11
|
8-94438-996-0 |
01 |
1 |
9712- |
● |
● |
● |
|
● |
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS)
(F)
ID=10 & 12
|
8-94416-613-0 |
01 |
1 |
9312-9510 |
|
|
● |
|
|
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS)
(F)
ID=10 & 12
|
8-94416-613-0 |
01 |
1 |
9511-9711 |
|
● |
● |
|
|
|
| |
19 |
01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS)
(F)
ID=10 & 12
|
8-94416-613-0 |
01 |
1 |
9712- |
● |
● |
● |
|
● |
|
| |
20 |
01.166 CLIP; HOSE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. AIR INTAKE REAR VERTICAL<KJ3>
03.483
ID=13 H=18 L=20
|
1-09700-813-0 |
01 |
1 |
9408-9505 |
● |
|
|
|
● |
|
| |
20 |
01.166 CLIP; HOSE,RAD
4HF1 ENG(RLS)
03.483
ID=13 H=18 L=20
|
1-09700-813-0 |
01 |
1 |
9408-9505 |
|
|
● |
|
|
|
| |
29 |
01.203 WASHER; PL,RESERVE TANK
4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1
ENG(RLS)
02.587
ID=6.4 OD=18
|
9-09160-706-0 |
03 |
1 |
9312-9506 |
● |
● |
● |
|
● |
|
| |
29 |
01.203 WASHER; PL,RESERVE TANK
4BE1 ENG(RLH),4HF1 ENG(RLS)
02.587
ID=6.4 OD=18
|
9-09160-706-0 |
03 |
1 |
9312-9506 |
|
|
|
● |
|
|
| |
29 |
01.203 WASHER; PL,RESERVE TANK
02.587
ID=6.4 OD=18
|
9-09160-706-0 |
03 |
1 |
9507-9711 |
● |
● |
● |
|
● |
|
| |
29 |
01.203 WASHER; PL,RESERVE TANK
4BE1 ENG(RLH),4HF1 ENG(RLS)
02.587
ID=6.4 OD=18
|
9-09160-706-0 |
03 |
1 |
9507-9711 |
|
|
|
● |
|
|
| |
29 |
01.203 WASHER; PL,RESERVE TANK
02.587
ID=6.4 OD=18
|
9-09160-706-0 |
03 |
1 |
9712- |
● |
● |
● |
|
● |
|
| |
29 |
01.203 WASHER; PL,RESERVE TANK
4BE1 ENG(RLH)
02.587
ID=6.4 OD=18
|
9-09160-706-0 |
03 |
1 |
9712- |
|
|
|
● |
|
|
| |
30 |
01.203 NUT
4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1
ENG(RLS)
16.176
M6
M6
|
9-09110-406-0 |
03 |
1 |
9312-9403 |
● |
● |
● |
|
● |
|
| |
30 |
01.203 NUT
4BE1 ENG(RLH),4HF1 ENG(RLS)
16.176
M6
M6
|
9-09110-406-0 |
03 |
1 |
9312-9403 |
|
|
|
● |
|
|
| |
30 |
01.203 NUT
4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1
ENG(RLS)
16.176
M6
|
9-09110-406-0 |
03 |
1 |
9404-9407 |
● |
● |
● |
|
● |
|
| |
30 |
01.203 NUT
4BE1 ENG(RLH),4HF1 ENG(RLS)
16.176
M6
|
9-09110-406-0 |
03 |
1 |
9404-9407 |
|
|
|
● |
|
|
| |
30 |
01.203 NUT
4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1
ENG(RLS)
04.594
M6 FLANGE
|
0-91150-106-0 |
03 |
1 |
9408-9506 |
● |
● |
● |
|
● |
|
| |
30 |
01.203 NUT
4BE1 ENG(RLH),4HF1 ENG(RLS)
04.594
M6 FLANGE
|
0-91150-106-0 |
03 |
1 |
9408-9506 |
|
|
|
● |
|
|
| |
30 |
01.203 NUT
04.594
M6 FLANGE
|
0-91150-106-0 |
03 |
1 |
9507- |
● |
● |
● |
|
● |
|
| |
30 |
01.203 NUT
4BE1 ENG(RLH)
04.594
M6 FLANGE
|
0-91150-106-0 |
03 |
1 |
9507- |
|
|
|
● |
|
|
| |
34 |
01.203 BOLT; RESERVE TANK
4BE1 ENG(RLH)
04.686
M6X16 W/LK WASHER
|
0-50040-616-0 |
03 |
1 |
9312-9506 |
● |
● |
● |
● |
● |
|
| |
34 |
01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
04.686
M6X16 W/LK WASHER
|
0-50040-616-0 |
03 |
1 |
9312-9506 |
● |
● |
● |
|
|
|
| |
34 |
01.203 BOLT; RESERVE TANK
4BE1 ENG(RLH)
04.686
M6X16 W/LK WASHER
|
0-50040-616-0 |
03 |
1 |
9507-9702 |
● |
● |
● |
● |
● |
|
| |
34 |
01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
04.686
M6X16 W/LK WASHER
|
0-50040-616-0 |
03 |
1 |
9507-9702 |
● |
● |
● |
|
|
|
| |
34 |
01.203 BOLT; RESERVE TANK
4BE1 ENG(RLH)
00.738
M6X16 FLANGE
|
0-28080-616-0 |
03 |
1 |
9703-9711 |
● |
● |
● |
● |
● |
|
| |
34 |
01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
00.738
M6X16 FLANGE
|
0-28080-616-0 |
03 |
1 |
9703-9711 |
● |
● |
● |
|
|
|
| |
34 |
01.203 BOLT; RESERVE TANK
4BE1 ENG(RLH)
00.738
M6X16 FLANGE
|
0-28080-616-0 |
03 |
1 |
9712- |
● |
● |
● |
● |
|
|
| |
34 |
01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
00.738
M6X16 FLANGE
|
0-28080-616-0 |
03 |
1 |
9712- |
● |
● |
● |
|
|
|
| |
34 |
01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF)
EXC. AIR INTAKE REAR VERTICAL<KJ3>
03.704
M6X20 W/LK WASHER
|
0-50040-620-0 |
03 |
1 |
9312-9506 |
● |
|
|
|
● |
|
| |
34 |
01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS)
03.704
M6X20 W/LK WASHER
|
0-50040-620-0 |
03 |
1 |
9312-9506 |
|
|
● |
|
|
|
| |
34 |
01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. AIR INTAKE REAR VERTICAL<KJ3>
03.704
M6X20 W/LK WASHER
|
0-50040-620-0 |
03 |
1 |
9507-9510 |
● |
|
|
|
● |
|
| |
34 |
01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS)
03.704
M6X20 W/LK WASHER
|
0-50040-620-0 |
03 |
1 |
9507-9510 |
|
|
● |
|
|
|
| |
34 |
01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. AIR INTAKE REAR VERTICAL<KJ3>
03.704
M6X20 W/LK WASHER
|
0-50040-620-0 |
03 |
1 |
9511-9702 |
● |
|
|
|
● |
|
| |
34 |
01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS)
03.704
M6X20 W/LK WASHER
|
0-50040-620-0 |
03 |
1 |
9511-9702 |
|
● |
● |
|
|
|
| |
34 |
01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. AIR INTAKE REAR VERTICAL<KJ3>
03.670
M6X20 FLANGE
|
0-28080-620-0 |
03 |
1 |
9703-9711 |
● |
|
|
|
|
|
| |
34 |
01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS)
03.670
M6X20 FLANGE
|
0-28080-620-0 |
03 |
1 |
9703-9711 |
|
● |
● |
|
|
|
| |
34 |
01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF)
03.670
M6X20 FLANGE
|
0-28080-620-0 |
03 |
1 |
9703-9711 |
|
|
|
|
● |
|
| |
34 |
01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS)
03.670
M6X20 FLANGE
|
0-28080-620-0 |
03 |
1 |
9712- |
● |
● |
● |
|
|
|
| |
34 |
01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF)
AIR INTAKE SYSTEM FRONT<6PC>
03.670
M6X20 FLANGE
|
0-28080-620-0 |
03 |
1 |
9712- |
● |
|
|
|
|
|
| |
34 |
01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF),4HF1 ENG(RLS)
03.670
M6X20 FLANGE
|
0-28080-620-0 |
03 |
1 |
9712- |
|
|
|
|
● |
|
