Sayfa 1-01 - Isuzu EPC

1-01 — ACCELERATOR PEDAL AND CONTROL (#47294) — 301 parça

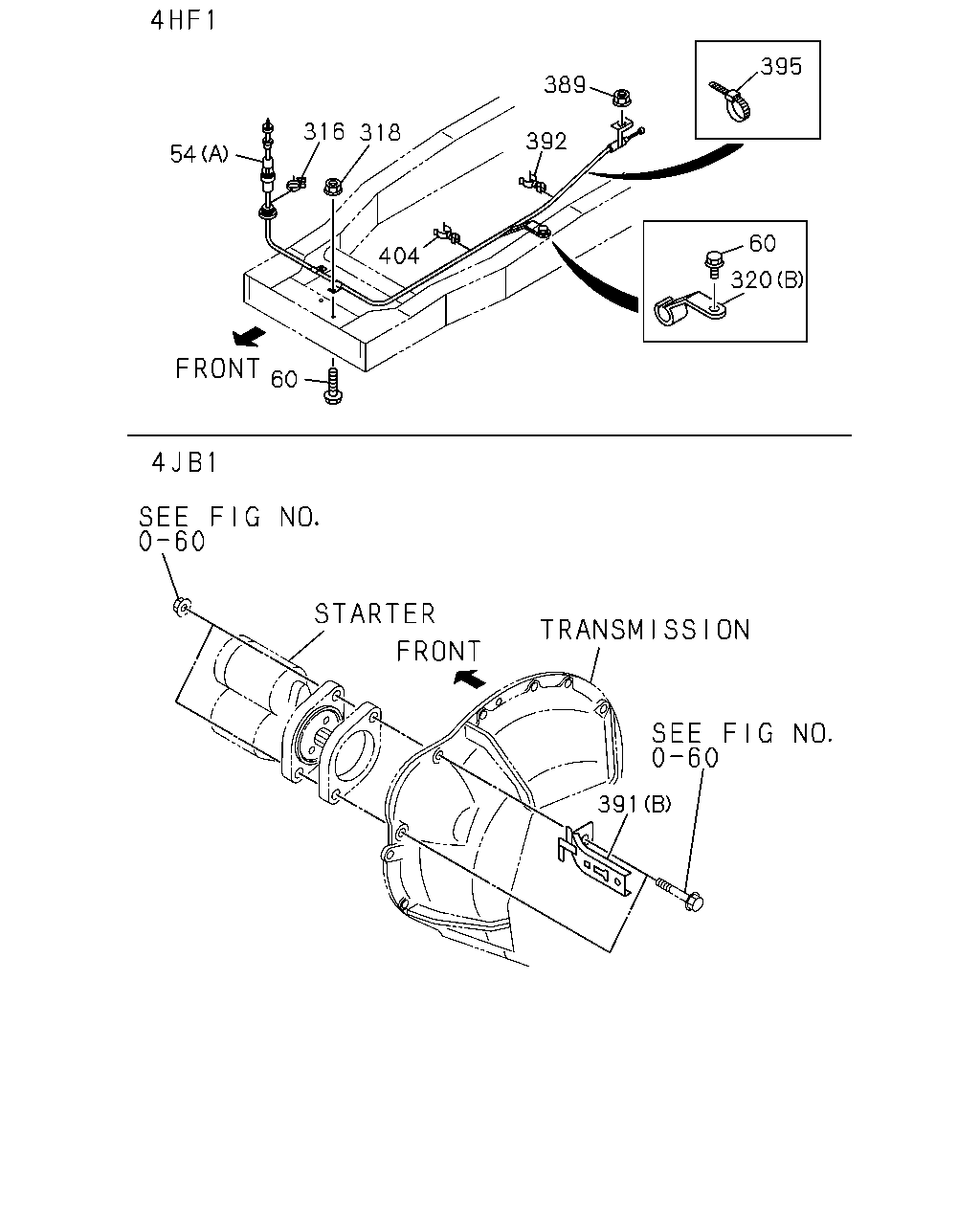

395 389 316 318 392 54 404 60 320 60 391

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
54	03.430 CABLE; ENG CONT 4JB1 ENG(RLF) L=2300	8-97046-362-2	01	1	9312-9506	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) L=2300	8-97046-362-3	01	1	9507-9510	●
54	03.430 CABLE; ENG CONT L=2300	8-97046-362-3	01	1	9507-9510		●
54	03.430 CABLE; ENG CONT 4JB1 ENG(RLF) L=2300	8-97046-362-3	01	1	9507-9510			●	●	●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) L=2300	8-97046-362-3	01	1	9610-9711				●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) L=2300	8-97046-362-3	01	1	9712-	●		●	●
54	03.430 CABLE; ENG CONT L=2300	8-97046-362-3	01	1	9712-		●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC) L=2300	8-97046-362-3	01	1	9712-					●
54	03.430 CABLE; ENG CONT 4JB1 ENG(RLF) L=2300	8-97046-362-3	01	1	9712-						●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3>	8-97090-655-2	01	1	9312-9401	●		●	●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRAME-KICK UP<7EW>	8-97090-655-2	01	1	9402-	●		●	●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97076-701-3	01	1	9312-9711	●		●	●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC>	8-97076-701-3	01	1	9712-	●				●	●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) FRAME-KICK UP<7EW>	8-97112-564-1	01	1	9402-			●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (B)	8-94370-638-0	01	1	9312-9502				●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (B) L=293	8-97115-730-0	01	1	9503-9510				●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (B) L=293	8-97115-730-0	01	1	9511-9711			●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (B) L=293	8-97115-730-0	01	1	9712-	●		●	●		●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (A) L=2703	8-97071-711-4	01	1	9312-9510				●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (A) L=2703	8-97071-711-4	01	1	9511-9711			●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (A) L=2703	8-97071-711-4	01	1	9712-	●		●	●		●
60	08.155 BOLT; CABLE 4JB1 ENG(RLF),4HF1 ENG(RLS) 02.510 M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9312-9504	●	●	●	●	●	●
60	08.155 BOLT; CABLE 4JB1 ENG(RLF),4HF1 ENG(RLS) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9505-9506	●	●	●	●	●	●
60	08.155 BOLT; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9507-	●	●	●	●	●	●
60	08.155 BOLT; CABLE 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 06.672 M8X25 W/LK WASHER	0-51040-825-0	01	1	9312-9506	●		●	●
60	08.155 BOLT; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 06.672 M8X25 W/LK WASHER	0-51040-825-0	01	1	9507-9507	●		●	●
60	08.155 BOLT; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9508-9711	●		●	●
60	08.155 BOLT; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9712-	●		●	●		●
316	03.425 CLIP; LAMP BRKT 02.559 ID=12	1-09987-201-0	01	1	9312-9503	●	●	●	●	●	●
316	03.425 CLIP; LAMP BRKT 16.065 ID=9	5-09707-027-0	01	1	9504-	●	●	●	●	●	●
318	03.275 NUT; LAMP BRKT 4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.417 M8 FLANGE	8-94279-517-0	02	1	9312-9506	●	●	●	●	●	●
318	03.275 NUT; LAMP BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.417 M8 FLANGE	8-94279-517-0	02	1	9507-9802	●	●	●	●	●	●
318	03.275 NUT; LAMP BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.833 M8 W/LK WASHER	8-94327-073-0	02	1	9803-	●	●	●	●	●	●
320	03.483 CLIP; FRAME 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-94167-969-2	01	1	9312-9506	●		●	●
320	03.483 CLIP; FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-94167-969-2	01	1	9507-	●		●	●
320	03.483 CLIP; FRAME 4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41) 06.672 (B)	8-94178-110-0	01	1	9312-9510				●
320	03.483 CLIP; FRAME 4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41) 06.672 (B)	8-94178-110-0	01	1	9511-9711			●	●
320	03.483 CLIP; FRAME 4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41) 06.672 (B)	8-94178-110-0	01	1	9712-	●		●	●		●
389	03.483 NUT; ACCEL CONT CABLE FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) 04.594 M6 FLANGE	0-91150-106-0	01	1	9312-	●		●	●	●	●
391	03.452 BRACKET; ENG CONT 4JB1 ENG(RLF) 02.483 (B)	8-97068-801-1	01	1	9312-9702	●	●	●	●	●	●
391	03.452 BRACKET; ENG CONT 4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.483 (B)	8-97068-801-1	01	1	9703-9711	●	●	●	●	●	●
391	03.452 BRACKET; ENG CONT 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) 02.483 (B)	8-97068-801-1	01	1	9712-	●
391	03.452 BRACKET; ENG CONT 02.483 (B)	8-97068-801-1	01	1	9712-		●
391	03.452 BRACKET; ENG CONT 4JB1 ENG(RLF) 02.483 (B)	8-97068-801-1	01	1	9712-			●			●
391	03.452 BRACKET; ENG CONT 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 02.483 (B)	8-97068-801-1	01	1	9712-				●
391	03.452 BRACKET; ENG CONT 4HF1 ENG(RLS) 02.483 (A)	8-97088-278-0	01	1	9503-9510				●
391	03.452 BRACKET; ENG CONT 4HF1 ENG(RLS) 02.483 (A)	8-97088-278-0	01	1	9511-9711			●	●
391	03.452 BRACKET; ENG CONT 4HF1 ENG(RLS) (A)	8-97172-882-0	01	1	9712-	●		●	●		●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.008 L=330	5-09709-118-0	02	1	9312-9711	●	●			●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.008 L=330	5-09709-118-0	02	1	9712-	●				●	●
392	03.483 CLIP; ACCEL CONT CABLE 03.008 L=330	5-09709-118-0	02	1	9712-		●
392	03.483 CLIP; ACCEL CONT CABLE 4BE1 ENG(RLH) 04.930 ID=10 & 16.5	8-94360-745-0	01	1	9312-9711	●		●	●	●	●
392	03.483 CLIP; ACCEL CONT CABLE 4BE1 ENG(RLH) 04.930 ID=10 & 16.5	8-94360-745-0	01	1	9712-	●		●	●	●
392	03.483 CLIP; ACCEL CONT CABLE 4HF1 ENG(RLS) ID=6 & 10	8-94154-844-0	01	1	9508-9611				●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.162 L=140	5-09707-031-0	01	1	9312-9406	●	●			●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 03.162 L=140	5-09707-031-0	01	1	9407-9711	●		●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 03.162 L=140	5-09707-031-0	01	1	9712-9801	●		●	●		●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 03.162 L=140	5-09707-031-1	01	1	9802-	●		●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 03.162 L=140	5-09707-031-1	02	1	9802-	●		●	●		●
404	03.483 CLIP; CABLE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) ID=20.2 & 6	8-94472-577-0	01	1	9312-9510				●
404	03.483 CLIP; CABLE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) ID=20.2 & 6	8-94472-577-0	01	1	9511-9711			●	●
404	03.483 CLIP; CABLE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) ID=20.2 & 6	8-94472-577-0	01	1	9712-	●		●	●		●

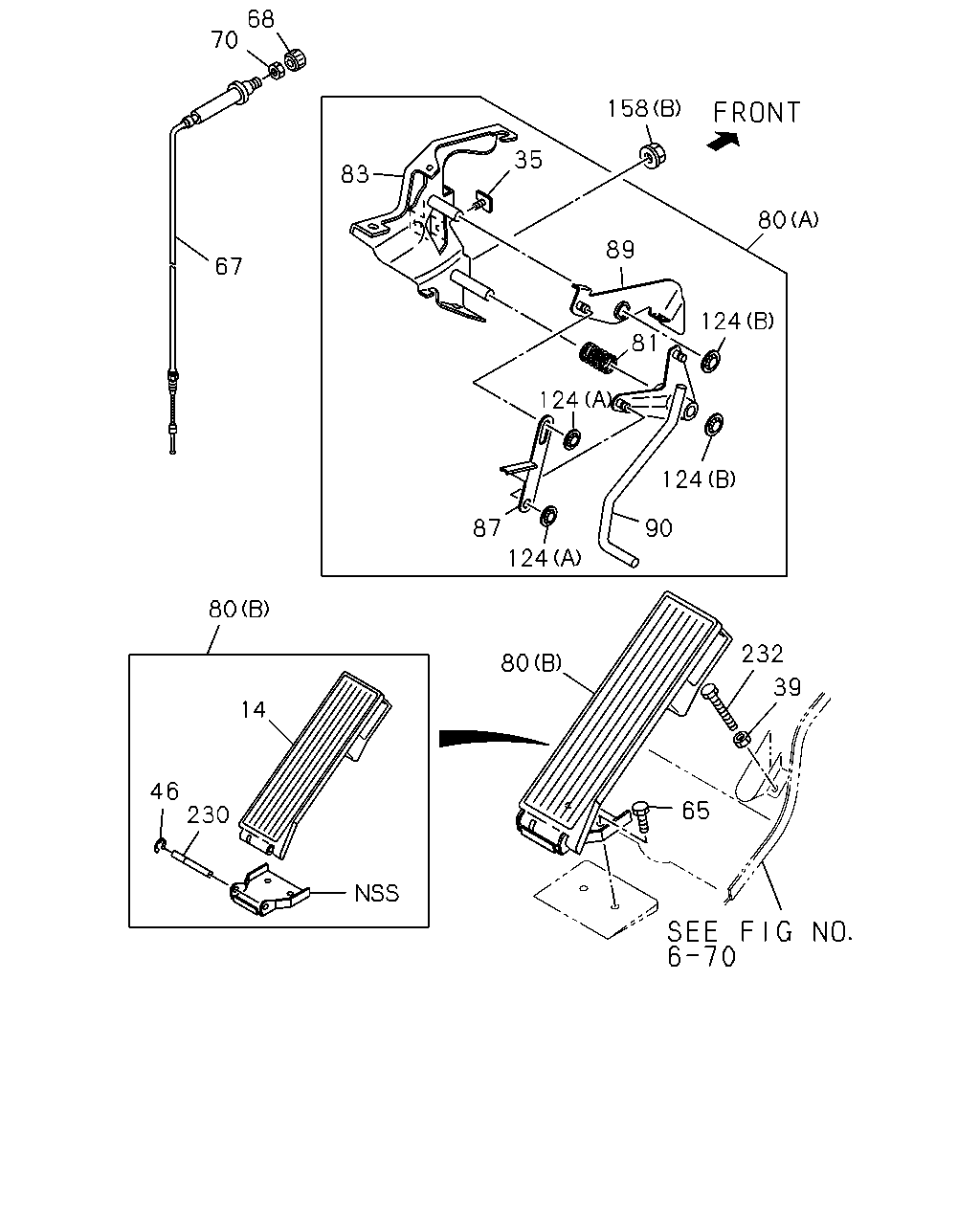

68 70 158 35 83 80 89 67 124 81 124 124 87 90 124 80 232 80 39 14 46 230 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	9312-	●	●	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL	8-97857-401-1	02	1	9312-9609	●	●	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL	8-97857-401-1	01	1	9610-	●	●	●	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	9312-	●	●	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	9312-	●	●	●	●	●	●
65	03.483 BOLT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9312-9603	●	●	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	9604-	●	●	●	●	●	●
67	03.480 CABLE ASM; IDLE CONT L=439	8-97853-058-1	01	1	9312-	●	●	●	●	●	●
68	03.480 KNOB; IDLE CONT	8-97853-765-1	01	1	9312-	●	●	●	●	●	●
70	03.483 NUT; CONT CABLE M18	8-97853-233-0	01	1	9312-	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97853-057-8	01	1	9312-	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	9312-	●	●	●	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	9312-	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK	8-97853-201-4	01	1	9312-	●	●	●	●	●	●
87	03.454 LINK; ENG CONT	8-97853-204-1	01	1	9312-	●	●	●	●	●	●
89	03.454 LEVER; RELAY	8-97853-203-4	01	1	9312-9609	●	●	●	●	●	●
89	03.454 LEVER; RELAY	8-97868-042-0	01	1	9610-	●	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT	8-97853-202-6	01	1	9312-9609	●	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT	8-97868-039-0	01	1	9610-	●	●	●	●	●	●
124	03.463 NUT; LEVER 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	9312-	●	●	●	●	●	●
124	03.463 NUT; LEVER (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	9610-	●	●	●	●	●	●
158	03.452 NUT; BRKT 00.777 (A) M8 W/LK WASHER	8-94279-050-0	02	1	9312-9408	●	●	●	●	●	●
158	03.452 NUT; BRKT 08.857 (B) M8 FLANGE	8-94279-060-0	02	1	9312-	●	●	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	9312-	●	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 03.708 M8X45	0-20800-845-0	01	1	9312-9406	●	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 04.642 M8X65	0-20800-865-0	01	1	9407-	●	●	●	●	●	●

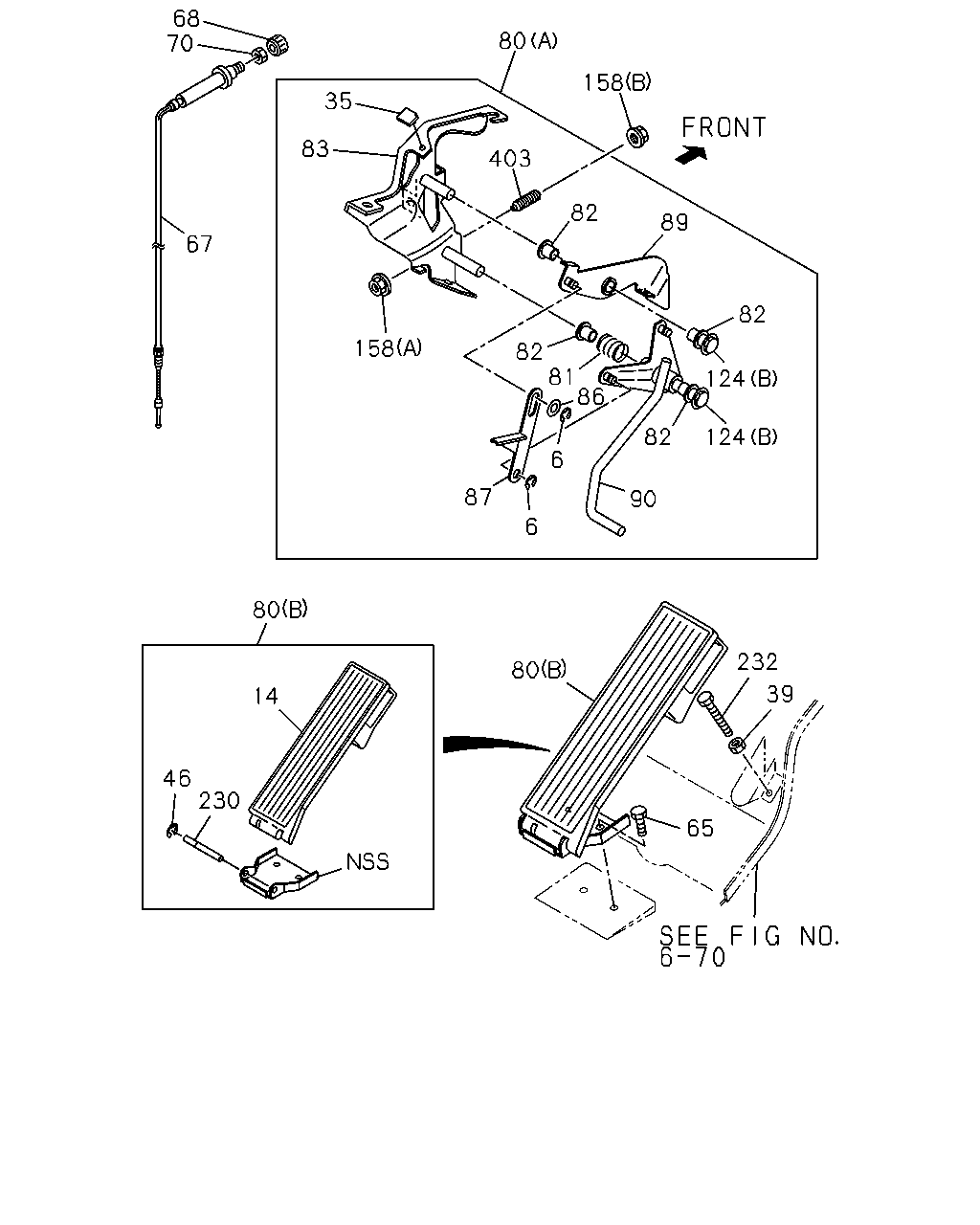

68 70 80 158 35 83 403 82 89 67 82 158 82 81 86 124 82 124 6 87 90 6 80 232 80 39 14 46 230 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
6	03.880 RING; SNAP,LINK TO LINK 04.040 ID=4	9-09185-404-0	02	1	9312-9609	●	●	●	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	9312-	●	●	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL	8-97857-401-1	02	1	9312-9609	●	●	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL	8-97857-401-1	01	1	9610-	●	●	●	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	9312-	●	●	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	9312-	●	●	●	●	●	●
65	03.483 BOLT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9312-9603	●	●	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	9604-	●	●	●	●	●	●
67	03.480 CABLE ASM; IDLE CONT L=439	8-97853-058-1	01	1	9312-	●	●	●	●	●	●
68	03.480 KNOB; IDLE CONT	8-97853-765-1	01	1	9312-	●	●	●	●	●	●
70	03.483 NUT; CONT CABLE M18	8-97853-233-0	01	1	9312-	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97853-057-8	01	1	9312-	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	9312-	●	●	●	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	9312-	●	●	●	●	●	●
82	03.463 BUSHING; ENG CONT LVR ID=10 OD=17.5	5-23319-012-0	04	1	9312-9408	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK	8-97853-201-4	01	1	9312-	●	●	●	●	●	●
86	03.463 WASHER; PL,ENG CONT LEVER 16.125 ID=5.3 OD=12	9-09160-605-0	01	1	9312-9609	●	●	●	●	●	●
87	03.454 LINK; ENG CONT	8-97853-204-1	01	1	9312-	●	●	●	●	●	●
89	03.454 LEVER; RELAY	8-97853-203-4	01	1	9312-9609	●	●	●	●	●	●
89	03.454 LEVER; RELAY	8-97868-042-0	01	1	9610-	●	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT	8-97853-202-6	01	1	9312-9609	●	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT	8-97868-039-0	01	1	9610-	●	●	●	●	●	●
124	03.463 NUT; LEVER 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	9312-	●	●	●	●	●	●
124	03.463 NUT; LEVER (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	9610-	●	●	●	●	●	●
158	03.452 NUT; BRKT 00.777 (A) M8 W/LK WASHER	8-94279-050-0	02	1	9312-9408	●	●	●	●	●	●
158	03.452 NUT; BRKT 08.857 (B) M8 FLANGE	8-94279-060-0	02	1	9312-	●	●	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	9312-	●	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 03.708 M8X45	0-20800-845-0	01	1	9312-9406	●	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 04.642 M8X65	0-20800-865-0	01	1	9407-	●	●	●	●	●	●
403	03.431 BOLT; BRKT,ACCEL PEDAL	8-94279-976-0	02	1	9312-9408	●	●	●	●	●	●

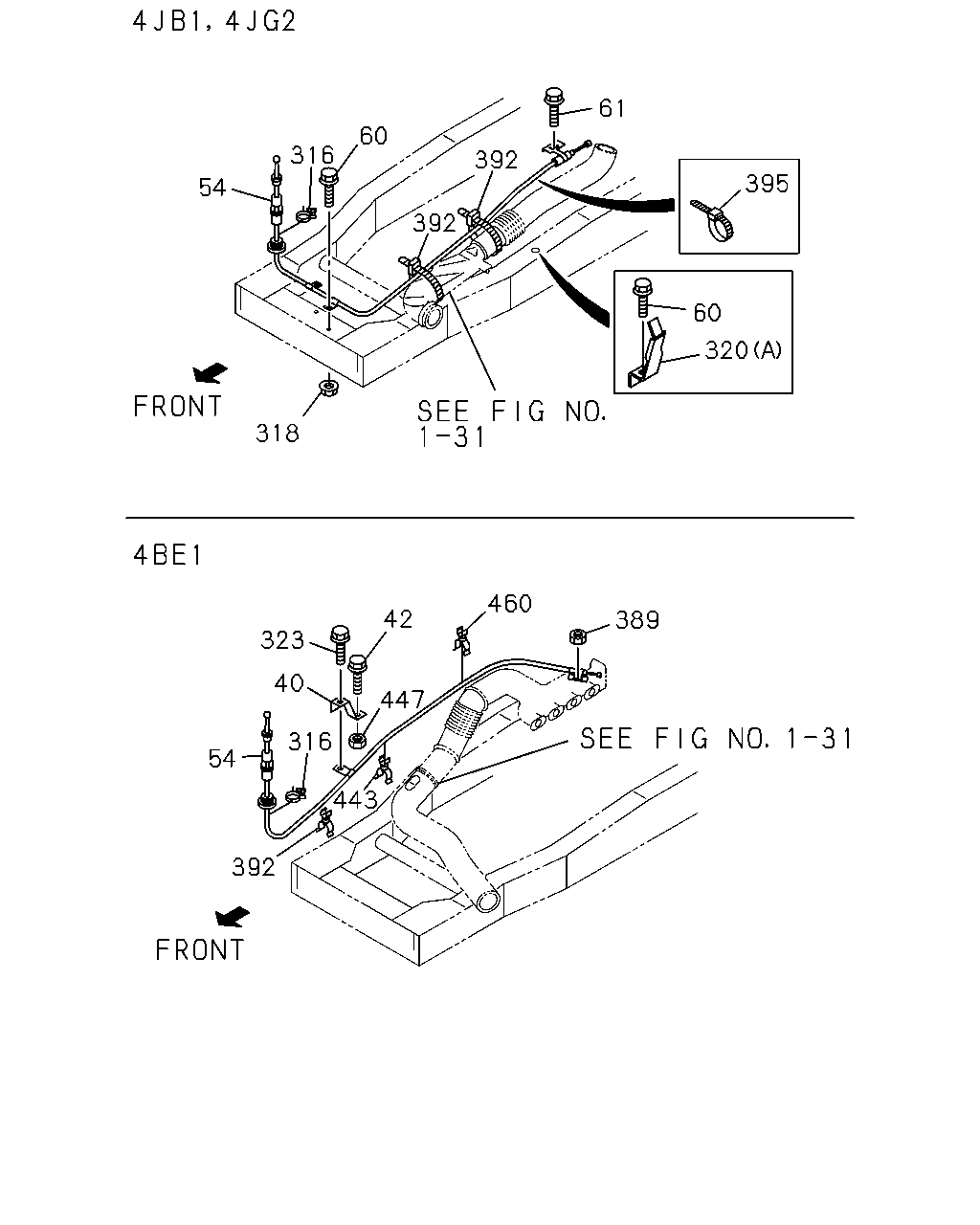

61 60 316 392 395 54 392 60 320 318 460 42 389 323 40 447 316 54 443 392

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
40	03.452 BRACKET; ENG CONT CABLE 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3>	8-94446-927-2	01	1	9312-9401	●		●	●
40	03.452 BRACKET; ENG CONT CABLE 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRAME-KICK UP<7EW>	8-94446-927-2	01	1	9402-	●		●	●
42	03.452 BOLT; BRKT,ENG CONT CABLE 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 02.510 M8X25 W/LK&PL WASHER	0-50140-825-0	01	1	9312-9401	●		●	●
42	03.452 BOLT; BRKT,ENG CONT CABLE 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRAME-KICK UP<7EW> 02.510 M8X25 W/LK&PL WASHER	0-50140-825-0	01	1	9402-9504	●		●	●
42	03.452 BOLT; BRKT,ENG CONT CABLE 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRAME-KICK UP<7EW> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9505-	●		●	●
54	03.430 CABLE; ENG CONT 4JB1 ENG(RLF) L=2300	8-97046-362-2	01	1	9312-9506	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) L=2300	8-97046-362-3	01	1	9507-9510	●
54	03.430 CABLE; ENG CONT L=2300	8-97046-362-3	01	1	9507-9510		●
54	03.430 CABLE; ENG CONT 4JB1 ENG(RLF) L=2300	8-97046-362-3	01	1	9507-9510			●	●	●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) L=2300	8-97046-362-3	01	1	9610-9711				●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) L=2300	8-97046-362-3	01	1	9712-	●		●	●
54	03.430 CABLE; ENG CONT L=2300	8-97046-362-3	01	1	9712-		●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC) L=2300	8-97046-362-3	01	1	9712-					●
54	03.430 CABLE; ENG CONT 4JB1 ENG(RLF) L=2300	8-97046-362-3	01	1	9712-						●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3>	8-97090-655-2	01	1	9312-9401	●		●	●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRAME-KICK UP<7EW>	8-97090-655-2	01	1	9402-	●		●	●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97076-701-3	01	1	9312-9711	●		●	●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC>	8-97076-701-3	01	1	9712-	●				●	●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) FRAME-KICK UP<7EW>	8-97112-564-1	01	1	9402-			●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (B)	8-94370-638-0	01	1	9312-9502				●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (B) L=293	8-97115-730-0	01	1	9503-9510				●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (B) L=293	8-97115-730-0	01	1	9511-9711			●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (B) L=293	8-97115-730-0	01	1	9712-	●		●	●		●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (A) L=2703	8-97071-711-4	01	1	9312-9510				●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (A) L=2703	8-97071-711-4	01	1	9511-9711			●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (A) L=2703	8-97071-711-4	01	1	9712-	●		●	●		●
60	08.155 BOLT; CABLE 4JB1 ENG(RLF),4HF1 ENG(RLS) 02.510 M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9312-9504	●	●	●	●	●	●
60	08.155 BOLT; CABLE 4JB1 ENG(RLF),4HF1 ENG(RLS) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9505-9506	●	●	●	●	●	●
60	08.155 BOLT; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9507-	●	●	●	●	●	●
60	08.155 BOLT; CABLE 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 06.672 M8X25 W/LK WASHER	0-51040-825-0	01	1	9312-9506	●		●	●
60	08.155 BOLT; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 06.672 M8X25 W/LK WASHER	0-51040-825-0	01	1	9507-9507	●		●	●
60	08.155 BOLT; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9508-9711	●		●	●
60	08.155 BOLT; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9712-	●		●	●		●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 4JB1 ENG(RLF) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9312-9506	●	●	●	●	●	●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 4JG2 ENG(RJC),4JB1 ENG(RLF) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9507-	●	●	●	●	●	●
316	03.425 CLIP; LAMP BRKT 02.559 ID=12	1-09987-201-0	01	1	9312-9503	●	●	●	●	●	●
316	03.425 CLIP; LAMP BRKT 16.065 ID=9	5-09707-027-0	01	1	9504-	●	●	●	●	●	●
318	03.275 NUT; LAMP BRKT 4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.417 M8 FLANGE	8-94279-517-0	02	1	9312-9506	●	●	●	●	●	●
318	03.275 NUT; LAMP BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.417 M8 FLANGE	8-94279-517-0	02	1	9507-9802	●	●	●	●	●	●
318	03.275 NUT; LAMP BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.833 M8 W/LK WASHER	8-94327-073-0	02	1	9803-	●	●	●	●	●	●
320	03.483 CLIP; FRAME 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-94167-969-2	01	1	9312-9506	●		●	●
320	03.483 CLIP; FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-94167-969-2	01	1	9507-	●		●	●
320	03.483 CLIP; FRAME 4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41) 06.672 (B)	8-94178-110-0	01	1	9312-9510				●
320	03.483 CLIP; FRAME 4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41) 06.672 (B)	8-94178-110-0	01	1	9511-9711			●	●
320	03.483 CLIP; FRAME 4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41) 06.672 (B)	8-94178-110-0	01	1	9712-	●		●	●		●
323	03.483 BOLT; CLIP 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	9312-9401	●		●	●
323	03.483 BOLT; CLIP 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRAME-KICK UP<7EW> 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	9402-9606	●		●	●
323	03.483 BOLT; CLIP 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRAME-KICK UP<7EW> 04.439 M6X16 FLANGE	0-28680-616-0	01	1	9607-	●		●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) 04.594 M6 FLANGE	0-91150-106-0	01	1	9312-	●		●	●	●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.008 L=330	5-09709-118-0	02	1	9312-9711	●	●			●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.008 L=330	5-09709-118-0	02	1	9712-	●				●	●
392	03.483 CLIP; ACCEL CONT CABLE 03.008 L=330	5-09709-118-0	02	1	9712-		●
392	03.483 CLIP; ACCEL CONT CABLE 4BE1 ENG(RLH) 04.930 ID=10 & 16.5	8-94360-745-0	01	1	9312-9711	●		●	●	●	●
392	03.483 CLIP; ACCEL CONT CABLE 4BE1 ENG(RLH) 04.930 ID=10 & 16.5	8-94360-745-0	01	1	9712-	●		●	●	●
392	03.483 CLIP; ACCEL CONT CABLE 4HF1 ENG(RLS) ID=6 & 10	8-94154-844-0	01	1	9508-9611				●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.162 L=140	5-09707-031-0	01	1	9312-9406	●	●			●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 03.162 L=140	5-09707-031-0	01	1	9407-9711	●		●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 03.162 L=140	5-09707-031-0	01	1	9712-9801	●		●	●		●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 03.162 L=140	5-09707-031-1	01	1	9802-	●		●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 03.162 L=140	5-09707-031-1	02	1	9802-	●		●	●		●
443	03.483 CLIP; CABLE 4BE1 ENG(RLH) POWER STEERING<N40> 04.930 ID=10 & 16.5	8-94360-745-0	01	1	9312-9507	●		●	●	●	●
443	03.483 CLIP; CABLE 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> POWER STEERING<N40> 04.930 ID=10 & 16.5	8-94360-745-0	01	1	9508-	●		●	●
447	03.452 NUT; BRKT,CONT WIRE 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-9401	●		●	●
447	03.452 NUT; BRKT,CONT WIRE 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRAME-KICK UP<7EW> 07.633 M8 FLANGE	0-91150-108-0	01	1	9402-	●		●	●
460	03.483 CLIP; CONT CABLE 4BE1 ENG(RLH) FRAME-KICK UP<7EW> 04.342 ID=8.3 & 10	8-94176-792-0	01	1	9407-			●

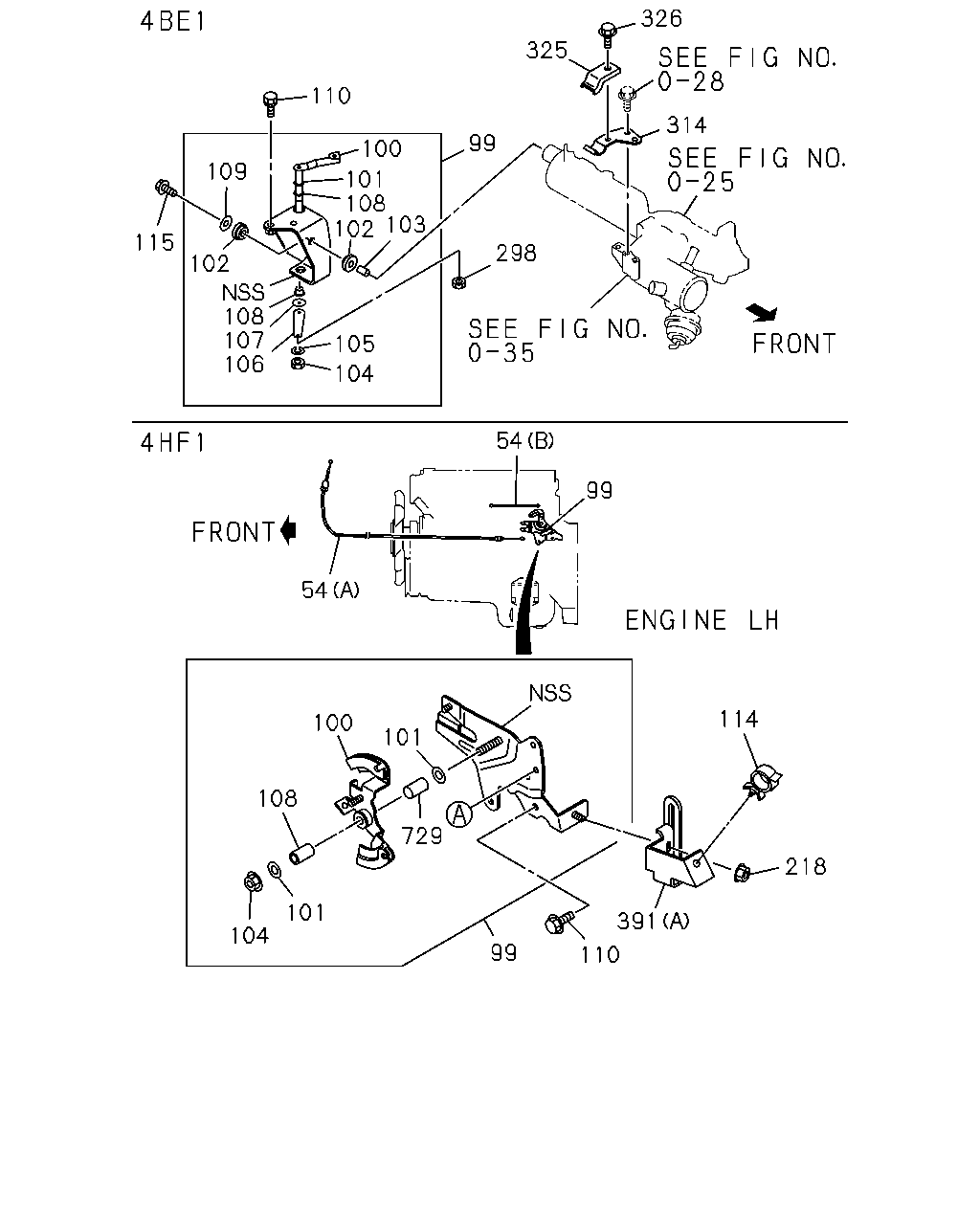

326 325 110 314 99 100 109 101 108 102 103 115 298 102 108 107 106 105 104 54 99 54 114 100 101 108 729 218 101 391 104 99 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
54	03.430 CABLE; ENG CONT 4JB1 ENG(RLF) L=2300	8-97046-362-2	01	1	9312-9506	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) L=2300	8-97046-362-3	01	1	9507-9510	●
54	03.430 CABLE; ENG CONT L=2300	8-97046-362-3	01	1	9507-9510		●
54	03.430 CABLE; ENG CONT 4JB1 ENG(RLF) L=2300	8-97046-362-3	01	1	9507-9510			●	●	●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) L=2300	8-97046-362-3	01	1	9610-9711				●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) L=2300	8-97046-362-3	01	1	9712-	●		●	●
54	03.430 CABLE; ENG CONT L=2300	8-97046-362-3	01	1	9712-		●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC) L=2300	8-97046-362-3	01	1	9712-					●
54	03.430 CABLE; ENG CONT 4JB1 ENG(RLF) L=2300	8-97046-362-3	01	1	9712-						●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3>	8-97090-655-2	01	1	9312-9401	●		●	●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRAME-KICK UP<7EW>	8-97090-655-2	01	1	9402-	●		●	●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97076-701-3	01	1	9312-9711	●		●	●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC>	8-97076-701-3	01	1	9712-	●				●	●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) FRAME-KICK UP<7EW>	8-97112-564-1	01	1	9402-			●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (B)	8-94370-638-0	01	1	9312-9502				●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (B) L=293	8-97115-730-0	01	1	9503-9510				●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (B) L=293	8-97115-730-0	01	1	9511-9711			●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (B) L=293	8-97115-730-0	01	1	9712-	●		●	●		●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (A) L=2703	8-97071-711-4	01	1	9312-9510				●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (A) L=2703	8-97071-711-4	01	1	9511-9711			●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (A) L=2703	8-97071-711-4	01	1	9712-	●		●	●		●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3>	8-97066-831-1	01	1	9312-	●		●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC>	8-97066-832-1	01	1	9312-9711	●		●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC>	8-97066-832-1	01	1	9712-	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4BE1 ENG(RLH)	8-97066-832-1	01	1	9712-					●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HF1 ENG(RLS)	8-97106-404-0	01	1	9312-9410				●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HF1 ENG(RLS)	8-97118-729-0	01	1	9411-9504				●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11>	8-97118-729-0	01	1	9505-9510				●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11>	8-97118-729-0	01	1	9511-9711			●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11>	8-97118-729-0	01	1	9712-	●		●	●		●
100	03.463 SHAFT ASM; ENG CONT 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3>	8-94416-112-1	01	1	9312-	●		●	●
100	03.463 SHAFT ASM; ENG CONT 4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC>	8-97038-676-0	01	1	9312-9711	●		●	●
100	03.463 SHAFT ASM; ENG CONT 4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC>	8-97038-676-0	01	1	9712-	●
100	03.463 SHAFT ASM; ENG CONT 4BE1 ENG(RLH)	8-97038-676-0	01	1	9712-					●
100	03.463 SHAFT ASM; ENG CONT 4HF1 ENG(RLS)	8-97106-410-0	01	1	9312-9410				●
100	03.463 SHAFT ASM; ENG CONT 4HF1 ENG(RLS)	8-97118-737-0	01	1	9411-9504				●
100	03.463 SHAFT ASM; ENG CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11>	8-97118-737-0	01	1	9505-9510				●
100	03.463 SHAFT ASM; ENG CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11>	8-97118-737-0	01	1	9511-9711			●	●
100	03.463 SHAFT ASM; ENG CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11>	8-97118-737-0	01	1	9712-	●		●	●		●
101	03.463 WASHER; ENG CONT 4BE1 ENG(RLH) OD=18 T=0.4	9-09851-411-0	03	1	9312-9711	●		●	●	●	●
101	03.463 WASHER; ENG CONT 4BE1 ENG(RLH) OD=18 T=0.4	9-09851-411-0	03	1	9712-	●		●	●	●
101	03.463 WASHER; ENG CONT 4HF1 ENG(RLS) 01.276	8-94142-117-0	02	1	9312-9502				●
101	03.463 WASHER; ENG CONT 4HF1 ENG(RLS) 01.276	8-94142-117-0	02	1	9503-9504				●
101	03.463 WASHER; ENG CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 01.276	8-94142-117-0	02	1	9505-9510				●
101	03.463 WASHER; ENG CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 01.276	8-94142-117-0	02	1	9511-9711			●	●
101	03.463 WASHER; ENG CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 01.276	8-94142-117-0	02	1	9712-	●		●	●		●
102	03.463 RUBBER; MTG 4BE1 ENG(RLH)	8-94255-643-1	02	1	9312-9711	●		●	●	●	●
102	03.463 RUBBER; MTG 4BE1 ENG(RLH)	8-94255-643-1	02	1	9712-	●		●	●	●
103	03.463 BUSHING; SPACER,INL MANIF TO BRK 4BE1 ENG(RLH) 03.275 OD=12 L=20.5	8-94255-642-1	01	1	9312-9711	●		●	●	●	●
103	03.463 BUSHING; SPACER,INL MANIF TO BRK 4BE1 ENG(RLH) 03.275 OD=12 L=20.5	8-94255-642-1	01	1	9712-	●		●	●	●
104	03.463 NUT; ENG CONT 4BE1 ENG(RLH) 00.787 M8	9-09111-408-0	01	1	9312-9711	●		●	●	●	●
104	03.463 NUT; ENG CONT 4BE1 ENG(RLH) 00.787 M8	9-09111-408-0	01	1	9712-	●		●	●	●
104	03.463 NUT; ENG CONT 4HF1 ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-9502				●
104	03.463 NUT; ENG CONT 4HF1 ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	01	1	9503-9504				●
104	03.463 NUT; ENG CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE	0-91150-108-0	01	1	9505-9510				●
104	03.463 NUT; ENG CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE	0-91150-108-0	01	1	9511-9711			●	●
104	03.463 NUT; ENG CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-	●		●	●		●
105	03.463 WASHER; ENG CONT LEVER 4BE1 ENG(RLH) 00.002 ID=8.2	9-09150-508-0	01	1	9312-9711	●		●	●	●	●
105	03.463 WASHER; ENG CONT LEVER 4BE1 ENG(RLH) 00.002 ID=8.2	9-09150-508-0	01	1	9712-	●		●	●	●
106	03.463 LEVER; "B",ENG CONT 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3>	5-15541-007-1	01	1	9312-	●		●	●
106	03.463 LEVER; "B",ENG CONT 4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC>	8-97094-292-0	01	1	9312-9711	●		●	●
106	03.463 LEVER; "B",ENG CONT 4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC>	8-97094-292-0	01	1	9712-	●
106	03.463 LEVER; "B",ENG CONT 4BE1 ENG(RLH)	8-97094-292-0	01	1	9712-					●
107	03.463 WASHER; ENG CONT 4BE1 ENG(RLH) OD=18 T=1	8-94148-078-0	01	1	9312-9711	●		●	●	●	●
107	03.463 WASHER; ENG CONT 4BE1 ENG(RLH) OD=18 T=1	8-94148-078-0	01	1	9712-	●		●	●	●
108	03.463 BUSHING; ENG CONT 4BE1 ENG(RLH)	5-15549-001-1	02	1	9312-9711	●		●	●	●	●
108	03.463 BUSHING; ENG CONT 4BE1 ENG(RLH)	5-15549-001-1	02	1	9712-	●		●	●	●
108	03.463 BUSHING; ENG CONT 4HF1 ENG(RLS)	8-94372-362-1	01	1	9312-9410				●
108	03.463 BUSHING; ENG CONT 4HF1 ENG(RLS)	8-97120-004-0	01	1	9411-9504				●
108	03.463 BUSHING; ENG CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11>	8-97120-004-0	01	1	9505-9510				●
108	03.463 BUSHING; ENG CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11>	8-97120-004-0	01	1	9511-9711			●	●
108	03.463 BUSHING; ENG CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11>	8-97120-004-0	01	1	9712-	●		●	●		●
109	03.275 WASHER; ENG CONT 4BE1 ENG(RLH) OD=28.6	8-94155-884-1	01	1	9312-9711	●		●	●	●	●
109	03.275 WASHER; ENG CONT 4BE1 ENG(RLH) OD=28.6	8-94155-884-1	01	1	9712-	●		●	●	●
110	03.463 BOLT; BRKT TO HANGER 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 01.652 M10X25 W/LK WASHER	0-50041-025-0	02	1	9312-	●		●	●
110	03.463 BOLT; BRKT TO HANGER 4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 09.171 M10X35 W/LK WASHER	0-50041-035-0	01	1	9312-9711	●		●	●
110	03.463 BOLT; BRKT TO HANGER 4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 09.171 M10X35 W/LK WASHER	0-50041-035-0	01	1	9712-	●
110	03.463 BOLT; BRKT TO HANGER 4BE1 ENG(RLH) 09.171 M10X35 W/LK WASHER	0-50041-035-0	01	1	9712-					●
110	03.463 BOLT; BRKT TO HANGER 4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 02.277 M10X70 W/LK WASHER	0-50041-070-0	01	1	9312-9611	●		●	●
110	03.463 BOLT; BRKT TO HANGER 4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.706 M10X70 FLANGE	0-28081-070-0	01	1	9612-9711	●		●	●
110	03.463 BOLT; BRKT TO HANGER 4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.706 M10X70 FLANGE	0-28081-070-0	01	1	9712-	●
110	03.463 BOLT; BRKT TO HANGER 4BE1 ENG(RLH) 03.706 M10X70 FLANGE	0-28081-070-0	01	1	9712-					●
110	03.463 BOLT; BRKT TO HANGER 4HF1 ENG(RLS) 00.662 M8X14 FLANGE	0-28080-814-0	03	1	9312-9510				●
110	03.463 BOLT; BRKT TO HANGER 4HF1 ENG(RLS) 00.662 M8X14 FLANGE	0-28080-814-0	03	1	9511-9607			●	●
110	03.463 BOLT; BRKT TO HANGER 4HF1 ENG(RLS) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	9608-9711			●	●
110	03.463 BOLT; BRKT TO HANGER 4HF1 ENG(RLS) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	9712-	●		●	●		●
114	03.483 CLIP; HARNESS CONNECTOR 4HF1 ENG(RLS) 02.559 ID=7-10	8-94472-578-0	01	1	9312-9510				●
114	03.483 CLIP; HARNESS CONNECTOR 4HF1 ENG(RLS) 02.559 ID=7-10	8-94472-578-0	01	1	9511-9711			●	●
114	03.483 CLIP; HARNESS CONNECTOR 4HF1 ENG(RLS) 02.559 ID=7-10	8-94472-578-0	01	1	9712-	●		●	●		●
115	03.275 BOLT; INL MANIF TO BRKT 4BE1 ENG(RLH) 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9312-9711	●		●	●	●	●
115	03.275 BOLT; INL MANIF TO BRKT 4BE1 ENG(RLH) 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9712-	●		●	●	●
218	03.452 NUT; BRKT 4HF1 ENG(RLS) 01.540 M8 FLANGE	0-91150-208-0	01	1	9503-9510				●
218	03.452 NUT; BRKT 4HF1 ENG(RLS) 01.540 M8 FLANGE	0-91150-208-0	01	1	9511-9606			●	●
218	03.452 NUT; BRKT 4HF1 ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	01	1	9607-9711			●	●
218	03.452 NUT; BRKT 4HF1 ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-	●		●	●		●
298	03.425 NUT; BALL JOINT,LINK ROD 4BE1 ENG(RLH) 02.559 M5 W/LK WASHER	8-94424-178-0	02	1	9312-9711	●		●	●	●	●
298	03.425 NUT; BALL JOINT,LINK ROD 4BE1 ENG(RLH) 02.559 M5 W/LK WASHER	8-94424-178-0	02	1	9712-	●		●	●	●
314	03.481 BRACKET; ACCEL CABLE 4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC>	8-97031-742-0	01	1	9312-9711	●		●	●
314	03.481 BRACKET; ACCEL CABLE 4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC>	8-97031-742-0	01	1	9712-	●
314	03.481 BRACKET; ACCEL CABLE 4BE1 ENG(RLH)	8-97031-742-0	01	1	9712-					●
325	03.483 CLIP; PCV BRKT 4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-94144-775-0	01	1	9312-9711	●		●	●
325	03.483 CLIP; PCV BRKT 4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC>	8-94144-775-0	01	1	9712-	●		●
326	03.483 BOLT; PCV BRKT 4BE1 ENG(RLH) 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	9312-9606	●		●	●	●	●
326	03.483 BOLT; PCV BRKT 4BE1 ENG(RLH) 04.439 M6X16 FLANGE	0-28680-616-0	01	1	9607-9711	●		●	●	●	●
326	03.483 BOLT; PCV BRKT 4BE1 ENG(RLH) 04.439 M6X16 FLANGE	0-28680-616-0	01	1	9712-	●		●	●	●
391	03.452 BRACKET; ENG CONT 4JB1 ENG(RLF) 02.483 (B)	8-97068-801-1	01	1	9312-9702	●	●	●	●	●	●
391	03.452 BRACKET; ENG CONT 4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.483 (B)	8-97068-801-1	01	1	9703-9711	●	●	●	●	●	●
391	03.452 BRACKET; ENG CONT 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) 02.483 (B)	8-97068-801-1	01	1	9712-	●
391	03.452 BRACKET; ENG CONT 02.483 (B)	8-97068-801-1	01	1	9712-		●
391	03.452 BRACKET; ENG CONT 4JB1 ENG(RLF) 02.483 (B)	8-97068-801-1	01	1	9712-			●			●
391	03.452 BRACKET; ENG CONT 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 02.483 (B)	8-97068-801-1	01	1	9712-				●
391	03.452 BRACKET; ENG CONT 4HF1 ENG(RLS) 02.483 (A)	8-97088-278-0	01	1	9503-9510				●
391	03.452 BRACKET; ENG CONT 4HF1 ENG(RLS) 02.483 (A)	8-97088-278-0	01	1	9511-9711			●	●
391	03.452 BRACKET; ENG CONT 4HF1 ENG(RLS) (A)	8-97172-882-0	01	1	9712-	●		●	●		●
729	03.451 COLLAR; JOINT 4HF1 ENG(RLS)	8-97118-760-0	01	1	9411-9504				●
729	03.451 COLLAR; JOINT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11>	8-97118-760-0	01	1	9505-9510				●
729	03.451 COLLAR; JOINT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11>	8-97118-760-0	01	1	9511-9711			●	●
729	03.451 COLLAR; JOINT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11>	8-97118-760-0	01	1	9712-	●		●	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
