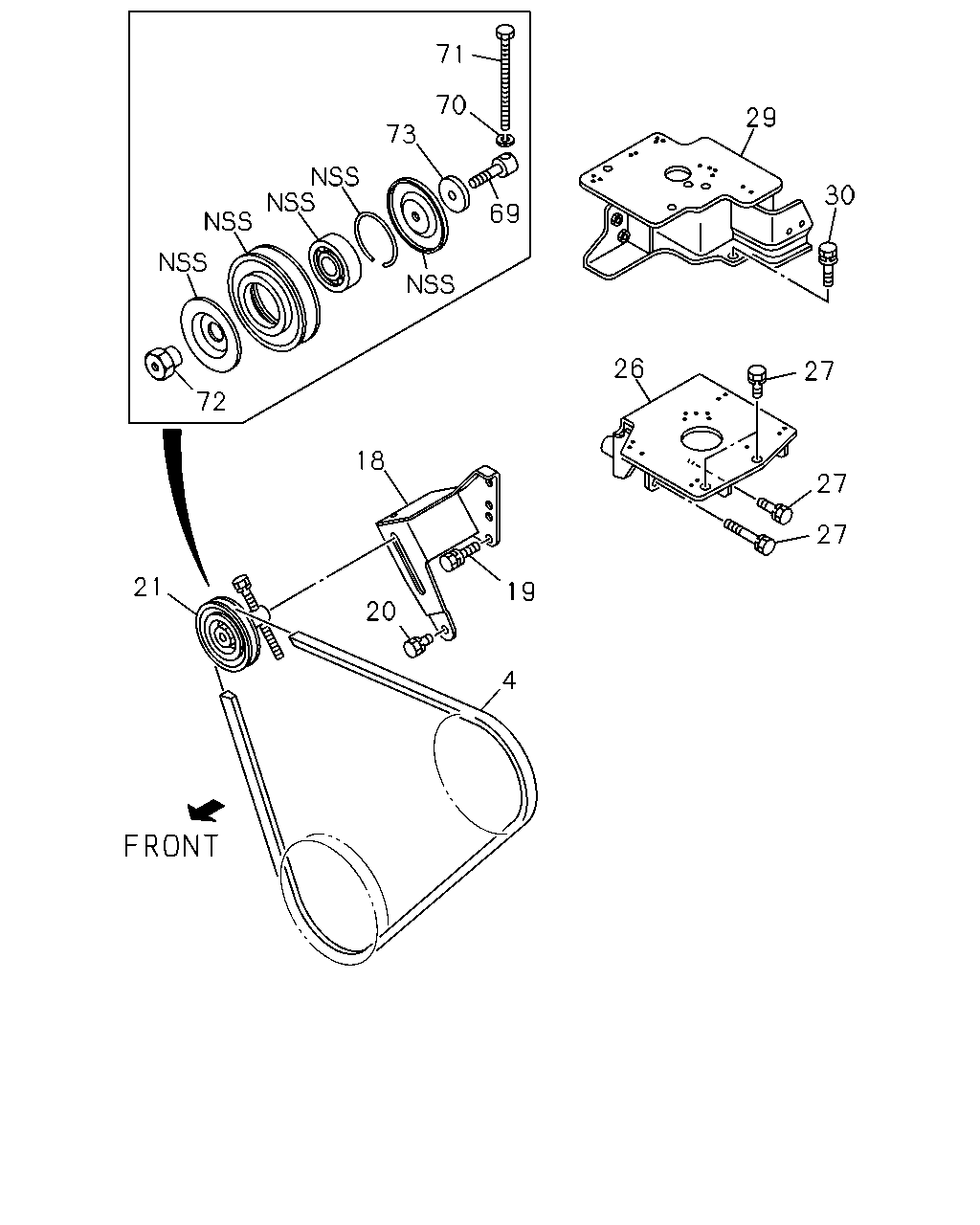

0-91 — REFRIGERATION (#47293) — 16 parça

71 70 29 73 30 69 26 27 72 18 27 27 21 19 20 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	01.066 BELT; CMPR,REFRIGERATION REFRIGERATOR CHASSIS(V4R) L=1560 B=17	5-13671-137-0	01	1	9312-9711
18	09.180 BRACKET; "C",IDLE CMPR REFRIGERATOR CHASSIS(V4R)	8-94122-270-1	01	1	9312-9711
19	09.180 BOLT; BRKT "C" TO THERMO HSG REFRIGERATOR CHASSIS(V4R) 03.613 M10X30 W/LK&PL WASHER	0-50141-030-0	02	1	9312-9711
20	09.180 BOLT; BRKT "C" TO WATER PUMP REFRIGERATOR CHASSIS(V4R) 11.377 M10X20 W/LK WASHER	0-50041-020-0	01	1	9312-9711
21	09.180 PULLEY ASM; IDLE,CMPR REFRIGERATOR CHASSIS(V4R)	8-94340-401-1	01	1	9312-9711
26	09.277 BRACKET; GEN TO C/BL REFRIGERATOR CHASSIS(V4R)	8-94365-598-0	01	1	9401-9406
26	09.277 BRACKET; GEN TO C/BL REFRIGERATOR CHASSIS(V4R)	8-94478-928-2	01	1	9407-9711
27	09.171 BOLT; BRKT TO C/BL REFRIGERATOR CHASSIS(V4R) 04.104 M10X60 W/LK WASHER	0-50041-060-0	01	1	9401-9711
27	09.171 BOLT; BRKT TO C/BL REFRIGERATOR CHASSIS(V4R) 01.252 M10X25 W/LK&PL WASHER	0-50141-025-0	03	1	9401-9711
29	09.171 BRACKET; CMPR REFRIGERATOR CHASSIS(V4R)	8-94478-929-1	01	1	9401-9711
30	09.171 BOLT; BRKT TO CYL HD REFRIGERATOR CHASSIS(V4R) 01.252 M10X25 W/LK&PL WASHER	0-50141-025-0	03	1	9401-9711
69	09.181 SHAFT; IDLE PULLEY REFRIGERATOR CHASSIS(V4R)	8-97103-910-0	01	1	9312-9711
70	09.181 WASHER; LK,IDLE PULLEY REFRIGERATOR CHASSIS(V4R) 00.002 ID=8.2	9-09150-508-0	01	1	9312-9711
71	09.181 BOLT; IDLE PULLEY REFRIGERATOR CHASSIS(V4R)	8-97103-908-0	01	1	9312-9711
72	09.181 BUSHING; IDLE PULLEY REFRIGERATOR CHASSIS(V4R)	8-97103-907-0	01	1	9312-9711
73	09.181 COLLAR; IDLE PULLEY REFRIGERATOR CHASSIS(V4R)	8-97103-909-0	01	1	9312-9711
