0-86 — MISCELLANEOUS PARTS; INJECTION PUMP (#47292) — 56 parça

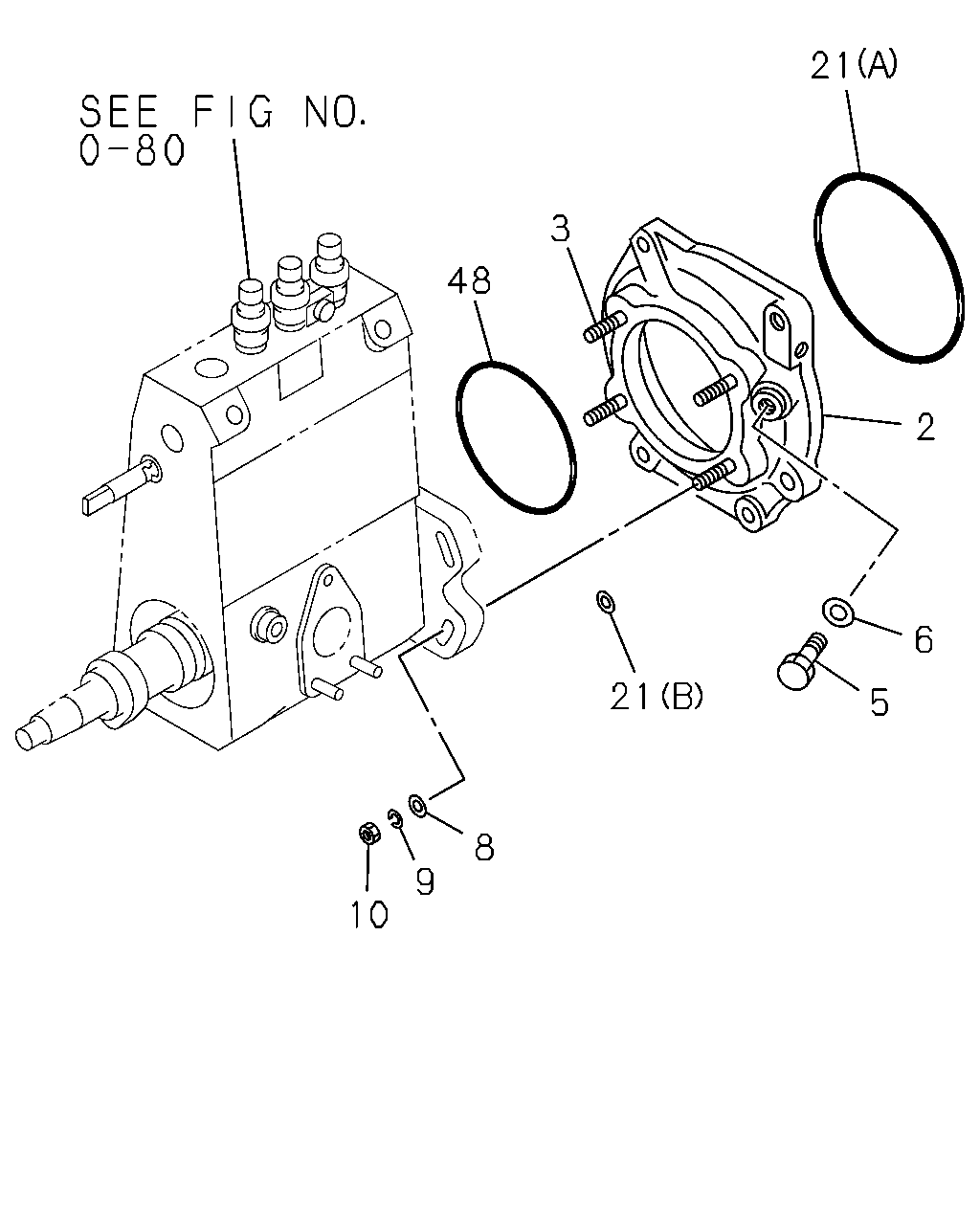

21 3 48 2 6 21 5 8 9 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	03.306 BRACKET; HSG & TIMER,INJ PUMP	5-19751-050-0	01	1	9312-9410	●
2	03.306 BRACKET; HSG & TIMER,INJ PUMP HIGH ALTITUDE COMPENSATOR(EE2)	5-19751-050-0	01	1	9411-9510	●
2	03.306 BRACKET; HSG & TIMER,INJ PUMP	5-19751-050-0	01	1	9511-	●
2	03.306 BRACKET; HSG & TIMER,INJ PUMP EXC. HIGH ALTITUDE COMPENSATOR(EE2)	5-19750-050-0	01	1	9411-9510	●
2	03.306 BRACKET; HSG & TIMER,INJ PUMP	8-97096-643-0	01	1	9312-9510		●
2	03.306 BRACKET; HSG & TIMER,INJ PUMP	8-97121-616-0	01	1	9511-		●
3	03.330 STUD; HSG BRKT,INJ PUMP 08.981 M10X30 L=45	9-04101-030-0	04	1	9312-9406	●	●
3	03.330 STUD; HSG BRKT,INJ PUMP 08.981 M10X30 L=45	9-04101-030-0	04	1	9407-9502	●
3	03.330 STUD; HSG BRKT,INJ PUMP 08.981 M10X30 L=45	9-04101-030-0	04	1	9503-	●	●
3	03.330 STUD; HSG BRKT,INJ PUMP 08.981 M10X30 L=45	9-04101-030-0	04	1	9407-9502		●
5	03.306 PLUG; HSG BRKT,INJ PUMP	8-97026-919-0	01	1	9312-		●
6	03.306 GASKET; PLUG,INJ PUMP BRKT 03.308	1-15729-787-0	01	1	9312-		●
8	03.306 WASHER; PL,HSG BRKT,INJ PUMP 06.896 ID=10.5	9-09164-510-0	04	1	9312-9406	●	●
8	03.306 WASHER; PL,HSG BRKT,INJ PUMP 06.896 ID=10.5	9-09164-510-0	04	1	9407-9502	●
8	03.306 WASHER; PL,HSG BRKT,INJ PUMP 06.896 ID=10.5	9-09164-510-0	04	1	9503-	●	●
8	03.306 WASHER; PL,HSG BRKT,INJ PUMP 06.896 ID=10.5	9-09164-510-0	04	1	9407-9502		●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP 00.002 ID=10.2	9-09150-610-0	04	1	9312-9406	●	●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP 00.002 ID=10.2	9-09150-610-0	04	1	9407-9410	●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP 00.002 ID=10.2	9-09150-610-0	04	1	9407-9410		●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP 00.002 ID=10.2	9-09150-610-0	04	1	9411-9510		●
10	03.306 NUT; HSG BRKT,INJ PUMP	5-15639-002-0	04	1	9312-9406	●	●
10	03.306 NUT; HSG BRKT,INJ PUMP	5-15639-002-0	04	1	9407-9502	●
10	03.306 NUT; HSG BRKT,INJ PUMP	5-15639-002-0	04	1	9503-	●	●
10	03.306 NUT; HSG BRKT,INJ PUMP	5-15639-002-0	04	1	9407-9502		●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94370-675-0	01	1	9312-	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	04	1	9408-9410	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	04	1	9411-	●	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97039-200-1	01	1	9312-		●
48	03.306 GASKET; PIPE ADAPTER,INJ PUMP	8-97026-918-0	01	1	9604-		●

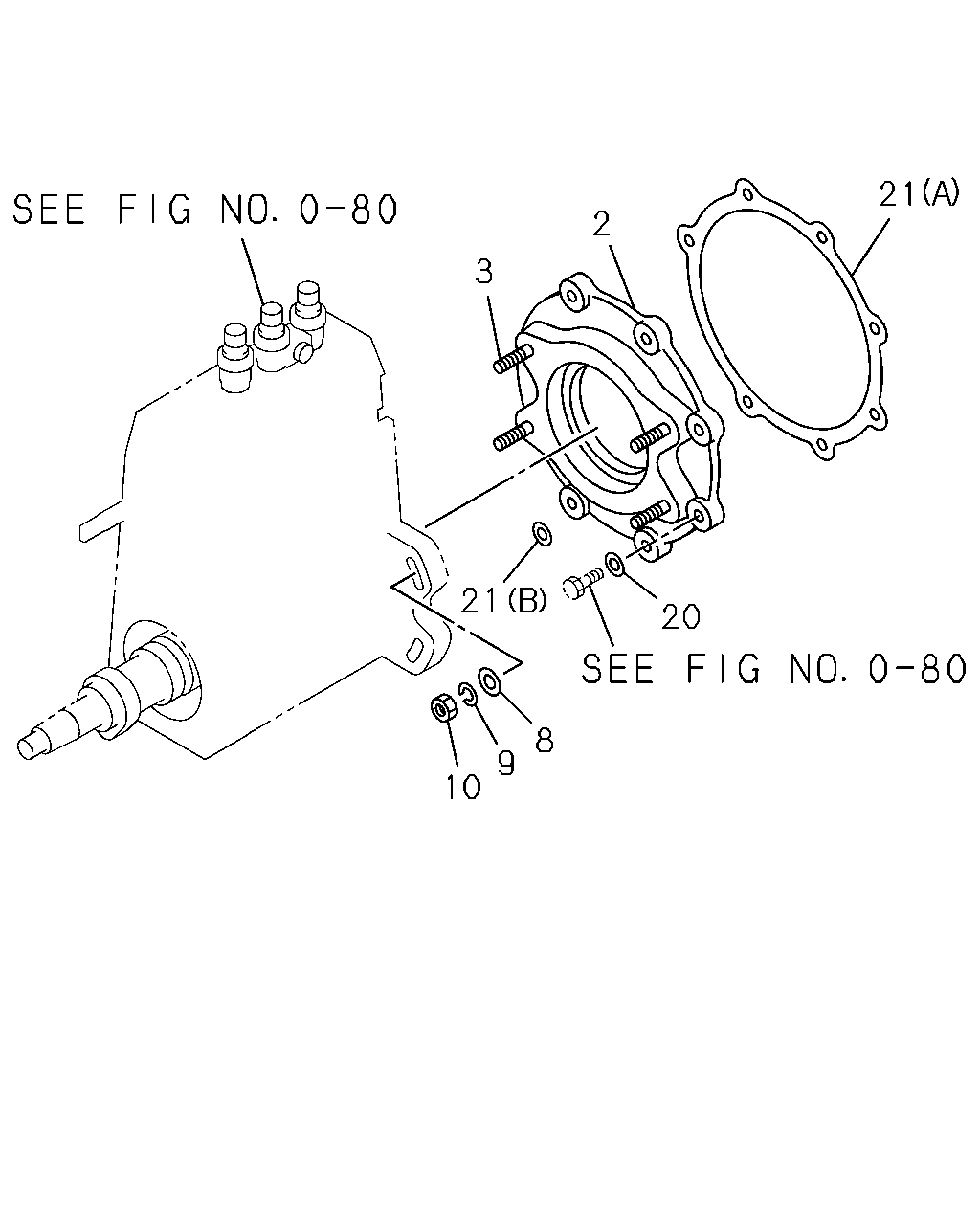

21 2 3 21 20 8 9 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	03.306 BRACKET; HSG & TIMER,INJ PUMP	5-19751-050-0	01	1	9312-9410	●
2	03.306 BRACKET; HSG & TIMER,INJ PUMP HIGH ALTITUDE COMPENSATOR(EE2)	5-19751-050-0	01	1	9411-9510	●
2	03.306 BRACKET; HSG & TIMER,INJ PUMP	5-19751-050-0	01	1	9511-	●
2	03.306 BRACKET; HSG & TIMER,INJ PUMP EXC. HIGH ALTITUDE COMPENSATOR(EE2)	5-19750-050-0	01	1	9411-9510	●
2	03.306 BRACKET; HSG & TIMER,INJ PUMP	8-97096-643-0	01	1	9312-9510		●
2	03.306 BRACKET; HSG & TIMER,INJ PUMP	8-97121-616-0	01	1	9511-		●
3	03.330 STUD; HSG BRKT,INJ PUMP 08.981 M10X30 L=45	9-04101-030-0	04	1	9312-9406	●	●
3	03.330 STUD; HSG BRKT,INJ PUMP 08.981 M10X30 L=45	9-04101-030-0	04	1	9407-9502	●
3	03.330 STUD; HSG BRKT,INJ PUMP 08.981 M10X30 L=45	9-04101-030-0	04	1	9503-	●	●
3	03.330 STUD; HSG BRKT,INJ PUMP 08.981 M10X30 L=45	9-04101-030-0	04	1	9407-9502		●
8	03.306 WASHER; PL,HSG BRKT,INJ PUMP 06.896 ID=10.5	9-09164-510-0	04	1	9312-9406	●	●
8	03.306 WASHER; PL,HSG BRKT,INJ PUMP 06.896 ID=10.5	9-09164-510-0	04	1	9407-9502	●
8	03.306 WASHER; PL,HSG BRKT,INJ PUMP 06.896 ID=10.5	9-09164-510-0	04	1	9503-	●	●
8	03.306 WASHER; PL,HSG BRKT,INJ PUMP 06.896 ID=10.5	9-09164-510-0	04	1	9407-9502		●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP 00.002 ID=10.2	9-09150-610-0	04	1	9312-9406	●	●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP 00.002 ID=10.2	9-09150-610-0	04	1	9407-9410	●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP 00.002 ID=10.2	9-09150-610-0	04	1	9407-9410		●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP 00.002 ID=10.2	9-09150-610-0	04	1	9411-9510		●
10	03.306 NUT; HSG BRKT,INJ PUMP	5-15639-002-0	04	1	9312-9406	●	●
10	03.306 NUT; HSG BRKT,INJ PUMP	5-15639-002-0	04	1	9407-9502	●
10	03.306 NUT; HSG BRKT,INJ PUMP	5-15639-002-0	04	1	9503-	●	●
10	03.306 NUT; HSG BRKT,INJ PUMP	5-15639-002-0	04	1	9407-9502		●
20	03.330 GASKET; INJ PUMP 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	9312-	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94370-675-0	01	1	9312-	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	04	1	9408-9410	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	04	1	9411-	●	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97039-200-1	01	1	9312-		●
