◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50694 - NKR-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-85A - AUTO TIMER; INJECTION PUMP ▶
0-85A — AUTO TIMER; INJECTION PUMP (#47288) — 30 parça

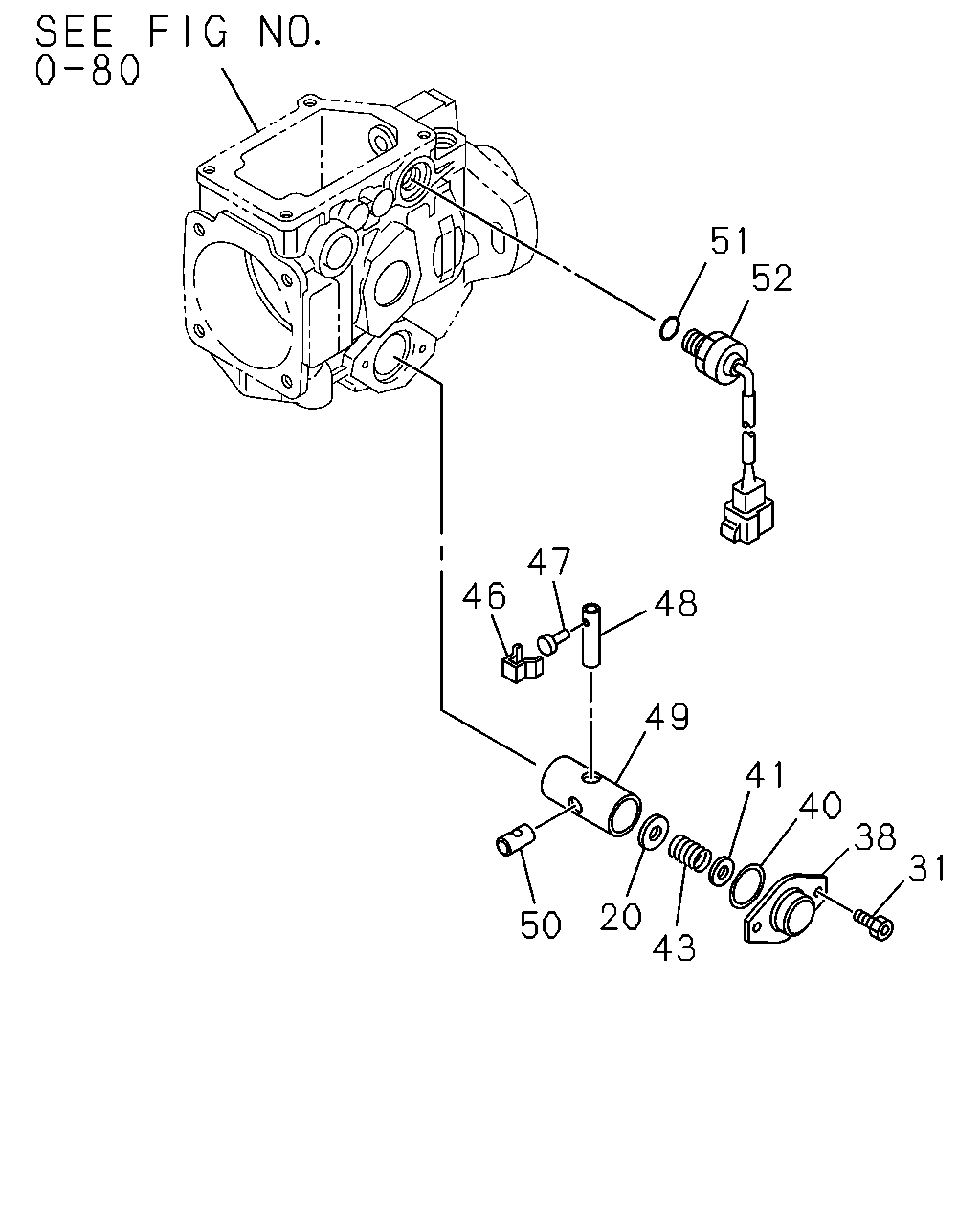

çizim 69352
51 52 47 46 48 49 41 40 38 31 20 43 50
BalonParca AdiParca NoAdetTipApplied Date
20 03.330 SHIM; INNER SPRING,TIMER,INJ PUM
T=0.60 ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97091-742-0, 97091742, E = 8-97107-743-0, 97107743, F = 8-97120-179-1, 97120179, G = 8-97120-180-1, 97120180, H = 8-97120-181-1, 97120181, I = 8-97122-090-1, 97122090, J = 8-97122-092-1, 97122092, K = 8-97160-462-1, 97160462, L = 8-97173-074-0, 97173074 		8-94227-495-0 01 1 -
31 03.330 SCREW; TIMER COVER,INJ PUMP
ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97091-742-0, 97091742, E = 8-97107-743-0, 97107743, F = 8-97120-179-1, 97120179, G = 8-97120-180-1, 97120180, H = 8-97120-181-1, 97120181, I = 8-97122-090-1, 97122090, J = 8-97122-092-1, 97122092, K = 8-97160-462-1, 97160462, L = 8-97173-074-0, 97173074 		8-94313-276-0 02 1 -
38 03.318 COVER; TIMER,INJ PUMP
ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97091-742-0, 97091742, E = 8-97107-743-0, 97107743, F = 8-97120-179-1, 97120179, G = 8-97120-180-1, 97120180, H = 8-97120-181-1, 97120181, I = 8-97122-090-1, 97122090, J = 8-97122-092-1, 97122092, K = 8-97160-462-1, 97160462, L = 8-97173-074-0, 97173074 		8-94473-120-0 01 1 -
40 03.330 GASKET; TIMER COVER,INJ PUMP
03.306 ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97091-742-0, 97091742, E = 8-97107-743-0, 97107743, L = 8-97173-074-0, 97173074 		8-94227-491-0 01 1 -
40 03.330 GASKET; TIMER COVER,INJ PUMP
ASM PART: F = 8-97120-179-1, 97120179, G = 8-97120-180-1, 97120180, H = 8-97120-181-1, 97120181, I = 8-97122-090-1, 97122090, J = 8-97122-092-1, 97122092, K = 8-97160-462-1, 97160462 		8-94433-763-0 01 1 -
41 03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
03.320, T=2.40 ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97091-742-0, 97091742, E = 8-97107-743-0, 97107743, F = 8-97120-179-1, 97120179, G = 8-97120-180-1, 97120180, H = 8-97120-181-1, 97120181, I = 8-97122-090-1, 97122090, J = 8-97122-092-1, 97122092, K = 8-97160-462-1, 97160462, L = 8-97173-074-0, 97173074 		8-94121-620-0 AR 1 -
41 03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=0.60 ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97091-742-0, 97091742, E = 8-97107-743-0, 97107743, F = 8-97120-179-1, 97120179, G = 8-97120-180-1, 97120180, H = 8-97120-181-1, 97120181, I = 8-97122-090-1, 97122090, J = 8-97122-092-1, 97122092, K = 8-97160-462-1, 97160462, L = 8-97173-074-0, 97173074 		8-94227-495-0 AR 1 -
41 03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=0.70 ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97091-742-0, 97091742, E = 8-97107-743-0, 97107743, F = 8-97120-179-1, 97120179, G = 8-97120-180-1, 97120180, H = 8-97120-181-1, 97120181, I = 8-97122-090-1, 97122090, J = 8-97122-092-1, 97122092, K = 8-97160-462-1, 97160462, L = 8-97173-074-0, 97173074 		8-94227-496-0 AR 1 -
41 03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=0.90 ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97091-742-0, 97091742, E = 8-97107-743-0, 97107743, F = 8-97120-179-1, 97120179, G = 8-97120-180-1, 97120180, H = 8-97120-181-1, 97120181, I = 8-97122-090-1, 97122090, J = 8-97122-092-1, 97122092, K = 8-97160-462-1, 97160462, L = 8-97173-074-0, 97173074 		8-94227-497-0 AR 1 -
41 03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=1.00 ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97091-742-0, 97091742, E = 8-97107-743-0, 97107743, F = 8-97120-179-1, 97120179, G = 8-97120-180-1, 97120180, H = 8-97120-181-1, 97120181, I = 8-97122-090-1, 97122090, J = 8-97122-092-1, 97122092, K = 8-97160-462-1, 97160462, L = 8-97173-074-0, 97173074 		8-94227-498-0 AR 1 -
41 03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=1.20 ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97091-742-0, 97091742, E = 8-97107-743-0, 97107743, F = 8-97120-179-1, 97120179, G = 8-97120-180-1, 97120180, H = 8-97120-181-1, 97120181, I = 8-97122-090-1, 97122090, J = 8-97122-092-1, 97122092, K = 8-97160-462-1, 97160462, L = 8-97173-074-0, 97173074 		8-94227-499-0 AR 1 -
43 03.340 SPRING; PISTON,TIMER,INJ PUMP
L=38.8 K=1.75 KG/MM ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97091-742-0, 97091742, E = 8-97107-743-0, 97107743 		8-94313-669-0 01 1 -
43 03.340 SPRING; PISTON,TIMER,INJ PUMP
L=38.4 K=2.05 KG/MM ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97091-742-0, 97091742, E = 8-97107-743-0, 97107743 		8-94313-680-0 01 1 -
43 03.340 SPRING; PISTON,TIMER,INJ PUMP
L=38.5 EFFECT TURN=5.9 ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97091-742-0, 97091742, E = 8-97107-743-0, 97107743 		8-94343-340-0 01 1 -
43 03.340 SPRING; PISTON,TIMER,INJ PUMP
L=40.0 ASM PART: F = 8-97120-179-1, 97120179, G = 8-97120-180-1, 97120180, H = 8-97120-181-1, 97120181, I = 8-97122-090-1, 97122090, J = 8-97122-092-1, 97122092 		8-97045-508-0 01 1 -
43 03.340 SPRING; PISTON,TIMER,INJ PUMP
L=40.6 ASM PART: E = 8-97107-743-0, 97107743 		8-97045-509-0 01 1 -
43 03.340 SPRING; PISTON,TIMER,INJ PUMP
L=40.2 ASM PART: F = 8-97120-179-1, 97120179, G = 8-97120-180-1, 97120180, H = 8-97120-181-1, 97120181, I = 8-97122-090-1, 97122090, J = 8-97122-092-1, 97122092 		8-97047-719-0 01 1 -
43 03.340 SPRING; PISTON,TIMER,INJ PUMP
L=39.8 ASM PART: K = 8-97160-462-1, 97160462, L = 8-97173-074-0, 97173074 		8-97125-521-0 01 1 -
43 03.340 SPRING; PISTON,TIMER,INJ PUMP
L=42.7 ASM PART: K = 8-97160-462-1, 97160462, L = 8-97173-074-0, 97173074 		8-97125-522-0 01 1 -
43 03.340 SPRING; PISTON,TIMER,INJ PUMP
L=41.3 ASM PART: K = 8-97160-462-1, 97160462, L = 8-97173-074-0, 97173074 		8-97125-523-0 01 1 -
43 03.340 SPRING; PISTON,TIMER,INJ PUMP
L=40.6 ASM PART: F = 8-97120-179-1, 97120179, G = 8-97120-180-1, 97120180, H = 8-97120-181-1, 97120181, I = 8-97122-090-1, 97122090, J = 8-97122-092-1, 97122092 		8-97125-524-0 01 1 -
46 03.330 CLIP; HOLDER PIN,TIMER,INJ PUMP
ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97091-742-0, 97091742, E = 8-97107-743-0, 97107743, F = 8-97120-179-1, 97120179, G = 8-97120-180-1, 97120180, H = 8-97120-181-1, 97120181, I = 8-97122-090-1, 97122090, J = 8-97122-092-1, 97122092, K = 8-97160-462-1, 97160462, L = 8-97173-074-0, 97173074 		8-94227-488-0 01 1 -
47 03.340 PIN; HOLDER PIN,TIMER,INJ PUMP
ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97091-742-0, 97091742, E = 8-97107-743-0, 97107743, F = 8-97120-179-1, 97120179, G = 8-97120-180-1, 97120180, H = 8-97120-181-1, 97120181, I = 8-97122-090-1, 97122090, J = 8-97122-092-1, 97122092, K = 8-97160-462-1, 97160462, L = 8-97173-074-0, 97173074 		8-94227-487-0 01 1 -
48 03.340 PIN; ROLLER HOLDER,TIMER,INJ PUM
ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97091-742-0, 97091742, E = 8-97107-743-0, 97107743, F = 8-97120-179-1, 97120179, G = 8-97120-180-1, 97120180, H = 8-97120-181-1, 97120181, I = 8-97122-090-1, 97122090, J = 8-97122-092-1, 97122092, K = 8-97160-462-1, 97160462, L = 8-97173-074-0, 97173074 		8-94227-486-0 01 1 -
49 03.330 PISTON; TIMER,INJ PUMP
ASM PART: F = 8-97120-179-1, 97120179, G = 8-97120-180-1, 97120180, H = 8-97120-181-1, 97120181, I = 8-97122-090-1, 97122090, J = 8-97122-092-1, 97122092 		8-94174-739-0 01 1 -
49 03.330 PISTON; TIMER,INJ PUMP
ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97091-742-0, 97091742, E = 8-97107-743-0, 97107743, K = 8-97160-462-1, 97160462, L = 8-97173-074-0, 97173074 		8-94426-069-0 01 1 -
50 03.340 SLIDER; TIMER PISTON,INJ PUMP
ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97091-742-0, 97091742, E = 8-97107-743-0, 97107743, K = 8-97160-462-1, 97160462, L = 8-97173-074-0, 97173074 		8-94227-493-0 01 1 -
50 03.340 SLIDER; TIMER PISTON,INJ PUMP
ASM PART: F = 8-97120-179-1, 97120179, G = 8-97120-180-1, 97120180, H = 8-97120-181-1, 97120181, I = 8-97122-090-1, 97122090, J = 8-97122-092-1, 97122092 		8-97119-163-0 01 1 -
51 03.340 GASKET; TIMING SENSOR,INJ PUMP
03.306 ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, E = 8-97107-743-0, 97107743, G = 8-97120-180-1, 97120180, H = 8-97120-181-1, 97120181, J = 8-97122-092-1, 97122092, L = 8-97173-074-0, 97173074 		8-94227-671-0 01 1 -
52 03.340 SENSOR; TIMING,TACHOMETER,INJ PU
ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, E = 8-97107-743-0, 97107743, G = 8-97120-180-1, 97120180, H = 8-97120-181-1, 97120181, J = 8-97122-092-1, 97122092, L = 8-97173-074-0, 97173074 		8-94343-307-0 01 1 -
