8-28 — CHASSIS ELECTRICAL (#47275) — 14 parça

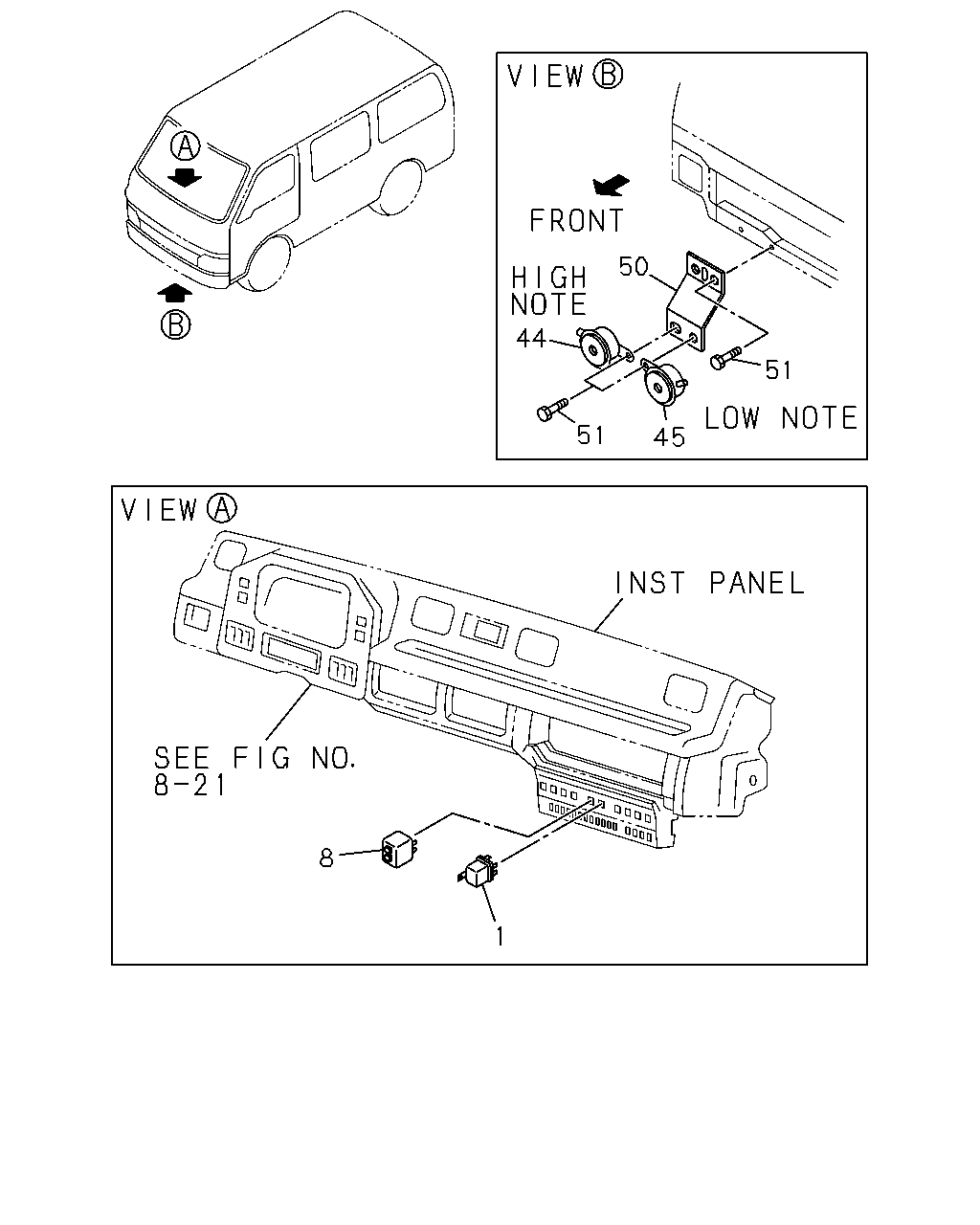

çizim 17169
50 44 51 51 45 8 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER
DENSO 		8-97038-317-0 01 1 9307- ● ●
1 UNIT; FLASHER
NILES 		8-97039-288-0 01 1 9307-9404 ● ●
1 UNIT; FLASHER
NILES 		8-97105-453-0 01 1 9405- ● ●
8 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-94133-243-1 01 1 9307- ● ●
44 HORN; HIGH NOTE
DUAL TONE HORN<U05> DUAL HEAVY DUTY HORN(6KK) 		8-94430-062-1 01 1 9307- ● ●
44 HORN; HIGH NOTE
DUAL TONE HORN<U05> EXC. SAUDI ARABIA EQUIPMENT(EU2),DUAL HEAVY DUTY HORN(6KK) 		8-94434-496-0 01 1 9307-9406 ● ●
44 HORN; HIGH NOTE
DUAL TONE HORN<U05> EXC. EUROPEAN BASIC EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),DUAL HEAVY DUTY HORN(6KK) 		8-94434-496-0 01 1 9407- ● ●
44 HORN; HIGH NOTE
SAUDI ARABIA EQUIPMENT(EU2) DUAL TONE HORN<U05> EXC. DUAL HEAVY DUTY HORN(6KK) 		8-94418-619-1 01 1 9307-9406 ● ●
44 HORN; HIGH NOTE
EUROPEAN BASIC EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2) DUAL TONE HORN<U05> EXC. DUAL HEAVY DUTY HORN(6KK) 		8-94418-619-1 01 1 9407- ● ●
45 HORN; LOW NOTE
DUAL HEAVY DUTY HORN(6KK) 		8-94430-063-1 01 1 9307- ● ●
45 HORN; LOW NOTE
EXC. DUAL HEAVY DUTY HORN(6KK) 		8-94418-620-1 01 1 9307- ● ●
50 BRACKET; HORN 8-94417-170-0 01 1 9307- ● ●
51 BOLT; HORN TO BRKT
DUAL TONE HORN<U05> M8X12 		8-94148-422-1 04 1 9307- ● ●
51 BOLT; HORN TO BRKT
EXC. DUAL TONE HORN<U05> M8X12 		8-94148-422-1 03 1 9307- ● ●
