1 |

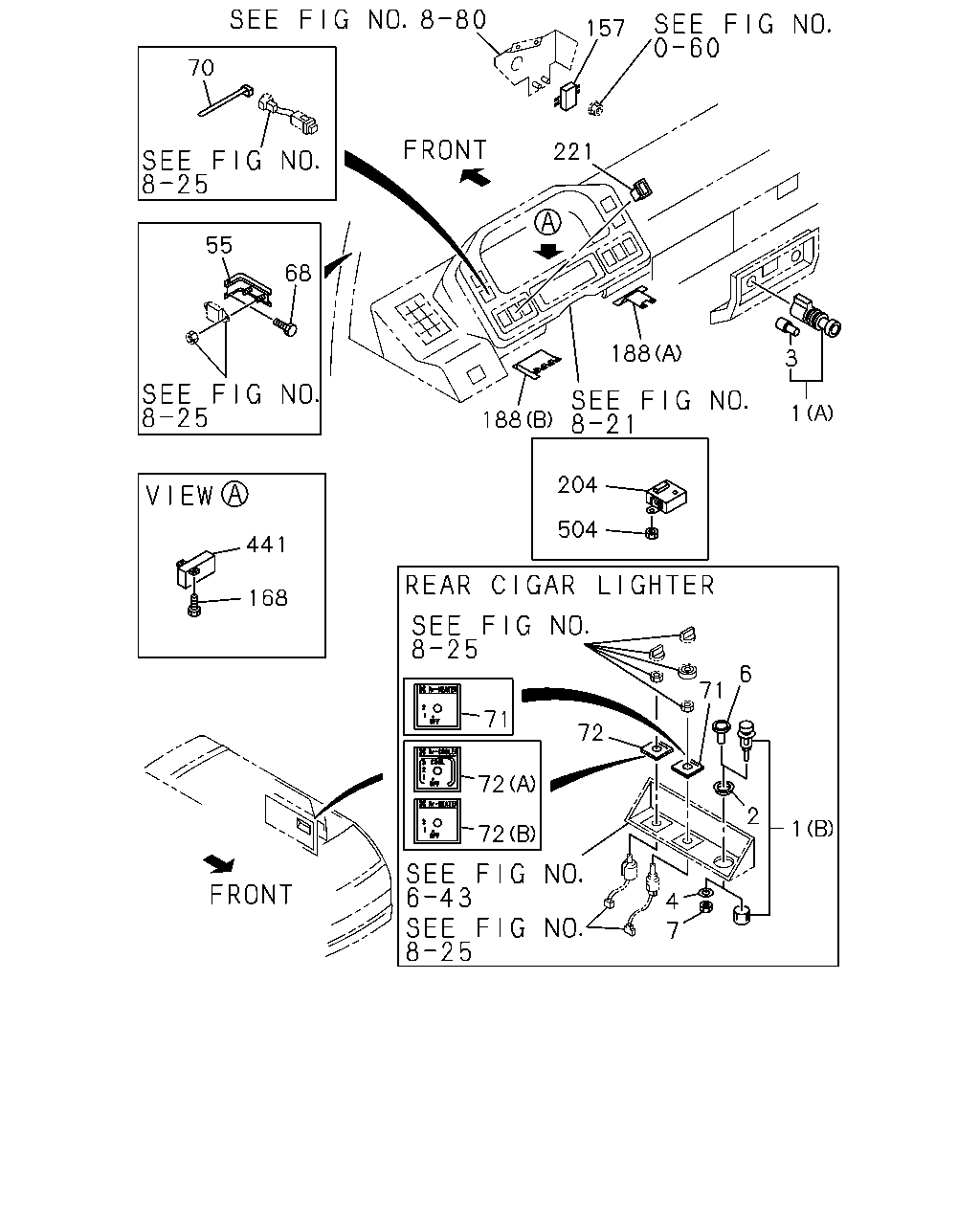

LIGHTER; CIGAR
REAR HEATER<C35>
4 DOOR WAGON(V4W)
(B) INST PANEL SIDE
|
8-94411-670-0 |
01 |
1 |
9307- |
● |
|
| |
1 |
LIGHTER; CIGAR
(A)
W/LAMP 12V 1.4W
|
8-94431-001-0 |
01 |
1 |
9307-9309 |
● |
● |
| |
1 |
LIGHTER; CIGAR
EXC. RADIO AM W/AMPLIFIER(RS2),AM/FM W/CASSETTE 2
SPEAKERS(6VL)
(A)
W/LAMP 12V 1.4W
|
8-94431-001-0 |
01 |
1 |
9310-9406 |
● |
● |
| |
1 |
LIGHTER; CIGAR
(A)
W/LAMP 12V 1.4W
|
8-94431-001-0 |
01 |
1 |
9407- |
● |
● |
| |
1 |
LIGHTER; CIGAR
RADIO AM W/AMPLIFIER(RS2),AM/FM W/CASSETTE 2
SPEAKERS(6VL)
(A) W/LAMP
12V 3W
|
8-94431-002-0 |
01 |
1 |
9310-9406 |
● |
● |
| |
2 |
BEZEL; CIGAR LIGHTER
REAR HEATER<C35>
4 DOOR WAGON(V4W),4 DOOR BUS(V4Z)
EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2)
|
5-84195-001-0 |
01 |
1 |
9307- |
● |
● |
| |
2 |
BEZEL; CIGAR LIGHTER
AIR CONDITIONER MANUAL CONT FRT&RR(EM2)
4 DOOR WAGON(V4W),4 DOOR BUS(V4Z)
|
5-84195-001-0 |
01 |
1 |
9307- |
● |
● |
| |
3 |
BULB; CIGAR LIGHTER
14V 1.4W WO/CAP
|
5-82194-026-0 |
01 |
1 |
9307-9309 |
● |
● |
| |
3 |
BULB; CIGAR LIGHTER
EXC. RADIO AM W/AMPLIFIER(RS2),AM/FM W/CASSETTE 2
SPEAKERS(6VL)
14V 1.4W WO/CAP
|
5-82194-026-0 |
01 |
1 |
9310-9406 |
● |
● |
| |
3 |
BULB; CIGAR LIGHTER
14V 1.4W WO/CAP
|
5-82194-026-0 |
01 |
1 |
9407- |
● |
● |
| |
3 |
BULB; CIGAR LIGHTER
RADIO AM W/AMPLIFIER(RS2),AM/FM W/CASSETTE 2
SPEAKERS(6VL)
12V 3W
|
8-94102-048-0 |
01 |
1 |
9310-9406 |
● |
● |
| |
4 |
WASHER; PL,CIGAR LIGHTER
4 DOOR VAN(V4V)
AIR CONDITIONER MANUAL CONT FRT&RR(EM2)
T=2.0
|
9-09851-240-0 |
01 |
1 |
9307- |
● |
● |
| |
4 |
WASHER; PL,CIGAR LIGHTER
4 DOOR BUS(V4Z)
T=2.0
|
9-09851-240-0 |
01 |
1 |
9307- |
● |
● |
| |
4 |
WASHER; PL,CIGAR LIGHTER
AIR CONDITIONER MANUAL CONT FRT&RR(EM2)
4 DOOR WAGON(V4W)
EXC. REAR HEATER<C35>
T=2.0
|
9-09851-240-0 |
01 |
1 |
9307- |
● |
|
| |
6 |
COVER; CIGAR LIGHTER HOLE
4 DOOR VAN(V4V)
AIR CONDITIONER MANUAL CONT FRT&RR(EM2)
|
5-09333-025-0 |
01 |
1 |
9307- |
● |
● |
| |
6 |
COVER; CIGAR LIGHTER HOLE
4 DOOR BUS(V4Z)
|
5-09333-025-0 |
01 |
1 |
9307- |
● |
● |
| |
6 |
COVER; CIGAR LIGHTER HOLE
AIR CONDITIONER MANUAL CONT FRT&RR(EM2)
4 DOOR WAGON(V4W)
EXC. REAR HEATER<C35>
|
5-09333-025-0 |
01 |
1 |
9307- |
● |
|
| |
7 |
NUT; COVER,CIGAR LIGHTER
4 DOOR VAN(V4V)
AIR CONDITIONER MANUAL CONT FRT&RR(EM2)
M8 FLANGE
|
5-09440-005-0 |
01 |
1 |
9307- |
● |
● |
| |
7 |
NUT; COVER,CIGAR LIGHTER
4 DOOR BUS(V4Z)
M8 FLANGE
|
5-09440-005-0 |
01 |
1 |
9307- |
● |
● |
| |
7 |
NUT; COVER,CIGAR LIGHTER
AIR CONDITIONER MANUAL CONT FRT&RR(EM2)
4 DOOR WAGON(V4W)
EXC. REAR HEATER<C35>
M8 FLANGE
|
5-09440-005-0 |
01 |
1 |
9307- |
● |
|
| |
55 |
BRACKET; RELAY
POWER WINDOW FRT DOOR<A32>
|
8-94405-173-2 |
01 |
1 |
9307- |
● |
● |
| |
68 |
BOLT; BRKT
POWER WINDOW FRT DOOR<A32>
M6X16 W/LK&PL WASHER
|
0-50140-616-0 |
03 |
1 |
9307- |
● |
● |
| |
70 |
CLIP; BAND
4FG1 ENG(RLL)
REAR HEATER<C35>
L=140
|
5-09707-031-0 |
03 |
1 |
9307- |
|
● |
| |
71 |
PLATE; CAUTION,RR HTR
REAR HEATER<C35>
4 DOOR WAGON(V4W),4 DOOR BUS(V4Z)
|
8-94286-258-0 |
01 |
1 |
9307- |
● |
● |
| |
72 |
PLATE; CAUTION,SW
AIR CONDITIONER MANUAL CONT FRT&RR(EM2)
(A)
|
8-94286-257-0 |
01 |
1 |
9307- |
● |
● |
| |
72 |
PLATE; CAUTION,SW
4 DOOR WAGON(V4W),4 DOOR BUS(V4Z)
(B)
|
8-94286-259-0 |
01 |
1 |
9307- |
● |
● |
| |
157 |
CONTROLLER; QOS
4FG1 ENG(RLL)
|
8-97072-651-0 |
01 |
1 |
9307-9406 |
● |
● |
| |
157 |
CONTROLLER; QOS
4FG1 ENG(RLL)
EXC. EUROPEAN BASIC EQUIPMENT(EK4)
|
8-97072-651-0 |
01 |
1 |
9407- |
● |
● |
| |
157 |
CONTROLLER; QOS
4FG1 ENG(RLL)
EUROPEAN BASIC EQUIPMENT(EK4)
|
8-97068-787-0 |
01 |
1 |
9407- |
● |
● |
| |
168 |
SCREW; WARNING LAMP
SAUDI ARABIA EQUIPMENT(EU2)
M5X10 TAPPING
|
9-07066-510-0 |
01 |
1 |
9307- |
● |
● |
| |
188 |
CLAMP; CONNECTOR,SWITCH
(B)
|
8-94430-409-0 |
01 |
1 |
9307- |
● |
● |
| |
188 |
CLAMP; CONNECTOR,SWITCH
(A)
|
8-94430-410-0 |
01 |
1 |
9307- |
● |
● |
| |
204 |
BUZZER; KEY REMIND
SAUDI ARABIA EQUIPMENT(EU2)
|
8-97039-272-0 |
01 |
1 |
9307-9307 |
● |
● |
| |
221 |
COVER; HOLE,DOOR LOCK SW
|
8-94310-890-0 |
01 |
1 |
9501- |
● |
● |
| |
441 |
BOX; WARNING,METER
SAUDI ARABIA EQUIPMENT(EU2)
|
8-94418-828-0 |
01 |
1 |
9307- |
● |
● |
| |
504 |
NUT; BUZZER
4ZC1 ENG(LR9)
SAUDI ARABIA EQUIPMENT(EU2)
M6 FLANGE
|
5-09440-004-0 |
01 |
1 |
9307-9307 |
● |
● |
