8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#47273) — 59 parça

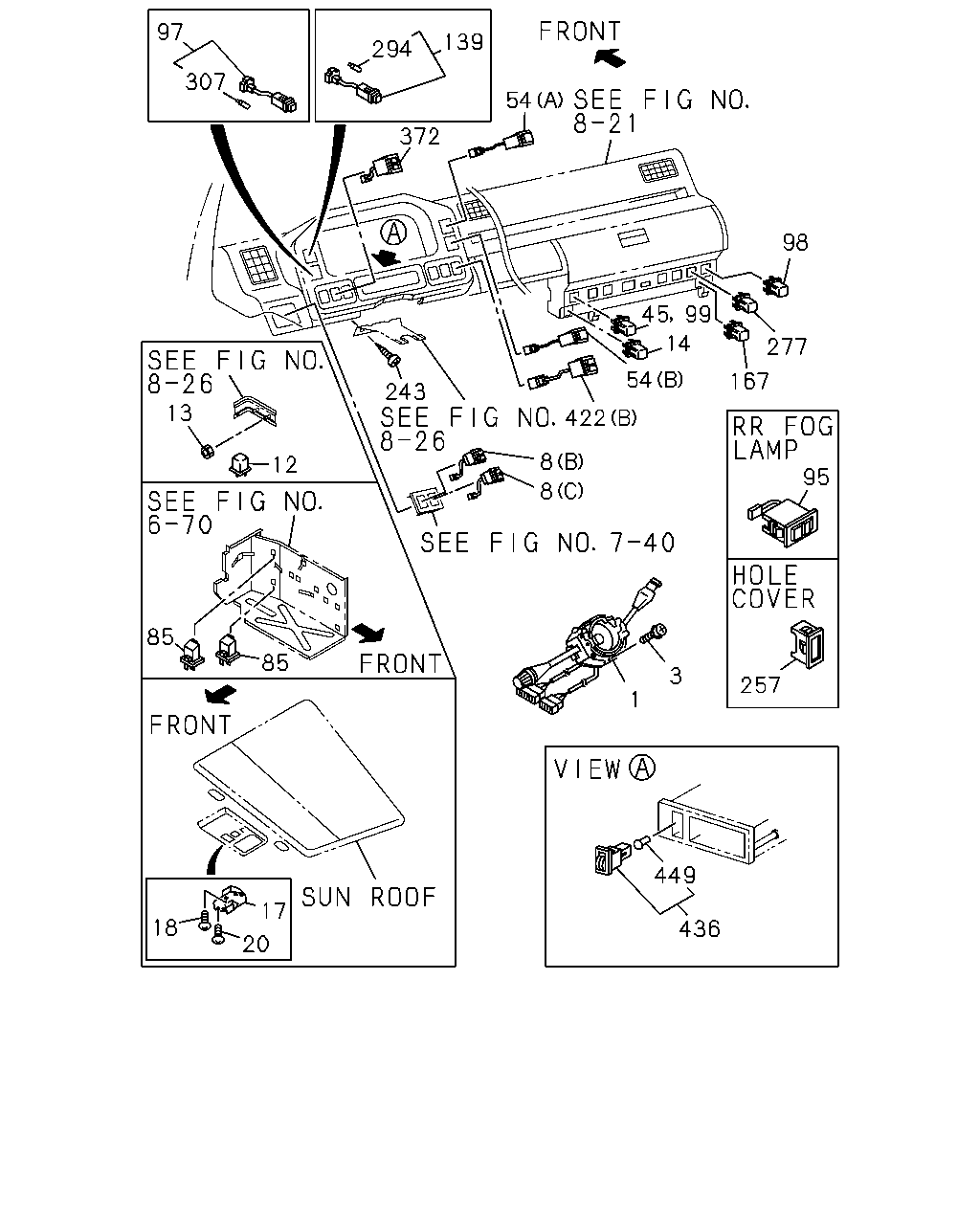

çizim 67609
97 139 294 307 372 98 14 277 13 54 167 243 95 8 8 12 85 85 3 257 1 449 17 20 18 436 422 54 45 99
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-97030-493-1 01 1 9307-9406 ● ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-97030-493-1 01 1 9407- ● ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> EUROPEAN BASIC EQUIPMENT(EK4) 		8-97030-494-1 01 1 9407- ● ●
1 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-97030-492-1 01 1 9307- ● ●
3 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 03 1 9307- ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (B) INST PANEL SIDE LOCK 		8-94178-642-1 01 1 9307- ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (C) INST PANEL SIDE UP/DOWN 		8-94411-708-1 01 1 9307- ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) DOOR DRIVER SIDE 		8-94418-701-0 01 1 9307- ● ●
12 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> JIDECO BLACK 		8-94248-989-0 01 1 9307- ● ●
12 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> KOITO 		8-94410-443-0 01 1 9307- ● ●
13 NUT; RELAY,POWER WINDOW
POWER WINDOW FRT DOOR<A32> M6 FLANGE 		5-09440-004-0 02 1 9307- ● ●
14 RELAY; SUNROOF,POWER WINDOW
SUNROOF<CF5> BLACK 		8-94248-989-0 01 1 9307- ●
17 SWITCH; SUNROOF
SUNROOF<CF5> 		8-94286-458-1 01 1 9307- ●
18 SCREW; SUNROOF
SUNROOF<CF5> M4X10 		5-09981-061-0 01 1 9307- ●
20 SCREW; SW,SUNROOF
SUNROOF<CF5> M4X8 W/LK WASHER 		9-03910-408-0 02 1 9307- ●
45 RELAY; HORN
DUAL HEAVY DUTY HORN(6KK) BLACK 		8-94248-989-0 01 1 9307- ● ●
54 SWITCH; RR WIPER
RR WIPER<C25> (A) WIPER 		8-94427-168-2 01 1 9307- ● ●
54 SWITCH; RR WIPER
RR WIPER<C25> (B) WASHER 		8-94427-169-2 01 1 9307- ● ●
85 RELAY; HEADLAMP 8-94360-803-0 02 1 9307- ● ●
95 SWITCH; RR FOG LAMP
FOG LAMP SW FRT&RR(6EW) 		8-94406-466-2 01 1 9407- ● ●
97 SWITCH; FOG & PARKING LAMP
FOG LAMP<T96> 		8-94427-170-3 01 1 9307-9406 ● ●
97 SWITCH; FOG & PARKING LAMP
FOG LAMP<T96>,FOG LAMP SW FRT&RR(6EW) 		8-94427-170-3 01 1 9407- ● ●
98 RELAY; RR FOG LAMP
FOG LAMP SW FRT&RR(6EW) BLACK 		8-94248-989-0 02 1 9407- ● ●
99 RELAY; FOG LAMP
FOG LAMP<T96> BLACK 		8-94248-989-0 01 1 9307- ● ●
139 SWITCH; RR DEFOGGER
REAR DEFOGGER<C49> 		8-94427-167-2 01 1 9307- ● ●
167 RELAY; RR DEFOGGER
REAR DEFOGGER<C49> BLACK 		8-94248-989-0 01 1 9307- ● ●
243 SCREW; CLAMP,SW
M5X14 TAPPING W/PL WASHER 		0-74110-514-0 04 1 9307- ● ●
257 COVER; HOLE,SW 8-94310-890-0 03 1 9307-9406 ● ●
257 COVER; HOLE,SW 8-94310-890-0 02 1 9407- ● ●
257 COVER; HOLE,SW
EXC. FOG LAMP SW FRT&RR(6EW) 		8-94310-890-0 01 1 9407- ● ●
277 RELAY; FUEL PUMP
4ZC1 ENG(LR9) 12V 20A 		8-94218-497-0 01 1 9307- ● ●
294 BULB; DEFOGGER SW
REAR DEFOGGER<C49> 14V-1.4W 		8-94437-634-0 02 1 9307- ● ●
307 BULB ASM; SW
FOG LAMP<T96> 		8-94437-634-0 01 1 9307-9406 ● ●
307 BULB ASM; SW
FOG LAMP<T96>,FOG LAMP SW FRT&RR(6EW) 14V-1.4W 		8-94437-634-0 01 1 9407- ● ●
372 SWITCH; ROOM LAMP
4 DOOR BUS(V4Z) 		8-94411-706-3 01 1 9307- ● ●
422 SWITCH; RR HTR
REAR HEATER<C35> 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) (A) 		8-94232-453-1 01 1 9307- ● ●
422 SWITCH; RR HTR
REAR HEATER<C35> AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR VAN(V4V),5 DOOR VAN(V4X) (A) 		8-94232-453-1 01 1 9307- ● ●
422 SWITCH; RR HTR
REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) 		8-97101-822-0 01 1 9307- ●
436 SWITCH; HEADLAMP LEVELING
ADJUST HEADLAMP<6RC> 		8-97026-571-0 01 1 9407- ● ●
449 BULB ASM; HEADLAMP LEVELING SW
ADJUST HEADLAMP<6RC> 		8-97039-411-0 01 1 9407- ● ●

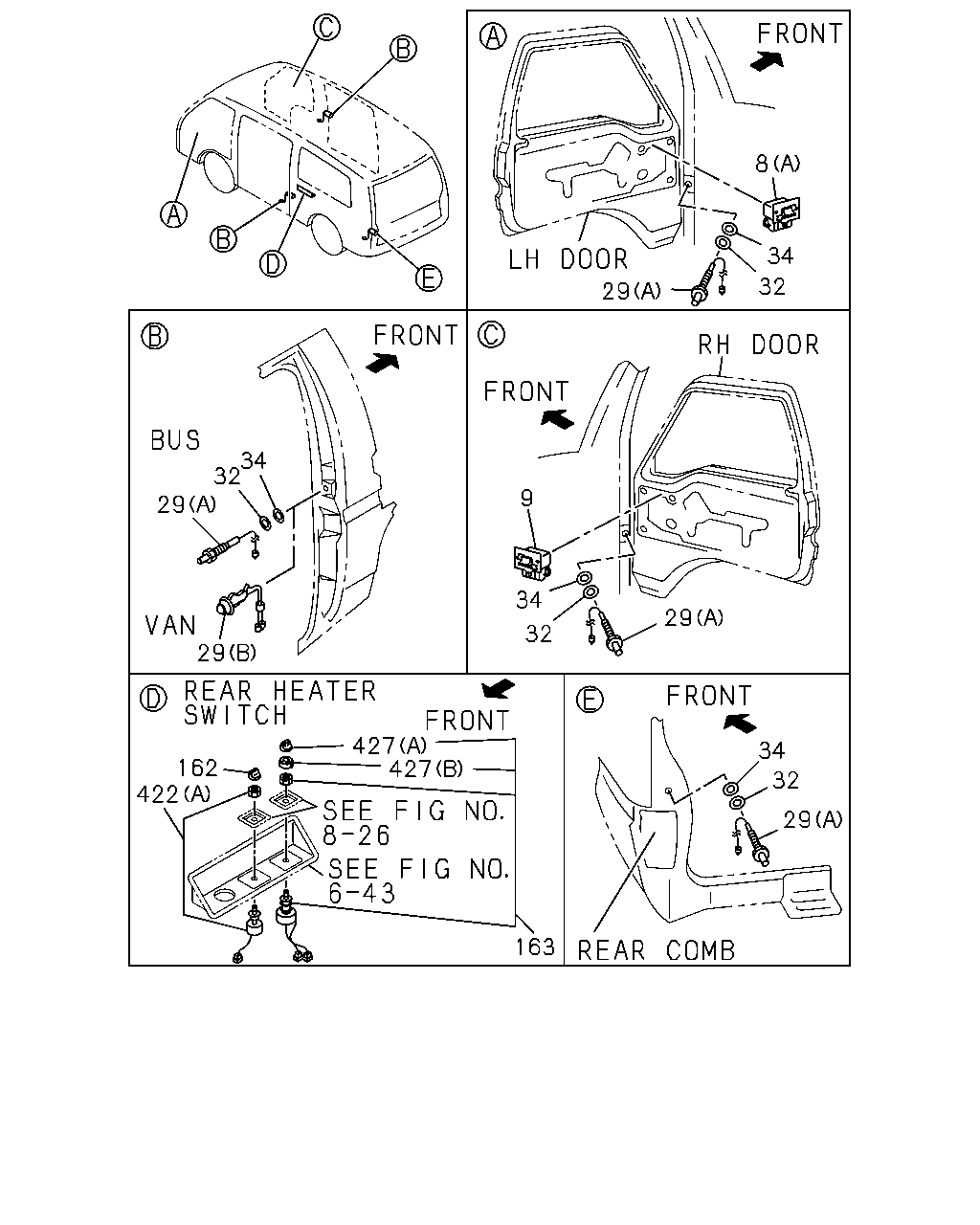

çizim 68017
8 34 32 29 34 32 29 9 34 32 29 29 427 427 34 32 162 422 29 163
BalonParca AdiParca NoAdetTipApplied Date A B
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (B) INST PANEL SIDE LOCK 		8-94178-642-1 01 1 9307- ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (C) INST PANEL SIDE UP/DOWN 		8-94411-708-1 01 1 9307- ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) DOOR DRIVER SIDE 		8-94418-701-0 01 1 9307- ● ●
9 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DOOR ASSIST SIDE 		8-94418-702-0 01 1 9307- ● ●
29 SWITCH; DOOR
4 DOOR BUS(V4Z) (A) 		8-94314-316-1 02 1 9307- ● ●
29 SWITCH; DOOR
EXC. 4 DOOR BUS(V4Z) (A) 		8-94314-316-1 03 1 9307- ● ●
29 SWITCH; DOOR
4 DOOR VAN(V4V),4 DOOR WAGON(V4W),4 DOOR PANEL VAN(V4Y),4 DOOR BUS(V4Z) (B) 		8-97016-913-0 01 1 9307- ● ●
29 SWITCH; DOOR
5 DOOR PANEL VAN(V4P),5 DOOR VAN(V4X) (B) 		8-97016-913-0 02 1 9307- ● ●
32 WASHER; DOOR SW
4 DOOR BUS(V4Z) OD=18 ID=8.2 NYLON 		8-94138-990-0 02 1 9307- ● ●
32 WASHER; DOOR SW
EXC. 4 DOOR BUS(V4Z) OD=18 ID=8.2 NYLON 		8-94138-990-0 03 1 9307- ● ●
34 WASHER; PL,DOOR SW
4 DOOR BUS(V4Z) OD=16 ID=8.4 ID=8.4 OD=16 		8-94141-977-0 02 1 9307- ● ●
34 WASHER; PL,DOOR SW
EXC. 4 DOOR BUS(V4Z) OD=16 ID=8.4 ID=8.4 OD=16 		8-94141-977-0 03 1 9307- ● ●
162 KNOB; RR HTR
REAR HEATER<C35> 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) 		5-83564-109-0 01 1 9307- ● ●
163 SWITCH; RR COOLER
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94255-964-3 01 1 9307- ● ●
422 SWITCH; RR HTR
REAR HEATER<C35> 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) (A) 		8-94232-453-1 01 1 9307- ● ●
422 SWITCH; RR HTR
REAR HEATER<C35> AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR VAN(V4V),5 DOOR VAN(V4X) (A) 		8-94232-453-1 01 1 9307- ● ●
422 SWITCH; RR HTR
REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) 		8-97101-822-0 01 1 9307- ●
427 KNOB; RR COOLER
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) FOR A/C SW 		8-94243-514-0 02 1 9307- ● ●
427 KNOB; RR COOLER
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) FOR THERMO CONT 		8-94243-515-0 02 1 9307- ● ●
