8-15 — FIXING PARTS; WIRING HARNESS (#47270) — 107 parça

81 194 14 81 16 81 16 16 16 27 27 81 81 81 81 81 178 178 421 16 81 271 280 489 491 210 522

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	CLIP; BAND,HARNESS L=142	8-94232-619-0	01	1	9307-9406	●	●
14	CLIP; BAND,HARNESS EXC. EUROPEAN BASIC EQUIPMENT(EK4) L=142	8-94232-619-0	01	1	9407-	●	●
16	CLIP; HARNESS SAUDI ARABIA EQUIPMENT(EU2) (C) ID=9.5	8-94400-385-0	01	1	9307-9407	●
16	CLIP; HARNESS SAUDI ARABIA EQUIPMENT(EU2) (E) ID=7	5-09707-053-0	01	1	9408-	●
16	CLIP; HARNESS AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) L=140	5-09707-031-0	01	1	9308-9311	●	●
16	CLIP; HARNESS HEATER&DEFROSTER(C41) EUROPEAN BASIC EQUIPMENT(EK4) TURBOCHARGER(K51) (D) L=80	5-09700-307-1	01	1	9407-	●	●
16	CLIP; HARNESS 4FG1 ENG(RLL) (F) L=290	8-94238-173-0	02	1	9407-	●	●
16	CLIP; HARNESS 4ZC1 ENG(LR9) (A) L=140	5-09707-031-0	02	1	9307-	●	●
16	CLIP; HARNESS 4ZC1 ENG(LR9) (B) ID=16 H=24 L=20	9-09527-015-0	01	1	9307-	●	●
16	CLIP; HARNESS SAUDI ARABIA EQUIPMENT(EU2) (C) ID=9.5	8-94400-385-0	02	1	9307-9407		●
16	CLIP; HARNESS SAUDI ARABIA EQUIPMENT(EU2) (E) ID=7	5-09707-053-0	02	1	9408-		●
27	PROTECTOR; EDGE (B) L=73 SERVICED BY L=190	1-71998-300-0	01	1	9307-	●	●
27	PROTECTOR; EDGE (B) L=30 SERVICED BY L=190	1-71998-300-0	01	1	9307-	●	●
27	PROTECTOR; EDGE (B) L=50 SERVICED BY L=190	1-71998-300-0	01	1	9307-	●	●
27	PROTECTOR; EDGE (B) L=80 SERVICED BY L=240	1-71998-400-0	01	1	9307-	●	●
27	PROTECTOR; EDGE (A) L=200	8-97011-735-0	01	1	9307-	●	●
27	PROTECTOR; EDGE (A) L=70	8-97046-388-0	01	1	9307-	●	●
27	PROTECTOR; EDGE REAR HEATER<C35> 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) (A) L=131	8-94110-048-0	01	1	9307-	●	●
81	CLIP; HARNESS (H) L=100	5-09707-036-0	01	1	9307-	●	●
81	CLIP; HARNESS AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (H) L=100	5-09707-036-0	01	1	9307-	●	●
81	CLIP; HARNESS (F) ID=7	5-09707-053-0	03	1	9307-	●	●
81	CLIP; HARNESS (A) L=142	8-94232-619-0	01	1	9307-9406	●	●
81	CLIP; HARNESS AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) L=142	8-94232-619-0	01	1	9307-9406	●	●
81	CLIP; HARNESS EXC. EUROPEAN BASIC EQUIPMENT(EK4) (A) L=142	8-94232-619-0	01	1	9407-	●	●
81	CLIP; HARNESS (A) L=142	8-94232-619-0	01	1	9407-	●	●
81	CLIP; HARNESS AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) L=142	8-94232-619-0	01	1	9407-	●	●
81	CLIP; HARNESS (B) ID=26 L=28	9-09917-538-1	01	1	9307-	●	●
81	CLIP; HARNESS AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) L=140	5-09707-031-0	01	1	9307-9406	●	●
81	CLIP; HARNESS 4ZC1 ENG(LR9) (A) L=140	5-09707-031-0	01	1	9307-9406	●	●
81	CLIP; HARNESS (A) L=140	5-09707-031-0	01	1	9307-9406	●	●
81	CLIP; HARNESS (A) L=140	5-09707-031-0	01	1	9307-9406	●	●
81	CLIP; HARNESS (A) L=140	5-09707-031-0	01	1	9407-	●	●
81	CLIP; HARNESS AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. EUROPEAN BASIC EQUIPMENT(EK4) (A) L=140	5-09707-031-0	01	1	9407-	●	●
81	CLIP; HARNESS REAR HEATER<C35> (A) L=140	5-09707-031-0	04	1	9307-	●	●
81	CLIP; HARNESS 4FG1 ENG(RLL) (G) L=290	8-94238-173-0	01	1	9307-9406	●	●
81	CLIP; HARNESS 4FG1 ENG(RLL) EXC. TURBOCHARGER(K51) (G) L=290	8-94238-173-0	01	1	9407-	●	●
81	CLIP; HARNESS 4ZC1 ENG(LR9) (C) ID=15	5-09707-033-0	01	1	9307-9406	●	●
81	CLIP; HARNESS 4ZC1 ENG(LR9) (C) ID=15	1-09709-003-0	01	1	9407-	●	●
81	CLIP; HARNESS 4ZC1 ENG(LR9) (D)	8-94334-343-1	01	1	9307-	●	●
81	CLIP; HARNESS 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (E)	8-94233-806-0	01	1	9307-	●	●
81	CLIP; HARNESS 4ZC1 ENG(LR9) EXC. SAUDI ARABIA EQUIPMENT(EU2) (F) ID=7	5-09707-053-0	01	1	9307-		●
178	GROMMET; HARNESS (B)	5-09983-008-0	01	1	9307-	●	●
178	GROMMET; HARNESS (A)	8-94142-264-0	02	1	9307-	●	●
194	CLIP; BAND L=142	8-94232-619-0	05	1	9307-	●	●
210	WASHER; PL,GEN 4FG1 ENG(RLL) ID=10.5 OD=26	9-09164-710-0	01	1	9307-	●	●
271	CLIP; BATTERY CORD TO HARNESS L=140	5-09707-031-0	01	1	9307-	●	●
280	CLIP; HARNESS,THERMO SW 4FG1 ENG(RLL) L=140	5-09707-031-0	02	1	9307-	●	●
421	CLIP; FLOOR HARNESS SAUDI ARABIA EQUIPMENT(EU2) ID=7	1-09987-055-0	08	1	9307-9307	●	●
421	CLIP; FLOOR HARNESS SAUDI ARABIA EQUIPMENT(EU2) 1 SET=5 PIECE	1-09987-214-0	08	1	9308-9312	●	●
421	CLIP; FLOOR HARNESS SAUDI ARABIA EQUIPMENT(EU2) 1 SET=5 PIECE	1-09987-214-0	09	1	9401-	●	●
489	CLIP; HARNESS,OIL PRESS SW 4ZC1 ENG(LR9) L=140	5-09707-031-0	01	1	9307-	●	●
491	CLIP; BAND,HTR HOSE & HARNESS 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR VAN(V4V),4 DOOR WAGON(V4W),5 DOOR VAN(V4X) L=140	5-09707-031-0	02	1	9307-	●	●
491	CLIP; BAND,HTR HOSE & HARNESS REAR HEATER<C35> 4 DOOR BUS(V4Z) L=140	5-09707-031-0	01	1	9307-		●
491	CLIP; BAND,HTR HOSE & HARNESS 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR BUS(V4Z) L=140	5-09707-031-0	03	1	9307-		●
522	WASHER; PL,HARNESS HEATER&DEFROSTER(C41) EUROPEAN BASIC EQUIPMENT(EK4) TURBOCHARGER(K51) ID=5.3 OD=12	9-09160-605-0	01	1	9407-	●	●

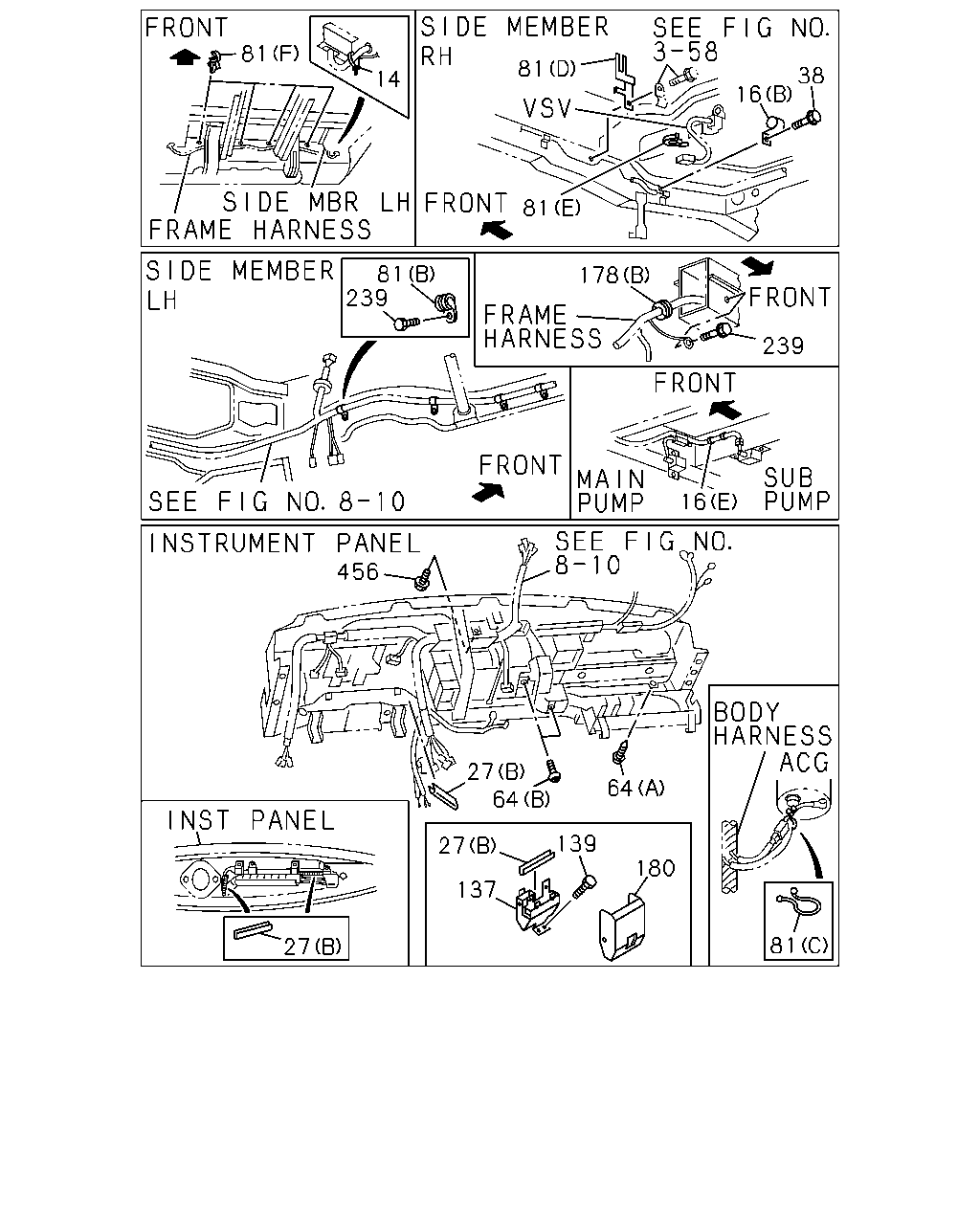

81 81 38 16 14 81 81 239 178 239 456 27 64 64 139 27 180 137 81 27 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	CLIP; BAND,HARNESS L=142	8-94232-619-0	01	1	9307-9406	●	●
14	CLIP; BAND,HARNESS EXC. EUROPEAN BASIC EQUIPMENT(EK4) L=142	8-94232-619-0	01	1	9407-	●	●
16	CLIP; HARNESS SAUDI ARABIA EQUIPMENT(EU2) (C) ID=9.5	8-94400-385-0	01	1	9307-9407	●
16	CLIP; HARNESS SAUDI ARABIA EQUIPMENT(EU2) (E) ID=7	5-09707-053-0	01	1	9408-	●
16	CLIP; HARNESS AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) L=140	5-09707-031-0	01	1	9308-9311	●	●
16	CLIP; HARNESS HEATER&DEFROSTER(C41) EUROPEAN BASIC EQUIPMENT(EK4) TURBOCHARGER(K51) (D) L=80	5-09700-307-1	01	1	9407-	●	●
16	CLIP; HARNESS 4FG1 ENG(RLL) (F) L=290	8-94238-173-0	02	1	9407-	●	●
16	CLIP; HARNESS 4ZC1 ENG(LR9) (A) L=140	5-09707-031-0	02	1	9307-	●	●
16	CLIP; HARNESS 4ZC1 ENG(LR9) (B) ID=16 H=24 L=20	9-09527-015-0	01	1	9307-	●	●
16	CLIP; HARNESS SAUDI ARABIA EQUIPMENT(EU2) (C) ID=9.5	8-94400-385-0	02	1	9307-9407		●
16	CLIP; HARNESS SAUDI ARABIA EQUIPMENT(EU2) (E) ID=7	5-09707-053-0	02	1	9408-		●
27	PROTECTOR; EDGE (B) L=73 SERVICED BY L=190	1-71998-300-0	01	1	9307-	●	●
27	PROTECTOR; EDGE (B) L=30 SERVICED BY L=190	1-71998-300-0	01	1	9307-	●	●
27	PROTECTOR; EDGE (B) L=50 SERVICED BY L=190	1-71998-300-0	01	1	9307-	●	●
27	PROTECTOR; EDGE (B) L=80 SERVICED BY L=240	1-71998-400-0	01	1	9307-	●	●
27	PROTECTOR; EDGE (A) L=200	8-97011-735-0	01	1	9307-	●	●
27	PROTECTOR; EDGE (A) L=70	8-97046-388-0	01	1	9307-	●	●
27	PROTECTOR; EDGE REAR HEATER<C35> 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) (A) L=131	8-94110-048-0	01	1	9307-	●	●
38	BOLT; CLIP,HARNESS 4ZC1 ENG(LR9) M6X14 W/LK&PL WASHER	0-50140-614-0	01	1	9307-	●	●
64	SCREW; CLIP (A) M5X14 TAPPING W/PL WASHER	0-74110-514-0	01	1	9307-	●	●
64	SCREW; CLIP (B) M6X20 BLACK	8-94413-819-0	06	1	9307-	●	●
81	CLIP; HARNESS (H) L=100	5-09707-036-0	01	1	9307-	●	●
81	CLIP; HARNESS AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (H) L=100	5-09707-036-0	01	1	9307-	●	●
81	CLIP; HARNESS (F) ID=7	5-09707-053-0	03	1	9307-	●	●
81	CLIP; HARNESS (A) L=142	8-94232-619-0	01	1	9307-9406	●	●
81	CLIP; HARNESS AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) L=142	8-94232-619-0	01	1	9307-9406	●	●
81	CLIP; HARNESS EXC. EUROPEAN BASIC EQUIPMENT(EK4) (A) L=142	8-94232-619-0	01	1	9407-	●	●
81	CLIP; HARNESS (A) L=142	8-94232-619-0	01	1	9407-	●	●
81	CLIP; HARNESS AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) L=142	8-94232-619-0	01	1	9407-	●	●
81	CLIP; HARNESS (B) ID=26 L=28	9-09917-538-1	01	1	9307-	●	●
81	CLIP; HARNESS AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) L=140	5-09707-031-0	01	1	9307-9406	●	●
81	CLIP; HARNESS 4ZC1 ENG(LR9) (A) L=140	5-09707-031-0	01	1	9307-9406	●	●
81	CLIP; HARNESS (A) L=140	5-09707-031-0	01	1	9307-9406	●	●
81	CLIP; HARNESS (A) L=140	5-09707-031-0	01	1	9307-9406	●	●
81	CLIP; HARNESS (A) L=140	5-09707-031-0	01	1	9407-	●	●
81	CLIP; HARNESS AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. EUROPEAN BASIC EQUIPMENT(EK4) (A) L=140	5-09707-031-0	01	1	9407-	●	●
81	CLIP; HARNESS REAR HEATER<C35> (A) L=140	5-09707-031-0	04	1	9307-	●	●
81	CLIP; HARNESS 4FG1 ENG(RLL) (G) L=290	8-94238-173-0	01	1	9307-9406	●	●
81	CLIP; HARNESS 4FG1 ENG(RLL) EXC. TURBOCHARGER(K51) (G) L=290	8-94238-173-0	01	1	9407-	●	●
81	CLIP; HARNESS 4ZC1 ENG(LR9) (C) ID=15	5-09707-033-0	01	1	9307-9406	●	●
81	CLIP; HARNESS 4ZC1 ENG(LR9) (C) ID=15	1-09709-003-0	01	1	9407-	●	●
81	CLIP; HARNESS 4ZC1 ENG(LR9) (D)	8-94334-343-1	01	1	9307-	●	●
81	CLIP; HARNESS 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (E)	8-94233-806-0	01	1	9307-	●	●
81	CLIP; HARNESS 4ZC1 ENG(LR9) EXC. SAUDI ARABIA EQUIPMENT(EU2) (F) ID=7	5-09707-053-0	01	1	9307-		●
137	BRACKET; HARNESS CLAMP	8-94436-077-3	01	1	9307-	●	●
139	BOLT; BRKT M6X14 W/LK&PL WASHER	0-50140-614-0	02	1	9307-	●	●
178	GROMMET; HARNESS (B)	5-09983-008-0	01	1	9307-	●	●
178	GROMMET; HARNESS (A)	8-94142-264-0	02	1	9307-	●	●
180	COVER; HARNESS	8-94434-923-1	01	1	9307-	●	●
239	BOLT; GRAND M6X20 W/LK&PL WASHER	8-97086-824-0	01	1	9307-	●	●
239	BOLT; GRAND M6X25 W/LK&PL WASHER	8-97087-201-0	01	1	9307-	●	●
456	SCREW; INST PANEL PROTECTOR M6X20 W/LK&PL WASHER	9-03920-620-0	01	1	9307-	●	●
