1-01B — ACCELERATOR PEDAL AND CONTROL (#4727) — 310 parça

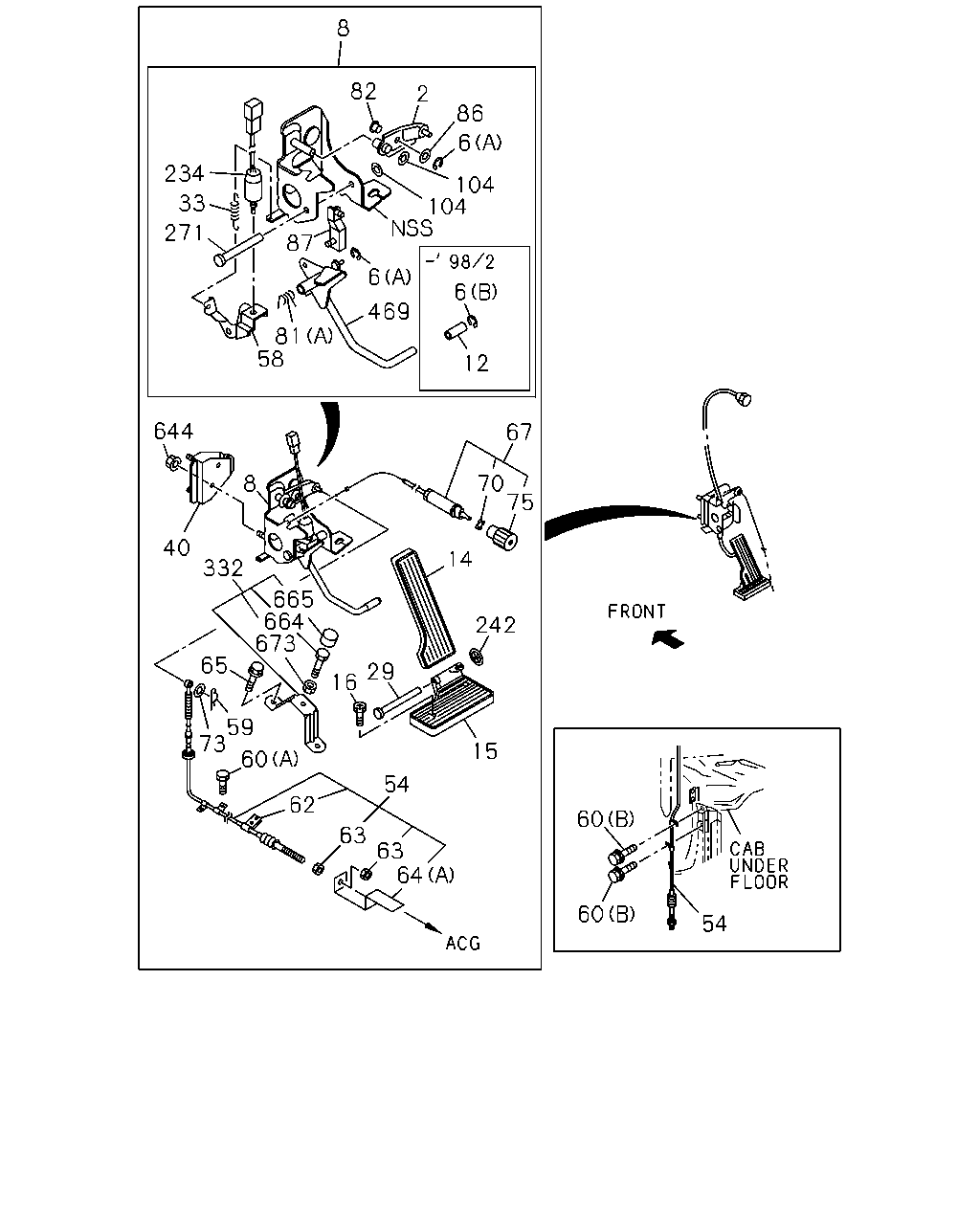

8 82 2 86 6 234 104 104 33 87 271 6 6 469 81 58 12 644 67 8 70 75 40 14 332 665 664 673 242 65 29 16 59 73 15 60 54 62 60 63 63 64 60 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	LEVER; ENG CONT	1-71907-210-2	01	1	9603-9609	●
2	LEVER; ENG CONT	1-71907-210-2	01	1	9610-9904	●
2	LEVER; ENG CONT	1-71907-210-2	01	1	9905-	●	●	●
6	RING; SNAP,LINK TO LINK (A) ID=4	9-09185-404-0	02	1	9603-9609	●
6	RING; SNAP,LINK TO LINK (A) ID=4	9-09185-404-0	02	1	9610-9904	●
6	RING; SNAP,LINK TO LINK (A) ID=4	9-09185-404-0	02	1	9905-	●	●	●
6	RING; SNAP,LINK TO LINK (B) ID=6	9-09185-406-0	01	1	9603-9802	●
8	LINK ASM; ENG CONT	1-73996-206-5	01	1	9603-9609	●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	9610-9904	●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	9905-	●	●	●
12	ROLLER; ENG CONT LEVER	1-09989-007-0	01	1	9603-9802	●
14	PAD; PEDAL,ACCEL	1-23241-021-0	01	1	9603-9708	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	9805-9904	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	9905-	●	●	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	9707-9804	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	9603-9706	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	9905-	●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	9707-9804	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	9805-9904	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X20 W/LK&PL WASHER	8-94279-202-0	02	1	9603-9902	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	9805-9904	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	9905-	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	9707-9804	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	9603-9706	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	9905-	●	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	9707-9804	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	9905-9905	●
33	SPRING; IDLING CONT LEVER	8-94414-815-0	01	1	9603-9609	●
33	SPRING; IDLING CONT LEVER	8-94414-815-0	01	1	9610-9904	●
33	SPRING; IDLING CONT LEVER	8-94414-815-0	01	1	9905-	●	●	●
40	BRACKET; ENG CONT CABLE SHORT CHASSIS&LHD(EXZ6MC)	1-71907-269-0	01	1	9603-9904	●
40	BRACKET; ENG CONT CABLE SHORT CHASSIS&LHD(EXZ6MC)	1-71907-269-0	01	1	9905-	●	●	●
54	CABLE; ENG CONT SHORT CHASSIS&RHD(EXZ5MC) L=1950	1-73907-477-0	01	1	9603-9606	●
54	CABLE; ENG CONT SHORT CHASSIS&RHD(EXZ5MC) EXC. RLD GOVERNOR(SD7) L=1950	1-73907-477-0	01	1	9607-9904	●
54	CABLE; ENG CONT SHORT CHASSIS&RHD(EXZ5MC) EXC. RLD GOVERNOR(SD7) L=1950	1-73907-477-0	01	1	9905-	●	●	●
54	CABLE; ENG CONT SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) L=2657	1-73907-316-2	01	1	9607-9904	●
54	CABLE; ENG CONT SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) L=2657	1-73907-316-2	01	1	9905-	●	●	●
54	CABLE; ENG CONT SHORT CHASSIS&LHD(EXZ6MC) L=2735	1-73907-421-3	01	1	9603-9904	●
54	CABLE; ENG CONT SHORT CHASSIS&LHD(EXZ6MC) L=2735	1-73907-421-3	01	1	9905-0001	●	●	●
54	CABLE; ENG CONT SHORT CHASSIS&LHD(EXZ6MC) EXC. RLD GOVERNOR(SD7) L=2735	1-73907-421-3	01	1	0002-	●	●	●
54	CABLE; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) L=1234	1-23230-107-1	01	1	0004-		●
54	CABLE; ENG CONT SHORT CHASSIS&LHD(EXZ6MC) RLD GOVERNOR(SD7) PTO CONTROL OPERATION CAB BACK<TBZ> L=2035	1-73907-654-0	01	1	0002-		●
54	CABLE; ENG CONT SHORT CHASSIS&LHD(EXZ6MC) RLD GOVERNOR(SD7) EXC. PTO CONTROL OPERATION CAB BACK<TBZ> L=2035	1-73907-627-1	01	1	0002-		●
58	LEVER; IDLING CONT	1-71907-242-1	01	1	9603-9609	●
58	LEVER; IDLING CONT	1-71907-242-1	01	1	9610-9904	●
58	LEVER; IDLING CONT	1-71907-242-1	01	1	9905-	●	●	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	9603-9609	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	9610-9904	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	9905-	●	●	●
60	BOLT; CABLE SHORT CHASSIS&LHD(EXZ6MC) (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9603-9904	●
60	BOLT; CABLE SHORT CHASSIS&LHD(EXZ6MC) EXC. ELECTRONIC GOV RED3(KG5) (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9905-	●	●	●
60	BOLT; CABLE SHORT CHASSIS&RHD(EXZ5MC) (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9603-9904	●
60	BOLT; CABLE (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9905-	●	●	●
60	BOLT; CABLE SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) (A) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●
60	BOLT; CABLE SHORT CHASSIS&LHD(EXZ6MC) (A) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●
60	BOLT; CABLE SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) (A) M8X20 FLANGE	0-28680-820-0	01	1	9607-9904	●
60	BOLT; CABLE SHORT CHASSIS&LHD(EXZ6MC) (A) M8X20 FLANGE	0-28680-820-0	01	1	9607-9904	●
60	BOLT; CABLE SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) (A) M8X20 FLANGE	0-28680-820-0	01	1	9905-	●	●	●
60	BOLT; CABLE SHORT CHASSIS&LHD(EXZ6MC) (A) M8X20 FLANGE	0-28680-820-0	01	1	9905-	●	●	●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	9603-9804	●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	9805-9904	●
62	CLIP; ENG CONT CABLE SHORT CHASSIS&RHD(EXZ5MC) L=30	1-09700-326-0	01	1	9905-	●	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9603-9804	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9805-9904	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9905-	●	●	●
64	BRACKET; ENG CONT CABLE SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) (A)	1-23219-105-1	01	1	9607-9804	●
64	BRACKET; ENG CONT CABLE SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) (A)	1-23219-105-1	01	1	9805-9904	●
64	BRACKET; ENG CONT CABLE SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) (A)	1-23219-105-1	01	1	9905-	●	●	●
64	BRACKET; ENG CONT CABLE (A)	1-09768-018-1	01	1	9603-9606	●
64	BRACKET; ENG CONT CABLE SHORT CHASSIS&RHD(EXZ5MC) EXC. RLD GOVERNOR(SD7) (A)	1-09768-018-1	01	1	9607-	●	●	●
64	BRACKET; ENG CONT CABLE SHORT CHASSIS&LHD(EXZ6MC) (A)	1-09768-018-1	01	1	9607-	●	●	●
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-9904	●
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9905-	●	●	●
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9707-9804	●
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9805-9904	●
67	CABLE ASM; IDLE CONT L=399	1-73998-912-2	01	1	9603-9609	●
67	CABLE ASM; IDLE CONT L=399	1-73998-912-3	01	1	9610-9904	●
67	CABLE ASM; IDLE CONT L=399	1-73998-912-3	01	1	9905-	●	●	●
70	NUT; CONT CABLE	1-73908-045-0	01	1	9603-9609	●
70	NUT; CONT CABLE	1-73908-045-1	01	1	9610-9904	●
70	NUT; CONT CABLE	1-73908-045-1	01	1	9905-	●	●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	9603-9609	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	9610-9904	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	9905-	●	●	●
75	KNOB ASM; IDLING CONT	8-97066-797-1	01	1	9603-9609	●
75	KNOB ASM; IDLING CONT	8-97066-797-1	01	1	9610-9904	●
75	KNOB ASM; IDLING CONT	8-97066-797-1	01	1	9905-	●	●	●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	9603-9904	●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	9905-	●	●	●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	9603-9609	●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	9610-9904	●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	9905-	●	●	●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	9603-9609	●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	9610-9904	●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	9905-	●	●	●
87	LINK; ENG CONT	1-71907-211-1	01	1	9603-9609	●
87	LINK; ENG CONT	1-71907-211-1	01	1	9610-9904	●
87	LINK; ENG CONT	1-71907-211-1	01	1	9905-	●	●	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	9603-9609	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	9610-9904	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	9905-	●	●	●
234	SWITCH; ACCEL	1-82380-114-1	01	1	9603-9609	●
234	SWITCH; ACCEL	1-82380-114-1	01	1	9610-9904	●
234	SWITCH; ACCEL	1-82380-114-3	01	1	9905-	●	●	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	9603-9706	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	9905-	●	●	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	9707-9804	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	9805-9904	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	9603-9609	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	9610-9904	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	9905-	●	●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	9603-9904	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	9905-	●	●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	9707-9804	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	9805-9904	●
469	LEVER ASM	1-71907-209-4	01	1	9603-9609	●
469	LEVER ASM	1-71907-209-5	01	1	9610-9904	●
469	LEVER ASM	1-71907-209-5	01	1	9905-	●	●	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	03	1	9603-9904	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	03	1	9905-	●	●	●
644	NUT; LINK,ENG CONT SHORT CHASSIS&LHD(EXZ6MC) M8 FLANGE	0-91150-108-0	02	1	9603-9904	●
644	NUT; LINK,ENG CONT SHORT CHASSIS&LHD(EXZ6MC) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	9603-9706	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	9905-	●	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	9707-9804	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	9805-9904	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	9603-9706	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	9905-	●	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	9707-9804	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	9805-9904	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	9603-9706	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	9905-	●	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	9707-9804	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	9805-9904	●

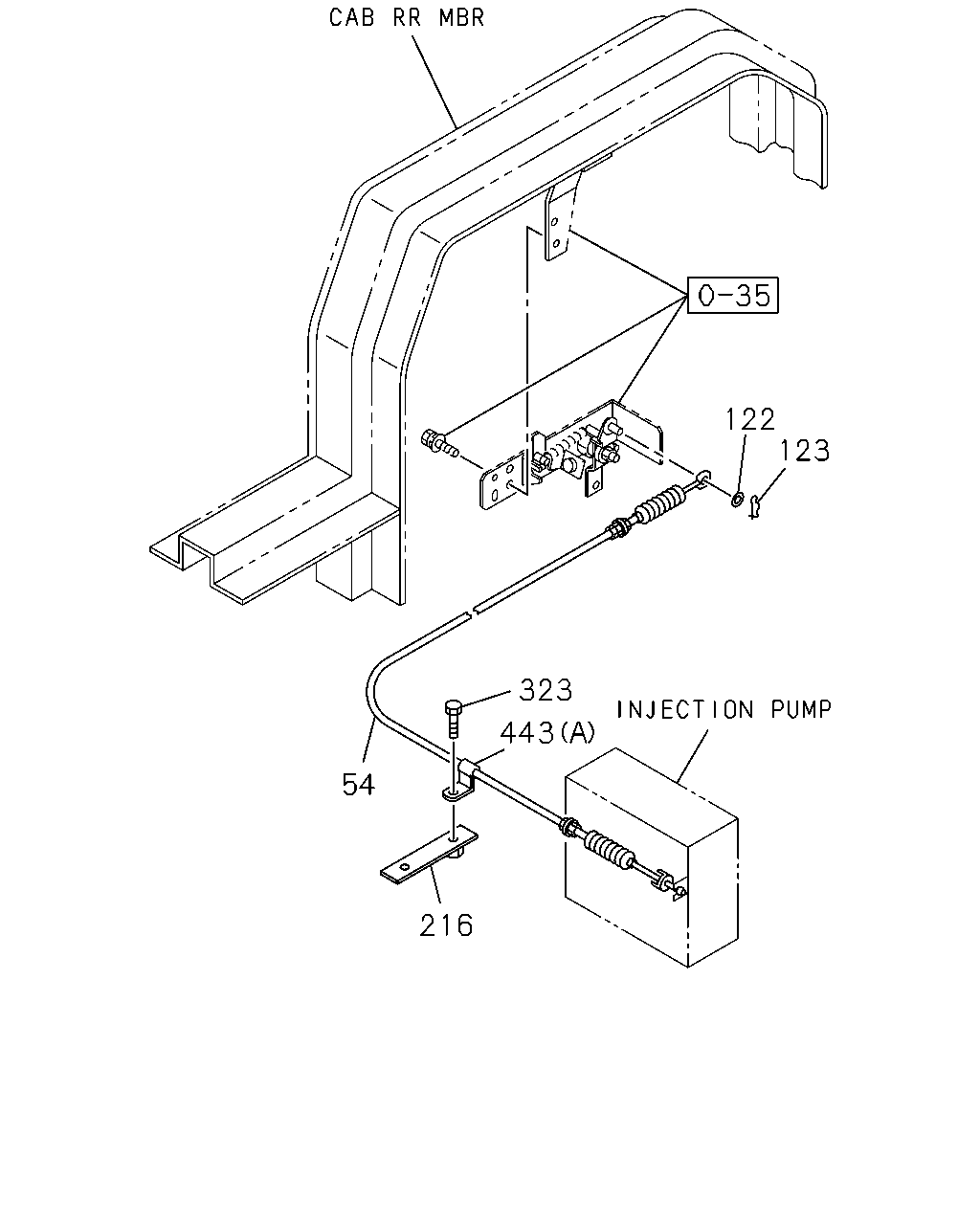

122 123 323 443 54 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
54	CABLE; ENG CONT SHORT CHASSIS&RHD(EXZ5MC) L=1950	1-73907-477-0	01	1	9603-9606	●
54	CABLE; ENG CONT SHORT CHASSIS&RHD(EXZ5MC) EXC. RLD GOVERNOR(SD7) L=1950	1-73907-477-0	01	1	9607-9904	●
54	CABLE; ENG CONT SHORT CHASSIS&RHD(EXZ5MC) EXC. RLD GOVERNOR(SD7) L=1950	1-73907-477-0	01	1	9905-	●	●	●
54	CABLE; ENG CONT SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) L=2657	1-73907-316-2	01	1	9607-9904	●
54	CABLE; ENG CONT SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) L=2657	1-73907-316-2	01	1	9905-	●	●	●
54	CABLE; ENG CONT SHORT CHASSIS&LHD(EXZ6MC) L=2735	1-73907-421-3	01	1	9603-9904	●
54	CABLE; ENG CONT SHORT CHASSIS&LHD(EXZ6MC) L=2735	1-73907-421-3	01	1	9905-0001	●	●	●
54	CABLE; ENG CONT SHORT CHASSIS&LHD(EXZ6MC) EXC. RLD GOVERNOR(SD7) L=2735	1-73907-421-3	01	1	0002-	●	●	●
54	CABLE; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) L=1234	1-23230-107-1	01	1	0004-		●
54	CABLE; ENG CONT SHORT CHASSIS&LHD(EXZ6MC) RLD GOVERNOR(SD7) PTO CONTROL OPERATION CAB BACK<TBZ> L=2035	1-73907-654-0	01	1	0002-		●
54	CABLE; ENG CONT SHORT CHASSIS&LHD(EXZ6MC) RLD GOVERNOR(SD7) EXC. PTO CONTROL OPERATION CAB BACK<TBZ> L=2035	1-73907-627-1	01	1	0002-		●
122	WASHER; PL,CABLE PTO CONTROL OPERATION CAB BACK<TBZ> ID=8.4	9-09160-508-0	01	1	0004-		●
123	PIN; SNAP,CABLE PTO CONTROL OPERATION CAB BACK<TBZ> L=27.7	1-09987-141-0	01	1	0004-		●
216	BRACKET PTO CONTROL OPERATION CAB BACK<TBZ>	1-47476-881-0	01	1	0004-		●
323	BOLT; CLIP PTO CONTROL OPERATION CAB BACK<TBZ> M8X20 FLANGE	0-28680-820-0	01	1	0004-		●
443	CLIP; CABLE PTO CONTROL OPERATION CAB BACK<TBZ> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0004-		●
443	CLIP; CABLE SHORT CHASSIS&RHD(EXZ5MC) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	9603-9609	●
443	CLIP; CABLE SHORT CHASSIS&RHD(EXZ5MC) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	9905-	●	●	●
443	CLIP; CABLE SHORT CHASSIS&RHD(EXZ5MC) (A) ID=9 L=20	9-09524-835-0	01	1	9603-9904	●
443	CLIP; CABLE SHORT CHASSIS&RHD(EXZ5MC) (A) ID=9 L=20	9-09524-835-0	01	1	9905-	●	●	●

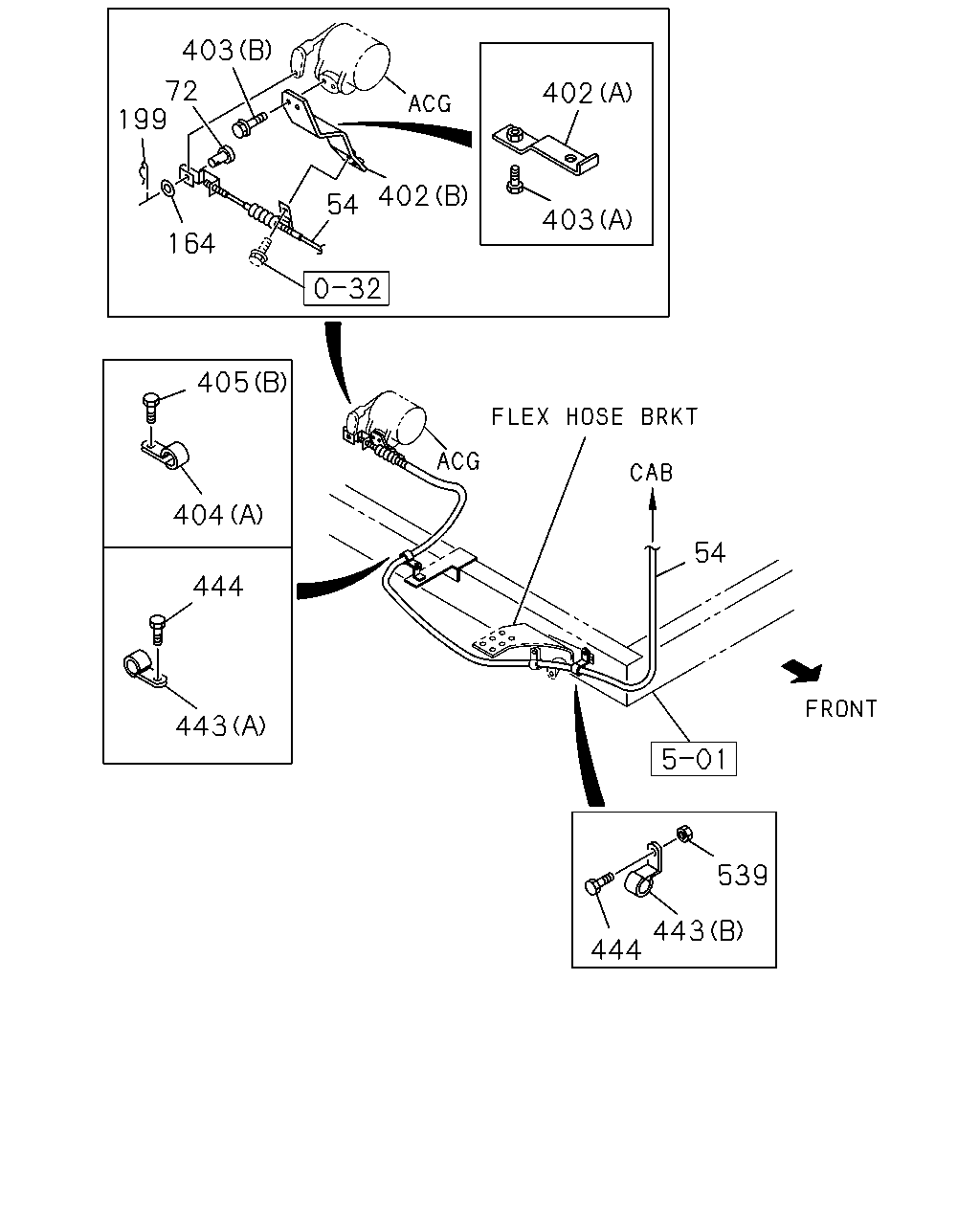

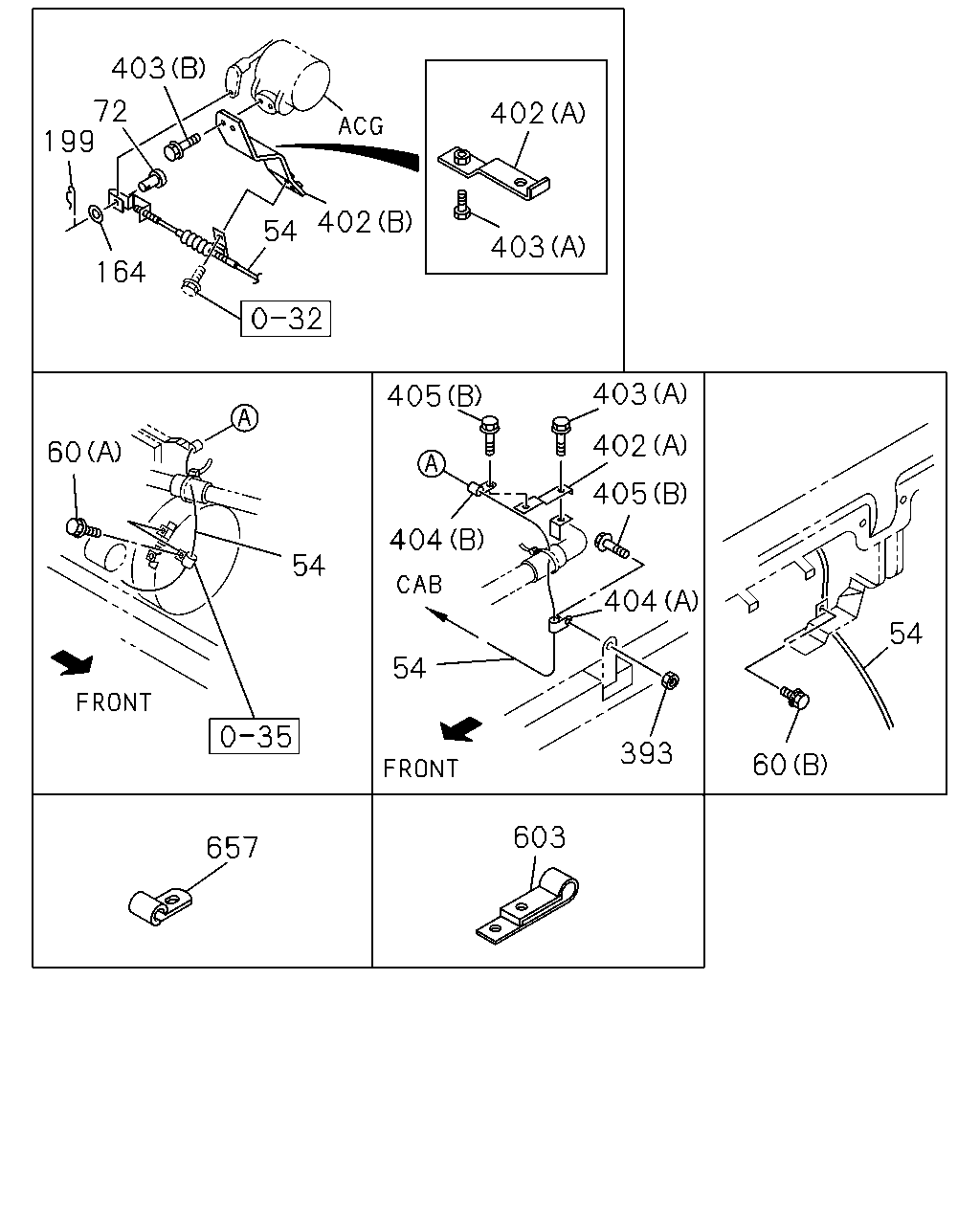

403 72 199 402 402 54 403 164 403 405 402 60 405 404 54 404 54 54 393 60 603 657

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
54	CABLE; ENG CONT SHORT CHASSIS&RHD(EXZ5MC) L=1950	1-73907-477-0	01	1	9603-9606	●
54	CABLE; ENG CONT SHORT CHASSIS&RHD(EXZ5MC) EXC. RLD GOVERNOR(SD7) L=1950	1-73907-477-0	01	1	9607-9904	●
54	CABLE; ENG CONT SHORT CHASSIS&RHD(EXZ5MC) EXC. RLD GOVERNOR(SD7) L=1950	1-73907-477-0	01	1	9905-	●	●	●
54	CABLE; ENG CONT SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) L=2657	1-73907-316-2	01	1	9607-9904	●
54	CABLE; ENG CONT SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) L=2657	1-73907-316-2	01	1	9905-	●	●	●
54	CABLE; ENG CONT SHORT CHASSIS&LHD(EXZ6MC) L=2735	1-73907-421-3	01	1	9603-9904	●
54	CABLE; ENG CONT SHORT CHASSIS&LHD(EXZ6MC) L=2735	1-73907-421-3	01	1	9905-0001	●	●	●
54	CABLE; ENG CONT SHORT CHASSIS&LHD(EXZ6MC) EXC. RLD GOVERNOR(SD7) L=2735	1-73907-421-3	01	1	0002-	●	●	●
54	CABLE; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) L=1234	1-23230-107-1	01	1	0004-		●
54	CABLE; ENG CONT SHORT CHASSIS&LHD(EXZ6MC) RLD GOVERNOR(SD7) PTO CONTROL OPERATION CAB BACK<TBZ> L=2035	1-73907-654-0	01	1	0002-		●
54	CABLE; ENG CONT SHORT CHASSIS&LHD(EXZ6MC) RLD GOVERNOR(SD7) EXC. PTO CONTROL OPERATION CAB BACK<TBZ> L=2035	1-73907-627-1	01	1	0002-		●
60	BOLT; CABLE SHORT CHASSIS&LHD(EXZ6MC) (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9603-9904	●
60	BOLT; CABLE SHORT CHASSIS&LHD(EXZ6MC) EXC. ELECTRONIC GOV RED3(KG5) (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9905-	●	●	●
60	BOLT; CABLE SHORT CHASSIS&RHD(EXZ5MC) (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9603-9904	●
60	BOLT; CABLE (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9905-	●	●	●
60	BOLT; CABLE SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) (A) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●
60	BOLT; CABLE SHORT CHASSIS&LHD(EXZ6MC) (A) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●
60	BOLT; CABLE SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) (A) M8X20 FLANGE	0-28680-820-0	01	1	9607-9904	●
60	BOLT; CABLE SHORT CHASSIS&LHD(EXZ6MC) (A) M8X20 FLANGE	0-28680-820-0	01	1	9607-9904	●
60	BOLT; CABLE SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) (A) M8X20 FLANGE	0-28680-820-0	01	1	9905-	●	●	●
60	BOLT; CABLE SHORT CHASSIS&LHD(EXZ6MC) (A) M8X20 FLANGE	0-28680-820-0	01	1	9905-	●	●	●
72	PIN; JAW JOINT,CABLE END EXC. RLD GOVERNOR(SD7) OD=8 L=17	9-08223-817-0	01	1	9603-9904	●
72	PIN; JAW JOINT,CABLE END EXC. RLD GOVERNOR(SD7) OD=8 L=17	9-08223-817-0	01	1	9905-	●	●	●
164	WASHER; PL ID=8.4	9-09160-508-0	01	1	9603-9904	●
164	WASHER; PL ID=8.4	9-09160-508-0	01	1	9905-	●	●	●
199	PIN; SNAP L=27.7	1-09747-005-0	01	1	9603-9904	●
199	PIN; SNAP L=27.7	1-09747-005-0	01	1	9905-	●	●	●
393	NUT; CLIP TO FRAME SHORT CHASSIS&LHD(EXZ6MC) M8 FLANGE	0-91150-208-0	01	1	9606-9606	●
393	NUT; CLIP TO FRAME SHORT CHASSIS&LHD(EXZ6MC) M8 FLANGE	0-91150-108-0	01	1	9607-9609	●
393	NUT; CLIP TO FRAME SHORT CHASSIS&LHD(EXZ6MC) M8 FLANGE	0-91150-108-0	01	1	9610-9904	●
393	NUT; CLIP TO FRAME SHORT CHASSIS&LHD(EXZ6MC) M8 FLANGE	0-91150-108-0	01	1	9905-	●		●
393	NUT; CLIP TO FRAME SHORT CHASSIS&LHD(EXZ6MC) M8 FLANGE	0-91150-208-0	01	1	9603-9605	●
402	BRACKET; CABLE CLIP SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) (A)	1-47476-527-0	01	1	9603-9904	●
402	BRACKET; CABLE CLIP SHORT CHASSIS&LHD(EXZ6MC) (A)	1-47476-527-0	01	1	9603-9904	●
402	BRACKET; CABLE CLIP SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) (A)	1-47476-527-0	01	1	9905-	●	●	●
402	BRACKET; CABLE CLIP SHORT CHASSIS&LHD(EXZ6MC) (A)	1-47476-527-0	01	1	9905-	●	●	●
402	BRACKET; CABLE CLIP SHORT CHASSIS&RHD(EXZ5MC) EXC. RLD GOVERNOR(SD7) (B)	1-23335-379-0	01	1	9603-9904	●
402	BRACKET; CABLE CLIP SHORT CHASSIS&RHD(EXZ5MC) EXC. RLD GOVERNOR(SD7) (B)	1-23335-379-0	01	1	9905-	●	●	●
403	BOLT; BRKT,ACCEL PEDAL SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) (A) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●
403	BOLT; BRKT,ACCEL PEDAL SHORT CHASSIS&LHD(EXZ6MC) (A) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●
403	BOLT; BRKT,ACCEL PEDAL SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9904	●
403	BOLT; BRKT,ACCEL PEDAL SHORT CHASSIS&LHD(EXZ6MC) (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9904	●
403	BOLT; BRKT,ACCEL PEDAL SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) (A) M8X25 FLANGE	0-28680-825-0	01	1	9905-	●	●	●
403	BOLT; BRKT,ACCEL PEDAL SHORT CHASSIS&LHD(EXZ6MC) (A) M8X25 FLANGE	0-28680-825-0	01	1	9905-	●	●	●
403	BOLT; BRKT,ACCEL PEDAL SHORT CHASSIS&RHD(EXZ5MC) EXC. RLD GOVERNOR(SD7) (B) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606	●
403	BOLT; BRKT,ACCEL PEDAL SHORT CHASSIS&RHD(EXZ5MC) EXC. RLD GOVERNOR(SD7) (B) M8X20 FLANGE	0-28680-820-0	02	1	9607-9709	●
403	BOLT; BRKT,ACCEL PEDAL SHORT CHASSIS&RHD(EXZ5MC) EXC. RLD GOVERNOR(SD7) (B) M8X16 FLANGE	0-28080-816-0	02	1	9710-9904	●
403	BOLT; BRKT,ACCEL PEDAL SHORT CHASSIS&RHD(EXZ5MC) EXC. RLD GOVERNOR(SD7) (B) M8X16 FLANGE	0-28080-816-0	02	1	9905-	●	●	●
404	CLIP; CABLE SHORT CHASSIS&LHD(EXZ6MC) EXC. RLD GOVERNOR(SD7) (B) ID=11 L=20	9-09525-035-0	01	1	9706-9804	●
404	CLIP; CABLE SHORT CHASSIS&LHD(EXZ6MC) EXC. RLD GOVERNOR(SD7) (B) ID=11 L=20	9-09525-035-0	01	1	9805-9903	●
404	CLIP; CABLE SHORT CHASSIS&LHD(EXZ6MC) EXC. RLD GOVERNOR(SD7) (B) ID=11 L=20	9-09525-035-0	01	1	9904-9904	●
404	CLIP; CABLE SHORT CHASSIS&LHD(EXZ6MC) (B) ID=11 L=20	9-09525-035-0	01	1	9905-0001	●		●
404	CLIP; CABLE SHORT CHASSIS&LHD(EXZ6MC) EXC. RLD GOVERNOR(SD7) (B) ID=11 L=20	9-09525-035-0	01	1	9905-0001		●
404	CLIP; CABLE SHORT CHASSIS&LHD(EXZ6MC) (B) ID=11 L=20	9-09525-035-0	01	1	0002-	●	●	●
404	CLIP; CABLE SHORT CHASSIS&LHD(EXZ6MC) (B) ID=11 L=20	9-09525-035-0	01	1	9606-9609	●
404	CLIP; CABLE SHORT CHASSIS&LHD(EXZ6MC) EXC. RLD GOVERNOR(SD7) (B) ID=11 L=20	9-09525-035-0	01	1	9610-9705	●
404	CLIP; CABLE SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) (A) ID=7 L=20	9-09524-635-0	01	1	9603-9904	●
404	CLIP; CABLE SHORT CHASSIS&LHD(EXZ6MC) (A) ID=7 L=20	9-09524-635-0	01	1	9603-9904	●
404	CLIP; CABLE SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) (A) ID=7 L=20	9-09524-635-0	01	1	9905-	●	●	●
404	CLIP; CABLE SHORT CHASSIS&LHD(EXZ6MC) (A) ID=7 L=20	9-09524-635-0	01	1	9905-	●	●	●
405	BOLT; CABLE CLIP SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) (B) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●
405	BOLT; CABLE CLIP SHORT CHASSIS&LHD(EXZ6MC) EXC. RLD GOVERNOR(SD7) (B) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●
405	BOLT; CABLE CLIP SHORT CHASSIS&LHD(EXZ6MC) (B) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●
405	BOLT; CABLE CLIP SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) (B) M8X20 FLANGE	0-28680-820-0	01	1	9607-9609	●
405	BOLT; CABLE CLIP SHORT CHASSIS&LHD(EXZ6MC) EXC. RLD GOVERNOR(SD7) (B) M8X20 FLANGE	0-28680-820-0	01	1	9607-9609	●
405	BOLT; CABLE CLIP SHORT CHASSIS&LHD(EXZ6MC) (B) M8X20 FLANGE	0-28680-820-0	01	1	9607-9609	●
405	BOLT; CABLE CLIP SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) (B) M8X20 FLANGE	0-28680-820-0	01	1	9610-9904	●
405	BOLT; CABLE CLIP SHORT CHASSIS&LHD(EXZ6MC) (B) M8X20 FLANGE	0-28680-820-0	01	1	9610-9904	●
405	BOLT; CABLE CLIP SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) (B) M8X20 FLANGE	0-28680-820-0	01	1	9905-0001	●	●	●
405	BOLT; CABLE CLIP SHORT CHASSIS&LHD(EXZ6MC) (B) M8X20 FLANGE	0-28680-820-0	01	1	9905-0001	●	●	●
603	BRACKET; ENG CONT SHAFT SHORT CHASSIS&LHD(EXZ6MC) L=30	1-09700-326-0	01	1	9606-9904	●
603	BRACKET; ENG CONT SHAFT SHORT CHASSIS&LHD(EXZ6MC) EXC. RLD GOVERNOR(SD7) L=30	1-09700-326-0	01	1	9905-0005	●	●	●
603	BRACKET; ENG CONT SHAFT SHORT CHASSIS&LHD(EXZ6MC) L=30	1-09700-326-0	01	1	0006-	●	●	●
657	CLIP; ENG CONT CABLE SHORT CHASSIS&LHD(EXZ6MC) ID=11 L=20	9-09525-035-0	01	1	9606-9609	●
657	CLIP; ENG CONT CABLE SHORT CHASSIS&LHD(EXZ6MC) EXC. ELECTRONIC GOV RED3(KG5) ID=11 L=20	9-09525-035-0	01	1	9610-	●	●	●

403 72 199 402 402 54 403 164 405 404 54 444 443 539 443 444

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
54	CABLE; ENG CONT SHORT CHASSIS&RHD(EXZ5MC) L=1950	1-73907-477-0	01	1	9603-9606	●
54	CABLE; ENG CONT SHORT CHASSIS&RHD(EXZ5MC) EXC. RLD GOVERNOR(SD7) L=1950	1-73907-477-0	01	1	9607-9904	●
54	CABLE; ENG CONT SHORT CHASSIS&RHD(EXZ5MC) EXC. RLD GOVERNOR(SD7) L=1950	1-73907-477-0	01	1	9905-	●	●	●
54	CABLE; ENG CONT SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) L=2657	1-73907-316-2	01	1	9607-9904	●
54	CABLE; ENG CONT SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) L=2657	1-73907-316-2	01	1	9905-	●	●	●
54	CABLE; ENG CONT SHORT CHASSIS&LHD(EXZ6MC) L=2735	1-73907-421-3	01	1	9603-9904	●
54	CABLE; ENG CONT SHORT CHASSIS&LHD(EXZ6MC) L=2735	1-73907-421-3	01	1	9905-0001	●	●	●
54	CABLE; ENG CONT SHORT CHASSIS&LHD(EXZ6MC) EXC. RLD GOVERNOR(SD7) L=2735	1-73907-421-3	01	1	0002-	●	●	●
54	CABLE; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) L=1234	1-23230-107-1	01	1	0004-		●
54	CABLE; ENG CONT SHORT CHASSIS&LHD(EXZ6MC) RLD GOVERNOR(SD7) PTO CONTROL OPERATION CAB BACK<TBZ> L=2035	1-73907-654-0	01	1	0002-		●
54	CABLE; ENG CONT SHORT CHASSIS&LHD(EXZ6MC) RLD GOVERNOR(SD7) EXC. PTO CONTROL OPERATION CAB BACK<TBZ> L=2035	1-73907-627-1	01	1	0002-		●
72	PIN; JAW JOINT,CABLE END EXC. RLD GOVERNOR(SD7) OD=8 L=17	9-08223-817-0	01	1	9603-9904	●
72	PIN; JAW JOINT,CABLE END EXC. RLD GOVERNOR(SD7) OD=8 L=17	9-08223-817-0	01	1	9905-	●	●	●
164	WASHER; PL ID=8.4	9-09160-508-0	01	1	9603-9904	●
164	WASHER; PL ID=8.4	9-09160-508-0	01	1	9905-	●	●	●
199	PIN; SNAP L=27.7	1-09747-005-0	01	1	9603-9904	●
199	PIN; SNAP L=27.7	1-09747-005-0	01	1	9905-	●	●	●
402	BRACKET; CABLE CLIP SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) (A)	1-47476-527-0	01	1	9603-9904	●
402	BRACKET; CABLE CLIP SHORT CHASSIS&LHD(EXZ6MC) (A)	1-47476-527-0	01	1	9603-9904	●
402	BRACKET; CABLE CLIP SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) (A)	1-47476-527-0	01	1	9905-	●	●	●
402	BRACKET; CABLE CLIP SHORT CHASSIS&LHD(EXZ6MC) (A)	1-47476-527-0	01	1	9905-	●	●	●
402	BRACKET; CABLE CLIP SHORT CHASSIS&RHD(EXZ5MC) EXC. RLD GOVERNOR(SD7) (B)	1-23335-379-0	01	1	9603-9904	●
402	BRACKET; CABLE CLIP SHORT CHASSIS&RHD(EXZ5MC) EXC. RLD GOVERNOR(SD7) (B)	1-23335-379-0	01	1	9905-	●	●	●
403	BOLT; BRKT,ACCEL PEDAL SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) (A) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●
403	BOLT; BRKT,ACCEL PEDAL SHORT CHASSIS&LHD(EXZ6MC) (A) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●
403	BOLT; BRKT,ACCEL PEDAL SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9904	●
403	BOLT; BRKT,ACCEL PEDAL SHORT CHASSIS&LHD(EXZ6MC) (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9904	●
403	BOLT; BRKT,ACCEL PEDAL SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) (A) M8X25 FLANGE	0-28680-825-0	01	1	9905-	●	●	●
403	BOLT; BRKT,ACCEL PEDAL SHORT CHASSIS&LHD(EXZ6MC) (A) M8X25 FLANGE	0-28680-825-0	01	1	9905-	●	●	●
403	BOLT; BRKT,ACCEL PEDAL SHORT CHASSIS&RHD(EXZ5MC) EXC. RLD GOVERNOR(SD7) (B) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606	●
403	BOLT; BRKT,ACCEL PEDAL SHORT CHASSIS&RHD(EXZ5MC) EXC. RLD GOVERNOR(SD7) (B) M8X20 FLANGE	0-28680-820-0	02	1	9607-9709	●
403	BOLT; BRKT,ACCEL PEDAL SHORT CHASSIS&RHD(EXZ5MC) EXC. RLD GOVERNOR(SD7) (B) M8X16 FLANGE	0-28080-816-0	02	1	9710-9904	●
403	BOLT; BRKT,ACCEL PEDAL SHORT CHASSIS&RHD(EXZ5MC) EXC. RLD GOVERNOR(SD7) (B) M8X16 FLANGE	0-28080-816-0	02	1	9905-	●	●	●
404	CLIP; CABLE SHORT CHASSIS&LHD(EXZ6MC) EXC. RLD GOVERNOR(SD7) (B) ID=11 L=20	9-09525-035-0	01	1	9706-9804	●
404	CLIP; CABLE SHORT CHASSIS&LHD(EXZ6MC) EXC. RLD GOVERNOR(SD7) (B) ID=11 L=20	9-09525-035-0	01	1	9805-9903	●
404	CLIP; CABLE SHORT CHASSIS&LHD(EXZ6MC) EXC. RLD GOVERNOR(SD7) (B) ID=11 L=20	9-09525-035-0	01	1	9904-9904	●
404	CLIP; CABLE SHORT CHASSIS&LHD(EXZ6MC) (B) ID=11 L=20	9-09525-035-0	01	1	9905-0001	●		●
404	CLIP; CABLE SHORT CHASSIS&LHD(EXZ6MC) EXC. RLD GOVERNOR(SD7) (B) ID=11 L=20	9-09525-035-0	01	1	9905-0001		●
404	CLIP; CABLE SHORT CHASSIS&LHD(EXZ6MC) (B) ID=11 L=20	9-09525-035-0	01	1	0002-	●	●	●
404	CLIP; CABLE SHORT CHASSIS&LHD(EXZ6MC) (B) ID=11 L=20	9-09525-035-0	01	1	9606-9609	●
404	CLIP; CABLE SHORT CHASSIS&LHD(EXZ6MC) EXC. RLD GOVERNOR(SD7) (B) ID=11 L=20	9-09525-035-0	01	1	9610-9705	●
404	CLIP; CABLE SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) (A) ID=7 L=20	9-09524-635-0	01	1	9603-9904	●
404	CLIP; CABLE SHORT CHASSIS&LHD(EXZ6MC) (A) ID=7 L=20	9-09524-635-0	01	1	9603-9904	●
404	CLIP; CABLE SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) (A) ID=7 L=20	9-09524-635-0	01	1	9905-	●	●	●
404	CLIP; CABLE SHORT CHASSIS&LHD(EXZ6MC) (A) ID=7 L=20	9-09524-635-0	01	1	9905-	●	●	●
405	BOLT; CABLE CLIP SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) (B) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●
405	BOLT; CABLE CLIP SHORT CHASSIS&LHD(EXZ6MC) EXC. RLD GOVERNOR(SD7) (B) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●
405	BOLT; CABLE CLIP SHORT CHASSIS&LHD(EXZ6MC) (B) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●
405	BOLT; CABLE CLIP SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) (B) M8X20 FLANGE	0-28680-820-0	01	1	9607-9609	●
405	BOLT; CABLE CLIP SHORT CHASSIS&LHD(EXZ6MC) EXC. RLD GOVERNOR(SD7) (B) M8X20 FLANGE	0-28680-820-0	01	1	9607-9609	●
405	BOLT; CABLE CLIP SHORT CHASSIS&LHD(EXZ6MC) (B) M8X20 FLANGE	0-28680-820-0	01	1	9607-9609	●
405	BOLT; CABLE CLIP SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) (B) M8X20 FLANGE	0-28680-820-0	01	1	9610-9904	●
405	BOLT; CABLE CLIP SHORT CHASSIS&LHD(EXZ6MC) (B) M8X20 FLANGE	0-28680-820-0	01	1	9610-9904	●
405	BOLT; CABLE CLIP SHORT CHASSIS&RHD(EXZ5MC) RLD GOVERNOR(SD7) (B) M8X20 FLANGE	0-28680-820-0	01	1	9905-0001	●	●	●
405	BOLT; CABLE CLIP SHORT CHASSIS&LHD(EXZ6MC) (B) M8X20 FLANGE	0-28680-820-0	01	1	9905-0001	●	●	●
443	CLIP; CABLE PTO CONTROL OPERATION CAB BACK<TBZ> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0004-		●
443	CLIP; CABLE SHORT CHASSIS&RHD(EXZ5MC) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	9603-9609	●
443	CLIP; CABLE SHORT CHASSIS&RHD(EXZ5MC) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	9905-	●	●	●
443	CLIP; CABLE SHORT CHASSIS&RHD(EXZ5MC) (A) ID=9 L=20	9-09524-835-0	01	1	9603-9904	●
443	CLIP; CABLE SHORT CHASSIS&RHD(EXZ5MC) (A) ID=9 L=20	9-09524-835-0	01	1	9905-	●	●	●
444	BOLT; CABLE CLIP SHORT CHASSIS&RHD(EXZ5MC) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●
444	BOLT; CABLE CLIP SHORT CHASSIS&RHD(EXZ5MC) M8X25 FLANGE	0-28680-825-0	02	1	9607-9904	●
444	BOLT; CABLE CLIP SHORT CHASSIS&RHD(EXZ5MC) M8X25 FLANGE	0-28680-825-0	02	1	9905-	●	●	●
539	NUT; CLIP SHORT CHASSIS&RHD(EXZ5MC) M8 FLANGE	0-91150-208-0	01	1	9603-9904	●
539	NUT; CLIP SHORT CHASSIS&RHD(EXZ5MC) M8 FLANGE	0-91150-208-0	01	1	9905-	●	●	●

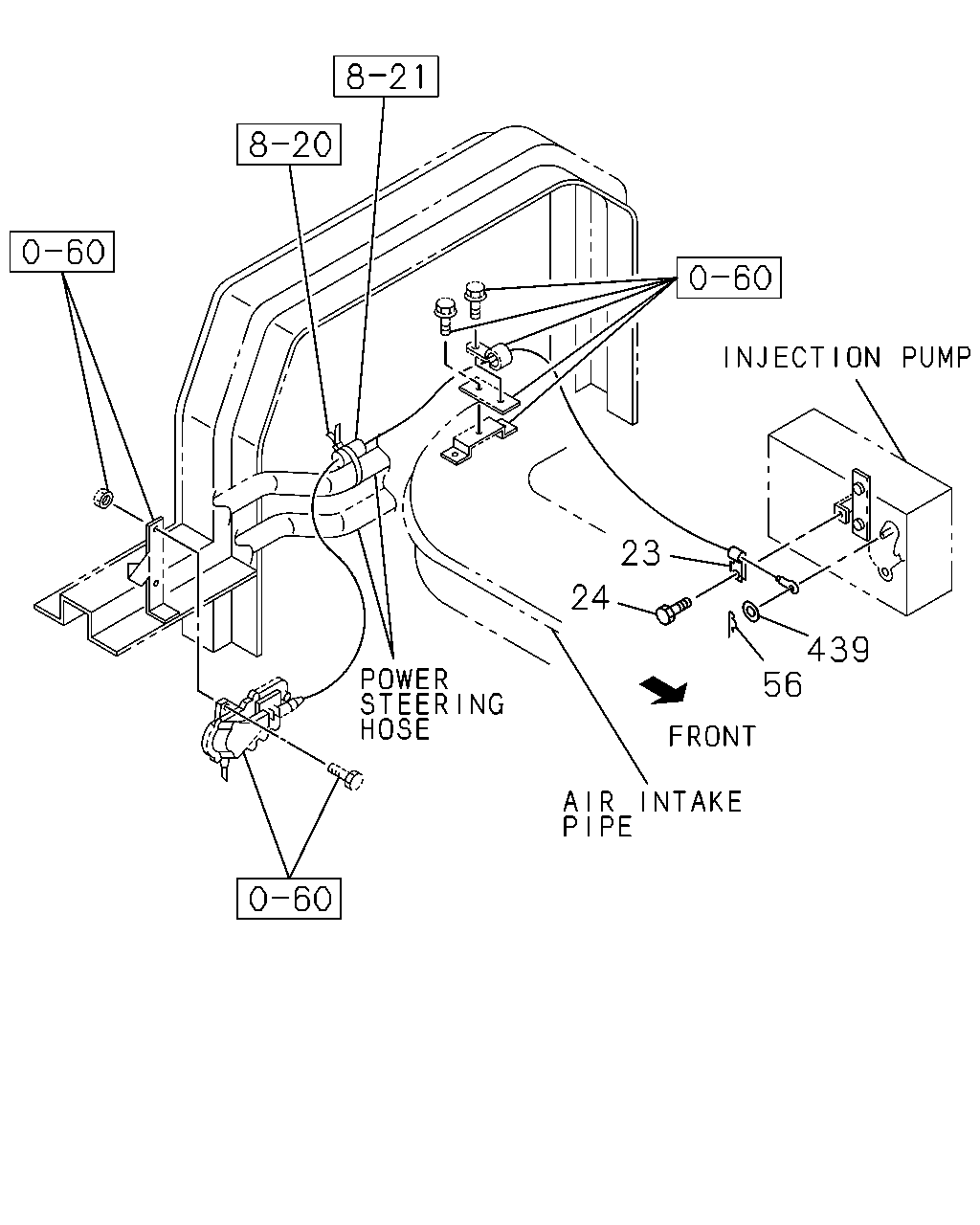

23 24 439 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
23	BRACKET; FUEL CUT CABLE	1-14319-082-0	01	1	9603-9609	●
23	BRACKET; FUEL CUT CABLE	1-14319-082-0	01	1	9606-9808	●
23	BRACKET; FUEL CUT CABLE	1-14319-138-0	01	1	9608-9904	●
23	BRACKET; FUEL CUT CABLE	1-14319-138-0	01	1	9905-	●	●	●
24	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	01	1	9603-9606	●
24	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	9607-9609	●
24	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	01	1	9610-9904	●
24	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	01	1	9905-	●	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9603-9706	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9905-	●	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9707-9804	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9805-9904	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9603-9706	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9905-	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9707-9804	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9805-9904	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
