◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ WFR ▶ 50686 - WFR-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#47269) — 83 parça

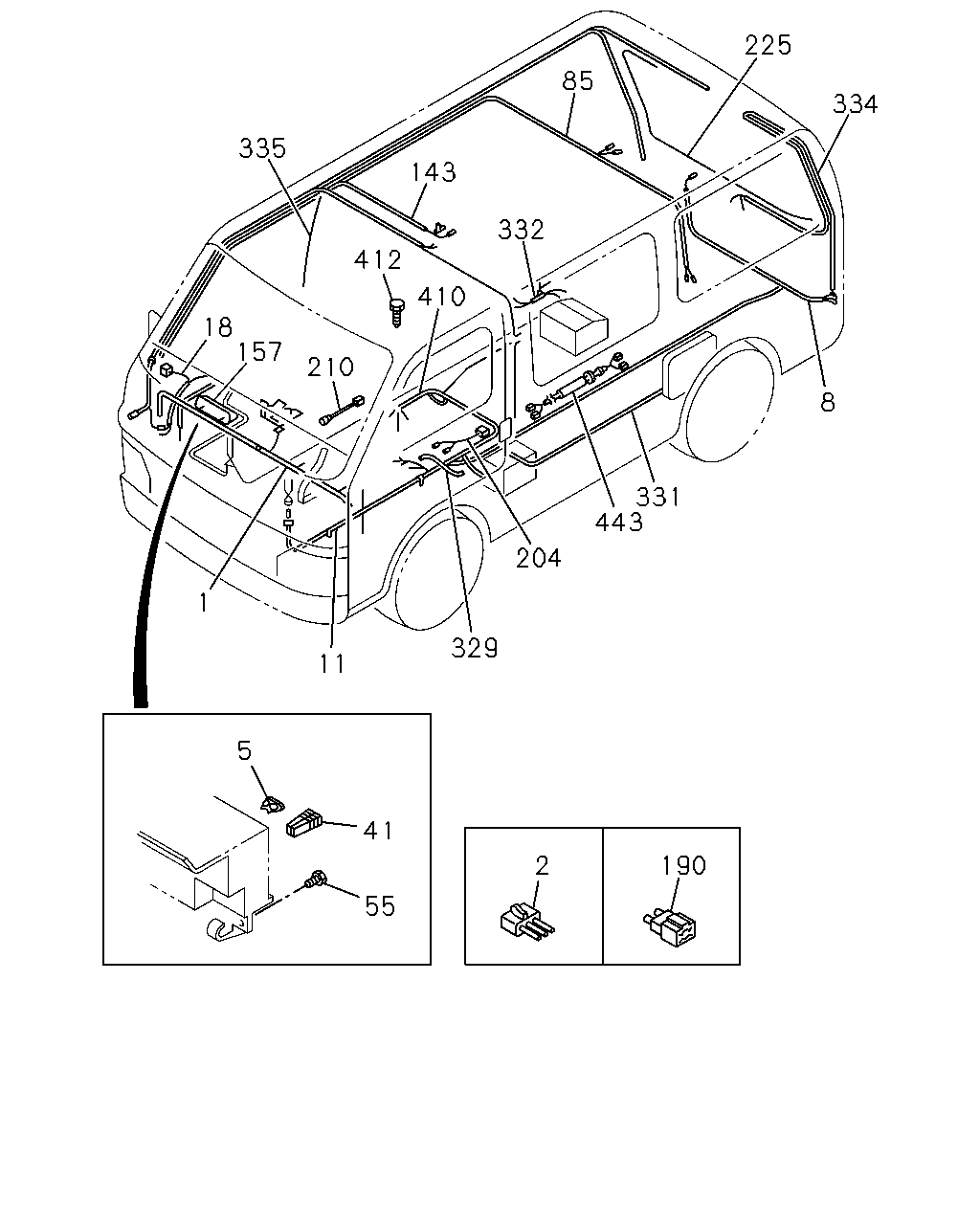

çizim 67608
225 85 334 335 143 332 412 410 18 157 210 8 331 443 204 1 329 11 5 41 2 190 55
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
4FG1 ENG(RLL) DUAL HEAVY DUTY HORN(6KK) 		8-97073-183-2 01 1 9307-9311 ● ●
1 HARNESS; CAB
4FG1 ENG(RLL) DUAL HEAVY DUTY HORN(6KK) 		8-97105-232-0 01 1 9312- ● ●
1 HARNESS; CAB
4FG1 ENG(RLL) EXC. DUAL HEAVY DUTY HORN(6KK) 		8-97073-182-2 01 1 9307-9311 ● ●
1 HARNESS; CAB
4FG1 ENG(RLL) EXC. DUAL HEAVY DUTY HORN(6KK) 		8-97105-231-0 01 1 9312-9406 ● ●
1 HARNESS; CAB
4FG1 ENG(RLL) EXC. EUROPEAN BASIC EQUIPMENT(EK4),DUAL HEAVY DUTYHORN(6KK) 		8-97105-231-0 01 1 9407- ● ●
1 HARNESS; CAB
4FG1 ENG(RLL) EUROPEAN BASIC EQUIPMENT(EK4) 		8-97095-070-1 01 1 9407- ● ●
1 HARNESS; CAB
4ZC1 ENG(LR9) CATALYSIS CONTROL<6MZ> EXC. DUAL HEAVY DUTY HORN(6KK) 		8-97106-475-1 01 1 9407- ● ●
1 HARNESS; CAB
4ZC1 ENG(LR9) DUAL HEAVY DUTY HORN(6KK) 		8-97073-185-2 01 1 9307-9311 ● ●
1 HARNESS; CAB
4ZC1 ENG(LR9) DUAL HEAVY DUTY HORN(6KK) 		8-97105-234-0 01 1 9312-9406 ● ●
1 HARNESS; CAB
4ZC1 ENG(LR9) DUAL HEAVY DUTY HORN(6KK) EXC. CATALYSIS CONTROL<6MZ> 		8-97105-234-0 01 1 9407- ● ●
1 HARNESS; CAB
4ZC1 ENG(LR9) DUAL HEAVY DUTY HORN(6KK) CATALYSIS CONTROL<6MZ> 		8-97106-476-1 01 1 9407- ● ●
1 HARNESS; CAB
4ZC1 ENG(LR9) EXC. DUAL HEAVY DUTY HORN(6KK) 		8-97073-184-2 01 1 9307-9311 ● ●
1 HARNESS; CAB
4ZC1 ENG(LR9) EXC. DUAL HEAVY DUTY HORN(6KK) 		8-97105-233-0 01 1 9312-9406 ● ●
1 HARNESS; CAB
4ZC1 ENG(LR9) EXC. EUROPEAN BASIC EQUIPMENT(EK4),DUAL HEAVY DUTYHORN(6KK),CATALYSIS CONTROL<6MZ> 		8-97105-233-0 01 1 9407- ● ●
2 DIODE; CABLE HARNESS
BLACK 2P-1.5A 		8-94422-639-1 01 1 9307- ● ●
2 DIODE; CABLE HARNESS
4ZC1 ENG(LR9) BLACK 3P-1.5A 		8-94422-640-1 01 1 9307- ● ●
5 FUSE; FACIA HARNESS
10A RED 		5-82516-002-0 04 1 9307- ● ●
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 15 1 9307-9406 ● ●
5 FUSE; FACIA HARNESS
4FG1 ENG(RLL) EXC. EUROPEAN BASIC EQUIPMENT(EK4) 15A BLUE 		5-82516-003-0 15 1 9407- ● ●
5 FUSE; FACIA HARNESS
4ZC1 ENG(LR9) 15A BLUE 		5-82516-003-0 15 1 9407- ● ●
5 FUSE; FACIA HARNESS
4FG1 ENG(RLL) EUROPEAN BASIC EQUIPMENT(EK4) 15A BLUE 		5-82516-003-0 16 1 9407- ● ●
5 FUSE; FACIA HARNESS
20A YELLOW 		5-82516-004-0 03 1 9307- ● ●
8 HARNESS; FRAME,FRT 8-97029-687-1 01 1 9307-9406 ●
8 HARNESS; FRAME,FRT
EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-97029-687-1 01 1 9407- ●
8 HARNESS; FRAME,FRT
EUROPEAN BASIC EQUIPMENT(EK4) 		8-94420-207-2 01 1 9407- ●
8 HARNESS; FRAME,FRT 8-97029-688-1 01 1 9307-9406 ●
8 HARNESS; FRAME,FRT
EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-97029-688-1 01 1 9407- ●
8 HARNESS; FRAME,FRT
EUROPEAN BASIC EQUIPMENT(EK4) 		8-94420-206-2 01 1 9407- ●
11 HARNESS; BODY
4FG1 ENG(RLL) 		8-97085-761-2 01 1 9307-9406 ● ●
11 HARNESS; BODY
4FG1 ENG(RLL) EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-97085-761-2 01 1 9407- ● ●
11 HARNESS; BODY
4FG1 ENG(RLL) EUROPEAN BASIC EQUIPMENT(EK4) 		8-97095-073-1 01 1 9407- ● ●
11 HARNESS; BODY
4ZC1 ENG(LR9) 		8-97085-762-2 01 1 9307-9406 ● ●
11 HARNESS; BODY
4ZC1 ENG(LR9) EXC. EUROPEAN BASIC EQUIPMENT(EK4),CATALYSIS CONTROL<6MZ> 		8-97085-762-2 01 1 9407- ● ●
11 HARNESS; BODY
4ZC1 ENG(LR9) CATALYSIS CONTROL<6MZ> 		8-97106-477-1 01 1 9407- ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> DRIVER 		8-94367-891-2 01 1 9307- ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> ASSIST 		8-94367-893-2 01 1 9307- ● ●
18 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-94406-524-3 02 1 9307- ● ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 9307- ● ●
55 SCREW; FUSE BOX BRKT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M5X12 W/LK&PL WASHER 		9-03920-512-0 02 1 9307- ● ●
85 HARNESS; ROOM LAMP
SUNROOF<CF5> 4 DOOR WAGON(V4W) 		8-94385-641-0 01 1 9307- ●
85 HARNESS; ROOM LAMP
4 DOOR BUS(V4Z) 		8-94385-649-0 01 1 9307- ●
85 HARNESS; ROOM LAMP
4 DOOR WAGON(V4W) EXC. SUNROOF<CF5> 		8-94385-646-0 01 1 9307- ●
85 HARNESS; ROOM LAMP
5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) 		8-94385-634-2 01 1 9307- ● ●
85 HARNESS; ROOM LAMP
4 DOOR BUS(V4Z) 		8-94385-638-1 01 1 9307- ●
143 HARNESS; CABLE,SUNROOF
SUNROOF<CF5> 		8-94145-287-0 01 1 9307- ●
157 BOX ASM; RELAY & FUSE,BODY HARNESS
4FG1 ENG(RLL) DUAL HEAVY DUTY HORN(6KK) 		8-94442-892-0 01 1 9307- ● ●
157 BOX ASM; RELAY & FUSE,BODY HARNESS
4FG1 ENG(RLL) EXC. DUAL HEAVY DUTY HORN(6KK) 		8-94439-882-0 01 1 9307-9406 ● ●
157 BOX ASM; RELAY & FUSE,BODY HARNESS
4FG1 ENG(RLL) EXC. EUROPEAN BASIC EQUIPMENT(EK4),DUAL HEAVY DUTYHORN(6KK) 		8-94439-882-0 01 1 9407- ● ●
157 BOX ASM; RELAY & FUSE,BODY HARNESS
4FG1 ENG(RLL) EUROPEAN BASIC EQUIPMENT(EK4) 		8-94439-883-0 01 1 9407- ● ●
157 BOX ASM; RELAY & FUSE,BODY HARNESS
4ZC1 ENG(LR9) DUAL HEAVY DUTY HORN(6KK) 		8-94442-891-0 01 1 9307- ● ●
157 BOX ASM; RELAY & FUSE,BODY HARNESS
4ZC1 ENG(LR9) EXC. DUAL HEAVY DUTY HORN(6KK) 		8-94439-880-0 01 1 9307-9406 ● ●
157 BOX ASM; RELAY & FUSE,BODY HARNESS
4ZC1 ENG(LR9) EXC. EUROPEAN BASIC EQUIPMENT(EK4),DUAL HEAVY DUTYHORN(6KK) 		8-94439-880-0 01 1 9407- ● ●
190 CONNECTOR; SHORT CIRCUIT
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94447-850-0 01 1 9307-9406 ● ●
190 CONNECTOR; SHORT CIRCUIT
EXC. EUROPEAN BASIC EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2) 		8-94447-850-0 01 1 9407- ● ●
204 HARNESS; CABLE,FLOOR
SAUDI ARABIA EQUIPMENT(EU2) 		8-94418-125-0 01 1 9307- ● ●
210 CABLE; EXT,STOP LAMP SW
4ZC1 ENG(LR9) CATALYSIS CONTROL<6MZ> 		8-94312-731-1 01 1 9407- ● ●
225 CABLE; RR DEFOGGER
REAR DEFOGGER<C49> <+> 		8-94227-018-0 01 1 9307- ● ●
225 CABLE; RR DEFOGGER
REAR DEFOGGER<C49> <-> 		8-94227-019-0 01 1 9307- ● ●
329 CABLE; ENG TO FRAME 8-94227-130-1 01 1 9307-9406 ● ●
329 CABLE; ENG TO FRAME
EXC. TURBOCHARGER(K51) 		8-94227-130-1 01 1 9407- ● ●
329 CABLE; ENG TO FRAME
TURBOCHARGER(K51) 		8-94456-839-1 01 1 9407- ● ●
331 HARNESS; CABLE,RR COOLER
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-97029-697-0 01 1 9307- ● ●
332 HARNESS; CABLE,RR HTR
REAR HEATER<C35> EUROPEAN BASIC EQUIPMENT(EK4) 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) 		8-94418-120-2 01 1 9407- ●
332 HARNESS; CABLE,RR HTR
REAR HEATER<C35> 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) 		8-97085-752-0 01 1 9307-9406 ●
332 HARNESS; CABLE,RR HTR
REAR HEATER<C35> 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-97085-752-0 01 1 9407- ●
332 HARNESS; CABLE,RR HTR
REAR HEATER<C35> EUROPEAN BASIC EQUIPMENT(EK4) 4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR BUS(V4Z) 		8-94418-121-1 01 1 9407- ●
332 HARNESS; CABLE,RR HTR
REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR BUS(V4Z) 		8-97085-753-0 01 1 9307-9406 ●
332 HARNESS; CABLE,RR HTR
REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR BUS(V4Z) EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-97085-753-0 01 1 9407- ●
334 HARNESS; CABLE,BACK DOOR
EUROPEAN BASIC EQUIPMENT(EK4) EXC. RR WIPER<C25>,REAR DEFOGGER<C49> 		8-94156-983-1 01 1 9407- ● ●
334 HARNESS; CABLE,BACK DOOR
REAR DEFOGGER<C49> EUROPEAN BASIC EQUIPMENT(EK4) EXC. RR WIPER<C25> 		8-94437-680-1 01 1 9407- ● ●
334 HARNESS; CABLE,BACK DOOR
REAR DEFOGGER<C49> EXC. RR WIPER<C25> 		8-97035-345-0 01 1 9307-9406 ● ●
334 HARNESS; CABLE,BACK DOOR
REAR DEFOGGER<C49> EXC. RR WIPER<C25>,EUROPEAN BASIC EQUIPMENT(EK4) 		8-97035-345-0 01 1 9407- ● ●
334 HARNESS; CABLE,BACK DOOR
RR WIPER<C25> 		8-97029-691-1 01 1 9307-9406 ● ●
334 HARNESS; CABLE,BACK DOOR
RR WIPER<C25> EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-97029-691-1 01 1 9407- ● ●
334 HARNESS; CABLE,BACK DOOR
RR WIPER<C25> EUROPEAN BASIC EQUIPMENT(EK4) 		8-94156-984-2 01 1 9407- ● ●
334 HARNESS; CABLE,BACK DOOR
EXC. RR WIPER<C25>,REAR DEFOGGER<C49> 		8-97035-344-0 01 1 9307-9406 ● ●
334 HARNESS; CABLE,BACK DOOR
EXC. RR WIPER<C25>,REAR DEFOGGER<C49>,EUROPEAN BASIC EQUIPMENT(EK4) 		8-97035-344-0 01 1 9407- ● ●
335 HARNESS; CABLE,DOOR SW
5 DOOR PANEL VAN(V4P),5 DOOR VAN(V4X) 		8-94386-021-0 01 1 9307- ● ●
410 HARNESS; CABLE,FUEL PUMP
SAUDI ARABIA EQUIPMENT(EU2) 		8-94439-956-0 01 1 9307- ●
410 HARNESS; CABLE,FUEL PUMP
SAUDI ARABIA EQUIPMENT(EU2) 		8-97029-686-0 01 1 9307- ●
410 HARNESS; CABLE,FUEL PUMP
4ZC1 ENG(LR9) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97029-685-0 01 1 9307- ●
412 BOLT; TERMINAL TO ENG,HANGER RR
4ZC1 ENG(LR9) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9307- ● ●
443 HARNESS; EXT,A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) HEATER TO CONNECTOR 		8-97105-263-0 01 1 9308-9311 ● ●
