8-01 — LAMP; FRONT AND FRONT SIDE (#47266) — 107 parça

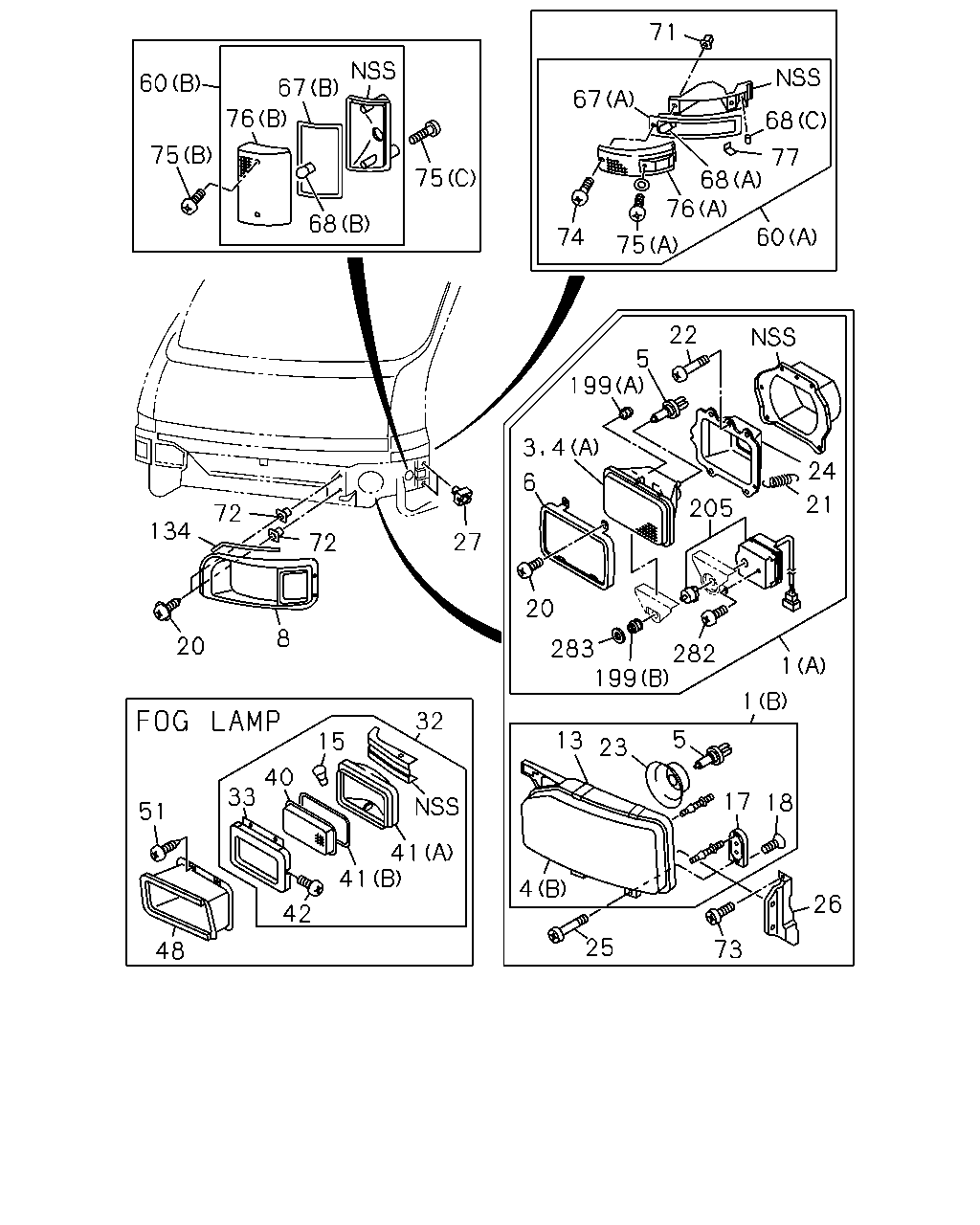

çizim 18056
71 67 68 77 68 76 75 67 76 60 75 75 68 74 60 22 5 199 4 6 72 72 24 205 21 134 27 20 8 20 283 282 199 1 18 32 5 13 23 15 40 33 17 18 51 41 41 42 4 26 73 25 48 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 12V 60/55W 		8-94345-554-0 01 1 9407- ● ●
1 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 12V 60/55W 		8-94345-553-0 01 1 9407- ● ●
1 LAMP ASM; HEAD
EUROPEAN BASIC EQUIPMENT(EK4) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,ADJUST HEADLAMP<6RC> (A) 		8-94284-798-1 01 1 9407- ● ●
1 LAMP ASM; HEAD
EUROPEAN BASIC EQUIPMENT(EK4) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,ADJUST HEADLAMP<6RC> (A) 		8-94284-797-1 01 1 9407- ● ●
1 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 12V 60/55W 		8-94352-067-0 01 1 9307-9406 ● ●
1 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. ADJUST HEADLAMP<6RC> (B) 12V 60/55W 		8-94352-067-0 01 1 9407- ● ●
1 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 12V 60/55W 		8-94352-066-0 01 1 9307-9406 ● ●
1 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. ADJUST HEADLAMP<6RC> (B) 12V 60/55W 		8-94352-066-0 01 1 9407- ● ●
1 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> ADJUST HEADLAMP<6RC> (B) 12V 60/55W 		8-94352-069-0 01 1 9407- ● ●
1 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> ADJUST HEADLAMP<6RC> (B) 12V 60/55W 		8-94352-068-0 01 1 9407- ● ●
1 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,YELLOW HEAD LAMP<T75> (A) 12V 60/55W 		8-94289-925-1 01 1 9307-9406 ● ●
1 LAMP ASM; HEAD
EXC. EUROPEAN BASIC EQUIPMENT(EK4),HALOGEN HEAD LAMP RECTANGULAR<TR4>,YELLOW HEAD LAMP<T75> (A) 12V 60/55W 		8-94289-925-1 01 1 9407- ● ●
1 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,YELLOW HEAD LAMP<T75> (A) 12V 60/55W 		8-94289-924-1 01 1 9307-9406 ● ●
1 LAMP ASM; HEAD
EXC. EUROPEAN BASIC EQUIPMENT(EK4),HALOGEN HEAD LAMP RECTANGULAR<TR4>,YELLOW HEAD LAMP<T75> (A) 12V 60/55W 		8-94289-924-1 01 1 9407- ● ●
1 LAMP ASM; HEAD
YELLOW HEAD LAMP<T75> (A) 12V 60/55W 		8-94290-665-1 01 1 9307- ● ●
1 LAMP ASM; HEAD
YELLOW HEAD LAMP<T75> (A) 12V 60/55W 		8-94290-664-1 01 1 9307- ● ●
3 SEALED BEAM; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,YELLOW HEAD LAMP<T75> 12V 65/55W 		8-94214-881-0 02 1 9307-9406 ● ●
3 SEALED BEAM; HEADLAMP
EXC. EUROPEAN BASIC EQUIPMENT(EK4),HALOGEN HEAD LAMP RECTANGULAR<TR4>,YELLOW HEAD LAMP<T75> 12V 65/55W 		8-94214-881-0 02 1 9407- ● ●
4 HEADLAMP UNIT
EUROPEAN BASIC EQUIPMENT(EK4) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-94243-939-0 02 1 9407- ● ●
4 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 12V 60/55W 		8-94352-073-0 01 1 9307-9406 ● ●
4 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. ADJUST HEADLAMP<6RC> (B) 12V 60/55W 		8-94352-073-0 01 1 9407- ● ●
4 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 12V 60/55W 		8-94352-072-0 01 1 9307-9406 ● ●
4 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. ADJUST HEADLAMP<6RC> (B) 12V 60/55W 		8-94352-072-0 01 1 9407- ● ●
4 HEADLAMP UNIT
YELLOW HEAD LAMP<T75> (A) 12V 45/40W 		8-94243-941-0 02 1 9307- ● ●
5 BULB; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 12V 60/55W 		8-94217-817-0 02 1 9307- ● ●
5 BULB; HEADLAMP
YELLOW HEAD LAMP<T75> 12V 45/40W YELLOW 		5-82193-002-0 02 1 9307- ● ●
6 RIM; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-94216-530-0 02 1 9307- ● ●
8 RIM; HEADLAMP
FASHION PACK EXTERIOR<YN3> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> PLATED 		8-94275-208-2 01 1 9307- ● ●
8 RIM; HEADLAMP
FASHION PACK EXTERIOR<YN3> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> PLATED 		8-94275-207-2 01 1 9307- ● ●
8 RIM; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> FASHION PACK EXTERIOR<YN3> PLATED 		8-94275-210-3 01 1 9307- ● ●
8 RIM; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> FASHION PACK EXTERIOR<YN3> PLATED 		8-94275-209-3 01 1 9307- ● ●
8 RIM; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. ACCESSORY PACK<ET6>,FASHION PACK EXTERIOR<YN3> PRIMER 		8-94278-656-3 01 1 9307- ● ●
8 RIM; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. ACCESSORY PACK<ET6>,FASHION PACK EXTERIOR<YN3> PRIMER 		8-94278-657-3 01 1 9307- ● ●
8 RIM; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,FASHION PACK EXTERIOR<YN3> PRIMER 		8-94278-658-2 01 1 9307- ● ●
8 RIM; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,FASHION PACK EXTERIOR<YN3> PRIMER 		8-94278-659-2 01 1 9307- ● ●
13 CLIP; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> ADJUST HEADLAMP<6RC> 		8-97029-787-0 10 1 9407- ● ●
15 BULB; FOG LAMP
FOG LAMP<T96> 12V 35W 		8-94293-999-0 02 1 9307- ● ●
17 CASE ASM; GEAR,HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-94345-040-0 04 1 9307- ● ●
18 SCREW; GEAR CASE
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-94345-041-0 16 1 9307-9406 ● ●
18 SCREW; GEAR CASE
HALOGEN HEAD LAMP RECTANGULAR<TR4> ADJUST HEADLAMP<6RC> 		8-94345-041-0 18 1 9407- ● ●
18 SCREW; GEAR CASE
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. ADJUST HEADLAMP<6RC> 		8-94345-041-0 16 1 9407- ● ●
20 SCREW; HEADLAMP 8-94279-384-0 08 1 9307- ● ●
20 SCREW; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-94344-626-0 08 1 9307- ● ●
21 SPRING; ADJ HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-94216-529-1 02 1 9307-9406 ● ●
21 SPRING; ADJ HEADLAMP
ADJUST HEADLAMP<6RC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97029-789-0 02 1 9407- ● ●
21 SPRING; ADJ HEADLAMP
YELLOW HEAD LAMP<T75> 		8-94216-529-1 02 1 9407- ● ●
21 SPRING; ADJ HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-94216-529-1 02 1 9407- ● ●
22 SCREW; ADJ,HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-94216-526-1 04 1 9307- ● ●
23 COVER; BULB,HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-94269-368-0 02 1 9307- ● ●
24 MOUNTING; ADJ SCREW HD LAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> D=7X7 L=7.5 		8-94291-927-0 04 1 9307- ● ●
25 SCREW; LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> M6X16 W/LK&PL WASHER 		9-03920-616-0 08 1 9307- ● ●
25 SCREW; LAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> M5X10 TAPPING 		9-07066-510-0 08 1 9307- ● ●
26 BRACKET ASM; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-94278-475-1 01 1 9307-9406 ● ●
26 BRACKET ASM; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. ADJUST HEADLAMP<6RC> 		8-94278-475-1 01 1 9407- ● ●
26 BRACKET ASM; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-94278-474-1 01 1 9307-9406 ● ●
26 BRACKET ASM; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. ADJUST HEADLAMP<6RC> 		8-94278-474-1 01 1 9407- ● ●
26 BRACKET ASM; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-94278-485-0 02 1 9307-9406 ● ●
26 BRACKET ASM; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,ADJUST HEADLAMP<6RC> 		8-94278-485-0 02 1 9407- ● ●
27 GROMMET; BRKT,HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-94279-703-0 04 1 9307- ● ●
27 GROMMET; BRKT,HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-94279-704-0 04 1 9307- ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-94269-183-0 01 1 9307- ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-94269-182-0 01 1 9307- ● ●
33 RIM; FOG LAMP
FOG LAMP<T96> 		8-94293-996-0 02 1 9307- ● ●
40 LENS; FOG LAMP
FOG LAMP<T96> 		8-94293-997-0 02 1 9307- ● ●
41 GASKET; LENS,FOG LAMP
FOG LAMP<T96> (A) 		8-94293-995-0 04 1 9307- ● ●
41 GASKET; LENS,FOG LAMP
FOG LAMP<T96> (B) 		8-94293-998-0 02 1 9307- ● ●
42 SCREW; LENS,FOG LAMP
FOG LAMP<T96> M4X8 		9-03486-408-0 02 1 9307- ● ●
48 COVER; FOG LAMP
FOG LAMP<T96> 		8-94293-607-1 01 1 9307- ● ●
48 COVER; FOG LAMP
FOG LAMP<T96> 		8-94293-606-1 01 1 9307- ● ●
51 SCREW; COVER,FOG LAMP
FOG LAMP<T96> M4X12 TAPPING 		9-07067-412-0 08 1 9307- ● ●
60 LAMP ASM; FRT COMB
(B) 		8-94350-992-0 01 1 9307-9406 ● ●
60 LAMP ASM; FRT COMB
EXC. EUROPEAN BASIC EQUIPMENT(EK4) (B) 		8-94350-992-0 01 1 9407- ● ●
60 LAMP ASM; FRT COMB
(A) 		8-94350-999-0 01 1 9307-9406 ● ●
60 LAMP ASM; FRT COMB
EXC. EUROPEAN BASIC EQUIPMENT(EK4) (A) 		8-94350-999-0 01 1 9407- ● ●
60 LAMP ASM; FRT COMB
(B) 		8-94350-991-0 01 1 9307-9406 ● ●
60 LAMP ASM; FRT COMB
EXC. EUROPEAN BASIC EQUIPMENT(EK4) (B) 		8-94350-991-0 01 1 9407- ● ●
60 LAMP ASM; FRT COMB
(A) 		8-94350-998-0 01 1 9307-9406 ● ●
60 LAMP ASM; FRT COMB
EXC. EUROPEAN BASIC EQUIPMENT(EK4) (A) 		8-94350-998-0 01 1 9407- ● ●
60 LAMP ASM; FRT COMB
EUROPEAN BASIC EQUIPMENT(EK4) (B) 		8-94350-994-0 01 1 9407- ● ●
60 LAMP ASM; FRT COMB
EUROPEAN BASIC EQUIPMENT(EK4) (A) 		8-94350-997-0 01 1 9407- ● ●
60 LAMP ASM; FRT COMB
EUROPEAN BASIC EQUIPMENT(EK4) (B) 		8-94350-993-0 01 1 9407- ● ●
60 LAMP ASM; FRT COMB
EUROPEAN BASIC EQUIPMENT(EK4) (A) 		8-94350-996-0 01 1 9407- ● ●
67 GASKET; FRT COMB LAMP
(B) 		8-94350-995-0 02 1 9307- ● ●
67 GASKET; FRT COMB LAMP
(A) 		8-94352-003-0 02 1 9307- ● ●
68 BULB; FRT COMB LAMP
(A) 12V 21W 		8-94124-074-0 02 1 9307- ● ●
68 BULB; FRT COMB LAMP
(B) 12V 5W 		8-94124-075-0 02 1 9307- ● ●
68 BULB; FRT COMB LAMP
(C) 12V 5W 		8-94124-595-0 02 1 9307- ● ●
71 GROMMET; TURN SIGNAL LAMP
M4 		5-09470-002-0 04 1 9307- ● ●
72 GROMMET; SCREW,HEADLAMP 5-09983-006-0 04 1 9307- ● ●
73 BOLT; BRKT,HEADLAMP
M6X14 W/LK&PL WASHER 		9-03920-614-0 04 1 9307-9406 ● ●
73 BOLT; BRKT,HEADLAMP
EXC. ADJUST HEADLAMP<6RC> M6X14 W/LK&PL WASHER 		9-03920-614-0 04 1 9407- ● ●
74 SCREW; TURN SIGNAL LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 04 1 9307- ● ●
75 SCREW; FRT COMB LAMP
(B) M4X20 TAPPING STAINLESS 		0-71190-420-0 04 1 9307- ● ●
75 SCREW; FRT COMB LAMP
(A) M4X20 W/WASHER 		8-94291-867-0 02 1 9307- ● ●
75 SCREW; FRT COMB LAMP
(C) M5X20 TAPPING 		9-07066-520-0 04 1 9307- ● ●
76 LENS; FRT COMB LAMP
(A) 		8-94292-935-1 02 1 9307- ● ●
76 LENS; FRT COMB LAMP
(B) 		8-94269-194-0 01 1 9307- ● ●
76 LENS; FRT COMB LAMP
(B) 		8-94269-193-0 01 1 9307- ● ●
77 SHADE; FRT TURN SIGNAL LAMP 8-97043-399-0 02 1 9307- ● ●
134 FINISHER; HEADLAMP RIM
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-94275-990-1 01 1 9307- ● ●
134 FINISHER; HEADLAMP RIM
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-94275-989-1 01 1 9307- ● ●
134 FINISHER; HEADLAMP RIM
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-94275-991-1 02 1 9307- ● ●
199 BUSHING
ADJUST HEADLAMP<6RC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-94381-605-0 04 1 9407- ● ●
199 BUSHING
ADJUST HEADLAMP<6RC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97029-791-0 02 1 9407- ● ●
205 ACTUATOR; HEADLAMP
ADJUST HEADLAMP<6RC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97029-788-0 02 1 9407- ● ●
282 SCREW; ACTUATOR
ADJUST HEADLAMP<6RC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97029-790-0 02 1 9407- ● ●
283 WASHER; BUSHING
ADJUST HEADLAMP<6RC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97029-792-0 02 1 9407- ● ●
