7-70 — SEPARATER AND BED (#47265) — 67 parça

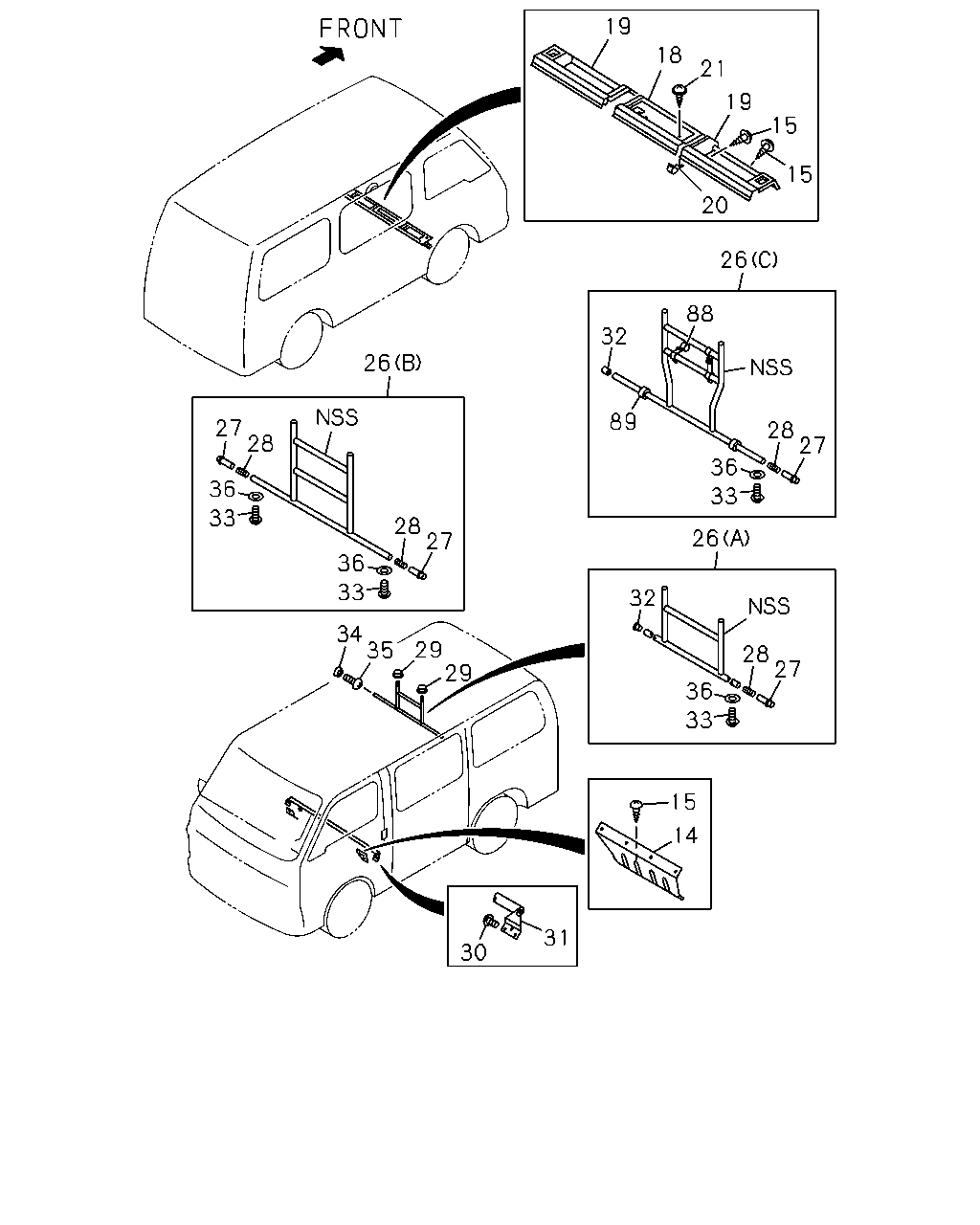

19 18 21 19 15 15 20 26 88 32 26 89 27 28 36 33 28 27 36 33 28 27 26 36 33 32 34 35 29 29 28 27 36 33 15 14 30 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	SUPPORT; BULK HD TRAY 4 DOOR WAGON(V4W)	8-94269-103-1	01	1	9307-9406	●
14	SUPPORT; BULK HD TRAY 4 DOOR WAGON(V4W) EXC. EUROPEAN BASIC EQUIPMENT(EK4)	8-94269-103-1	01	1	9407-	●
14	SUPPORT; BULK HD TRAY 4 DOOR WAGON(V4W)	8-94269-102-1	01	1	9307-9406	●
14	SUPPORT; BULK HD TRAY 4 DOOR WAGON(V4W) EXC. EUROPEAN BASIC EQUIPMENT(EK4)	8-94269-102-1	01	1	9407-	●
15	SCREW; SUPPORT 4 DOOR WAGON(V4W) M6X16 TAPPING W/PL WASHER	1-09981-452-0	04	1	9307-9406	●
15	SCREW; SUPPORT 4 DOOR WAGON(V4W) EXC. EUROPEAN BASIC EQUIPMENT(EK4) M6X16 TAPPING W/PL WASHER	1-09981-452-0	04	1	9407-	●
15	SCREW; SUPPORT 4 DOOR WAGON(V4W) M5X10 W/LK+PL WASHER	9-03920-510-0	07	1	9307-9406	●
15	SCREW; SUPPORT 4 DOOR WAGON(V4W) EXC. EUROPEAN BASIC EQUIPMENT(EK4) M5X10 W/LK+PL WASHER	9-03920-510-0	07	1	9407-	●
15	SCREW; SUPPORT 4 DOOR WAGON(V4W) M5X14 W/LK&PL WASHER	9-03920-514-0	04	1	9307-9406	●
15	SCREW; SUPPORT 4 DOOR WAGON(V4W) EXC. EUROPEAN BASIC EQUIPMENT(EK4) M5X14 W/LK&PL WASHER	9-03920-514-0	04	1	9407-	●
18	TRAY; BULK HD,CENTER INTERIOR COLOR MEDIUM GRAY(113) 4 DOOR WAGON(V4W) GRAY	8-94345-886-2	01	1	9307-9406	●
18	TRAY; BULK HD,CENTER INTERIOR COLOR MEDIUM GRAY(113) 4 DOOR WAGON(V4W) EXC. EUROPEAN BASIC EQUIPMENT(EK4) GRAY	8-94345-886-2	01	1	9407-	●
19	TRAY; BULK HD,SIDE INTERIOR COLOR MEDIUM GRAY(113) 4 DOOR WAGON(V4W) GRAY	8-94345-892-1	01	1	9307-9406	●
19	TRAY; BULK HD,SIDE INTERIOR COLOR MEDIUM GRAY(113) 4 DOOR WAGON(V4W) EXC. EUROPEAN BASIC EQUIPMENT(EK4) GRAY	8-94345-892-1	01	1	9407-	●
19	TRAY; BULK HD,SIDE INTERIOR COLOR MEDIUM GRAY(113) 4 DOOR WAGON(V4W) GRAY	8-94345-889-1	01	1	9307-9406	●
19	TRAY; BULK HD,SIDE INTERIOR COLOR MEDIUM GRAY(113) 4 DOOR WAGON(V4W) EXC. EUROPEAN BASIC EQUIPMENT(EK4) GRAY	8-94345-889-1	01	1	9407-	●
20	CLIP; TRAY,BULK HD 4 DOOR WAGON(V4W)	8-94275-988-0	02	1	9307-9406	●
20	CLIP; TRAY,BULK HD 4 DOOR WAGON(V4W) EXC. EUROPEAN BASIC EQUIPMENT(EK4)	8-94275-988-0	02	1	9407-	●
21	SCREW; CLIP TO TRAY 4 DOOR WAGON(V4W) M5X12 TAPPING W/PL WASHER	0-74100-512-0	04	1	9307-9406	●
21	SCREW; CLIP TO TRAY 4 DOOR WAGON(V4W) EXC. EUROPEAN BASIC EQUIPMENT(EK4) M5X12 TAPPING W/PL WASHER	0-74100-512-0	04	1	9407-	●
26	PIPE ASM; GUARD EUROPEAN BASIC EQUIPMENT(EK4) PARTITION VAN<E60> EXC. SEATING CAPACITY 6(R48),CAB-HIGH ROOF(S2F), SEATING CAPACITY 5(X92) (C)	8-94284-872-0	01	1	9407-	●	●
26	PIPE ASM; GUARD EUROPEAN BASIC EQUIPMENT(EK4) PARTITION VAN<E60> SEATING CAPACITY 6(R48),SEATING CAPACITY 5(X92) EXC. CAB-HIGH ROOF(S2F) (C)	8-94282-517-0	01	1	9407-	●	●
26	PIPE ASM; GUARD PARTITION VAN<E60> EXC. CAB-HIGH ROOF(S2F) (A)	8-94289-848-2	01	1	9307-9406	●	●
26	PIPE ASM; GUARD PARTITION VAN<E60> EXC. EUROPEAN BASIC EQUIPMENT(EK4),CAB-HIGH ROOF(S2F) (A)	8-94289-848-2	01	1	9407-	●	●
26	PIPE ASM; GUARD EUROPEAN BASIC EQUIPMENT(EK4) PARTITION VAN<E60> CAB-HIGH ROOF(S2F) EXC. SEATING CAPACITY 6(R48),SEATING CAPACITY 5(X92) (C)	8-94282-960-0	01	1	9407-		●
26	PIPE ASM; GUARD EUROPEAN BASIC EQUIPMENT(EK4) PARTITION VAN<E60> SEATING CAPACITY 6(R48),SEATING CAPACITY 5(X92) CAB-HIGH ROOF(S2F) (C)	8-94282-961-0	01	1	9407-		●
26	PIPE ASM; GUARD PARTITION VAN<E60> CAB-HIGH ROOF(S2F) (B)	8-94289-849-2	01	1	9307-9406		●
26	PIPE ASM; GUARD PARTITION VAN<E60> CAB-HIGH ROOF(S2F) EXC. EUROPEAN BASIC EQUIPMENT(EK4) (B)	8-94289-849-2	01	1	9407-		●
27	BAR; SETTING,GUARD PIPE PARTITION VAN<E60> EXC. CAB-HIGH ROOF(S2F)	8-94289-851-1	01	1	9307-9406	●	●
27	BAR; SETTING,GUARD PIPE PARTITION VAN<E60> EXC. CAB-HIGH ROOF(S2F)	8-94289-851-1	01	1	9407-	●	●
27	BAR; SETTING,GUARD PIPE EUROPEAN BASIC EQUIPMENT(EK4) PARTITION VAN<E60> EXC. CAB-HIGH ROOF(S2F)	8-94289-851-1	01	1	9407-		●
27	BAR; SETTING,GUARD PIPE PARTITION VAN<E60> CAB-HIGH ROOF(S2F)	8-94289-851-1	02	1	9307-9406		●
27	BAR; SETTING,GUARD PIPE PARTITION VAN<E60> CAB-HIGH ROOF(S2F) EXC. EUROPEAN BASIC EQUIPMENT(EK4)	8-94289-851-1	02	1	9407-		●
28	SPRING; GUARD PIPE PARTITION VAN<E60> EXC. CAB-HIGH ROOF(S2F)	8-94289-853-0	01	1	9307-9406	●	●
28	SPRING; GUARD PIPE PARTITION VAN<E60> EXC. CAB-HIGH ROOF(S2F)	8-94289-853-0	01	1	9407-	●	●
28	SPRING; GUARD PIPE EUROPEAN BASIC EQUIPMENT(EK4) PARTITION VAN<E60> EXC. CAB-HIGH ROOF(S2F)	8-94289-853-0	01	1	9407-		●
28	SPRING; GUARD PIPE PARTITION VAN<E60> CAB-HIGH ROOF(S2F)	8-94290-915-0	02	1	9307-9406		●
28	SPRING; GUARD PIPE PARTITION VAN<E60> CAB-HIGH ROOF(S2F) EXC. EUROPEAN BASIC EQUIPMENT(EK4)	8-94290-915-0	02	1	9407-		●
29	HOLDER; GUARD PIPE PARTITION VAN<E60> RR SEAT FOLD<6KV>	8-94291-651-0	04	1	9307-	●	●
29	HOLDER; GUARD PIPE PARTITION VAN<E60> EXC. RR SEAT FOLD<6KV>	8-94291-651-0	02	1	9307-	●	●
30	SCREW; PIPE TO BODY 4 DOOR WAGON(V4W) M6X16 W/LK&PL WASHER	9-03920-616-0	04	1	9307-9406	●
30	SCREW; PIPE TO BODY 4 DOOR WAGON(V4W) EXC. EUROPEAN BASIC EQUIPMENT(EK4) M6X16 W/LK&PL WASHER	9-03920-616-0	04	1	9407-	●
31	PIPE; BULK TO HD TRAY 4 DOOR WAGON(V4W)	8-94280-968-1	01	1	9307-9406	●
31	PIPE; BULK TO HD TRAY 4 DOOR WAGON(V4W) EXC. EUROPEAN BASIC EQUIPMENT(EK4)	8-94280-968-1	01	1	9407-	●
32	PLUG; GUARD PIPE PARTITION VAN<E60> EXC. CAB-HIGH ROOF(S2F)	8-94289-850-0	01	1	9307-9406	●	●
32	PLUG; GUARD PIPE PARTITION VAN<E60> EXC. CAB-HIGH ROOF(S2F)	8-94289-850-0	01	1	9407-	●	●
32	PLUG; GUARD PIPE EUROPEAN BASIC EQUIPMENT(EK4) PARTITION VAN<E60> EXC. CAB-HIGH ROOF(S2F)	8-94289-850-0	01	1	9407-		●
33	SCREW; GUARD PIPE PARTITION VAN<E60> EXC. CAB-HIGH ROOF(S2F) M4X8 TAPPING	9-07077-408-0	01	1	9307-9406	●	●
33	SCREW; GUARD PIPE PARTITION VAN<E60> EXC. CAB-HIGH ROOF(S2F) M4X8 TAPPING	9-07077-408-0	01	1	9407-	●	●
33	SCREW; GUARD PIPE EUROPEAN BASIC EQUIPMENT(EK4) PARTITION VAN<E60> EXC. CAB-HIGH ROOF(S2F) M4X8 TAPPING	9-07077-408-0	01	1	9407-		●
33	SCREW; GUARD PIPE PARTITION VAN<E60> CAB-HIGH ROOF(S2F) M4X8 TAPPING	9-07077-408-0	02	1	9307-9406		●
33	SCREW; GUARD PIPE PARTITION VAN<E60> CAB-HIGH ROOF(S2F) EXC. EUROPEAN BASIC EQUIPMENT(EK4) M4X8 TAPPING	9-07077-408-0	02	1	9407-		●
34	BRACKET; GUARD PIPE EUROPEAN BASIC EQUIPMENT(EK4) PARTITION VAN<E60> RR SEAT FOLD<6KV>	5-73947-054-1	04	1	9407-	●	●
34	BRACKET; GUARD PIPE EUROPEAN BASIC EQUIPMENT(EK4) PARTITION VAN<E60> EXC. RR SEAT FOLD<6KV>	5-73947-054-1	02	1	9407-	●	●
34	BRACKET; GUARD PIPE PARTITION VAN<E60> RR SEAT FOLD<6KV>	5-73947-055-1	04	1	9307-9406	●	●
34	BRACKET; GUARD PIPE PARTITION VAN<E60> RR SEAT FOLD<6KV> EXC. EUROPEAN BASIC EQUIPMENT(EK4)	5-73947-055-1	04	1	9407-	●	●
34	BRACKET; GUARD PIPE PARTITION VAN<E60> EXC. RR SEAT FOLD<6KV>	5-73947-055-1	02	1	9307-9406	●	●
34	BRACKET; GUARD PIPE PARTITION VAN<E60> EXC. EUROPEAN BASIC EQUIPMENT(EK4),RR SEAT FOLD<6KV>	5-73947-055-1	02	1	9407-	●	●
35	SCREW; BRKT TO GUARD PIPE PARTITION VAN<E60> RR SEAT FOLD<6KV> M6X16	9-03497-616-0	04	1	9307-	●	●
35	SCREW; BRKT TO GUARD PIPE PARTITION VAN<E60> EXC. RR SEAT FOLD<6KV> M6X16	9-03497-616-0	02	1	9307-	●	●
36	WASHER; LK,GUARD PIPE EUROPEAN BASIC EQUIPMENT(EK4) PARTITION VAN<E60> EXC. SEATING CAPACITY 6(R48),SEATING CAPACITY 5(X92)	9-09150-004-0	01	1	9407-	●	●
36	WASHER; LK,GUARD PIPE PARTITION VAN<E60> EXC. CAB-HIGH ROOF(S2F)	9-09150-044-0	01	1	9307-9406	●	●
36	WASHER; LK,GUARD PIPE PARTITION VAN<E60> EXC. EUROPEAN BASIC EQUIPMENT(EK4),CAB-HIGH ROOF(S2F)	9-09150-044-0	01	1	9407-	●	●
36	WASHER; LK,GUARD PIPE PARTITION VAN<E60> CAB-HIGH ROOF(S2F)	9-09150-004-0	02	1	9307-9406		●
36	WASHER; LK,GUARD PIPE PARTITION VAN<E60> CAB-HIGH ROOF(S2F) EXC. EUROPEAN BASIC EQUIPMENT(EK4)	9-09150-004-0	02	1	9407-		●
88	BAND; GUARD PIPE EUROPEAN BASIC EQUIPMENT(EK4) PARTITION VAN<E60> SEATING CAPACITY 6(R48),SEATING CAPACITY 5(X92) CAB-HIGH ROOF(S2F)	8-94283-037-0	02	1	9407-		●
89	RUBBER; GUARD PIPE EUROPEAN BASIC EQUIPMENT(EK4) PARTITION VAN<E60> SEATING CAPACITY 6(R48),SEATING CAPACITY 5(X92) CAB-HIGH ROOF(S2F)	8-94353-887-0	02	1	9407-		●
