7-50 — FRONT SEAT (#47262) — 317 parça

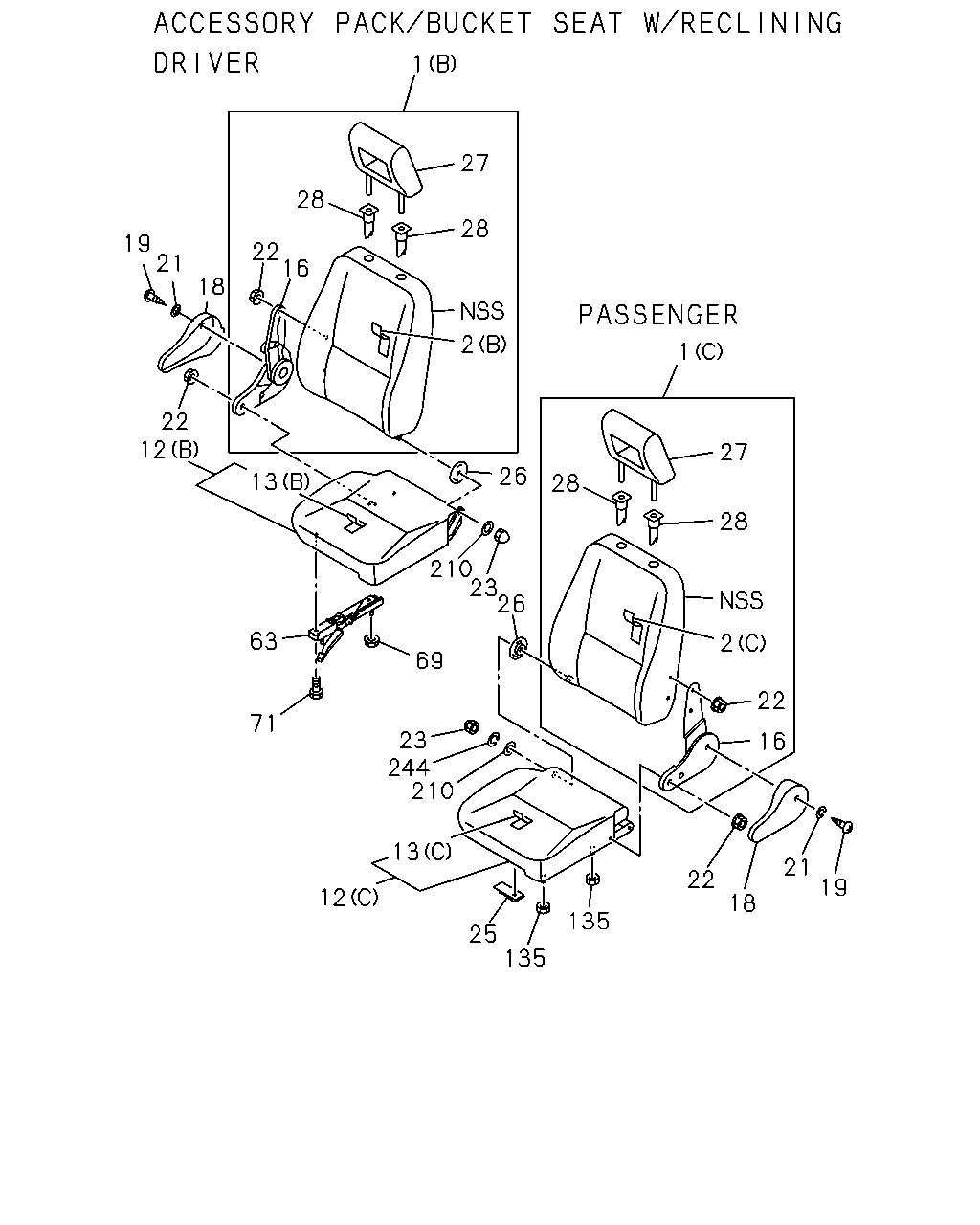

çizim 15968
27 28 28 19 21 22 16 18 22 27 26 28 28 210 23 26 63 69 22 71 23 244 210 16 21 19 22 18 135 25 135 1 1 2 2 12 13 13 12
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
ACCESSORY PACK<ET6> (B) DRIVER GRAY 		8-94347-687-3 01 1 9307- ● ●
1 BACK ASM; SEAT
(B) DRIVER GRAY 		8-94347-687-3 01 1 9307- ●
1 BACK ASM; SEAT
ACCESSORY PACK<ET6> (C) PASSENGER GRAY 		8-94347-773-3 01 1 9307-9406 ● ●
1 BACK ASM; SEAT
(C) PASSENGER GRAY 		8-94347-773-3 01 1 9307-9406 ●
1 BACK ASM; SEAT
ACCESSORY PACK<ET6> EXC. EUROPEAN BASIC EQUIPMENT(EK4) (C) PASSENGER GRAY 		8-94347-773-3 01 1 9407- ● ●
1 BACK ASM; SEAT
VINYL SEAT W/RECLINING(A83) SAUDI ARABIA EQUIPMENT(EU2) (A) DRIVER BEIGE 		8-94347-695-3 01 1 9307- ● ●
1 BACK ASM; SEAT
VINYL SEAT W/RECLINING(A83) EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) DRIVER BEIGE 		8-94349-629-0 01 1 9307-9406 ● ●
1 BACK ASM; SEAT
VINYL SEAT W/RECLINING(A83) EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) DRIVER BEIGE 		8-94349-629-0 01 1 9407- ● ●
1 BACK ASM; SEAT
EUROPEAN BASIC EQUIPMENT(EK4) EXC. ACCESSORY PACK<ET6>,BUCKET SEAT W/RECLINING(S3B) (A) DRIVER BEIGE 		8-94349-629-0 01 1 9407- ●
1 BACK ASM; SEAT
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) EXC. ACCESSORY PACK<ET6> (B) DRIVER BEIGE 		8-94349-743-0 01 1 9307- ● ●
1 BACK ASM; SEAT
EUROPEAN BASIC EQUIPMENT(EK4) ACCESSORY PACK<ET6> (C)PASSENGER GRAY 		8-94349-751-0 01 1 9307- ● ●
1 BACK ASM; SEAT
EUROPEAN BASIC EQUIPMENT(EK4) (C)PASSENGER GRAY 		8-94349-751-0 01 1 9307- ●
1 BACK ASM; SEAT
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) (C)PASSENGER BEIGE 		8-94349-753-0 01 1 9307- ● ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. VINYL SEAT W/RECLINING(A83),ACCESSORY PACK<ET6> (A) DRIVER (D)PASSENGER BEIGE 		8-94347-711-3 01 1 9307-9406 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. ACCESSORY PACK<ET6> (A) DRIVER (D)PASSENGER BEIGE 		8-94347-711-3 01 1 9307-9406 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. VINYL SEAT W/RECLINING(A83),EUROPEAN BASIC EQUIPMENT(EK4),ACCESSORY PACK<ET6> (A) DRIVER (D)PASSENGER BEIGE 		8-94347-711-3 01 1 9407- ●
2 COVER; TRIM,FRT SEAT,BACK
ACCESSORY PACK<ET6> (B) DRIVER GRAY 		8-94347-701-3 01 1 9307- ● ●
2 COVER; TRIM,FRT SEAT,BACK
(B) DRIVER GRAY 		8-94347-701-3 01 1 9307- ●
2 COVER; TRIM,FRT SEAT,BACK
ACCESSORY PACK<ET6> (C) PASSENGER GRAY 		8-94349-292-1 01 1 9307-9406 ● ●
2 COVER; TRIM,FRT SEAT,BACK
(C) PASSENGER GRAY 		8-94349-292-1 01 1 9307-9406 ●
2 COVER; TRIM,FRT SEAT,BACK
ACCESSORY PACK<ET6> EXC. EUROPEAN BASIC EQUIPMENT(EK4) (C) PASSENGER GRAY 		8-94349-292-1 01 1 9407- ● ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT W/RECLINING(A83) (A) DRIVER BEIGE 		8-94347-707-3 01 1 9307-9406 ● ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT W/RECLINING(A83) (A) DRIVER BEIGE 		8-94347-707-3 01 1 9407- ● ●
2 COVER; TRIM,FRT SEAT,BACK
EUROPEAN BASIC EQUIPMENT(EK4) EXC. ACCESSORY PACK<ET6>,BUCKET SEAT W/RECLINING(S3B) (A) DRIVER BEIGE 		8-94347-707-3 01 1 9407- ●
2 COVER; TRIM,FRT SEAT,BACK
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) EXC. ACCESSORY PACK<ET6> (B) DRIVER BEIGE 		8-94347-704-3 01 1 9307- ● ●
2 COVER; TRIM,FRT SEAT,BACK
EUROPEAN BASIC EQUIPMENT(EK4) ACCESSORY PACK<ET6> (C)PASSENGER GRAY 		8-94347-783-3 01 1 9307- ● ●
2 COVER; TRIM,FRT SEAT,BACK
EUROPEAN BASIC EQUIPMENT(EK4) (C)PASSENGER GRAY 		8-94347-783-3 01 1 9307- ●
2 COVER; TRIM,FRT SEAT,BACK
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) (C)PASSENGER BEIGE 		8-94347-784-3 01 1 9307- ● ●
2 COVER; TRIM,FRT SEAT,BACK
EUROPEAN BASIC EQUIPMENT(EK4) EXC. ACCESSORY PACK<ET6>,BUCKET SEAT W/RECLINING(S3B) (D)PASSENGER BEIGE 		8-94347-711-3 01 1 9307- ●
12 CUSHION; SEAT,FRT
ACCESSORY PACK<ET6> (B) DRIVER GRAY 		8-94347-720-2 01 1 9307- ● ●
12 CUSHION; SEAT,FRT
(B) DRIVER GRAY 		8-94347-720-2 01 1 9307- ●
12 CUSHION; SEAT,FRT
ACCESSORY PACK<ET6> (C) PASSENGER GRAY 		8-94347-792-2 01 1 9307-9406 ● ●
12 CUSHION; SEAT,FRT
(C) PASSENGER GRAY 		8-94347-792-2 01 1 9307-9406 ●
12 CUSHION; SEAT,FRT
ACCESSORY PACK<ET6> EXC. EUROPEAN BASIC EQUIPMENT(EK4) (C) PASSENGER GRAY 		8-94347-792-2 01 1 9407- ● ●
12 CUSHION; SEAT,FRT
VINYL SEAT W/RECLINING(A83) (A) DRIVER BEIGE 		8-94347-728-2 01 1 9307-9406 ● ●
12 CUSHION; SEAT,FRT
VINYL SEAT W/RECLINING(A83) (A) DRIVER BEIGE 		8-94347-728-2 01 1 9407- ● ●
12 CUSHION; SEAT,FRT
EUROPEAN BASIC EQUIPMENT(EK4) EXC. ACCESSORY PACK<ET6>,BUCKET SEAT W/RECLINING(S3B) (A) DRIVER BEIGE 		8-94347-728-2 01 1 9407- ●
12 CUSHION; SEAT,FRT
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) EXC. ACCESSORY PACK<ET6> (B) DRIVER BEIGE 		8-94349-737-0 01 1 9307- ● ●
12 CUSHION; SEAT,FRT
EUROPEAN BASIC EQUIPMENT(EK4) ACCESSORY PACK<ET6> (C)PASSENGER GRAY 		8-94347-792-2 01 1 9307- ● ●
12 CUSHION; SEAT,FRT
EUROPEAN BASIC EQUIPMENT(EK4) (C)PASSENGER GRAY 		8-94347-792-2 01 1 9307- ●
12 CUSHION; SEAT,FRT
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) (C)PASSENGER 		8-94347-748-0 01 1 9307- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. ACCESSORY PACK<ET6> (D) PASSENGER BEIGE 		8-94347-811-1 01 1 9307-9406 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. EUROPEAN BASIC EQUIPMENT(EK4),ACCESSORY PACK<ET6> (D) PASSENGER BEIGE 		8-94347-811-1 01 1 9407- ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. VINYL SEAT W/RECLINING(A83),ACCESSORY PACK<ET6> (A) DRIVER BEIGE 		8-94347-743-1 01 1 9307-9406 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. VINYL SEAT W/RECLINING(A83),EUROPEAN BASIC EQUIPMENT(EK4),ACCESSORY PACK<ET6> (A) DRIVER BEIGE 		8-94347-743-1 01 1 9407- ●
13 COVER; TRIM,FRT SEAT,CUSHION
ACCESSORY PACK<ET6> (B) DRIVER GRAY 		8-94347-733-1 01 1 9307- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
(B) DRIVER GRAY 		8-94347-733-1 01 1 9307- ●
13 COVER; TRIM,FRT SEAT,CUSHION
ACCESSORY PACK<ET6> (C) PASSENGER GRAY 		8-94347-803-1 01 1 9307-9406 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
(C) PASSENGER GRAY 		8-94347-803-1 01 1 9307-9406 ●
13 COVER; TRIM,FRT SEAT,CUSHION
ACCESSORY PACK<ET6> EXC. EUROPEAN BASIC EQUIPMENT(EK4) (C) PASSENGER GRAY 		8-94347-803-1 01 1 9407- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT W/RECLINING(A83) (A) DRIVER BEIGE 		8-94347-739-1 01 1 9307-9406 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT W/RECLINING(A83) (A) DRIVER BEIGE 		8-94347-739-1 01 1 9407- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
EUROPEAN BASIC EQUIPMENT(EK4) EXC. ACCESSORY PACK<ET6>,BUCKET SEAT W/RECLINING(S3B) (A) DRIVER BEIGE 		8-94347-739-1 01 1 9407- ●
13 COVER; TRIM,FRT SEAT,CUSHION
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) EXC. ACCESSORY PACK<ET6> (B) DRIVER BEIGE 		8-94347-736-1 01 1 9307- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
EUROPEAN BASIC EQUIPMENT(EK4) ACCESSORY PACK<ET6> (C)PASSENGER GRAY 		8-94347-803-1 01 1 9307- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
EUROPEAN BASIC EQUIPMENT(EK4) (C)PASSENGER GRAY 		8-94347-803-1 01 1 9307- ●
13 COVER; TRIM,FRT SEAT,CUSHION
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) (C)PASSENGER BEIGE 		8-94347-806-1 01 1 9307- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
EUROPEAN BASIC EQUIPMENT(EK4) EXC. ACCESSORY PACK<ET6>,BUCKET SEAT W/RECLINING(S3B) (D)PASSENGER BEIGE 		8-94347-811-1 01 1 9307- ●
16 ADJUSTER ASM; RECLINING
ACCESSORY PACK<ET6> DRIVER 		8-94281-616-1 01 1 9307-9406 ● ●
16 ADJUSTER ASM; RECLINING
VINYL SEAT W/RECLINING(A83) DRIVER 		8-94281-616-1 01 1 9307-9406 ● ●
16 ADJUSTER ASM; RECLINING
DRIVER 		8-94281-616-1 01 1 9307-9406 ●
16 ADJUSTER ASM; RECLINING
ACCESSORY PACK<ET6> DRIVER 		8-94281-616-1 01 1 9407- ● ●
16 ADJUSTER ASM; RECLINING
VINYL SEAT W/RECLINING(A83) DRIVER 		8-94281-616-1 01 1 9407- ● ●
16 ADJUSTER ASM; RECLINING
EUROPEAN BASIC EQUIPMENT(EK4) DRIVER 		8-94281-616-1 01 1 9407- ● ●
16 ADJUSTER ASM; RECLINING
ACCESSORY PACK<ET6> PASSENGER 		8-94281-615-1 01 1 9307-9406 ● ●
16 ADJUSTER ASM; RECLINING
PASSENGER 		8-94281-615-1 01 1 9307-9406 ●
16 ADJUSTER ASM; RECLINING
ACCESSORY PACK<ET6> EXC. EUROPEAN BASIC EQUIPMENT(EK4) PASSENGER 		8-94281-615-1 01 1 9407- ● ●
16 ADJUSTER ASM; RECLINING
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) EXC. ACCESSORY PACK<ET6> DRIVER 		8-94281-615-0 01 1 9307- ● ●
18 COVER; RECLINING
ACCESSORY PACK<ET6> DRIVER GRAY 		8-94349-005-0 01 1 9307- ● ●
18 COVER; RECLINING
DRIVER GRAY 		8-94349-005-0 01 1 9307- ●
18 COVER; RECLINING
ACCESSORY PACK<ET6> PASSENGER GRAY 		8-94349-002-0 01 1 9307-9406 ● ●
18 COVER; RECLINING
PASSENGER GRAY 		8-94349-002-0 01 1 9307-9406 ●
18 COVER; RECLINING
ACCESSORY PACK<ET6> EXC. EUROPEAN BASIC EQUIPMENT(EK4) PASSENGER GRAY 		8-94349-002-0 01 1 9407- ● ●
18 COVER; RECLINING
VINYL SEAT W/RECLINING(A83) DRIVER BEIGE 		8-94349-004-0 01 1 9307-9406 ● ●
18 COVER; RECLINING
VINYL SEAT W/RECLINING(A83) DRIVER BEIGE 		8-94349-004-0 01 1 9407- ● ●
18 COVER; RECLINING
EUROPEAN BASIC EQUIPMENT(EK4) EXC. ACCESSORY PACK<ET6>,BUCKET SEAT W/RECLINING(S3B) DRIVER BEIGE 		8-94349-004-0 01 1 9407- ●
18 COVER; RECLINING
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) EXC. ACCESSORY PACK<ET6> DRIVER BEIGE 		8-94349-004-0 01 1 9307- ● ●
19 SCREW; COVER
ACCESSORY PACK<ET6> 		8-94279-350-0 01 1 9307- ● ●
19 SCREW; COVER
VINYL SEAT W/RECLINING(A83) 		8-94279-350-0 01 1 9307- ● ●
19 SCREW; COVER
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) EXC. ACCESSORY PACK<ET6> 		8-94279-350-0 01 1 9307- ● ●
19 SCREW; COVER 8-94279-350-0 01 1 9307- ●
21 CAP; RECLINING
ACCESSORY PACK<ET6> GRAY 		8-94347-828-0 01 1 9307- ● ●
21 CAP; RECLINING
GRAY 		8-94347-828-0 01 1 9307- ●
21 CAP; RECLINING
VINYL SEAT W/RECLINING(A83) BEIGE 		8-94347-827-0 01 1 9307-9406 ● ●
21 CAP; RECLINING
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) EXC. ACCESSORY PACK<ET6> BEIGE 		8-94347-827-0 01 1 9307-9406 ● ●
21 CAP; RECLINING
VINYL SEAT W/RECLINING(A83) BEIGE 		8-94347-827-0 01 1 9407- ● ●
21 CAP; RECLINING
EUROPEAN BASIC EQUIPMENT(EK4) EXC. ACCESSORY PACK<ET6> BEIGE 		8-94347-827-0 01 1 9407- ●
22 NUT; RECLINING
ACCESSORY PACK<ET6> M8 FLANGE 		8-94279-518-0 04 1 9307- ● ●
22 NUT; RECLINING
VINYL SEAT W/RECLINING(A83) M8 FLANGE 		8-94279-518-0 04 1 9307- ● ●
22 NUT; RECLINING
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) EXC. ACCESSORY PACK<ET6> M8 FLANGE 		8-94279-518-0 04 1 9307- ● ●
22 NUT; RECLINING
M8 FLANGE 		8-94279-518-0 04 1 9307- ●
23 NUT; HINGE
ACCESSORY PACK<ET6> 		8-94131-126-0 01 1 9307- ● ●
23 NUT; HINGE
VINYL SEAT W/RECLINING(A83) 		8-94131-126-0 01 1 9307- ● ●
23 NUT; HINGE
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) EXC. ACCESSORY PACK<ET6> 		8-94131-126-0 01 1 9307- ● ●
23 NUT; HINGE
EUROPEAN BASIC EQUIPMENT(EK4) ACCESSORY PACK<ET6> 		8-94131-126-0 01 1 9307- ● ●
23 NUT; HINGE
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) 		8-94131-126-0 01 1 9307- ● ●
23 NUT; HINGE 8-94131-126-0 01 1 9307- ●
23 NUT; HINGE
EUROPEAN BASIC EQUIPMENT(EK4) 		8-94131-126-0 01 1 9307- ●
25 SPACER; PASSENGER SEAT RAIL 8-94285-851-0 01 1 9307- ● ●
26 BUSHING
ACCESSORY PACK<ET6> 		8-94279-927-1 01 1 9307- ● ●
26 BUSHING
VINYL SEAT W/RECLINING(A83) 		8-94279-927-1 01 1 9307- ● ●
26 BUSHING
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) EXC. ACCESSORY PACK<ET6> 		8-94279-927-1 01 1 9307- ● ●
26 BUSHING
EUROPEAN BASIC EQUIPMENT(EK4) ACCESSORY PACK<ET6> 		8-94279-927-1 01 1 9307- ● ●
26 BUSHING
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) 		8-94279-927-1 01 1 9307- ● ●
26 BUSHING 8-94279-927-1 01 1 9307- ●
26 BUSHING
EUROPEAN BASIC EQUIPMENT(EK4) 		8-94279-927-1 01 1 9307- ●
27 REST; HD,FRT SEAT
ACCESSORY PACK<ET6> 		8-94349-083-0 01 1 9307- ● ●
27 REST; HD,FRT SEAT
EUROPEAN BASIC EQUIPMENT(EK4) ACCESSORY PACK<ET6> 		8-94349-083-0 01 1 9307- ● ●
27 REST; HD,FRT SEAT 8-94349-083-0 01 1 9307- ●
27 REST; HD,FRT SEAT
EUROPEAN BASIC EQUIPMENT(EK4) 		8-94349-083-0 01 1 9307- ●
27 REST; HD,FRT SEAT
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) EXC. ACCESSORY PACK<ET6> DRIVER 		8-94349-261-0 01 1 9307- ● ●
27 REST; HD,FRT SEAT
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) DRIVER 		8-94349-261-0 01 1 9307- ● ●
28 HOLDER; GUIDE,HD REST
ACCESSORY PACK<ET6> DRIVER GRAY 		8-94349-081-0 01 1 9307- ● ●
28 HOLDER; GUIDE,HD REST
DRIVER GRAY 		8-94349-081-0 01 1 9307- ●
28 HOLDER; GUIDE,HD REST
ACCESSORY PACK<ET6> PASSENGER GRAY 		8-94349-079-0 01 1 9307- ● ●
28 HOLDER; GUIDE,HD REST
PASSENGER GRAY 		8-94349-079-0 01 1 9307- ●
28 HOLDER; GUIDE,HD REST
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) EXC. ACCESSORY PACK<ET6> DRIVER BEIGE 		8-94349-260-0 01 1 9307- ● ●
28 HOLDER; GUIDE,HD REST
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) EXC. ACCESSORY PACK<ET6> DRIVER BEIGE 		8-94349-259-0 01 1 9307- ● ●
28 HOLDER; GUIDE,HD REST
EUROPEAN BASIC EQUIPMENT(EK4) ACCESSORY PACK<ET6> PASSENGER GRAY 		8-94349-081-0 01 1 9307- ● ●
28 HOLDER; GUIDE,HD REST
EUROPEAN BASIC EQUIPMENT(EK4) PASSENGER GRAY 		8-94349-081-0 01 1 9307- ●
28 HOLDER; GUIDE,HD REST
EUROPEAN BASIC EQUIPMENT(EK4) ACCESSORY PACK<ET6> PASSENGER GRAY 		8-94349-079-0 01 1 9307- ● ●
28 HOLDER; GUIDE,HD REST
EUROPEAN BASIC EQUIPMENT(EK4) PASSENGER GRAY 		8-94349-079-0 01 1 9307- ●
28 HOLDER; GUIDE,HD REST
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) PASSENGER BEIGE 		8-94349-260-0 01 1 9307- ● ●
28 HOLDER; GUIDE,HD REST
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) PASSENGER BEIGE 		8-94349-259-0 01 1 9307- ● ●
63 ADJUSTER; SEAT SLIDE
DRIVER 		8-94281-300-2 01 1 9307- ● ●
69 NUT; FRT SEAT
DRIVER M8 FLANGE 		5-09440-005-0 02 1 9307- ● ●
71 BOLT; ADJ TO SEAT
DRIVER M8X23 W/LK WASHER 		8-94254-743-0 02 1 9307- ● ●
135 NUT; SEAT STAND
PASSENGER M8 FLANGE 		5-09440-005-0 02 1 9307- ● ●
210 WASHER; PL,FRT SEAT
ACCESSORY PACK<ET6> ID=8.5 OD=18 BLACK 		5-09985-056-0 01 1 9307- ● ●
210 WASHER; PL,FRT SEAT
VINYL SEAT W/RECLINING(A83) ID=8.5 OD=18 BLACK 		5-09985-056-0 01 1 9307- ● ●
210 WASHER; PL,FRT SEAT
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) EXC. ACCESSORY PACK<ET6> ID=8.5 OD=18 BLACK 		5-09985-056-0 01 1 9307- ● ●
210 WASHER; PL,FRT SEAT
EUROPEAN BASIC EQUIPMENT(EK4) ACCESSORY PACK<ET6> ID=8.5 OD=18 BLACK 		5-09985-056-0 01 1 9307- ● ●
210 WASHER; PL,FRT SEAT
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) ID=8.5 OD=18 BLACK 		5-09985-056-0 01 1 9307- ● ●
210 WASHER; PL,FRT SEAT
ID=8.5 OD=18 BLACK 		5-09985-056-0 01 1 9307- ●
210 WASHER; PL,FRT SEAT
EUROPEAN BASIC EQUIPMENT(EK4) ID=8.5 OD=18 BLACK 		5-09985-056-0 01 1 9307- ●
244 WASHER; LK,FRT SEAT
EUROPEAN BASIC EQUIPMENT(EK4) ACCESSORY PACK<ET6> ID=8.2 		9-09150-508-0 01 1 9307- ● ●
244 WASHER; LK,FRT SEAT
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) ID=8.2 		9-09150-508-0 01 1 9307- ● ●
244 WASHER; LK,FRT SEAT
EUROPEAN BASIC EQUIPMENT(EK4) ID=8.2 		9-09150-508-0 01 1 9307- ●

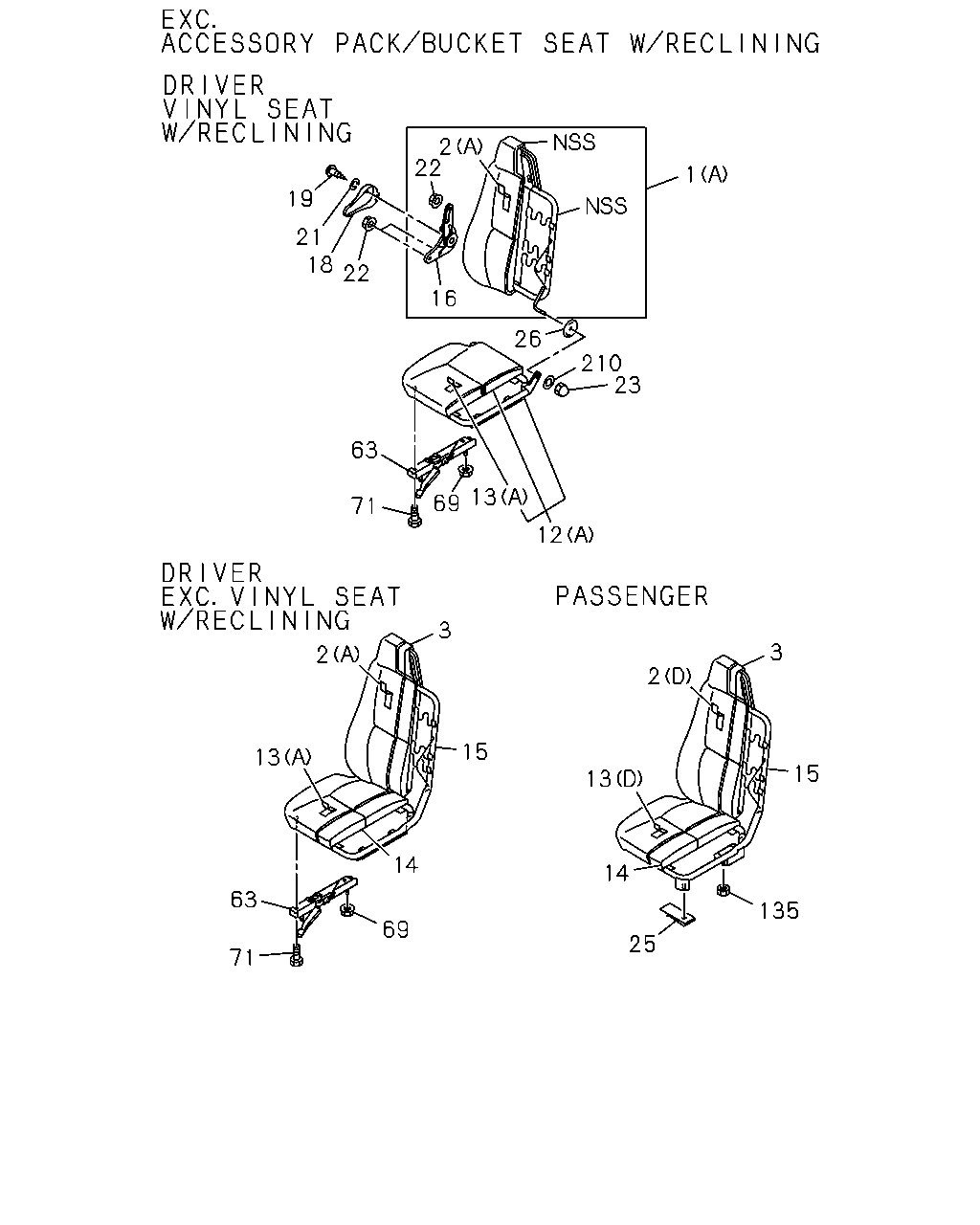

çizim 65618
22 19 21 18 22 16 26 210 23 69 63 71 3 3 15 15 14 14 63 135 69 25 71 2 1 13 12 2 13 2 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
ACCESSORY PACK<ET6> (B) DRIVER GRAY 		8-94347-687-3 01 1 9307- ● ●
1 BACK ASM; SEAT
(B) DRIVER GRAY 		8-94347-687-3 01 1 9307- ●
1 BACK ASM; SEAT
ACCESSORY PACK<ET6> (C) PASSENGER GRAY 		8-94347-773-3 01 1 9307-9406 ● ●
1 BACK ASM; SEAT
(C) PASSENGER GRAY 		8-94347-773-3 01 1 9307-9406 ●
1 BACK ASM; SEAT
ACCESSORY PACK<ET6> EXC. EUROPEAN BASIC EQUIPMENT(EK4) (C) PASSENGER GRAY 		8-94347-773-3 01 1 9407- ● ●
1 BACK ASM; SEAT
VINYL SEAT W/RECLINING(A83) SAUDI ARABIA EQUIPMENT(EU2) (A) DRIVER BEIGE 		8-94347-695-3 01 1 9307- ● ●
1 BACK ASM; SEAT
VINYL SEAT W/RECLINING(A83) EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) DRIVER BEIGE 		8-94349-629-0 01 1 9307-9406 ● ●
1 BACK ASM; SEAT
VINYL SEAT W/RECLINING(A83) EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) DRIVER BEIGE 		8-94349-629-0 01 1 9407- ● ●
1 BACK ASM; SEAT
EUROPEAN BASIC EQUIPMENT(EK4) EXC. ACCESSORY PACK<ET6>,BUCKET SEAT W/RECLINING(S3B) (A) DRIVER BEIGE 		8-94349-629-0 01 1 9407- ●
1 BACK ASM; SEAT
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) EXC. ACCESSORY PACK<ET6> (B) DRIVER BEIGE 		8-94349-743-0 01 1 9307- ● ●
1 BACK ASM; SEAT
EUROPEAN BASIC EQUIPMENT(EK4) ACCESSORY PACK<ET6> (C)PASSENGER GRAY 		8-94349-751-0 01 1 9307- ● ●
1 BACK ASM; SEAT
EUROPEAN BASIC EQUIPMENT(EK4) (C)PASSENGER GRAY 		8-94349-751-0 01 1 9307- ●
1 BACK ASM; SEAT
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) (C)PASSENGER BEIGE 		8-94349-753-0 01 1 9307- ● ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. VINYL SEAT W/RECLINING(A83),ACCESSORY PACK<ET6> (A) DRIVER (D)PASSENGER BEIGE 		8-94347-711-3 01 1 9307-9406 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. ACCESSORY PACK<ET6> (A) DRIVER (D)PASSENGER BEIGE 		8-94347-711-3 01 1 9307-9406 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. VINYL SEAT W/RECLINING(A83),EUROPEAN BASIC EQUIPMENT(EK4),ACCESSORY PACK<ET6> (A) DRIVER (D)PASSENGER BEIGE 		8-94347-711-3 01 1 9407- ●
2 COVER; TRIM,FRT SEAT,BACK
ACCESSORY PACK<ET6> (B) DRIVER GRAY 		8-94347-701-3 01 1 9307- ● ●
2 COVER; TRIM,FRT SEAT,BACK
(B) DRIVER GRAY 		8-94347-701-3 01 1 9307- ●
2 COVER; TRIM,FRT SEAT,BACK
ACCESSORY PACK<ET6> (C) PASSENGER GRAY 		8-94349-292-1 01 1 9307-9406 ● ●
2 COVER; TRIM,FRT SEAT,BACK
(C) PASSENGER GRAY 		8-94349-292-1 01 1 9307-9406 ●
2 COVER; TRIM,FRT SEAT,BACK
ACCESSORY PACK<ET6> EXC. EUROPEAN BASIC EQUIPMENT(EK4) (C) PASSENGER GRAY 		8-94349-292-1 01 1 9407- ● ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT W/RECLINING(A83) (A) DRIVER BEIGE 		8-94347-707-3 01 1 9307-9406 ● ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT W/RECLINING(A83) (A) DRIVER BEIGE 		8-94347-707-3 01 1 9407- ● ●
2 COVER; TRIM,FRT SEAT,BACK
EUROPEAN BASIC EQUIPMENT(EK4) EXC. ACCESSORY PACK<ET6>,BUCKET SEAT W/RECLINING(S3B) (A) DRIVER BEIGE 		8-94347-707-3 01 1 9407- ●
2 COVER; TRIM,FRT SEAT,BACK
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) EXC. ACCESSORY PACK<ET6> (B) DRIVER BEIGE 		8-94347-704-3 01 1 9307- ● ●
2 COVER; TRIM,FRT SEAT,BACK
EUROPEAN BASIC EQUIPMENT(EK4) ACCESSORY PACK<ET6> (C)PASSENGER GRAY 		8-94347-783-3 01 1 9307- ● ●
2 COVER; TRIM,FRT SEAT,BACK
EUROPEAN BASIC EQUIPMENT(EK4) (C)PASSENGER GRAY 		8-94347-783-3 01 1 9307- ●
2 COVER; TRIM,FRT SEAT,BACK
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) (C)PASSENGER BEIGE 		8-94347-784-3 01 1 9307- ● ●
2 COVER; TRIM,FRT SEAT,BACK
EUROPEAN BASIC EQUIPMENT(EK4) EXC. ACCESSORY PACK<ET6>,BUCKET SEAT W/RECLINING(S3B) (D)PASSENGER BEIGE 		8-94347-711-3 01 1 9307- ●
3 PAD; FRT SEAT BACK
EXC. VINYL SEAT W/RECLINING(A83),EUROPEAN BASIC EQUIPMENT(EK4),ACCESSORY PACK<ET6> BEIGE 		8-94349-236-0 01 1 9307- ●
3 PAD; FRT SEAT BACK
EXC. EUROPEAN BASIC EQUIPMENT(EK4),ACCESSORY PACK<ET6> BEIGE 		8-94349-236-0 01 1 9307- ●
3 PAD; FRT SEAT BACK
EUROPEAN BASIC EQUIPMENT(EK4) EXC. ACCESSORY PACK<ET6>,BUCKET SEAT W/RECLINING(S3B) BEIGE 		8-94349-236-0 01 1 9307- ●
12 CUSHION; SEAT,FRT
ACCESSORY PACK<ET6> (B) DRIVER GRAY 		8-94347-720-2 01 1 9307- ● ●
12 CUSHION; SEAT,FRT
(B) DRIVER GRAY 		8-94347-720-2 01 1 9307- ●
12 CUSHION; SEAT,FRT
ACCESSORY PACK<ET6> (C) PASSENGER GRAY 		8-94347-792-2 01 1 9307-9406 ● ●
12 CUSHION; SEAT,FRT
(C) PASSENGER GRAY 		8-94347-792-2 01 1 9307-9406 ●
12 CUSHION; SEAT,FRT
ACCESSORY PACK<ET6> EXC. EUROPEAN BASIC EQUIPMENT(EK4) (C) PASSENGER GRAY 		8-94347-792-2 01 1 9407- ● ●
12 CUSHION; SEAT,FRT
VINYL SEAT W/RECLINING(A83) (A) DRIVER BEIGE 		8-94347-728-2 01 1 9307-9406 ● ●
12 CUSHION; SEAT,FRT
VINYL SEAT W/RECLINING(A83) (A) DRIVER BEIGE 		8-94347-728-2 01 1 9407- ● ●
12 CUSHION; SEAT,FRT
EUROPEAN BASIC EQUIPMENT(EK4) EXC. ACCESSORY PACK<ET6>,BUCKET SEAT W/RECLINING(S3B) (A) DRIVER BEIGE 		8-94347-728-2 01 1 9407- ●
12 CUSHION; SEAT,FRT
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) EXC. ACCESSORY PACK<ET6> (B) DRIVER BEIGE 		8-94349-737-0 01 1 9307- ● ●
12 CUSHION; SEAT,FRT
EUROPEAN BASIC EQUIPMENT(EK4) ACCESSORY PACK<ET6> (C)PASSENGER GRAY 		8-94347-792-2 01 1 9307- ● ●
12 CUSHION; SEAT,FRT
EUROPEAN BASIC EQUIPMENT(EK4) (C)PASSENGER GRAY 		8-94347-792-2 01 1 9307- ●
12 CUSHION; SEAT,FRT
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) (C)PASSENGER 		8-94347-748-0 01 1 9307- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. ACCESSORY PACK<ET6> (D) PASSENGER BEIGE 		8-94347-811-1 01 1 9307-9406 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. EUROPEAN BASIC EQUIPMENT(EK4),ACCESSORY PACK<ET6> (D) PASSENGER BEIGE 		8-94347-811-1 01 1 9407- ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. VINYL SEAT W/RECLINING(A83),ACCESSORY PACK<ET6> (A) DRIVER BEIGE 		8-94347-743-1 01 1 9307-9406 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. VINYL SEAT W/RECLINING(A83),EUROPEAN BASIC EQUIPMENT(EK4),ACCESSORY PACK<ET6> (A) DRIVER BEIGE 		8-94347-743-1 01 1 9407- ●
13 COVER; TRIM,FRT SEAT,CUSHION
ACCESSORY PACK<ET6> (B) DRIVER GRAY 		8-94347-733-1 01 1 9307- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
(B) DRIVER GRAY 		8-94347-733-1 01 1 9307- ●
13 COVER; TRIM,FRT SEAT,CUSHION
ACCESSORY PACK<ET6> (C) PASSENGER GRAY 		8-94347-803-1 01 1 9307-9406 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
(C) PASSENGER GRAY 		8-94347-803-1 01 1 9307-9406 ●
13 COVER; TRIM,FRT SEAT,CUSHION
ACCESSORY PACK<ET6> EXC. EUROPEAN BASIC EQUIPMENT(EK4) (C) PASSENGER GRAY 		8-94347-803-1 01 1 9407- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT W/RECLINING(A83) (A) DRIVER BEIGE 		8-94347-739-1 01 1 9307-9406 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT W/RECLINING(A83) (A) DRIVER BEIGE 		8-94347-739-1 01 1 9407- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
EUROPEAN BASIC EQUIPMENT(EK4) EXC. ACCESSORY PACK<ET6>,BUCKET SEAT W/RECLINING(S3B) (A) DRIVER BEIGE 		8-94347-739-1 01 1 9407- ●
13 COVER; TRIM,FRT SEAT,CUSHION
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) EXC. ACCESSORY PACK<ET6> (B) DRIVER BEIGE 		8-94347-736-1 01 1 9307- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
EUROPEAN BASIC EQUIPMENT(EK4) ACCESSORY PACK<ET6> (C)PASSENGER GRAY 		8-94347-803-1 01 1 9307- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
EUROPEAN BASIC EQUIPMENT(EK4) (C)PASSENGER GRAY 		8-94347-803-1 01 1 9307- ●
13 COVER; TRIM,FRT SEAT,CUSHION
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) (C)PASSENGER BEIGE 		8-94347-806-1 01 1 9307- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
EUROPEAN BASIC EQUIPMENT(EK4) EXC. ACCESSORY PACK<ET6>,BUCKET SEAT W/RECLINING(S3B) (D)PASSENGER BEIGE 		8-94347-811-1 01 1 9307- ●
14 PAD; FRT SEAT CUSHION
EXC. VINYL SEAT W/RECLINING(A83),EUROPEAN BASIC EQUIPMENT(EK4),ACCESSORY PACK<ET6> BEIGE 		8-94266-589-0 01 1 9307- ●
14 PAD; FRT SEAT CUSHION
EXC. EUROPEAN BASIC EQUIPMENT(EK4),ACCESSORY PACK<ET6> BEIGE 		8-94266-589-0 01 1 9307- ●
14 PAD; FRT SEAT CUSHION
EUROPEAN BASIC EQUIPMENT(EK4) EXC. ACCESSORY PACK<ET6>,BUCKET SEAT W/RECLINING(S3B) BEIGE 		8-94266-589-0 01 1 9307- ●
15 FRAME; CUSHION,FRT SEAT
EXC. VINYL SEAT W/RECLINING(A83),EUROPEAN BASIC EQUIPMENT(EK4),ACCESSORY PACK<ET6> DRIVER 		8-94347-466-0 01 1 9307- ●
15 FRAME; CUSHION,FRT SEAT
EXC. EUROPEAN BASIC EQUIPMENT(EK4),ACCESSORY PACK<ET6> PASSENGER 		8-94347-467-0 01 1 9307- ●
15 FRAME; CUSHION,FRT SEAT
EUROPEAN BASIC EQUIPMENT(EK4) EXC. ACCESSORY PACK<ET6>,BUCKET SEAT W/RECLINING(S3B) PASSENGER 		8-94347-469-0 01 1 9307- ●
16 ADJUSTER ASM; RECLINING
ACCESSORY PACK<ET6> DRIVER 		8-94281-616-1 01 1 9307-9406 ● ●
16 ADJUSTER ASM; RECLINING
VINYL SEAT W/RECLINING(A83) DRIVER 		8-94281-616-1 01 1 9307-9406 ● ●
16 ADJUSTER ASM; RECLINING
DRIVER 		8-94281-616-1 01 1 9307-9406 ●
16 ADJUSTER ASM; RECLINING
ACCESSORY PACK<ET6> DRIVER 		8-94281-616-1 01 1 9407- ● ●
16 ADJUSTER ASM; RECLINING
VINYL SEAT W/RECLINING(A83) DRIVER 		8-94281-616-1 01 1 9407- ● ●
16 ADJUSTER ASM; RECLINING
EUROPEAN BASIC EQUIPMENT(EK4) DRIVER 		8-94281-616-1 01 1 9407- ● ●
16 ADJUSTER ASM; RECLINING
ACCESSORY PACK<ET6> PASSENGER 		8-94281-615-1 01 1 9307-9406 ● ●
16 ADJUSTER ASM; RECLINING
PASSENGER 		8-94281-615-1 01 1 9307-9406 ●
16 ADJUSTER ASM; RECLINING
ACCESSORY PACK<ET6> EXC. EUROPEAN BASIC EQUIPMENT(EK4) PASSENGER 		8-94281-615-1 01 1 9407- ● ●
16 ADJUSTER ASM; RECLINING
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) EXC. ACCESSORY PACK<ET6> DRIVER 		8-94281-615-0 01 1 9307- ● ●
18 COVER; RECLINING
ACCESSORY PACK<ET6> DRIVER GRAY 		8-94349-005-0 01 1 9307- ● ●
18 COVER; RECLINING
DRIVER GRAY 		8-94349-005-0 01 1 9307- ●
18 COVER; RECLINING
ACCESSORY PACK<ET6> PASSENGER GRAY 		8-94349-002-0 01 1 9307-9406 ● ●
18 COVER; RECLINING
PASSENGER GRAY 		8-94349-002-0 01 1 9307-9406 ●
18 COVER; RECLINING
ACCESSORY PACK<ET6> EXC. EUROPEAN BASIC EQUIPMENT(EK4) PASSENGER GRAY 		8-94349-002-0 01 1 9407- ● ●
18 COVER; RECLINING
VINYL SEAT W/RECLINING(A83) DRIVER BEIGE 		8-94349-004-0 01 1 9307-9406 ● ●
18 COVER; RECLINING
VINYL SEAT W/RECLINING(A83) DRIVER BEIGE 		8-94349-004-0 01 1 9407- ● ●
18 COVER; RECLINING
EUROPEAN BASIC EQUIPMENT(EK4) EXC. ACCESSORY PACK<ET6>,BUCKET SEAT W/RECLINING(S3B) DRIVER BEIGE 		8-94349-004-0 01 1 9407- ●
18 COVER; RECLINING
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) EXC. ACCESSORY PACK<ET6> DRIVER BEIGE 		8-94349-004-0 01 1 9307- ● ●
19 SCREW; COVER
ACCESSORY PACK<ET6> 		8-94279-350-0 01 1 9307- ● ●
19 SCREW; COVER
VINYL SEAT W/RECLINING(A83) 		8-94279-350-0 01 1 9307- ● ●
19 SCREW; COVER
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) EXC. ACCESSORY PACK<ET6> 		8-94279-350-0 01 1 9307- ● ●
19 SCREW; COVER 8-94279-350-0 01 1 9307- ●
21 CAP; RECLINING
ACCESSORY PACK<ET6> GRAY 		8-94347-828-0 01 1 9307- ● ●
21 CAP; RECLINING
GRAY 		8-94347-828-0 01 1 9307- ●
21 CAP; RECLINING
VINYL SEAT W/RECLINING(A83) BEIGE 		8-94347-827-0 01 1 9307-9406 ● ●
21 CAP; RECLINING
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) EXC. ACCESSORY PACK<ET6> BEIGE 		8-94347-827-0 01 1 9307-9406 ● ●
21 CAP; RECLINING
VINYL SEAT W/RECLINING(A83) BEIGE 		8-94347-827-0 01 1 9407- ● ●
21 CAP; RECLINING
EUROPEAN BASIC EQUIPMENT(EK4) EXC. ACCESSORY PACK<ET6> BEIGE 		8-94347-827-0 01 1 9407- ●
22 NUT; RECLINING
ACCESSORY PACK<ET6> M8 FLANGE 		8-94279-518-0 04 1 9307- ● ●
22 NUT; RECLINING
VINYL SEAT W/RECLINING(A83) M8 FLANGE 		8-94279-518-0 04 1 9307- ● ●
22 NUT; RECLINING
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) EXC. ACCESSORY PACK<ET6> M8 FLANGE 		8-94279-518-0 04 1 9307- ● ●
22 NUT; RECLINING
M8 FLANGE 		8-94279-518-0 04 1 9307- ●
23 NUT; HINGE
ACCESSORY PACK<ET6> 		8-94131-126-0 01 1 9307- ● ●
23 NUT; HINGE
VINYL SEAT W/RECLINING(A83) 		8-94131-126-0 01 1 9307- ● ●
23 NUT; HINGE
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) EXC. ACCESSORY PACK<ET6> 		8-94131-126-0 01 1 9307- ● ●
23 NUT; HINGE
EUROPEAN BASIC EQUIPMENT(EK4) ACCESSORY PACK<ET6> 		8-94131-126-0 01 1 9307- ● ●
23 NUT; HINGE
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) 		8-94131-126-0 01 1 9307- ● ●
23 NUT; HINGE 8-94131-126-0 01 1 9307- ●
23 NUT; HINGE
EUROPEAN BASIC EQUIPMENT(EK4) 		8-94131-126-0 01 1 9307- ●
25 SPACER; PASSENGER SEAT RAIL 8-94285-851-0 01 1 9307- ● ●
26 BUSHING
ACCESSORY PACK<ET6> 		8-94279-927-1 01 1 9307- ● ●
26 BUSHING
VINYL SEAT W/RECLINING(A83) 		8-94279-927-1 01 1 9307- ● ●
26 BUSHING
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) EXC. ACCESSORY PACK<ET6> 		8-94279-927-1 01 1 9307- ● ●
26 BUSHING
EUROPEAN BASIC EQUIPMENT(EK4) ACCESSORY PACK<ET6> 		8-94279-927-1 01 1 9307- ● ●
26 BUSHING
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) 		8-94279-927-1 01 1 9307- ● ●
26 BUSHING 8-94279-927-1 01 1 9307- ●
26 BUSHING
EUROPEAN BASIC EQUIPMENT(EK4) 		8-94279-927-1 01 1 9307- ●
63 ADJUSTER; SEAT SLIDE
DRIVER 		8-94281-300-2 01 1 9307- ● ●
69 NUT; FRT SEAT
DRIVER M8 FLANGE 		5-09440-005-0 02 1 9307- ● ●
71 BOLT; ADJ TO SEAT
DRIVER M8X23 W/LK WASHER 		8-94254-743-0 02 1 9307- ● ●
135 NUT; SEAT STAND
PASSENGER M8 FLANGE 		5-09440-005-0 02 1 9307- ● ●
210 WASHER; PL,FRT SEAT
ACCESSORY PACK<ET6> ID=8.5 OD=18 BLACK 		5-09985-056-0 01 1 9307- ● ●
210 WASHER; PL,FRT SEAT
VINYL SEAT W/RECLINING(A83) ID=8.5 OD=18 BLACK 		5-09985-056-0 01 1 9307- ● ●
210 WASHER; PL,FRT SEAT
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) EXC. ACCESSORY PACK<ET6> ID=8.5 OD=18 BLACK 		5-09985-056-0 01 1 9307- ● ●
210 WASHER; PL,FRT SEAT
EUROPEAN BASIC EQUIPMENT(EK4) ACCESSORY PACK<ET6> ID=8.5 OD=18 BLACK 		5-09985-056-0 01 1 9307- ● ●
210 WASHER; PL,FRT SEAT
EUROPEAN BASIC EQUIPMENT(EK4) BUCKET SEAT W/RECLINING(S3B) ID=8.5 OD=18 BLACK 		5-09985-056-0 01 1 9307- ● ●
210 WASHER; PL,FRT SEAT
ID=8.5 OD=18 BLACK 		5-09985-056-0 01 1 9307- ●
210 WASHER; PL,FRT SEAT
EUROPEAN BASIC EQUIPMENT(EK4) ID=8.5 OD=18 BLACK 		5-09985-056-0 01 1 9307- ●
çizim 68075
183 161 292 176 175 292 296 298 298 296 179 178 299
BalonParca AdiParca NoAdetTipApplied Date A B
161 SCREW; CONSOLE
SEATING CAPACITY 11(6EZ),SEATING CAPACITY 14(6FB) EXTRA CENTER SEAT<6JW> M5X10 TAPPING 		0-71080-510-0 04 1 9307- ● ●
161 SCREW; CONSOLE
ACCESSORY PACK<ET6> EXC. EUROPEAN BASIC EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),SEATING CAPACITY 5(X92),SEATING CAPACITY 2(6DD),SEATING CAPACITY 8(6DH),SEATING CAPACITY 11(6EZ),EXTRA CENTER SEAT<6JW> M5X10 TAPPING 		0-71080-510-0 04 1 9307- ● ●
161 SCREW; CONSOLE
EXC. EUROPEAN BASIC EQUIPMENT(EK4),ACCESSORY PACK<ET6>,SEATING CAPACITY 5(X92),SEATING CAPACITY 2(6DD),SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY) ,SEATING CAPACITY 11(6EZ) M5X10 TAPPING 		0-71080-510-0 04 1 9307- ● ●
161 SCREW; CONSOLE
SEATING CAPACITY 9(6EY) EXC. EUROPEAN BASIC EQUIPMENT(EK4) M5X10 TAPPING 		0-71080-510-0 04 1 9307- ●
175 BACK ASM; PASSENGER CENTER SEAT
ACCESSORY PACK<ET6> EXC. EUROPEAN BASIC EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),SEATING CAPACITY 8(X84),SEATING CAPACITY 5(X92),SEATING CAPACITY 2(6DD),SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY),SEATING CAPACITY11(6EZ),SEATING CAPACITY 14(6FB),EXTRA CENTER SEAT<6JW> GRAY 		8-94349-215-2 01 1 9307- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
SEATING CAPACITY 9(6EY) EXC. EUROPEAN BASIC EQUIPMENT(EK4) GRAY 		8-94349-215-2 01 1 9307- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
EXC. EUROPEAN BASIC EQUIPMENT(EK4),ACCESSORY PACK<ET6>,SEATING CAPACITY 8(X84),SEATING CAPACITY 5(X92),SEATING CAPACITY 2(6DD),SEATING CAPACITY 8(6DH) ,SEATING CAPACITY 9(6EY),SEATING CAPACITY 11(6EZ), SEATING CAPACITY 14(6FB) BEIGE 		8-94349-214-2 01 1 9307- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
SEATING CAPACITY 11(6EZ),SEATING CAPACITY 14(6FB) EXTRA CENTER SEAT<6JW> BEIGE 		8-94349-214-2 01 1 9307- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
ACCESSORY PACK<ET6> EXC. EUROPEAN BASIC EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),SEATING CAPACITY 8(X84),SEATING CAPACITY 5(X92),SEATING CAPACITY 2(6DD),SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY),SEATING CAPACITY11(6EZ),SEATING CAPACITY 14(6FB),EXTRA CENTER SEAT<6JW> GRAY 		8-94349-223-2 01 1 9307- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEATING CAPACITY 9(6EY) EXC. EUROPEAN BASIC EQUIPMENT(EK4) GRAY 		8-94349-223-2 01 1 9307- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
EXC. EUROPEAN BASIC EQUIPMENT(EK4),ACCESSORY PACK<ET6>,SEATING CAPACITY 8(X84),SEATING CAPACITY 5(X92),SEATING CAPACITY 2(6DD),SEATING CAPACITY 8(6DH) ,SEATING CAPACITY 9(6EY),SEATING CAPACITY 11(6EZ), SEATING CAPACITY 14(6FB) BEIGE 		8-94349-222-2 01 1 9307- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEATING CAPACITY 11(6EZ),SEATING CAPACITY 14(6FB) EXTRA CENTER SEAT<6JW> BEIGE 		8-94349-222-2 01 1 9307- ● ●
178 CUSHION ASM; PASSENGER CENTER SEAT
ACCESSORY PACK<ET6> EXC. EUROPEAN BASIC EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),SEATING CAPACITY 8(X84),SEATING CAPACITY 5(X92),SEATING CAPACITY 2(6DD),SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY),SEATING CAPACITY11(6EZ),SEATING CAPACITY 14(6FB),EXTRA CENTER SEAT<6JW> GRAY 		8-94349-199-0 01 1 9307- ● ●
178 CUSHION ASM; PASSENGER CENTER SEAT
SEATING CAPACITY 9(6EY) EXC. EUROPEAN BASIC EQUIPMENT(EK4) GRAY 		8-94349-199-0 01 1 9307- ● ●
178 CUSHION ASM; PASSENGER CENTER SEAT
EXC. EUROPEAN BASIC EQUIPMENT(EK4),ACCESSORY PACK<ET6>,SEATING CAPACITY 8(X84),SEATING CAPACITY 5(X92),SEATING CAPACITY 2(6DD),SEATING CAPACITY 8(6DH) ,SEATING CAPACITY 9(6EY),SEATING CAPACITY 11(6EZ), SEATING CAPACITY 14(6FB) BEIGE 		8-94349-198-0 01 1 9307- ● ●
178 CUSHION ASM; PASSENGER CENTER SEAT
SEATING CAPACITY 11(6EZ),SEATING CAPACITY 14(6FB) EXTRA CENTER SEAT<6JW> BEIGE 		8-94349-198-0 01 1 9307- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
ACCESSORY PACK<ET6> EXC. EUROPEAN BASIC EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),SEATING CAPACITY 8(X84),SEATING CAPACITY 5(X92),SEATING CAPACITY 2(6DD),SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY),SEATING CAPACITY11(6EZ),SEATING CAPACITY 14(6FB),EXTRA CENTER SEAT<6JW> GRAY 		8-94349-205-0 01 1 9307- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEATING CAPACITY 9(6EY) EXC. EUROPEAN BASIC EQUIPMENT(EK4) GRAY 		8-94349-205-0 01 1 9307- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
EXC. EUROPEAN BASIC EQUIPMENT(EK4),ACCESSORY PACK<ET6>,SEATING CAPACITY 8(X84),SEATING CAPACITY 5(X92),SEATING CAPACITY 2(6DD),SEATING CAPACITY 8(6DH) ,SEATING CAPACITY 9(6EY),SEATING CAPACITY 11(6EZ), SEATING CAPACITY 14(6FB) BEIGE 		8-94349-204-0 01 1 9307- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEATING CAPACITY 11(6EZ),SEATING CAPACITY 14(6FB) EXTRA CENTER SEAT<6JW> BEIGE 		8-94349-204-0 01 1 9307- ● ●
183 SEAT ASM; PASSENGER CENTER
ACCESSORY PACK<ET6> EXC. EUROPEAN BASIC EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),SEATING CAPACITY 8(X84),SEATING CAPACITY 5(X92),SEATING CAPACITY 2(6DD),SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY),SEATING CAPACITY11(6EZ),SEATING CAPACITY 14(6FB),EXTRA CENTER SEAT<6JW> GRAY 		8-94349-189-2 01 1 9307- ● ●
183 SEAT ASM; PASSENGER CENTER
SEATING CAPACITY 9(6EY) EXC. EUROPEAN BASIC EQUIPMENT(EK4) GRAY 		8-94349-189-2 01 1 9307- ● ●
183 SEAT ASM; PASSENGER CENTER
EXC. EUROPEAN BASIC EQUIPMENT(EK4),ACCESSORY PACK<ET6>,SEATING CAPACITY 8(X84),SEATING CAPACITY 5(X92),SEATING CAPACITY 2(6DD),SEATING CAPACITY 8(6DH) ,SEATING CAPACITY 9(6EY),SEATING CAPACITY 11(6EZ), SEATING CAPACITY 14(6FB) BEIGE 		8-94349-188-2 01 1 9307-9406 ● ●
183 SEAT ASM; PASSENGER CENTER
SEATING CAPACITY 11(6EZ),SEATING CAPACITY 14(6FB) EXTRA CENTER SEAT<6JW> BEIGE 		8-94349-188-2 01 1 9307-9406 ● ●
292 CONSOLE; SEAT BACK,CENTER
ACCESSORY PACK<ET6> EXC. EUROPEAN BASIC EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),SEATING CAPACITY 8(X84),SEATING CAPACITY 5(X92),SEATING CAPACITY 2(6DD),SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY),SEATING CAPACITY11(6EZ),SEATING CAPACITY 14(6FB),EXTRA CENTER SEAT<6JW> (A) GRAY 		8-94347-396-0 01 1 9307- ● ●
292 CONSOLE; SEAT BACK,CENTER
SEATING CAPACITY 9(6EY) EXC. EUROPEAN BASIC EQUIPMENT(EK4) (A) GRAY 		8-94347-396-0 01 1 9307- ● ●
292 CONSOLE; SEAT BACK,CENTER
ACCESSORY PACK<ET6> EXC. EUROPEAN BASIC EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),SEATING CAPACITY 8(X84),SEATING CAPACITY 5(X92),SEATING CAPACITY 2(6DD),SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY),SEATING CAPACITY11(6EZ),SEATING CAPACITY 14(6FB),EXTRA CENTER SEAT<6JW> (B) GRAY 		8-94347-397-0 01 1 9307- ● ●
292 CONSOLE; SEAT BACK,CENTER
SEATING CAPACITY 9(6EY) EXC. EUROPEAN BASIC EQUIPMENT(EK4) (B) GRAY 		8-94347-397-0 01 1 9307- ● ●
292 CONSOLE; SEAT BACK,CENTER
EXC. EUROPEAN BASIC EQUIPMENT(EK4),ACCESSORY PACK<ET6>,SEATING CAPACITY 8(X84),SEATING CAPACITY 5(X92),SEATING CAPACITY 2(6DD),SEATING CAPACITY 8(6DH) ,SEATING CAPACITY 9(6EY),SEATING CAPACITY 11(6EZ), SEATING CAPACITY 14(6FB) (A) BEIGE 		8-94347-394-0 01 1 9307- ● ●
292 CONSOLE; SEAT BACK,CENTER
SEATING CAPACITY 11(6EZ),SEATING CAPACITY 14(6FB) EXTRA CENTER SEAT<6JW> (A) BEIGE 		8-94347-394-0 01 1 9307- ● ●
292 CONSOLE; SEAT BACK,CENTER
EXC. EUROPEAN BASIC EQUIPMENT(EK4),ACCESSORY PACK<ET6>,SEATING CAPACITY 8(X84),SEATING CAPACITY 5(X92),SEATING CAPACITY 2(6DD),SEATING CAPACITY 8(6DH) ,SEATING CAPACITY 9(6EY),SEATING CAPACITY 11(6EZ), SEATING CAPACITY 14(6FB) (B) BEIGE 		8-94347-395-0 01 1 9307- ● ●
292 CONSOLE; SEAT BACK,CENTER
SEATING CAPACITY 11(6EZ),SEATING CAPACITY 14(6FB) EXTRA CENTER SEAT<6JW> (B) BEIGE 		8-94347-395-0 01 1 9307- ● ●
296 BOLT; CENTER SEAT BACK
SEATING CAPACITY 11(6EZ),SEATING CAPACITY 14(6FB) EXTRA CENTER SEAT<6JW> (A) M10X20 		8-94209-036-0 01 1 9307- ● ●
296 BOLT; CENTER SEAT BACK
ACCESSORY PACK<ET6> EXC. EUROPEAN BASIC EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),SEATING CAPACITY 5(X92),SEATING CAPACITY 2(6DD),SEATING CAPACITY 8(6DH),SEATING CAPACITY 11(6EZ),EXTRA CENTER SEAT<6JW> (A) M10X20 		8-94209-036-0 01 1 9307- ● ●
296 BOLT; CENTER SEAT BACK
EXC. EUROPEAN BASIC EQUIPMENT(EK4),ACCESSORY PACK<ET6>,SEATING CAPACITY 5(X92),SEATING CAPACITY 2(6DD),SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY) ,SEATING CAPACITY 11(6EZ) (A) M10X20 		8-94209-036-0 01 1 9307- ● ●
296 BOLT; CENTER SEAT BACK
SEATING CAPACITY 9(6EY) EXC. EUROPEAN BASIC EQUIPMENT(EK4) (A) M10X20 		8-94209-036-0 01 1 9307- ●
296 BOLT; CENTER SEAT BACK
SEATING CAPACITY 11(6EZ),SEATING CAPACITY 14(6FB) EXTRA CENTER SEAT<6JW> (B) M8X22.5 		8-94279-163-0 02 1 9307- ● ●
296 BOLT; CENTER SEAT BACK
ACCESSORY PACK<ET6> EXC. EUROPEAN BASIC EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),SEATING CAPACITY 5(X92),SEATING CAPACITY 2(6DD),SEATING CAPACITY 8(6DH),SEATING CAPACITY 11(6EZ),EXTRA CENTER SEAT<6JW> (B) M8X22.5 		8-94279-163-0 02 1 9307- ● ●
296 BOLT; CENTER SEAT BACK
EXC. EUROPEAN BASIC EQUIPMENT(EK4),ACCESSORY PACK<ET6>,SEATING CAPACITY 5(X92),SEATING CAPACITY 2(6DD),SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY) ,SEATING CAPACITY 11(6EZ) (B) M8X22.5 		8-94279-163-0 02 1 9307- ● ●
296 BOLT; CENTER SEAT BACK
SEATING CAPACITY 9(6EY) EXC. EUROPEAN BASIC EQUIPMENT(EK4) (B) M8X22.5 		8-94279-163-0 02 1 9307- ●
298 WASHER; NYLON,CENTER SEAT
SEATING CAPACITY 11(6EZ),SEATING CAPACITY 14(6FB) EXTRA CENTER SEAT<6JW> (A) NYLON ID=12 OD=20 T=4 		8-94209-033-0 01 1 9307- ● ●
298 WASHER; NYLON,CENTER SEAT
ACCESSORY PACK<ET6> EXC. EUROPEAN BASIC EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),SEATING CAPACITY 5(X92),SEATING CAPACITY 2(6DD),SEATING CAPACITY 8(6DH),SEATING CAPACITY 11(6EZ),EXTRA CENTER SEAT<6JW> (A) NYLON ID=12 OD=20 T=4 		8-94209-033-0 01 1 9307- ● ●
298 WASHER; NYLON,CENTER SEAT
EXC. EUROPEAN BASIC EQUIPMENT(EK4),ACCESSORY PACK<ET6>,SEATING CAPACITY 5(X92),SEATING CAPACITY 2(6DD),SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY) ,SEATING CAPACITY 11(6EZ) (A) NYLON ID=12 OD=20 T=4 		8-94209-033-0 01 1 9307- ● ●
298 WASHER; NYLON,CENTER SEAT
SEATING CAPACITY 9(6EY) EXC. EUROPEAN BASIC EQUIPMENT(EK4) (A) NYLON ID=12 OD=20 T=4 		8-94209-033-0 01 1 9307- ●
298 WASHER; NYLON,CENTER SEAT
SEATING CAPACITY 11(6EZ),SEATING CAPACITY 14(6FB) EXTRA CENTER SEAT<6JW> (B) STEEL ID=8.2 		9-09150-508-0 01 1 9307- ● ●
298 WASHER; NYLON,CENTER SEAT
ACCESSORY PACK<ET6> EXC. EUROPEAN BASIC EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),SEATING CAPACITY 5(X92),SEATING CAPACITY 2(6DD),SEATING CAPACITY 8(6DH),SEATING CAPACITY 11(6EZ),EXTRA CENTER SEAT<6JW> (B) STEEL ID=8.2 		9-09150-508-0 01 1 9307- ● ●
298 WASHER; NYLON,CENTER SEAT
EXC. EUROPEAN BASIC EQUIPMENT(EK4),ACCESSORY PACK<ET6>,SEATING CAPACITY 5(X92),SEATING CAPACITY 2(6DD),SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY) ,SEATING CAPACITY 11(6EZ) (B) STEEL ID=8.2 		9-09150-508-0 01 1 9307- ● ●
298 WASHER; NYLON,CENTER SEAT
SEATING CAPACITY 9(6EY) EXC. EUROPEAN BASIC EQUIPMENT(EK4) (B) STEEL ID=8.2 		9-09150-508-0 01 1 9307- ●
299 NUT; CENTER SEAT TO FLOOR
EUROPEAN BASIC EQUIPMENT(EK4) EXC. SEATING CAPACITY 8(X84),SEATING CAPACITY 5(X92),SEATING CAPACITY 2(6DD),SEATING CAPACITY 8(6DH) ,SEATING CAPACITY 11(6EZ),SEATING CAPACITY 14(6FB) M8 FLANGE 		5-09440-005-0 04 1 9407- ● ●
299 NUT; CENTER SEAT TO FLOOR
EXC. SEATING CAPACITY 8(X84),SEATING CAPACITY 5(X92),SEATING CAPACITY 2(6DD),SEATING CAPACITY 8(6DH) ,SEATING CAPACITY 11(6EZ),SEATING CAPACITY 14(6FB) M8 FLANGE 		5-09440-005-0 06 1 9307-9406 ● ●
299 NUT; CENTER SEAT TO FLOOR
SEATING CAPACITY 11(6EZ),SEATING CAPACITY 14(6FB) EXTRA CENTER SEAT<6JW> M8 FLANGE 		5-09440-005-0 06 1 9307-9406 ● ●
299 NUT; CENTER SEAT TO FLOOR
SEATING CAPACITY 11(6EZ),SEATING CAPACITY 14(6FB) EXTRA CENTER SEAT<6JW> M8 FLANGE 		5-09440-005-0 06 1 9407- ● ●
299 NUT; CENTER SEAT TO FLOOR
EXC. EUROPEAN BASIC EQUIPMENT(EK4),SEATING CAPACITY 8(X84),SEATING CAPACITY 5(X92),SEATING CAPACITY 2(6DD),SEATING CAPACITY 8(6DH),SEATING CAPACITY 11(6EZ),SEATING CAPACITY 14(6FB) M8 FLANGE 		5-09440-005-0 06 1 9407- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
