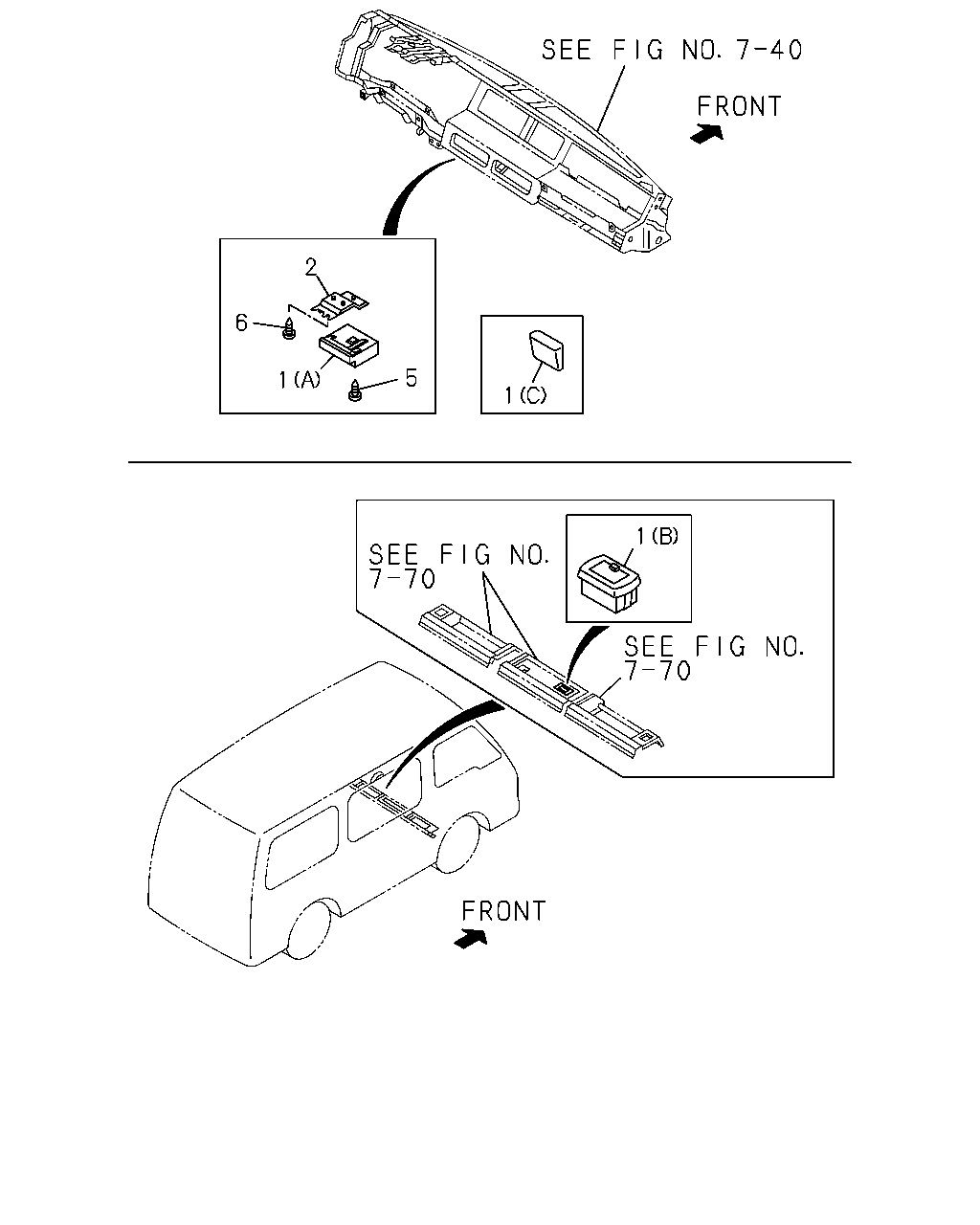

7-42 — ASH TRAY (#47259) — 12 parça

2 6 5 1 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRAY; ASH,INST PNL GRADE LT(RBC) (B)	8-94345-694-0	01	1	9307-9406	●
1	TRAY; ASH,INST PNL GRADE LT(RBC) EXC. EUROPEAN BASIC EQUIPMENT(EK4) (B)	8-94345-694-0	01	1	9407-	●
1	TRAY; ASH,INST PNL ASH TRAY BC POST<6ES> (C)	5-76457-001-0	01	1	9307-	●	●
1	TRAY; ASH,INST PNL INTERIOR COLOR MEDIUM GRAY(113) (A) GRAY	8-94350-875-2	01	1	9307-9307	●	●
1	TRAY; ASH,INST PNL INTERIOR COLOR MEDIUM GRAY(113) EXC. AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) GRAY	8-94350-875-2	01	1	9308-	●	●
1	TRAY; ASH,INST PNL INTERIOR COLOR MEDIUM GRAY(113) AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) GRAY	8-94350-872-4	01	1	9308-	●	●
1	TRAY; ASH,INST PNL INTERIOR COLOR MED SAND(129) (A) BEIGE	8-94350-874-2	01	1	9307-9307	●	●
1	TRAY; ASH,INST PNL INTERIOR COLOR MED SAND(129) EXC. AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) BEIGE	8-94350-874-2	01	1	9308-	●	●
1	TRAY; ASH,INST PNL INTERIOR COLOR MED SAND(129) AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) BEIGE	8-94350-871-4	01	1	9308-	●	●
2	BRACKET; ASH TRAY,DOOR	8-94278-150-2	01	1	9307-	●	●
5	SCREW; BRKT,ASH TRAY GRADE BASIC(RBA) EXC. ACCESSORY PACK<ET6> M5X14 TAPPING W/PL WASHER	0-74110-514-0	02	1	9307-	●	●
6	SCREW; ASH TRAY M5X12 TAPPING	9-07066-512-0	01	1	9307-	●	●
