◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ WFR ▶ 50686 - WFR-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#47256) — 37 parça

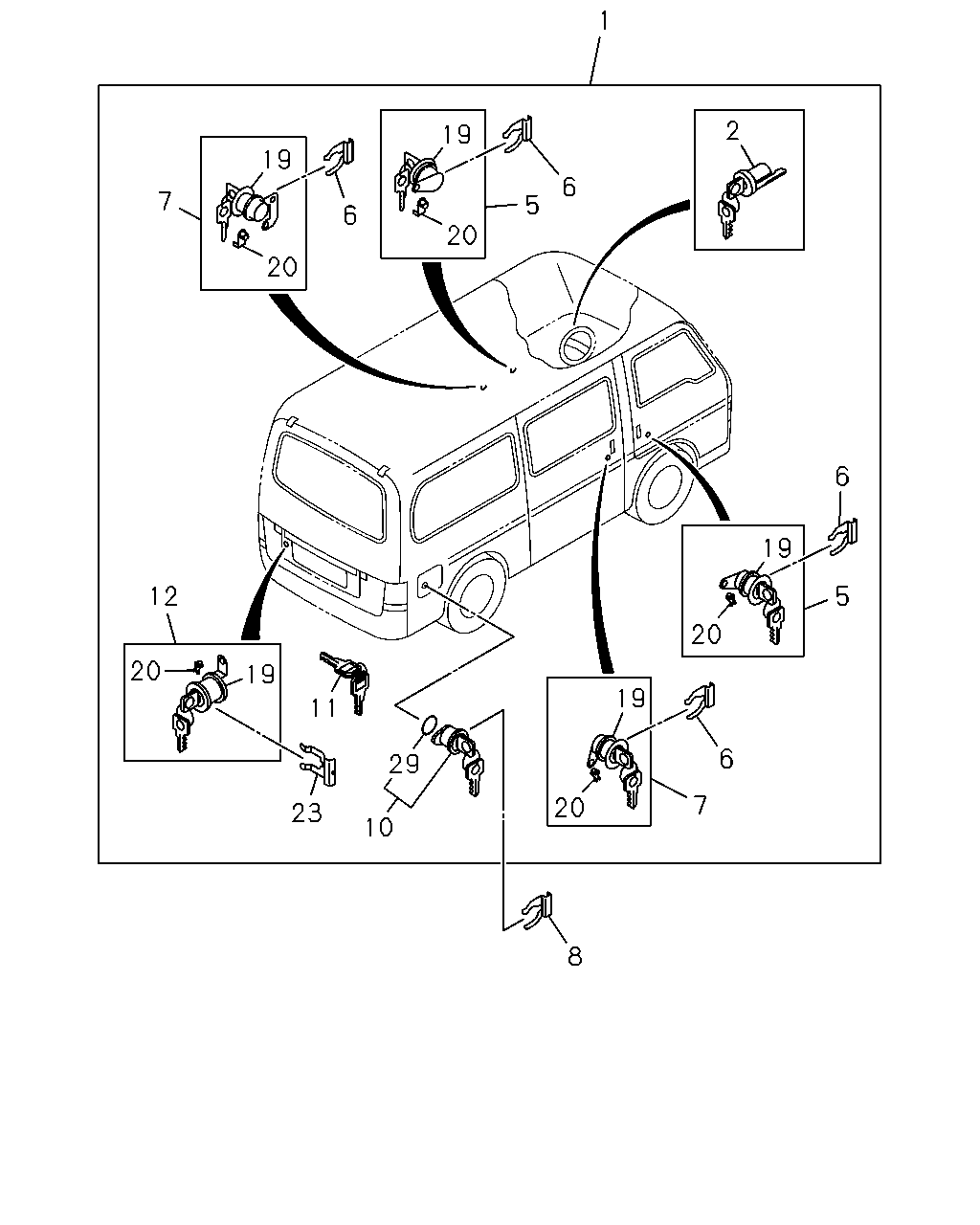

çizim 66144
1 2 1 19 6 7 5 6 20 20 6 19 12 5 20 20 19 19 11 6 29 23 20 7 10 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER SET; CAR LOCK
EUROPEAN BASIC EQUIPMENT(EK4) 5 DOOR<6KU> 		8-94353-858-0 01 1 9407- ● ●
1 CYLINDER SET; CAR LOCK
EUROPEAN BASIC EQUIPMENT(EK4) EXC. 5 DOOR<6KU> 		8-94353-857-0 01 1 9407- ● ●
1 CYLINDER SET; CAR LOCK
5 DOOR<6KU> 		8-94348-977-0 01 1 9307-9406 ● ●
1 CYLINDER SET; CAR LOCK
5 DOOR<6KU> EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-94348-977-0 01 1 9407- ● ●
1 CYLINDER SET; CAR LOCK
EXC. 5 DOOR<6KU> 		8-94352-705-0 01 1 9307-9406 ● ●
1 CYLINDER SET; CAR LOCK
EXC. EUROPEAN BASIC EQUIPMENT(EK4),5 DOOR<6KU> 		8-94352-705-0 01 1 9407- ● ●
2 BARREL ASM; W/KEY,STRG LOCK 8-94353-844-0 01 1 9307-9406 ● ●
2 BARREL ASM; W/KEY,STRG LOCK
EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-94353-844-0 01 1 9407- ● ●
2 BARREL ASM; W/KEY,STRG LOCK
EUROPEAN BASIC EQUIPMENT(EK4) 		8-94353-894-0 01 1 9407- ● ●
5 CYLINDER ASM; DOOR LOCK 8-94348-986-0 01 1 9307-9406 ● ●
5 CYLINDER ASM; DOOR LOCK
EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-94348-986-0 01 1 9407- ● ●
5 CYLINDER ASM; DOOR LOCK 8-94348-985-0 01 1 9307-9406 ● ●
5 CYLINDER ASM; DOOR LOCK
EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-94348-985-0 01 1 9407- ● ●
5 CYLINDER ASM; DOOR LOCK
EUROPEAN BASIC EQUIPMENT(EK4) 		8-94353-895-0 01 1 9407- ● ●
5 CYLINDER ASM; DOOR LOCK
EUROPEAN BASIC EQUIPMENT(EK4) 		8-94353-896-0 01 1 9407- ● ●
6 RETAINER; DOOR LOCK CYL
5 DOOR<6KU> 		8-94278-105-0 04 1 9307- ● ●
6 RETAINER; DOOR LOCK CYL
EXC. 5 DOOR<6KU> 		8-94278-105-0 03 1 9307- ● ●
7 CYLINDER ASM; W/KEY,SLIDE DOOR
EUROPEAN BASIC EQUIPMENT(EK4) 5 DOOR<6KU> 		8-94353-897-0 02 1 9407- ● ●
7 CYLINDER ASM; W/KEY,SLIDE DOOR
EUROPEAN BASIC EQUIPMENT(EK4) EXC. 5 DOOR<6KU> 		8-94353-897-0 01 1 9407- ● ●
7 CYLINDER ASM; W/KEY,SLIDE DOOR
5 DOOR<6KU> 		8-94348-987-0 02 1 9307-9406 ● ●
7 CYLINDER ASM; W/KEY,SLIDE DOOR
5 DOOR<6KU> EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-94348-987-0 02 1 9407- ● ●
7 CYLINDER ASM; W/KEY,SLIDE DOOR
EXC. 5 DOOR<6KU> 		8-94348-987-0 01 1 9307-9406 ● ●
7 CYLINDER ASM; W/KEY,SLIDE DOOR
EXC. EUROPEAN BASIC EQUIPMENT(EK4),5 DOOR<6KU> 		8-94348-987-0 01 1 9407- ● ●
8 CLIP; FUEL FILLER LID 8-94279-953-0 01 1 9307- ● ●
10 CYLINDER ASM; W/KEY,FUEL FILLER 8-94348-989-0 01 1 9307-9406 ● ●
10 CYLINDER ASM; W/KEY,FUEL FILLER
EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-94348-989-0 01 1 9407- ● ●
10 CYLINDER ASM; W/KEY,FUEL FILLER
EUROPEAN BASIC EQUIPMENT(EK4) 		8-94353-898-0 01 1 9407- ● ●
11 KEY; BLANK
WO/NOTCH 		8-97076-337-0 01 1 9307- ● ●
12 CYLINDER ASM; W/KEY,BACK DOOR 8-94348-988-0 01 1 9307-9406 ● ●
12 CYLINDER ASM; W/KEY,BACK DOOR
EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-94348-988-0 01 1 9407- ● ●
12 CYLINDER ASM; W/KEY,BACK DOOR
EUROPEAN BASIC EQUIPMENT(EK4) 		8-94353-899-0 01 1 9407- ● ●
19 GASKET; DOOR LOCK CYL
5 DOOR<6KU> 		8-94128-739-0 05 1 9307- ● ●
19 GASKET; DOOR LOCK CYL
EXC. 5 DOOR<6KU> 		8-94128-739-0 04 1 9307- ● ●
20 SNAP; DOOR LOCK CYL
5 DOOR<6KU> 		5-79130-001-1 05 1 9307- ● ●
20 SNAP; DOOR LOCK CYL
EXC. 5 DOOR<6KU> 		5-79130-001-1 04 1 9307- ● ●
23 RETAINER; BACK DOOR LOCK CYL 8-94278-104-0 01 1 9307- ● ●
29 GASKET; FUEL FILLER CYL 8-94128-739-0 01 1 9307- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
