Isuzu WW
▶
SUV
▶
WFR
▶
50686 - WFR-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

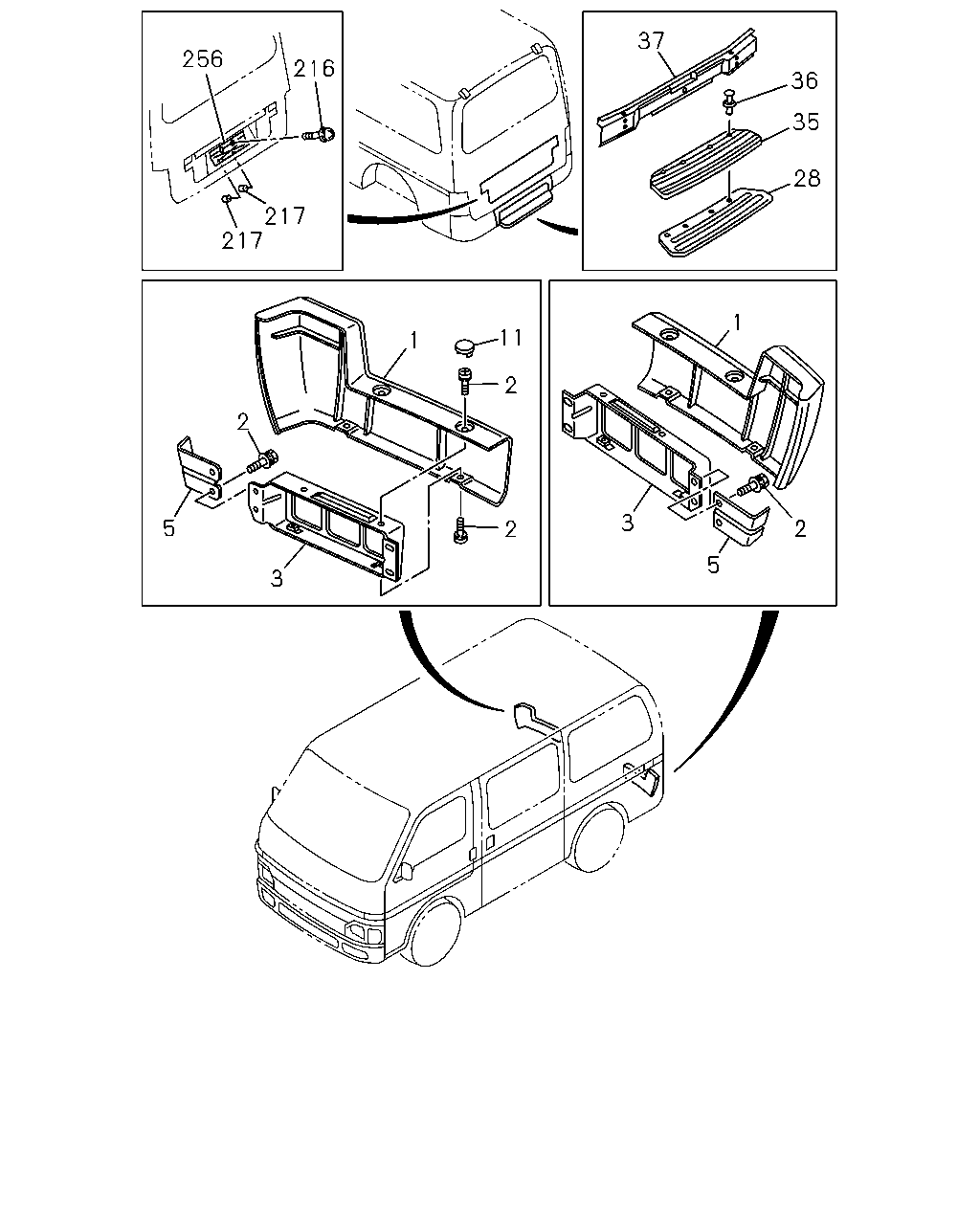

6-90 - REAR BUMPER
▶
6-90 — REAR BUMPER
(#47252) — 17 parça
Tümü
A - WFB6VC
B - WFB6VF
37
256
216
36
35
28
217
217
1
11
1
2
2
3
5
2
2
5
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BUMPER; RR
8-94269-879-1
01
1
9307-
●
●
1
BUMPER; RR
8-94269-878-1
01
1
9307-
●
●
2
BOLT; BACK BAR
M8X16 W/LK&PL WASHER
0-50140-816-0
08
1
9307-
●
●
2
BOLT; BACK BAR
M6X20
1-09981-113-0
04
1
9307-
●
●
2
BOLT; BACK BAR
M6X12 W/LK&PL WASHER
9-03920-612-0
04
1
9307-
●
●
3
BRACKET; BUMPER
8-94269-916-1
01
1
9307-
●
●
3
BRACKET; BUMPER
8-94269-915-1
01
1
9307-
●
●
5
SUPPORT; RR BUMPER
8-94269-918-0
01
1
9307-
●
●
5
SUPPORT; RR BUMPER
8-94269-917-0
01
1
9307-
●
●
11
CAP; RR BUMPER
8-94278-817-0
04
1
9307-
●
●
28
STEP ASM; RR
8-94291-710-0
01
1
9307-
●
●
35
STEP; RUBBER,RR
8-94278-814-0
01
1
9307-
●
●
36
CLIP; STEP RUBBER,RR
5-09987-060-0
04
1
9307-
●
●
37
PANEL; SILL OUTER,BACK
8-94348-360-0
01
1
9307-
●
●
216
SCREW; BRKT,REGISTRATION
EUROPEAN BASIC EQUIPMENT(EK4) M6X12 W/LK&PL WASHER
8-94279-329-0
02
1
9407-
●
●
217
FINISHER; REGISTRATION
EUROPEAN BASIC EQUIPMENT(EK4)
8-94282-557-0
02
1
9407-
●
●
256
BRACKET; REGISTRATION PLATE
EUROPEAN BASIC EQUIPMENT(EK4)
8-94269-913-0
01
1
9407-
●
●
