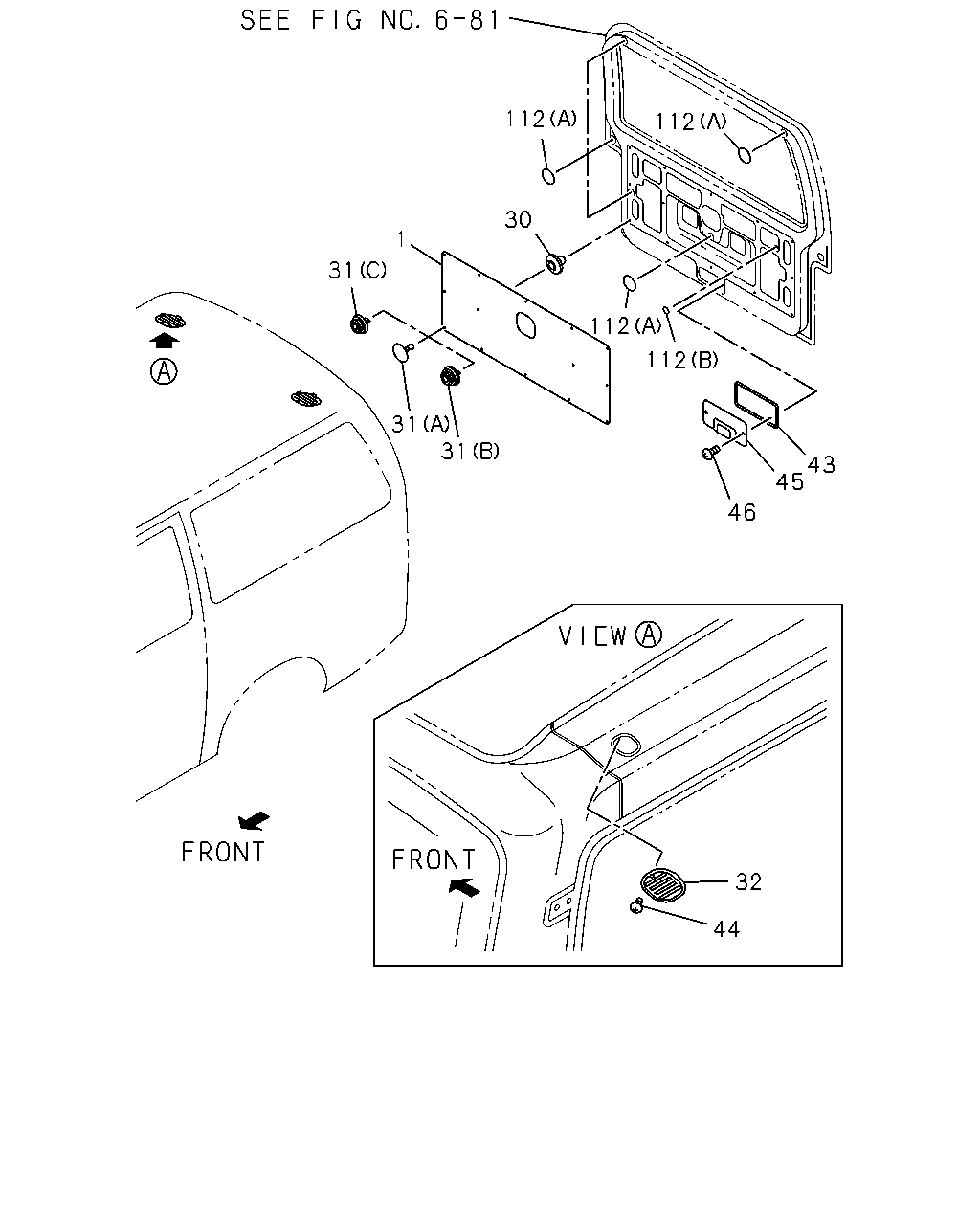

6-84 — BACK TRIM (#47250) — 25 parça

112 112 30 1 31 112 112 31 31 43 45 46 32 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PAD; TRIM,BACK DOOR HANDLE BACK DOOR INNER<S2A> 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y)	8-94350-542-0	01	1	9307-	●
1	PAD; TRIM,BACK DOOR INTERIOR COLOR MED SAND(129) 4 DOOR BUS(V4Z) BEIGE	8-94350-547-0	01	1	9307-	●
1	PAD; TRIM,BACK DOOR 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) EXC. HANDLE BACK DOOR INNER<S2A>	8-94350-540-0	01	1	9307-	●	●
1	PAD; TRIM,BACK DOOR INTERIOR COLOR MEDIUM GRAY(113) 4 DOOR WAGON(V4W) GRAY	8-94350-548-0	01	1	9307-		●
30	CAP; CLIP,TRIM PAD 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y)	8-94244-892-0	02	1	9307-9307	●
30	CAP; CLIP,TRIM PAD 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y)	8-94279-995-0	02	1	9308-	●
31	CLIP; TRIM PAD 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) (A)	8-94279-970-0	02	1	9307-	●
31	CLIP; TRIM PAD 4 DOOR VAN(V4V) RR SEAT FOLD<6KV> (B)	1-09987-119-1	12	1	9307-	●	●
31	CLIP; TRIM PAD 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) (B)	1-09987-119-1	12	1	9307-	●	●
31	CLIP; TRIM PAD 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) (B)	1-09987-119-1	15	1	9307-9307	●	●
31	CLIP; TRIM PAD 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) (B)	1-09987-119-1	13	1	9308-	●	●
31	CLIP; TRIM PAD 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) (C)	8-94279-994-0	02	1	9308-	●	●
31	CLIP; TRIM PAD 5 DOOR VAN(V4X) RR SEAT FOLD<6KV> (B)	1-09987-119-1	24	1	9307-	●	●
32	COVER; HINGE HOLE ACCESSORY PACK<ET6>	8-94352-102-1	02	1	9307-	●
32	COVER; HINGE HOLE	8-94352-102-1	02	1	9307-		●
32	COVER; HINGE HOLE EXC. ACCESSORY PACK<ET6>	8-94352-103-1	02	1	9307-	●
43	SEAL; COVER	8-94291-696-2	01	1	9307-	●	●
44	SCREW; COVER TO BODY M4X12 TAPPING	9-07066-412-0	02	1	9307-	●	●
45	COVER; LOCK HOLE,BACK DOOR	8-94291-556-1	01	1	9307-	●	●
46	SCREW; COVER M5X12 TAPPING OVAL-HEAD	9-07037-512-0	02	1	9307-	●	●
112	SEAL; LOCATION HOLE (B) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	9307-	●	●
112	SEAL; LOCATION HOLE HANDLE BACK DOOR INNER<S2A> 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) (A) OD=45 T=0.08 BLACK	8-94291-688-2	06	1	9307-	●	●
112	SEAL; LOCATION HOLE HANDLE BACK DOOR INNER<S2A>,4 DOOR BUS(V4Z) (A) OD=45 T=0.08 BLACK	8-94291-688-2	05	1	9307-	●	●
112	SEAL; LOCATION HOLE 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),4 DOOR WAGON(V4W),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) EXC. HANDLE BACK DOOR INNER<S2A> (A) OD=45 T=0.08 BLACK	8-94291-688-2	05	1	9307-	●	●
112	SEAL; LOCATION HOLE 4 DOOR BUS(V4Z) EXC. HANDLE BACK DOOR INNER<S2A> (A) OD=45 T=0.08 BLACK	8-94291-688-2	04	1	9307-	●	●
