6-83 — BACK DOOR LOCK AND HANDLE (#47249) — 68 parça

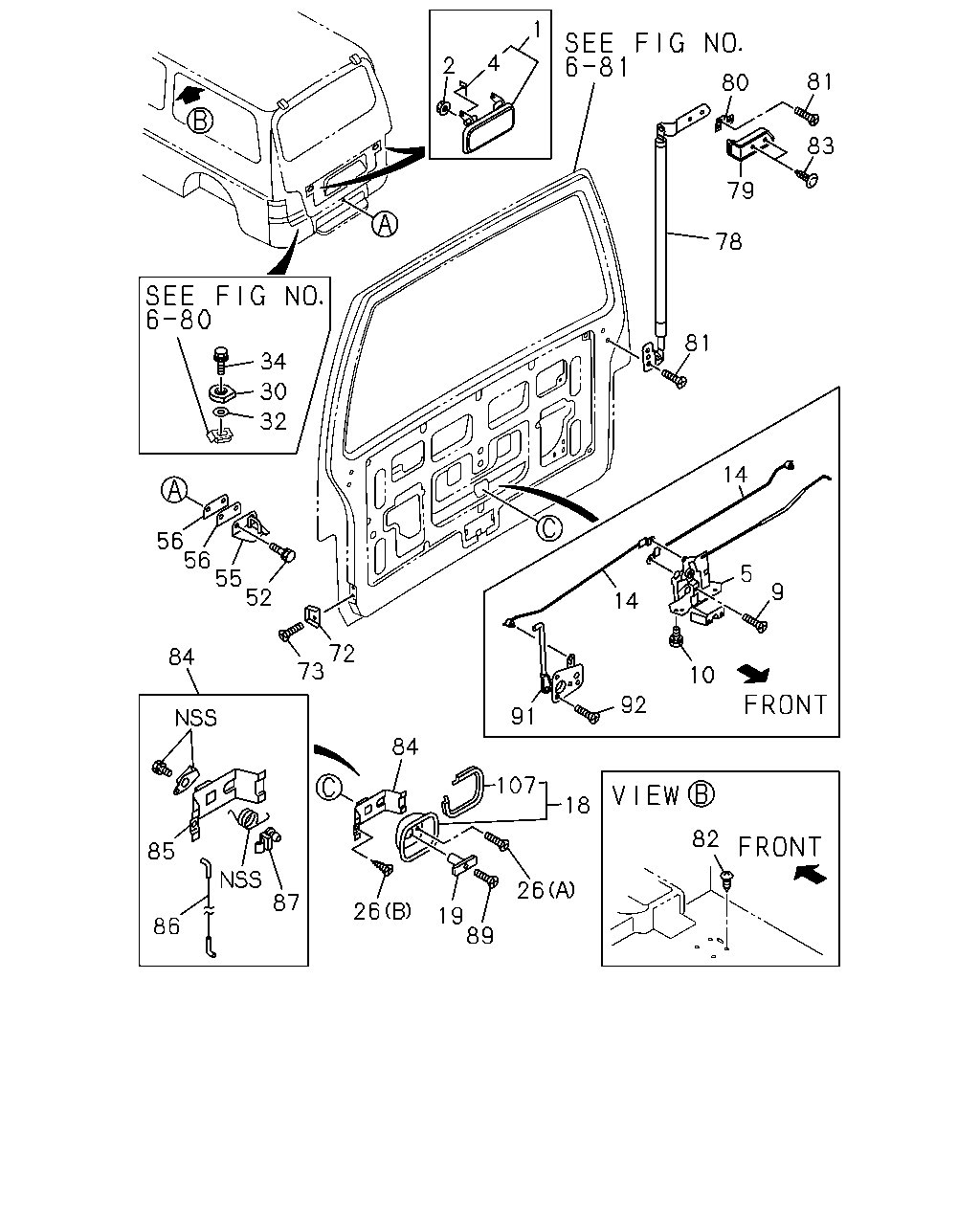

çizim 17066
1 4 2 81 80 83 79 78 81 34 30 32 14 56 56 55 52 5 9 14 72 73 84 10 92 91 84 107 85 18 82 87 26 26 19 89 86
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; OUTSIDE,BACK DOOR
FASHION PACK EXTERIOR<YN3> 		8-94274-834-0 01 1 9307- ● ●
1 HANDLE; OUTSIDE,BACK DOOR
FASHION PACK EXTERIOR<YN3> 		8-94274-833-0 01 1 9307- ● ●
1 HANDLE; OUTSIDE,BACK DOOR
EXC. FASHION PACK EXTERIOR<YN3> DARK GRAY 		8-94274-832-0 01 1 9307- ● ●
1 HANDLE; OUTSIDE,BACK DOOR
EXC. FASHION PACK EXTERIOR<YN3> DARK GRAY 		8-94274-831-0 01 1 9307- ● ●
2 NUT; HANDLE TO BACK DOOR
M6 FLANGE 		5-09440-004-0 04 1 9307- ● ●
4 CLIP; OUTSIDE HANDLE 8-94293-129-0 02 1 9307- ● ●
5 LOCK; BACK DOOR 8-94353-587-0 01 1 9307- ● ●
9 SCREW; LOCK TO BACK DOOR
M6X12 W/LK&PL WASHER 		8-94279-329-0 01 1 9307- ● ●
10 BOLT; LOCK
M8X20 W/LK&PL WASHER 		1-09980-512-0 02 1 9307- ● ●
14 LINK; BACK DOOR OPEN 8-94280-811-0 01 1 9307- ● ●
14 LINK; BACK DOOR OPEN 8-94280-810-0 01 1 9307- ● ●
18 COVER; INSIDE HANDLE,BACK DOOR
INTERIOR COLOR MEDIUM GRAY(113) HANDLE BACK DOOR INNER<S2A> GRAY 		8-94345-874-0 01 1 9307- ● ●
18 COVER; INSIDE HANDLE,BACK DOOR
INTERIOR COLOR MED SAND(129) HANDLE BACK DOOR INNER<S2A> BEIGE 		8-94345-875-0 01 1 9307- ● ●
18 COVER; INSIDE HANDLE,BACK DOOR
INTERIOR COLOR MEDIUM GRAY(113) HANDLE BACK DOOR INNER<S2A> GRAY 		8-94345-874-0 01 1 9307- ● ●
18 COVER; INSIDE HANDLE,BACK DOOR
INTERIOR COLOR MED SAND(129) HANDLE BACK DOOR INNER<S2A> BEIGE 		8-94345-875-0 01 1 9307- ● ●
19 HANDLE; BACK DOOR,INNER
INTERIOR COLOR MEDIUM GRAY(113) HANDLE BACK DOOR INNER<S2A> GRAY 		8-94345-877-1 01 1 9307- ● ●
19 HANDLE; BACK DOOR,INNER
INTERIOR COLOR MED SAND(129) HANDLE BACK DOOR INNER<S2A> BEIGE 		8-94345-878-1 01 1 9307- ● ●
26 SCREW; COVER
HANDLE BACK DOOR INNER<S2A> (A) M4X8 TAPPING 		0-71080-408-0 02 1 9307- ● ●
26 SCREW; COVER
HANDLE BACK DOOR INNER<S2A> (B) M5X12 TAPPING 		9-07066-512-0 02 1 9307- ● ●
30 DOVETAIL; BACK DOOR 8-94353-622-0 04 1 9307- ● ●
32 WASHER; PL,DOVETAIL
ID=8 OD=32 T=2 		8-94279-647-0 04 1 9307- ● ●
32 WASHER; PL,DOVETAIL
ID=10 OD=33 T=3.2 		8-94279-648-0 AR 1 9307- ● ●
34 BOLT; DOVETAIL TO BACK DOOR
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9307- ● ●
52 BOLT; STRIKER
M8X25 		8-94279-106-0 02 1 9307- ● ●
55 STRIKER; BACK DOOR 8-94282-537-0 01 1 9307- ● ●
56 SHIM
T=3.2 		8-94282-547-0 01 1 9307- ● ●
56 SHIM
T=1.0 		8-94282-548-0 01 1 9307- ● ●
72 STRIKER; DOVETAIL 8-94353-646-0 04 1 9307- ● ●
73 SCREW; STRIKER TO BACK DOOR
M6X16 		8-94279-385-0 08 1 9307- ● ●
78 SPRING; BACK DOOR
EUROPEAN BASIC EQUIPMENT(EK4) EXC. RR WIPER<C25> 		8-94274-155-1 01 1 9407- ● ●
78 SPRING; BACK DOOR
EUROPEAN BASIC EQUIPMENT(EK4) EXC. RR WIPER<C25> 		8-94274-154-1 01 1 9407- ● ●
78 SPRING; BACK DOOR
RR WIPER<C25> 		8-94282-830-0 01 1 9307-9406 ● ●
78 SPRING; BACK DOOR
RR WIPER<C25> EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-94282-830-0 01 1 9407- ● ●
78 SPRING; BACK DOOR
RR WIPER<C25> 		8-94282-829-0 01 1 9307-9406 ● ●
78 SPRING; BACK DOOR
RR WIPER<C25> EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-94282-829-0 01 1 9407- ● ●
78 SPRING; BACK DOOR
RR WIPER<C25> EUROPEAN BASIC EQUIPMENT(EK4) 		8-94274-157-1 01 1 9407- ● ●
78 SPRING; BACK DOOR
RR WIPER<C25> EUROPEAN BASIC EQUIPMENT(EK4) 		8-94274-156-1 01 1 9407- ● ●
78 SPRING; BACK DOOR
EXC. RR WIPER<C25> 		8-94282-828-0 01 1 9307-9406 ● ●
78 SPRING; BACK DOOR
EXC. RR WIPER<C25>,EUROPEAN BASIC EQUIPMENT(EK4) 		8-94282-828-0 01 1 9407- ● ●
78 SPRING; BACK DOOR
EXC. RR WIPER<C25> 		8-94282-827-0 01 1 9307-9406 ● ●
78 SPRING; BACK DOOR
EXC. RR WIPER<C25>,EUROPEAN BASIC EQUIPMENT(EK4) 		8-94282-827-0 01 1 9407- ● ●
79 COVER; SPR,BACK DOOR
EUROPEAN BASIC EQUIPMENT(EK4) 4 DOOR WAGON(V4W) 		8-94345-883-0 01 1 9407- ●
79 COVER; SPR,BACK DOOR
EUROPEAN BASIC EQUIPMENT(EK4) 4 DOOR WAGON(V4W) 		8-94345-880-0 01 1 9407- ●
79 COVER; SPR,BACK DOOR
4 DOOR WAGON(V4W) 		8-94345-976-0 01 1 9307-9406 ●
79 COVER; SPR,BACK DOOR
4 DOOR WAGON(V4W) EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-94345-976-0 01 1 9407- ●
79 COVER; SPR,BACK DOOR
4 DOOR WAGON(V4W) 		8-94345-973-0 01 1 9307-9406 ●
79 COVER; SPR,BACK DOOR
4 DOOR WAGON(V4W) EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-94345-973-0 01 1 9407- ●
79 COVER; SPR,BACK DOOR
EUROPEAN BASIC EQUIPMENT(EK4) 4 DOOR BUS(V4Z) 		8-94345-884-0 01 1 9407- ● ●
79 COVER; SPR,BACK DOOR
EUROPEAN BASIC EQUIPMENT(EK4) 4 DOOR BUS(V4Z) 		8-94345-881-0 01 1 9407- ● ●
79 COVER; SPR,BACK DOOR
4 DOOR BUS(V4Z) 		8-94345-977-0 01 1 9307-9406 ● ●
79 COVER; SPR,BACK DOOR
4 DOOR BUS(V4Z) EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-94345-977-0 01 1 9407- ● ●
79 COVER; SPR,BACK DOOR
4 DOOR BUS(V4Z) 		8-94345-974-0 01 1 9307-9406 ● ●
79 COVER; SPR,BACK DOOR
4 DOOR BUS(V4Z) EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-94345-974-0 01 1 9407- ● ●
80 BRACKET; COVER TO SPR
4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) 		8-94293-505-0 02 1 9307- ● ●
81 BOLT; BRKT TO SPR 8-94279-134-0 08 1 9307- ● ●
82 PLUG; BACK DOOR
4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) EXC. REAR HEATER<C35> WHITE 		8-94293-508-0 04 1 9307- ● ●
82 PLUG; BACK DOOR
SEATING CAPACITY 9(R49),SEATING CAPACITY 8(X84) 4 DOOR VAN(V4V),5 DOOR VAN(V4X) WHITE 		8-94293-508-0 04 1 9307- ●
83 PLUG; HOLE
GRADE LT(RBC) 		8-94350-156-0 04 1 9307- ●
83 PLUG; HOLE
4 DOOR BUS(V4Z) 		8-94350-157-0 04 1 9307- ● ●
84 HANDLE; INSIDE,BACK DOOR
HANDLE BACK DOOR INNER<S2A> 		8-94286-297-4 01 1 9307- ● ●
85 ESCUTCHEON; BACK DOOR
HANDLE BACK DOOR INNER<S2A> 		8-94286-298-0 01 1 9307- ● ●
86 CABLE; INSIDE HANDLE,BACK DOOR
HANDLE BACK DOOR INNER<S2A> 		8-94286-304-2 01 1 9307- ● ●
87 CLIP; INSIDE HANDLE,BACK DOOR
HANDLE BACK DOOR INNER<S2A> 		8-94286-303-0 02 1 9307- ● ●
89 SCREW; HANDLE
HANDLE BACK DOOR INNER<S2A> 		9-03294-516-0 01 1 9307- ● ●
91 BELL CRANK; BACK DOOR 8-94345-443-0 01 1 9307- ● ●
91 BELL CRANK; BACK DOOR 8-94345-442-0 01 1 9307- ● ●
92 SCREW; BELLCRANK TO BACK DOOR
M6X14 W/LK&PL WASHER 		9-03920-614-0 06 1 9307- ● ●
107 SPACER; PULL HANDLE
HANDLE BACK DOOR INNER<S2A> 		8-94288-172-0 01 1 9307- ● ●
