◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ WFR ▶ 50686 - WFR-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-82 - BACK GLASS AND WEATHERSTRIP ▶
6-82 — BACK GLASS AND WEATHERSTRIP (#47248) — 14 parça

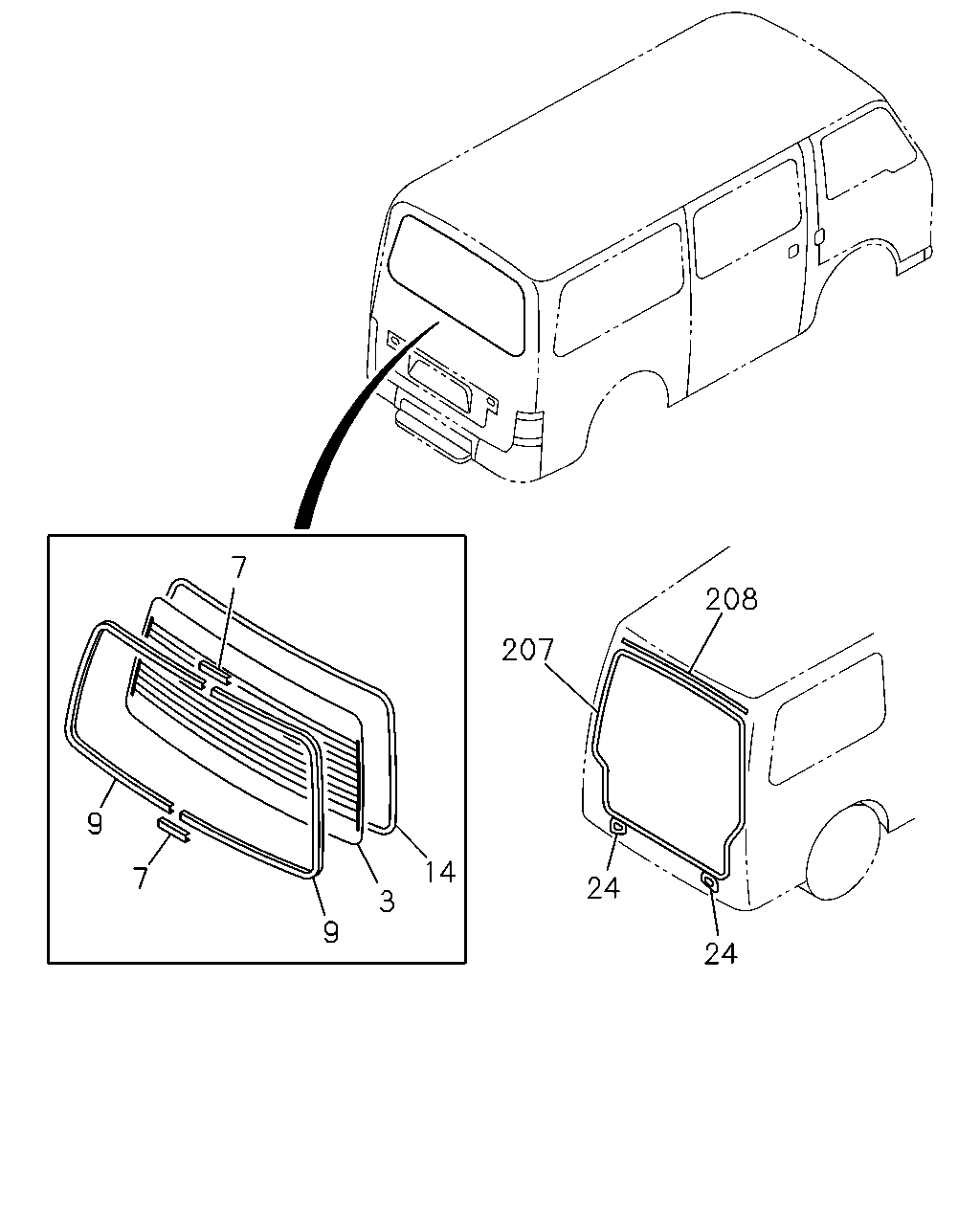

çizim 16303
7 208 207 9 14 7 24 3 9 24
BalonParca AdiParca NoAdetTipApplied Date A B
3 GLASS; BACK DOOR WINDOW
BRONZE GLASS(X72) 		8-94256-021-0 01 1 9307- ●
3 GLASS; BACK DOOR WINDOW
LAMINATED TINTED GLASS(YM4) EXC. REAR DEFOGGER<C49>,BRONZE GLASS(X72) 		8-94225-529-1 01 1 9307- ● ●
3 GLASS; BACK DOOR WINDOW
REAR DEFOGGER<C49> EXC. BRONZE GLASS(X72),LAMINATED TINTED GLASS(YM4) 		8-94244-068-0 01 1 9307- ● ●
3 GLASS; BACK DOOR WINDOW
REAR DEFOGGER<C49> LAMINATED TINTED GLASS(YM4) EXC. BRONZE GLASS(X72) 		8-94226-161-3 01 1 9307- ● ●
3 GLASS; BACK DOOR WINDOW
EXC. REAR DEFOGGER<C49>,BRONZE GLASS(X72), LAMINATED TINTED GLASS(YM4) 		8-94225-528-1 01 1 9307- ● ●
7 JOINT; MOLDING,BACK WINDOW
WINDOW MOLDING FRT SIDE RR<B81> 		8-94294-000-1 02 1 9307- ● ●
9 MOLDING; BACK DOOR WINDOW
WINDOW MOLDING FRT SIDE RR<B81> 		8-94289-004-0 01 1 9307- ● ●
9 MOLDING; BACK DOOR WINDOW
WINDOW MOLDING FRT SIDE RR<B81> 		8-94289-003-0 01 1 9307- ● ●
14 WEATHERSTRIP; BACK DOOR WINDOW
WINDOW MOLDING FRT SIDE RR<B81> 		8-94291-801-3 01 1 9307- ● ●
14 WEATHERSTRIP; BACK DOOR WINDOW
EXC. WINDOW MOLDING FRT SIDE RR<B81> 		8-94291-800-3 01 1 9307- ● ●
24 COVER; SILL BACK 8-94291-831-1 01 1 9307- ● ●
24 COVER; SILL BACK 8-94291-830-1 01 1 9307- ● ●
207 SEAL; BACK DOOR 8-94292-134-6 01 1 9307- ● ●
208 SEAL; SUB,BACK DOOR,"A" 8-94289-291-1 01 1 9307- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
