6-78 — FLOOR HOLE PLUG (#47245) — 58 parça

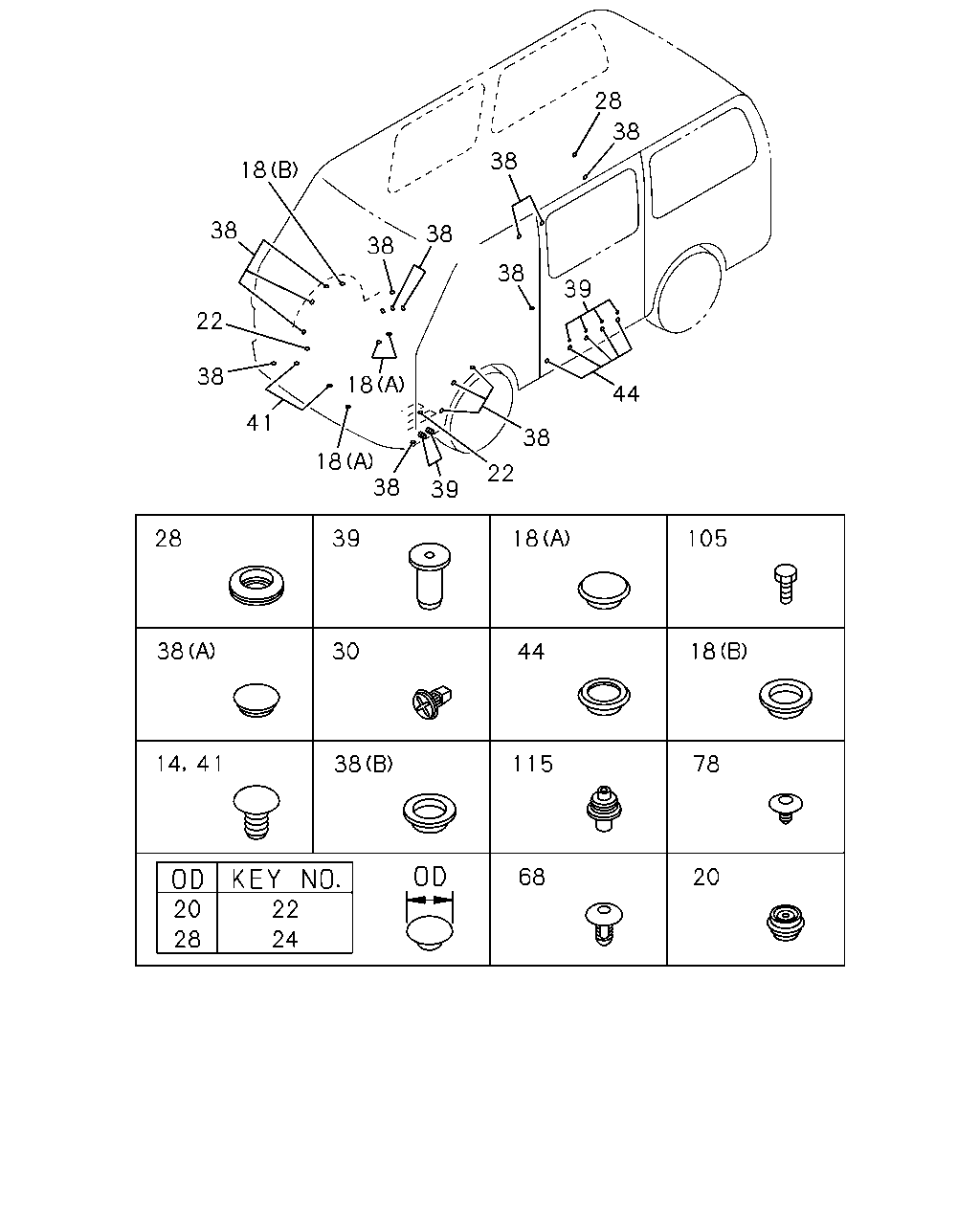

çizim 16059
28 38 38 18 38 38 38 38 39 22 38 18 44 41 38 18 38 22 39 105 28 39 18 38 30 18 44 38 115 78 68 20 14 41 22 24
BalonParca AdiParca NoAdetTipApplied Date A B
14 GROMMET; DUMMY HOLE FLOOR
4ZC1 ENG(LR9) EXC. POWER STEERING<N40> OD=5.0 		5-09987-042-0 02 1 9307- ● ●
14 GROMMET; DUMMY HOLE FLOOR
4FG1 ENG(RLL) OD=5.0 		5-09987-042-0 02 1 9307- ● ●
18 GROMMET; FLOOR
(B) OD=20 		5-09983-020-0 01 1 9307- ● ●
18 GROMMET; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A)OD=40 FLOOR 		8-94292-298-0 01 1 9307- ● ●
18 GROMMET; FLOOR
4ZC1 ENG(LR9) (A)OD=40 S/COVER 		8-94289-283-0 02 1 9307- ● ●
20 GROMMET; FLOOR HOLE 8-94264-566-0 04 1 9307- ● ●
22 GROMMET; FLOOR,HTR HOSE
ID=13-18 L=14.5 		9-09956-606-0 02 1 9307- ● ●
22 GROMMET; FLOOR,HTR HOSE
EXC. HEATER&DEFROSTER(C41) OD=20 		9-09956-805-0 01 1 9307-9406 ● ●
22 GROMMET; FLOOR,HTR HOSE
EXC. HEATER&DEFROSTER(C41),EUROPEAN BASIC EQUIPMENT(EK4) OD=20 		9-09956-805-0 01 1 9407- ● ●
24 GROMMET; FLOOR,VALANCE PANEL
OD=28 		9-09956-612-0 01 1 9307- ● ●
28 GROMMET; FUEL,BREATHER HOLE
OD=35 T=9.5 		9-09956-248-0 01 1 9307- ● ●
28 GROMMET; FUEL,BREATHER HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) OD=30 T=5 		9-09756-032-0 01 1 9307- ● ●
28 GROMMET; FUEL,BREATHER HOLE
EXC. HEATER&DEFROSTER(C41) OD=28 		9-09956-612-0 02 1 9307-9406 ● ●
28 GROMMET; FUEL,BREATHER HOLE
EXC. HEATER&DEFROSTER(C41),EUROPEAN BASIC EQUIPMENT(EK4) OD=28 		9-09956-612-0 02 1 9407- ● ●
30 GROMMET; INSULATOR 8-94291-779-0 02 1 9307- ● ●
38 GROMMET; RR FLOOR
(B) OD=32 T=5 		5-09983-018-0 06 1 9307- ●
38 GROMMET; RR FLOOR
(B) OD=32 T=5 		5-09983-018-0 02 1 9307- ● ●
38 GROMMET; RR FLOOR
(B) OD=32 T=5 		5-09983-018-0 02 1 9307- ● ●
38 GROMMET; RR FLOOR
(B) OD=32 T=5 		5-09983-018-0 08 1 9307- ● ●
38 GROMMET; RR FLOOR
(B) OD=32 T=5 		5-09983-018-0 08 1 9307- ●
38 GROMMET; RR FLOOR
(B) OD=38 T=6 		9-09956-701-0 01 1 9307- ● ●
38 GROMMET; RR FLOOR
(A) OD=15 T=6.5 		9-09956-766-0 01 1 9307- ● ●
38 GROMMET; RR FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) OD=42 T=8 		1-09332-020-0 01 1 9307- ● ●
38 GROMMET; RR FLOOR
FLOOR REMOTE SHIFT<M11> (A) OD=48 T=9.1 		8-94279-053-0 02 1 9307- ● ●
38 GROMMET; RR FLOOR
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) OD=15 T=6.5 		9-09956-766-0 02 1 9307- ● ●
38 GROMMET; RR FLOOR
4 DOOR VAN(V4V),4 DOOR WAGON(V4W),4 DOOR PANEL VAN(V4Y),4 DOOR BUS(V4Z) (B) OD=32 T=5 		5-09983-018-0 07 1 9307- ● ●
38 GROMMET; RR FLOOR
5 DOOR PANEL VAN(V4P),5 DOOR VAN(V4X) (B) OD=32 T=5 		5-09983-018-0 05 1 9307- ● ●
38 GROMMET; RR FLOOR
5 DOOR<6KU> (B) OD=32 T=5 		5-09983-018-0 04 1 9307- ● ●
38 GROMMET; RR FLOOR
5 DOOR<6KU> (B) OD=32 T=5 		5-09983-018-0 01 1 9307- ● ●
39 GROMMET; RR FLOOR,DOOR STEP
OD=13 		9-09756-019-0 02 1 9307- ● ●
39 GROMMET; RR FLOOR,DOOR STEP
SEATING CAPACITY 8(X84),SEATING CAPACITY 5(X92), SEATING CAPACITY 2(6DD),SEATING CAPACITY 8(6DH), SEATING CAPACITY 11(6EZ) EXC. FRONT CONSOLE<D55>,FLOOR REMOTE SHIFT<M11> OD=13 		9-09756-019-0 02 1 9307- ● ●
39 GROMMET; RR FLOOR,DOOR STEP
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) OD=13 		9-09756-019-0 04 1 9307-9406 ● ●
39 GROMMET; RR FLOOR,DOOR STEP
EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,FLOOR REMOTE SHIFT<M11>,FRT FLOOR CARPET<X81> OD=13 		9-09756-019-0 04 1 9307-9406 ● ●
39 GROMMET; RR FLOOR,DOOR STEP
EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>, TURBOCHARGER(K51),FLOOR REMOTE SHIFT<M11>,FRT FLOOR CARPET<X81> OD=13 		9-09756-019-0 04 1 9407- ● ●
39 GROMMET; RR FLOOR,DOOR STEP
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) OD=13 		9-09756-019-0 04 1 9407- ● ●
41 GROMMET; SEAT HOLE
4 DOOR WAGON(V4W),4 DOOR PANEL VAN(V4Y),4 DOOR BUS(V4Z) EXC. SEATING CAPACITY 6(R48) OD=5.0 		5-09987-042-0 04 1 9307-9406 ● ●
41 GROMMET; SEAT HOLE
4 DOOR WAGON(V4W),4 DOOR PANEL VAN(V4Y),4 DOOR BUS(V4Z) EXC. SEATING CAPACITY 6(R48) OD=5.0 		5-09987-042-0 04 1 9407- ● ●
41 GROMMET; SEAT HOLE
EUROPEAN BASIC EQUIPMENT(EK4) 4 DOOR VAN(V4V),5 DOOR VAN(V4X) EXC. SEATING CAPACITY 6(R48) OD=5.0 		5-09987-042-0 04 1 9407- ● ●
44 GROMMET; SILL SIDE
OD=20 		5-09983-020-0 08 1 9307- ● ●
44 GROMMET; SILL SIDE
5 DOOR<6KU> OD=30 		8-94107-655-0 02 1 9307- ● ●
44 GROMMET; SILL SIDE
EXC. 5 DOOR<6KU> OD=30 		8-94107-655-0 01 1 9307- ● ●
68 PLUG; HOLE
OD=15 L=14.5 		1-76378-157-0 02 1 9307- ● ●
78 PLUG; VALANCE
4ZC1 ENG(LR9) EXC. POWER STEERING<N40> OD=16 L=11 		1-76378-155-0 03 1 9307- ● ●
78 PLUG; VALANCE
4FG1 ENG(RLL) OD=16 L=11 		1-76378-155-0 03 1 9307- ● ●
78 PLUG; VALANCE
4FG1 ENG(RLL) POWER STEERING<N40> OD=16 L=11 		1-76378-155-0 01 1 9307- ● ●
78 PLUG; VALANCE
4FG1 ENG(RLL) POWER STEERING<N40> D4.7X15 GRAY 		8-94279-801-0 01 1 9307- ● ●
78 PLUG; VALANCE
4ZC1 ENG(LR9) OD=16 L=11 		1-76378-155-0 04 1 9307- ● ●
78 PLUG; VALANCE
4FG1 ENG(RLL) EXC. POWER STEERING<N40> OD=16 L=11 		1-76378-155-0 04 1 9307- ● ●
105 BOLT; FLOOR
FLOOR REMOTE SHIFT<M11> 		0-20801-010-0 01 1 9307- ● ●
115 FASTENER; FLOOR MAT
4 DOOR WAGON(V4W) NYLON 6 		8-94291-778-0 03 1 9307- ●
115 FASTENER; FLOOR MAT
NYLON 6 		8-94291-778-0 08 1 9307- ● ●
115 FASTENER; FLOOR MAT
FLOOR CARPET<B30> EXC. FRONT CONSOLE<D55>,FLOOR REMOTE SHIFT<M11>, SEATING CAPACITY 8(X84),SEATING CAPACITY 5(X92),SEAT ING CAPACITY 2(6DD),SEATING CAPACITY 8(6DH) NYLON 6 		8-94291-778-0 04 1 9307- ● ●
115 FASTENER; FLOOR MAT
RR FLOOR MAT<B33> FRT FLOOR CARPET<X81> EXC. FRONT CONSOLE<D55>,FLOOR REMOTE SHIFT<M11>, SEATING CAPACITY 6(R48),SEATING CAPACITY 9(R49),SEAT ING CAPACITY 8(X84),SEATING CAPACITY 5(X92), SEATING CAPACITY 2(6DD) NYLON 6 		8-94291-778-0 04 1 9307- ● ●
115 FASTENER; FLOOR MAT
FRT FLOOR CARPET<X81> EXC. FRONT CONSOLE<D55>,FLOOR REMOTE SHIFT<M11>, SEATING CAPACITY 8(X84),SEATING CAPACITY 5(X92),SEAT ING CAPACITY 2(6DD) NYLON 6 		8-94291-778-0 04 1 9307- ● ●
115 FASTENER; FLOOR MAT
FLOOR REMOTE SHIFT<M11> NYLON 6 		8-94291-778-0 14 1 9307- ● ●
115 FASTENER; FLOOR MAT
EXC. FLOOR REMOTE SHIFT<M11> NYLON 6 		8-94291-778-0 16 1 9307- ● ●
115 FASTENER; FLOOR MAT
SEATING CAPACITY 8(X84),SEATING CAPACITY 5(X92), SEATING CAPACITY 2(6DD),SEATING CAPACITY 8(6DH), SEATING CAPACITY 11(6EZ),SEATING CAPACITY 14(6FB) EXC. FRONT CONSOLE<D55> NYLON 6 		8-94291-778-0 02 1 9307-9406 ● ●
115 FASTENER; FLOOR MAT
SEATING CAPACITY 8(X84),SEATING CAPACITY 5(X92), SEATING CAPACITY 2(6DD),SEATING CAPACITY 8(6DH), SEATING CAPACITY 11(6EZ),SEATING CAPACITY 14(6FB) EXC. FRONT CONSOLE<D55>,TURBOCHARGER(K51) NYLON 6 		8-94291-778-0 02 1 9407- ● ●
