6-70 — FLOOR PANEL (#47242) — 79 parça

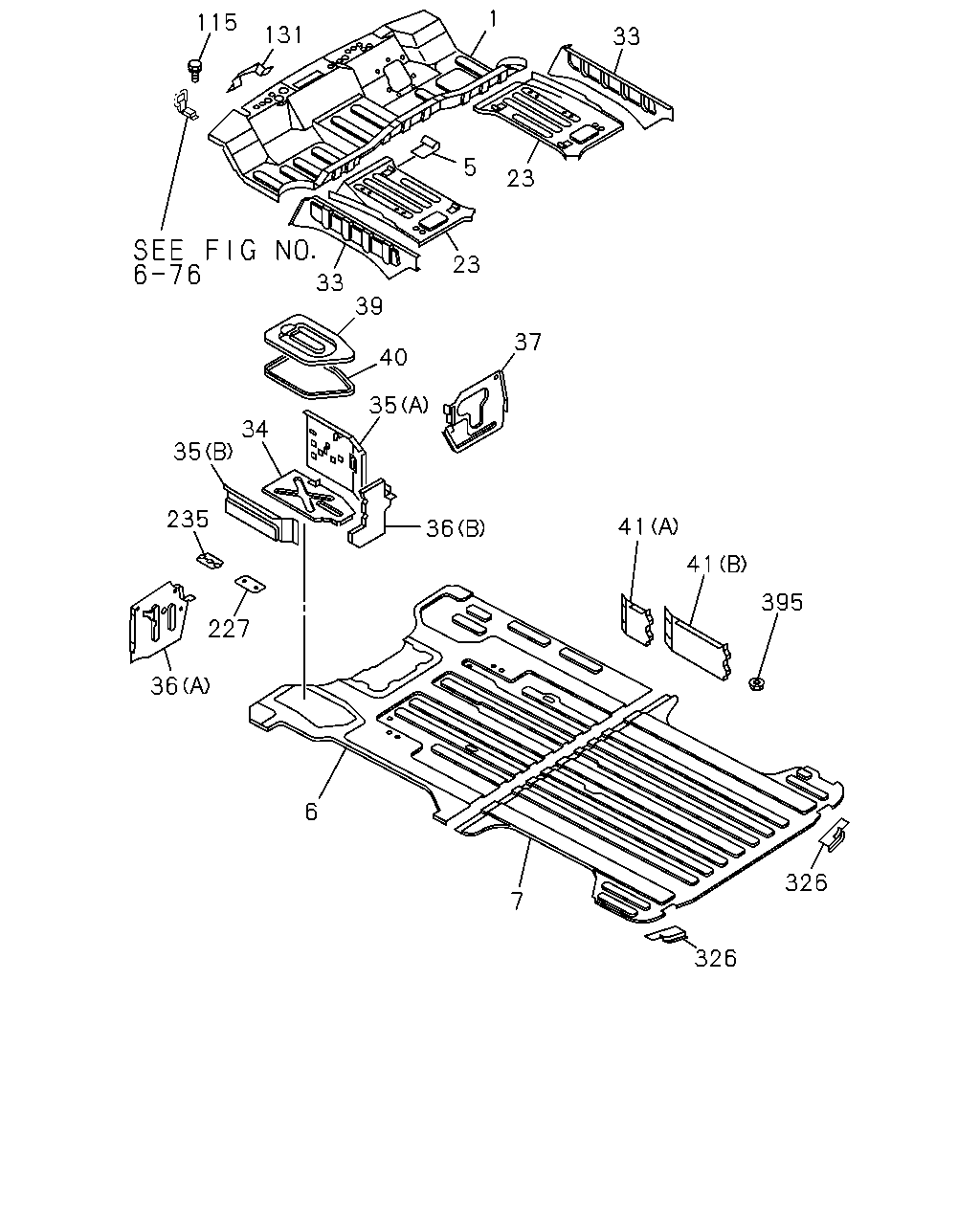

çizim 68760
1 115 131 33 5 23 33 39 23 37 40 35 34 35 235 41 36 41 395 227 36 6 326 7 326
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR
EUROPEAN BASIC EQUIPMENT(EK4) 4 DOOR WAGON(V4W) ADJUST HEADLAMP<6RC> EXC. FLOOR REMOTE SHIFT<M11> 		8-94348-145-2 01 1 9407- ●
1 PANEL; FLOOR
4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) EXC. FLOOR REMOTE SHIFT<M11> 		8-94348-142-2 01 1 9307- ●
1 PANEL; FLOOR
EUROPEAN BASIC EQUIPMENT(EK4) FLOOR REMOTE SHIFT<M11> 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),4 DOOR WAGON(V4W),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) ADJUST HEADLAMP<6RC> 		8-94348-146-2 01 1 9407- ● ●
1 PANEL; FLOOR
EUROPEAN BASIC EQUIPMENT(EK4) 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) ADJUST HEADLAMP<6RC> EXC. FLOOR REMOTE SHIFT<M11> 		8-94348-144-2 01 1 9407- ● ●
1 PANEL; FLOOR
FLOOR REMOTE SHIFT<M11> 		8-94348-139-2 01 1 9307- ● ●
1 PANEL; FLOOR
EXC. FLOOR REMOTE SHIFT<M11>,4 DOOR BUS(V4Z) 		8-94348-138-2 01 1 9307-9308 ● ●
1 PANEL; FLOOR
EXC. FLOOR REMOTE SHIFT<M11>,4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) 		8-94348-138-2 01 1 9309- ●
1 PANEL; FLOOR
EXC. FLOOR REMOTE SHIFT<M11> 		8-94348-138-2 01 1 9309- ●
1 PANEL; FLOOR
4 DOOR BUS(V4Z) EXC. FLOOR REMOTE SHIFT<M11> 		8-94348-138-2 01 1 9307-9308 ●
5 HINGE; SUPPORT COVER 8-94291-316-1 04 1 9307-9406 ● ●
5 HINGE; SUPPORT COVER
EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-94291-316-1 04 1 9407- ● ●
6 PANEL; RR FLOOR,CENTER
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR BUS(V4Z) 		8-94268-188-2 01 1 9307- ●
6 PANEL; RR FLOOR,CENTER
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR WAGON(V4W) 		8-94268-184-2 01 1 9307- ●
6 PANEL; RR FLOOR,CENTER
EUROPEAN BASIC EQUIPMENT(EK4) 4 DOOR VAN(V4V),4 DOOR PANEL VAN(V4Y) 		8-94268-179-2 01 1 9407- ●
6 PANEL; RR FLOOR,CENTER
EUROPEAN BASIC EQUIPMENT(EK4) 5 DOOR PANEL VAN(V4P),5 DOOR VAN(V4X) 		8-94268-181-2 01 1 9407- ●
6 PANEL; RR FLOOR,CENTER
4 DOOR BUS(V4Z) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94268-187-2 01 1 9307- ●
6 PANEL; RR FLOOR,CENTER
4 DOOR VAN(V4V),4 DOOR PANEL VAN(V4Y) 		8-94268-178-2 01 1 9307-9406 ●
6 PANEL; RR FLOOR,CENTER
4 DOOR VAN(V4V),4 DOOR PANEL VAN(V4Y) EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-94268-178-2 01 1 9407- ●
6 PANEL; RR FLOOR,CENTER
4 DOOR WAGON(V4W) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94268-183-2 01 1 9307- ●
6 PANEL; RR FLOOR,CENTER
5 DOOR PANEL VAN(V4P),5 DOOR VAN(V4X) 		8-94268-154-2 01 1 9307-9406 ●
6 PANEL; RR FLOOR,CENTER
5 DOOR PANEL VAN(V4P),5 DOOR VAN(V4X) EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-94268-154-2 01 1 9407- ●
6 PANEL; RR FLOOR,CENTER
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) SEATING CAPACITY 9(R49),SEATING CAPACITY 8(X84) 4 DOOR VAN(V4V) 		8-94264-475-1 01 1 9307- ●
6 PANEL; RR FLOOR,CENTER
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR BUS(V4Z) 		8-94268-197-2 01 1 9307- ●
6 PANEL; RR FLOOR,CENTER
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR VAN(V4V) EXC. SEATING CAPACITY 9(R49),SEATING CAPACITY 8(X84) 		8-94264-473-1 01 1 9307- ●
6 PANEL; RR FLOOR,CENTER
EUROPEAN BASIC EQUIPMENT(EK4) SEATING CAPACITY 9(R49),SEATING CAPACITY 8(X84) 4 DOOR VAN(V4V) 		8-94268-192-2 01 1 9407- ●
6 PANEL; RR FLOOR,CENTER
EUROPEAN BASIC EQUIPMENT(EK4) SEATING CAPACITY 9(R49),SEATING CAPACITY 8(X84) 5 DOOR VAN(V4X) 		8-94268-195-2 01 1 9407- ●
6 PANEL; RR FLOOR,CENTER
EUROPEAN BASIC EQUIPMENT(EK4) 4 DOOR VAN(V4V),4 DOOR PANEL VAN(V4Y) EXC. SEATING CAPACITY 8(X84) 		8-94268-190-2 01 1 9407- ●
6 PANEL; RR FLOOR,CENTER
EUROPEAN BASIC EQUIPMENT(EK4) 5 DOOR PANEL VAN(V4P),5 DOOR VAN(V4X) EXC. SEATING CAPACITY 8(X84) 		8-94268-193-2 01 1 9407- ●
6 PANEL; RR FLOOR,CENTER
SEATING CAPACITY 9(R49),SEATING CAPACITY 8(X84) 4 DOOR VAN(V4V) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94268-191-2 01 1 9307- ●
6 PANEL; RR FLOOR,CENTER
SEATING CAPACITY 9(R49),SEATING CAPACITY 8(X84) 5 DOOR VAN(V4X) 		8-94268-194-2 01 1 9307-9406 ●
6 PANEL; RR FLOOR,CENTER
SEATING CAPACITY 9(R49),SEATING CAPACITY 8(X84) 5 DOOR VAN(V4X) EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-94268-194-2 01 1 9407- ●
6 PANEL; RR FLOOR,CENTER
4 DOOR BUS(V4Z) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94268-196-2 01 1 9307- ●
6 PANEL; RR FLOOR,CENTER
4 DOOR VAN(V4V),4 DOOR PANEL VAN(V4Y) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2), SEATING CAPACITY 9(R49),SEATING CAPACITY 8(X84) 		8-94268-189-2 01 1 9307-9406 ●
6 PANEL; RR FLOOR,CENTER
4 DOOR VAN(V4V),4 DOOR PANEL VAN(V4Y) EXC. EUROPEAN BASIC EQUIPMENT(EK4),AIR CONDITIONERMANUAL CONT FRT&RR(EM2),SEATING CAPACITY 8(X84) 		8-94268-189-2 01 1 9407- ●
6 PANEL; RR FLOOR,CENTER
5 DOOR PANEL VAN(V4P),5 DOOR VAN(V4X) EXC. SEATING CAPACITY 9(R49),SEATING CAPACITY 8(X84) 		8-94268-174-2 01 1 9307-9406 ●
6 PANEL; RR FLOOR,CENTER
5 DOOR PANEL VAN(V4P),5 DOOR VAN(V4X) EXC. EUROPEAN BASIC EQUIPMENT(EK4),SEATING CAPACITY 8(X84) 		8-94268-174-2 01 1 9407- ●
7 PANEL; RR FLOOR,RR
5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) 		8-94348-462-0 01 1 9407- ● ●
7 PANEL; RR FLOOR,RR
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR BUS(V4Z) 		8-94268-246-1 01 1 9307- ●
7 PANEL; RR FLOOR,RR
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR WAGON(V4W) 		8-94268-239-0 01 1 9307-9307 ●
7 PANEL; RR FLOOR,RR
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR WAGON(V4W) 		8-94353-924-0 01 1 9307- ●
7 PANEL; RR FLOOR,RR
4 DOOR BUS(V4Z) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94268-245-1 01 1 9307- ●
7 PANEL; RR FLOOR,RR
4 DOOR WAGON(V4W) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94268-240-1 01 1 9307- ●
7 PANEL; RR FLOOR,RR
4 DOOR BUS(V4Z) 		8-94268-249-2 01 1 9307- ●
23 PANEL; FLOOR,SIDE 8-94264-390-2 01 1 9307-9406 ● ●
23 PANEL; FLOOR,SIDE
EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-94264-390-2 01 1 9407- ● ●
23 PANEL; FLOOR,SIDE 8-94264-389-2 01 1 9307-9406 ● ●
23 PANEL; FLOOR,SIDE
EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-94264-389-2 01 1 9407- ● ●
23 PANEL; FLOOR,SIDE
EUROPEAN BASIC EQUIPMENT(EK4) 		8-94264-923-2 01 1 9407- ● ●
23 PANEL; FLOOR,SIDE
EUROPEAN BASIC EQUIPMENT(EK4) 		8-94274-997-2 01 1 9407- ● ●
33 PANEL; VALANCE 8-94346-767-1 01 1 9307-9406 ● ●
33 PANEL; VALANCE
EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-94346-767-1 01 1 9407- ● ●
33 PANEL; VALANCE 8-94277-870-5 01 1 9307-9406 ● ●
33 PANEL; VALANCE
EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-94277-870-5 01 1 9407- ● ●
33 PANEL; VALANCE
EUROPEAN BASIC EQUIPMENT(EK4) 		8-94277-759-4 01 1 9407- ● ●
33 PANEL; VALANCE
EUROPEAN BASIC EQUIPMENT(EK4) 		8-94346-729-2 01 1 9407- ● ●
34 PANEL; BASE,BATTERY 8-94346-057-0 01 1 9307- ● ●
35 PANEL; BATTERY
(B) 		8-94277-147-2 01 1 9307- ● ●
35 PANEL; BATTERY
(A) 		8-94346-792-0 01 1 9307- ● ●
36 CLOSING; BATTERY
(B) 		8-94277-143-2 01 1 9307- ● ●
36 CLOSING; BATTERY
(A) 		8-94285-015-4 01 1 9307- ● ●
37 CLOSING ASM; ACL 8-94274-752-1 01 1 9307- ● ●
39 LID; BATTERY COVER 8-94291-652-1 01 1 9307- ● ●
40 SEAL; LID,BATTERY COVER 8-94291-537-1 01 1 9307- ● ●
41 SUPPORT; STEP,RR
(A) 		8-94292-751-1 01 1 9307- ●
41 SUPPORT; STEP,RR
(A) 		8-94292-750-1 01 1 9307- ●
41 SUPPORT; STEP,RR
(B) 		8-94287-387-1 01 1 9307- ●
41 SUPPORT; STEP,RR
(B) 		8-94292-559-0 01 1 9307- ●
115 BOLT; ROPE HOOK
ROPE HOOK LUGGAGE<6TR> EXC. RR SEAT FOLD<6KV> M8X20 W/LK&PL WASHER 		0-50140-820-0 06 1 9307- ● ●
115 BOLT; ROPE HOOK
RR SEAT FOLD<6KV> ROPE HOOK LUGGAGE<6TR> EXC. SEATING CAPACITY 9(R49),SEATING CAPACITY 8(X84) M8X20 W/LK&PL WASHER 		0-50140-820-0 04 1 9307- ● ●
131 BRACKET ASM; WATER VLV 8-94291-967-0 01 1 9307- ● ●
227 PATCH; STEP LAMP
4 DOOR VAN(V4V),4 DOOR WAGON(V4W),4 DOOR PANEL VAN(V4Y),4 DOOR BUS(V4Z) 		8-94293-550-0 01 1 9307- ● ●
235 PLUG; HTR PIPE
SEATING CAPACITY 9(R49),4 DOOR WAGON(V4W),4 DOOR BUS(V4Z),SEATING CAPACITY 8(X84) 		8-94293-806-0 01 1 9307- ● ●
326 PATCH; RR FLOOR
4 DOOR BUS(V4Z) 		8-94291-878-0 01 1 9307-9308 ● ●
326 PATCH; RR FLOOR
4 DOOR BUS(V4Z) 		8-94291-877-0 02 1 9307-9308 ● ●
326 PATCH; RR FLOOR
EXC. 4 DOOR BUS(V4Z) 		8-94291-878-0 01 1 9307-9308 ● ●
326 PATCH; RR FLOOR 8-94291-878-0 01 1 9309- ● ●
326 PATCH; RR FLOOR
EXC. 4 DOOR BUS(V4Z) 		8-94291-877-0 01 1 9307-9308 ● ●
326 PATCH; RR FLOOR 8-94291-877-0 01 1 9309- ● ●
395 PROTECTOR; SPARE TIRE HOLE 8-94353-612-0 01 1 9307- ● ●
