6-60 — ROOF PANEL (#47239) — 29 parça

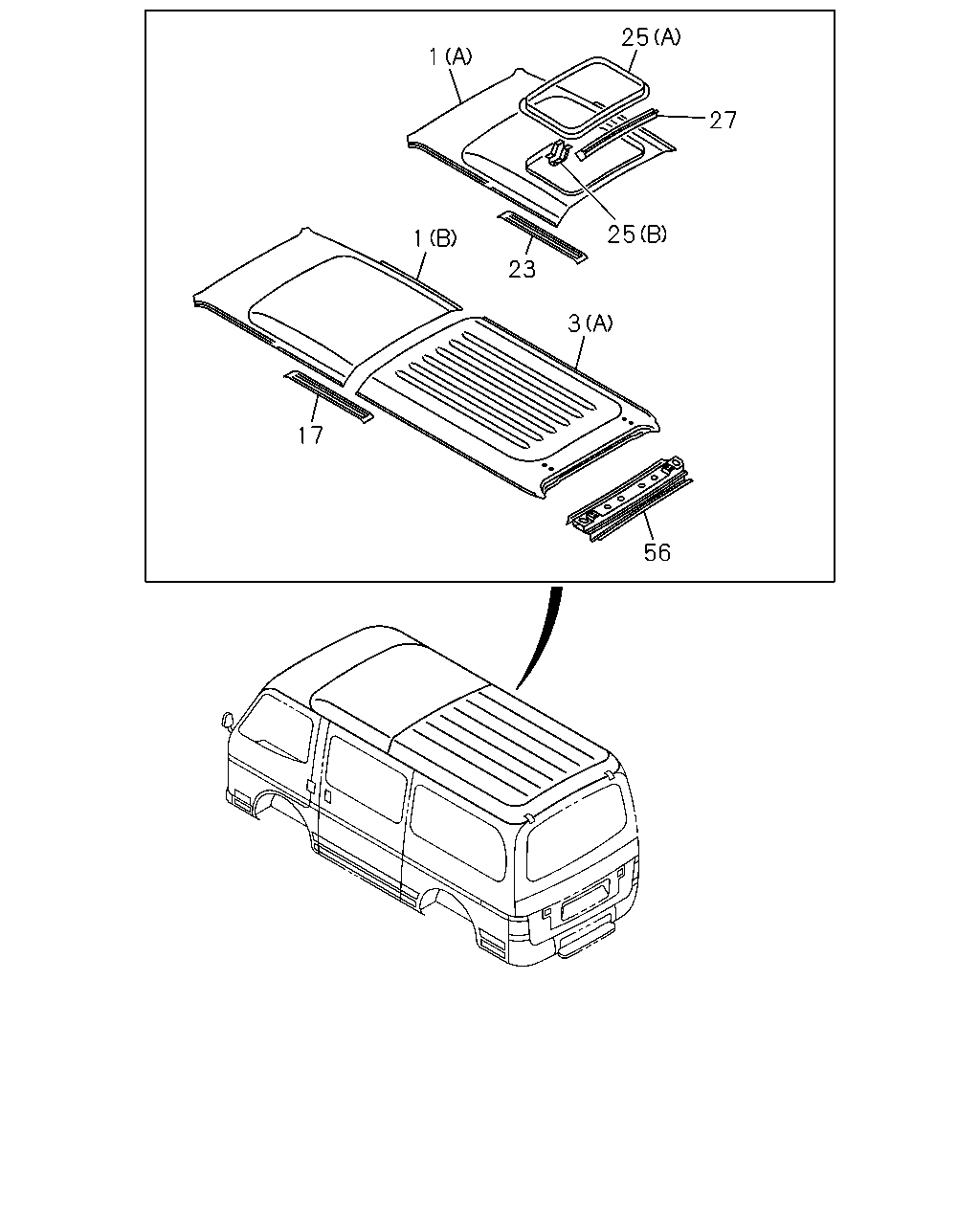

çizim 17940
25 1 27 25 1 23 3 17 56
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; ROOF
SUNROOF<CF5> 4 DOOR WAGON(V4W) (A) 		8-94285-740-0 01 1 9307- ●
1 PANEL; ROOF
EXC. SUNROOF<CF5> (B) 		8-94285-715-0 01 1 9307- ●
1 PANEL; ROOF
EXC. CAB-HIGH ROOF(S2F) (B) 		8-94285-715-0 01 1 9307- ●
1 PANEL; ROOF
CAB-HIGH ROOF(S2F) (C) 		8-94292-474-1 01 1 9307- ●
3 PANEL; ROOF,RR
SUNROOF<CF5> 4 DOOR WAGON(V4W) (A) 		8-94285-017-1 01 1 9307- ●
3 PANEL; ROOF,RR
EXC. SUNROOF<CF5> (A) 		8-94291-012-2 01 1 9307-9406 ●
3 PANEL; ROOF,RR
CAB-HIGH ROOF(S2F) (B) 		8-94292-476-2 01 1 9307- ●
3 PANEL; ROOF,RR
EXC. CAB-HIGH ROOF(S2F) (A) 		8-94292-547-1 01 1 9307-9406 ●
17 REINFORCEMENT; ROOF PNL CENTER
EXC. SUNROOF<CF5> 		8-94285-011-0 01 1 9307- ●
17 REINFORCEMENT; ROOF PNL CENTER
EXC. CAB-HIGH ROOF(S2F) 		8-94285-011-0 01 1 9307- ●
23 REINFORCEMENT; ROOF PANEL,FRT
SUNROOF<CF5> 4 DOOR WAGON(V4W) 		8-94285-147-0 01 1 9307- ●
25 REINFORCEMENT; SUNROOF
SUNROOF<CF5> 4 DOOR VAN(V4V),4 DOOR WAGON(V4W) (B) 		8-94285-003-2 02 1 9307- ●
25 REINFORCEMENT; SUNROOF
SUNROOF<CF5> 4 DOOR VAN(V4V),4 DOOR WAGON(V4W) (B) 		8-94285-002-1 02 1 9307- ●
25 REINFORCEMENT; SUNROOF
SUNROOF<CF5> 4 DOOR WAGON(V4W) (A) 		8-94285-040-3 01 1 9307- ●
27 RETAINER; SEAL,RR
SUNROOF<CF5> 4 DOOR WAGON(V4W) 		8-94285-041-0 01 1 9307- ●
56 CANTRAIL; BACK
4 DOOR BUS(V4Z) 		8-94346-135-0 01 1 9307- ● ●
56 CANTRAIL; BACK
GRADE LT(RBC) 4 DOOR WAGON(V4W) 		8-94346-135-0 01 1 9307- ●
56 CANTRAIL; BACK
5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) 		8-94346-134-0 01 1 9307- ● ●

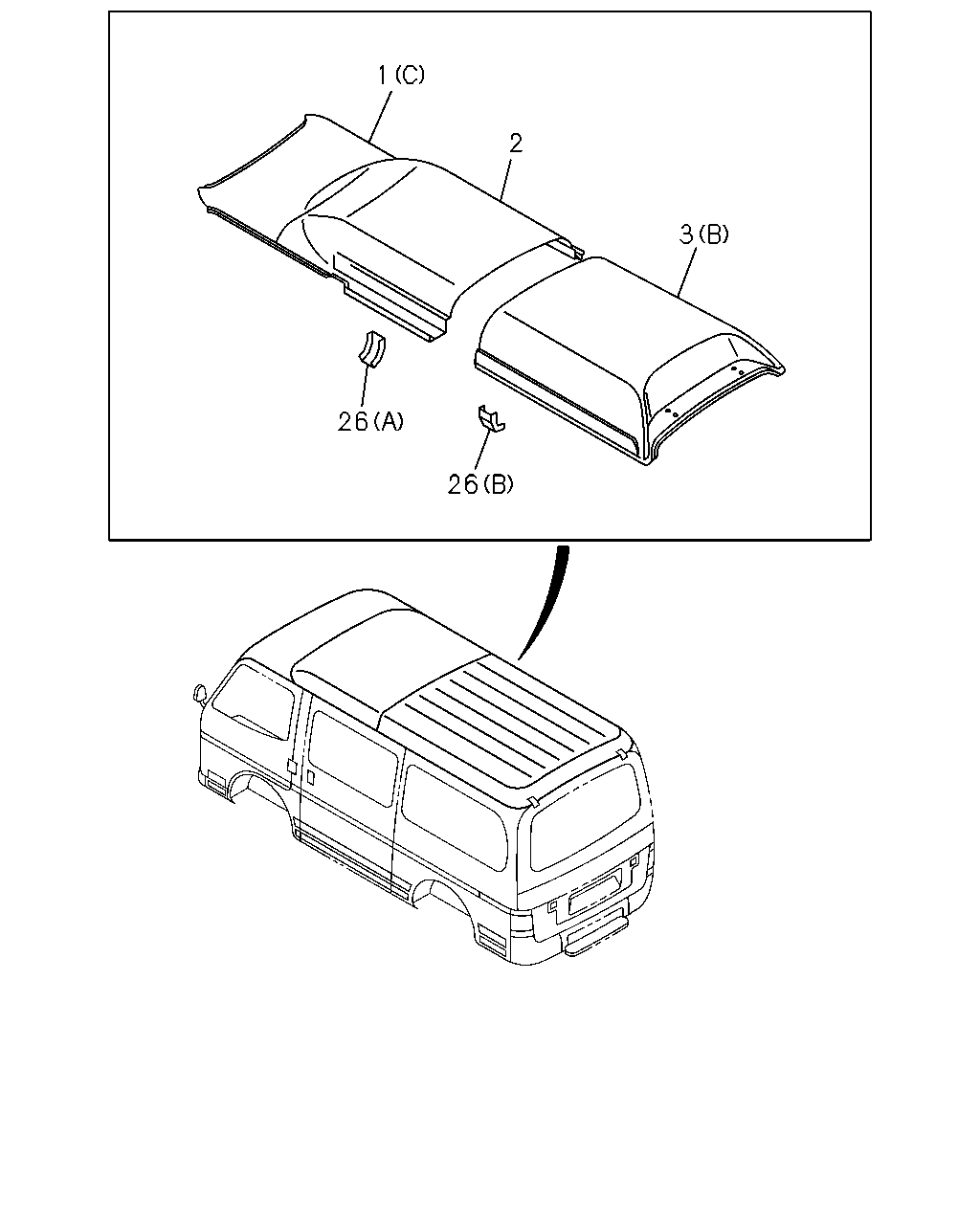

çizim 66787
1 2 3 26 26
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; ROOF
SUNROOF<CF5> 4 DOOR WAGON(V4W) (A) 		8-94285-740-0 01 1 9307- ●
1 PANEL; ROOF
EXC. SUNROOF<CF5> (B) 		8-94285-715-0 01 1 9307- ●
1 PANEL; ROOF
EXC. CAB-HIGH ROOF(S2F) (B) 		8-94285-715-0 01 1 9307- ●
1 PANEL; ROOF
CAB-HIGH ROOF(S2F) (C) 		8-94292-474-1 01 1 9307- ●
2 PANEL; ROOF,CENTER
CAB-HIGH ROOF(S2F) 		8-94285-716-0 01 1 9307- ●
3 PANEL; ROOF,RR
SUNROOF<CF5> 4 DOOR WAGON(V4W) (A) 		8-94285-017-1 01 1 9307- ●
3 PANEL; ROOF,RR
EXC. SUNROOF<CF5> (A) 		8-94291-012-2 01 1 9307-9406 ●
3 PANEL; ROOF,RR
CAB-HIGH ROOF(S2F) (B) 		8-94292-476-2 01 1 9307- ●
3 PANEL; ROOF,RR
EXC. CAB-HIGH ROOF(S2F) (A) 		8-94292-547-1 01 1 9307-9406 ●
26 BRACKET; ROOF REINF
CAB-HIGH ROOF(S2F) (A) 		8-94290-237-1 06 1 9307- ●
26 BRACKET; ROOF REINF
CAB-HIGH ROOF(S2F) (B) 		8-94290-249-1 02 1 9307- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
