Isuzu WW
▶
SUV
▶
WFR
▶
50686 - WFR-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

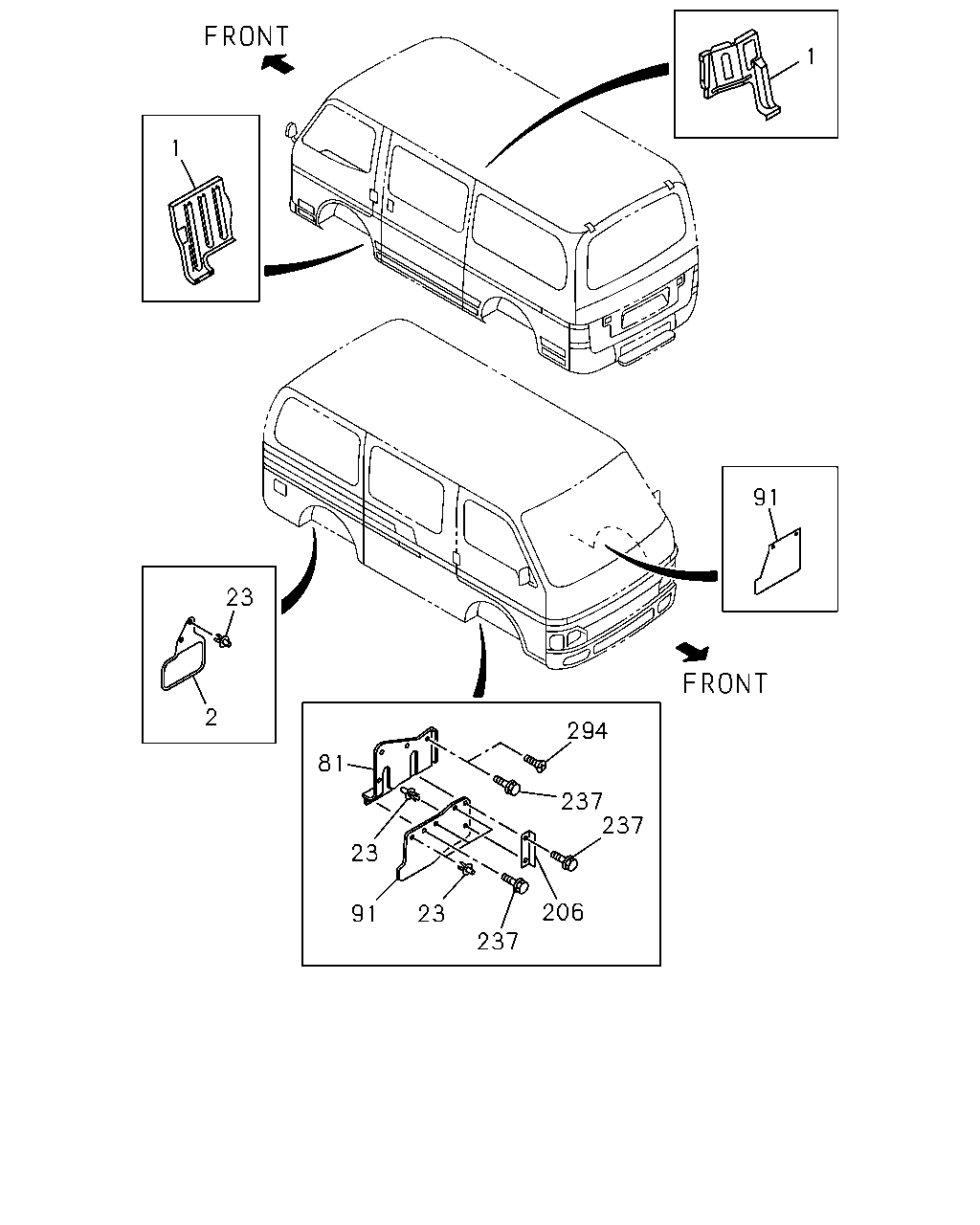

6-47 - MUD GUARD AND INSULATOR
▶
6-47 — MUD GUARD AND INSULATOR
(#47238) — 18 parça
Tümü
A - WFB6VC
B - WFB6VF
1
1
91
23
2
294
81
237
237
23
206
91
23
237
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
GUARD; MUD,FRT
8-94348-566-0
01
1
9307-9406
●
●
1
GUARD; MUD,FRT
EXC. EUROPEAN BASIC EQUIPMENT(EK4)
8-94348-566-0
01
1
9407-
●
●
1
GUARD; MUD,FRT
8-94346-005-0
01
1
9307-9406
●
●
1
GUARD; MUD,FRT
EXC. EUROPEAN BASIC EQUIPMENT(EK4)
8-94346-005-0
01
1
9407-
●
●
1
GUARD; MUD,FRT
EUROPEAN BASIC EQUIPMENT(EK4)
8-94348-567-0
01
1
9407-
●
●
1
GUARD; MUD,FRT
EUROPEAN BASIC EQUIPMENT(EK4)
8-94346-004-0
01
1
9407-
●
●
2
COVER; MUD,TIRE RR
MUD FLAP<VH4>
8-94291-737-2
02
1
9307-
●
●
23
FASTENER; MUD COVER
MUD FLAP<VH4>
5-09989-002-0
10
1
9307-
●
●
23
FASTENER; MUD COVER
5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) EXC. MUD FLAP<VH4>
5-09989-002-0
03
1
9307-
●
●
81
GUARD; MUD,FRT WHEEL HOUSE
8-94280-787-1
01
1
9307-
●
●
91
COVER; MUD,FRT
MUD FLAP<VH4>
8-94291-775-0
01
1
9307-
●
●
91
COVER; MUD,FRT
MUD FLAP<VH4>
8-94291-774-2
01
1
9307-
●
●
91
COVER; MUD,FRT
5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) EXC. MUD FLAP<VH4>
8-94284-503-0
01
1
9307-
●
●
206
STAY; MUD COVER,FRT
8-94282-967-0
01
1
9307-
●
●
237
BOLT; MUD GUARD
4ZC1 ENG(LR9) EXC. POWER STEERING<N40> M6X18
1-09980-046-0
06
1
9307-
●
●
237
BOLT; MUD GUARD
4FG1 ENG(RLL) M6X18
1-09980-046-0
06
1
9307-
●
●
237
BOLT; MUD GUARD
4ZC1 ENG(LR9) POWER STEERING<N40> M6X18
1-09980-046-0
05
1
9307-
●
●
294
CLIP; MUD COVER
4ZC1 ENG(LR9) POWER STEERING<N40> D4.7X15 GRAY
8-94279-801-0
01
1
9311-
●
●
