6-43 — SIDE TRIM (#47236) — 163 parça

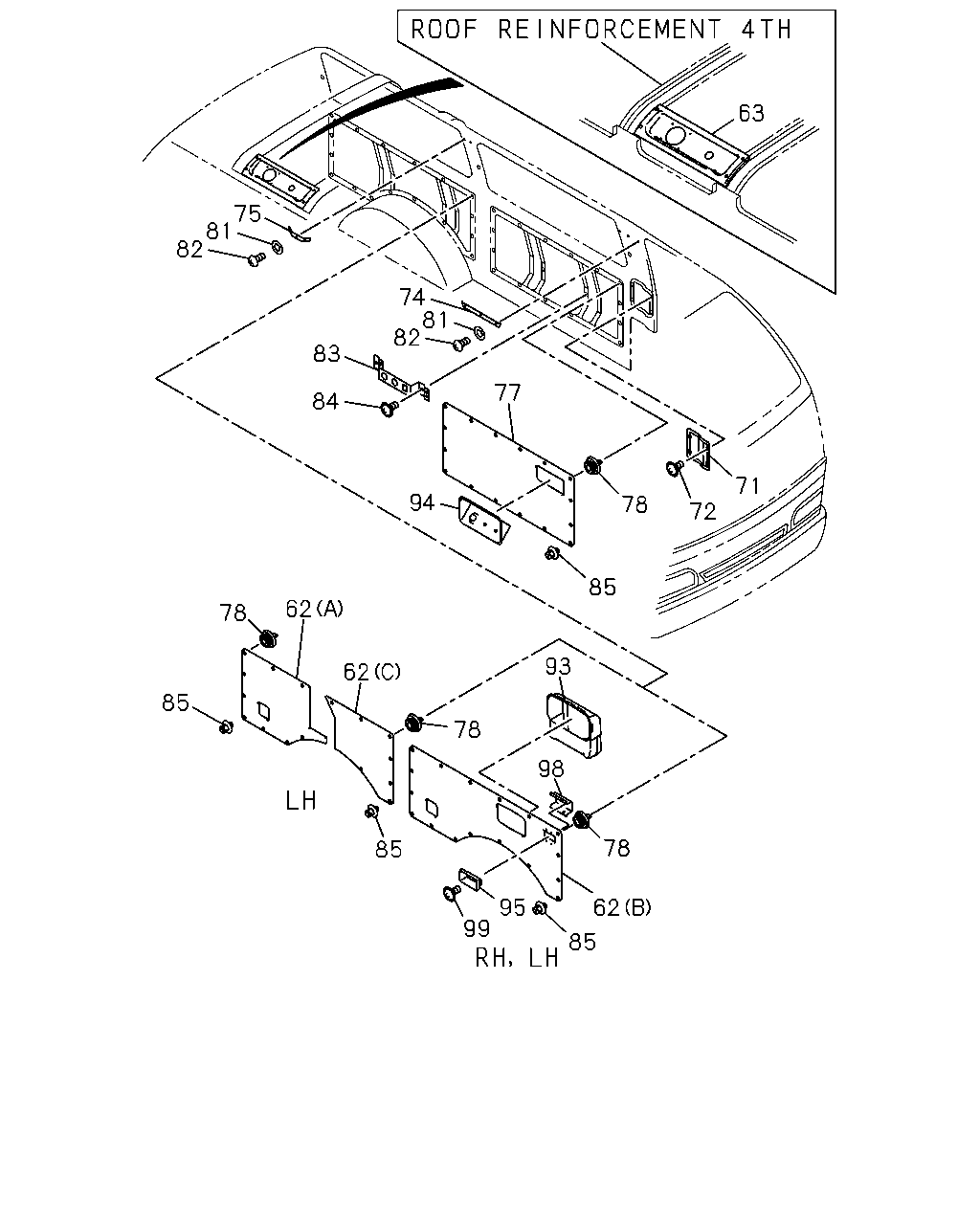

63 75 81 82 74 81 82 83 77 84 71 94 78 72 85 62 78 93 62 85 78 98 78 85 95 99 62 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
62	PAD; TRIM,SIDE PANEL,RR STANDARD(WFB6VC) INTERIOR COLOR MED SAND(129) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR BUS(V4Z) EXC. RR WIPER<C25> (A)	8-94350-261-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR STANDARD(WFB6VC) INTERIOR COLOR MED SAND(129) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR BUS(V4Z) (C)	8-94350-272-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR STANDARD(WFB6VC) INTERIOR COLOR MED SAND(129) RR WIPER<C25> AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR BUS(V4Z) (A)	8-94350-265-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR STANDARD(WFB6VC) INTERIOR COLOR MED SAND(129) RR WIPER<C25> 4 DOOR BUS(V4Z) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B)	8-94350-225-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR STANDARD(WFB6VC) INTERIOR COLOR MED SAND(129) 4 DOOR BUS(V4Z) (B)	8-94350-220-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR STANDARD(WFB6VC) INTERIOR COLOR MED SAND(129) 4 DOOR BUS(V4Z) EXC. RR WIPER<C25>,AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B)	8-94350-221-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR STANDARD(WFB6VC) RR WIPER<C25> EXC. 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) (B)	8-94350-196-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR STANDARD(WFB6VC) 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) (B)	8-94350-195-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR STANDARD(WFB6VC) 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) EXC. RR WIPER<C25> (B)	8-94350-197-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR LONG(WFB6VF) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR VAN(V4V) (C)	8-94350-258-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR LONG(WFB6VF) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR VAN(V4V) EXC. RR WIPER<C25> (A)	8-94350-256-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR LONG(WFB6VF) INTERIOR COLOR MED SAND(129) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR BUS(V4Z) EXC. RR WIPER<C25> (A)	8-94350-263-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR LONG(WFB6VF) INTERIOR COLOR MED SAND(129) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR BUS(V4Z) (C)	8-94350-274-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR LONG(WFB6VF) INTERIOR COLOR MED SAND(129) RR WIPER<C25> AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR BUS(V4Z) (A)	8-94350-264-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR LONG(WFB6VF) INTERIOR COLOR MED SAND(129) RR WIPER<C25> 4 DOOR BUS(V4Z) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) BEIGE	8-94350-222-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR LONG(WFB6VF) INTERIOR COLOR MED SAND(129) 4 DOOR BUS(V4Z) (B)	8-94350-223-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR LONG(WFB6VF) INTERIOR COLOR MED SAND(129) 4 DOOR BUS(V4Z) EXC. RR WIPER<C25>,AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B)	8-94350-224-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR LONG(WFB6VF) RR WIPER<C25> AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR VAN(V4V) (A)	8-94350-257-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR LONG(WFB6VF) RR WIPER<C25> 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B)	8-94350-199-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR LONG(WFB6VF) 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) (B)	8-94350-198-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR LONG(WFB6VF) 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) EXC. RR WIPER<C25>,AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B)	8-94350-200-0	01	1	9307-	●
62	PAD; TRIM,SIDE PANEL,RR INTERIOR COLOR MEDIUM GRAY(113) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR WAGON(V4W) (B)	8-94350-262-0	01	1	9307-		●
62	PAD; TRIM,SIDE PANEL,RR INTERIOR COLOR MEDIUM GRAY(113) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR WAGON(V4W) (C)	8-94350-273-0	01	1	9307-		●
62	PAD; TRIM,SIDE PANEL,RR INTERIOR COLOR MEDIUM GRAY(113) 4 DOOR WAGON(V4W) SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B)	8-94350-219-0	01	1	9307-		●
62	PAD; TRIM,SIDE PANEL,RR INTERIOR COLOR MEDIUM GRAY(113) 4 DOOR WAGON(V4W) SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY) (B)	8-94350-218-0	01	1	9307-		●
63	REINFORCEMENT; RR SPEAKER 4 DOOR WAGON(V4W)	8-94278-480-2	01	1	9307-9406		●
63	REINFORCEMENT; RR SPEAKER 4 DOOR WAGON(V4W) EXC. EUROPEAN BASIC EQUIPMENT(EK4)	8-94278-480-2	01	1	9407-		●
63	REINFORCEMENT; RR SPEAKER 4 DOOR WAGON(V4W)	8-94278-479-2	01	1	9307-9406		●
63	REINFORCEMENT; RR SPEAKER 4 DOOR WAGON(V4W) EXC. EUROPEAN BASIC EQUIPMENT(EK4)	8-94278-479-2	01	1	9407-		●
71	COVER; B-C POST,TOOL HOLE EXC. FRT SEAT BELT W/RETRACTOR<A49>	8-94285-490-0	02	1	9307-9308	●	●
71	COVER; B-C POST,TOOL HOLE EXC. FRT SEAT BELT W/RETRACTOR<A49>	8-94348-491-0	02	1	9309-9406	●	●
71	COVER; B-C POST,TOOL HOLE EXC. FRT SEAT BELT W/RETRACTOR<A49>,EUROPEAN BASICEQUIPMENT(EK4)	8-94348-491-0	02	1	9407-	●	●
72	SCREW; COVER TO B-C POST EXC. FRT SEAT BELT W/RETRACTOR<A49> M4X12 TAPPING	9-07066-412-0	08	1	9307-9406	●	●
72	SCREW; COVER TO B-C POST EXC. FRT SEAT BELT W/RETRACTOR<A49>,EUROPEAN BASICEQUIPMENT(EK4) M4X12 TAPPING	9-07066-412-0	08	1	9407-	●	●
74	RETAINER; B-C POST STANDARD(WFB6VC) 4 DOOR WAGON(V4W)	8-94352-584-0	01	1	9307-	●
74	RETAINER; B-C POST 4 DOOR WAGON(V4W)	8-94352-584-0	01	1	9307-		●
74	RETAINER; B-C POST STANDARD(WFB6VC) 4 DOOR WAGON(V4W)	8-94352-586-0	01	1	9307-	●
74	RETAINER; B-C POST 4 DOOR WAGON(V4W)	8-94352-586-0	01	1	9307-		●
74	RETAINER; B-C POST AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR BUS(V4Z)	8-94352-585-0	01	1	9307-	●	●
74	RETAINER; B-C POST AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR BUS(V4Z)	8-94352-588-0	01	1	9307-	●	●
75	RETAINER; D POST STANDARD(WFB6VC) 4 DOOR WAGON(V4W)	8-94352-594-0	01	1	9307-	●
75	RETAINER; D POST 4 DOOR WAGON(V4W)	8-94352-594-0	01	1	9307-		●
75	RETAINER; D POST STANDARD(WFB6VC) 4 DOOR WAGON(V4W) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94352-590-0	01	1	9307-	●
75	RETAINER; D POST 4 DOOR WAGON(V4W) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94352-590-0	01	1	9307-		●
75	RETAINER; D POST AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR BUS(V4Z)	8-94352-595-0	01	1	9307-	●	●
77	PAD; TRIM,SIDE PANEL,FRT INTERIOR COLOR MEDIUM GRAY(113) ACCESSORY PACK<ET6> 4 DOOR VAN(V4V) LUGGAGE BOX RR<X73> GRAYE	8-94350-173-0	01	1	9307-	●
77	PAD; TRIM,SIDE PANEL,FRT INTERIOR COLOR MEDIUM GRAY(113) 4 DOOR WAGON(V4W) EXC. REAR HEATER<C35>,AIR CONDITIONER MANUAL CONT FRT&RR(EM2) GRAYE	8-94350-173-0	01	1	9307-		●
77	PAD; TRIM,SIDE PANEL,FRT INTERIOR COLOR MED SAND(129) 4 DOOR VAN(V4V) RR SEAT FOLD<6KV> EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2), ACCESSORY PACK<ET6>,LUGGAGE BOX RR<X73> BEIGE	8-94350-172-0	01	1	9307-9309	●
77	PAD; TRIM,SIDE PANEL,FRT INTERIOR COLOR MED SAND(129) 4 DOOR VAN(V4V) RR SEAT FOLD<6KV> EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2), ACCESSORY PACK<ET6>,LUGGAGE BOX RR<X73> BEIGE	8-94352-514-0	01	1	9310-	●
77	PAD; TRIM,SIDE PANEL,FRT 4 DOOR VAN(V4V),4 DOOR PANEL VAN(V4Y) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2),RR SEAT FOLD<6KV>	8-94350-159-0	01	1	9307-	●
77	PAD; TRIM,SIDE PANEL,FRT 4 DOOR VAN(V4V),4 DOOR PANEL VAN(V4Y) EXC. RR SEAT FOLD<6KV>	8-94350-161-0	01	1	9307-	●
77	PAD; TRIM,SIDE PANEL,FRT INTERIOR COLOR MED SAND(129) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR VAN(V4V) RR SEAT FOLD<6KV> BEIGE	8-94350-174-0	01	1	9307-	●	●
77	PAD; TRIM,SIDE PANEL,FRT INTERIOR COLOR MED SAND(129) 4 DOOR BUS(V4Z) BEIGE	8-94350-166-0	01	1	9307-9309	●	●
77	PAD; TRIM,SIDE PANEL,FRT INTERIOR COLOR MED SAND(129) 4 DOOR VAN(V4V),4 DOOR BUS(V4Z) EXC. ACCESSORY PACK<ET6> BEIGE	8-94350-166-0	01	1	9310-	●	●
77	PAD; TRIM,SIDE PANEL,FRT INTERIOR COLOR MED SAND(129) 4 DOOR VAN(V4V) LUGGAGE BOX RR<X73> EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2), ACCESSORY PACK<ET6> BEIGE	8-94350-190-0	01	1	9307-	●	●
77	PAD; TRIM,SIDE PANEL,FRT INTERIOR COLOR MED SAND(129) 4 DOOR BUS(V4Z) EXC. REAR HEATER<C35>,AIR CONDITIONER MANUAL CONT FRT&RR(EM2) BEIGE	8-94350-190-0	01	1	9307-	●	●
77	PAD; TRIM,SIDE PANEL,FRT INTERIOR COLOR MEDIUM GRAY(113) 4 DOOR WAGON(V4W) GRAY	8-94350-165-0	01	1	9307-9309		●
77	PAD; TRIM,SIDE PANEL,FRT INTERIOR COLOR MEDIUM GRAY(113) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR VAN(V4V),4 DOOR WAGON(V4W) GRAY	8-94350-165-0	01	1	9310-	●	●
78	CLIP; TRIM PAD,SIDE PANEL 4 DOOR VAN(V4V) RR SEAT FOLD<6KV> EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2), ACCESSORY PACK<ET6>	1-09987-119-1	16	1	9307-	●
78	CLIP; TRIM PAD,SIDE PANEL 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) EXC. REAR HEATER<C35>,AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	1-09987-119-1	16	1	9307-	●
78	CLIP; TRIM PAD,SIDE PANEL 4 DOOR VAN(V4V),4 DOOR WAGON(V4W),4 DOOR BUS(V4Z)	1-09987-119-1	19	1	9307-	●
78	CLIP; TRIM PAD,SIDE PANEL 4 DOOR VAN(V4V),4 DOOR WAGON(V4W)	1-09987-119-1	19	1	9307-		●
78	CLIP; TRIM PAD,SIDE PANEL STANDARD(WFB6VC) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z)	1-09987-119-1	33	1	9307-	●
78	CLIP; TRIM PAD,SIDE PANEL AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z)	1-09987-119-1	33	1	9307-		●
78	CLIP; TRIM PAD,SIDE PANEL STANDARD(WFB6VC) 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	1-09987-119-1	34	1	9307-	●
78	CLIP; TRIM PAD,SIDE PANEL 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	1-09987-119-1	34	1	9307-		●
78	CLIP; TRIM PAD,SIDE PANEL LONG(WFB6VF) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR BUS(V4Z)	1-09987-119-1	41	1	9307-	●
78	CLIP; TRIM PAD,SIDE PANEL LONG(WFB6VF) 4 DOOR BUS(V4Z) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	1-09987-119-1	42	1	9307-	●
81	WASHER; FULL TRIM STANDARD(WFB6VC) 4 DOOR WAGON(V4W) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	5-09985-053-0	12	1	9307-	●
81	WASHER; FULL TRIM 4 DOOR WAGON(V4W) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	5-09985-053-0	12	1	9307-		●
81	WASHER; FULL TRIM AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z)	5-09985-053-0	09	1	9307-	●	●
82	SCREW; FULL TRIM STANDARD(WFB6VC) 4 DOOR WAGON(V4W) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M4X12 TAPPING OVAL-HEAD	9-07037-412-0	12	1	9307-	●
82	SCREW; FULL TRIM 4 DOOR WAGON(V4W) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M4X12 TAPPING OVAL-HEAD	9-07037-412-0	12	1	9307-		●
82	SCREW; FULL TRIM AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) M4X12 TAPPING OVAL-HEAD	9-07037-412-0	09	1	9307-	●	●
83	REINFORCEMENT; TRIM PAD 4 DOOR VAN(V4V),4 DOOR WAGON(V4W),4 DOOR BUS(V4Z)	8-94287-495-1	01	1	9307-	●	●
84	SCREW; REINF TO PANEL 4 DOOR VAN(V4V),4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) M4X12 TAPPING	9-07066-412-0	02	1	9307-	●	●
85	FASTENER; SCREW & GROMMET 4 DOOR VAN(V4V),4 DOOR PANEL VAN(V4Y) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2),RR SEAT FOLD<6KV>	8-94345-606-0	16	1	9307-	●
85	FASTENER; SCREW & GROMMET STANDARD(WFB6VC) 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y)	8-94345-606-0	34	1	9307-	●
85	FASTENER; SCREW & GROMMET LONG(WFB6VF) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR VAN(V4V)	8-94345-606-0	41	1	9307-	●
85	FASTENER; SCREW & GROMMET LONG(WFB6VF) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 4 DOOR VAN(V4V) EXC. RR SEAT FOLD<6KV>	8-94345-606-0	19	1	9307-	●
85	FASTENER; SCREW & GROMMET LONG(WFB6VF) 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94345-606-0	42	1	9307-	●
93	BOX; LUGGAGE INTERIOR COLOR MEDIUM GRAY(113) LUGGAGE BOX RR<X73> GRAY	8-94345-691-1	01	1	9307-	●	●
93	BOX; LUGGAGE INTERIOR COLOR MEDIUM GRAY(113) 4 DOOR WAGON(V4W) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) GRAY	8-94345-691-1	01	1	9307-		●
93	BOX; LUGGAGE INTERIOR COLOR MED SAND(129) LUGGAGE BOX RR<X73> BEIGE	8-94345-692-1	01	1	9307-	●	●
94	BEZEL; REAR HTR & COOLER INTERIOR COLOR MEDIUM GRAY(113) GRAY	8-94345-895-2	01	1	9307-	●	●
94	BEZEL; REAR HTR & COOLER INTERIOR COLOR MED SAND(129) BEIGE	8-94345-896-2	01	1	9307-	●	●
95	TRAY; ASH,SIDE BODY STANDARD(WFB6VC) INTERIOR COLOR MEDIUM GRAY(113) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY) GRAY	8-94345-697-3	01	1	9307-	●
95	TRAY; ASH,SIDE BODY INTERIOR COLOR MEDIUM GRAY(113) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY) GRAY	8-94345-697-3	01	1	9307-		●
95	TRAY; ASH,SIDE BODY STANDARD(WFB6VC) INTERIOR COLOR MEDIUM GRAY(113) SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) GRAY	8-94345-697-3	02	1	9307-	●
95	TRAY; ASH,SIDE BODY INTERIOR COLOR MEDIUM GRAY(113) SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) GRAY	8-94345-697-3	02	1	9307-		●
98	BRACKET; ASH TRAY STANDARD(WFB6VC) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY)	8-94278-126-1	01	1	9307-	●
98	BRACKET; ASH TRAY AIR CONDITIONER MANUAL CONT FRT&RR(EM2) SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY)	8-94278-126-1	01	1	9307-		●
98	BRACKET; ASH TRAY STANDARD(WFB6VC) SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94278-126-1	02	1	9307-	●
98	BRACKET; ASH TRAY SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94278-126-1	02	1	9307-		●
99	SCREW; ASH TRAY,SIDE BODY STANDARD(WFB6VC) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY) M5X12 W/PL WASHER PAN-HD	9-03900-512-0	01	1	9307-	●
99	SCREW; ASH TRAY,SIDE BODY AIR CONDITIONER MANUAL CONT FRT&RR(EM2) SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY) M5X12 W/PL WASHER PAN-HD	9-03900-512-0	01	1	9307-		●
99	SCREW; ASH TRAY,SIDE BODY STANDARD(WFB6VC) SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M5X12 W/PL WASHER PAN-HD	9-03900-512-0	02	1	9307-	●
99	SCREW; ASH TRAY,SIDE BODY SEATING CAPACITY 8(6DH),SEATING CAPACITY 9(6EY) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M5X12 W/PL WASHER PAN-HD	9-03900-512-0	02	1	9307-		●
99	SCREW; ASH TRAY,SIDE BODY ASH TRAY BC POST<6ES> M4X16 TAPPING OVAL-HEAD	9-07037-416-0	02	1	9307-	●	●

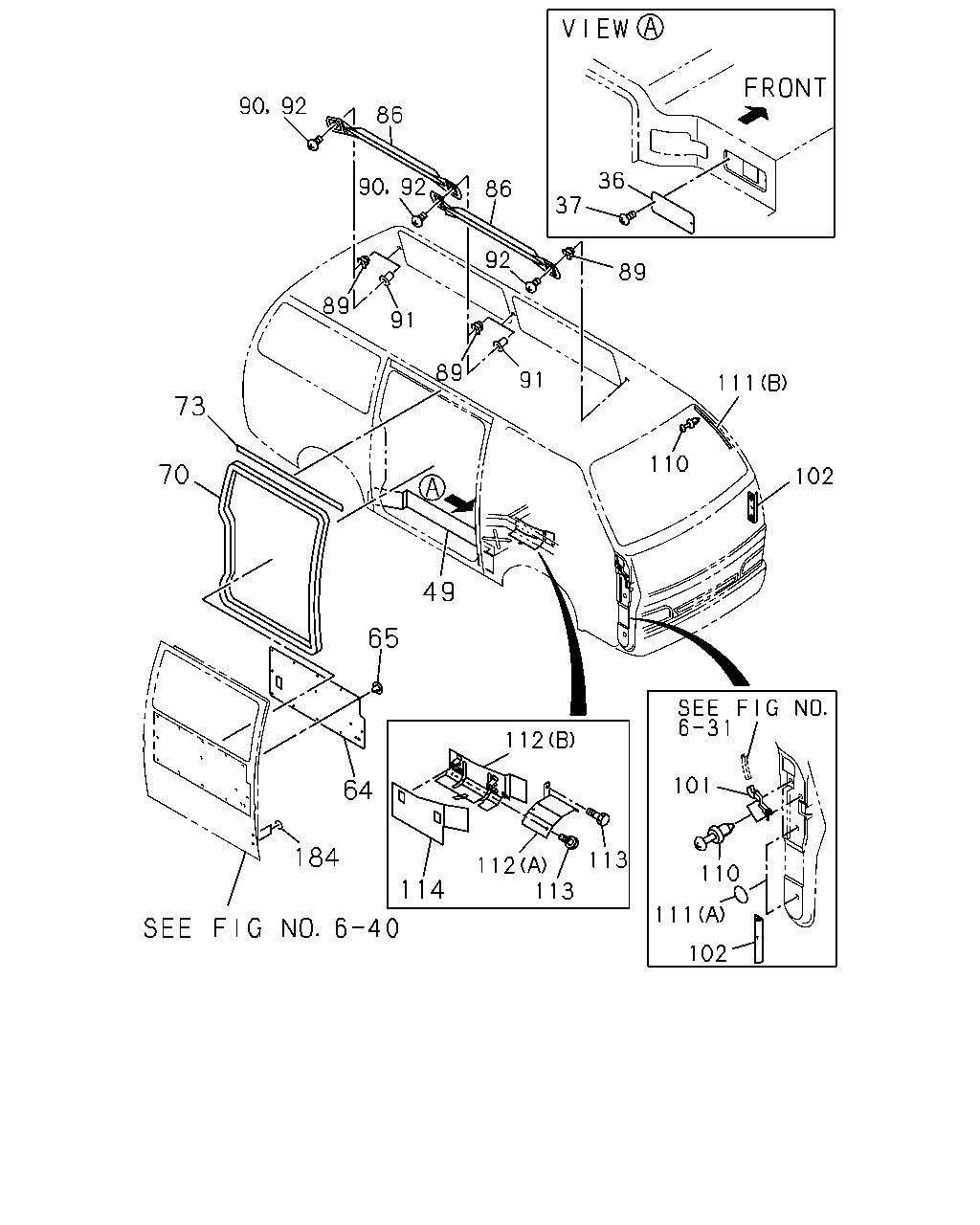

90 92 86 36 92 90 86 37 92 89 89 91 89 91 111 73 110 102 49 65 112 101 64 184 113 112 113 110 114 111 102 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
36	COVER; P/S HOLE 4ZC1 ENG(LR9)	8-94285-137-0	01	1	9307-	●	●
36	COVER; P/S HOLE 4FG1 ENG(RLL) EXC. POWER STEERING<N40>	8-94285-137-0	01	1	9307-	●	●
37	SCREW; COVER,P/S 4ZC1 ENG(LR9) M3X10	1-09981-146-0	02	1	9307-	●	●
37	SCREW; COVER,P/S 4FG1 ENG(RLL) EXC. POWER STEERING<N40> M3X10	1-09981-146-0	02	1	9307-	●	●
49	TRIM; FULL,SIDE STEP INTERIOR COLOR MEDIUM GRAY(113) TURBOCHARGER(K51) 4 DOOR WAGON(V4W) EXC. RR FLOOR MAT<B33>	8-94352-453-0	01	1	9407-	●	●
64	PAD; TRIM,SLIDE DOOR INTERIOR COLOR MEDIUM GRAY(113) ACCESSORY PACK<ET6> RR SEAT FOLD<6KV> GRAY	8-94350-460-0	01	1	9307-	●
64	PAD; TRIM,SLIDE DOOR INTERIOR COLOR MEDIUM GRAY(113) GRAY	8-94350-460-0	01	1	9307-		●
64	PAD; TRIM,SLIDE DOOR INTERIOR COLOR MEDIUM GRAY(113) ACCESSORY PACK<ET6> 5 DOOR VAN(V4X) RR SEAT FOLD<6KV> GRAY	8-94350-461-0	01	1	9307-	●
64	PAD; TRIM,SLIDE DOOR INTERIOR COLOR MED SAND(129) 4 DOOR BUS(V4Z) BEIGE	8-94350-467-2	01	1	9307-	●
64	PAD; TRIM,SLIDE DOOR INTERIOR COLOR MED SAND(129) RR SEAT FOLD<6KV> EXC. ACCESSORY PACK<ET6> BEIGE	8-94350-467-2	01	1	9307-	●
64	PAD; TRIM,SLIDE DOOR INTERIOR COLOR MED SAND(129) 5 DOOR VAN(V4X) RR SEAT FOLD<6KV> EXC. ACCESSORY PACK<ET6> BEIGE	8-94350-466-2	01	1	9307-	●
64	PAD; TRIM,SLIDE DOOR 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) EXC. ACCESSORY PACK<ET6>,RR SEAT FOLD<6KV>	8-94350-452-0	01	1	9307-	●
64	PAD; TRIM,SLIDE DOOR 5 DOOR PANEL VAN(V4P),5 DOOR VAN(V4X) EXC. ACCESSORY PACK<ET6>,RR SEAT FOLD<6KV>	8-94350-453-0	01	1	9307-	●
65	FASTENER; SCREW 4 DOOR VAN(V4V),4 DOOR PANEL VAN(V4Y) EXC. RR SEAT FOLD<6KV>	8-94345-606-0	12	1	9307-	●
65	FASTENER; SCREW HANDLE BACK DOOR INNER<S2A> 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y)	8-94345-606-0	12	1	9307-	●
65	FASTENER; SCREW 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) EXC. HANDLE BACK DOOR INNER<S2A>	8-94345-606-0	13	1	9307-	●
65	FASTENER; SCREW 5 DOOR PANEL VAN(V4P),5 DOOR VAN(V4X) EXC. ACCESSORY PACK<ET6>,RR SEAT FOLD<6KV>	8-94345-606-0	24	1	9307-	●
70	SEAL; SLIDE DOOR 5 DOOR<6KU>	8-94274-165-1	02	1	9307-	●	●
70	SEAL; SLIDE DOOR EXC. 5 DOOR<6KU>	8-94274-165-1	01	1	9307-	●	●
73	SEAL; SUB,SLIDE DOOR 5 DOOR<6KU>	8-94280-982-1	02	1	9307-	●	●
73	SEAL; SUB,SLIDE DOOR EXC. 5 DOOR<6KU>	8-94280-982-1	01	1	9307-	●	●
86	PIPE; GUARD,SIDE WINDOW STANDARD(WFB6VC) 4 DOOR VAN(V4V) EXC. SEATING CAPACITY 6(R48),SLIDE GLASS<R80>, SEATING CAPACITY 5(X92) FRONT	8-94269-296-0	01	1	9307-	●
86	PIPE; GUARD,SIDE WINDOW 4 DOOR VAN(V4V) EXC. SEATING CAPACITY 6(R48),SLIDE GLASS<R80>, SEATING CAPACITY 5(X92) FRONT	8-94269-296-0	01	1	9307-		●
86	PIPE; GUARD,SIDE WINDOW LONG(WFB6VF) 4 DOOR VAN(V4V) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2), SEATING CAPACITY 6(R48),SEATING CAPACITY 9(R49),SLIDE GLASS<R80>,SEATING CAPACITY 8(X84),SEATING CAPACITY5(X92) FRONT	8-94269-297-0	01	1	9307-	●
86	PIPE; GUARD,SIDE WINDOW LONG(WFB6VF) 4 DOOR VAN(V4V),5 DOOR VAN(V4X) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2), SLIDEGLASS<R80>,GLASS FRT SLIDE RR DELETE<6LB> REAR	8-94274-058-0	01	1	9307-	●
86	PIPE; GUARD,SIDE WINDOW LONG(WFB6VF) 4 DOOR VAN(V4V),5 DOOR VAN(V4X) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2), SLIDEGLASS<R80>,GLASS FRT SLIDE RR DELETE<6LB> REAR	8-94274-057-0	01	1	9307-	●
86	PIPE; GUARD,SIDE WINDOW STANDARD(WFB6VC) 4 DOOR VAN(V4V),5 DOOR VAN(V4X) EXC. SLIDE GLASS<R80>,GLASS FRT SLIDE RR DELETE<6LB> REAR	8-94274-056-0	01	1	9307-9406	●
86	PIPE; GUARD,SIDE WINDOW 4 DOOR VAN(V4V),5 DOOR VAN(V4X) EXC. SLIDE GLASS<R80>,GLASS FRT SLIDE RR DELETE<6LB> REAR	8-94274-056-0	01	1	9307-9406		●
86	PIPE; GUARD,SIDE WINDOW 4 DOOR VAN(V4V),5 DOOR VAN(V4X) EXC. SLIDE GLASS<R80>,GLASS FRT SLIDE RR DELETE<6LB> REAR	8-94274-056-0	01	1	9407-	●	●
86	PIPE; GUARD,SIDE WINDOW STANDARD(WFB6VC) 4 DOOR VAN(V4V),5 DOOR VAN(V4X) EXC. SLIDE GLASS<R80>,GLASS FRT SLIDE RR DELETE<6LB> REAR	8-94274-055-0	01	1	9307-9406	●
86	PIPE; GUARD,SIDE WINDOW 4 DOOR VAN(V4V),5 DOOR VAN(V4X) EXC. SLIDE GLASS<R80>,GLASS FRT SLIDE RR DELETE<6LB> REAR	8-94274-055-0	01	1	9307-9406		●
86	PIPE; GUARD,SIDE WINDOW 4 DOOR VAN(V4V),5 DOOR VAN(V4X) EXC. SLIDE GLASS<R80>,GLASS FRT SLIDE RR DELETE<6LB> REAR	8-94274-055-0	01	1	9407-	●	●
89	GROMMET; SCREW,GUARD PIPE STANDARD(WFB6VC) 4 DOOR VAN(V4V),5 DOOR VAN(V4X) EXC. SLIDE GLASS<R80>,GLASS FRT SLIDE RR DELETE<6LB>	5-09983-006-0	04	1	9307-	●
89	GROMMET; SCREW,GUARD PIPE 4 DOOR VAN(V4V),5 DOOR VAN(V4X) EXC. SLIDE GLASS<R80>,GLASS FRT SLIDE RR DELETE<6LB>	5-09983-006-0	04	1	9307-		●
89	GROMMET; SCREW,GUARD PIPE 4 DOOR VAN(V4V) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2), SEATING CAPACITY 6(R48),SEATING CAPACITY 9(R49),SLIDE GLASS<R80>,SEATING CAPACITY 8(X84),SEATING CAPACITY5(X92)	5-09983-006-0	02	1	9307-	●	●
90	SCREW; SEMS GUARD PIPE LONG(WFB6VF) 4 DOOR VAN(V4V),5 DOOR VAN(V4X) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2), SLIDEGLASS<R80>,GLASS FRT SLIDE RR DELETE<6LB> M6X20 W/LK&PL WASHER	9-03920-620-0	04	1	9307-	●
91	NUT; GRIP TO BODY LONG(WFB6VF) 4 DOOR VAN(V4V),5 DOOR VAN(V4X) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2), SLIDEGLASS<R80>,GLASS FRT SLIDE RR DELETE<6LB>	1-09984-028-0	04	1	9307-	●
92	SCREW; GUARD STANDARD(WFB6VC) 4 DOOR VAN(V4V),5 DOOR VAN(V4X) EXC. SLIDE GLASS<R80>,GLASS FRT SLIDE RR DELETE<6LB> M5X20	5-09981-058-0	04	1	9307-	●
92	SCREW; GUARD 4 DOOR VAN(V4V),5 DOOR VAN(V4X) EXC. SLIDE GLASS<R80>,GLASS FRT SLIDE RR DELETE<6LB> M5X20	5-09981-058-0	04	1	9307-		●
92	SCREW; GUARD 4 DOOR VAN(V4V) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2), SEATING CAPACITY 6(R48),SEATING CAPACITY 9(R49),SLIDE GLASS<R80>,SEATING CAPACITY 8(X84),SEATING CAPACITY5(X92) M5X20	5-09981-058-0	02	1	9307-	●	●
101	DRIP; A-POST UPR	8-94280-778-0	01	1	9307-	●	●
101	DRIP; A-POST UPR	8-94280-777-0	01	1	9307-	●	●
102	DRIP; A-POST LWR EUROPEAN BASIC EQUIPMENT(EK4)	8-94280-812-0	02	1	9407-	●	●
110	CLIP; A-POST D6X12.5	8-94146-425-0	04	1	9307-9406	●	●
110	CLIP; A-POST EUROPEAN BASIC EQUIPMENT(EK4) D6X12.5	8-94146-425-0	08	1	9407-	●	●
110	CLIP; A-POST EXC. EUROPEAN BASIC EQUIPMENT(EK4) D6X12.5	8-94146-425-0	04	1	9407-	●	●
111	SEAL; A-POST (A) OD=20 T=0.05 BLACK	5-76777-036-0	04	1	9307-9406	●	●
111	SEAL; A-POST EXC. EUROPEAN BASIC EQUIPMENT(EK4) (A) OD=20 T=0.05 BLACK	5-76777-036-0	04	1	9407-	●	●
111	SEAL; A-POST EUROPEAN BASIC EQUIPMENT(EK4) (B)	8-94345-173-0	01	1	9407-	●	●
111	SEAL; A-POST EUROPEAN BASIC EQUIPMENT(EK4) (B)	8-94345-172-0	01	1	9407-	●	●
112	PROTECTOR; HEAT,HARNESS (B)	8-94269-732-1	01	1	9307-9406	●	●
112	PROTECTOR; HEAT,HARNESS 4ZC1 ENG(LR9) (B)	8-94269-732-1	01	1	9407-	●	●
112	PROTECTOR; HEAT,HARNESS 4FG1 ENG(RLL) EXC. TURBOCHARGER(K51) (B)	8-94269-732-1	01	1	9407-	●	●
112	PROTECTOR; HEAT,HARNESS TURBOCHARGER(K51) (B)	8-94282-940-2	01	1	9407-	●	●
112	PROTECTOR; HEAT,HARNESS 4FG1 ENG(RLL) (A)	8-94269-729-1	01	1	9307-9406	●	●
112	PROTECTOR; HEAT,HARNESS 4FG1 ENG(RLL) EXC. EUROPEAN BASIC EQUIPMENT(EK4) (A)	8-94269-729-1	01	1	9407-	●	●
113	BOLT; HEAT PROTECTOR M6X14 W/LK&PL WASHER	0-50140-614-0	02	1	9307-	●	●
113	BOLT; HEAT PROTECTOR 4FG1 ENG(RLL) M6X14 W/LK&PL WASHER	0-50140-614-0	03	1	9307-9406	●	●
113	BOLT; HEAT PROTECTOR 4FG1 ENG(RLL) EXC. EUROPEAN BASIC EQUIPMENT(EK4) M6X14 W/LK&PL WASHER	0-50140-614-0	03	1	9407-	●	●
114	INSULATOR; HEAT PROTECTOR L=400	8-94284-679-0	01	1	9307-9406	●	●
114	INSULATOR; HEAT PROTECTOR EXC. TURBOCHARGER(K51) L=400	8-94284-679-0	01	1	9407-	●	●
114	INSULATOR; HEAT PROTECTOR TURBOCHARGER(K51) L=288	8-94282-939-0	01	1	9407-	●	●
184	SEAL; LOCATION HOLE 5 DOOR<6KU> OD=45 T=0.08 BLACK	8-94291-688-2	06	1	9307-	●	●
184	SEAL; LOCATION HOLE EXC. 5 DOOR<6KU> OD=45 T=0.08 BLACK	8-94291-688-2	03	1	9307-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
