◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ WFR ▶ 50686 - WFR-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#47233) — 54 parça

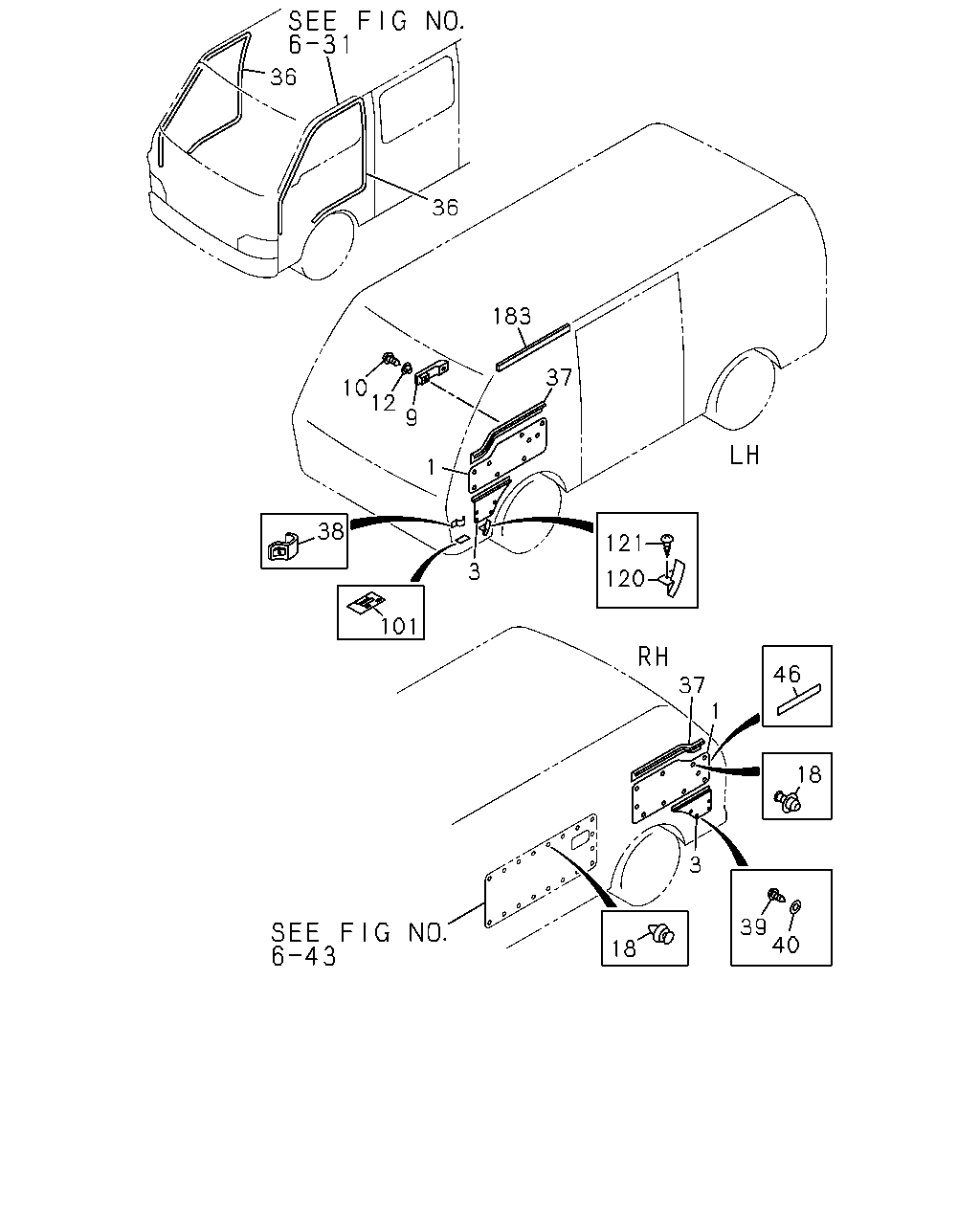

çizim 67060
36 36 183 37 10 12 9 1 38 101 3 121 120 37 1 46 18 40 39 18 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAD; TRIM,FRT DOOR
ARM REST FRT DOOR<D14> INTERIOR COLOR MED SAND(129) EXC. POWER WINDOW FRT DOOR<A32>,ACCESSORY PACK<ET6>,4 DOOR WAGON(V4W) BEIGE 		8-94350-742-0 01 1 9307- ●
1 PAD; TRIM,FRT DOOR
ARM REST FRT DOOR<D14> INTERIOR COLOR MED SAND(129) EXC. POWER WINDOW FRT DOOR<A32>,ACCESSORY PACK<ET6>,4 DOOR WAGON(V4W) BEIGE 		8-94350-740-0 01 1 9307- ●
1 PAD; TRIM,FRT DOOR
INTERIOR COLOR MEDIUM GRAY(113) ACCESSORY PACK<ET6> 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) EXC. POWER WINDOW FRT DOOR<A32>,ARM REST FRT DOOR<D14> GRAY 		8-94350-733-0 01 1 9307- ●
1 PAD; TRIM,FRT DOOR
INTERIOR COLOR MEDIUM GRAY(113) ACCESSORY PACK<ET6> 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) EXC. POWER WINDOW FRT DOOR<A32>,ARM REST FRT DOOR<D14> GRAY 		8-94350-731-0 01 1 9307- ●
1 PAD; TRIM,FRT DOOR
INTERIOR COLOR MEDIUM GRAY(113) ARM REST FRT DOOR<D14> ACCESSORY PACK<ET6> 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-94350-741-0 01 1 9307- ●
1 PAD; TRIM,FRT DOOR
INTERIOR COLOR MEDIUM GRAY(113) ARM REST FRT DOOR<D14> ACCESSORY PACK<ET6> 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y) EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-94350-739-0 01 1 9307- ●
1 PAD; TRIM,FRT DOOR
INTERIOR COLOR MEDIUM GRAY(113) POWER WINDOW FRT DOOR<A32> ACCESSORY PACK<ET6> 4 DOOR VAN(V4V),5 DOOR VAN(V4X) EXC. ARM REST FRT DOOR<D14> GRAY 		8-94350-729-0 01 1 9307- ●
1 PAD; TRIM,FRT DOOR
INTERIOR COLOR MEDIUM GRAY(113) POWER WINDOW FRT DOOR<A32> ACCESSORY PACK<ET6> 4 DOOR VAN(V4V),5 DOOR VAN(V4X) EXC. ARM REST FRT DOOR<D14> GRAY 		8-94350-725-0 01 1 9307-9406 ●
1 PAD; TRIM,FRT DOOR
INTERIOR COLOR MEDIUM GRAY(113) POWER WINDOW FRT DOOR<A32> 4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR BUS(V4Z) EXC. ARM REST FRT DOOR<D14> GRAY 		8-94350-725-0 01 1 9407- ●
1 PAD; TRIM,FRT DOOR
INTERIOR COLOR MEDIUM GRAY(113) POWER WINDOW FRT DOOR<A32> ARM REST FRT DOOR<D14> ACCESSORY PACK<ET6> 4 DOOR VAN(V4V),5 DOOR VAN(V4X) GRAY 		8-94350-727-0 01 1 9307- ●
1 PAD; TRIM,FRT DOOR
INTERIOR COLOR MEDIUM GRAY(113) POWER WINDOW FRT DOOR<A32> ARM REST FRT DOOR<D14> ACCESSORY PACK<ET6> 4 DOOR VAN(V4V),5 DOOR VAN(V4X) GRAY 		8-94350-723-0 01 1 9307- ●
1 PAD; TRIM,FRT DOOR
INTERIOR COLOR MED SAND(129) POWER WINDOW FRT DOOR<A32> ARM REST FRT DOOR<D14> 4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR BUS(V4Z) EXC. ACCESSORY PACK<ET6> BEIGE 		8-94350-728-0 01 1 9307- ●
1 PAD; TRIM,FRT DOOR
INTERIOR COLOR MED SAND(129) POWER WINDOW FRT DOOR<A32> ARM REST FRT DOOR<D14> 4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR BUS(V4Z) EXC. ACCESSORY PACK<ET6> BEIGE 		8-94350-724-0 01 1 9307- ●
1 PAD; TRIM,FRT DOOR
INTERIOR COLOR MED SAND(129) POWER WINDOW FRT DOOR<A32> 4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR BUS(V4Z) EXC. ARM REST FRT DOOR<D14>,ACCESSORY PACK<ET6> BEIGE 		8-94350-730-0 01 1 9307- ●
1 PAD; TRIM,FRT DOOR
INTERIOR COLOR MED SAND(129) POWER WINDOW FRT DOOR<A32> 4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR BUS(V4Z) EXC. ARM REST FRT DOOR<D14>,ACCESSORY PACK<ET6> BEIGE 		8-94350-726-0 01 1 9307- ●
1 PAD; TRIM,FRT DOOR
INTERIOR COLOR MED SAND(129) EXC. POWER WINDOW FRT DOOR<A32>,ARM REST FRT DOOR<D14>,ACCESSORY PACK<ET6>,4 DOOR WAGON(V4W) BEIGE 		8-94350-734-0 01 1 9307- ●
1 PAD; TRIM,FRT DOOR
INTERIOR COLOR MED SAND(129) EXC. POWER WINDOW FRT DOOR<A32>,ARM REST FRT DOOR<D14>,ACCESSORY PACK<ET6>,4 DOOR WAGON(V4W) BEIGE 		8-94350-732-0 01 1 9307- ●
1 PAD; TRIM,FRT DOOR
INTERIOR COLOR MEDIUM GRAY(113) ARM REST FRT DOOR<D14> 4 DOOR WAGON(V4W) GRAY 		8-94350-766-0 01 1 9307- ●
1 PAD; TRIM,FRT DOOR
INTERIOR COLOR MEDIUM GRAY(113) ARM REST FRT DOOR<D14> 4 DOOR WAGON(V4W) GRAY 		8-94350-764-0 01 1 9307- ●
1 PAD; TRIM,FRT DOOR
INTERIOR COLOR MEDIUM GRAY(113) 4 DOOR WAGON(V4W) EXC. ARM REST FRT DOOR<D14> GRAY 		8-94350-767-0 01 1 9307- ●
1 PAD; TRIM,FRT DOOR
INTERIOR COLOR MEDIUM GRAY(113) 4 DOOR WAGON(V4W) EXC. ARM REST FRT DOOR<D14> GRAY 		8-94350-765-0 01 1 9307- ●
3 TRIM; FULL,FRT DOOR,LWR
INTERIOR COLOR MEDIUM GRAY(113) ACCESSORY PACK<ET6> GRAY 		8-94352-133-0 01 1 9307- ● ●
3 TRIM; FULL,FRT DOOR,LWR
INTERIOR COLOR MEDIUM GRAY(113) ACCESSORY PACK<ET6> GRAY 		8-94352-132-0 01 1 9307- ● ●
3 TRIM; FULL,FRT DOOR,LWR
INTERIOR COLOR MEDIUM GRAY(113) 4 DOOR WAGON(V4W) GRAY 		8-94352-649-0 01 1 9307- ●
3 TRIM; FULL,FRT DOOR,LWR
INTERIOR COLOR MEDIUM GRAY(113) 4 DOOR WAGON(V4W) GRAY 		8-94352-647-0 01 1 9307- ●
9 REST; ARM,FRT DOOR
INTERIOR COLOR MEDIUM GRAY(113) ARM REST FRT DOOR<D14> GRAY 		8-94345-855-0 01 1 9307- ● ●
9 REST; ARM,FRT DOOR
INTERIOR COLOR MEDIUM GRAY(113) ARM REST FRT DOOR<D14> GRAY 		8-94345-853-0 01 1 9307- ● ●
9 REST; ARM,FRT DOOR
INTERIOR COLOR MED SAND(129) ARM REST FRT DOOR<D14> BEIGE 		8-94350-451-0 01 1 9307- ● ●
9 REST; ARM,FRT DOOR
INTERIOR COLOR MED SAND(129) ARM REST FRT DOOR<D14> BEIGE 		8-94350-450-0 01 1 9307- ● ●
10 SCREW; ARM REST
ARM REST FRT DOOR<D14> M6X30 TAPPING 		9-07066-630-0 04 1 9307- ● ●
12 NUT; ARM REST
ARM REST FRT DOOR<D14> SCREW GROMMET 		8-06698-938-1 04 1 9307- ● ●
18 CLIP; DOOR PAD 1-09987-119-1 18 1 9307- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-94274-164-1 01 1 9307- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-94274-163-1 01 1 9307- ● ●
37 TRIM; FULL FRT DOOR
ACCESSORY PACK<ET6> 		8-94350-415-0 01 1 9307- ●
37 TRIM; FULL FRT DOOR 8-94350-415-0 01 1 9307- ●
37 TRIM; FULL FRT DOOR
ACCESSORY PACK<ET6> 		8-94350-414-0 01 1 9307- ●
37 TRIM; FULL FRT DOOR 8-94350-414-0 01 1 9307- ●
38 STOPPER; DOOR SEAL,FRT 8-94273-144-0 02 1 9307- ● ●
39 SCREW; DOOR PAD
ACCESSORY PACK<ET6> M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 08 1 9307- ●
39 SCREW; DOOR PAD
M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 08 1 9307- ●
40 WASHER; FULL TRIM
ACCESSORY PACK<ET6> 		5-09985-053-0 08 1 9307- ●
40 WASHER; FULL TRIM 5-09985-053-0 08 1 9307- ●
46 CUSHION; TRIM PAD,FRT DOOR
L=300 		8-94269-995-0 02 1 9307- ●
46 CUSHION; TRIM PAD,FRT DOOR
L=200 		8-94345-358-0 04 1 9307- ●
101 COVER; HOLE,FRT DOOR 8-94345-559-0 01 1 9307- ● ●
101 COVER; HOLE,FRT DOOR 8-94345-558-0 01 1 9307- ● ●
120 STOPPER; DOOR SEAL,RR 8-94274-170-0 01 1 9307- ● ●
120 STOPPER; DOOR SEAL,RR 8-94274-169-0 01 1 9307- ● ●
121 SCREW; STOPPER,DOOR SEAL
M4X10 		5-09981-061-0 04 1 9307- ● ●
183 SEAL; LOCATION HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 9307- ● ●
183 SEAL; LOCATION HOLE
OD=45 T=0.08 BLACK 		8-94291-688-2 02 1 9307-9308 ● ●
183 SEAL; LOCATION HOLE
POWER WINDOW FRT DOOR<A32> OD=45 T=0.08 BLACK 		8-94291-688-2 02 1 9309- ● ●
183 SEAL; LOCATION HOLE
EXC. POWER WINDOW FRT DOOR<A32>,ANTENNA<U73>, AM/FMW/CASSETTE 2 SPEAKERS(6VL) OD=45 T=0.08 BLACK 		8-94291-688-2 02 1 9309- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
