◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ WFR ▶ 50686 - WFR-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#47231) — 44 parça

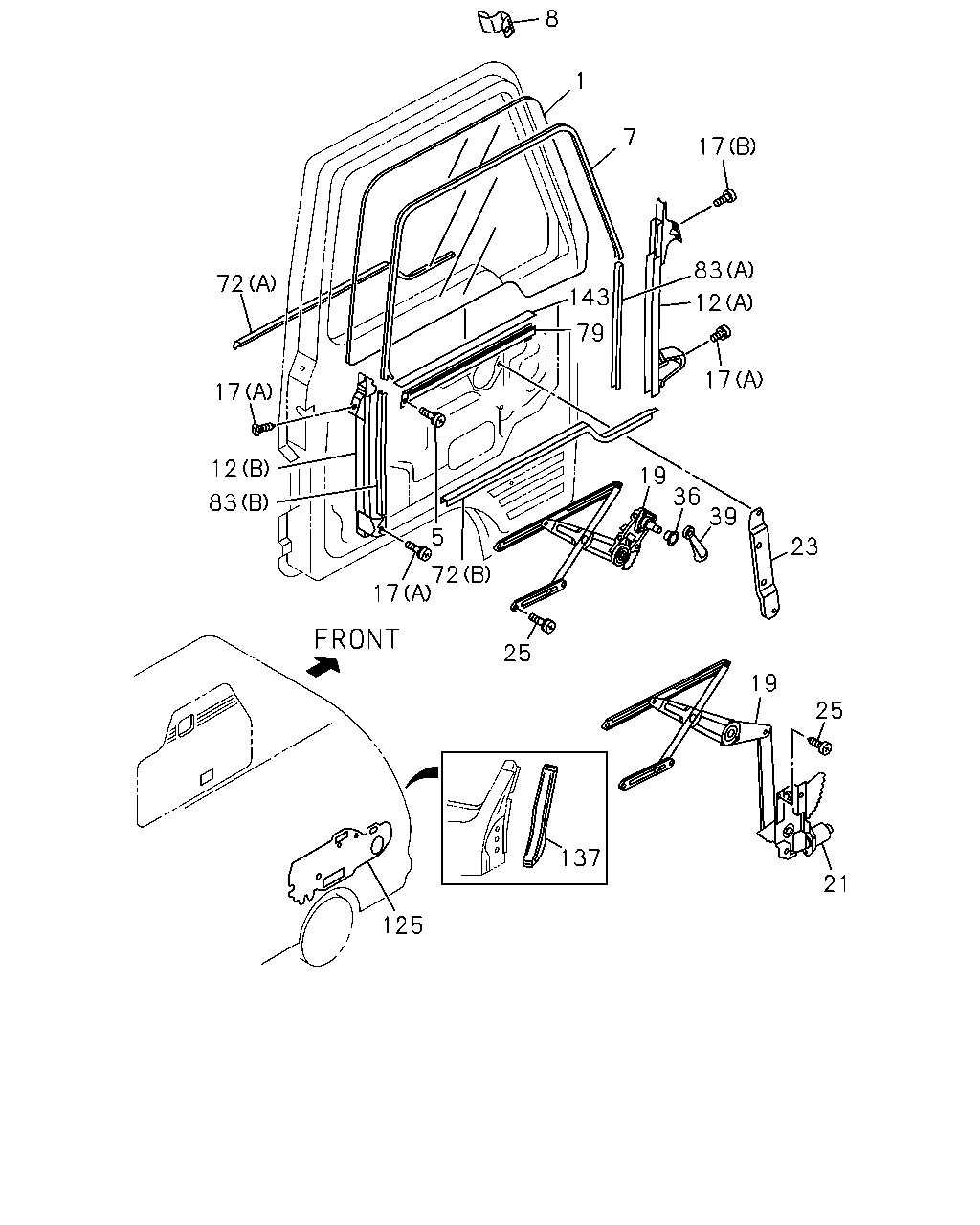

çizim 67059
8 1 7 17 83 12 143 79 17 19 36 39 23 19 25 21 137 125 25 72 5 17 83 12 17 72
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; FRT DOOR
BRONZE GLASS(X72) 		8-94256-023-0 01 1 9307- ●
1 GLASS; FRT DOOR
BRONZE GLASS(X72) 		8-94256-022-0 01 1 9307- ●
1 GLASS; FRT DOOR
EXC. BRONZE GLASS(X72),LAMINATED TINTED GLASS(YM4) 		8-94244-063-0 01 1 9307- ●
1 GLASS; FRT DOOR
EXC. LAMINATED TINTED GLASS(YM4) 		8-94244-063-0 01 1 9307- ●
1 GLASS; FRT DOOR
EXC. BRONZE GLASS(X72),LAMINATED TINTED GLASS(YM4) 		8-94244-062-0 01 1 9307- ●
1 GLASS; FRT DOOR
EXC. LAMINATED TINTED GLASS(YM4) 		8-94244-062-0 01 1 9307- ●
1 GLASS; FRT DOOR
LAMINATED TINTED GLASS(YM4) EXC. BRONZE GLASS(X72) 		8-94227-313-1 01 1 9307- ●
1 GLASS; FRT DOOR
LAMINATED TINTED GLASS(YM4) 		8-94227-313-1 01 1 9307- ●
1 GLASS; FRT DOOR
LAMINATED TINTED GLASS(YM4) EXC. BRONZE GLASS(X72) 		8-94227-312-1 01 1 9307- ●
1 GLASS; FRT DOOR
LAMINATED TINTED GLASS(YM4) 		8-94227-312-1 01 1 9307- ●
5 SCREW; CHANNEL,REG
M6X8 W/LK WASHER 		1-09981-040-0 04 1 9307- ● ●
7 GLASS RUN; FRT DOOR 8-94280-703-0 02 1 9307- ● ●
8 CLIP; GLASS GUIDE 8-94280-715-0 02 1 9307- ● ●
12 CHANNEL; GLASS RUN,FRT
(B) 		8-94284-820-0 01 1 9307- ● ●
12 CHANNEL; GLASS RUN,FRT
(A) 		8-94345-597-0 01 1 9307- ● ●
12 CHANNEL; GLASS RUN,FRT
(B) 		8-94284-819-0 01 1 9307- ● ●
12 CHANNEL; GLASS RUN,FRT
(A) 		8-94345-596-0 01 1 9307- ● ●
17 SCREW; RR CHANNEL
(A) M6X12 W/LK&PL WASHER 		8-94279-329-0 08 1 9307- ● ●
17 SCREW; RR CHANNEL
(B) M6X12 		8-94279-346-0 02 1 9307- ● ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-94292-540-1 01 1 9307- ● ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-94287-512-0 01 1 9307- ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-94291-982-0 01 1 9307- ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-94291-981-0 01 1 9307- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-94345-355-0 01 1 9307- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-94345-354-0 01 1 9307- ● ●
23 REINFORCEMENT; POWER WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-94293-978-1 01 1 9307- ● ●
23 REINFORCEMENT; POWER WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-94287-514-1 01 1 9307- ● ●
25 BOLT; WINDOW REG
M6X8 W/LK WASHER 		1-09981-040-0 12 1 9307- ● ●
25 BOLT; WINDOW REG
POWER WINDOW FRT DOOR<A32> M6X12 		1-09981-210-0 08 1 9307- ● ●
25 BOLT; WINDOW REG
POWER WINDOW FRT DOOR<A32> M4X16 		9-03494-416-0 08 1 9307- ● ●
36 ESCUTCHEON; HANDLE,WINDOW REG
EXC. POWER WINDOW FRT DOOR<A32> 		8-94220-668-1 02 1 9307- ● ●
39 HANDLE; WINDOW REG,FRT DOOR
INTERIOR COLOR MEDIUM GRAY(113) EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-94345-848-0 02 1 9307- ● ●
39 HANDLE; WINDOW REG,FRT DOOR
INTERIOR COLOR MED SAND(129) EXC. POWER WINDOW FRT DOOR<A32> BEIGE 		8-94345-849-0 02 1 9307- ● ●
72 SEAL; WAIST,FRT DOOR
(A) 		8-94280-808-2 01 1 9307- ● ●
72 SEAL; WAIST,FRT DOOR
(B) 		8-94284-382-1 01 1 9307- ● ●
72 SEAL; WAIST,FRT DOOR
(A) 		8-94280-807-2 01 1 9307- ● ●
72 SEAL; WAIST,FRT DOOR
(B) 		8-94284-381-1 01 1 9307- ● ●
79 CHANNEL; DOOR GLASS,FRT 8-94292-195-0 02 1 9307- ● ●
83 RUN; GLASS,FRT DOOR,LWR FRT
(A) L=400 		8-94289-443-0 02 1 9307- ● ●
83 RUN; GLASS,FRT DOOR,LWR FRT
(B) L=450 		8-94289-444-0 02 1 9307- ● ●
125 SHEET; WATER PROOF,FRT DOOR 8-94282-971-0 02 1 9307- ● ●
137 SEAL; DOOR SUB,UPR 8-94353-891-0 01 1 9307- ● ●
137 SEAL; DOOR SUB,UPR 8-94353-890-0 01 1 9307- ● ●
143 SEAT; RUBBER,BOTTOM CHANNEL 8-94292-194-0 02 1 9307- ● ●
