Sayfa 0-85 - Isuzu EPC

0-85 — AUTO TIMER; INJECTION PUMP (#4723) — 200 parça

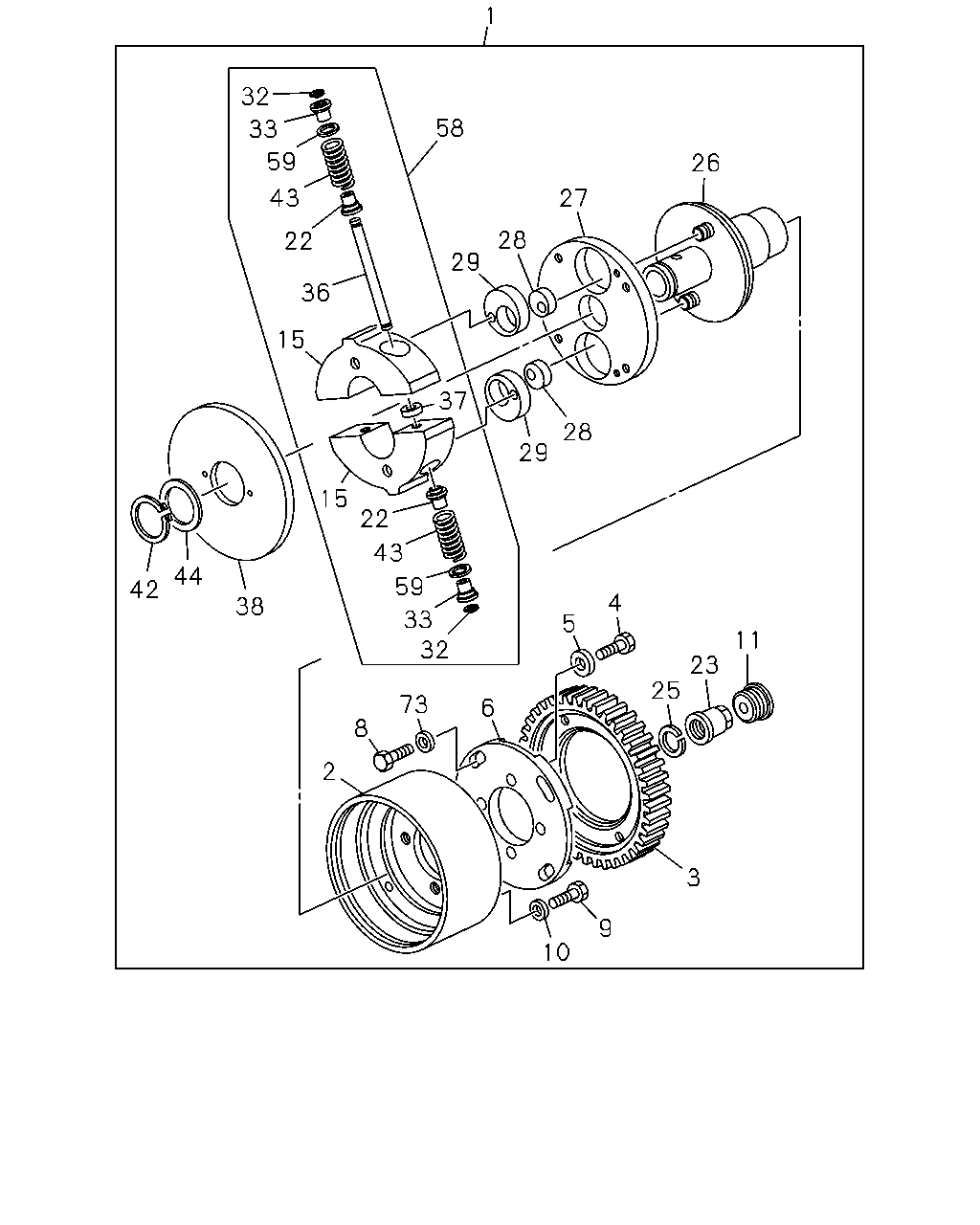

1 32 58 33 59 26 27 43 28 2 29 36 15 37 28 29 15 22 43 44 59 42 4 38 33 5 11 32 23 25 73 6 8 2 3 9 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP ASM PART: J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2	1-15740-487-1	01	1	-0006
1	TIMER ASM; INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2	1-15740-487-1	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: D = 1-15603-068-5	1-15740-488-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: E = 1-15603-114-4	1-15740-494-0	01	1	-9609
1	TIMER ASM; INJ PUMP ASM PART: F = 1-15603-115-2	1-15740-495-1	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: H = 1-15603-122-1	1-15740-497-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: E = 1-15603-114-4	1-15740-506-0	01	1	9610-
1	TIMER ASM; INJ PUMP ASM PART: N = 1-15603-370-1	1-15740-507-0	01	1	-0006
1	TIMER ASM; INJ PUMP ASM PART: I = 1-15603-123-2, M = 1-15603-209-1	1-15740-507-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: G = 1-15603-121-2	1-15740-509-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2	1-15740-529-0	01	1	0007-
1	TIMER ASM; INJ PUMP ASM PART: N = 1-15603-370-1	1-15740-536-0	01	1	0007-
2	HOUSING; TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15741-016-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: E = 1-15603-114-4	1-15741-053-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1	1-15741-076-0	01	1	-
3	GEAR; DRIVE,INJ PUMP ASM PART: J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, N = 1-15603-370-1	1-12524-085-3	01	1	0007-
3	GEAR; DRIVE,INJ PUMP ASM PART: J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, N = 1-15603-370-1	1-15789-190-0	01	1	-0006
3	GEAR; DRIVE,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-123-2, M = 1-15603-209-1	1-15789-190-0	01	1	-
4	BOLT; DRIVE GEAR FLANGE,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-188-0	04	1	-
5	WASHER; DRIVE GEAR FLANGE,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-189-0	04	1	-
6	FLANGE; DRIVE GEAR,INJ PUMP T=1.00 ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15742-036-0	01	1	-
8	BOLT; DRIVE GEAR FIX,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-186-0	04	1	-
9	BOLT; TIMER HSG,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-190-0	04	1	-
10	WASHER; HSG FIX BOLT,TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-191-0	04	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-698-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: D = 1-15603-068-5, E = 1-15603-114-4, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1	1-15749-735-0	01	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: I = 1-15603-123-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15743-143-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2	1-15743-150-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1	1-15743-151-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: E = 1-15603-114-4	1-15743-156-0	02	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-635-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: E = 1-15603-114-4	1-15749-714-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1	1-15749-870-0	04	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1	1-15749-117-0	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-144-0	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: E = 1-15603-114-4	1-15749-734-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1	1-15749-116-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-145-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: E = 1-15603-114-4	1-15749-733-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2	1-15742-153-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: D = 1-15603-068-5	1-15742-154-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: E = 1-15603-114-4	1-15742-157-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: I = 1-15603-123-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15742-158-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1	1-15742-159-0	01	1	-
27	PLATE; CAM,TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-239-0	01	1	-
28	CAM; INNER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-152-0	02	1	-
28	CAM; INNER,ECCENTRIC,TIMER,INJ PUMP ASM PART: E = 1-15603-114-4	1-15749-713-0	02	1	-
29	CAM; OUTER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-151-0	02	1	-
29	CAM; OUTER,ECCENTRIC,TIMER,INJ PUMP ASM PART: E = 1-15603-114-4	1-15749-712-0	02	1	-
32	RING; SNAP,SPRING SEAT,TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-159-0	04	1	-
32	RING; SNAP,SPRING SEAT,TIMER,INJ PUMP ASM PART: E = 1-15603-114-4	1-15749-718-0	04	1	-
33	SEAT; OUTER SPRING,TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-176-0	04	1	-
33	SEAT; OUTER SPRING,TIMER,INJ PUMP ASM PART: E = 1-15603-114-4	1-15749-715-0	04	1	-
33	SEAT; OUTER SPRING,TIMER,INJ PUMP ASM PART: D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1	1-15749-871-0	04	1	-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-174-0	02	1	-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: E = 1-15603-114-4	1-15749-719-0	02	1	-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1	1-15749-869-0	02	1	-
37	SPACER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1	1-15749-402-0	04	1	-
37	SPACER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-402-0	02	1	-
37	SPACER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: E = 1-15603-114-4	1-15749-727-0	04	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-283-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: E = 1-15603-114-4	1-15749-728-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1	1-15749-788-0	01	1	-
42	RING; SNAP,TIMER COVER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-185-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP D=2.1 L=46.5 ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2	1-15749-879-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: F = 1-15603-115-2	1-15749-890-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: H = 1-15603-122-1	1-15749-891-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP T=2.0 L=46 ASM PART: N = 1-15603-370-1	1-15749-902-0	01	1	-0006
43	SPRING; PISTON,TIMER,INJ PUMP T=2.0 L=46 ASM PART: I = 1-15603-123-2, M = 1-15603-209-1	1-15749-902-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP T=2.0 L=45 ASM PART: N = 1-15603-370-1	1-15749-903-0	01	1	-0006
43	SPRING; PISTON,TIMER,INJ PUMP T=2.0 L=45 ASM PART: I = 1-15603-123-2, M = 1-15603-209-1	1-15749-903-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP T=2.0 L=43.5 ASM PART: N = 1-15603-370-1	1-15749-904-0	01	1	-0006
43	SPRING; PISTON,TIMER,INJ PUMP T=2.0 L=43.5 ASM PART: I = 1-15603-123-2, M = 1-15603-209-1	1-15749-904-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP T=2.2 L=43.5 ASM PART: I = 1-15603-123-2, M = 1-15603-209-1	1-15749-905-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP T=2.2 L=43.5 ASM PART: N = 1-15603-370-1	1-15749-905-0	01	1	-0006
43	SPRING; PISTON,TIMER,INJ PUMP T=2.0 L=44 ASM PART: N = 1-15603-370-1	1-15749-906-0	04	1	-0006
43	SPRING; PISTON,TIMER,INJ PUMP T=2.0 L=44 ASM PART: I = 1-15603-123-2, M = 1-15603-209-1	1-15749-906-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP L=52.5 ASM PART: G = 1-15603-121-2	1-15749-913-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: N = 1-15603-370-1	1-15749-952-0	04	1	0007-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: D = 1-15603-068-5	1-15749-998-0	04	1	-
44	SHIM; TIMER COVER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-184-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2	1-15743-148-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: D = 1-15603-068-5	1-15743-149-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: H = 1-15603-122-1	1-15743-154-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: E = 1-15603-114-4	1-15743-155-0	01	1	-9609
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: I = 1-15603-123-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15743-159-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: E = 1-15603-114-4	1-15743-160-0	01	1	9610-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: F = 1-15603-115-2	1-15743-161-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: G = 1-15603-121-2	1-15743-162-0	01	1	-
59	SHIM; SPR,TIMER T=0.10 ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-390-0	AR	1	-
59	SHIM; SPR,TIMER T=0.30 ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-391-0	AR	1	-
59	SHIM; SPR,TIMER T=0.50 ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-392-0	AR	1	-
59	SHIM; SPR,TIMER T=1.00 ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-393-0	AR	1	-
59	SHIM; SPR,TIMER T=0.40 ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-493-0	AR	1	-
59	SHIM; SPR,TIMER T=0.70 ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-494-0	AR	1	-
73	WASHER; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-187-0	04	1	-

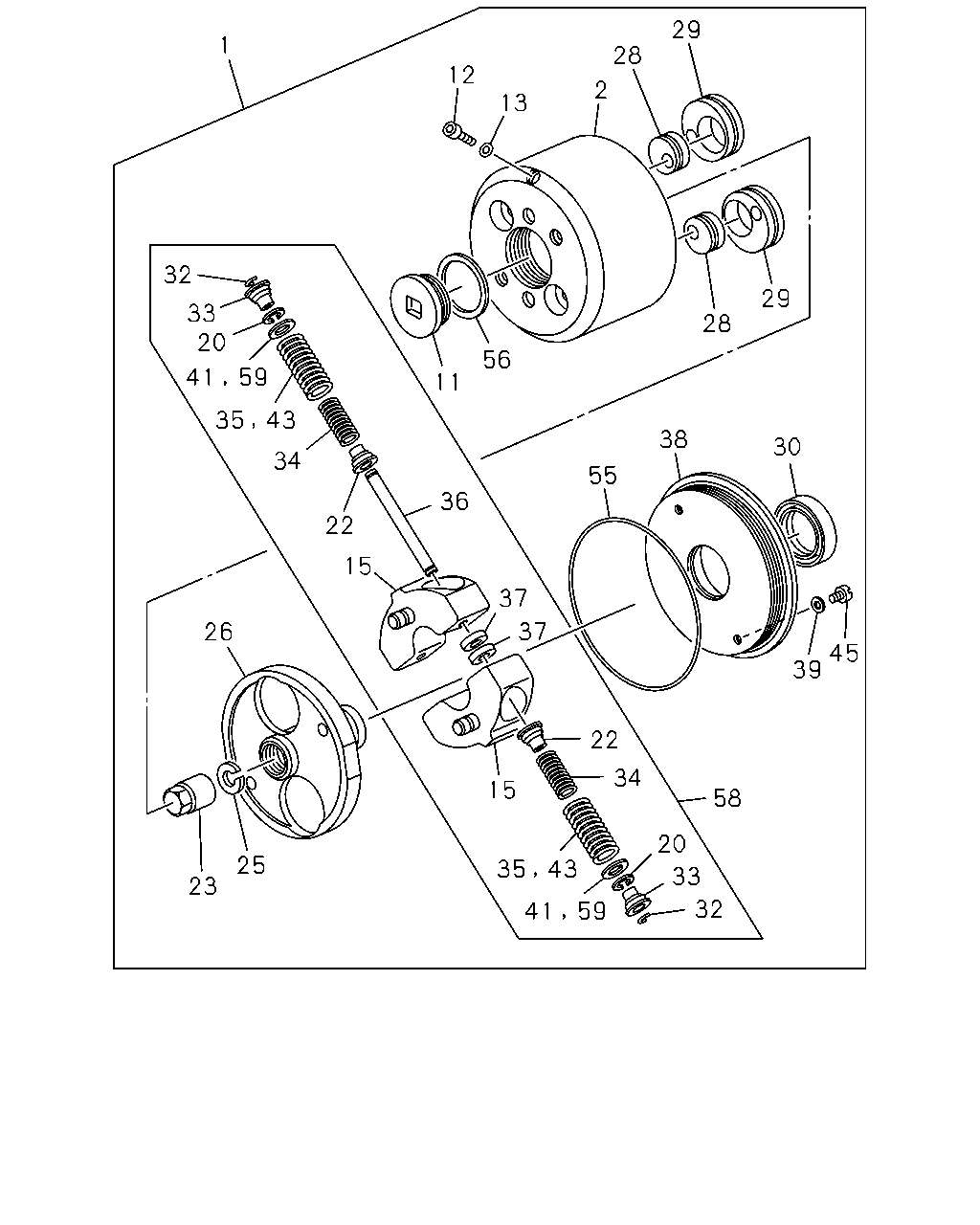

29 1 28 12 2 13 32 29 33 20 28 56 59 41 11 35 38 30 34 55 36 22 15 37 37 26 45 39 22 34 15 58 20 25 35 33 23 32 59 41 43 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP ASM PART: J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2	1-15740-487-1	01	1	-0006
1	TIMER ASM; INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2	1-15740-487-1	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: D = 1-15603-068-5	1-15740-488-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: E = 1-15603-114-4	1-15740-494-0	01	1	-9609
1	TIMER ASM; INJ PUMP ASM PART: F = 1-15603-115-2	1-15740-495-1	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: H = 1-15603-122-1	1-15740-497-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: E = 1-15603-114-4	1-15740-506-0	01	1	9610-
1	TIMER ASM; INJ PUMP ASM PART: N = 1-15603-370-1	1-15740-507-0	01	1	-0006
1	TIMER ASM; INJ PUMP ASM PART: I = 1-15603-123-2, M = 1-15603-209-1	1-15740-507-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: G = 1-15603-121-2	1-15740-509-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2	1-15740-529-0	01	1	0007-
1	TIMER ASM; INJ PUMP ASM PART: N = 1-15603-370-1	1-15740-536-0	01	1	0007-
2	HOUSING; TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15741-016-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: E = 1-15603-114-4	1-15741-053-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1	1-15741-076-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-698-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: D = 1-15603-068-5, E = 1-15603-114-4, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1	1-15749-735-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1	1-15749-031-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: E = 1-15603-114-4	1-15749-031-0	01	1	9610-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: E = 1-15603-114-4	1-15749-030-0	01	1	9610-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1	1-15749-030-0	01	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: I = 1-15603-123-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15743-143-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2	1-15743-150-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1	1-15743-151-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: E = 1-15603-114-4	1-15743-156-0	02	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP ID=15.2 T=0.5 ASM PART: E = 1-15603-114-4	1-15749-725-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP ID=15.2 T=1.0 ASM PART: E = 1-15603-114-4	1-15749-726-0	AR	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-635-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: E = 1-15603-114-4	1-15749-714-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1	1-15749-870-0	04	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1	1-15749-117-0	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-144-0	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: E = 1-15603-114-4	1-15749-734-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1	1-15749-116-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-145-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: E = 1-15603-114-4	1-15749-733-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2	1-15742-153-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: D = 1-15603-068-5	1-15742-154-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: E = 1-15603-114-4	1-15742-157-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: I = 1-15603-123-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15742-158-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1	1-15742-159-0	01	1	-
28	CAM; INNER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-152-0	02	1	-
28	CAM; INNER,ECCENTRIC,TIMER,INJ PUMP ASM PART: E = 1-15603-114-4	1-15749-713-0	02	1	-
29	CAM; OUTER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-151-0	02	1	-
29	CAM; OUTER,ECCENTRIC,TIMER,INJ PUMP ASM PART: E = 1-15603-114-4	1-15749-712-0	02	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: E = 1-15603-114-4	1-15749-729-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1	1-15749-789-0	01	1	-
32	RING; SNAP,SPRING SEAT,TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-159-0	04	1	-
32	RING; SNAP,SPRING SEAT,TIMER,INJ PUMP ASM PART: E = 1-15603-114-4	1-15749-718-0	04	1	-
33	SEAT; OUTER SPRING,TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-176-0	04	1	-
33	SEAT; OUTER SPRING,TIMER,INJ PUMP ASM PART: E = 1-15603-114-4	1-15749-715-0	04	1	-
33	SEAT; OUTER SPRING,TIMER,INJ PUMP ASM PART: D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1	1-15749-871-0	04	1	-
34	SPRING; TIMER,INNER,INJ PUMP ASM PART: E = 1-15603-114-4	1-15749-895-0	04	1	-
35	SPRING; TIMER,OUTER,INJ PUMP L=55.5 ASM PART: E = 1-15603-114-4	1-15749-894-0	04	1	-9609
35	SPRING; TIMER,OUTER,INJ PUMP L=64 ASM PART: E = 1-15603-114-4	1-15749-908-0	04	1	9610-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-174-0	02	1	-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: E = 1-15603-114-4	1-15749-719-0	02	1	-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1	1-15749-869-0	02	1	-
37	SPACER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1	1-15749-402-0	04	1	-
37	SPACER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-402-0	02	1	-
37	SPACER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: E = 1-15603-114-4	1-15749-727-0	04	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-283-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: E = 1-15603-114-4	1-15749-728-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1	1-15749-788-0	01	1	-
39	GASKET; TIMER COVER BOLT,INJ PUMP ASM PART: E = 1-15603-114-4	1-15749-030-0	01	1	-9609
41	SHIM; OUTER SPRING,TIMER,INJ PUMP ID=20.2 T=0.1 ASM PART: E = 1-15603-114-4	1-15749-720-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP ID=20.2 T=0.3 ASM PART: E = 1-15603-114-4	1-15749-721-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP ID=20.2 T=0.5 ASM PART: E = 1-15603-114-4	1-15749-722-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP ID=20.2 T=0.7 ASM PART: E = 1-15603-114-4	1-15749-723-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP ID=20.2 T=1.0 ASM PART: E = 1-15603-114-4	1-15749-724-0	AR	1	-
43	SPRING; PISTON,TIMER,INJ PUMP D=2.1 L=46.5 ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2	1-15749-879-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: F = 1-15603-115-2	1-15749-890-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: H = 1-15603-122-1	1-15749-891-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP T=2.0 L=46 ASM PART: N = 1-15603-370-1	1-15749-902-0	01	1	-0006
43	SPRING; PISTON,TIMER,INJ PUMP T=2.0 L=46 ASM PART: I = 1-15603-123-2, M = 1-15603-209-1	1-15749-902-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP T=2.0 L=45 ASM PART: N = 1-15603-370-1	1-15749-903-0	01	1	-0006
43	SPRING; PISTON,TIMER,INJ PUMP T=2.0 L=45 ASM PART: I = 1-15603-123-2, M = 1-15603-209-1	1-15749-903-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP T=2.0 L=43.5 ASM PART: N = 1-15603-370-1	1-15749-904-0	01	1	-0006
43	SPRING; PISTON,TIMER,INJ PUMP T=2.0 L=43.5 ASM PART: I = 1-15603-123-2, M = 1-15603-209-1	1-15749-904-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP T=2.2 L=43.5 ASM PART: I = 1-15603-123-2, M = 1-15603-209-1	1-15749-905-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP T=2.2 L=43.5 ASM PART: N = 1-15603-370-1	1-15749-905-0	01	1	-0006
43	SPRING; PISTON,TIMER,INJ PUMP T=2.0 L=44 ASM PART: N = 1-15603-370-1	1-15749-906-0	04	1	-0006
43	SPRING; PISTON,TIMER,INJ PUMP T=2.0 L=44 ASM PART: I = 1-15603-123-2, M = 1-15603-209-1	1-15749-906-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP L=52.5 ASM PART: G = 1-15603-121-2	1-15749-913-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: N = 1-15603-370-1	1-15749-952-0	04	1	0007-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: D = 1-15603-068-5	1-15749-998-0	04	1	-
45	BOLT; TIMER COVER,INJ PUMP ASM PART: E = 1-15603-114-4	1-15749-031-0	01	1	-9609
55	GASKET; TIMER HSG,INJ PUMP ASM PART: D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1	1-15749-111-0	01	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: E = 1-15603-114-4	1-15749-730-0	01	1	-
56	GASKET; CAP ASM PART: D = 1-15603-068-5, E = 1-15603-114-4, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1	1-15749-736-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2	1-15743-148-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: D = 1-15603-068-5	1-15743-149-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: H = 1-15603-122-1	1-15743-154-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: E = 1-15603-114-4	1-15743-155-0	01	1	-9609
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: I = 1-15603-123-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15743-159-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: E = 1-15603-114-4	1-15743-160-0	01	1	9610-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: F = 1-15603-115-2	1-15743-161-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: G = 1-15603-121-2	1-15743-162-0	01	1	-
59	SHIM; SPR,TIMER T=0.10 ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-390-0	AR	1	-
59	SHIM; SPR,TIMER T=0.30 ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-391-0	AR	1	-
59	SHIM; SPR,TIMER T=0.50 ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-392-0	AR	1	-
59	SHIM; SPR,TIMER T=1.00 ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-393-0	AR	1	-
59	SHIM; SPR,TIMER T=0.40 ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-493-0	AR	1	-
59	SHIM; SPR,TIMER T=0.70 ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-068-5, F = 1-15603-115-2, G = 1-15603-121-2, H = 1-15603-122-1, I = 1-15603-123-2, J = 1-15603-201-2, K = 1-15603-202-2, L = 1-15603-203-2, M = 1-15603-209-1, N = 1-15603-370-1	1-15749-494-0	AR	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
