◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ WFR ▶ 50686 - WFR-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP ▶
6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#47228) — 13 parça

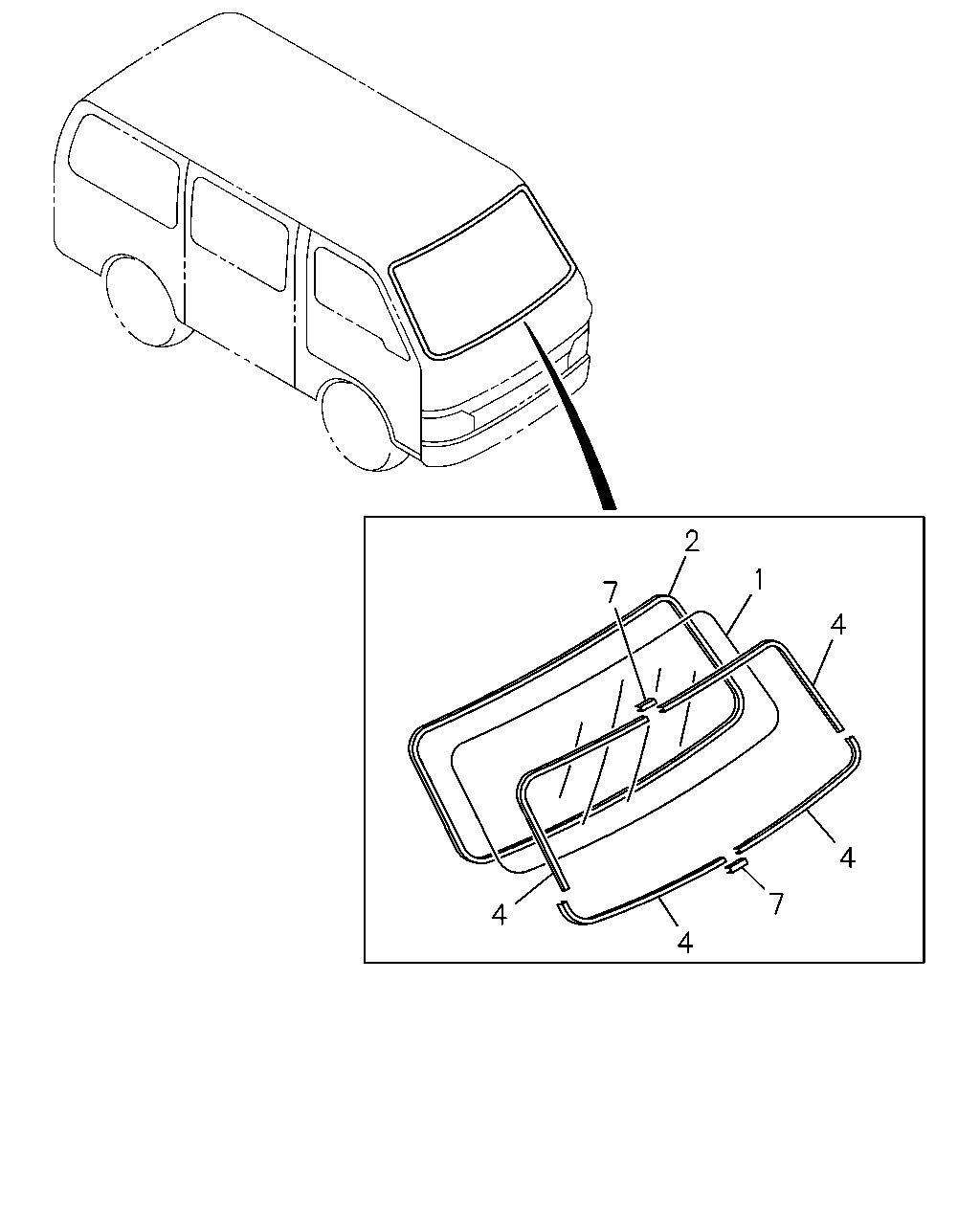

çizim 17550
7 2 1 4 4 7 4 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; WINDSHIELD
BRONZE GLASS(X72) 		8-94411-719-0 01 1 9307- ●
1 GLASS; WINDSHIELD
EXC. BRONZE GLASS(X72),LAMINATED TINTED GLASS(YM4) 		8-94225-559-2 01 1 9307- ●
1 GLASS; WINDSHIELD
EXC. LAMINATED TINTED GLASS(YM4) 		8-94225-559-2 01 1 9307- ●
1 GLASS; WINDSHIELD
LAMINATED TINTED GLASS(YM4) EXC. BRONZE GLASS(X72) 		8-94225-560-1 01 1 9307- ●
1 GLASS; WINDSHIELD
LAMINATED TINTED GLASS(YM4) 		8-94225-560-1 01 1 9307- ●
2 WEATHERSTRIP; WINDSHIELD GLASS
WINDOW MOLDING FRT SIDE RR<B81> 		8-94291-687-3 01 1 9307- ● ●
2 WEATHERSTRIP; WINDSHIELD GLASS
EXC. WINDOW MOLDING FRT SIDE RR<B81> 		8-94291-686-3 01 1 9307- ● ●
4 MOLDING; WINDSHIELD,UPR
WINDOW MOLDING FRT SIDE RR<B81> LOWER 		8-94289-010-0 01 1 9307- ● ●
4 MOLDING; WINDSHIELD,UPR
WINDOW MOLDING FRT SIDE RR<B81> UPPER 		8-94289-626-0 01 1 9307- ● ●
4 MOLDING; WINDSHIELD,UPR
WINDOW MOLDING FRT SIDE RR<B81> UPPER 		8-94289-005-0 01 1 9307- ● ●
4 MOLDING; WINDSHIELD,UPR
WINDOW MOLDING FRT SIDE RR<B81> LOWER 		8-94289-009-0 01 1 9307- ● ●
7 MOLDING; JOINT,WINDSHIELD
WINDOW MOLDING FRT SIDE RR<B81> LOWER 		8-94289-011-1 01 1 9307- ● ●
7 MOLDING; JOINT,WINDSHIELD
WINDOW MOLDING FRT SIDE RR<B81> 		8-94294-000-1 01 1 9307- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
