◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ WFR ▶ 50686 - WFR-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#47227) — 35 parça

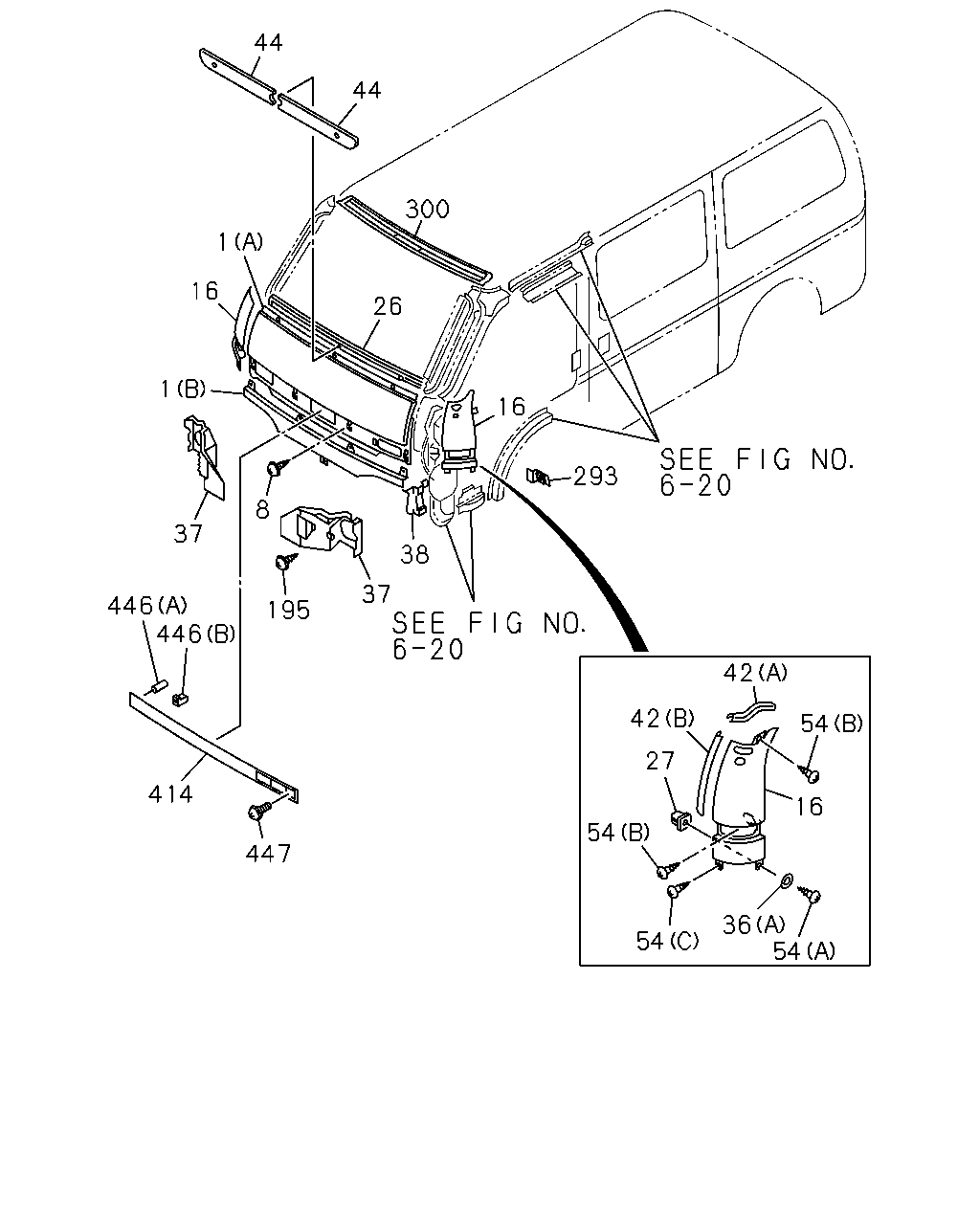

çizim 65997
44 44 300 26 16 293 38 37 195 1 16 1 37 8 446 446 414 447 54 27 42 42 54 16 54 36 54
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-94348-523-0 01 1 9307- ● ●
1 PANEL ASM; FRT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) 		8-94348-220-2 01 1 9307- ● ●
1 PANEL ASM; FRT
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) 		8-94348-218-1 01 1 9307- ● ●
8 SCREW; FRT PANEL 8-94279-369-1 04 1 9307- ● ●
16 PANEL; FRONT,SIDE 8-94348-525-0 01 1 9307- ● ●
16 PANEL; FRONT,SIDE 8-94348-524-0 01 1 9307- ● ●
26 PANEL; REINF,FRT PANEL CENTER,INNER 8-94348-571-0 01 1 9307- ● ●
27 GROMMET; SCREW,FRT PANEL SIDE 5-09983-006-0 02 1 9307- ● ●
36 WASHER; PL
ID=5 		8-94279-129-0 02 1 9307- ● ●
36 WASHER; PL
ID=4.3 OD=14 		9-09160-704-0 04 1 9307- ● ●
37 PANEL ASM; HEADLAMP RIM 8-94348-153-0 01 1 9307-9406 ● ●
37 PANEL ASM; HEADLAMP RIM
4 DOOR BUS(V4Z) 		8-94348-153-0 01 1 9407- ● ●
37 PANEL ASM; HEADLAMP RIM
EXC. EUROPEAN BASIC EQUIPMENT(EK4),ADJUST HEADLAMP<6RC> 		8-94348-153-0 01 1 9407- ● ●
37 PANEL ASM; HEADLAMP RIM 8-94348-149-0 01 1 9307-9406 ● ●
37 PANEL ASM; HEADLAMP RIM
4 DOOR BUS(V4Z) 		8-94348-149-0 01 1 9407- ● ●
37 PANEL ASM; HEADLAMP RIM
EXC. EUROPEAN BASIC EQUIPMENT(EK4),ADJUST HEADLAMP<6RC> 		8-94348-149-0 01 1 9407- ● ●
37 PANEL ASM; HEADLAMP RIM
EUROPEAN BASIC EQUIPMENT(EK4) ADJUST HEADLAMP<6RC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-94348-155-1 01 1 9407- ● ●
37 PANEL ASM; HEADLAMP RIM
EUROPEAN BASIC EQUIPMENT(EK4) ADJUST HEADLAMP<6RC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-94348-151-1 01 1 9407- ● ●
38 BRACKET; HEADLAMP RIM 8-94277-629-3 01 1 9307- ● ●
38 BRACKET; HEADLAMP RIM 8-94277-628-3 01 1 9307- ● ●
42 FINISHER; FRT PANEL,SIDE
(B) 		8-94293-857-1 02 1 9307- ● ●
42 FINISHER; FRT PANEL,SIDE
(A) 		8-94293-858-1 02 1 9307- ● ●
44 DECAL; FRT,CENTER
DECAL BLACK STRIPE(D98) 		8-94353-690-0 01 1 9307- ● ●
44 DECAL; FRT,CENTER
DECAL BLACK STRIPE(D98) 		8-94353-689-0 01 1 9307- ● ●
54 SCREW; DECAL TO PANEL
(A) M5X20 		5-09981-102-0 02 1 9307- ● ●
54 SCREW; DECAL TO PANEL
(B) M6X12 W/LK&PL WASHER 		8-94279-329-0 04 1 9307- ● ●
54 SCREW; DECAL TO PANEL
(C) M6X16 		8-94279-348-0 02 1 9307- ● ●
195 BOLT; HEADLAMP PANEL 1-09980-057-0 02 1 9307- ● ●
293 BRACKET; PANEL 8-94285-501-0 01 1 9307- ● ●
293 BRACKET; PANEL 8-94285-500-0 01 1 9307- ● ●
300 HEADER; FRT PANEL 8-94285-633-0 01 1 9307- ● ●
414 GRILLE; VENTILATOR,FRT PNL
DARK GRAY 		8-94350-078-3 01 1 9307- ● ●
446 CUSHION; GRILLE,VENTILATOR
(A) 		8-94350-982-0 03 1 9307- ● ●
446 CUSHION; GRILLE,VENTILATOR
(B) 		8-94352-107-0 03 1 9307- ● ●
447 SCREW; GRILLE TO PANEL 8-94279-369-1 01 1 9307- ● ●
