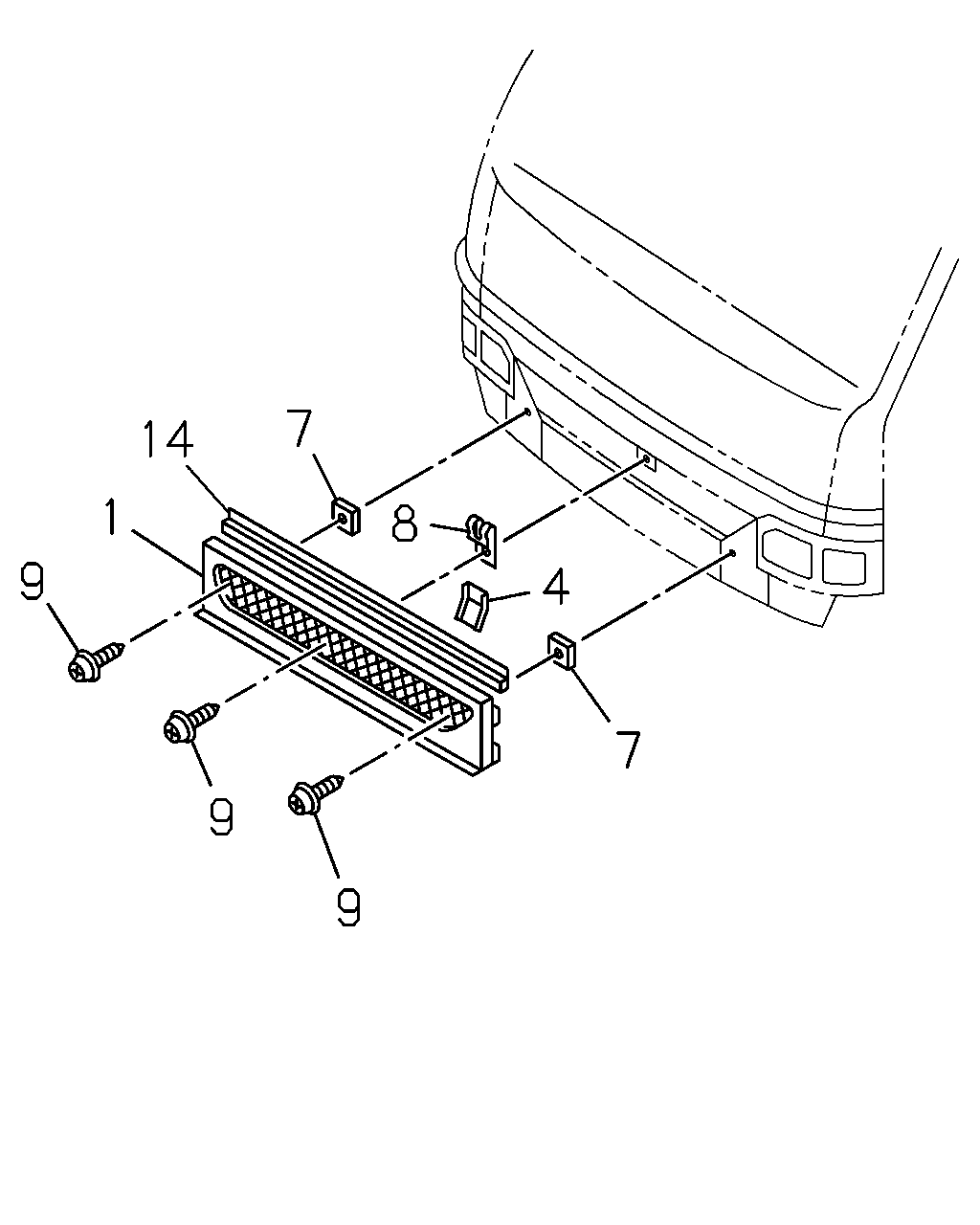

6-03 — RADIATOR GRILLE (#47226) — 15 parça

14 1 9 9 9 7 4 8 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GRILLE; RAD GRADE BASIC(RBA) EXC. ACCESSORY PACK<ET6>,FASHION PACK EXTERIOR<YN3> DARK GRAY	8-94350-652-2	01	1	9307-	●
1	GRILLE; RAD EXC. ACCESSORY PACK<ET6>,FASHION PACK EXTERIOR<YN3> DARK GRAY	8-94350-652-2	01	1	9307-		●
1	GRILLE; RAD BODY COLOR BRILLIANT RED MICA(808) ACCESSORY PACK<ET6> EXC. FASHION PACK EXTERIOR<YN3> DARK GRAY	8-94350-652-2	01	1	9307-	●	●
1	GRILLE; RAD BODY COLOR BRILLIANT RED/ROMANESQUE SILVER(739), BODY COLOR ROMANESQUE SILVER(851),BODY COLOR GALE WIND BLUE/ROMANESQUE SILVER(893) ACCESSORY PACK<ET6> EXC. FASHION PACK EXTERIOR<YN3> DARK GRAY	8-94350-652-2	01	1	9307-	●	●
1	GRILLE; RAD BODY COLOR GALE WIND BLUE(864) ACCESSORY PACK<ET6> EXC. FASHION PACK EXTERIOR<YN3> DARK GRAY	8-94350-652-2	01	1	9307-	●	●
1	GRILLE; RAD BODY COLOR IRON GRAY MET(849) ACCESSORY PACK<ET6> EXC. FASHION PACK EXTERIOR<YN3> DARK GRAY	8-94350-652-2	01	1	9307-	●	●
1	GRILLE; RAD BODY COLOR PURE WHITE(811) ACCESSORY PACK<ET6> EXC. FASHION PACK EXTERIOR<YN3> DARK GRAY	8-94350-652-2	01	1	9307-	●	●
1	GRILLE; RAD BODY COLOR SAND BEIGE(707) ACCESSORY PACK<ET6> EXC. FASHION PACK EXTERIOR<YN3> DARK GRAY	8-94350-652-2	01	1	9307-	●	●
1	GRILLE; RAD FASHION PACK EXTERIOR<YN3>	8-94345-657-2	01	1	9307-	●	●
4	BRACKET; RAD GRILLE	8-94348-408-0	01	1	9307-	●	●
7	NUT; SPIRE,RAD GRILLE	8-94279-164-0	02	1	9307-9406	●	●
7	NUT; SPIRE,RAD GRILLE	8-94279-164-0	01	1	9407-	●	●
8	GROMMET; SCREW,RAD GRILLE M4	5-09470-002-0	02	1	9307-	●	●
9	SCREW; RAD GRILLE M4X20	8-94279-165-0	03	1	9307-	●	●
14	FINISHER; RAD GRILLE L=784 BLACK	8-94345-566-0	01	1	9307-	●	●
