5-01 — FRAME AND OTHER PARTS (#47222) — 30 parça

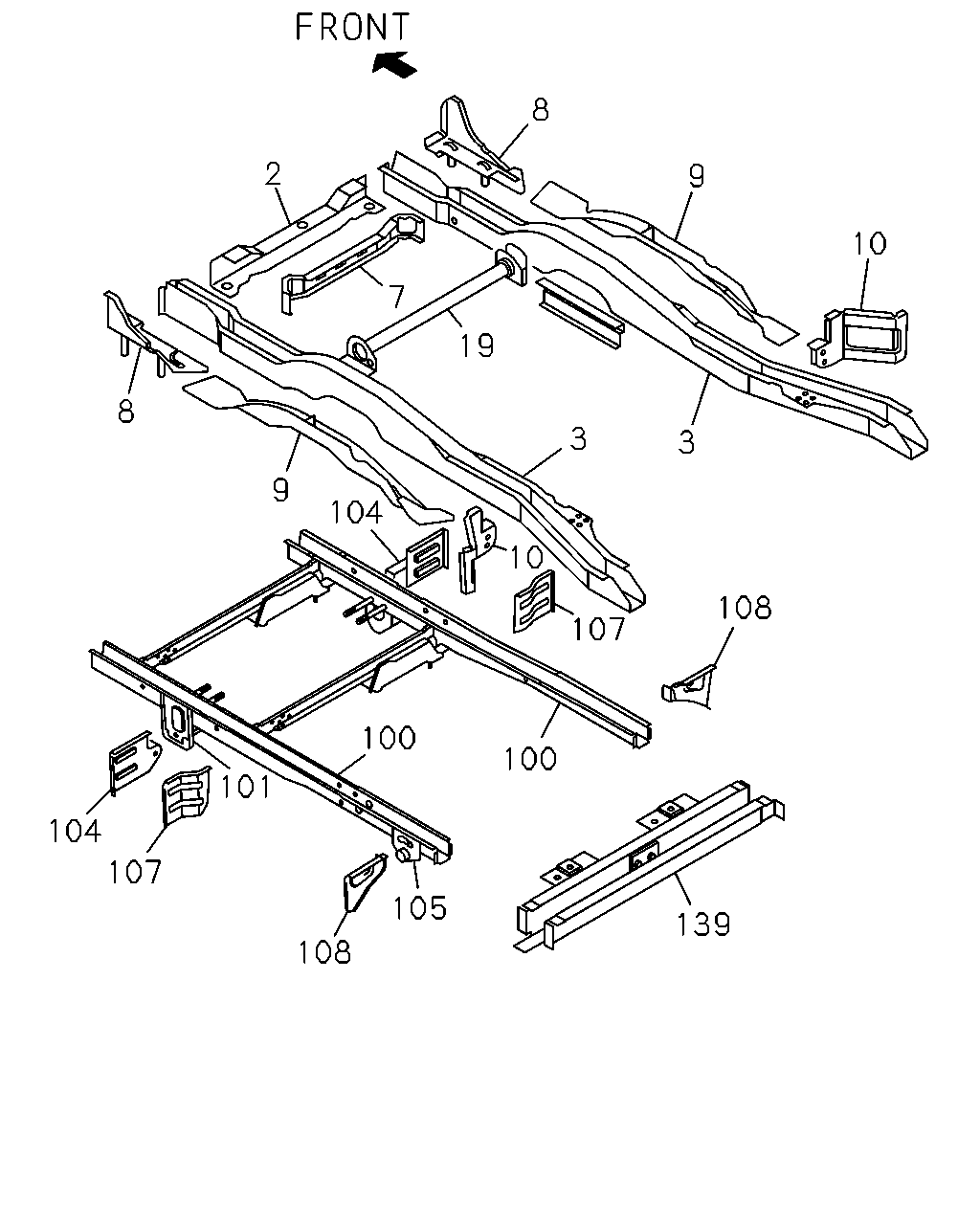

çizim 68552
8 2 9 10 7 19 8 3 3 9 104 10 108 107 100 100 101 104 107 105 139 108
BalonParca AdiParca NoAdetTipApplied Date A B
2 MEMBER; CROSS,1ST 8-94268-317-0 01 1 9307- ● ●
3 MEMBER; SIDE,FRT 8-94346-361-2 01 1 9307- ● ●
3 MEMBER; SIDE,FRT 8-94277-263-3 01 1 9307- ● ●
7 REINFORCEMENT; 1ST C/MBR 8-94346-924-0 01 1 9307- ● ●
8 GUSSET; 1ST C/MBR 8-94277-300-1 01 1 9307- ● ●
8 GUSSET; 1ST C/MBR 8-94290-704-0 01 1 9307- ● ●
9 CLOSING ASM; S/MBR 8-94277-942-4 01 1 9307- ● ●
9 CLOSING ASM; S/MBR 8-94277-754-4 01 1 9307- ● ●
10 CLOSING; STEP,RR 8-94277-339-0 01 1 9309-9309 ●
10 CLOSING; STEP,RR 8-94353-644-0 01 1 9310- ●
10 CLOSING; STEP,RR 8-94277-339-0 01 1 9307-9308 ●
10 CLOSING; STEP,RR 8-94277-338-0 01 1 9307-9309 ●
10 CLOSING; STEP,RR 8-94353-643-0 01 1 9310- ●
10 CLOSING; STEP,RR 8-94353-667-0 01 1 9307- ●
10 CLOSING; STEP,RR 8-94353-666-0 01 1 9307- ●
19 MEMBER; CROSS,2ND 8-94277-911-5 01 1 9307- ● ●
100 MEMBER; SIDE,RR 8-94353-655-0 01 1 9307- ●
100 MEMBER; SIDE,RR 8-94353-654-0 01 1 9307- ●
100 MEMBER; SIDE,RR 8-94353-664-0 01 1 9307- ●
100 MEMBER; SIDE,RR 8-94353-660-0 01 1 9307- ●
101 BRACKET; RR SPR,FRT 8-94274-721-0 01 1 9307- ● ●
104 OUTRIGGER; 3RD C/MBR 8-94292-558-0 01 1 9307- ●
104 OUTRIGGER; 3RD C/MBR 8-94292-557-0 01 1 9307- ●
105 BRACKET; RR SPR,RR 8-94291-164-0 01 1 9307- ● ●
107 OUTRIGGER; 4TH C/MBR 8-94274-715-0 01 1 9309- ● ●
107 OUTRIGGER; 4TH C/MBR 8-94274-715-0 01 1 9307-9308 ● ●
107 OUTRIGGER; 4TH C/MBR 8-94274-714-1 01 1 9307- ● ●
108 OUTRIGGER; 5TH C/MBR 8-94274-717-1 01 1 9307- ● ●
108 OUTRIGGER; 5TH C/MBR 8-94274-716-0 01 1 9307- ● ●
139 MEMBER; CROSS,6TH 8-94268-357-2 01 1 9307- ● ●
